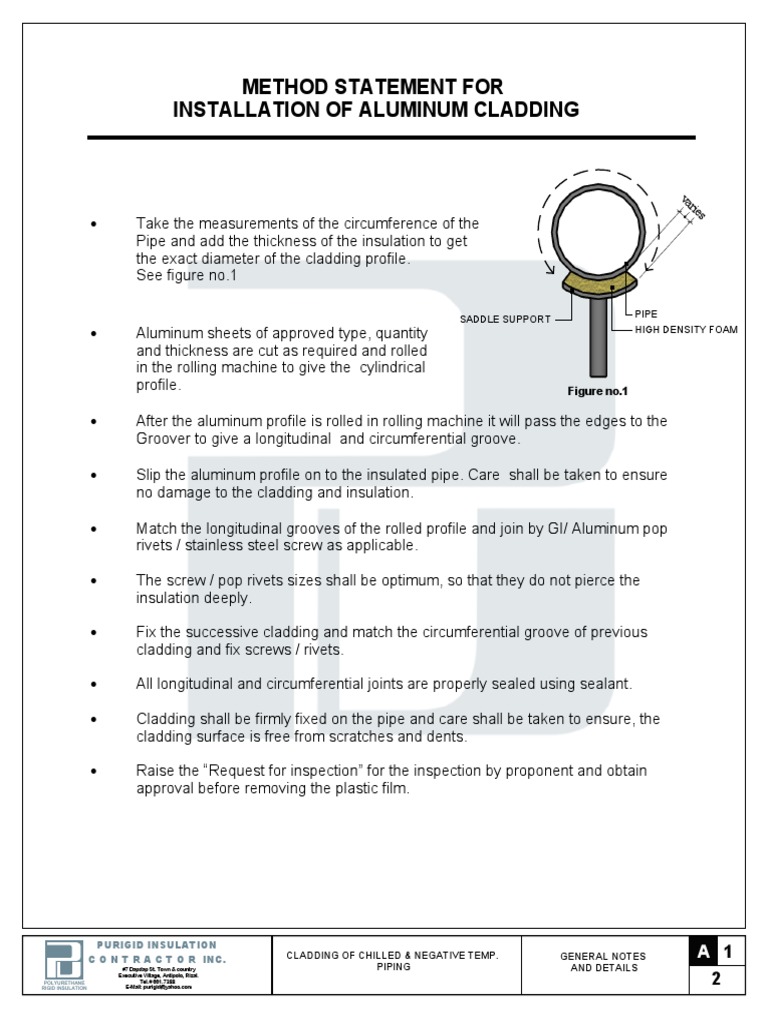

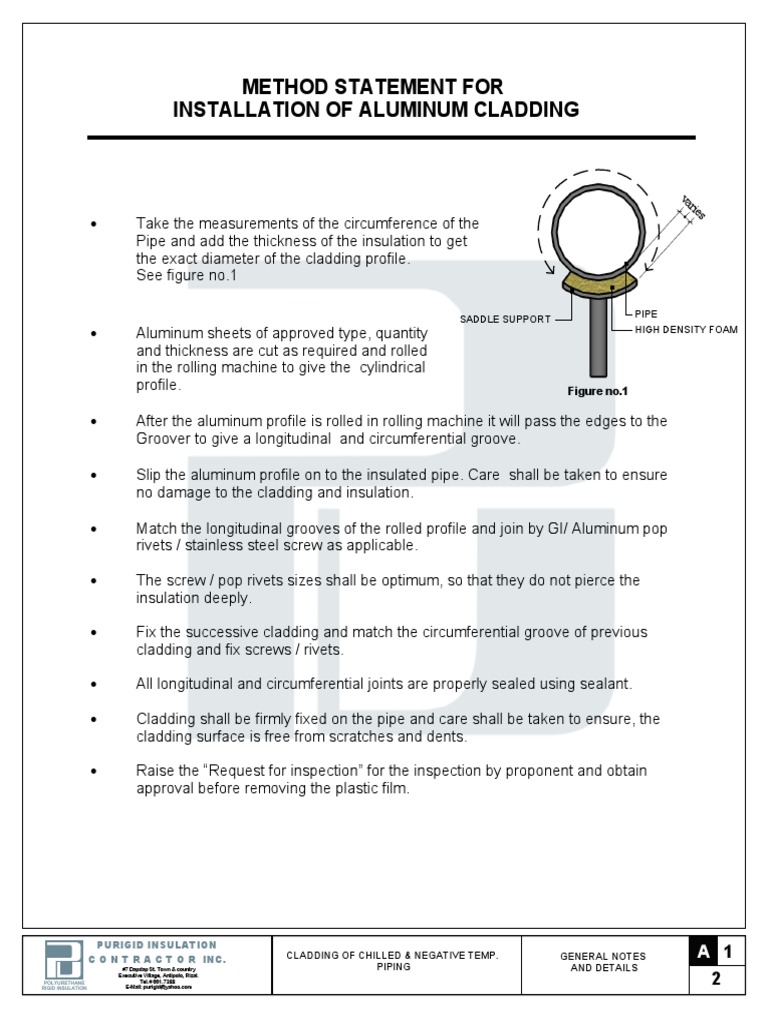

METHOD STATEMENT FOR

INSTALLATION OF ALUMINUM CLADDING

va
rie
s
� Take the measurements of the circumference of the
Pipe and add the thickness of the insulation to get
the exact diameter of the cladding profile.
See figure no.1

PIPE
SADDLE SUPPORT
� Aluminum sheets of approved type, quantity HIGH DENSITY FOAM

and thickness are cut as required and rolled

in the rolling machine to give the cylindrical
profile. Figure no.1

� After the aluminum profile is rolled in rolling machine it will pass the edges to the
Groover to give a longitudinal and circumferential groove.

� Slip the aluminum profile on to the insulated pipe. Care shall be taken to ensure
no damage to the cladding and insulation.

� Match the longitudinal grooves of the rolled profile and join by GI/ Aluminum pop
rivets / stainless steel screw as applicable.

� The screw / pop rivets sizes shall be optimum, so that they do not pierce the
insulation deeply.

� Fix the successive cladding and match the circumferential groove of previous
cladding and fix screws / rivets.

� All longitudinal and circumferential joints are properly sealed using sealant.

� Cladding shall be firmly fixed on the pipe and care shall be taken to ensure, the
cladding surface is free from scratches and dents.

� Raise the “Request for inspection” for the inspection by proponent and obtain
approval before removing the plastic film.

PURIGID INSULATION
C O N T R A C T O R INC. CLADDING OF CHILLED & NEGATIVE TEMP. GENERAL NOTES A 1
#7 Dapdap St. Town & country PIPING AND DETAILS
POLYURETHANE
RIGID INSULATION
Executive Village, Antipolo, Rizal.
Tel.# 661.7388
E-Mail: purigid@yahoo.com
2
 METHOD STATEMENT FOR
INSTALLATION OF ALUMINUM CLADDING

CIRCUMFERENTIAL GROOVE
-CLADDING JOINT
CLADDING

INSULATION

RIVETS

LONGITUDINAL GROOVE

PIPE

DETAILED CLADDING

PURIGID INSULATION
C O N T R A C T O R INC. CLADDING OF CHILLED & NEGATIVE TEMP.
3D PERSPECTIVE
A 2
#7 Dapdap St. Town & country PIPING
POLYURETHANE
RIGID INSULATION
Executive Village, Antipolo, Rizal.
Tel.# 661.7388
E-Mail: purigid@yahoo.com
2
