FIBRE OPTIC

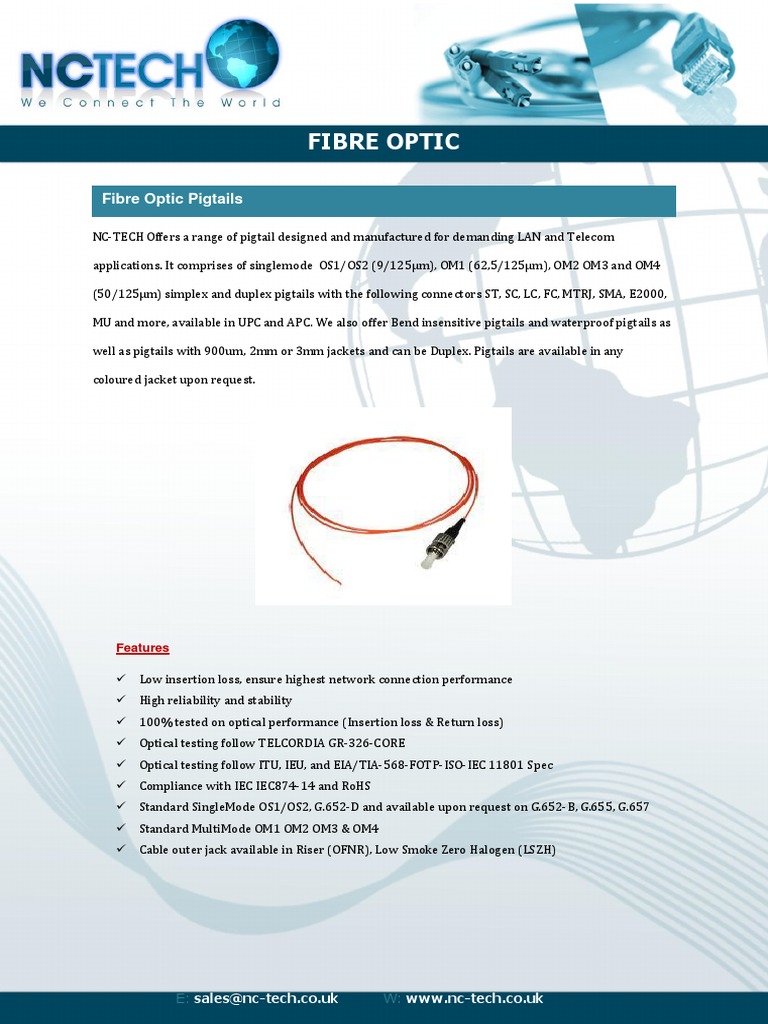

Fibre Optic Pigtails

NC-TECH Offers a range of pigtail designed and manufactured for demanding LAN and Telecom

applications. It comprises of singlemode OS1/OS2 (9/125µm), OM1 (62,5/125µm), OM2 OM3 and OM4

(50/125µm) simplex and duplex pigtails with the following connectors ST, SC, LC, FC, MTRJ, SMA, E2000,

MU and more, available in UPC and APC. We also offer Bend insensitive pigtails and waterproof pigtails as

well as pigtails with 900um, 2mm or 3mm jackets and can be Duplex. Pigtails are available in any

coloured jacket upon request.

Features

 Low insertion loss, ensure highest network connection performance

 High reliability and stability
 100% tested on optical performance (Insertion loss & Return loss)
 Optical testing follow TELCORDIA GR-326-CORE
 Optical testing follow ITU, IEU, and EIA/TIA-568-FOTP-ISO-IEC 11801 Spec
 Compliance with IEC IEC874-14 and RoHS
 Standard SingleMode OS1/OS2, G.652-D and available upon request on G.652-B, G.655, G.657
 Standard MultiMode OM1 OM2 OM3 & OM4
 Cable outer jack available in Riser (OFNR), Low Smoke Zero Halogen (LSZH)

E: sales@nc-tech.co.uk W: www.nc-tech.co.uk
 FIBRE OPTIC

Application

Optical test Equipment

Interconnection between distribution centre and O/E Equipment

Long Span Optical Communication System

LAN, WAN & Telecommunications Networks

Voice & Image Applications

CATV

E: sales@nc-tech.co.uk W: www.nc-tech.co.uk
 FIBRE OPTIC

Multimode Fibre Optic Pigtails Specifications

ST MTRJ
SC Connectors LC Connectors FC Connectors
Connectors Connectors

Insertion Loss dB at
˂0.2 ˂0.2 ˂0.2 ˂0.5 ˂0.2
850 nm

Min Bandwidth
˃800 ˃800 ˃800 ˃800 ˃800
Mhz/Km at 1300nm

Attenuation Max dB at
˂2.8 ˂2.8 ˂2.8 ˂2.8 ˂2.8
850nm

Attenuation Max dB at
˂0.8 ˂0.8 ˂0.8 ˂0.8 ˂0.8
1300nm

Outer Diameter mm 0.9 0.9 0.9 0.9 0.9

IEC874-14 IEC874-14 IEC874-14 IEC874-14 IEC874-14

Material of Sheath
LSZH LSZH LSZH LSZH LSZH

Operating Temp -40 to +85°C -40 to +85°C -40 to +85°C -40 to +85°C -40 to +85°C

E: sales@nc-tech.co.uk W: www.nc-tech.co.uk
 FIBRE OPTIC

Singlemode Fibre Optic Pigtails Specifications

ST SC LC MTRJ FC

Connectors Connectors Connectors Connectors Connectors

Insertion Loss dB at
˂0.2 ˂0.2 ˂0.2 ˂0.5 ˂0.2
850 nm

Return Loss dB at
˃50 ˃50 ˃50 ˃30 ˃50
1310 nm

Dispersion Coef
˂3.0 ˂3.0 ˂3.0 ˂3.0 ˂3.0
nm/Km at 1310nm

Dispersion Coef
˂18.0 ˂18.0 ˂18.0 ˂18.0 ˂18.0
nm/Km at 1550nm

Attenuation Max dB at
˂4.0 ˂4.0 ˂4.0 ˂4.0 ˂4.0
1310nm

Attenuation Max dB at
˂3.0 ˂3.0 ˂3.0 ˂3.0 ˂3.0
1550nm

Outer Diameter mm 0.9 0.9 0.9 0.9 0.9

IEC874-14 IEC874-14 IEC874-14 IEC874-14 IEC874-14

Material of Sheath
LSZH LSZH LSZH LSZH LSZH

Operating Temp -40 to +85°C -40 to +85°C -40 to +85°C -40 to +85°C -40 to +85°C
