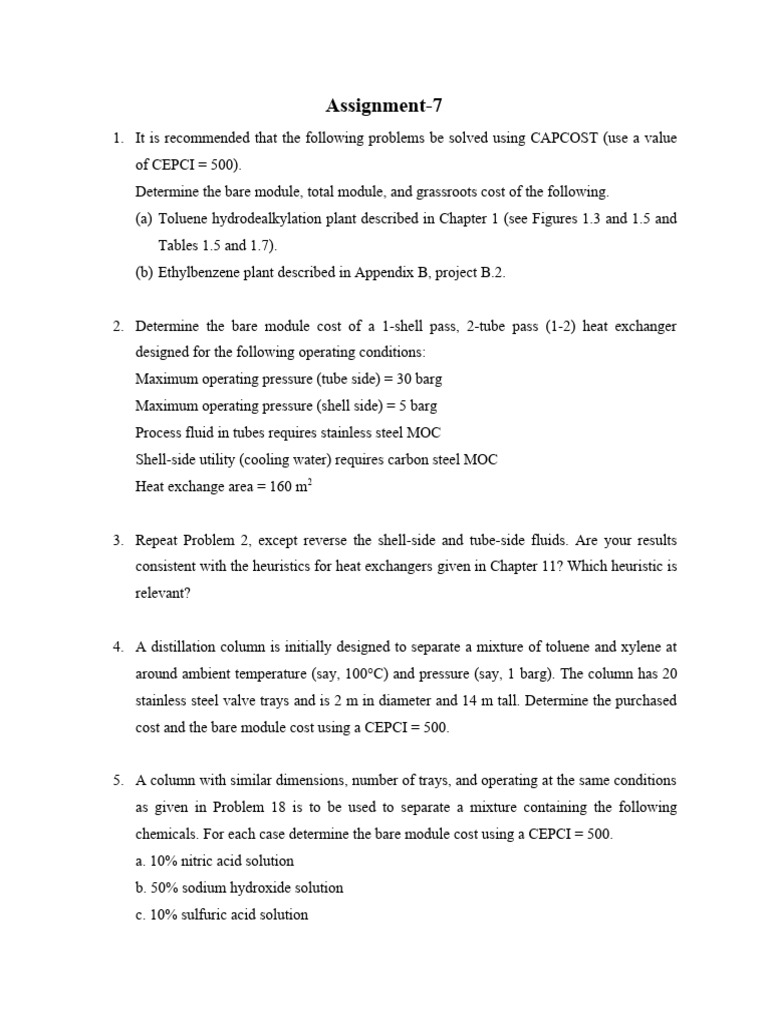

Assignment-7

1. It is recommended that the following problems be solved using CAPCOST (use a value
of CEPCI = 500).
Determine the bare module, total module, and grassroots cost of the following.
(a) Toluene hydrodealkylation plant described in Chapter 1 (see Figures 1.3 and 1.5 and
Tables 1.5 and 1.7).
(b) Ethylbenzene plant described in Appendix B, project B.2.

2. Determine the bare module cost of a 1-shell pass, 2-tube pass (1-2) heat exchanger
designed for the following operating conditions:
Maximum operating pressure (tube side) = 30 barg
Maximum operating pressure (shell side) = 5 barg
Process fluid in tubes requires stainless steel MOC
Shell-side utility (cooling water) requires carbon steel MOC
Heat exchange area = 160 m2

3. Repeat Problem 2, except reverse the shell-side and tube-side fluids. Are your results
consistent with the heuristics for heat exchangers given in Chapter 11? Which heuristic is
relevant?

4. A distillation column is initially designed to separate a mixture of toluene and xylene at

around ambient temperature (say, 100°C) and pressure (say, 1 barg). The column has 20
stainless steel valve trays and is 2 m in diameter and 14 m tall. Determine the purchased
cost and the bare module cost using a CEPCI = 500.

5. A column with similar dimensions, number of trays, and operating at the same conditions
as given in Problem 18 is to be used to separate a mixture containing the following
chemicals. For each case determine the bare module cost using a CEPCI = 500.
a. 10% nitric acid solution
b. 50% sodium hydroxide solution
c. 10% sulfuric acid solution
d. 98% sulfuric acid solution
Hint: you may need to look for the relevant MOC for part (d) on the Internet or another
resource.
