ISO Container specification

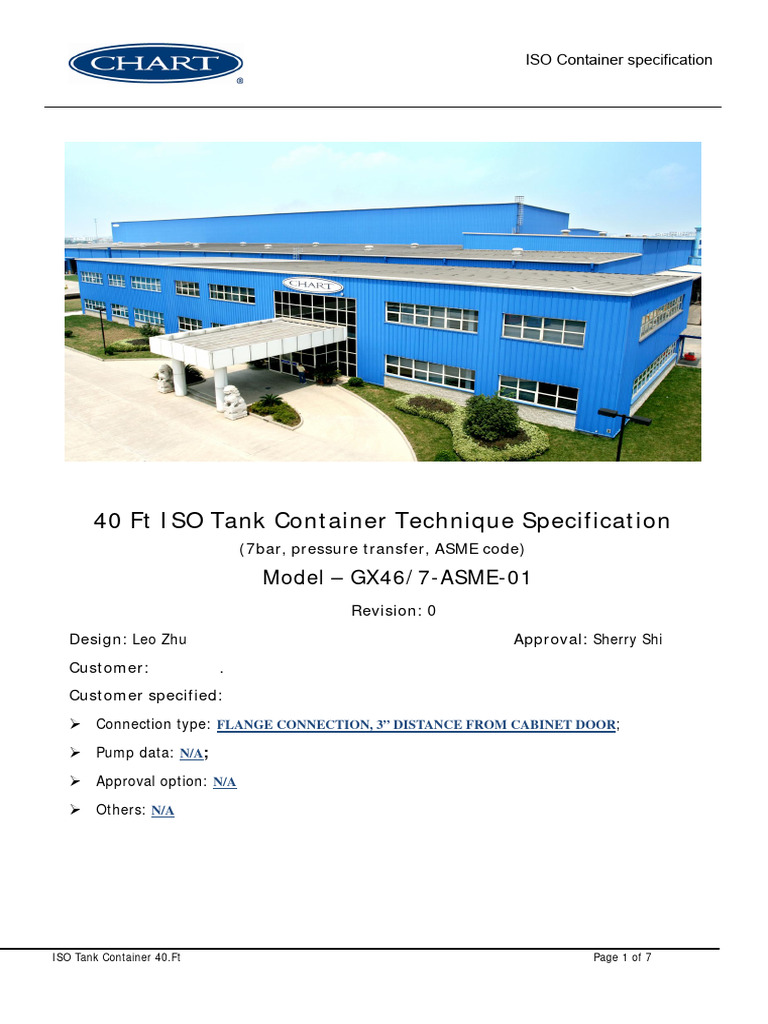

40 Ft ISO Tank Container Technique Specification

(7bar, pressure transfer, ASME code)

Model – GX46/7-ASME-01
Revision: 0
Design: Leo Zhu Approval: Sherry Shi
Customer: .
Customer specified:
 Connection type: FLANGE CONNECTION, 3” DISTANCE FROM CABINET DOOR;
 Pump data: N/A;
 Approval option: N/A
 Others: N/A

ISO Tank Container 40.Ft Page 1 of 7

 ISO Container specification

1. General
Type of product: Intermodal ISO tank container
Design code: ASME Ⅷ, Division 1(2013 Edition). CGA341-2007
ISO1496-3, ADR, RID, IMDG, UIC, CSC
Approval： T75, CSC, UIC, ADR, RID, DOT49CFR, TC
Third Inspector: BV&HSB
Size of frame: 40Ft ISO container
Stacking allowable mass: 192,000 Kg
Maximum Gross weight: 34,000 Kg
Dimension: 2,591mm*2,438mm*12,192mm
Data sheet:

Container designation GX40/7-ASME-01

MAWP 7 Bar

Gas service LNG

Gross capacity 46.1M3

Tare weight ~12850Kg

Max. G.W 34000Kg

2. Pressure vessel
Design code: ASME Ⅷ , 2013 Edition, Division 1
Material: Stainless Steel, SA-240 TP304;

ISO Tank Container 40.Ft Page 2 of 7

 ISO Container specification

Min. design temperature: -196℃

Max. design temperature: 50℃
Annular piping: Stainless Steel, ASMESA-312Type304 , Sch.10;

3. Outer Jacket
Design code: CGA341-2007
Design temperature: -20℃/50 ℃
Material: Carbon Steel , ASME/GB713 Q345R
Insulation:
Type of Insulation: Vacuum, Multi-Layer super insulation
Shipping vacuum: Less than 0.3 Pa;
NER: 0.24% in LIN
Holding time: 100 days at 87%

4. Plumbing
Flow schematic: See appendix 1
Valve types: main operational valves - Herose SS Body globe valve
Piping material: Stainless Steel, ASMESA-312 Type304
Pressure build-up coil: Aluminum star fin tubes with SS core tube, flowrate
100Nm3/h;
Pump: N/A;
Connection type: Flange, option is CGA connection;

5. Documentation
Dossier: Two copies of tank dossier in English;
Manuals: Two copies of operation manual in English;

6. Miscellaneous
ISO Tank Container 40.Ft Page 3 of 7
 ISO Container specification

Cabinet: Stainless steel frame, aluminum door;

Frame material: Carbon steel;
Hose and hose tube carrier: Not included;
Paint: Jotun/PPG, 220μm, RAL 9016, white;
Inner vessel and piping cleanness: according to QC0711.12.1-14(0)
Marking: In line with code requirement;
Lettering: According with client’s request and mandatory markings;

 Appendix 1 –Flow Diagram

ISO Tank Container 40.Ft Page 4 of 7

 ISO Container specification

ISO Tank Container 40.Ft Page 5 of 7

 ISO Container specification

 VALVES AND INSTRUMENTS LIST

No. Function size Manufacture

V1 VALVE , BOTTOM FILL 2” HEROSE

V2 VALVE , TOP FILL 1-1/2” HEROSE
V3 VALVE , LIQUID TO PBC 1” HEROSE
V4 VALVE , GAS FROM PBC 1-1/2” HEROSE
V5 VALVE , GAS RECIRCULATION 1-1/2” HEROSE
V6 VALVE , MANUAL VENT 1-1/2” HEROSE
V13 VALVE, GAS PHASE 1/4”MNPT SWAGELOK
V12 VALVE, EQUALIZER 1/4”MNPT SWAGELOK
V11 VALVE, LIQUID PHASE 1/4”MNPT SWAGELOK
V15 VALVE, DRAIN 3/8”FPT REGO
DV1 VALVE, DRAIN 3/8”FPT REGO
DV2 VALVE, DRAIN 3/8”FPT REGO
EV1 VALVE, WITHDRAWAL FIREBLOCK LINE 2” MECA-INOX
V14 VALVE, VACUUM PROBE ISOLATION 1/8”MNPT HASTING
TC1 VACUUM GAUGE PORT 1/8” HOKE
EP EVACUATION PORT 3-1/2” CHART
TV1~3 VALVE, TRYCOCK 3/8”FPT REGO
HC1 CONNECTION, FILL /DISCHARGE 2” FLANGE CHART
HC2 CONNECTION, GAS PHASE 1-1/2” FLANGE CHART
P1 INNER VESSEL PRESSURE GAUGE 1/4” WIKA
LL1 LIQUID LEVEL INDICATOR 1/4” WIKA
R-2 JACKET SAFETY DIVICE 6 CHART
SV1A,B SAFETY VALVE 1.5”MPT*2”FPT HEROSE
SV2-5 VALVE, RELIEF 1/4” GENERANT
PBC PRESSURE BUILD COIL 1” * 1-1/2”

ISO Tank Container 40.Ft Page 6 of 7

 ISO Container specification

 OPTION 1—DIVERTOR VALVE

No. Function size Manufacture

V10 VALVE, 3-WAY DIVERTOR 1-1/4” BESTOBELL

 OPTION 2-- PBU FIREBLOCK LINE

No. Function size Manufacture

EV2 VALVE, PBU FIREBLOCK 1” MECA-INOX

SV7 VALVE, RELIEF 1/4” GENERANT

ISO Tank Container 40.Ft Page 7 of 7
