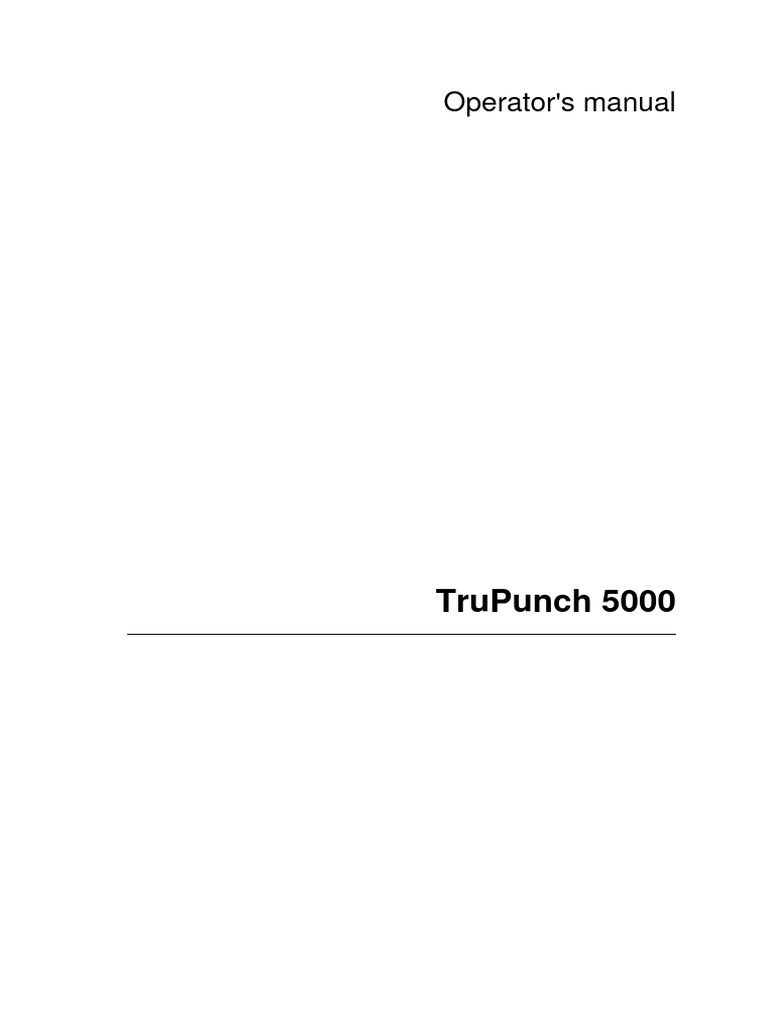

TruPunch 5000
Operator's manual
TruPunch 5000
Operator's manual
TruPunch 5000
Edition 2008-11-01
Document number B380
Chapter 1 Safety
Responsibilities.......................................................................... 2-3
Chapter 4 Operation
Safety
1. For your safety............................................................... 1-3
Note
Please also observe any general safety regulations and accident
prevention regulations which are not included in this safety
information.
Danger zone - TruPunch 5000 ... is the area within and around the machine where the safety or
health of persons is at risk. The danger zone comprises the area
which can be crossed by the transverse rail with a workpiece
(centered on the rail) that corresponds to the working range of the
machine, with an additional margin of 500 mm on all sides.
Danger zone - automation ... is the range of the SheetMaster which can be covered by the
vacuum carriage while carrying a workpiece with the suction cups,
with an additional margin of 500 mm on all sides.
The danger zone should be protected by appropriate safety
devices (e.g. fences, light barriers).
User/owner ... is the person on whose operating site the system is set up and
operated.
Operator/personnel ... are the persons responsible for the transportation, installation,
start-up, operation and maintenance (including cleaning) of the
machine and for the elimination of malfunctions and putting the
machine into service.
The system has been constructed with the latest technology and is
safe to operate.
The system can become a source of danger if it is used
inappropriately or other than intended:
• Dangers to the safety of the operator.
• Impairment of the system and other property of the user.
• Impairment of the working efficiency of the system.
TruPunch 5000 The TruPunch 5000 R is a CNC controlled sheet metal working
machine for punching, nibbling and forming flat workpieces made
of steel, copper, aluminum and corresponding alloys. Standard
values for the evenness of metallic material for hot rolled steel
sheets are DIN EN 10051 (Table 7, "Limited deviations" and DIN
EN 10029 (Table 5, class S). For cold rolled steel sheets, DIN EN
10131 applies (Tables 6 and 7, in each case "Limited tolerance
class").
No liability is assumed for Any other form of use is regarded as other than intended. The
unauthorized use manufacturer is not liable for damage or injuries resulting from
such improper use; the owner has sole responsibility in this
respect.
Note
Please observe the warnings!
Follow the dos and don'ts given in the warnings. They are for your
own safety.
Symbols
The warnings in the left column have symbols indicating the type of
danger.
The warnings contain information about the source and type of the
danger and instructions on how to behave in order to avoid such
dangers.
Example:
Safety devices and danger • The system may only be operated with the appropriate safety
zones of the system devices used to secure the danger zone.
• Safety devices must not be dismantled or switched off. If,
however, this is required for maintenance or repair work,
reinstall the safety devices immediately after finishing the work
and restore them to service.
• The light barrier must be checked for operability once per shift
(ideally before beginning production).
• The light barrier must also be tested for operability:
– If the arrangement of light transmitter and light receiver has
been changed.
– After all maintenance or service work on the light barrier.
Note
The operator must always make sure nobody is within the danger
zone before the system is started up. If he enters the danger zone
himself, he must take off the "feed hold ON/OFF" key on the
control panel and keep it safe.
Machining oversized sheets When equipped with a safeguarding device, the machine can be
used to process sheet formats of sizes 2500 x 1260 mm
(TruPunch 5000, medium format) and 3048 x 1570 mm
(TruPunch 5000, large format).
Side tables are required to support the sheet when machining
oversized sheets. In this case, special table extensions have to be
installed at the machine. The user is responsible for the
appropriate selection and installation of the side tables and for
securing the enlarged danger zone.
Observing the shutdown The prescribed shutdown procedures must be adhered to for all
procedure work regarding transport, installation, start-up, operation,
maintenance and repairs:
• The system must always be switched off using the main
switch, the main switch must be locked and the key must be
removed during setting, maintenance or repairs. Any
exceptions to this rule requiring that the system remain
switched on during corresponding work are specified in the
Operator's manual.
• The accumulator must be depressurized prior to any work on
the hydraulic system, punching head, die adapter or clamps to
avoid any residual pressure. The following sign indicates
dangers concerning the hydraulic pressure:
Original parts and Original parts and accessories have been designed specially for
accessories the system. Spare parts for original parts and accessories other
than those supplied by the manufacturer of the system have not
been checked and approved by the manufacturer. The installation
and/or use of such products may therefore possibly change the
original design characteristics of the system and impair safety.
Note
The manufacturer accepts no liability for damage caused by the
use of non-original parts and accessories or by the incorrect
installation or replacement of original parts and accessories.
Water protection
Cooling water Cooling water may only be discharged together with waste water in
agreement with the local waste disposal authority.
Note
The operator must always make sure nobody is within the danger
zone before the system is started up. If he enters the danger zone
himself, he must take off the "feed hold ON/OFF" key on the
control panel and keep it safe.
EMERGENCY STOP impact EMERGENCY STOP triggers the following machine functions:
button • The power supply to the system is interrupted (24 V control
voltage is retained).
• All axes motions stop.
Stripper detection The machine is equipped with a scanner, near the punching head,
for detecting the stripper.
This scanner operates using a class 2 laser in accordance with EN
60825-1.
Wavelength 655 nm
Max. output < 4.0 mW
Pulse duration 5 μs
Laser class Class 2
Technical specifications of the laser Table 1-3
Magnetic flux density The magnetic flux density is at its highest with about 180 mT
(millitesla) at the front surfaces of the expanding magnets. The
magnetic flux density falls proportionally to the square of the
distance. The value is approximately 0.3 mT at a distance of
20 cm.
Fig. 19425
• ShearMaster: -
– Blades down to the kerf setting.
– Cutting movement of the blades
down.
– Sharp-edged scrap skeleton or parts Wear work gloves
of it in the scrap bucket.
– Cutting along the blade edges when
working on the blade.
Shearing • Scissor table. Risk of injury -
• ToolMaster (40/70):
– Using the tools in the tool adapter in
the rotary plate/transverse rail.
• ShearMaster: Wear work gloves
– Blades down to the kerf setting.
– Cutting movement of the blades
down.
Getting caught or due to • ToolMaster (40/70): Risk of injury -
winding – Rotational movement of the rotary
plate.
– Driving pinion for the toothed wheel
rotary plate.
• ShearMaster:
– Conveyor belt in the working stroke.
– Conveyor belt in the upstroke.
• ToolMaster (40/70): -
• Rotational movement of the swivel arm.
• ShearMaster:
– Conveyor belt in the upstroke.
Electrical system
Electric contact • Directly with normally live parts. Risk of fatal injury -
• Indirect contact with parts which are live
when faulty.
Noise
Damage to hearing • Punching/nibbling. Health risk Use whispertools
• Skeleton removal. Wear hearing
protection
Hazards due to substances
Contact with or inhaling of • Tool spray lubrication. Health risk • Use lubricants
toxic fluids, gases, mist, sparingly.
fumes or dust • Ventilate the work
station well.
TruPunch 5000
Installation Conditions
Drawing number: 9120-5-20.EN
Material number: 967914
Customer All the conditions described in this chapter must be fulfilled before
the machine is delivered.
If this is not the case, the TRUMPF Service personnel will not be
able to put the system into service.
Note
The main switch on the machine may only be switched on by
TRUMPF service personnel.
TRUMPF Service The machine is put into service by TRUMPF Service technicians.
This includes:
• Installing, aligning, leveling and securing the machine.
• Filling oil.
• Connecting the machine to the supplies (with the exception of
the electrical power supply).
• Performing a functional test.
• Instructing personnel.
Note
• In case of air freight, the hydraulic oil is separately delivered. In
this case, it is necessary to fill the oil. An oil pump is included
in the scope of delivery. Except the exception mentioned
below, the oil is already in the hydraulic oil tank.
• Due to the dangerous goods regulations, the machine must be
delivered without filling in some countries. This exceptional
regulation is referred to at the end of the contract.
30 31
The planning aid is intended to provide you with an overview of the
measures to be taken and preparations to be made by the
customer.
Detailed information can be found in the respective sections of the
installation conditions.
Installation surface • The entire installation surface of the machine and the
SheetMaster must consist of a continuous base plate with a
smooth surface in the area of the load-bearing points. This
applies in particular to the area around the wedge mounts.
• The floor must be oil-proof (Water Resources Act).
Note
External influences due to changing loads in the immediate vicinity
of the system can affect the quality of the workpieces. These
include, for example:
• Fork lifts, industrial trucks, etc.
• The installation or removal of other machines in the immediate
vicinity of the system.
• The operation of machines that excite vibrations, such as
punch presses etc.
• The maximum permissible acceleration at the support points of
the laser (or basic machine) is 0.1 x the acceleration due to
gravity.
Note
Calculations must be made by a structural analyst if these
requirements are not met or bearing technology is used!
Note
In punching mode, the wedge mount installation places an
additional dynamic load on the support points P3 and P4.
In the case of air-cushioned installation (optional), the dynamic
load on the support points is reduced by about 80 %.
Structural stress analysis • Subject the load capacity of the floor to a structural stress
analysis prior to the installation.
• Take into account the weights of the relevant components and
the load on the support points.
642
440
440
642
3060
P1 P2
642
390
390
642
P4
P3
475
Ambient temperature for the Acceptable ambient temperature for the operation of the machines:
machine • +10 to +40 °C
Ambient conditions for the Acceptable humidity for the control system during transport or
control system when the machines are switched off:
• 20 to 75 % relative air humidity.
¾ Make sure the air inlet and outlet openings are free. The
distance to the wall or the nearest device must be at least
200 mm.
Control panel cooling The control panel is cooled by means of two fans. Filter mats
prevent dirt particles from entering the control panel.
TruPunch 5000 Air impurities from nearby machines or systems (e.g. welding
machines, cleaning stations etc.) can cause malfunctions. Secure
intake of the sheet by the SheetMaster cannot be ensured if there
is a large amount of dust on the sheet surfaces or if they are very
dirty.
Residual current protective Only type B is permitted if a residual current circuit breaker is used
device on the line side for protection against direct or indirect contact (see
EN 50178 Section 5.2.11.2; VDE 0160, April 1998). TRUMPF
recommends devices from the RCMA series of Messrs. Dipl. Ing.
W. Bender GmbH & Co. KG or devices from the DFS 7B series of
Messrs. Doepke Schaltgeräte GmbH & Co. KG.
If, when using a fault current circuit breaker, the machine's leakage
current is greater than the set fault current, the machine and the
network must be separated by an isolating transformer (see EN
50178 Pt. 5.2.11.1; VDE 0160, April 1998 edition).
¾ Install an isolating transformer if the leakage current of the
machine is higher than the set fault current when using a
residual current circuit breaker.
600 mm
1
800 mm
2
Note
If a TruPunch 5000 without active die is replaced with a
TruPunch 5000 with active die, the electrical connection must be
rechecked as regards the connected load and the fuse protection.
Personal hub (network A personal hub (network distributor) is required if several machines
distributor) are to be integrated in the network. It can be found in the control
cabinet of the machine and must be supplied with AC current by
the customer, since the distributor function must even be ensured
when the machine is switched off.
Note
When using a personal hub (network distributor), the tolerances of
the nominal voltage and the frequency apply (see section 3,
page 12).
Tip
A compressed air reservoir with a condenser drain with an
upstream non-return valve improves the compressed air supply
considerably.
In addition, we recommend that the non-return valve is protected
by a filter.
The installation of a 3/2 directional manually operated ball cock is
recommended in order to separate the compressed air reservoir
from the compressed air network for maintenance work on the
SheetMaster.
Note
• Hydraulic oil is delivered separately when air freight is used. In
this case, it is necessary to fill the oil. An oil pump is included
in the scope of delivery. Except the exception mentioned
below, the oil is already in the hydraulic oil tank.
– Due to the dangerous goods regulations, the machine
must be supplied empty in some countries. This
exceptional regulation is referred to at the end of the
contract.
• The hydraulic tank of the hydraulic system of the machine
should be filled only with filtered oil. The filters used for this
purpose must have a filter pore size of 6 μm.
Cooling water is needed for cooling the driver motors for the
coordinate guidance and to cool the machine body.
Note
The scope of delivery of the machine includes "Easy-Kit Drives" for
preparation of demineralized water. Easy-Kit Drives contain
substances for corrosion protection, protection against
bacteria/algae and for cleaning.
Caution
5.3 Materials
Evenness of metallic The following recommended values apply for the evenness of
materials metallic materials:
• Hot rolled steel sheets:
– DIN EN 10051 (Table 7, "Reduced deviations")
– DIN EN 10029 (Table 5, class S)
• Cold rolled steel sheets:
– DIN EN 10131 (Tables 6 and 7, each with a "reduced
tolerance class")
Tip
Use European standard pallets with a standard height of 150 mm.
Stripper monitor The machine is equipped with a sensory stripper monitor. A light
sensor on the punching head is used to determine whether the
stripper is available.
If older cartridges are used, the light beam is interrupted by a
stripper arm on the cartridge. The cartridge must be ground using
the template which is delivered with the accessories.
If no opportunity to post-process the cartridges on site exists,
please contact TRUMPF.
Newer metal cartridges made from precision casting can be
recognized by their magnetic laminas which can be written on.
They are delivered with the machine and do not need to be post-
processed.
RTC cartridges (Rapid Tool Change) are not affected by this
measure.
Post-processing tool
cartridges
Both are not compatible with the previous tools in the way they
are used, for example, with the TC 200 R, TC 500 R and TC 600.
The arrangements and transport of the system from the truck to its
final installation site need to be prepared and carried out.
In particular, gates, header heights, cable rack heights, ground
conditions for armored rollers etc. must be checked.
1
Without transport girders.
Note
The floor of the installation site must be designed to fulfill the
requirements (see section 2.2, p. 6).
Machine delivery
Suspended load
Entering the danger zone can result in serious injuries or
death.
Warning ¾ Observe the applicable safety regulations regarding the
handling of heavy loads.
¾ Never walk under a suspended load.
¾ Employ qualified technicians to transport the machine.
Note
A crane truck of greater carrying capacity must be used however, if
a larger lever arm is required due to the conditions on site.
85 mm
85 mm
mm
80
110 mm
80mm
250 mm
¾ Unload the machine using the crane truck while removing the
wooden girders from the machine feet as long as the machine
is hanging from the crane shackle.
TruPunch 5000 with ¾ Unload the SheetMaster only using the eyebolts which are
SheetMaster attached to the frame.
TruPunch 5000 with ¾ Transport the SheetMaster into the factory on armored rollers.
SheetMaster
¾ Transport the control cabinet of the SheetMaster with a forklift.
Note
The machine may not be pushed on the ground when the air
cushion elements are installed.
Description
1. The machine concept .................................................... 3-4
Fig. 54425
Loading Your machine operator loads the required tools into the linear
magazine. Afterwards, he places the sheet on the machine table –
manually or with the aid of the SheetMaster.
Part removal Your workpieces can be ejected directly into a parts container
through a parts flap 500 x 500 mm in size. Larger parts are
removed manually or with the aid of the SheetMaster.
Process safety and accuracy The machine is equipped with a number of sensors which monitor
the different processes during machining. That offers you safety,
particularly in terms of unmanned production:
• The clamp sensor system monitors whether the clamps are
holding a sheet.
• The tools of the linear magazine are also monitored by
sensors:
– The correct height of the punch is calculated.
– The presence of punch, stripper and die is checked.
• The tool adapter on the punching head is equipped with
sensors:
– The presence of stripper and die is checked during tool
changes.
– A check is made to see whether an RTC or a metal tool
cartridge is being used. The acceleration is then
automatically adjusted.
– In addition, the stripper segment is checked for damage.
• The parts flap on the machine allows for part removal of parts
up to 500 x 500 mm. An air blast assist provides for additional
process consistency.
The TruPunch 5000 of course meets the basic safety and health
requirements of the EU Machinery Directive 98/37/EU. This is
confirmed by the EC declaration of conformity and the CE machine
identification.
Precise with low maintenance • The ram has its own NC-controlled axis that automatically
requirements adapts the starting and reversing points of the ram movements
to the sheet thickness. The regrind amount of the punch is
compensated by means of the tool length compensation unit.
• The wear-resistant, extremely long hydrostatic ram guidance
guarantees high dimensional accuracy and tool life.
• The single station tool adapter enables you to perform off-
center machining.
Variable tool rotation The rotation of the tool adapter with up to 5.5 revolutions/s permits
continuous rotation of all tools at any angle.
Easy and quick tool loading The linear magazine offers magazine stations for tools and clamps
along the X-axis. The magazine stations can have variable loads:
• TruPunch 5000 (medium format): 18 tools and 3 clamps.
• TruPunch 5000 (large format): 21 tools and 4 clamps.
Fig. 26178
High dimensional accuracy Digital drives are not affected by interference caused by electrical
fields. Pinions and racks interlocked at an angle improve the ability
to withstand stress and provide for a greater stiffness of the drive
system than straight toothing. They also make less noise.
High positioning speeds The low rotor inertia enables the highly dynamic acceleration
performance and the high positioning speeds.
Quick and reliable • The finished parts are removed directly via the fixed chutes or
the programmable part flaps resulting in short push-out paths
and times.
• The parts reach the container already positioned under the
machine table.
• After release punching, parts with a size of up to 50 x 80 mm
are pushed out directly through a fixed chute.
• Parts with a size of up to 500 x 500 mm are removed through
the programmable parts flap. The separation of the parts can
often even be performed while the parts flap is open.
• Optionally, part removal can be monitored with sensors.
Easy tool loading The entire tool set is preloaded in a tool cartridge, outside the
machine. The cartridge then only needs to be inserted in the linear
magazine. Each tool set consists of a punch (1), alignment ring (2),
stripper (3) and die (4).
1 Punch 3 Stripper
2 Alignment ring 4 Die
Complete tool set Fig. 26198
Size groups The tools are available in three size groups, designated as 0, I, II.
Tools of the same size group only vary in the nominal range of
their cutter geometry but not in their design or clamping range.
Die Dies are available in two different sizes (size I and II). An
intermediate ring is necessary for size-I dies. The die is loaded
from the die plate.
Versatile tool range TRUMPF offers a wide range of standard and special tools:
• Punching tools for separating standard contours, such as
round, square, rectangular or oblong hole.
• Slitting tools for cutting round internal and external contours;
these include TRUMPF MultiCut and curved (banana) tools.
• TRUMPF MultiTools with 2, 5 and 10 punches.
• Forming tools for plastically deforming sheets, such as
beading, extrusions, thread, louver cutting or hinges.
• Special tools for non-scratch machining.
• Special tools for embossing and engraving.
• TRUMPF MultiBend for press brake bending.
• Roller tools.
• TRUMPF MultiShear for clean cutting
Workpiece:
• Sheet thickness.
• Tensile strength.
Process:
• Punching
• Nibbling
• Cutting with slitting tools.
• Working with special tools: e.g. punching and pushing out,
punches with guided cutting edge, forming, tapping, MultiTool.
• Engraving and embossing.
Punch
The right punch for each Punches are made of high-speed steel (HSS) and are extremely
application resilient.
1 Tool length
Punch Fig. 45779
Compensation of the regrind There is a magnetic disk on the tool cartridge, which can be written
amount on with a washable felt-tip pen. The current tool length can be
noted down on it. The magnetic plate can also be attached to the
alignment ring if the punch with alignment ring was temporarily
taken out of the cartridge. The tool length information is thus
"saved" at the tool.
Structure
Cutting surface
Advantages of whisper tools • Reduced punching force requirements for the same punch
dimension.
• Noise reduction.
• Particularly effective when machining high-tensile and tough
materials.
Tool dimensions The tool dimensions are engraved on the side of the punch head,
e.g. 12 for a square tool with 12 mm long edges.
Fig. 19505
Die
Fig. 19503
Selection of the suitable die The selection of a suitable die also depends on the sheet thickness
to be machined. A larger clearance between the punch and die is
needed the more the sheet thickness increases.
The die geometry to be selected is calculated as the sum of the
punch geometry plus the value 0.2 x sheet thickness (s).
For round tools, the diameter must be used in the formula for the
punch geometry. The following is yielded:
ØDie = ØPunch + (0.2•s)
Other geometries should be treated accordingly.
Fig. 19504
Presser foot function When punching with an active presser foot, the stripper rests on
the sheet while the punching stroke is performed. The sheet is
pressed on to the die underneath. This improves evenness.
Machining with an active presser foot in combination with a long
tool (tool length: 37.8 mm) is performed almost as quickly as in
operation with a passive presser foot.
The stripper assumes this presser foot function even when
repositioning.
1
When non-scratch machining is selected, the working height is increased
by 1 mm. Therefore, when selecting a stripper, the column in the stripper
selection table with the next highest sheet thickness must be consulted (for
LDP and UDP offset = 0).
Special punch The stripper is selected according to the following criteria when
using special punches:
• With special-purpose punches with an outer circle diameter <
10.5 mm, the stripper must be selected from the line "Punch
10.51-30.0" in the stripper selection table.
• With special-purpose punches with outer circle diameters
larger than 10.5 mm, the stripper must be selected according
to the outer circle diameter of the special punch.
1 Punch 3 Die
2 Stripper 4 Collision
Collision between punch and stripper Fig. 44970
The essential value for selecting the stripper is the outer circle
diameter of the punch. Example: rectangular punch.
Table 3-2
Table 3-3
Table 3-4
Table 3-5
Example 1
Task Find the suitable stripper for the following punches:
• Short, flat new punch.
• Punch diameter 12 mm.
• Tool length 34.3 mm.
• Sheet thickness 6 mm.
Fig. 45782en
Fig. 45783en
Fig. 45859en
Roller tools
Rolling instead of punching! Do you produce many endless beads or folds? Or long cuts? Then
in the future you will no longer be punching, but rather rolling. For
this type of machining in the field of sheet metalwork up to
maximum 2.5 mm (depending on material), beading tools are the
alternative to normal forming tools.
With roller tools, the sheet is not machined by consecutive
punching strokes, but rather by the sheet moving between steel
rollers in the punch and die.
Endless bead produced with the roller beading tool Fig. 36984
Previously, it has above all been coated sheets and sheets with
formed areas that were manually deburred in a subsequent
processing step. The procedure offered by TRUMPF makes it
possible for you to accomplish all of the machining stages on the
punching machine itself and reduces the run-through time.
TRUMPF MultiTools
Max. sheet thickness • Mild steel: 4.5 mm (with active presser foot). 4 mm (without
active presser foot).
• Stainless steel: 3.0 mm.
Fig. 38833
Fig. 26150
Fig. 26149
Function Tapping tools can be used to insert threads into even sheets and
extrusions without chips.
Structure
Background When conventional punching tools are used to separate parts, this
generally leads to nibble marks which can spoil the appearance,
particularly of visible edges.
TRUMPF decided to deal with this issue and has developed the
MultiShear, a tool for clean cutting. You can use it to create cutting
edges without marks - just like laser cutting edges.
The advantages and features are:
• Visually perfect clean cutting edges.
• Machining of outer and inner contours.
• Application of MultiShear at any angle.
• Suitable for common cuts. The quality of the separating cuts is
perfect on both sides.
• Max. separating speed: 12 m/min.
• Max. material thickness: 3.0 mm.
Fig. 31266
Engraving
Fig. 54654
Label sheets without A wide range of characters can be engraved into the sheets. A
chipping pressed-in spring-loaded needle pushes the material away without
causing chipping.
• Steel
• Aluminum
• Stainless steel.
(other materials upon request).
Characteristic features • Prerequisite for the utilization of the engraving tool is the
engraving option.
• Material thickness 1.0 - 8.0 mm, comply with permissible
material thickness of the machine.
• Engraving depth and line width: 0.2 mm.
Constant embossing depth TRUMPF is the only company in the world offering adaptive stroke
and exact formed sections calibration on punching machines. A constant embossing depth
and exact formed sections are thus possible and are independent
of sheet thickness tolerances.
Problem: Sheet thickness Everyone knows the problem that sheet thicknesses vary in
tolerances practice. A sheet with a thickness of 2 mm may vary by up to
±0.13 mm according to EN 10131. This affects the processing
result and the accuracy of the produced sheet metal parts. Imprints
and identification marks are incorporated more or less deeply into
the sheet and the ratios change for the forming as well.
Compensating for sheet TRUMPF has found a solution for this problem with adaptive stroke
thickness tolerances calibration. It consists of:
• Calibration tool.
• Upgraded ram control software.
Note
• Using angled tools (Whispertools) reduces the punching force
up to 72 % (sheet thickness 1 mm).
• Tools with roof shape also reduce the punching force, but not
as much as whispertools.
Maximum cutting
circumference for tools of
any shape or cluster
punching tools without
shears Lmax Maximum cutting circumference (mm)
p punching force (N)
s sheet thickness (mm)
Rm tensile strength (N/mm2)
x shearing factor (in tools without shear = 1)
Table 3-9
Note
In practice, this means that if all the unfavorable factors are
multiplied with each other, then only approx. 70 % of the given
values should actually be applied.
The smaller the sheet thickness is, the greater the effectiveness of
angled tools is (cf. beam height). Using angled tools not only
reduces the punching force but also relieves both the worker and
the machine.
5.4 Dies
Note
Row-by-row processing is strongly recommended for a sheet
thickness of 8 mm and a high degree of punching up!
1
With reinforced die.
1
With reinforced die.
2
With reinforced die and punch with reinforced shoulder.
Standard tool
Standard tool
Configuration stages for any • Automatic loading and unloading of raw sheets and finished
requirements workpieces with SheetMaster and GripMaster.
– Extendible with double carts, SortMaster Box and
SortMaster pallet for the sorted depositing of finished
workpieces.
• Breaking up the scrap skeleton with the ShearMaster.
• External ToolMaster tool memory with 40 or 70 additional tool
stations.
• Connection to storage with TRUMPF compact store.
5
2 4
1
1 Raw sheet loading with SheetMaster 4 Removing small parts in the SortMaster Box
2 Unloading finished workpieces with SheetMaster and 5 Unloading scrap skeletons with GripMaster or
depositing on the SortMaster Pallet unloading and shredding scrap skeletons with
3 Setting up 40 or 70 additional tools with ToolMaster ShearMaster
6 Operating the unit
What goes with what? TruPunch 3000 TruPunch 5000 TruMatic 3000 TruMatic 6000
(medium format)
SheetMaster x x x x
Double cart x x x x
SortMaster Box x x x x
SortMaster Pallet x x x x
GripMaster x x x x
ShearMaster - x x x
ToolMaster (40/70) - x - x
TRUMPF x x x x
compact store
Loading table - x - -
Storage system x x x x
Table 3-41
SheetMaster
Function The SheetMaster is used for the automatic loading and unloading
of raw sheets and finished workpieces. It forms a unit together with
the GripMaster or ShearMaster.
5
4
3
2
Suction cups The suction cups installed on the suction frame are important
elements of the SheetMaster and are available in three versions:
• Carrier suction cups suck-in using vacuum to transport the
sheet. Special carrier suction cups can also adopt special
tasks, e. g. to transport checker plate or non-magnetic sheets.
• Swivel cups allow sheets to be smoothly transferred with
punch or multi-purpose machine clamps.
• Peeler cups are used to separate the raw sheets.
Double sheet detector The SheetMaster is equipped as standard with a double sheet
detector for double sheet checking. A probe swivels towards the
underside of the sheet and checks whether two sheets are stuck
together by measuring the distance between two measuring points.
Upon discovery that two sheets are stuck together the peeler
suction cup bends the raw sheet upwards and the SheetMaster
moves up and down up to five times in order to reposition the lower
raw sheet.
Safe peeling (optional) The option safe peeling allows the safe peeling of raw sheets of up
to 4 mm sheet thickness (TruMatic 6000: 1.5 mm). This option is
recommended in particular for processing stainless steel,
aluminum and sheets with the following properties:
• Thin
• Film-coated
• Oily
Function After the double sheet detector has discovered that two sheets are
stuck together the stripper unit is then activated:
• The movement of the stripper unit creates a gap between the
two sheets.
• The air nozzle swivels down and blows compressed air pulses
into the gap. This peels off the lower sheet.
• The lower sheet is deposited on the loading station in its
correct position again.
The suction plate, with its large amount of carrier suction cups as
well as the special suction cup arrangement on the remainder of
the suction frame, guarantees the safe and reliable withdrawal of
the following parts:
• Workpieces with a filigree form.
• Workpieces with a high risk of fracture.
• Narrow workpieces.
Sorting axis Y-400, only Via an NC-controlled axis the suction frame can be shifted by
TruPunch 5000 (Optional) 400 mm in the Y direction. The suction frame can thus be
positioned anywhere on this axis. This means finished workpieces
can be staggered cost efficiently. It is particularly useful to deposit
long, narrow parts ready-sorted in the Y direction.
Preparation of the raw sheet For short sheet running times it is recommended to use the loading
during productive operation table.
1
2
3
Advantage The loading times are considerably shortened by using the loading
table.
3
2
Removal of 3000 mm and The GripMaster is also available with a movable side extension
4000 mm scrap skeletons (optional) as an additional motion axis. If the side extension is
(optional) extended, scrap skeletons of up to 3000 mm can be removed. If
the side extension is in the other end position, the automated
waste grid removal is extended to 4000 mm.
No programming effort The GripMaster does not create any additional programming effort.
Breaking up scrap skeletons The ShearMaster breaks up the last sheet whilst the punch or
during downtime multi-purpose machine is already processing the next sheet. It is
mounted alternatively to the GripMaster.
2 3
The cut up scraps are collected in a scrap container with a fill level
monitor and can be disposed of without too much expenditure.
Scrap container
Maximum filling volume m³ 0.25
Maximum filling weight kg 350
Table 3-45
No programming effort The ShearMaster does not create any additional programming
effort.
2
3
Loaded for everything The flexible manufacturing cell consists of the basic machine with
automation of the loading and unloading processes, an external
tool memory and automation components for sorting workpieces.
Function The external tool memory ToolMaster extends the tool capacity of
the machine by an additional 40 or 70 tool stations and runs
without an operator.
1 2 3 4
Function If a tool which is not in the machine's linear magazine is needed for
processing, it will by inserted by the ToolMaster. This usually
occurs before the machining of a sheet job begins.
If more tools are needed for a sheet job than are found in the linear
magazine, the replacing procedure from the ToolMaster takes
place during the machining.
Setting-up during productive The set-up procedure of the ToolMaster takes place in productive
operation TruPunch 5000 and time. The machine can execute the sheet job without interruption.
TruMatic 6000 (optional) only The optional package contains a safety fence and a separate
safety light barrier.
Function The cart system with travel rails offers a convenient alternative to a
loading station and/or an unloading platform. When using the
double cart, raw sheets are automatically prepared for the loading
of a machine equipped with the SheetMaster. The double cart
moves the sheets into such a position so that the SheetMaster can
take them up and feed them to the machine for machining.
Technical data
Max. weight per level kg 3000
Table 3-48
Independent cart levels Both cart levels on the double cart can be positioned independently
of one another. A loading station can in comparison, however, be
loaded with twice the amount of raw sheets.
Loading and unloading The optional package contains a safety fence and a separate
during productive time safety light barrier. Loading or unloading during productive time is
(optional) also possible by positioning both cart levels independently from
one another. This is accomplished by one cart level moving out of
the safety range, whilst the other level moves into work position
underneath the SheetMaster.
Variants • Loading: both levels are provided with expanding magnets and
loaded with raw sheets.
• Unloading: finished workpieces are deposited on both levels.
• Loading and unloading: Here two double carts are required for
this. One exclusively for loading and the other for unloading.
Advantages of a double cart • The rails of the double cart can be individually adjusted
with rails lengthways.
• Double cart rails can also be laid up to beyond the safety range
of the entire installation. Thus enabling manual loading and
unloading in productive time.
• Double cart rails can be both surface mounted and flush
mounted.
1 2 3
Technical data
Max. weight per level (kg) 3000
Table 3-49
Guides instead of rails Double carts with toothed belt drives move along fixed guides,
which are installed directly on the ground. Adjustment and casting
as in case of cart systems with travel rails is not required.
Variants • Loading: both levels are provided with expanding magnets and
loaded with raw sheets.
• Unloading: finished workpieces are deposited on both levels.
• Loading and unloading: Here two double carts are required for
this. One exclusively for loading and the other for unloading.
Technical data Cart systems with travel rails Cart system with toothed belt drive
2
Medium format Large format Medium format Large format
Sheet format mm 2500 x 1250 3000 x 1500 2500 x 1250 3000 x 1500
Max. load capacity kg 3000 3000 3000 3000
Travel m 7 (standard) 7 (standard) 5 6.5
Max. operational m/min 18 18 18 18
Speed
Drive 3-phase motor 3-phase motor 3-phase motor 3-phase motor
Table 3-51
2
The cart system with travel rails also make it possible to use sheets in maxi
format.
Function The SortMaster Box is a sorting unit with four containers for die
take up of smaller workpieces. Controlled by a program, the
container intended for a particular purpose is rotated under the
support bracket of the punch or multi-purpose machine. As soon as
the part has been separated, it falls into the prepared container via
a fixed chute or the hinged parts chute.
Technical data TruPunch 3000 TruPunch 5000 TruMatic 3000 TruMatic 6000
Number of containers 4 4 4 4
Container inside mm 800 x 600 x 300 800 x 600 x 460 800 x 600 x 300 700 x 700 x 300
dimensions, B x D x H
Table 3-52
Container removal in The optional package contains a safety fence and a separate
productive time (optional) safety light barrier. This means the containers can be removed in
productive time.
SortMaster Pallet
1 Chain strands
2 Pallet
SortMaster Pallet Fig. 47824
Technical data TruPunch 3000 TruPunch 5000 TruMatic 3000 TruMatic 6000
Number of European 4 or 6 4 or 6 4 or 6 4 or 6
standard pallets
Pallet size, L x W x H mm 1200 x 800 x 140 1200 x 800 x 140 1200 x 800 x 140 1200 x 800 x 140
Stack height mm 200 200 200 200
Carrying capacity per kg 1000 1000 1000 1000
pallet
Traversing speed m/min 18 12 18 12
Table 3-53
3
2
6
5
Technical data Medium format Large format Maxi format Maxi format
Max. loading dimension mm 1250 x 2500 1500 x 3000 >1500 x 3000 >1500 x 3000
Max. loading weight per pallet kg 3000 3000 3000 5000
Table 3-54
CELL SERVER For production with up to four machines, up to five terminals and a
TRUMPF compact store (<200 storage positions):
• CELL-SERVER controls the material flow.
• All information about storage locations, pallets, and inventory
can be called up at any time.
• Each pallet has a permanent storage (fixed storage location).
TC CELL For production with several machines and a large storage, five
terminals and a warehouse (universal storage system or compact
store, >200 storage positions) and any amount of terminals. It
includes several modules:
• CELL BASIS: shared platform for all modules.
• CELL-STORAGE: control material flow and stocks, whereby
the storage positions can be used flexibly.
• CELL-MACHINE: connecting automatic material flow to the
machines. One module per machine.
• CELL-CONNECT: integrating external systems (e. g. PPS).
Open control system The TruPunch 5000 is equipped with a modern open control
system - the Siemens SINUMERIK 840D. The user interface has
been developed by TRUMPF and is based entirely on the
requirements of the operator.
New operation concept The operator should be able to enjoy working at the machine
without any stress, and should feel comfortable while doing so.
Operator prompting and design of the workplace were based on
these considerations.
The user interface is structured in a purely activity-oriented way,
regardless of the functional structure of the control system. Menu-
assisted functions which follow the operator's procedures are
provided for the desired action in each control area. The graphical
user interface corresponds to the Windows standard.
All the operating functions required for day-to-day operation can be
accessed directly. This allows the operating personnel to handle
production without long training or knowledge of the entire range of
functions of the control system.
The control system offers functions from other activity fields
wherever appropriate, without interrupting the sequence of
operation. It is no longer necessary to jump back and forth
between various "traditional" control operation modes.
Online help The integrated online help provides information and explanations
on the present topic at any time.
Ergonomics at the workstation The radiation-free TFT (thin film transistor) color display is the
control system's visual interface, and offers a picture that is sharp
and rich in contrast.
The operating keys have been grouped according to ergonomic
and functional aspects. A complete ASCII keyboard, which is
protected by a drawer, is used to enter the data.
Quick access to data The open control system provides new data transmission options.
The standard control system has a USB interface. Another data
transfer option is online data transfer via a network between the
programming system and the machine:
• Simple handling.
• Quick data transfer.
• Economical due to the application of Windows standard
network components.
• Access to different network drives from the machine.
Remote diagnostics Teleservice is one of our warranty services. During the warranty
period, the modem and software is placed at your disposal by
TRUMPF, free of charge.
TruTops Punch Basic and the "Simple drawing" module Fig. 48233en
The principle idea The aim of TruTops Punch is to generate NC programs for your
machine quickly, reliably and to a great extent automatically.
TruTops Punch; supports you all the way from drawing the
individual parts to data transfer of the completed NC program.
What does that mean? During each programming phase, TruTops Punch takes into
account:
• The specific options of your machine.
• The typical demands of sheet metal processing.
• The technology for punching, nibbling and laser machining.
Basis: Database with rules Programming of machining is based on the information contained
in the database. The database provides everything needed to
program and generate the NC program.
Besides the NC components, the machine configuration is also
stored in the database. This allows an NC program tailored to the
machine to be generated.
Fast NC programs With TruTops Punch you can create NC programs quickly and
reliably.
The speeds of the machine axes are analyzed during optimization
in . The faster axis is favored by during the processing sequence.
Advanced machine equipment Additional clamps Brush tables with loading and
unloading aid
Clamps to be opened individually Repositioning cylinders
Height-adjustable clamps TruTops Punch complete package
Sensor for parts chute TruTops Message
Vibration-proof installation
Fig. 54430
Non-scratch punching and The active die acts like a second punching head with a stroke from
forming below. This enables non-scratch machining because it moves
downward during the positioning of the sheet.
In addition, tools can also be used for more flexible forming.
1 Mixer jet
Fig. 53112
Lubricating sheets from A special mixer jet (1) and pressure generate a fine oil mist, which
below is sprayed systematically onto the underside of the sheet. The
sheet is moved into the spraying position for this purpose.
Recommended in particular for extrusions, formed areas and
tapping.
Fig. 53079
Avoiding scratches and The brushes prevent any direct contact between the underside of
reducing noise the sheet and machine components, in particular the die, which
might cause scratches.
The sheet slides on the brushes. This ensures that the marks on
the underside of the sheet caused by ball rollers from the table are
avoided.
The ball rollers positioned between the brushes (the loading and
unloading aid) make it easier to move the sheet on the base plate.
Advantages • The brush table is the correct solution particularly for thin
sheets.
− The loading and unloading aid in the form of ball rollers
allows sheets to the loaded and unloaded conveniently.
• Noise reduction.
1 Height-adjustable clamps
Fig. 41801
Vertical movement 12 mm The height-adjustable clamps are mounted in such a way that they
can move in the Z direction. The possible stroke movement is
12 mm.
Operation
Part 1: Control elements ........................................................... 4-7
1 Main switch at the switch cabinet 3 FOOT SWITCH FOR 4 Acknowledge light barrier foot
2 EMERGENCY STOP WORKPIECE CLAMP switch
Fig. 55150
• SET-UP Operation, JOG machine The foot switch is used to open or close
submode: no active FEED HOLD, the workpiece clamp.
WORKPIECE no dead area is violated.
CLAMP
or
1 2
7 8 9
4 5 6
N10
N20
1 2 3
0 ,
Esc
LASER
LASER
TEST
Control system ready for operation This button is used to switch the
EMERGENCY STOP is not pending machine on or off.
Machine On/Off The hydraulic motor is switched on with
The light barriers must be active.
MACHINE ON. Test cycles for
monitoring the supply devices
(compressed air, axes, oil supply etc.)
are executed. Service readiness is
indicated by the lit up button.
MACHINE ON is canceled with:
• EMERGENCY STOP impact
button.
• Errors which trigger an
EMERGENCY STOP.
The button flashes in MACHINE OFF
mode.
The EMERGENCY STOP is not active In Jog mode (control system in set-up
No active FEED STOP operation) all NC axes can be moved in
JOG a (+) or (-) direction using the jog keys.
KEYS The rotational axes (C1 and C2) can
not be moved.
FEED
HOLD KEY
SWITCH
1 2 3 4 5 6 7 8 9 10 11 12 13
7 8 9
4 5 6
N 10
N 20
1 2 3
0 ,
Esc
LASER
LASER
TEST
14 15 16 17 18 19 20
DIAGNOSTICS
The cursor is within an input field. The cursor is moved one character to
the left each time the BACKSPACE key
BACKSPACE is pressed. The characters immediately
to the left of the cursor are
simultaneously deleted when doing so.
The topic is spread over several screen The PAGE UP and PAGE DOWN keys
pages. can be used to scroll through the
PAGE UP/ There is a scroll bar on the right side of pages.
PAGE DOWN the screen.
MAGNIFYING
GLASS/ZOOM
The focus is on the screen. The cursor keys can be used to move
the cursor to the left, right or upwards or
CURSOR downwards on the screen.
keys The focus can be switched from
element to element within a data group.
F2-F9 These function keys are used for the softkey functions displayed at
the bottom of the screen. Press any one of these keys to execute
the related function on the screen.
F10 F10 is used to move the cursor to the menu bar; F10 corresponds
to the FOCUS MENU key on the control panel.
F11 F11 is used to open the topic blocks of the menu bar to make them
available for selection; F11 corresponds to the FOCUS key on the
control panel.
BACKSPACE The <BACKSPACE> key is used to move the cursor one space to
the left within an input field. The characters immediately to the left
of the cursor are simultaneously deleted when doing so.
Tab key The Tab key is used to switch between different display areas
within a frame (input fields, selection fields etc.). The tab key
corresponds to the FOCUS key on the control panel.
CAPS LOCK The <CAPS LOCK> key can be used to write exclusively in capital
letters. Pressing this key once makes it unnecessary to keep the
<SHIFT> key pressed. This function is cancelled by pressing the
key again.
ENTER The <ENTER> key is used to save or confirm data entries made
within input fields.
INSERT Text passages previously marked and copied or cut out can be
inserted at any position using the INSERT key.
HOME The cursor goes to the beginning of a text line by pressing the
HOME key.
END The cursor is moved to the end of a text line by pressing the END
key.
PAGE UP/PAGE DOWN You can scroll between several text pages by pressing the PAGE
UP or PAGE DOWN key.
CURSOR keys The cursor keys can be used to move the cursor to the left, right or
upwards or downwards on the screen.
NUM LOCK The numeric keypad on the right side of the keyboard is activated
by actuating the NUM LOCK key.
4. USB connection
The current settings of the machine and the control system are
indicated by symbols and abbreviations on the status bar directly
under the menu bar:
The black message line is divided into three fields and used to
display error messages and information.
Error message If an error occurs, the control or machine element (e.g. NC, PLC,
MMC) that caused the error is displayed in the first field of the
message line. The corresponding error number appears in the
second field. The third field contains a short description of the
error.
Note If only a note for the operator is to appear in the message line, the
first two fields are empty and the short message appears in the
third field.
The softkeys are at the bottom edge of the screen. They are
assigned different functions, depending on the selected control
area.
are opened and current system statuses (e.g. axis positions, feed
etc.) are displayed.
The FOCUS and cursor keys can be used to select the individual
fields. The TOGGLE key can be used to open selection fields.
• AUTOMATIC mode.
• MDA mode.
• JOG mode.
• PRODUCTION Operation.
• SET-UP Operation.
• PROGRAMMING Operation.
• TOOLING Operation.
• MAINTENANCE/INITIAL START-UP Operation.
Definition This mode is for the fully automatic execution of part programs.
Prerequisites The machine does not switch over to AUTOMATIC mode until
certain basic requirements have been fulfilled:
Definition You can create and run part programs block by block in MDA
operating mode (Manual Data Automatic). To do this, you can
specifically enter the required movements in the form of individual
NC program blocks using the control system keyboard. The
entered program blocks are executed after actuating the "Start"
softkey.
The five control areas of the control system can be selected with
the five buttons at the right edge of the screen or via the menu bar
of the user interface. The operations can be divided into two
groups:
Group 1:
PRODUCTION
SET-UP
Group 2:
PROGRAMMING
N10
N20
TOOLING
MAINTENANCE/INITIAL START-UP
DIAGNOSTICS
Layout of graphics
Machine axes • The names of all machine axes are listed one above the other
in the first column of the table.
• The current positions (actual positions) of these axes in the
machine coordinate system are displayed in the position
column to the right.
• The third column in the table shows the distance the axis still
has to go to reach the required programmed value:
Active functions The NC and machine functions which are active during the
execution of a program are displayed here. Functions of the PLC
are issued in the list of active synchronous functions, while the list
of active G functions/NC instructions displays language commands
and NC functions.
Softkeys:
Press the Display selection softkey to display the current axis and
Selection program data on the left side of the screen during the current
display
production process. An overview of the production plan can also
be displayed.
Press the Production plan softkey to display the current production
Production plan.
plan
Job data • Sequence: Shows the sequence number of the sheet job. The
jobs are performed in the order of their sequence numbers.
• Status: Shows the status of the sheet job. The following status
options may be selected:
- Available: the sheet job is enabled for both production of
the Tooling list and for execution.
- paused: The sheet job is taken into account during the
creation of a Tooling list, but not during the execution of the
production plan.
- disabled: The sheet job is neither taken into account during
the execution of a production plan nor during the creation of
the Tooling list.
• Designation: when creating a sheet job, any character or
number sequence can be entered in the "Designation" field.
• Program name: The program name of the NC program on
which the sheet job is based is displayed here.
• Req.: displays the number of sheets to be machined.
• Act.: The number of sheets which have already been
machined is displayed here.
• Pallets:
- first pallet (supply pallet): The number of the pallet is
displayed on which the sheets to be machined lie.
- Second pallet (replacement supply pallet): The number
of the pallet is displayed on which further raw sheets lie.
Press the Delete sheet job softkey to delete a sheet job from the
Delete sheet production plan.
job
Actuate the Set status softkey to change the status of the selected
Set sheet job. Actuate the softkey repeatedly until the required status
status
is displayed in the production plan.
Actuate the Prepare production softkey to automatically create the
Prepare tool set-up list for the entire production plan. The "TOOLING -
production
Tooling list autom." menu appears on the screen.
Actuate the Nesting softkey if you wish to process the job data of
Nesting an entire nest. There must first be a nest loaded in the production
plan. A nest always consists of several single jobs and is already
created by the programming system.
Press the Start/Stop production softkey to start or stop the
Start/Stop execution of the production plan. All enabled sheet jobs are run on
production
the machine in the order as their sequence numbers.
Actuate the Stop after sheet job softkey to interrupt the execution
Stop after of the production plan as soon as the current job has been
sheet job
completely executed.
Softkeys:
Press the Find program softkey if you wish to search for a certain
Find program. You have to know the exact name of the program and
program
enter it in this input field.
Press the Select program softkey to select an NC program for
Select processing. Clamp positions and tools are checked and the
program
automatic tool table is generated.
Actuate the Create sheet job softkey to add the selected NC
Create sheet program to the production plan as a sheet job.
job
Actuate the Check program softkey to check whether all the tools
Check and table entries required to execute the program are available.
program
Softkeys:
Parameters The following program options can be selected with the FOCUS
key, and activated or deactivated with the TOGGLE key:
• Skip block: Blocks in the NC text with a "/" in front of the block
number are ignored during the program sequence.
• Test feed rate: travel motions are carried out at a defined feed
rate. The test feed rate is used instead of the programmed
travel commands.
• Rapid mode correction: The correction switch for the feed
rate also affects the rapid feed rate.
• Programmed stop: The processing of the program is carried
out in the block in which M01 is programmed.
• Program test: The required value displayed in the axis table
"simulates" the travel motion.
• Block-by-block: Default setting. All NC blocks are processed
in sequence without interruption.
• Single block: Select this setting if you wish to stop the
program at the end of each NC block.
• Single block (functions): Select this setting if you wish to
stop the program after each machine function block.
• Show all blocks: All NC blocks of the program are shown in
the current block display.
• Show motion blocks: only the travel blocks of the program
are displayed in the current block display.
• Two buttons means that two specific switch status types are
available (normal case).
• If only a single button is displayed, this means that only one
status can be described specifically, for example "highest
position of cutting head" approached (specific value), "highest
position" not approached (no specific value).
• If more than two (maximum six) buttons are displayed, the
corresponding switch operation can be executed in stages.
Green/white:
The switch status described with text is active.
Green/red:
This status is briefly displayed as the transition status when
switching the switch element.
If this status is retained, the switch element cannot be switched
successfully. Additionally, an alarm window opens that contains
conditions that are necessary for the successful switching of the
element.
White/green:
Switch over was successful. The switch status described in words
on the left is active.
The switch status described in words on the left is not active.
Red:
The specific switch status cannot be switched. In addition, an
alarm window is opened containing the conditions required to
successfully establish the switch status.
Note
The chip vacuum system is only switched on again if no
TC_SUCTION_OFF (chip vacuum system OFF) is active and the
chip vacuum system has not been switched off using the "Chip
vacuum" switch element.
Note
This function is only appropriate for thin sheets. The machine can
be damaged by switching off the vacuum system within the thick
sheet range. The punching slugs must be vacuumed!
• Stroke speed from PTT: Press this switch element if you wish
to correct the stroke speeds in the PTT Tables downwards and
upwards.
Example
.
N90 TC_SHEET_CALIB ("WZ. No.", X Measuring cycle
pos., Y pos.)
N100 TC_TOOL_NO ("19060030") Tool selection
N110 TC_TOOL_CHANGE Tool change
.
Version codes and the H+L alarm telegrams are displayed on page
1 of the diagnostics.
1 13 25 37 49 61 0001
2 14 26 38 50 62 0002
3 15 27 39 51 63 0004
4 16 28 40 52 64 0010
5 17 29 41 53 65 0020
6 18 30 42 54 66 0040
7 19 31 43 55 67 0100
8 20 32 44 56 68 0200
9 21 33 45 57 69 0400
10 22 34 46 58 70 1000
11 23 35 47 59 71 2000
12 24 36 48 60 72 4000
Example:
The suction cups 27, 31, 33 and 36 from suction cup group 3 are
to be activated:
Note
To make sure the acceleration can be adjusted, the "Acceleration
adjustment" parameter has to exhibit the value 1 in the
SHEET_TECH table.
Note
With formed sections, the "material thickness during depositing"
varies from the sheet thickness during the loading process and
must be programmed accordingly as a greater value.
Note
To make sure the acceleration can be adjusted, the "Acceleration
adjustment" parameter has to exhibit the value 1 in the
SHEET_TECH table.
• Deposit part:
1: The cycle is activated:
- The workpiece is dropped after reaching the deposit site.
The height from which the part is dropped depends on
which of the two table parameters "Drop part from top" or
"Drop from defined height" has been activated.
- If the table parameter "Part under machine table" is also
activated, the part is dropped under the machine table.
Sheet technology table • Sheet thickness: The sheet thickness of the sheet to be
machined is displayed in mm.
• Sheet dimension in X: The dimension of the sheet in X
direction is displayed here in mm.
• Sheet dimension in Y: The dimension of the sheet in Y
direction is displayed here in mm.
• Sheet type:
0: Even sheet.
1: Uneven sheet.
2: Flanged sheet.
• Non-scratch machining (optional):
0: The sheet is not low-scratch machined.
1: The sheet is low-scratch machined (working position
raised by 1 mm).
• Material: This field is currently unassigned and is not
evaluated by the control system.
• Working between clamps:
0: There is no machining between the clamps in the active
part program.
1: Machining is performed between the clamps in the
selected part program. This is relevant if the clamps of the
machine are not to be set to the magazine positions
specified by the program.
• Rail position clamp 1 - clamp 6: The rail positions where the
clamps for the workpiece clamp have to be attached are
displayed here.
• Smallest sheet size, largest sheet size:
The two parameters show the clamping range of the sheet
during the entire execution of the NC program. Repositioning
procedures are taken into account for the entry.
Example:
Smallest sheet size: 5.
Largest sheet size: 11.
>> The sheet covers the rail positions 5 to 11 during the
execution of the entire NC program.
Acceleration adjustment:
0: The acceleration defined at the program start applies to
the entire program.
1: The acceleration is adapted to the new sheet weight at
each PART_UNLOAD.
• Material density: Enter the material density of the material
you wish to process.
Steel: approx. 7.8 kg/dm3.
Stainless steel: approx. 7.8 kg/dm3.
Aluminum: approx. 2.7 kg/dm3.
Note
To make sure the acceleration can be adjusted, the "Acceleration
adjustment" parameter has to exhibit the value 1 in the
SHEET_TECH table.
Part removal via the parts • Minimum surface: Enter the surface of the part to be
chute unloaded in this parameter.
Note
To make sure the acceleration can be adjusted, the "Acceleration
adjustment" parameter has to exhibit the value 1 in the
SHEET_TECH table.
Unloading cycles:
• Remove part:
0: The unloading cycle is not activated. "Push out and
remove part" unloading cycle must be activated.
1: The unloading cycle is activated:
- The suction carriage travels into the programmed removal
position.
- The suction frame is lowered onto the workpiece.
- The selected suction cups are evacuated.
- The suction frame is raised to a height of 34 mm.
- The deposit site is established (the machine carries on
working after leaving the collision range).
- The suction frame moves into the uppermost position.
- The suction frame is lowered onto the unloading platform.
- The suction cups are ventilated.
- The suction frame moves into the uppermost position.
- The suction carriage moves into waiting position.
Repositioning table • Travel in X: The travel of the X axis after opening the
workpiece clamp is displayed here. This value is displayed as
a positive or negative incremental value.
• Travel in Y: The travel of the Y axis after opening the
workpiece clamp is displayed here. The value is displayed
incrementally and must never be negative.
• Feed: The speed at which the repositioning procedure is
performed is displayed here.
• Repositioning type:
1: The sheet is clamped with the punching head during the
repositioning procedure.
2: The sheet is clamped with the repositioning cylinders
(optional).
3: The sheet is clamped with the repositioning cylinders
(optional) and the punching head.
• Deactivate clamp sensors:
0: Do not deactivate any sensors.
1: Deactivate one sensor (requires at least one sensor).
2: Deactivate all sensors (pull-out control becomes inactive).
• Activate offset:
0: The travel paths in X and Y are evaluated during program
creation.
1: The travel paths in X and Y are calculated during program
execution.
• Clamping position X: The X position at the beginning of the
repositioning procedure is displayed here.
• Clamping position Y: The Y position at the beginning of the
repositioning procedure is displayed here.
Note
This function is only appropriate for thin sheets. The machine can
be damaged by switching off the vacuum system within the thick
sheet range. The punching slugs must be vacuumed!
• Tool type: Enter the TRUMPF tool type of the tool for which
you wish to enter the UDP or LDP offset values.
1 Circular 20 Engraving
2 Rectangle with corner 21 Multicut
radius
3 Square 22 Louver cut
4 Rectangle 23 Beading
5 Thread 24 Plunge
6 Milling 25 Lowering
7 Square with corner radius 26 Disconnecting
8 Oblong 27 Multishear
9 Special shape 28 Rotating/bending
10 Center punch 29 Roller cutting
11 Thermal (laser/plasma) 30 Roller pinching
13 Forming 31 Roller folding
15 Banana 32 Roller beading
16 Radius 33 Engraving
14 Coining 34 Roller knurling
17 Triangle 35 Calibrate
18 Slot (straight)
19 Quick beading
Note
This function is only appropriate for thin sheets. The machine can
be damaged by switching off the vacuum system within the thick
sheet range. The punching slugs must be vacuumed!
Note
This function is only appropriate for thin sheets. The machine can
be damaged by switching off the vacuum system within the thick
sheet range. The punching slugs must be vacuumed!
• Tool lubrication: Press this switch element to disable tool
lubrication (TC_TOOL_LUBE_ON). To reactivate the
programmed tool lubrication, actuate the switch element again.
• Stroke speed downwards: The stroke speed while plunging
into the sheet (downwards) can be reduced.
Prerequisite: The parameter "Stroke speed from PTT" must be
activated in Production – General switch elements.
• Stroke speed up: The reverse speed from the sheet
(upwards) can be reduced.
Prerequisite: The parameter "Stroke speed from PTT" must be
activated in Production – General switch elements.
Version codes and the H+L alarm telegrams are displayed on page
1 of the diagnostics.
Actuate the LIFT-Z Release softkey to start the release cycle for
LIFT-Z the Z axis of the TRUMALIFT if the Z axis was moved previously
Release
onto the E-STOP limit switch. You must then actuate the RESET
and START buttons before you can move the Z axis with the jog
keys.
Softkeys:
You can create and run part programs block by block in MDA
operating mode (Manual Data Automatic). To do this, you can
specifically enter the required movements in the form of individual
NC program blocks using the control system keyboard. The
entered program blocks are run on pressing the "Start" softkey.
7.1 NC Editor
Softkeys:
Actuate the Exit softkey to exit the NC Editor and return to the
Exit program overview. You can use the cursor keys to select a new
program from the overview in order to view it in the NC Editor.
Press the Save softkey to save changes to the NC text.
Save
Actuate the Cut out softkey to cut text passages out of the NC text.
Cut Mark these text passages first by pressing the SHIFT and
out
CURSOR keys simultaneously.
Actuate the Copy softkey to copy text passages from the NC text
Copy and insert them somewhere else. Mark these text passages first by
pressing the SHIFT and CURSOR keys simultaneously.
Actuate the Insert softkey to insert text passages you have copied
Insert or cut out at another position.
Softkeys:
Press the Editor softkey to view or edit the NC text of the selected
Editor program in the NC Editor.
Actuate the Main program from file softkey if you wish to transfer a
Main file file to the program manager as a main program.
from file
Application: Test programs that have been created manually on a
different computer.
Actuate the Subroutine from file softkey if you wish to transfer a file
Subroutine as a subroutine to the program manager. The corresponding main
from file
program must already exist however.
Application: Test programs that have been created manually on a
different computer.
Actuate the Reorganization softkey if you, for example, receive
Reorganization error messages from the database when setting up the tools.
Reorganization is triggered and the database is "repaired".
Actuate this softkey to return to the superordinate menu.
Cancel
You can use this menu to recreate a master file with all related
table information from the corresponding main programs and
subroutines. You can also copy individual program parts as file
onto the hard drive or a USB memory stick.
This menu appears if you Press the Output program softkey during
the "PROGRAMMING - File management" operation. The list of
programs is identical to the list displayed in the "PROGRAMMING
– NC program management" menu. Only the allocation of keys in
the softkey bar is different.
Softkeys:
Press the Find program softkey if you wish to search for a certain
Find program. You have to know the exact name of the program and
program
enter it in this input field.
Actuate the Generate master file softkey to merge related main
Generate programs, subroutines and tables in order to create a master file
master file
and store it on the hard drive.
Actuate the Copy file softkey to copy a part of a program (main
Copy program or subroutine) as a file onto the hard drive.
file
The right tools need to be loaded from the tool store onto the tool
rail in order to execute an NC program fully automatically. The tool
set-up list for the NC program to be executed can be generated by
pressing a button In the menu "TOOLING - Tooling list
(automatic)". The tools are displayed in the list with all identification
features, such as identity number, tool dimensions, tool station etc.
Setting up rails
The tool list is displayed in the top half of the screen together with
all necessary identification features. The tools which are to be
loaded manually onto the rail or unloaded from the rail are entered
in the tool set-up list in the bottom half of the screen.
The tool list is displayed in the top half of the screen together with
all necessary identification features. The tools which are to be
loaded manually onto the ToolMaster or unloaded from the
ToolMaster are entered in the tool set-up list in the bottom half of
the screen.
Actuate the Modify tool data softkey to modify the tool data of the
Modify selected tool. Only the following values can be subsequently
tool data
changed: regrind length, whisper tool yes/no, presser foot type,
permissible sheet thickness, optimized forming position.
Actuate the Acknowledge all set-up operations softkey once you
Acknowl. all have executed all the tool set-up operations included in the tool
set-up oper.
set-up list. The allocation of tool stations is modified according to
the tool set-up list in the database. The tooling status of all tool set-
up operations is set to "OK" in the tool set-up list. The tooling set-
up is not deleted.
Actuate the Delete set-up list softkey once you have executed all
Delete the listed tool set-up procedures and acknowledged them. The tool
set-up list
set-up list is deleted.
Actuate the Change curr. tool softkey if you either want to
Change automatically remove the active tool from the tool adapter
curr. tool
or
have already removed the tool manually from the tool adapter and
want to send the "Punching head empty" signal to the control unit.
Actuate the Tooling position softkey if you want to move the tool
Tooling rail to the left or right in order to load the tools.
position
Actuate the Print set-up list softkey to print the displayed tool set-
Print up operations on paper. The for this is that a printer is connected
set-up list
and the corresponding printer driver is installed.
Softkeys:
Actuate the Create softkey to add a tooling pair to the retooling list.
Create The tooling pair must to be formed first by selecting a rail station
and tool station. Each selection must be confirmed with the
ENTER key.
Actuate the Delete softkey to delete a tooling pair from the
Delete retooling list.
Actuate the Unload rail softkey if you want to reload all tools from
Unload the tool rail onto the ToolMaster. A retooling list is automatically
rail
created for all tools which are on the rail by actuating the softkey.
Actuate the Start tool set-up softkey to start reloading all of the
Start tooling pairs displayed in the retooling list.
tool set-up
In this menu you can create automatic tool set-up lists other than
during the normal execution of programs.
This menu appears if you actuate the Select program softkey in the
"TOOLING - Tooling list (automatic)" menu.
Softkeys:
Press the Find program softkey if you wish to search for a certain
Find program. You have to know the exact name of the program and
program
enter it in this input field.
Actuate the Create tool set-up list softkey if you wish to create the
Create automatic tool set-up list for the selected program.
set-up list
If two or more tools with the same ID number are on the tool rail,
the tool manager selects the tool for machining which is allowed for
the sheet thickness used. If no tool is allowed for the sheet
thickness used, the first one in numerical order is selected.
Softkeys:
Actuate the Modify tool data softkey to modify the tool data of the
Modify selected tool. Only the following values can be subsequently
tool data
changed: regrind length, whisper tool yes/no, presser foot type,
permissible sheet thickness, optimized forming position.
Required tools
Actuate the Tool change softkey to display the tool change list.
Tool
change
Softkeys:
Actuate the Sort according to ID softkey to order the list of all tools
Sort according according to the ID number in ascending order.
to ID
Actuate the Sort acc. to location ID softkey to order the tool list
Sort acc. according to the station number in ascending order.
to location
Actuate the Find softkey if you wish to search for a particular tool in
Find the tool list. All the displayed criteria can be used for the tool
search. Either precise descriptions can be entered in the input
fields or just a few initial letters or numbers in front of the
percentage character. The percentage character replaces all of the
following characters ("wild card"). A list of all tools beginning with
the entered characters is then displayed.
Example:
ID no.: 400 %
A list of all tools beginning with 400 is displayed:
400568211
400761534
400928735 etc.
Softkeys:
Actuate the Create softkey to add a new tool to the tool manager of
Create the control system.
Actuate the Delete softkey to delete a tool from the tool manager of
Delete the control system together with all of its corresponding data.
Press the Duplicate tools softkey to display tools with the same ID
Duplicate number but different Duplo numbers.
tools
Smaller value:
The tool was reground by the amount displayed in mm.
Note
• The setting of the tools is performed with the adjustment
device.
• The forming depth is not changed using the tool length, but
instead using the parameter "Plunge position offset (LDP)" in
the tool technology table!
9.1 Maintenance/start-up
Data backup
The machine and customer data that is stored on the hard disk of
the user interface, such as laser technology tables, customized
databases, part programs etc., can be partially or fully backed up
and restored by TRUMPF service technicians whenever
necessary.
Softkeys:
Press the Change configuration softkey to select the
Change configuration for a partial backup:
configuration
• Backup path: Local hard disk, network drive or data storage
medium.
• Maximum number of backup copies that can be stored in
the selected backup directory at the same time.
• Time interval for automatic backups: "Daily", "Monthly",
"Weekly" or "Never".
Press the Partial backup softkey if data from a partial backup is to
Partial be restored to the hard disk. This function is password-protected.
backup
Note
The backup path cannot be freely selected if the data is to be
backed up on the local hard disk. In this case the backup
path is defined in the control system.
Prerequisite
The machining program is not active.
Prerequisite
The PC of the user interface has two hard disks.
The machining program is not active.
Softkeys:
Actuate the Softkey Tables menu in order to switch back and forth
Tables between Structure without submenus and Structure with submenus.
menu
Softkeys:
Actuate the All softkey to display a list of all errors and messages.
All
Actuate the Cause softkey to display the cause of the error and the
Cause measures to be taken to eliminate it.
Actuate the Error location softkey to display the error location, the
Error location effects and any comments.
Actuate the End softkey to go to the last line of the displayed list.
End
All digital inputs and outputs of the basic machine appear on the
screen display. The bits of the inputs and outputs and their
respective status are displayed in the table. The assignment to the
designations of the inputs and outputs in the right column is
approached via the column that is on a yellow background.
Softkeys:
Press the << >> softkey to switch between the individual inputs
<< >> and outputs.
Softkeys:
Press the Start softkey if you wish to start the remote diagnostics.
Start
Softkeys:
To delete a message text, select it from the list and then actuate the
Delete MDR "Delete MDR text" softkey. A window appears in which you are
text requested to confirm the deletion.
Confirm with OK or cancel the procedure with CANCEL. The four
reason types, the "???" message text, as well as message texts to
which further texts are subordinate can not be deleted.
In the "Edit machine data" function area you can display all the
recorded interruptions of the machine operating time and issue
them as a file. You can also assign a cause (MDR message text)
to each interruption as well as split up interruptions chronologically.
You can access the "Edit machine data" function area via the
Operation – MDC – Data menu item on the menu bar of the user
interface.
Parameters: The mask shows all the recorded messages of the machine control
(PLC message) within a user-defined period of time. The following
information is displayed for each message:
You can transfer the list of messages as an ASCII file to your hard
Create drive. The information issued is precisely that information that you
file can see on the list. Simply actuate the Create file softkey.
The "MDR.txt" file is automatically created in the directory
"C:\DH\TOPSMANU.DIR\MDE\" on your hard disk. Should a file
with the name "MDR.txt" already exist in this directory, it is stored
under the name "MDR_old.txt" in the same directory if a new file is
created.
You can change the period of time for the displayed messages by
Change time actuating the Change Time Frame softkey. A screen appears, in
frame which you can enter the new time period. Confirm your selection
with OK or cancel the procedure with CANCEL.
Softkeys:
You can return to the "Machine Data Record (MDR)" screen with
Return the Return softkey.
You can have all the data recorded within a self-defined period of
time evaluated and then issued as a file in the "Evaluate machine
data" function area. The overall down time, the average down time,
and the shortest and longest down times are thereby evaluated for
each message.
During the installation of the integrated MDR a so-called "Deletion
Delay" is defined in the system configuration. This means that all
messages of the machine control systems that are older than a
particular period of time are deleted automatically (stored message
texts are not affected).
Therefore evaluate the data regularly (e.g. once a week) to avoid
accidental loss of data.
You can access the "Evaluate machine data" functional area via
Operation – MDC – Evaluation on the menu bar of the user
interface.
To generate an evaluation, you must first enter the desired period
in time in the top line of the screen, as well as a designation for the
evaluation (e.g. week 12 evaluation).
Softkeys:
This menu appears if you press the Display list softkey in the
"Evaluate machine data" menu.
Parameters The period in time for the evaluation is displayed in the first line of
the screen. The following information on the evaluated data is
displayed below it:
Softkeys:
Actuate the Create file softkey to issue the evaluation as a file in the
Create same form as can you see it on the screen.
file
The "Auswert.txt" file is automatically created in the directory
"C:\DH\TOPSMANU.DIR\MDE\" on your hard disk.
Note
Should a file with the name "Auswert.txt" already exist in this
directory, it is stored under the name "ausw_old.txt" in the same
directory if a new file is created.
Actuate the Return softkey to return to the "Evaluate machine data"
Return menu.
You can change the current time of the operating system with the
"Change time" function, which you can access via the Operation –
MDC – Set time menu item.
Enter the new time in the field designated for this purpose and then
actuate the "Set time" softkey.
Press the FEED HOLD button first if a problem occurs while the
program is running.
Note
The safety guidelines in the operator's manual must be strictly
observed!
START flashes.
Press START to acknowledge FEED HOLD.
The axes move into home position; the Z-axis first, then the X and
Y-axes and finally the rotational axes (C1 and C2).
ESTABLISH HOME POSITION lights up.
Prerequisites:
• No program is running.
• The punching tool is in the tool adapter.
• The machine is in JOG submode.
Air supply Shut off the air supply and lock it.
Prerequisites:
• The machine is ready for operation.
• The home position of the machine has been established.
• The NC program is available in the program manager in split
form.
• Tool data has been created in the tool management of the
control system.
• The "Aborted" program status is displayed.
A dialog field appears and the tool rail can be moved to the right or
the left.
Set up the tools on the rail.
Press Acknowl. all set-up oper.
Acknowl. all
set-up oper.
The clamps are closed and the index pin moves downwards.
Press START.
Prerequisites:
• The machine is equipped with the softpunch option.
• The softpunch function was programmed in the NC text.
Selection
Press Selection.
Select "General".
Press TOGGLE.
Press TOGGLE.
Prerequisites:
• A tool is in the tool adapter.
Selection
Press Selection.
Select "Punching".
Press TOGGLE.
Press TOGGLE.
Press TOGGLE.
Press TOGGLE.
Prerequisites:
• A program is being executed.
START flashes.
Prerequisites:
• A program was aborted while it was running.
• Any active errors or malfunctions have been rectified.
• The light barrier has been acknowledged.
Press Re-entry.
Re-entry
Press START.
Prerequisites:
• NC programs are available in the program manager in split
up form.
Create sheet
Press Create sheet job.
job
All the created sheet jobs are displayed in the production plan in
the order of their sequence numbers.
Prerequisites:
• The machine is ready for operation.
• The home position of the machine has been established.
• The production plan has been created.
• The appropriate status has been set for each sheet job in the
production plan.
• The tools are in the control system's tool management.
The dialog field is opened and the tool rail can be moved to the
right or left.
Set up the tools.
Press Acknowl. all set-up oper.
Acknowl. all
set-up oper.
The clamps are closed and the index pin moves downwards.
Press START.
Prerequisites:
• Execution of aborted program is not to be resumed.
The clamps are closed and the index pin moves downwards.
Press START.
Prerequisites:
• FEED HOLD is not active.
• The home position of the machine has been established.
• No NC program is running.
• The feed rate potentiometer is set to > 0 %.
Prerequisites:
• Emergency stop active.
Selection
Press Selection.
Select "General".
Press TOGGLE.
Press TOGGLE.
Prerequisites:
• The machine is ready for operation.
Selection
Press Selection.
Select "General".
Press TOGGLE.
Press TOGGLE.
The lubrication cycle is started for the lubrication of all pinions (X,
Y, Z and C drives).
Select the error message you wish to find out more about.
Press Selection.
Selection
Press ENTER.
All inputs and outputs appear on the displayed screen. The display
is explained with an example:
Example It is to be checked whether the second bit of input E33 has been
set:
Press the keys until the green bar reaches column E33.
<< >>
The eight bits of input E32 are displayed in a column, and under
them the eight bits of input E33.
The second bit of input E33 is set (1 = high).
The corresponding text can be viewed on the right.
Prerequisites:
• Modem connection (telephone).
• Modem
• pcANYWHERE remote diagnostics software.
Press Start.
Start
to:
• Receive written messages from the TRUMPF technician
(remote PC) or send written messages to the TRUMPF
technician (host PC) via "Dialog".
• Interrupt the telephone connection via "Exit session".
1
Symantech registered trademark.
Press ENTER.
Select the desired program with the CURSOR keys or the mouse.
Press ENTER.
Press OK.
OK
Press OK.
OK
The master file is deleted from the file manager of the control
system.
Prerequisites:
• The NC program is stored in the program manager of the
control system, split up into main programs, subroutines, and
table entries.
Press Editor.
Editor
Prerequisites:
• The NC text is displayed in the editor.
Press Search/Replace.
Search/
Replace
Press OK.
OK
Prerequisites:
• The NC text is displayed in the editor.
Press Search/Replace.
Search/
Replace
Press OK.
OK
Prerequisites:
• The NC text is displayed in the editor.
Press OK.
OK
Press Replace.
Replace
Press OK.
OK
Prerequisites:
• The NC text is displayed in the editor.
Position the cursor bar at the start of the block, where you want to
insert an additional line.
Press ENTER.
Prerequisites:
• The NC text is displayed in the editor.
Position the cursor bar at the start of the block at which you wish to
begin your selection.
Keep the SHIFT key pressed and mark the text you wish to copy
using the CURSOR keys.
SHIFT +
Position the cursor bar at the start of the block, where you wish to
insert the copied text passage.
Press Insert.
Insert
Prerequisites:
• The NC text is displayed in the editor.
Position the cursor bar at the beginning of the text passage you
wish to delete.
Keep the SHIFT key pressed and mark the text you wish to delete
with the CURSOR keys.
SHIFT +
The text appears in red.
The text passage is deleted but can be repasted at any point in the
NC text.
The table parameters for the active program can also be edited
while the program is running. All changes take effect the next time
the respective table is called up.
Prerequisites:
• The NC text is displayed in the editor.
Position the cursor bar directly in front of the relevant table call-up
instruction in the NC text.
Press TOGGLE.
Press Parameters.
Parameters
Edit the desired parameters.
Press NC Editor.
NC Editor
The changes made to the table are saved and transferred to the
NC.
Prerequisites:
• The NC program is in the program manager, split up into
main program, subroutines and table entries.
• The punching tools required for execution are either in the
tool store or on the tool rail.
A dialog field appears and the tool rail can be moved to the right or
the left.
Set up the tools on the rail.
Press Acknowl. all set-up oper.
Acknowl. all
set-up oper.
Note
If the tool data of individual tools is not correct, you can correct it
with the Change tool data softkey. You can change the following
parameters in this way: Regrind length, whisper tool yes/no,
presser foot type, sheet thickness and TDC forming height.
Use the CURSOR keys to select the tool from the tool list (top) that
you wish to remove from the tool rail (tools with tool station S).
Press ENTER.
Press ENTER.
Press the focus key to switch to the upper section of the screen, in
which the current rail allocation is displayed.
Press ENTER.
The selected rail station is displayed on the left side in the upper
white field next to the rail allocation.
Use the CURSOR keys to select a tool or an empty tool station
from the current tool allocation.
Press ENTER.
The selected tool station is displayed on the left, in the lower white
field next to the rail allocation.
Press Create.
Create
The tooling pair that has just been formed is added to the retooling
list.
Repeat the procedure until all tools to be relocated are displayed
as tooling pairs at the bottom left in the tool set-up list.
Press Start tool set-up.
Start
tool set-up
The tooling procedure between the ToolMaster and the tool rail is
started.
Press TOGGLE.
Press TOGGLE.
Load the clamps onto the required rail stations with the Re-locate,
Re-locate Load/Unload clamp softkeys.
clamp
Press OK.
OK
The new message text appears in the list under its higher-level
message text.
Press ENTER.
Press ENTER.
1 2
Adjusting with manual 1. Press and hold the pin on the underside.
intervention function
2. Adjust presser foot pressure using the rotary button.
The presser foot pressure is displayed on the pressure gauge.
Note
The machine is switched on during the following maintenance
work.
The punch must also be taken out for long and angled punches.
In rare cases, the punch may jam in the punch adapter. This could
be caused, for example, by excessive heating of the punch or the
punch adapter or by overtightening the head screw of needle
punches.
Note
The machine is switched on during the following maintenance
work.
Fig. 30723
1 Copper mandrel
2 Punch
Fig. 30722
Note
The machine is switched on during the following maintenance
work.
Note
The machine is switched on during the following maintenance
work.
Establishing the home 5. Select 1. Establish home position and press TOGGLE.
position
Note
The ShearMaster must not be started if more than one scrap
skeleton/sheet is lying on the conveyor table.
The stack height monitoring sensors only recognize if the
maximum height of the stacked scrap skeletons has been reached.
1. Select Setup.
2. Select Switch element group "ShearMaster".
3. Select 5. Stacking mode, active.
• Turn the nesting of the sheet by 180°, if long inner cutouts are
present in the scrap skeleton. They tend to bend downward,
which could push the scrap skeleton onto the shears and not
the conveyor table.
• If parts of long, narrow slats remain on the lower blade after
separation, it can cause the ShearMaster to switch off due to
overload from the sheet parts lying on top of each other.
Relevant at sheet thicknesses > 3 mm.
Tilted sheets
Risk of injury
¾ Wear gloves.
Warning
Tilted sheets
Risk of injury
¾ Wear gloves.
Warning
Note
The scrap container is equipped with level monitoring. If scrap
parts are tilted in the scrap container, a message is issued
(container full). Visually inspect the chute regularly.
1 2
3 4
Notes on lubrication Refer to the lubrication chart and maintenance instructions for the
lubrication of the machine. The following points should also be
observed:
• Do not leave filler and drainage caps open for longer than
necessary and keep them clean.
• Drain waste oil only at operating temperature.
• Oil chambers and lubricating points should only be cleaned
using lint-free cloths and mineralized oils ISO VG3 – VG10. Do
not use cleaning wool, kerosene or benzene.
• Do not mix synthetic lubricating oils with mineral oils or
synthetic oils from other manufacturers, even if the synthetic oil
in question has equivalent properties.
• Dispose of waste oil appropriately.
3.1 Overview
Lubricate with an oil can or spray can Replacing the contents of the
container
Table 5-1
Note
Established equivalent lubricants from other manufacturers can
also be used. SHELL Tellus Oil DO 46, MOBIL DTE 25, Fuchs
Renolin MR15, or CASTROL Hyspin DSP 46 are prescribed
explicitly for the hydraulic unit.
Punch spray 2.5 l TRUMPF punching and nibbling Aerosol can: ISO VG 150
lubrication, die oil SRH/5 chlorine-free (mild steel, 111309
spray lubrication stainless steel) 1 kg: 111310
10 kg: 111311
Lubricate grease nipple Maintenance interval: Every 2000 operating hours or at least once
a year.
1 Grease nipple
Longitudinal guide Fig. 26852
1 1
1 Grease nipples
Transverse guide Fig. 26914
1. Switch off the machine correctly, switch off the main switch,
lock it, and pull off the key.
2 Use grease gun to lubricate the grease nipple (1) on
longitudinal and transverse guides, until grease emerges.
1 1
1 Grease nipple
Fig. 26797
1. Switch off the machine correctly, switch off the main switch,
lock it, and pull off the key.
2. Use grease gun to lubricate grease nipple (1), until grease
emerges.
Check filling volume or refill Maintenance interval: Every 160 operating hours, at 1/3 of the
oil filling volume at the latest.
Note
The oil and air mixture is set at the factory.
¾ Check the oil level and ensure the oil is between the minimum
and maximum marks of the oil level indicator (1).
Analyze hydraulic oil For the first time after 5000 operating hours, at latest after 2 years.
Then every 2000 operating hours, at latest after 1 year.
Note
A service life of up to 5 years is possible for the oil if these intervals
are observed.
Value Explanation/effect
TAN (Total Acid Oil ages; surface corrosion and deposits possible.
Number)
Viscosity Significant deviations in viscosity are a sign of severe
contamination and foul oil.
Water content Water has a significantly higher vapor pressure than
oil. It can cause cavitation (low pressure can produce
vapor bubbles, that then implode suddenly (when
pressure is increased)). This causes erosion.
Table 5-4
Changing the hydraulic oil If the analysis of the hydraulic oil shows unacceptable values (see
above), at latest after 5 years.
There is a special connection for filling the hydraulic oil tank with
hydraulic oil on the return filter on the instrument plate of the
hydraulic unit.
An oil pump with hoses and connection fittings is delivered as part
of the accessories for the machine to enable the hydraulic oil to be
pumped from the oil drum into machine's hydraulic oil tank. This oil
pump is operated with a drilling machine.
Note
Only use the same type of oil as before for topping up.
1 Filter insert
Return filter Fig. 26849
4. Undo the screws on the flange of the return filter and remove
the filter housing together with the filter insert (1).
5. Insert the oil hose with the suction piece into the hydraulic unit.
6. Hang the other end of the oil hose into the empty oil drum.
7. Install the drilling machine on the oil pump.
8. Pump the used oil into the oil drum.
9. Re-insert the filter housing together with the filter insert and
screw the flange tight.
10. Open the cover of the cleaning opening on the hydraulic unit,
remove the remaining oil sludge using a lint-free cloth and then
close the cleaning opening again (replace the seal if
necessary).
11. Remove the black sealing screw with the pressure switch. Do
not remove the blue sealing cap.
1 Adapter
2 Size-50 open-end wrench
Detail: hydraulic unit Fig. 26850
12. Screw in the adapter (1) with the first coupling half on the
return filter and tighten it with a size-50 open-end wrench.
13. Lock the second coupling half into place.
14. Hang the oil hose with intake piece into the new oil drum.
15. Set the drilling machine to clockwise rotation.
16. Use the drilling machine to top up oil up to the maximum mark
on the level indicator without bubbles.
17. Unscrew the adapter on the return filter and remove the
fittings.
18. Replace the oil filter in the return filter.
19. Screw the black sealing screw with pressure switch back into
the return filter.
20. Switch on the machine and allow it to run for several minutes.
21. Switch off the machine correctly, switch off the main switch,
lock it, and pull off the key.
22. Check the oil level again and top up the oil if necessary.
1 1
1 Grease nipple
Fig. 26818
Note
• Lubricants and cooling agents containing solvents, or agents
which attack the rubber seals and PVC lines are not suitable
for punch spray lubrication.
• For punch spray lubrication, it is also possible to use non-
aggressive synthetic lubricants and cooling agents with a
viscosity range of between ISOVG5 and ISOVG135 apart from
those oils named above.
Note
Do not allow the oil tank to run completely dry, since otherwise air
will enter the system!
Note
The oil and air levels are preset by TRUMPF. It is possible to
adjust them.
1 2 3
4
5
1 6
7
8 9
3
1. Switch off the machine correctly, switch off the MAIN SWITCH,
lock it, and pull off the key.
2. Check the filling volume of the container at level indicator (3).
1. Switch off the machine correctly, switch off the MAIN SWITCH,
lock it, and pull off the key.
The reservoir pressure displayed on the pressure gauge (4)
drops back to "0".
2. Open the oil filler plug (6).
3. Use a funnel to fill the reservoir up to the maximum mark on
the level indicator (3) with oil.
4. Close the oil filler plug (6).
Note
The oil and air levels are preset by TRUMPF. It is possible to
adjust them.
Perfect operation is possible with the following basic settings in
combination with the recommended types of oil:
Adjusting screw Basic setting
Fine air adjustment (5) Turn the screw clockwise as far as it will go.
Then turn the screw in the other direction 8 full
turns.
Fine oil adjustment (2) Turn the screw clockwise as far as it will go.
Then turn the screw in the other direction 1 full
turn.
Table 5-5
1. Open the quick oil filler (1) by turning it approx. one turn
counterclockwise with an Allen key (Size 3).
2. Use a screwdriver to switch the manual operation unit (7) to
ON.
3. If an even stream of oil is emitted from the nozzle: turn the
manual operation unit (7) back to OFF.
4. Close the quick oil filler (1).
Note
The machine is switched on during the following maintenance
work.
The oil must hit the thread former in a sharp, straight jet. After
several oil pulses, the oil must drip from the thread former. If this is
not the case, air has entered the system and oil cannot be
transported reliably.
Note
Do not allow the oil tank to run completely dry, since otherwise air
will enter the system!
1 2 3
1. Turn key switch "Service mode" to the right and pull out key.
2. Open the hose fitting on the basic nozzle body (2). Do not
remove the hose.
3. Select "Operation - SET-UP - Switch elements."
4. Select the "General" switch element.
5. Select the "Lubricate tapping tool" switch element
approximately 10 times until no more bubbles are visible in the
hose.
6. Close the hose fitting.
7. Insert key and turn key switch "Service mode" to the left.
1 Reservoir
2 Quick-release coupling
Fig. 26804
Refill oil Maintenance interval: If the level is less than ¼ of the filling
volume.
1 2 3
Note
The machine is switched on during the following maintenance
work.
1 Grease nipple
Detail: die holder Fig. 26800
1. Turn the C axis by 60°. To do so, select MDA mode and enter
the operating steps 1-2-3.
2. Enter the text, e.g.: C2=DC(60) F108000.
3. Lower the parts flap.
4. Turn key switch "Service mode" to the right and pull out key.
Clean and lubricate rail Maintenance interval: every 40 operating hours. More frequently if
sheets are heavily oxidized.
Note
The main switch on the switch cabinet can remain switched on.
1. Turn key switch FEED HOLD to the right and pull out the key.
2. To replace the cartridge:
– Remove the cover from the hydraulic unit.
– Turn the cartridge (2) 90° in counterclockwise direction and
remove it in upward direction.
– Remove the weight (1).
– Insert the new cartridge and lock it in clockwise direction.
– Put on the weight.
3. Remove the screw (3).
Note
One of the non-ventilated lubrication unit displays error
messages on the user interface.
4. Press the weight till the grease comes out at the screw.
The lubrication unit is ventilated.
5. Install the screw.
6. Install cover on the hydraulic unit.
4.1 Overview
1 5
2 3 3 4
Note
Make absolutely sure the turning handles are closed again once
work on the hydraulic system is finished, since otherwise no
hydraulic pressure will be able to build up.
2
5
Hydraulic accumulator
Note
Maintenance work on hydraulic accumulators may only be carried
out by persons who have been instructed accordingly. The
operating company is responsible for instructing personnel.
See also Pressure Vessel Code (for the Federal Republic of
Germany).
Note
The initial pressure in the gas chamber specified in the hydraulic
diagram is a prerequisite for the uninterrupted punching of
workpieces; regular inspections are essential.
The gas chamber may only be filled with nitrogen. The fluid
chamber stores hydraulic oil under pressure.
Check the hydraulic At regular intervals. According to §10 of the Pressure Vessel Code,
accumulator the interval and extent of the inspection should be determined by
the owner.
Check the initial pressure of Maintenance interval: every 1000 operating hours.
the hydraulic accumulators
and refill them with nitrogen
if necessary
7
1
2
5
Define the initial pressure in 1. Open the punching head covering cap.
the low pressure hydraulic
accumulator 2. Switch on the hydraulic system.
The low pressure gauge must show approx. 70 bar.
3. Switch off the hydraulic system using E-STOP or MACHINE
ON/OFF.
4. Monitor the low pressure gauge (2.15).
The needle falls continuously (2-3 s) to a value (standard value 35
bar at 20°) and then suddenly drops sharply to 0 bar. The value
before the drop in pressure is equivalent to the initial pressure in
the low pressure hydraulic accumulator.
Define the initial pressure in 1. Open the punching head covering cap.
the high pressure hydraulic
accumulator 2. Switch on the hydraulic system.
The high pressure gauge must show approx. 260 bar.
3. Switch off the hydraulic system using E-STOP or MACHINE
ON/OFF.
4. Monitor the high pressure gauge (2.14).
The needle falls continuously (4-6 s) to a value (standard value
160 bar at 20°) and then suddenly drops sharply to 0 bar. The
value before the drop in pressure is equivalent to the initial
pressure in the high pressure hydraulic accumulator.
Note
The procedure is described in the separate manual supplied with
the filling and test device (mat. no. 346973).
Replace the stripper rod Maintenance interval: every 2000 operating hours.
pressure diaphragm
accumulator (see section 4.1, p. 5-34)
Check the hydraulic hose Maintenance interval: Every 2000 operating hours, especially
lines clamp hose.
Note
The hydraulic hoses should be checked by qualified personnel to
ensure safe operating standards. This check should also be carried
out before the first machine start-up.
Issued by:
Employer's liability insurance association e. V.
PO Box 20 52
53757 St. Augustin, Germany
Sales:
Carl Heymanns Verlag KG
Luxemburger Str. 449
50939 Cologne
Replace oil and air filters Maintenance interval: If displayed at the control panel or the
clogging indicator.
There is a red pushbutton on the contamination indicator. This red
pushbutton flips upwards if the oil filter is dirty, indicating that the
oil and air filters have to be replaced.
1 2 3
3. Pull out the oil filter (1) (mat. no. 0349866) and replace it.
4. Replace air filter (2).
Note
There is a new oil and air filter at mat. no. 0349866.
1 2 3
5.1 Overview
1 2
1 Valve
2 Air cushion
Fig. 26794
Note
The pressure for TruPunch 5000 (medium format) must be 2.5–
3 bar and for TruPunch 5000 (large format) it must be 3–3.5 bar.
The optimal element height (air cushion lower edge – machine leg
lower edge) is 90 ± 2 mm.
1st option:
Programming the spray tool lubrication in the NC text (see online
programming manual function "TC_TOOL_LUBE_ON)":
• TC_TOOL_LUBE_OFF: tool lubrication OFF.
• TC_TOOL_LUBE_ON(1): LOW tool lubrication: 1 dosing piston
stroke/s.
• TC_TOOL_LUBE_ON(2): AVERAGE tool lubrication: 1.5
dosing piston strokes/s.
• TC_TOOL_LUBE_ON(3): HIGH tool lubrication: 2 dosing
piston strokes/s.
• TC_TOOL_LUBE_ON(4): tool lubrication with each stroke, but
max. 3.3 dosing piston strokes/s.
2nd option:
Adjustment of the adjusting screw on the spray lubricator:
1 2 3
3rd option:
Editing the tool technology table
6.1 Overview
1 2 3 4 5 6 7 8 9 10
11 2
Clean protective screen and Maintenance interval: every 2000 operating hours.
foam material filter
1 2
1 Hose to muffler
2 Hose to support bracket
Detail: side channel blower Fig. 26814
6. Remove the protective screen (2) and the foam material filter
(1).
¾ Clean with them kerosene and purge them with
compressed air.
or
¾ Replace them if they are very dirty or damaged.
7. Install them in the reverse order.
Clean strainer and filter Maintenance interval: every 40 operating hours. More frequently
when machining foil-coated sheets.
1 Connection hose
Detail: support bracket Fig. 26795
1 Filter 3 Strainer
2 Vacuum pipe
Fig. 26802
Note
• To ensure optimum chip suction, in particular when machining
thin sheets, make sure the chip flap is clean.
• The chip vacuum system must be switched off when working
with forming tools. Otherwise, the side channel blower could
overheat.
1 Sealing ring
Chip flap Fig. 26807
Check the low pressure of Maintenance interval: every 160 operating hours.
the chip vacuum system
Note
• The maintenance interval is shorter when machining foil-
coated sheets.
• The machine is switched on during the following maintenance
work.
1 2
Note
The low pressure measurement only serves to find leakages.
It cannot be used to judge the status of the filter and the strainer.
Exception: filter and strainer are 100 % clogged up.
1 2 3 4
1 Cutting rings
Fig. 26809
Check and clean the racks Maintenance interval: every 40 operating hours.
and guide rails
Index pin(s)
Fig. 26815
Set the height of the brush Maintenance interval: After the brushes have been used out.
fields
The front 5 brush fields in the die adapter area are height
adjustable. The brushes must be 0.3+0.2 mm over the working
height (die upper edge).
2 1 3 4
4. Position the ruler onto the brush fields and the die, or to the left
and right of each ball roller on the tables.
5. Screw out the screwed pins evenly until the upper edge of the
brushes reaches the ruler.
Control panel
Check the filter mats for dirt Maintenance interval: as needed. The interval depends on the
and replace them if quality of the ambient air.
necessary
1. Shut down the machine properly, switch off the MAIN
SWITCH, lock it and pull out the key.
2. Dismantle the four louvered panels on the rear of the control
panel (two screws each).
3. If the mats are dirty, wash them with warm soapy water
(max. 60 °C) and hang them up to dry in a well-ventilated place
or replace them (mat. no. 149230).
4. Insert the upper filter mats with the more dense side facing
inwards and the lower filter mats with the more dense side
facing outwards.
5. Install the louvered panels.
7.1 Overview
1 1 2
1 Sensor system - stripper sensor - Fan battery 3 Safety light barrier and light
2 Switch cabinet: - External air circuit barrier parts flap
- Connectors and clamping screw - Buffer battery
connections
Fig. 47758
Check the mounting devices Maintenance interval: every 2000 operating hours.
for the connectors and
clamping screw connections
Clean external air circuit Maintenance interval: every 2000 operating hours.
Replace the NCK battery NC- Maintenance interval: every three years.
CPU (mat. no. 146881)
1 2
1 Latch
2 Battery location
Detail: switch cabinet Fig. 18077
3 2
1 Buffer battery
2 PC box
Detail: switch cabinet Fig. 50250
Clean safety light barrier and Maintenance interval: every 500 operating hours.
light barrier parts flap
Note
The maintenance training course needs to be attended for the
following maintenance work.
1 Sensor
Fig. 26811
2 Reflector
Fig. 26917
Set sensor system - stripper Maintenance interval: As needed when light barrier beam is
sensor with new device moved.
Note
The machine is switched on during the following maintenance
work.
1. Dismantle the cover on the upper left hand side of the machine
frame to gain access to the sensor.
2. Move the Y axis forward until the first segment table is pressed
down.
1
3 4
Cooling water is needed for cooling the driver motors for the
coordinate guidance and to cool the machine body.
Information on storage and • Demineralized water may only be stored for a short period of
handling time in order to avoid impairment of the water quality.
• The water must be transported in clean plastic containers.
• The specified chemical/physical characteristics must be
unconditionally observed. Consult your supplier with regards to
this matter.
• Avoid all unnecessary contact with the water (e.g. with hands).
Contact with foreign matter, except that specified by TRUMPF,
has a negative affect on the water quality.
• Additional equipment for filling water such as pumps, funnels,
hoses or stop cocks should be used exclusively for operation
with the cooling water.
– The pump is included in the scope of delivery of the
machine.
1 2
Removing used cooling water 1. Shut down the machine properly, switch off the MAIN
SWITCH, lock it and pull out the key.
2. Suspend the holding sheet with a blue plate and an assembled
pump (included in the scope of delivery) for cooling water
replacement at the table support.
3. Remove the cover of the cooling unit.
4. Remove the sealing plug on the discharge flap (1) of the
cooling unit.
– Provide the reducing nipple 1/2-3/3" with a stopcock.
– Engage a hose.
– Connect the suction side of the pump to the hose.
Provide a container for the used cooling water.
5. Engage another hose on the pressure side of the pump and
connect it to the provided container.
6. Place the drilling machine on the pump and pump out the
cooling water.
– For complete emptying: tilt the cooling unit.
Clean the cooling circuit 7. Connect the pressure side of the pump to the drain cock of the
cooling unit.
8. Connect the suction side of the pump to the container for
demineralized water.
1 2 3 4 5
Definition of the tool length: upper edge of the alignment ring to the
bottom edge of the punch (1).
1 2
1 Tool length
2 Dimension of the device
Fig. 21957
The punch and die must be reground at the grinding face if there
are signs of wear (abrasion, damage to tool cutting edges). This is
particularly important for scratch-free machining.
Note
The procedure is described in the operating manual for the
QuickSharp.
1 2
37.8 - 0.2 *
34.3 - 0.2
37.3 - 0.2
x1
x1
3 3
I : 18 - 0.1
x2
x2
II : 20 - 0.1
4 4
x2
x2
II : 20 - 0.1
Note
• These dimensions are always the same for new tools which
have not been reground, irrespective of the tool geometry.
• Appropriate spacers are placed under reground dies.
• Make absolutely sure the correct tool length is entered in the
tool data, since collisions between the tool and workpiece
could otherwise occur when executing the program.
1 Tool length
Fig. 19528
Note
To ensure correct entries in the tool data, we recommend noting
down the tool length (upper edge of alignment ring to lower edge of
punch) on the magnetic disk (with new cartridges) or entering it into
the regrind length flag or noting it on the alignment ring with an oil
proof felt-tip pen (with old cartridges).
Maintenance of the
automation
1. General guidelines......................................................... 6-7
Before putting the machine The machine must be lubricated carefully in accordance with the
into service lubrication chart before being put into service. The entire
lubrication of the machine has to be checked if the machine has
not been used for a long time (e.g. overseas transport). If required,
the gummy oil must be completely removed from all lubrication
points and supply lines.
Notes on cleaning The entire system should be cleaned at regular intervals. Coarse
elements of dirt and dust can be brushed off or vacuum-cleaned
using an industrial vacuum cleaner.
Notes on lubrication Refer to the lubrication chart and maintenance instructions for the
lubrication of the machine. The following points should also be
observed:
• Do not leave filler and drainage caps open for longer than
necessary and keep them clean at all times.
• Drain waste oil only at operating temperature.
• Do not use cleaning wool, kerosene, and benzole for cleaning
oil chambers. Only use non-fibrous cleaning cloths.
• Dispose of waste oil properly.
2000
h
1000
500
160
1 2 3 4 5 6 7 8 9 10 11 12
1 X axis guide strip 10 Guide rails at the GripMaster Lubricate with an oil can or
2 Support columns on the carrier 11 Stop pins on the movable spray can
suction cup GripMaster Monitor oil level and, if
3 Stripper unit (optional) guide rod 12 Grippers on GripMaster
necessary, top up to
4 Suction frame safety device required level
5 Sheet thickness gauge Checking the oil level
6 Central lubrication
7 Z axis feed gear Indication of lubrication Emptying the container
8 X axis feed gear h intervals in operating hours
9 Y axis feed gear (optional) Read the maintenance Replacing the contents of
instructions the container
Lubrication with a grease
gun
Fig. 38300
Note
Established equivalent lubricants from other manufacturers can
also be used.
5
4
3 6
8
2
1 Guide rod
Fig. 27665
Note
The suction frame must be raised to allow the support areas of the
pins to be lubricated.
1 Guide rods
Fig. 27678
Check filling volume and refill Every 1000 operating hours, but at the latest when down to 1/3 of
with low-viscosity grease if the filling volume.
necessary
Note
The amount of low-viscosity grease apportioned is set at the
factory.
1 Central lubrication
Fig. 27656
Note
The gearbox is filled with synthetic oil at the factory and is
maintenance-free under normal operating conditions.
Note
The gearbox is filled with a synthetic oil at the factory, and is
maintenance-free under normal operating conditions.
1 Grippers
Fig. 27657
10000
h
2000
1000
500
1 2 3 4 5 6
d Indexing
intervals in operating hours necessary, top up to
required level
eShifting unit (ToolMaster (70)) Read the maintenance Checking the oil level
Fig. 27664
Note
Established equivalent lubricants from other manufacturers can
also be used.
1 2 3
1 Grease nipple
Fig. 27673
1 2
Central lubrication
Check filling volume and refill Every 1000 operating hours, but at the latest when down to 1/3 of
with low-viscosity grease if the filling volume.
necessary
Note
The grease and air mixture is set at the factory.
1 Gearbox
Fig. 27672
4 Jahre
h
500
1 2
Fig. 27674
Note
Established equivalent lubricants from other manufacturers can
also be used.
Note
The parts container and motor cover must be removed.
1 Grease nipple
Fig. 27675
1 Inner toothing
Fig. 27676
1. Shut down the machine properly, switch off the MAIN
SWITCH, lock it and pull out the key.
2. Take out the container.
3. Remove the motor shell.
4. Dismantle the motor with rotary drive.
5. Remove low-viscosity grease.
6. Mount and fit the motor with rotary drive.
7. Pour in low-viscosity grease.
h 10000
(max. 4 Jahre/
years/années)
1000
3 2 1 3
c Flat gearbox h
Indication of lubrication Monitor oil level and, if
Fig. 28383
Note
Established equivalent lubricants from other manufacturers can
also be used.
Table 6–12
Cam
Flat gearbox
Oil change Every 10000 operating hours or after 4 years at the latest.
Note
Drain the waste oil at operating temperature.
Screw joints
Weld joints
h 10000
(max. 4 Jahre/
years/années)
1000
1 2 3 2
c Flat gearbox h
Indication of lubrication Monitor oil level and, if
Note
Established equivalent lubricants from other manufacturers can
also be used.
Table 6-13
Track rollers
Flat gearbox
Note
Drain the waste oil at operating temperature.
Screw joints
Weld joints
10000
h
1000
3 1 2 2 1 3
c Flat gearbox h
Indication of lubrication Monitor oil level and, if
Fig. 39235
Note
Established equivalent lubricants from other manufacturers can
also be used.
Table 6-14
Running surfaces
Track rollers
Ball bearings
Note
The chain tension must be fine tuned if, during positioning, the
upper carriage shows signs of unevenness, e.g. jerky movements.
Change oil Every 10000 operating hours or after 4 years at the latest.
Note
Drain the waste oil at operating temperature.
Screw joints
Weld joints
5y
h 1500
500
1 4 2 3
Table 6-15
3.19 Lubricant
1
1
1
1. Switch to SETUP.
2. Select switch element group ShearMaster.
3. Manually start ShearMaster.
– Select 2.Start and press TOGGLE.
4. Manually stop ShearMaster when the conveyor belt has moved
up to the scissor unit.
– Press RESET .
5. Switch off the machine correctly, switch off the MAIN SWITCH,
lock it, and remove the key.
6. Lubricate cable with an oil-soaked cloth.
Analyze hydraulic oil For the first time after 5000 operating hours, at latest after 2 years.
Then every 2000 operating hours, at latest after 1 year.
Note
A service life of up to 5 years is possible for the oil if these intervals
are observed.
Value Explanation/effect
TAN (Total Acid Oil ages; surface corrosion and deposits possible.
Number)
Viscosity Significant deviations in viscosity are a sign of severe
contamination and foul oil.
Water content Water has a significantly higher vapor pressure than
oil.
It can cause cavitation (low pressure can produce
vapor bubbles, that then implode suddenly (when
pressure is increased)). This causes erosion.
Table 6-17
Change hydraulic oil If the analysis of the hydraulic oil shows unacceptable values (see
above), at latest after 5 years.
2. Open left conveyor belt on the front of the table. To do this, lift
the conveyor belt, use a mandrel to push the connection pin a
bit from where it is fastened and then pull it out.
1 Tank opening
Fig. 50580
3. Roll the conveyor belt back and forth. Remove the holder of
the temperature sensor or dummy cover that becomes free. In
machines without a temperature sensor or dummy cover, also
open the right conveyor belt, unscrew the tank cover, and
move it.
4. Pump out waste oil through the opening that becomes free and
fill with new oil.
5. Close cover and install conveyor belt. Reestablish belt tension.
1
1
1. Switch off the machine correctly, switch off the MAIN SWITCH,
lock it, and pull off the key.
2 Lubricate the grease nipples using a grease gun.
1. Switch to SETUP.
2. Select switch element group ShearMaster.
3. Select 3.Jogging.
4. Move the blade with + down.
5. Switch off the machine correctly, switch off the MAIN SWITCH,
lock it, and remove the key.
6. Remove the scrap container.
7. Lubricate the lubricating heads using a grease gun.
4.2 Overview
1 2 3 4 5
Pressure regulator
1 2 3 4 5
In this case:
¾ Check the vacuum cups and filters in the vacuum
connection
or
¾ Replace the vacuum hoses.
1 Bellows cylinder
Fig. 27662
5.2 Overview
1 2 3 3 3 1
Clean the vacuum cups Every 8 operating hours, or even more frequently when machining
highly oxidized sheets.
1. Switch off the machine properly, switch off the MAIN SWITCH,
lock it and remove the key.
2. Clean the vacuum cups with a clean cloth.
3. Check the vacuum cups and hoses and replace them if
necessary.
5
4
3 6
8
2
3
2
6 7
7
4
2 3 8
3
2
6 7
1 2 3
Scrap container
1 2
1. Remove container.
2. Check the cut quality of the scrap.
3. If the blades are blunt, notify TRUMPF Service.
Replace the blades.
Conveyor belt
1 Light barrier
Fig. 26916
Test certificate -
Noise level
TruPunch 5000
Edition: 03/2001
Drawing number: 9120-5-190
Material number: 977020
1
Except for the environmental correction.
2
With K2A = 10 lg(1 + 4 S/A) dB
A = Total surface SV x Sound absorption factor α
A = 4300 m2 x 0.3 = 1305 m2
S = Measuring surface = 142 m2
Extraneous noise
MP L'pAeq MP L'pAeq
1 81.4 16 83.9
2 85.1 17 82.5
3 81.5 18 83.7
4 82.7 19 82.6
5 79.4 20 82.3
6 82.8 21 80.3
7 79.3 22 82.1
8 83.1 23 78.9
9 83.9 24 82.9
10 83.3 25 84.0
11 82.2 26 83.9
12 81.8 27 81.8
13 81.9 28 81.8
14 80.8 29 85.1
15 81.7
Measuring surface sound pressure
Measuring surface sound pressure LpA,1m = 81.1 dB
level 3
Acoustic power 4
Acoustic power level LWA = 102.6 dB
Workplace-related values
Emission value LpAeq 5 82.8 dB
Table 7-2
3
LpA,1m = L'pA* – K2A
L'pA* = mean sound level from the measurement area L'pAeq
With K1 = 0 dB and K2A = 1.5 dB
LpA, 1m = 82.6 - 1.5 = 81.1 dB
4
With LWA = LpA,1m + LS
5
With LpAeq = L'pAeq – K2A
6
With ΔLI = L'pAIm – L'pAeq
Material ST 37-2
Material thickness 2.5 mm
Tools used Round 35 mm, flat
Round 10 mm, flat
Slitting tool 5 x 56 mm, angled
Machining time 30 s
Table 7-3
31
80
21
20
10
60
17
00
00
75
68
00
25
56 51
00
10
00
90
43
50 34
37 00
17
75 00
18
• Measuring points
Measuring point corresponds to
the operator's location
Fig. 27468
3 E S
2 1
Alignment by 2 persons The fine-tuning described below relates to the installation example
above. It must be carried out by two persons, whereby person 1
aligns the receiver and transmitter and person 2, instructed by
person 1, aligns the mirrors for the mirror posts.
Step 1
Preparatory measures • Before beginning with the actual adjustments, the light exit at
the transmitter, the center of the mirrors on the posts and the
light entry at the receiver must be set to the same height (as
measured from the floor).
• Position the transmitter, mirror posts and receiver vertically
using the spirit level, first putting them in approximate
alignment with one another and screwing them down.
• Align the mirrors in the mirror posts approximately parallel to
the recesses in the mirror posts.
• Clean the mirrors (using spirits, window cleaning agent).
• Screw the AR 60 alignment fixture onto the adapter.
Step 2
Aligning the transmitter and • Lock the alignment fixture with adapter into the transmitter.
mirrors of mirror post 1 • Attach the cross-hair to the mirror on mirror post 1.
• Check transmitter's position and, if necessary, adjust it until the
alignment fixture beam hits the center of the mirror on mirror
post 1.
• Attach the cross-hairs to the mirror of mirror post 2.
• Adjust the mirror on mirror post 1 until the alignment device
beam hits the center of the mirror on mirror post 2 (see
Fig. 6309, pos.1).
Step 3
Aligning the mirror of mirror • Attach the cross-hairs to the mirror on mirror post 3.
post 2 • Adjust the mirror on mirror post 2 until the alignment device
beam hits the center of the mirror on mirror post 2 (see
Fig. 6309, pos.1).
Step 5
Aligning further beams • Align the 2nd beam (and any further beams) in the same
manner described in Steps 1 - 4.
Step 6
Functional test • Remove the cross-hairs from the mirror on the mirror post.
• Clean mirror again if necessary.
• Switch ON the machine.
• Activate the safety light barrier.
If the safety light barrier has been properly aligned, the yellow and
green LEDs on the receiver illuminate simultaneously for each
beam.
Note
The more care taken when aligning, the less chance there is that
problems will arise when operating the safety light barrier.
