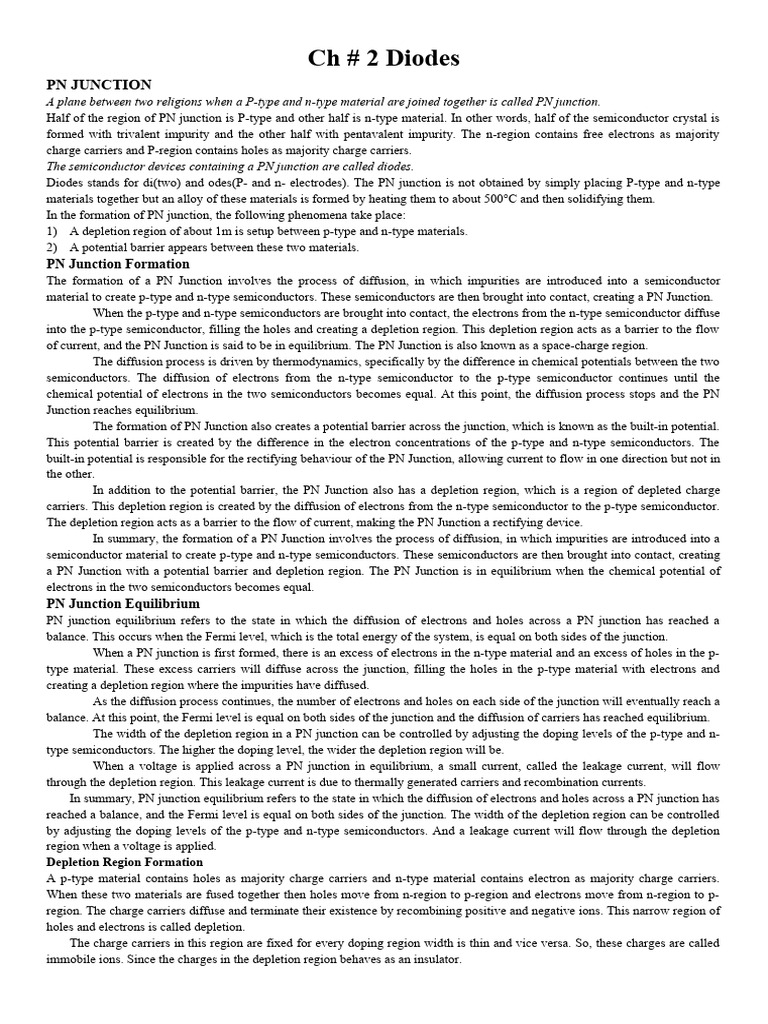

Ch # 2 Diodes

PN JUNCTION
A plane between two religions when a P-type and n-type material are joined together is called PN junction.
Half of the region of PN junction is P-type and other half is n-type material. In other words, half of the semiconductor crystal is
formed with trivalent impurity and the other half with pentavalent impurity. The n-region contains free electrons as majority
charge carriers and P-region contains holes as majority charge carriers.
The semiconductor devices containing a PN junction are called diodes.
Diodes stands for di(two) and odes(P- and n- electrodes). The PN junction is not obtained by simply placing P-type and n-type
materials together but an alloy of these materials is formed by heating them to about 500°C and then solidifying them.
In the formation of PN junction, the following phenomena take place:
1) A depletion region of about 1m is setup between p-type and n-type materials.
2) A potential barrier appears between these two materials.
PN Junction Formation
The formation of a PN Junction involves the process of diffusion, in which impurities are introduced into a semiconductor
material to create p-type and n-type semiconductors. These semiconductors are then brought into contact, creating a PN Junction.
When the p-type and n-type semiconductors are brought into contact, the electrons from the n-type semiconductor diffuse
into the p-type semiconductor, filling the holes and creating a depletion region. This depletion region acts as a barrier to the flow
of current, and the PN Junction is said to be in equilibrium. The PN Junction is also known as a space-charge region.
The diffusion process is driven by thermodynamics, specifically by the difference in chemical potentials between the two
semiconductors. The diffusion of electrons from the n-type semiconductor to the p-type semiconductor continues until the
chemical potential of electrons in the two semiconductors becomes equal. At this point, the diffusion process stops and the PN
Junction reaches equilibrium.
The formation of PN Junction also creates a potential barrier across the junction, which is known as the built-in potential.
This potential barrier is created by the difference in the electron concentrations of the p-type and n-type semiconductors. The
built-in potential is responsible for the rectifying behaviour of the PN Junction, allowing current to flow in one direction but not in
the other.
In addition to the potential barrier, the PN Junction also has a depletion region, which is a region of depleted charge
carriers. This depletion region is created by the diffusion of electrons from the n-type semiconductor to the p-type semiconductor.
The depletion region acts as a barrier to the flow of current, making the PN Junction a rectifying device.
In summary, the formation of a PN Junction involves the process of diffusion, in which impurities are introduced into a
semiconductor material to create p-type and n-type semiconductors. These semiconductors are then brought into contact, creating
a PN Junction with a potential barrier and depletion region. The PN Junction is in equilibrium when the chemical potential of
electrons in the two semiconductors becomes equal.
PN Junction Equilibrium
PN junction equilibrium refers to the state in which the diffusion of electrons and holes across a PN junction has reached a
balance. This occurs when the Fermi level, which is the total energy of the system, is equal on both sides of the junction.
When a PN junction is first formed, there is an excess of electrons in the n-type material and an excess of holes in the p-
type material. These excess carriers will diffuse across the junction, filling the holes in the p-type material with electrons and
creating a depletion region where the impurities have diffused.
As the diffusion process continues, the number of electrons and holes on each side of the junction will eventually reach a
balance. At this point, the Fermi level is equal on both sides of the junction and the diffusion of carriers has reached equilibrium.
The width of the depletion region in a PN junction can be controlled by adjusting the doping levels of the p-type and n-
type semiconductors. The higher the doping level, the wider the depletion region will be.
When a voltage is applied across a PN junction in equilibrium, a small current, called the leakage current, will flow
through the depletion region. This leakage current is due to thermally generated carriers and recombination currents.
In summary, PN junction equilibrium refers to the state in which the diffusion of electrons and holes across a PN junction has
reached a balance, and the Fermi level is equal on both sides of the junction. The width of the depletion region can be controlled
by adjusting the doping levels of the p-type and n-type semiconductors. And a leakage current will flow through the depletion
region when a voltage is applied.
Depletion Region Formation
A p-type material contains holes as majority charge carriers and n-type material contains electron as majority charge carriers.
When these two materials are fused together then holes move from n-region to p-region and electrons move from n-region to p-
region. The charge carriers diffuse and terminate their existence by recombining positive and negative ions. This narrow region of
holes and electrons is called depletion.
The charge carriers in this region are fixed for every doping region width is thin and vice versa. So, these charges are called
immobile ions. Since the charges in the depletion region behaves as an insulator.
Depletion region formation refers to the process of creating a region of depleted carriers in a PN junction by introducing
impurities into a semiconductor material. When a p-type semiconductor and an n-type semiconductor are brought into contact,
impurities in the n-type semiconductor diffuse into the p-type semiconductor, creating an excess of electrons in the p-type
material. At the same time, holes in the n-type semiconductor diffuse into the p-type material, creating a depletion region where
the impurities have diffused.
The depletion region is created by the diffusion of impurities across the PN junction. The diffusion of impurities is driven
by the reduction of the total energy of the system, which is known as the Fermi level. As the impurities diffuse, they create a
region where there are no free carriers, and this is known as the depletion region.
The width of the depletion region depends on the doping levels of the p-type and n-type semiconductors. The higher the
doping level, the wider the depletion region will be. The width of the depletion region also depends on the applied voltage across
the PN junction.
The depletion region is a region where the electric field is established due to the lack of the mobile charge carriers. It acts
as a barrier to the flow of current and prevents current from flowing across the junction when the PN junction is in equilibrium.
In summary, Depletion region formation refers to the process of creating a region of depleted carriers in a PN junction by
introducing impurities into a semiconductor material. The diffusion of impurities driven by the reduction of the total energy of the
system, the Fermi level. The width of the depletion region depends on the doping levels of the p-type and n-type semiconductors
and the applied voltage across the PN junction. The depletion region acts as a barrier to the flow of current and prevents current
from flowing across the junction when the PN junction is in equilibrium.
Barrier Voltage
Depletion region contains a row of positive and a row of negative charges. These charges are separated from each other. Due to
separation an electric potential VB is established across the PN junction. This potential is called barrier potential.
The barrier potential stops the flow of charges between two regions. To break this barrier a particular amount of energy is
supplied at room temperature:
The value of barrier potential depends on three factors:
i) Doping density
ii) Electronic charge
iii) Temperature
Barrier potential decreases by 2mV/ºC.
Barrier voltage, also known as built-in potential or junction potential, refers to the potential difference that is created across a PN
junction due to the depletion region. It is the voltage required to balance the difference in Fermi levels between the p-type and n-
type semiconductors.
When a p-type semiconductor and an n-type semiconductor are brought into contact, impurities in the n-type
semiconductor diffuse into the p-type semiconductor, creating an excess of electrons in the p-type material. At the same time,
holes in the n-type semiconductor diffuse into the p-type material, creating a depletion region where the impurities have diffused.
This creates a potential difference across the PN junction, known as the barrier voltage.
The barrier voltage is determined by the difference in electron concentration between the p-type and n-type
semiconductors, and the width of the depletion region. The higher the doping level and the wider the depletion region, the higher
the barrier voltage.
When a forward bias voltage is applied across a PN junction, it increases the barrier voltage and causes a larger current to
flow through the junction. When a reverse bias voltage is applied across a PN junction, it decreases the barrier voltage and causes
a smaller current to flow through the junction.
In summary, Barrier voltage, also known as built-in potential or junction potential, refers to the potential difference that is
created across a PN junction due to the depletion region. It is the voltage required to balance the difference in Fermi levels
between the p-type and n-type semiconductors. The barrier voltage is determined by the difference in electron concentration
between the p-type and n-type semiconductors, and the width of the depletion region. The application of a forward bias voltage
increases the barrier voltage and causes a larger current to flow through the junction, while a reverse bias voltage decreases it and
causes a smaller current to flow through the junction.
Importance of PN Junction in modern electronics
PN Junction has many applications in modern technology such as rectifiers, power supplies, transistors, and electronic devices,
solar cells and photodiodes. In rectifiers, the PN Junction is used to convert AC voltage to DC voltage. In power supplies, PN
Junction is used to regulate voltage. In transistors, PN Junction is used to control current flow. In electronic devices, PN Junction
is used as a switch or a detector. In solar cells, PN Junction is used to convert light into electrical energy. In photodiodes, PN
Junction is used to detect light.
Multiple Choice Questions
1. What is the name of the region in a PN junction where there are no free carriers?
a) Amplification region b) Rectification region c) Light generation region d) Depletion region
2. What is the main process used to form a PN junction?
a) Diffusion b) Ion implantation c) Epitaxy d) Lithography
Answer: a) Diffusion
3. What type of impurities are used to create a p-type semiconductor?
a) Donors b) Acceptors c) Neutrals d) Insulators
Answer: b) Acceptors
4. What type of impurities are used to create an n-type semiconductor?
a) Donors b) Acceptors c) Neutrals d) Insulators
Answer: a) Donors
5. What is the name of the region in a PN junction where there is a net excess of holes?
a) P-type region b) N-type region c) Depletion region d) Barrier region
Answer: a) P-type region
6. What is the name of the region in a PN junction where there is a net excess of electrons?
a) P-type region b) N-type region c) Depletion region d) Barrier region
Answer: b) N-type region
7. What is the name of the region in a PN junction where there is a depletion of free carriers?
a) P-type region b) N-type region c) Depletion region d) Barrier region
Answer: c) Depletion region
8. What is the name of the region in a PN junction where the potential difference is created?
a) P-type region b) N-type region c) Depletion region d) Barrier region
Answer: d) Barrier region
9. What is the name of the state of the PN junction when the diffusion current is equal to the recombination current?
a) Forward bias equilibrium b) Reverse bias equilibrium c) Neutral equilibrium d) Open circuit equilibrium
Answer: c) Neutral equilibrium
Short Questions
1. What is a PN junction?
Answer: a. A type of diode that consists of a p-type semiconductor and an n-type semiconductor.
2. What is the main function of a PN junction?
Answer: a. To allow current flow in one direction only
3. What is the potential difference that exists across the PN junction called?
Answer: a. Barrier potential
4. What happens when a forward voltage is applied to a PN junction?
Answer: a. The potential difference decreases, allowing current to flow.
5. What happens when a reverse voltage is applied to a PN junction?
Answer: a. The potential difference increases, preventing current flow.
6. What is the depletion region in a PN junction?
Answer: a. The region where free electrons and holes are depleted.
7. What is the main effect of the built-in electric field in a PN junction?
Answer: a. To prevent current flow in the reverse direction
8. What is the difference between a P-type semiconductor and an N-type semiconductor?
Answer: a. P-type semiconductors have a deficiency of electrons, while N-type semiconductors have an excess of electrons
9. What is the function of a PN junction diode in a rectifier circuit?
Answer: a. To convert AC voltage to DC voltage
10. What is the function of a PN junction diode in a voltage regulator circuit?
Answer: a. To regulate the output voltage of a power supply
11. What is the depletion region in a PN junction?
Answer: a. The region where free electrons and holes are depleted.
12. What is the main function of the depletion region in a PN junction?
Answer: a. To prevent current flow in the reverse direction
13. What is the potential difference across the depletion region called?
Answer: a. Barrier potential
14. How is the width of the depletion region affected by the applied voltage across the PN junction?
Answer: a. The width decreases with increasing forward voltage and increases with increasing reverse voltage.
15. What happens to the depletion region when a forward voltage is applied to the PN junction?
Answer: a. The depletion region becomes smaller, allowing current flow.
Biasing of PN Junction
The process of connecting a diode or PN junction with a potential source is called biasing.
Purpose of biasing a PN junction diode
The purpose of biasing a PN junction diode is to control its current-voltage characteristics. By applying a voltage difference across
the PN junction, the diode can be made to conduct or block current, which is important for its use in various electronic circuits.
The biasing voltage determines the operating point of the diode, which affects its ability to function as a rectifier, switch, or
amplifier. Biasing is therefore crucial for the proper operation of diode-based circuits and is essential for achieving the desired
electrical behaviour.
Types of Biasing
There are two types of biasing:
i) Forward biasing
ii) Reverse biasing
Forward Biasing
The type of biasing in which P-region of a semiconductor is connected with positive terminal of battery and N-region with
negative terminal of battery is called forward biasing.
The diode in forward biasing is called forward biased diode. When a battery is connected then holes in P-region are repelled by
positive terminal of battery and electrons in N-region are repelled by negative terminal of battery.
Fig. 13.4a (BL Theraja)
In the result holes and electrons flow towards the junction and recombine. So, a current flow through the diode. This current is
called forward current. Further the width of depletion region decreases in forward biasing.
(Fig. 13.5 b\BL Theraja). In forward biasing the anode is positive with respect to cathode.
Forward I-V Characteristics
A graph that shoes the variation of current and voltage is called I/V characteristics.
When a PN junction is formed then immobile charges stay in the depletion region. As the potential difference is applied then due
forward biasing charges start to flow. Initially current is very small due to less moving charges. As the potential increases the
current also increases exponentially. But the current increase sharply as the potential increases beyond a particular (threshold)
voltage. (Fig 13.6/BL Theraja). It is also called knee voltage.
The threshold voltage of Si and Ge is
The forward biased resistance is given as

Since , So that

Therefore, the forward biased diode has low resistance in the range of few ohm. Practically forward resistance for Ge is lower
than Si. This is the value of static resistance.
AC resistance of PN junction is given as

Reverse Biasing
The type of biasing in which P-region of a semiconductor is connected with negative terminal of battery and N-region with
positive terminal of battery is called reverse biasing.
The diode in forward biasing is called forward biased diode. When a battery is connected then holes in P-region are attracted by
negative terminal of battery and electrons in N-region attracted by positive terminal of battery (Fig. 13.7\Theraja). In the result no
recombination of holes and electrons take place and no current flows. Further the width of depletion region increases in reverse
biasing. The anode is negative with respect to the cathode in reverse biasing.
Reverse I-V Characteristics
A graph that shows the variation of current and voltage is called I/V characteristics.
In reverse biasing, practically, no current flow due to majority charge carriers. But a small flow due to minority charge carriers.
This current is called reverse current. This is also called leakage current. The current is temperature dependent, so it also increases
as the potential (thermal energy) increases. The value of current is doubled for each 10ºC rise for Ge and for every 6ºC rise in case
of Si.
The reverse biased resistance is given as

Since

then
Therefore, the reverse biased diode has high resistance in the range of mega ohms.
Combined Forward and Reverse I-V Characteristics
Forward and reverse current-voltage characteristics has been discussed in previous topic. Both forward and reverse characteristics
can be shown on a single graph as shown in Fig. (13.10\Theraja) scale of current for forward and reverse biasing is different.
In reverse biasing as the voltage is increased current becomes sharp. This value of current is called breakdown voltage.
(Fig 13.11\Theraja)
Importance of Biasing
Biasing is important for the following reasons:
 Controls current-voltage characteristics: By applying a voltage difference across a PN junction diode, its current-voltage
characteristics can be controlled, allowing for better regulation of its electrical behaviour.
 Determines diode performance: The biasing voltage affects the operating point of a diode, which determines its ability to
function as a rectifier, switch, or amplifier.
 Enables proper operation of diode-based circuits: Biasing is crucial for ensuring that diodes in a circuit are operating
correctly and performing the desired functions.
 Improves circuit reliability: Biasing helps to optimize the performance and reliability of diode-based circuits, reducing
the risk of failure and improving overall system performance.
Significance of Biasing in Electronics and Electrical Engineering
Biasing is significant in electronics and electrical engineering because:
 It is a fundamental concept: Biasing is a basic principle in electronics and is taught in introductory courses in electrical
engineering. A deep understanding of biasing is essential for the study of semiconductor devices and their applications.
 Enables the creation of complex circuits: Biasing allows for the creation of complex circuits such as rectifiers, voltage
regulators, power supplies, and amplifiers. It is an important factor in determining the performance of these circuits and
is essential for their proper operation.
 Supports advancements in technology: Biasing is critical for the development of new technologies in fields such as
communication, computing, and renewable energy. It enables the creation of efficient and reliable electronic devices that
meet the demands of modern society.
 Improves system performance: By controlling the current-voltage characteristics of diodes, biasing helps to optimize the
performance of electronic systems, reducing the risk of failure and improving overall system reliability.
Breakdown Mechanisms
There are two mechanism of breakdown voltage in PN junction.
i) Zener breakdown
ii) Avalanche breakdown
Zener Breakdown
Zener breakdown is a type of electrical breakdown that occurs in a reverse biased PN junction diode when the reverse voltage
exceeds a certain value called the Zener voltage.
In this breakdown mode, the electric field across the depletion region becomes strong enough to ionize the lattice atoms, creating a
flow of electrons and holes. This results in a large current flowing through the diode in the reverse direction, causing the voltage
across the diode to remain constant at the Zener voltage.
Due to large doping a diode has narrow depletion region and many charge carriers are produced. The resistance of
junction becomes small, and a reverse current starts to flow. This phenomenon is called Zener effect and breakdown voltage is
called Zener breakdown voltage. The voltage is almost constant but current increases. Due to this property Zener diode is used as
voltage regulator.
Avalanche Breakdown
Avalanche breakdown is a type of electrical breakdown that occurs in a reverse biased PN junction diode when the electric field
across the depletion region becomes strong enough to ionize the lattice atoms, creating a flow of electrons and holes.
This ionization process leads to a chain reaction of ionizations, causing a large current to flow through the diode in the reverse
direction, resulting in a breakdown of the diode.
In contrast to Zener breakdown, which occurs at a specific voltage known as the Zener voltage, avalanche breakdown
occurs over a range of reverse voltages and is characterized by a rapid increase in current with increasing reverse voltage. The
breakdown is called "avalanche" because it is similar to an avalanche in the sense that it starts with a small trigger and quickly
grows in magnitude.
Avalanche breakdown is commonly used in applications such as rectifiers, power supplies, and voltage regulators, where
it is necessary to clamp the voltage at a certain level to protect sensitive components from high voltage transients. The avalanche
breakdown is also used in the operation of photodetectors and in high-voltage switching applications.
In reverse biasing a very small current flow due to minority charge carriers. As the reverse voltage is increased then the width of
the depletion region also increases. In other words, number of immobile ions also increases.
Due to high number of immobile ions free electrons collide with other atoms producing more free electrons whose
strength is in geometric progression (1,2,4,6).
A large reverse current flow due to these free electrons. This effect is called avalanche breakdown voltage.
Applications of PN Junctions
PN junction diodes have a wide range of applications in electronics and electrical engineering, including:
 Rectification: PN junction diodes are commonly used as rectifiers to convert alternating current (AC) into direct current
(DC).
 Power supplies: PN junction diodes are used in power supplies to regulate voltage levels and provide stable DC power to
electronic devices.
 Clamping and voltage regulation: PN junction diodes can be used as voltage clamps to limit the voltage applied to a
circuit, or as voltage regulators to maintain a constant voltage level.
 Switching: PN junction diodes can be used as switches to turn on or off the flow of current in a circuit.
 Amplifiers: PN junction diodes can be used as amplifiers to increase the current or voltage level of a signal.
 Photodetection: PN junction diodes can be used as photodetectors to detect light and convert it into an electrical signal.
 Display technology: PN junction diodes are used in displays such as light-emitting diodes (LEDs) and organic light-
emitting diodes (OLEDs) to produce light.
 Solar cells: PN junction diodes are used in solar cells to convert sunlight into electrical energy.
Multiple Choice Questions
1. What is the purpose of biasing a PN junction?
a) To reduce the resistance of the junction b) To adjust the operating point of the junction
c) To increase the current flow through the junction d) To decrease the voltage across the junction
Answer: b
2. Which type of biasing increases the forward current flow through a PN junction?
a) Forward biasing b) Reverse biasing c) Neutral biasing d) Positive biasing
Answer: a
3. How does reverse biasing affect the current flow through a PN junction?
a) It increases the current flow b) It decreases the current flow
c) It has no effect on the current flow d) It increases the resistance of the junction
Answer: b
4. What is the voltage drop across a forward-biased PN junction?
a) 0 V b) Negative voltage c) Positive voltage d) Infinite voltage
Answer: c
5. How does the depletion region change in a reverse biased PN junction?
a) It becomes narrower b) It becomes wider c) It remains unchanged d) It becomes shorter
Answer: b
6. What is the effect of forward biasing a p-n junction diode on its resistance?
a) Decreases b) Increases c) Remains unchanged d) Varies randomly
Answer: A. Decreases
7. What is the direction of the electric field in a forward biased p-n junction diode?
a) From n-side to p-side b) From p-side to n-side c) No electric field is present d) From both sides
Answer: B. From p-side to n-side
8. What is the role of the forward voltage in forward biasing a p-n junction diode?
a) It determines the potential difference across the diode
b) It determines the direction of current flow through the diode
c) It has no effect on the diode d) It controls the diode resistance
Answer: A. It determines the potential difference across the diode
9. How does forward biasing a p-n junction diode affect the potential barrier?
a) Increases it b) Decreases it c) No effect d) First increases then decreases
Answer: B. Decreases it
10. In a forward biased p-n junction diode, what happens to the current flow as the forward voltage is increased?
a) Decreases b) Increases c) Remains constant d) First increases then decreases
Answer: B. Increases
11. What is the purpose of forward biasing a pn junction diode?
a) To prevent the flow of current b) To allow the flow of current
c) To reduce the flow of current d) To increase the flow of current
Answer: B. To allow the flow of current
12. What is the voltage required for forward biasing a pn junction diode?
A. 0V B. Less than 0V C. Greater than 0V d) 0.7 V
Answer: C. Greater than 0V
13. How does the forward bias affect the resistance of a pn junction diode?
a) Increases the resistance b) Decreases the resistance c) Does not affect the resistance d) Varies the
resistance
Answer: B. Decreases the resistance
14. What is the voltage drop across a forward-biased pn junction diode?
a) 0V b) 0.7V c) 1.4V d) 0.3V
Answer: B. 0.7V
15. What is the effect of forward biasing on the pn junction diode current?
a) Decreases the current b) Increases the current c) No effect on the current d) Varies the current.
Answer: B. Increases the current
16. What happens to the flow of current through the pn junction diode when it is forward biased?
a) Increases b) Decreases c) Stays the same d) Varies.
Answer: A. Increases
17. How does forward biasing affect the potential barrier of a pn junction diode?
a) Increases the potential barrier b) Decreases the potential barrier.
c) No effect on the potential barrier d) Varies the potential barrier.
Answer: B. Decreases the potential barrier
18. What happens to the pn junction diode when it is reverse biased?
a) It conducts b) It does not conduct c) It partially conducts d)
Answer: B. It does not conduct.
19. How does reverse biasing affect the resistance of a pn junction diode?
a) Increases the resistance. b) Decreases the resistance. c) Does not affect the resistance. d) Varies the
resistance
Answer: A. Increases the resistance
20. What is the effect of reverse biasing on the potential barrier of a pn junction diode?
a) Increases the potential barrier b) Decreases the potential barrier c) No effect on the potential barrier
Answer: A. Increases the potential barrier
21. What is the purpose of reverse biasing a pn junction diode?
a). To prevent the flow of current b) To allow the flow of current c) To reduce the flow of current
Answer: A. To prevent the flow of current
22. What is the voltage required for reverse biasing a pn junction diode?
a) 0V b) Less than 0V c) Greater than 0V
Answer: C. Greater than 0V
23. How does reverse biasing affect the resistance of a pn junction diode?
a) Increases the resistance b) Decreases the resistance c) Does not affect the resistance
Answer: A. Increases the resistance
24. What happens to the pn junction diode when it is reverse biased?
a) It conducts b) It does not conduct c) It partially conducts
Answer: B. It does not conduct
25. What is the effect of reverse biasing on the pn junction diode current?
a) Decreases the current b) Increases the current c) No effect on the current
Answer: C. No effect on the current
26. What happens to the flow of current through the pn junction diode when it is reverse biased?
a) Increases b) Decreases c) Stays the same
Answer: C. Stays the same
27. How does reverse biasing affect the potential barrier of a pn junction diode?
a) Increases the potential barrier b) Decreases the potential barrier c) No effect on the potential barrier
Answer: A. Increases the potential barrier
28. What happens to the reverse current of a pn junction diode when it is reverse biased?
a) Increases b) Decreases c) Stays the same
Answer: A. Increases
29. What is the reverse saturation current of a pn junction diode?
a) The maximum current that can flow through a diode in reverse bias
b) The minimum current that can flow through a diode in reverse bias
c) The current that flows through a diode in forward bias
Answer: B. The minimum current that can flow through a diode in reverse bias
30. What is the voltage drop across a reverse-biased pn junction diode?
a) 0V b) 0.7V c) 1.4V
Answer: C. 1.4V
31. What is the relationship between current and voltage in a forward-biased pn junction diode?
a) Linear b) Non-linear c) Constant
Answer: B. Non-linear
32. What is the voltage drop across a forward-biased pn junction diode at high current values?
a) 0.7V b) 1.4V c) Increases
Answer: A. 0.7V
33. What is the effect of temperature on the forward I-V characteristics of a pn junction diode?
a) Increases the voltage drop b) Decreases the voltage drop c) No effect on the voltage drop
Answer: B. Decreases the voltage drop
34. What is the effect of forward current on the reverse leakage current in a pn junction diode?
a) Increases the reverse leakage current b) Decreases the reverse leakage current
c) No effect on the reverse leakage current
Answer: B. Decreases the reverse leakage current
35. What is the relationship between forward current and reverse current in a pn junction diode?
a) Directly proportional b) Inversely proportional c) No relationship
Answer: B. Inversely proportional
36. What is the effect of reverse biasing on the forward I-V characteristics of a pn junction diode?
a) Alters the characteristics b) No effect on the characteristics
c) Increases the voltage drop
Answer: B. No effect on the characteristics
37. What is the effect of doping concentration on the forward I-V characteristics of a pn junction diode?
a) Increases the voltage drop b) Decreases the voltage drop c) No effect on the voltage drop
Answer: B. Decreases the voltage drop
38. What is the effect of reverse voltage on the forward current in a pn junction diode?
a) Increases the forward current b) Decreases the forward current c) No effect on the forward current
Answer: B. Decreases the forward current
39. What is the forward resistance of a pn junction diode?
a) The resistance offered by the diode when it is forward biased
b) The resistance offered by the diode when it is reverse biased
c) The resistance offered by the diode in both forward and reverse bias
Answer: A. The resistance offered by the diode when it is forward biased
40. What is the effect of forward bias voltage on the forward resistance of a pn junction diode?
a) Increases the resistance b) Decreases the resistance c) No effect on the resistance
Answer: B. Decreases the resistance
41. What is Zener Breakdown?
a) The breakdown of a p-n junction b) The breakdown of a Zener diode c) The breakdown of an insulator
Answer: b. The breakdown of a Zener diode
42. What is the cause of Zener Breakdown?
a) Excessive voltage b) Excessive current c) Excessive temperature
Answer: a. Excessive voltage
43. What is the voltage range in which Zener Breakdown occurs?
a) Below 5V c) Between 5V to 20V c) Above 20V
Answer: c. Above 20V
44. What is the main purpose of a Zener diode in a circuit?
a) To regulate voltage b) To rectify AC to DC c) To amplify signals
Answer: a. To regulate voltage
45. What type of doping is used in Zener diodes?
a) P-type b) N-type c) Both P and N-type
Answer: c. Both P and N-type
46. How is the reverse breakdown voltage of a Zener diode determined?
a) By the doping concentration b) By the thickness of the junction c) By the applied voltage
Answer: a. By the doping concentration
47. In what type of device is Zener Breakdown commonly used?
a) Bipolar junction transistors (BJTs) b) Field effect transistors (FETs) c) Zener diodes
Answer: c. Zener diodes
48. What is the advantage of using a Zener diode over a conventional diode in voltage regulation applications?
a) Lower voltage drop b) Higher voltage regulation c) Better temperature stability
Answer: b. Higher voltage regulation
49. What is the current flow during Zener Breakdown?
a) Forward current b) Reverse current c) Both forward and reverse current
Answer: b. Reverse current
50. Can Zener Breakdown cause permanent damage to the device?
a) Yes b) No
Answer: b. No
51. What is Avalanche Breakdown?
a) Charge carriers multiplication breakdown in a semiconductor device b) P-n junction breakdown c) Insulator
breakdown
Answer: a. Charge carriers multiplication breakdown in a semiconductor device
Cause of Avalanche Breakdown?
a) Excessive voltage b) Excessive current c) Excessive temperature
Answer: a. Excessive voltage
52. Difference between Avalanche and Zener Breakdown?
a) Avalanche: electron collision with lattice defects, Zener: tunnelling b) Avalanche: random, Zener: specific voltage
c) Avalanche: any device, Zener: Zener diode
Answer: a. Avalanche: electron collision with lattice defects, Zener: tunnelling
53. Difference between Avalanche and Thermal Breakdown?
a) Avalanche: electron collision, Thermal: heating b) Avalanche: semiconductor device, Thermal: insulator
c) Avalanche: destructive, Thermal: benign
Answer: a. Avalanche: electron collision, Thermal: heating
54. Device using Avalanche Breakdown?
a) BJT and FET b) Only BJT c) Only FET
Answer: a. BJT and FET
Short Questions
Q: What is biasing of PN junction?
A: Biasing refers to the application of voltage or current to a PN junction diode to control its electrical characteristics.
Q: What are the two types of biasing?
A: The two types of biasing are forward bias and reverse bias.
Q: What is forward bias?
A: Forward bias is when the positive terminal of the voltage source is connected to the p-type semiconductor and the negative
terminal is connected to the n-type semiconductor.
Q: What is reverse bias?
A: Reverse bias is when the positive terminal of the voltage source is connected to the n-type semiconductor and the negative
terminal is connected to the p-type semiconductor.
Q: What is the effect of forward bias on PN junction?
A: Forward bias reduces the resistance of the PN junction, allowing current to flow easily through the diode.
Q: What is the effect of reverse bias on PN junction?
A: Reverse bias increases the resistance of the PN junction, making it harder for current to flow through the diode.
Q: What is the voltage required for forward biasing a PN junction?
A: The voltage required for forward biasing a PN junction is typically 0.7V to 0.8V for silicon diodes and 0.3V to 0.5V for
germanium diodes.
Q: What is the voltage required for reverse biasing a PN junction?
A: The voltage required for reverse biasing a PN junction depends on the specific diode and its maximum reverse voltage rating,
which can range from a few volts to hundreds of volts.
Q: What is the role of biasing in PN junction diodes?
A: Biasing determines the electrical characteristics of PN junction diodes, such as the current flow, voltage drop, and resistance,
allowing the diode to be used in various applications such as rectifiers, voltage regulators, and switching circuits.
Q: How does forward biasing affect the depletion region in a PN junction?
A: Forward biasing reduces the width of the depletion region by reducing the built-in potential, allowing electrons and holes to
cross the junction and flow through the diode.
Q: How does reverse biasing affect the depletion region in a PN junction?
A: Reverse biasing increases the width of the depletion region by increasing the built-in potential, making it harder for electrons
and holes to cross the junction and flow through the diode.
Q: What is Zener breakdown?
A: Zener breakdown is a type of electrical breakdown that occurs in reverse-biased PN junction diodes at a specific reverse
voltage, known as the Zener voltage.
Q: How does Zener breakdown occur?
A: Zener breakdown occurs when the reverse voltage across the PN junction exceeds the Zener voltage, causing a large number of
electrons to be injected into the p-type semiconductor and collide with lattice ions, generating additional free electrons and holes.
Q: What is the purpose of Zener breakdown in PN junction diodes?
A: The purpose of Zener breakdown is to provide a stable, regulated voltage in reverse-biased diodes, making them useful as
voltage references, voltage regulators, and voltage clippers.
Q: What is the difference between Zener breakdown and avalanche breakdown?
A: Zener breakdown occurs in diodes with a high doping concentration, resulting in a well-defined Zener voltage and a stable
breakdown voltage, while avalanche breakdown occurs in diodes with a lower doping concentration, resulting in a less predictable
breakdown voltage and a higher breakdown current.
Q: What are the limitations of Zener breakdown in PN junction diodes?
A: The limitations of Zener breakdown include the temperature dependence of the Zener voltage, the power dissipation limitations
of the diode, and the increased reverse leakage current with increasing reverse voltage.
Q: What is avalanche breakdown?
A: Avalanche breakdown is a type of electrical breakdown that occurs in reverse biased PN junction diodes when the electric field
strength exceeds the breakdown strength of the material, causing a rapid increase in current.
Q: How does avalanche breakdown occur?
A: Avalanche breakdown occurs when a reverse biased PN junction is subjected to a high electric field, causing the free electrons
to gain enough energy to collide with lattice ions and generate additional free electrons and holes, leading to a rapid increase in
current.
Q: What is the difference between Zener breakdown and avalanche breakdown?
A: Zener breakdown occurs in diodes with a high doping concentration, resulting in a well-defined Zener voltage and a stable
breakdown voltage, while avalanche breakdown occurs in diodes with a lower doping concentration, resulting in a less predictable
breakdown voltage and a higher breakdown current.
Q: What are the limitations of avalanche breakdown in PN junction diodes?
A: The limitations of avalanche breakdown include the temperature dependence of the breakdown voltage, the power dissipation
limitations of the diode, and the increased reverse leakage current with increasing reverse voltage.
Q: What is the role of avalanche breakdown in PN junction diodes?
A: The role of avalanche breakdown is to provide a mechanism for the rapid increase in current in reverse biased PN junction
diodes, allowing them to be used in high-power applications, such as voltage protection and overvoltage protection.
RECTIFICATION
Rectification is the process of converting alternating current (AC) into direct current (DC) by removing the negative part of the
waveform.
This is achieved by using a device called a rectifier, which allows current to flow in only one direction.
Types of rectifiers
There are several types of rectifiers, including half-wave rectifiers, full-wave rectifiers, and bridge rectifiers. Half-wave rectifiers
only pass half of the input waveform, while full-wave rectifiers pass both the positive and negative portions of the waveform.
Bridge rectifiers are full-wave rectifiers that use a bridge circuit to provide a symmetrical output waveform.
Half-Wave Rectification
Half-wave rectification is a process of converting alternating current (AC) into pulsed direct current (DC) by only passing half of
the input waveform.
Operating principle of half-wave rectifier
This is achieved by using a half-wave rectifier circuit, which consists of a diode and a load resistor. The operating principle of a
half-wave rectifier is straightforward. During the positive half-cycle of the input waveform, the diode is forward-biased and
conducts current, allowing it to pass through the load resistor. During the negative half-cycle of the input waveform, the diode is
reverse-biased and blocks current, preventing it from passing through the load resistor.
Circuit diagram of half-wave rectifier
Advantages and disadvantages of half-wave rectification
Advantages of half-wave rectification include simplicity, low cost, and ease of implementation. However, there are also some
disadvantages to this method, including low efficiency due to only half of the input waveform being utilized and the presence of a
large amount of ripple in the output waveform.
Full-Wave Rectification
Full-wave rectification is a process of converting alternating current (AC) into direct current (DC) by passing both the positive
and negative portions of the input waveform.
Operating principle of full-wave rectifier
This is achieved by using a full-wave rectifier circuit, which typically consists of two diodes, a transformer, and a load resistor.
The operating principle of a full-wave rectifier is to utilize both the positive and negative half-cycles of the input waveform.
During the positive half-cycle, one diode conducts current, allowing it to pass through the load resistor, while during the negative
half-cycle, the other diode conducts current, also allowing it to pass through the load resistor.
Circuit diagram of full-wave rectifier
Advantages and disadvantages of full-wave rectification
Advantages of full-wave rectification include improved efficiency compared to half-wave rectification, as well as a smoother
output waveform with reduced ripple. However, there are also some disadvantages to this method, including the need for a center-
tapped transformer and the requirement for two diodes, which increases the cost and complexity of the circuit.
Bridge Rectification
Bridge rectification is a method of converting alternating current (AC) into direct current (DC) by using a bridge circuit
consisting of four diodes.
Circuit diagram of bridge rectifier
Operating principle of bridge rectifier
The operating principle of a bridge rectifier is to allow current to flow in one direction only, from the input AC source through the
load resistor to the DC output.
In a bridge rectifier circuit, two diodes are forward-biased during the positive half-cycle of the input waveform and two
diodes are forward-biased during the negative half-cycle, allowing current to flow in only one direction. This results in a
symmetrical and continuous output waveform, with very little ripple.
Advantages and disadvantages of bridge rectification
Advantages of bridge rectification include its ability to produce a smooth and continuous DC output, as well as its ability to work
with a wide range of input voltages without the need for a center-tapped transformer. The disadvantages of bridge rectification
include the need for four diodes, which increases the cost and complexity of the circuit, as well as the presence of some small
amount of ripple in the output waveform.
Comparison of Rectifiers
The following is a comparison of half-wave, full-wave, and bridge rectifiers:
 Efficiency: Full-wave rectifiers have higher efficiency compared to half-wave rectifiers as they utilize both half-cycles of
the input waveform. Bridge rectifiers have higher efficiency compared to full-wave rectifiers as they produce a
continuous DC output.
 Output Waveform: Half-wave rectifiers have a pulsed DC output with a large amount of ripple, while full-wave rectifiers
have a smoother DC output with reduced ripple. Bridge rectifiers have a smooth and continuous DC output with minimal
ripple.
 Cost and Complexity: Half-wave rectifiers are the simplest and least expensive type of rectifier, while full-wave rectifiers
require a center-tapped transformer and two diodes, making them more complex and expensive. Bridge rectifiers are the
most complex and expensive type of rectifier as they require four diodes.
 Output Voltage: Half-wave rectifiers produce a lower output voltage compared to full-wave and bridge rectifiers, while
full-wave and bridge rectifiers produce a higher output voltage.
 Power Handling Capability: Full-wave and bridge rectifiers have higher power handling capability compared to half-
wave rectifiers, as they produce a continuous DC output with minimal ripple.
Applications of Rectifiers
Rectifiers are commonly used in power supplies, battery chargers, DC-DC converters, and audio amplifiers. They are important
for converting AC power from the grid into the DC power required by many electronic devices and systems. B. Importance of
rectification
 Power Supplies: Rectifiers are commonly used in power supplies to convert AC voltage to DC voltage. This allows
devices that operate on DC voltage to be powered by AC voltage.
 Battery Chargers: Rectifiers are used in battery chargers to convert AC voltage into DC voltage to charge batteries.
 Inverters: Rectifiers are used in inverters to convert DC voltage into AC voltage for applications that require AC power.
 Welding Equipment: Rectifiers are used in welding equipment to convert AC voltage into DC voltage to provide a stable
arc during welding.
 Electroplating: Rectifiers are used in electroplating to convert AC voltage into DC voltage to provide a constant current
for plating.
 Signal Processing: Rectifiers are used in signal processing applications to convert AC signals into DC signals for
processing and analysis.
  Medical Equipment: Rectifiers are used in medical equipment such as electroconvulsive therapy (ECT) machines to
provide a stable and continuous DC output for medical treatment.
Future outlook and advancements in rectification technology
The future outlook for rectification technology is promising, with advancements expected in areas such as:
 High-Efficiency Rectifiers: Research and development is underway to create rectifiers with higher efficiencies, reducing
power losses and improving overall performance.
 Wide Bandgap Semiconductors: The use of wide bandgap semiconductors, such as silicon carbide (SiC) and gallium
nitride (GaN), is expected to increase in rectifiers, leading to higher voltage and temperature operation, and improved
performance and efficiency.
 Integrated Rectifiers: Advancements in integrated circuit (IC) technology are expected to lead to the development of
integrated rectifiers, reducing the size and cost of rectifiers, and increasing their reliability and performance.
 Multilevel Rectifiers: The development of multilevel rectifiers is expected to improve the output waveform and reduce
harmonic distortion in high-power applications, such as renewable energy systems.
 Wireless Power Transfer: Research is underway to develop rectifiers that can efficiently rectify low-frequency AC
signals for wireless power transfer applications, such as charging electric vehicles.
 Smart Grid Integration: Rectifiers are expected to play a critical role in the integration of renewable energy sources into
the grid, helping to balance the flow of power and improve grid reliability.
Short Questions
What is Rectification?
a) The process of converting AC to DC b) The process of converting DC to AC c) The process of converting AC to AC
Answer: a. The process of converting AC to DC
What are the types of Rectifiers?
a) Half-wave Rectifier b) Full-wave Rectifier c) Bridge Rectifier d) All of the above
Answer: d. All of the above
What is the main difference between a Half-wave Rectifier and a Full-wave Rectifier?
a) Half-wave Rectifier only rectifies one half of the wave, while Full-wave Rectifier rectifies both halves
b) Half-wave Rectifier is less efficient than Full-wave Rectifier
c) Half-wave Rectifier has a lower voltage drop than Full-wave Rectifier
Answer: a. Half-wave Rectifier only rectifies one half of the wave, while Full-wave Rectifier rectifies both halves
What is a Bridge Rectifier?
a) A rectifier circuit that uses 4 diodes arranged in a bridge configuration
b) A rectifier circuit that uses 2 diodes arranged in a bridge configuration
c) A rectifier circuit that uses only 1 diode
Answer: a. A rectifier circuit that uses 4 diodes arranged in a bridge configuration
Why is a Bridge Rectifier preferred over a Half-wave or Full-wave Rectifier in most applications?
a) It has a higher efficiency
b) It has a lower voltage drop
c) It can rectify both positive and negative half-cycles
Answer: c. It can rectify both positive and negative half-cycles
What is Half-Wave Rectification?
a) The process of converting AC to DC by rectifying only one half-cycle of the wave
b) The process of converting DC to AC
c) The process of converting AC to AC
Answer: a. The process of converting AC to DC by rectifying only one half-cycle of the wave
What is the main advantage of Half-Wave Rectification over Full-Wave Rectification?
a) Lower cost
b) Simplicity
c) Higher efficiency
Answer: b. Simplicity
What is the main disadvantage of Half-Wave Rectification compared to Full-Wave Rectification?
a) Lower efficiency
b) Higher voltage drop
c) Lower output voltage
Answer: a. Lower efficiency
What is the main application of Half-Wave Rectification?
a) Power supply circuits
b) Audio amplifiers
c) Both a and b
Answer: a. Power supply circuits
How does a Half-Wave Rectifier work?
a) It rectifies only one half-cycle of the wave by allowing only the positive half-cycle to pass through the diode
b) It rectifies both half-cycles of the wave by alternating between positive and negative half-cycles
c) It rectifies only the negative half-cycle of the wave by allowing only the negative half-cycle to pass through the diode
Answer: a. It rectifies only one half-cycle of the wave by allowing only the positive half-cycle to pass through the diode
What is Full-Wave Rectification?
a) The process of converting AC to DC by rectifying both half-cycles of the wave
b) The process of converting DC to AC
c) The process of converting AC to AC
Answer: a. The process of converting AC to DC by rectifying both half-cycles of the wave
What is the main advantage of Full-Wave Rectification over Half-Wave Rectification?
a) Higher efficiency b) Lower voltage drop c) Both a and b
Answer: c. Both a and b
What is the main disadvantage of Full-Wave Rectification compared to Half-Wave Rectification?
a) Higher cost b) Complexity c) Lower output voltage
Answer: b. Complexity
What is the main application of Full-Wave Rectification?
a) Power supply circuits b) Audio amplifiers c) Both a and b
Answer: a. Power supply circuits
How does a Full-Wave Rectifier work?
a) It rectifies both half-cycles of the wave by passing both the positive and negative half-cycles through diodes in opposite
directions
b) It rectifies only one half-cycle of the wave by allowing only the positive half-cycle to pass through the diode
c) It rectifies only the negative half-cycle of the wave by allowing only the negative half-cycle to pass through the diode
Answer: a. It rectifies both half-cycles of the wave by passing both the positive and negative half-cycles through diodes in
opposite directions
Short Questions
1. What is Half Wave Rectification?
Half-wave rectification is a process in which only positive or negative half cycle of the AC waveform is passed through the
rectifier circuit.
2. What is the working principle of Half Wave Rectification?
Half-wave rectification works by using a diode to pass only the positive or negative half cycle of the AC waveform and blocking
the other half cycle.
3. How does Half Wave Rectification compare to Full Wave Rectification?
Half-wave rectification provides lower output voltage and lower efficiency compared to full-wave rectification. Full-wave
rectification passes both positive and negative half cycles of the AC waveform, resulting in higher output voltage and higher
efficiency.
4. What are the applications of Half Wave Rectification?
Half-wave rectification is commonly used in simple power supply applications, where the output voltage does not need to be
regulated. It is also used in welding equipment, electrotherapy devices, etc.
5. What is the voltage gain of half wave rectification?
The voltage gain of a half-wave rectifier is approximately 0.318 times the peak voltage of the AC waveform.
6. What is the ripple factor of half wave rectification?
The ripple factor of a half-wave rectifier is approximately 1.414 times higher than that of a full-wave rectifier.
7. How is the DC voltage obtained in half wave rectification?
In half-wave rectification, the DC voltage is obtained by passing only one half cycle of the AC waveform through a rectifier
circuit consisting of a diode and a load resistor.
8. What is the main disadvantage of half wave rectification?
The main disadvantage of half-wave rectification is that it only passes one half cycle of the AC waveform, resulting in low output
voltage and low efficiency compared to full-wave rectification.
9. What is the output waveform of half wave rectification?
The output waveform of half-wave rectification is a pulsed DC waveform with a lower average value compared to the peak AC
waveform.
10. What are the different types of half wave rectifiers?
There are two types of half-wave rectifiers: positive half-wave rectifiers and negative half-wave rectifiers. Positive half-wave
rectifiers pass only the positive half cycle of the AC waveform, while negative half-wave rectifiers pass only the negative half
cycle of the AC waveform.
11. How does the load resistance affect the output voltage of a half wave rectifier?
The load resistance affects the output voltage of a half-wave rectifier by determining the amount of current flowing through the
rectifier circuit. A higher load resistance results in a lower output voltage, while a lower load resistance results in a higher output
voltage.
12. Can half wave rectification be used in high power applications?
Half-wave rectification is not commonly used in high power applications due to its low efficiency and lower output voltage
compared to full-wave rectification. For high power applications, full-wave rectification is usually preferred.
13. What is Full Wave Rectification?
Full-wave rectification is a process in which both positive and negative half cycles of the AC waveform are passed through the
rectifier circuit, resulting in a pulsed DC waveform.
14. What is the working principle of Full Wave Rectification?
Full-wave rectification works by using a rectifier circuit consisting of two diodes, which pass both positive and negative half
cycles of the AC waveform, and a load resistor, which converts the pulsed DC waveform into a smoothed DC waveform.
15. How does Full Wave Rectification compare to Half Wave Rectification?
Full-wave rectification provides higher output voltage and higher efficiency compared to half-wave rectification. Half-wave
rectification passes only one half cycle of the AC waveform, resulting in lower output voltage and lower efficiency.
16. What are the applications of Full Wave Rectification?
Full-wave rectification is commonly used in regulated power supply applications, where the output voltage needs to be regulated.
It is also used in battery chargers, DC motors, and other power electronic applications.
17. What is the main advantage of Full Wave Rectification?
The main advantage of full-wave rectification is that it provides higher output voltage and higher efficiency compared to half-
wave rectification, which passes only one half cycle of the AC waveform.
18. What is the voltage gain of full wave rectification?
The voltage gain of a full-wave rectifier is approximately 0.637 times the peak voltage of the AC waveform.
19. What is the ripple factor of full wave rectification?
The ripple factor of a full-wave rectifier is lower compared to that of a half-wave rectifier, making it more suitable for power
supply applications where low output ripple is desired.
20. How is the DC voltage obtained in full wave rectification?
In full-wave rectification, the DC voltage is obtained by passing both positive and negative half cycles of the AC waveform
through a rectifier circuit consisting of two diodes and a load resistor.
21. What are the different types of full wave rectifiers?
There are two types of full-wave rectifiers: center-tapped full-wave rectifiers and bridge full-wave rectifiers. Center-tapped full-
wave rectifiers use a center-tapped secondary winding, while bridge full-wave rectifiers use a bridge rectifier circuit.
22. What is the effect of load resistance on the output voltage of a full wave rectifier?
The load resistance affects the output voltage of a full-wave rectifier in a similar manner as it does in a half-wave rectifier. A
higher load resistance results in a lower output voltage, while a lower load resistance results in a higher output voltage.
23. What is Bridge Rectification?
Bridge rectification is a method of full-wave rectification that uses a bridge rectifier circuit consisting of four diodes to convert an
AC waveform into a pulsed DC waveform.
24. How does Bridge Rectification work?
Bridge rectification works by using four diodes arranged in a bridge configuration to pass both positive and negative half cycles of
the AC waveform, resulting in a pulsed DC waveform.
25. What is the difference between Bridge Rectification and Full Wave Rectification?
Bridge rectification is a type of full-wave rectification that uses a bridge rectifier circuit, while full-wave rectification can also be
achieved using a center-tapped full-wave rectifier.
26. What are the advantages of Bridge Rectification over Full Wave Rectification?
Bridge rectification has several advantages over full-wave rectification, including reduced cost, reduced size, and increased
efficiency due to reduced voltage drop across the diodes.
27. What are the applications of Bridge Rectification?
Bridge rectification is commonly used in regulated power supply applications, where the output voltage needs to be regulated. It is
also used in battery chargers, DC motors, and other power electronic applications.
28. What is the ripple factor of a bridge rectifier?
The ripple factor of a bridge rectifier is like that of a full-wave rectifier, which is lower compared to that of a half-wave rectifier.
29. How does the load resistance affect the output voltage of a bridge rectifier?
The load resistance affects the output voltage of a bridge rectifier in a similar manner as it does in a full-wave or half-wave
rectifier. A higher load resistance results in a lower output voltage, while a lower load resistance results in a higher output voltage.
30. What is the voltage gain of a bridge rectifier?
The voltage gain of a bridge rectifier is approximately 0.637 times the peak voltage of the AC waveform, like that of a full-wave
rectifier.
31. What are the different types of bridge rectifiers?
There are two types of bridge rectifiers: single-phase bridge rectifiers and three-phase bridge rectifiers. Single-phase bridge
rectifiers are used in most power electronic applications, while three-phase bridge rectifiers are used in high power applications.
32. What is the effect of load current on the output voltage of a bridge rectifier?
The load current affects the output voltage of a bridge rectifier in a similar manner as it does in a full-wave or half-wave rectifier.
An increase in load current results in a decrease in output voltage, while a decrease in load current results in an increase in output
voltage.
ZENER DIODES
A Zener diode is a type of semiconductor diode that is designed to operate in reverse-bias mode.
Unlike a regular diode that blocks the flow of current in the reverse direction, a Zener diode allows a small current to flow in the
reverse direction when the voltage across the diode reaches its breakdown voltage, also known as the Zener voltage.
The Zener diode is named after its inventor, Clarence Zener, who discovered the effect in the early 1930s. The Zener
effect refers to the reverse breakdown of a diode due to a phenomenon known as Zener breakdown, which occurs when the
electric field in the depletion region exceeds a critical value.
Zener diodes are widely used in various electronic circuits for various purposes, such as voltage regulation, protection
against voltage transients, clamping circuits, and voltage reference. They come in different specifications, including standard
Zener diodes, temperature-compensated Zener diodes, and power Zener diodes.
Purpose and function of Zener diode
The main purpose and function of a Zener diode is to provide voltage regulation in an electronic circuit. The diode is designed to
operate in reverse-bias mode, allowing a small current to flow in the reverse direction when the voltage across the diode reaches
its breakdown voltage, also known as the Zener voltage.
The Zener voltage remains constant, even if the current through the diode changes, making the Zener diode useful for voltage
regulation applications. When a Zener diode is connected in reverse-bias mode across a load, it can maintain a constant voltage
across the load, despite changes in the load current.
In addition to voltage regulation, Zener diodes are also commonly used for other purposes, such as protection against voltage
transients, clamping circuits, and voltage reference. They can be used in various types of electronic circuits, such as power
supplies, voltage regulators, voltage stabilizers, and surge protection circuits.
In conclusion, the purpose and function of a Zener diode is to provide a constant and regulated voltage in an electronic circuit,
even in the presence of changes in load current or voltage transients.
Basic Principles of Zener Diode Operation
The basic principles of Zener diode operation are based on the behaviour of a diode in reverse-bias mode. When a diode is
connected in reverse-bias mode, the anode is connected to the negative voltage source and the cathode is connected to the positive
voltage source. Under these conditions, the electric field in the depletion region of the diode will oppose the flow of current.
In a Zener diode, the electric field in the depletion region is designed to be strong enough to cause Zener breakdown
when the reverse voltage across the diode reaches a certain value, known as the Zener voltage. When Zener breakdown occurs, a
small reverse current begins to flow through the diode, and the voltage across the diode remains relatively constant at the Zener
voltage.
This behaviour is called the Zener effect, and it is the basic principle behind the operation of a Zener diode. The Zener
voltage of a Zener diode can be controlled by adjusting the impurities in the semiconductor material and the thickness of the
depletion region.
In summary, the basic principles of Zener diode operation are based on the Zener effect, which occurs when the electric
field in the depletion region of the diode exceeds a critical value, causing reverse current to flow and the voltage across the diode
to remain constant at the Zener voltage.
Characteristics of Zener Diodes
Zener diodes have several important characteristics that determine their performance and suitability for various applications. Some
of the most important characteristics of Zener diodes are:
 Breakdown voltage: The breakdown voltage, also known as the Zener voltage, is the voltage at which the Zener effect
occurs, and the reverse current begins to flow through the diode. The Zener voltage is a key specification of a Zener
diode, and it determines the voltage regulation range of the diode.
 Reverse current: The reverse current is the current that flows through the Zener diode in the reverse direction when the
Zener voltage is reached. The reverse current is usually small, but it increases with temperature.
  Zener impedance: The Zener impedance is the impedance of the diode in the Zener region, and it is an important
parameter for designing voltage regulator circuits. The Zener impedance is usually low, which means that the diode has a
low voltage drop and provides good regulation.
 Maximum power dissipation: The maximum power dissipation is the maximum power that the Zener diode can handle
without being damaged. The maximum power dissipation depends on the Zener voltage, the Zener impedance, and the
ambient temperature.
 Reverse recovery time: The reverse recovery time is the time it takes for the current to fall to a specified value after the
reverse voltage has been removed. The reverse recovery time is an important parameter for applications where fast
switching is required.
In conclusion, the breakdown voltage, reverse current, Zener impedance, maximum power dissipation, and reverse recovery time
are some of the most important characteristics of Zener diodes that determine their performance and suitability for various
applications.
Applications of Zener Diodes
Zener diodes are widely used in a variety of electronic applications due to their unique characteristic of maintaining a constant
voltage across a load when connected in reverse-bias mode. Some of the most common applications of Zener diodes include:
 Voltage regulation: Zener diodes are widely used as voltage regulators in power supplies, voltage stabilizers, and
voltage regulators. They can maintain a constant voltage across a load, despite changes in the load current or changes in
the input voltage.
 Voltage reference: Zener diodes can be used as voltage references in precision circuits, such as analog-to-digital
converters and digital-to-analogue converters. They provide a stable and accurate reference voltage for these circuits.
 Protection against voltage transients: Zener diodes can be used to protect sensitive electronic components against
voltage transients, such as those caused by power surges or electromagnetic interference.
 Clamping circuits: Zener diodes can be used in clamping circuits to limit the voltage across a load to a safe value.
Clamping circuits are used in applications such as transient voltage suppressors and lightning protection circuits.
 Reverse voltage protection: Zener diodes can be used to protect electronic circuits against reverse voltage conditions,
such as those caused by accidental reversal of power supply polarity.
 Amplifier protection: Zener diodes can be used in amplifier circuits to protect against overvoltage conditions, such as
those caused by input signal clipping.
In conclusion, Zener diodes have a wide range of applications in electronic circuits due to their ability to maintain a constant
voltage across a load, provide voltage regulation, protect against voltage transients and overvoltage conditions, and serve as
voltage references.
Types of Zener Diodes
Standard Zener diodes
Standard Zener diodes are diodes that are designed to operate in the Zener region and maintain a constant voltage across a load
when connected in reverse-bias mode.
They are widely used for voltage regulation, voltage reference, protection against voltage transients, clamping, and reverse voltage
protection.
Standard Zener diodes are typically made of silicon or other semiconductor materials and are available in a wide range of
breakdown voltages, typically from 2.4 volts to 200 volts. They are also available in different package types, such as axial lead,
surface mount, and through-hole packages, to suit various application requirements.
Standard Zener diodes are relatively simple and inexpensive components, making them a popular choice for a wide range
of electronic applications. However, they are limited by the maximum power dissipation, which determines the maximum load
current that can be handled by the diode, and by the reverse recovery time, which determines the speed at which the diode can
switch from forward to reverse conduction.
In conclusion, standard Zener diodes are widely used for voltage regulation, voltage reference, protection against voltage
transients, clamping, and reverse voltage protection. They are relatively simple, inexpensive, and available in a wide range of
breakdown voltages and package types to suit various application requirements.
Temperature-compensated Zener diodes
Temperature-compensated Zener diodes, also known as temperature-stabilized Zener diodes, are Zener diodes that are designed
to maintain a constant voltage across a load over a wide temperature range.
They are used in applications where temperature stability is critical, such as in temperature-sensitive circuits, precision voltage
references, and temperature-compensated oscillators.
Temperature-compensated Zener diodes use a temperature-compensating mechanism, such as a thermistor, to
compensate for the changes in the Zener voltage caused by temperature changes. This allows the diode to maintain a constant
voltage across a load over a wide temperature range, providing stable and accurate voltage regulation.
 Temperature-compensated Zener diodes are typically more expensive and complex than standard Zener diodes, but they
offer superior performance and accuracy in temperature-sensitive applications. They are available in a range of package types,
including axial lead, surface mount, and through-hole packages, to suit various application requirements.
In conclusion, temperature-compensated Zener diodes are Zener diodes that are designed to maintain a constant voltage
across a load over a wide temperature range. They are used in applications where temperature stability is critical and offer
superior performance and accuracy compared to standard Zener diodes.
Power Zener diodes
Power Zener diodes are Zener diodes designed to handle higher power levels compared to standard Zener diodes.
They are used in applications where a higher power Zener diode is required, such as in voltage regulation circuits, voltage
reference circuits, and protection against voltage transients in power supplies, power amplifiers, and power converters.
Power Zener diodes are typically made of silicon or other semiconductor materials and are available in a wide range of
breakdown voltages, typically from 2.4 volts to 200 volts. They are also available in different package types, such as axial lead,
surface mount, and through-hole packages, to suit various application requirements.
Power Zener diodes have a higher power dissipation rating compared to standard Zener diodes, which allows them to
handle higher load currents. They also typically have a faster reverse recovery time, allowing them to switch from forward to
reverse conduction more quickly.
In conclusion, Power Zener diodes are Zener diodes designed to handle higher power levels compared to standard Zener
diodes. They are used in applications where a higher power Zener diode is required and offer higher power dissipation and faster
reverse recovery time compared to standard Zener diodes.
Zener Diode Circuit Design
Zener diode circuit design involves selecting the appropriate Zener diode, determining the power supply requirements, and
calculating the load current and resistance to ensure that the Zener diode operates within its specified limits.
The first step in Zener diode circuit design is selecting the appropriate Zener diode. This involves considering the
breakdown voltage, maximum power dissipation, maximum reverse current, and package type. The selected Zener diode should
have a breakdown voltage that is higher than the desired regulated voltage, and the maximum power dissipation should be
sufficient to handle the expected load current.
Once the Zener diode has been selected, the power supply requirements can be determined. The power supply voltage
should be at least 3 volts higher than the Zener voltage to ensure proper Zener operation. The power supply current should be
sufficient to meet the load current requirements.
The load current and resistance can then be calculated to ensure that the Zener diode operates within its specified limits.
The load current should be within the maximum limit specified by the Zener diode, and the load resistance should be selected to
ensure that the voltage drop across the load is within the specified limits.
In conclusion, Zener diode circuit design involves selecting the appropriate Zener diode, determining the power supply
requirements, and calculating the load current and resistance to ensure that the Zener diode operates within its specified limits.
Proper Zener diode circuit design is critical to ensure reliable and accurate voltage regulation.
Importance of Zener diode in electronic circuits
Zener diodes play an important role in electronic circuits as voltage regulators. They are used to maintain a constant voltage
across a load, even in the presence of varying load currents or supply voltages. This makes Zener diodes an essential component
in a wide range of electronic circuits, including power supplies, voltage stabilizers, voltage regulators, and voltage references.
Zener diodes offer several advantages over other voltage regulation methods, including simple circuit design, low cost,
and high reliability. They are easy to implement and can be used in a wide range of voltage regulation applications, from low-
power circuits to high-power applications.
In addition to voltage regulation, Zener diodes are also commonly used in voltage protection circuits. They can be used
to protect electronic circuits from overvoltage by diverting excess voltage to a safe level. This protects the electronic circuit from
damage and ensures reliable operation.
In conclusion, Zener diodes play an important role in electronic circuits as voltage regulators and voltage protection
components. They offer several advantages over other voltage regulation methods, including simple circuit design, low cost, and
high reliability, making them an essential component in a wide range of electronic circuits.
Future advancements and trends in Zener diode technology
In recent years, there have been several advancements and trends in Zener diode technology aimed at improving performance and
expanding their applications in new areas. Some of the key trends and advancements in Zener diode technology include:
 Improved reliability and performance: The development of new materials and manufacturing processes has led to
improved reliability and performance of Zener diodes, making them more suitable for demanding applications.
 Miniaturization: The trend towards miniaturization in electronics has driven the development of smaller, more compact
Zener diodes, which are suitable for use in portable and wearable devices.
 Increased operating voltage range: The development of new materials and manufacturing processes has increased the
maximum operating voltage range of Zener diodes, allowing for their use in high voltage applications.
  Wide Bandgap (WBG) Zener diodes: The development of WBG materials such as Silicon Carbide (SiC) and Gallium
Nitride (GaN) has led to the development of WBG Zener diodes, which offer improved performance, higher operating
temperatures, and higher power handling capabilities compared to traditional Zener diodes.
 Increased power handling capabilities: The development of new packaging techniques and materials has increased the
power handling capabilities of Zener diodes, making them suitable for use in high-power applications.
In conclusion, there have been several advancements and trends in Zener diode technology aimed at improving performance,
reliability, and expanding their applications in new areas. These advancements include improved reliability and performance,
miniaturization, increased operating voltage range, WBG Zener diodes, and increased power handling capabilities.
Multiple Choice Questions
1. What is a Zener Diode?
a. A type of diode that is used for voltage regulation b. A type of diode that is used for current regulation
c. A type of diode that is used for both voltage and current regulation
Answer: a. A type of diode that is used for voltage regulation
2. What is the main characteristic of a Zener Diode?
a. It has a low forward voltage drop b. It has a high reverse voltage breakdown
c. It has a high forward voltage drop
Answer: b. It has a high reverse voltage breakdown.
3. What is the reverse breakdown voltage in a Zener Diode?
a. The voltage at which the diode starts conducting in the forward direction
b. The voltage at which the diode starts conducting in the reverse direction
c. The voltage at which the diode stops conducting in the forward direction
Answer: b. The voltage at which the diode starts conducting in the reverse direction
4. What is the main application of Zener Diodes?
a. Power supplies b. Rectifiers c. Both a and b
Answer: c. Both a and b
5. What is the main difference between a Zener Diode and a normal diode?
a. A Zener diode has a low reverse breakdown voltage, while a normal diode has a high reverse breakdown voltage
b. A Zener diode has a high reverse breakdown voltage, while a normal diode has a low reverse breakdown voltage
c. There is no difference between a Zener diode and a normal diode
Answer: b. A Zener diode has a high reverse breakdown voltage, while a normal diode has a low reverse breakdown voltage
6. What is the main purpose of a Zener Diode?
a. Voltage regulation b. Current regulation c. Both a and b
Answer: a. Voltage regulation
7. What is the main characteristic of a Zener Diode?
a. Low reverse voltage breakdown b. High reverse voltage breakdown
Answer: b. High reverse voltage breakdown
8. What is the main application of Zener Diodes?
a. Power supplies b. Rectifiers
Answer: a. Power supplies
9. What is the main difference between a Zener Diode and a normal diode?
a. Low reverse breakdown voltage b. High reverse breakdown voltage
Answer: b. High reverse breakdown voltage
10. What happens when the reverse voltage of a Zener Diode exceeds the Zener voltage?
a. The diode starts conducting in the forward direction b. The diode starts conducting in the reverse direction
Answer: b. The diode starts conducting in the reverse direction
Short Questions
1. What is a Zener Diode?
A Zener diode is a type of diode that is designed to operate in the reverse-breakdown region and maintain a constant voltage
across its terminals.
2. What is the purpose of a Zener Diode?
The main purpose of a Zener diode is to provide a regulated voltage source in a circuit by allowing current to flow in the reverse
direction when the voltage across it exceeds the reverse breakdown voltage, also known as the Zener voltage.
3. How does a Zener Diode work?
A Zener diode works by allowing current to flow in the reverse direction when the voltage across it exceeds the reverse
breakdown voltage. This results in a constant voltage across the diode, even as the current through it changes.
4. What is the Zener voltage of a Zener Diode?
The Zener voltage of a Zener diode is the reverse breakdown voltage at which the diode begins to conduct current in the reverse
direction and maintain a constant voltage across its terminals.
5. What are the applications of a Zener Diode?
Zener diodes are commonly used as voltage regulators, voltage references, and voltage clippers in a variety of electronic circuits.
They are also used in power supply circuits, voltage multiplier circuits, and other applications where a stable, regulated voltage is
required.
6. How does the load resistance affect the operation of a Zener Diode?
The load resistance affects the operation of a Zener diode by determining the current that flows through the diode and, thus, the
voltage across it. A lower load resistance results in a higher current and a higher voltage, while a higher load resistance results in a
lower current and a lower voltage.
7. What is the reverse breakdown voltage of a Zener Diode?
The reverse breakdown voltage of a Zener diode is the voltage at which the diode begins to conduct current in the reverse
direction and maintain a constant voltage across its terminals.
8. What is the reverse leakage current of a Zener Diode?
The reverse leakage current of a Zener diode is the current that flows through the diode in the reverse direction when a reverse
voltage is applied across it.
9. How does temperature affect the operation of a Zener Diode?
Temperature affects the operation of a Zener diode by altering the reverse breakdown voltage, which can result in a change in the
regulated voltage across the diode.
10. What is the dynamic impedance of a Zener Diode?
The dynamic impedance of a Zener diode is the resistance that the diode presents to the circuit at the Zener voltage, and is used to
calculate the stability and reliability of the Zener diode in a particular application.
11. What is the maximum power rating of a Zener Diode?
The maximum power rating of a Zener diode is the maximum power that the diode can handle without exceeding its specified
temperature range and maximum reverse voltage.
12. How does the reverse voltage affect the operation of a Zener Diode?
The reverse voltage affects the operation of a Zener diode by determining the voltage across the diode, which in turn affects the
current that flows through it and the regulated voltage across the diode.
13. What is the breakdown mechanism of a Zener Diode?
The breakdown mechanism of a Zener diode is the process by which the diode begins to conduct current in the reverse direction
and maintain a constant voltage across its terminals. The breakdown mechanism can be due to various factors, such as high
electric fields, impact ionization, or thermal runaway.
14. What is the maximum reverse voltage rating of a Zener Diode?
The maximum reverse voltage rating of a Zener diode is the highest reverse voltage that the diode can withstand without breaking
down and conducting current in the reverse direction.
15. What is the maximum forward current rating of a Zener Diode?
The maximum forward current rating of a Zener diode is the maximum forward current that the diode can handle without
exceeding its specified temperature range and forward voltage.
VOLTAGE REGULATORS
Voltage regulators are electronic devices used to maintain a stable and constant voltage level in a power supply.
They are designed to keep the voltage level within a specified range, even when the input voltage changes or the load on the
system changes.
There are several types of voltage regulators, including linear voltage regulators, switching voltage regulators, Zener
diode voltage regulators, and others. The choice of voltage regulator depends on the specific requirements of the system, such as
the input voltage range, output voltage, output current, and efficiency.
Linear voltage regulators are the simplest type of voltage regulator and work by dissipating excess voltage as heat. They
are typically used in low-power applications and are characterized by their low efficiency and slow response time.
Switching voltage regulators use an energy-efficient switching mechanism to regulate the output voltage. They are more
efficient than linear voltage regulators and can handle higher output currents, but are more complex in design and typically require
additional components, such as inductors and capacitors.
Zener diode voltage regulators use a Zener diode in combination with a series resistor to regulate the output voltage.
They are simple, low-cost, and low-power, and are often used in applications where a stable voltage is required and the input
voltage is constant.
In addition to these types of voltage regulators, there are also specialized voltage regulators for specific applications,
such as low-dropout voltage regulators, adjustable voltage regulators, and voltage references.
 Voltage regulation is an important aspect of power supply design, as it ensures that the voltage level remains within a
specified range, even when the input voltage changes or the load on the system changes. This helps to prevent damage to sensitive
electronic components and to maintain the reliability and performance of the system.
Purpose of voltage regulators
The purpose of voltage regulators is to maintain a stable and constant voltage level in a power supply. They are designed to keep
the voltage level within a specified range, even when the input voltage changes or the load on the system changes. This helps to
prevent damage to sensitive electronic components and to maintain the reliability and performance of the system.
Voltage regulators are used in a wide range of electronic systems, including computers, smartphones, medical devices,
industrial equipment, and many others. They ensure that the voltage level is appropriate for the specific components and circuits
being powered and prevent overvoltage or undervoltage conditions that can cause damage to the system.
In addition to protecting sensitive electronic components, voltage regulators also help to improve the overall performance
of a system. For example, they can help to reduce noise and improve the accuracy of analogue circuits and can also improve the
efficiency of digital circuits by reducing the power dissipation caused by voltage fluctuations.
Overall, the purpose of voltage regulators is to ensure that the voltage level in a power supply is stable and constant,
which helps to prevent damage to sensitive electronic components, improve the performance of the system, and ensure that the
system operates as intended.
Types of voltage regulators
There are several types of voltage regulators, including:
 Linear voltage regulators: These are the simplest type of voltage regulators and work by dissipating excess voltage as
heat. They are typically used in low-power applications and are characterized by their low efficiency and slow response
time.
 Switching voltage regulators: These use an energy-efficient switching mechanism to regulate the output voltage. They
are more efficient than linear voltage regulators and can handle higher output currents, but are more complex in design
and typically require additional components, such as inductors and capacitors.
 Zener diode voltage regulators: These use a Zener diode in combination with a series resistor to regulate the output
voltage. They are simple, low-cost, and low-power, and are often used in applications where a stable voltage is required
and the input voltage is constant.
 Low-dropout voltage regulators: These are a type of linear voltage regulator that have a very low dropout voltage, which
allows them to maintain a stable output voltage even when the input voltage is close to the output voltage.
 Adjustable voltage regulators: These are voltage regulators that can be adjusted to output a specific voltage level,
typically using an external potentiometer.
 Voltage references: These are specialized voltage regulators that provide a precise, stable voltage level for use as a
reference in analog circuits.
 Buck-boost voltage regulators: These are switching voltage regulators that can handle both step-down and step-up
voltage conversions, making them suitable for applications where the input voltage can be either higher or lower than the
desired output voltage.
In general, the choice of voltage regulator depends on the specific requirements of the system, such as the input voltage range,
output voltage, output current, and efficiency.
V. Voltage Regulator Applications
Voltage regulators are used to control and maintain a constant output voltage in various applications, including:
 Power Supplies: They are used to regulate the output voltage of a power supply to ensure a constant and stable voltage
supply to the load.
 Automobiles: Voltage regulators are used in automobiles to control the charging voltage of the battery and to regulate the
voltage supplied to the electrical components of the car.
 Computers and Electronics: In computer and electronics applications, voltage regulators are used to stabilize the voltage
supplied to integrated circuits and other sensitive electronic components.
 Renewable Energy Systems: Voltage regulators are used in renewable energy systems, such as solar panels and wind
turbines, to regulate the voltage of the generated power to a usable level for storage or use.
 Industrial Process Control: In industrial process control, voltage regulators are used to control the voltage supplied to
motors, actuators, and other control devices to ensure stable and reliable operation.
The importance of voltage regulation in electronic systems
Voltage regulation is important in electronic systems for several reasons:
 Protection of Components: Proper voltage regulation helps to protect sensitive electronic components from voltage
spikes and fluctuations that can cause damage or failure.
 Improved Performance: A regulated voltage supply ensures consistent performance and reliable operation of electronic
systems, as the load is supplied with a constant and stable voltage.
  Increased Efficiency: A regulated voltage supply can increase the efficiency of electronic systems by reducing power
losses and reducing heat generation caused by voltage drops.
 Reduced Maintenance: By preventing voltage spikes and fluctuations, voltage regulation can reduce the need for
maintenance and prolong the lifespan of electronic components.
 Improved Safety: Voltage regulation helps to ensure the safety of electronic systems by preventing electrical shock and
fire hazards caused by overvoltage conditions.
Multiple Choice Questions
1. What is the main function of a voltage regulator?
a) To regulate voltage b) To regulate current c) To regulate both voltage and current
Answer: a) To regulate voltage
2. What type of voltage regulator maintains a constant output voltage even if the input voltage changes?
a) Linear voltage regulator b) Switching voltage regulator c) LDO voltage regulator
Answer: a) Linear voltage regulator
3. What type of voltage regulator uses a switching element, like a transistor, to regulate the output voltage?
a) Linear voltage regulator b) Switching voltage regulator c) LDO voltage regulator
Answer: b) Switching voltage regulator
4. What type of voltage regulator is used for low voltage and low current applications?
a) Linear voltage regulator b) Switching voltage regulator c) LDO voltage regulator
Answer: c) LDO voltage regulator
5. What type of voltage regulator is used to regulate voltage in power supply systems?
a) Linear voltage regulator b) Switching voltage regulator c) Both a and b
Answer: c) Both a and b
6. What is the main component of a linear voltage regulator that regulates the output voltage?
a) Transistor b) Zener diode c) Operational amplifier
Answer: c. Operational amplifier
7. What type of voltage regulator has higher efficiency compared to linear voltage regulators?
a) Switching voltage regulator b) LDO voltage regulator c) Linear voltage regulator
Answer: a) Switching voltage regulator
8. What is the main disadvantage of linear voltage regulators compared to switching voltage regulators?
a) High efficiency b) High output noise c) Low efficiency
Answer: c) Low efficiency
9. What type of voltage regulator is used for high voltage and high current applications?
a) Linear voltage regulator b) Switching voltage regulator c) LDO voltage regulator
Answer: b) Switching voltage regulator
10. What is the main disadvantage of LDO voltage regulators compared to linear voltage regulators?
a) Low output noise b) Low dropout voltage c) High output noise
Answer: c) High output noise
c
1. What is a voltage regulator?
A voltage regulator is an electronic circuit that maintains a constant output voltage, regardless of changes in input voltage or load
conditions.
2. What is the main function of a voltage regulator?
The main function of a voltage regulator is to regulate the voltage and maintain a constant output voltage.
3. What are the two types of voltage regulators?
The two types of voltage regulators are linear voltage regulators and switching voltage regulators.
4. What is a linear voltage regulator?
A linear voltage regulator is an electronic circuit that uses a operational amplifier to maintain a constant output voltage, regardless
of changes in input voltage or load conditions.
5. What is a switching voltage regulator?
A switching voltage regulator is an electronic circuit that uses a switching element, like a transistor, to regulate the output voltage.
It has higher efficiency compared to linear voltage regulators.
6. What is an LDO voltage regulator?
An LDO (low dropout) voltage regulator is a linear voltage regulator that is used for low voltage and low current applications.
7. How does a linear voltage regulator work?
A linear voltage regulator works by using an operational amplifier and feedback loop to compare the output voltage to a reference
voltage and adjust the output voltage to match the reference voltage.
8. How does a switching voltage regulator work?
A switching voltage regulator works by using a switching element, like a transistor, to regulate the output voltage. The switching
element is turned on and off rapidly, and the duty cycle is adjusted to regulate the output voltage.
9. What are the advantages of using a switching voltage regulator?
The advantages of using a switching voltage regulator include higher efficiency, smaller size, and lower heat dissipation compared
to linear voltage regulators.
10. What are the disadvantages of using a linear voltage regulator?
The disadvantages of using a linear voltage regulator include lower efficiency and higher heat dissipation compared to switching
voltage regulators, and higher output noise compared to LDO voltage regulators.
11. What is a dropout voltage in a voltage regulator?
Dropout voltage in a voltage regulator is the minimum input-to-output voltage difference required for the regulator to function
properly. The lower the dropout voltage, the better the voltage regulator.
12. Why is output noise important in a voltage regulator?
Output noise in a voltage regulator is important because it can affect the performance of sensitive electronic circuits that are
powered by the voltage regulator. High output noise can cause errors in analogue signals and digital signals.
LIGHT EMITTING DIODE
A Light Emitting Diode (LED) is a type of solid-state device that emits light when a current is passed through it.
LEDs are made of a semiconductor material, typically gallium arsenide, that is sandwiched between two electrodes. When a
voltage is applied across the electrodes, electrons and holes recombine in the semiconductor material, releasing energy in the form
of light.
LEDs are highly efficient and have many advantages over traditional light sources, such as incandescent bulbs and
fluorescent tubes. They are smaller, more durable, consume less power, and have longer lifetimes. Additionally, LEDs can be
manufactured in a wide range of colours, making them suitable for a variety of applications, such as lighting, displays, automotive
lighting, backlighting, and scientific and medical applications.
The development of LED technology has been driven by advances in materials science, semiconductor processing, and
circuit design. As the efficiency and performance of LEDs continue to improve, they are poised to play an increasingly important
role in lighting and other applications, enabling a more sustainable and energy-efficient future.
Basic principle of operation
The basic principle of operation of an LED is based on the flow of current through a semiconductor material. When a voltage is
applied across the positive and negative electrodes of the LED, electrons and holes are injected into the semiconductor material,
creating a flow of current.
When these electrons and holes meet in the semiconductor material, they recombine and release energy in the form of
light. The color of the light emitted by an LED depends on the material used in the semiconductor and the energy bandgap
between the conduction and valence bands.
LEDs are designed to allow current to flow in only one direction, from the positive electrode (anode) to the negative
electrode (cathode). This is achieved by designing the semiconductor material to have a p-n junction, where the material near the
anode has an excess of positive charge (p-type) and the material near the cathode has an excess of negative charge (n-type). The p-
n junction acts as a barrier, preventing current from flowing in the reverse direction.
When a voltage is applied to the LED, the p-n junction allows current to flow in the forward direction, generating light.
The brightness of the LED depends on the amount of current flowing through the device, which can be controlled by using a
suitable current-limiting resistor or a specialized LED driver circuit.
Historical background and development of LEDs
The history of Light Emitting Diodes (LEDs) dates back to the early 20th century, when scientists first discovered the
phenomenon of electroluminescence, or the emission of light when a current is passed through a solid-state material. However, the
first practical LEDs were not developed until the 1960s.
The first LEDs were invented by Nick Holonyak Jr. in 1962, while he was working at General Electric. Holonyak's LED
was made of a simple material, GaAs, and emitted red light when a current was applied. This marked a major milestone in the
development of LED technology, as it demonstrated the feasibility of using LEDs as a source of light.
Over the next few decades, advances in materials science, semiconductor processing, and circuit design led to the
development of LEDs that could emit light in a variety of colors, including red, green, and blue. This enabled the creation of full-
color displays and other applications that required multiple colors of light.
In the 1990s and early 2000s, LED technology advanced significantly, with the development of high-brightness and high-
power LEDs that could be used for general lighting applications. This led to the widespread adoption of LED lighting, as it
offered several advantages over traditional light sources, such as incandescent bulbs and fluorescent tubes, including lower power
consumption, longer lifetimes, and greater efficiency.
Today, LED technology continues to evolve and expand, with new materials, designs, and applications being developed.
The development of high-efficiency white LED lighting has enabled the widespread adoption of LED lighting for general
illumination, and LEDs are now widely used in a variety of applications, including displays, automotive lighting, backlighting,
and scientific and medical applications.
Comparison with Traditional Light Sources
LED (Light Emitting Diode) lighting technology has several advantages compared to traditional light sources, such as
incandescent bulbs and fluorescent tubes:
 Energy Efficiency: LED lights are much more energy efficient than traditional light sources, using up to 90% less energy
to produce the same amount of light.
 Long Life: LED lights have a much longer lifespan than traditional light sources, with an estimated life of up to 50,000
hours compared to just 1,000 hours for incandescent bulbs.
 Durability: LED lights are much more durable and resistant to breakage than traditional light sources, making them a
good choice for applications where lights may be subjected to rough handling or vibration.
 Environmentally Friendly: LED lights are free of toxic materials like mercury and lead, making them much more
environmentally friendly than traditional light sources.
 Instant On: LED lights turn on instantly and produce full light output, unlike traditional light sources like fluorescent
tubes which take time to warm up and reach full brightness.
 Dimmability: Many LED lights are dimmable, allowing for customizable and flexible lighting options.
 Cost: Although the upfront cost of LED lights is often higher than traditional light sources, the energy savings and long
lifespan make them more cost-effective in the long run.
In conclusion, LED lights offer several key advantages over traditional light sources, making them a great choice for a wide range
of applications.
LED Characteristics
LED (Light Emitting Diode) is a semiconductor device that emits light when a voltage is applied to it. The following are some of
its key characteristics:
 Brightness: LEDs are very bright compared to traditional light sources.
 Efficiency: LEDs are highly efficient and convert most of the energy into light.
 Lifetime: LEDs have a long lifetime compared to traditional light sources.
 Color: LEDs are available in a variety of colors, including red, green, blue, and white.
 Directionality: LEDs emit light in a specific direction, making them ideal for directional lighting applications.
 Operating Voltage: LEDs require a relatively low operating voltage, typically between 2-3 volts.
 Fast Switching: LEDs can be switched on and off very quickly, making them ideal for use in strobe lighting and other
applications where fast switching is required.
 Environmental Friendliness: LED lighting is environmentally friendly as it does not contain harmful substances such as
mercury.
LED Applications
LED (Light Emitting Diode) technology has a wide range of applications due to its high efficiency, long lifetime, and ability to
emit light in a specific direction. Some of the common applications of LEDs are:
 General Lighting: LED lights are widely used for general lighting purposes, such as home and office lighting, due to their
high energy efficiency, long lifespan, and colour options.
 Automotive Lighting: LED lights are commonly used in automotive applications, such as taillights, headlamps, and
indicator lights, due to their fast switching speed and low power consumption.
 Display lighting: LED lights are used in display lighting applications, such as television displays, digital billboard
displays, and computer monitors, due to their brightness and low power consumption.
 Traffic Signals: LED lights are used in traffic signals due to their high brightness, fast switching speed, and long lifespan,
making them highly visible and reliable in all weather conditions.
 Backlighting: LED lights are used in backlighting applications, such as keyboards, LCD displays, and mobile phone
displays, due to their ability to emit light in a specific direction and low power consumption.
 Medical Equipment: LED lights are used in medical equipment, such as dental curing lights and dermatology treatment
lamps, due to their high brightness and colour options.
 Emergency Lighting: LED lights are used in emergency lighting, such as flashlights and exit signs, due to their high
brightness, long lifespan, and low power consumption.
 Decorative Lighting: LED lights are used in decorative lighting applications, such as Christmas lights, party lights, and
colour-changing lights, due to their ability to emit light in a variety of colours.
LED Driver Circuits
An LED driver circuit is an electrical circuit that provides the proper current and voltage to an LED (Light Emitting Diode) to
ensure its proper operation and longevity.
The following are some key features of LED driver circuits:
  Current Regulation: LED driver circuits regulate the current flowing through the LED to ensure that it operates within its
maximum rated current. This helps to prevent overloading and damage to the LED.
 Voltage Regulation: LED driver circuits regulate the voltage applied to the LED to ensure that it operates within its
maximum rated voltage. This helps to prevent over-voltage and damage to the LED.
 Over-Voltage Protection: LED driver circuits typically include over-voltage protection to protect the LED from damage
in the event of an over-voltage condition.
 Short-Circuit Protection: LED driver circuits typically include short-circuit protection to protect the LED from damage in
the event of a short circuit.
 Constant Current Operation: LED driver circuits are designed to operate in constant current mode, where the current
flowing through the LED remains constant despite changes in the voltage across it. This helps to ensure consistent
brightness and colour from the LED.
 Dimming: Some LED driver circuits are designed to allow for dimming of the LED, either through analogue or digital
control.
 Power Factor Correction: LED driver circuits can include power factor correction to ensure that the current and voltage
waveforms are in phase, which reduces power losses and improves the efficiency of the LED driver circuit.
 EMI (Electromagnetic Interference) Reduction: LED driver circuits can include measures to reduce electromagnetic
interference, which can cause interference with other electronic devices and equipment.
There are different types of LED driver circuits, including linear regulators, switching regulators, and constant current drivers,
each with its own benefits and trade-offs. The choice of LED driver circuit depends on the specific requirements of the LED
application, such as the desired level of control, efficiency, and cost.
Future Trends in LED Technology
LED (Light Emitting Diode) technology is rapidly advancing and has a bright future ahead. Here are some of the key trends in
LED technology that are expected to shape the future:
 Miniaturization: LEDs are becoming smaller and more compact, enabling new applications in areas such as wearable
devices, medical devices, and smart homes.
 Increased Efficiency: LEDs are becoming more efficient, reducing power consumption and increasing brightness. This
will lead to further adoption of LED technology in general lighting and other applications.
 Improved Color Quality: Advances in LED technology are leading to improved color quality, with wider color gamuts
and more accurate color rendering. This will enable new applications in areas such as digital displays and lighting for art
and museums.
 Smart Lighting: The integration of LED technology with Internet of Things (IoT) technology is leading to the
development of smart lighting systems, which can be controlled and automated through a smartphone or other device.
 Increased Longevity: Advances in LED technology are leading to increased longevity, reducing the need for frequent
replacements and reducing waste.
 Flexible and Transparent Displays: LED technology is being integrated with flexible and transparent substrates, enabling
the development of flexible and transparent displays for use in wearable devices, smart homes, and other applications.
 Solid-State Lighting: LED technology is being integrated into solid-state lighting, which replaces traditional light sources
with semiconductor materials that emit light when excited by an electric current. This will lead to more efficient, durable,
and versatile lighting solutions.
 Human Centric Lighting: LED technology is being used to create lighting solutions that are designed to enhance human
health and well-being, such as lighting that mimics the natural daylight cycle.
These trends are expected to drive continued innovation and growth in the LED industry, leading to new and improved LED-
based products and applications in the coming years.
Importance and impact of LED technology
LED (Light Emitting Diode) technology has had a significant impact on various industries and has revolutionized the way we
think about lighting. Some of the key importance and impact of LED technology are:
 Energy Efficiency: LED technology is much more energy-efficient than traditional lighting technologies, reducing
energy consumption and saving on energy costs.
 Environmental Benefits: LED lights do not contain hazardous materials, such as mercury, that can be harmful to the
environment. They also have a longer lifespan than traditional lighting technologies, reducing waste.
 Improved Light Quality: LED lights provide improved light quality, with better color rendering and a wider color gamut
than traditional lighting technologies. This makes them ideal for applications in areas such as art and museums, retail
displays, and television and film production.
 Flexibility: LED lights are versatile and can be designed to fit a wide variety of applications, from general lighting to
outdoor and architectural lighting, automotive lighting, and backlighting for displays.
  Durability: LED lights are durable and can withstand harsh environments, making them ideal for use in outdoor and
industrial applications.
 Cost Savings: The cost of LED technology has decreased over the years, making it more affordable for consumers and
businesses. The combination of energy efficiency, improved light quality, and durability leads to cost savings over the
lifetime of the product.
 Improved Safety: LED lights provide improved safety, with a low voltage and no risk of shattering, making them ideal
for use in areas where safety is a concern.
 Innovation: LED technology has led to a number of new and innovative products, such as flexible and transparent
displays, smart lighting systems, and human-centric lighting.
The impact of LED technology has been far-reaching, leading to a more sustainable, efficient, and innovative world. Its continued
development and advancement will likely lead to even more positive impacts in the years to come.
Multiple Choice Questions
1. What is the full form of LED?
a) Light-Emitting Device b) Light-Emitting Diode c) Light-Emission Diode d) Light Emitting Diode
Answer: b) Light-Emitting Diode
2. What is the basic working principle of an LED?
a) Electron-hole recombination b) Electron-electron interaction c) Hole-hole interaction d) None of the above
Answer: a) Electron-hole recombination
3. What type of material is commonly used for making the p-type layer in an LED?
a) Silicon b) Germanium c) Gallium Arsenide d) Indium Phosphide
Answer: c) Gallium Arsenide
4. What is the range of operating voltage for a typical red LED?
a) 1.8 V to 2.0 V b) 2.0 V to 2.2 V c) 2.2 V to 2.4 V d) 1.5 V to 1.8 V
Answer: a) 1.8 V to 2.0 V
5. What type of LED has the highest luminous efficacy?
a) Infrared LED b) Ultraviolet LED c) White LED d) Blue LED
Answer: c) White LED
6. What is the main disadvantage of LED lighting compared to traditional incandescent lighting?
a) Higher cost b) Shorter lifespan c) Lower brightness d) None of the above
Answer: a) Higher cost
7. What is the main function of a current-limiting resistor in an LED circuit?
a) To limit the amount of current flowing through the LED
b) To increase the amount of current flowing through the LED
c) To regulate the voltage across the LED
d) To enhance the brightness of the LED
Answer: a) To limit the amount of current flowing through the LED
8. What is the main advantage of using an LED over a traditional incandescent bulb?
a) Lower power consumption b) Higher luminous efficacy c) Longer lifespan d) All of the above
Answer: d) All of the above
9. What is the maximum current rating for a typical red LED?
a) 20 mA b) 30 mA c) 50 mA d) 100 mA
Answer: b) 30 mA
10. What is the typical wavelength range for a blue LED?
a) 400 nm to 500 nm b) 500 nm to 600 nm c) 600 nm to 700 nm d) 400 nm to 600 nm
Answer: b) 500 nm to 600 nm
11. What is the main factor affecting the brightness of an LED?
a) Voltage across the LED b) Current flowing through the LED
c) The material used in the LED d) The size of the LED
Answer: b) Current flowing through the LED
12. Can LEDs be used in high temperature environments?
a) Yes, they can withstand high temperatures b) No, they cannot withstand high temperatures
Answer: b) No, they cannot withstand high temperatures
Short Questions
1. What is an LED?
LED stands for Light Emitting Diode, it is a semiconductor device that emits light when a current passes through it.
2. How does an LED work?
An LED works by passing a current through a semiconductor material, causing electrons to recombine with holes and release
energy in the form of light.
3. What are the advantages of using LEDs?
LEDs have several advantages, including low energy consumption, long lifespan, fast switching, and high brightness. They are
also rugged, durable and can operate in a wide range of temperatures.
4. Can LEDs replace traditional light bulbs?
Yes, LEDs can replace traditional light bulbs in many applications. They are becoming increasingly popular for general lighting,
as they are more energy-efficient and have a longer lifespan.
5. How long do LEDs last?
LEDs can last for tens of thousands of hours, making them much longer lasting than traditional light bulbs.
6. Are LEDs energy-efficient?
Yes, LEDs are very energy-efficient, using 80-90% less energy than traditional incandescent light bulbs.
7. Can LEDs produce different colours of light?
Yes, LEDs can produce light in a variety of colours, including red, green, blue, and white.
8. Are LEDs safe to use?
LEDs are generally safe to use and do not contain harmful substances like mercury, as found in some traditional light bulbs.
9. Can LEDs be dimmed?
Yes, many LED lights can be dimmed by using a compatible dimmer switch.
10. How do I know if an LED light is compatible with my dimmer switch?
You can check the manufacturer's specifications or look for an LED light that is labelled as "dimmable".
11. Are LED lights more expensive than traditional light bulbs?
LED lights can be more expensive than traditional light bulbs, but their longer lifespan and energy-efficiency often result in a
lower total cost of ownership over time.
12. How do I recycle LED lights?
LED lights can be recycled, but it is important to check with your local recycling centre for specific guidelines, as recycling
procedures can vary by location.
LIQUID CRYSTAL DISPLAY (LCD)
A Liquid Crystal Display (LCD) is a type of flat-panel display technology that utilizes the light-modulating properties of liquid
crystals to produce images and text.
Historical background
The history of LCD technology can be traced back to the late 1960s, when researchers discovered that liquid crystals could be
used to create displays. However, it was not until the 1970s that LCD technology began to be used in practical applications such
as digital watches. Over the next few decades, LCD technology continued to evolve, leading to the development of increasingly
advanced displays for use in a wide range of electronic devices. Today, LCD technology is one of the most widely used display
technologies in the world.
Basic principles of LCD operation
The basic principles of LCD operation can be explained as follows:
 Liquid Crystals: Liquid crystals are a type of matter that have properties of both liquids and solids. They can be
controlled by electric fields, which can alter their optical properties.
 Transparent Electrodes: LCDs have two transparent electrodes, one placed on top of the liquid crystal layer and one on
the bottom.
 Polarizing Filters: LCDs also have two polarizing filters, one placed on the front of the display and one on the back. The
polarizing filters ensure that only light that is polarized in a certain direction will enter and exit the LCD.
 Backlight: An LCD requires a backlight to produce images. The backlight illuminates the liquid crystal layer from
behind.
 Voltage Control: When a voltage is applied to the electrodes, it changes the orientation of the liquid crystals and controls
the amount of light that passes through the LCD. This allows images and text to be displayed on the screen.
 Color Filters: To display color images, color filters are placed in front of the liquid crystal layer. These filters break the
light into its component colors, which are then recombined to produce the full range of colors seen on the screen.
The basic principles of LCD operation describe how the manipulation of light through the use of liquid crystals, transparent
electrodes, polarizing filters, backlights, voltage control, and color filters results in the display of images and text on the screen.
Types of LCDs
There are several types of Liquid Crystal Displays (LCDs), including:
 Twisted Nematic (TN) LCDs: This is the most common type of LCD and is used in many small screens, such as those in
laptops and mobile phones. They offer fast response times and low production costs, but suffer from limited viewing
angles and poor colour reproduction.
  In-Plane Switching (IPS) LCDs: IPS LCDs offer wider viewing angles and improved color reproduction compared to TN
LCDs. They are commonly used in larger screens, such as those in computer monitors and televisions.
 Vertical Alignment (VA) LCDs: VA LCDs offer deep black levels and high contrast ratios, making them ideal for use in
high-end televisions and monitors. However, they tend to suffer from slow response times and limited viewing angles.
 Super Twisted Nematic (STN) LCDs: STN LCDs are older technology and are not commonly used in modern displays.
They offer slower response times and lower image quality compared to other types of LCDs.
 Advanced Fringe Field Switching (AFFS) LCDs: AFFS LCDs offer improved color reproduction compared to TN LCDs
and are often used in handheld devices, such as digital cameras and music players.
 White Organic Light-Emitting Diodes (WOLED) LCDs: This is a newer type of LCD technology that uses organic
materials to produce light. They offer improved colour reproduction, high brightness, and fast response times, but are
more expensive to produce than other types of LCDs.
LCD Components
Liquid crystal material
The main material used in Liquid Crystal Displays (LCDs) is liquid crystal. Liquid crystal is a type of matter that has properties of
both liquids and solids, and its optical properties can be controlled by an electric field.
Backlight
A backlight is an essential component of a Liquid Crystal Display (LCD). The backlight provides the illumination necessary to
make the images on the screen visible.
In most LCDs, the backlight is located behind the liquid crystal layer and consists of a series of light-emitting diodes
(LEDs) or a fluorescent lamp. The light from the backlight passes through the liquid crystal layer, where it is modulated by the
voltage applied to the electrodes. This modulated light then passes through the polarizing filters and the colour filters (if present)
and is finally seen by the viewer as an image on the screen.
There are several types of backlights used in LCDs, including:
 Cold Cathode Fluorescent Lamps (CCFLs): CCFLs are compact fluorescent lamps that are used in older LCDs as a
backlight. They are being replaced by more efficient and eco-friendly LED backlights.
 Light-Emitting Diodes (LEDs): LEDs are small, low-power light sources that are increasingly used as backlights in
LCDs. LED backlights are more energy-efficient and offer better colour reproduction compared to CCFLs.
 Organic Light-Emitting Diodes (OLEDs): OLEDs are a newer type of backlight that use organic materials to produce
light. They offer fast response times and high brightness but are more expensive to produce than LED or CCFL
backlights.
 Edge-Lit LED Backlights: Edge-lit LED backlights are a popular choice for thin LCDs, as they take up less space and
can be manufactured at a lower cost. In this design, the LED lights are located around the edge of the LCD and shine
towards the centre of the screen.
The choice of backlight technology will depend on the specific requirements of the display and the desired balance of cost,
performance, and image quality.
Polarizers
LCD (Liquid Crystal Display) polarizers are thin films or sheets that are used in LCD screens to control the polarization of light
passing through them. They are essential components in LCDs as they allow only light with a specific polarization to pass through
while blocking other light. This results in a clear and visible image being displayed on the screen. Polarizers are placed in front of
the liquid crystal layer and behind the backlight, and they work by aligning the liquid crystal molecules to either block or transmit
light.
Colour filters
Colour filters in LCD (Liquid Crystal Display) screens are used to produce colour images. They work by selectively filtering light
of different colours and passing only the desired colour to the viewer. Colour filters in LCDs are typically made of coloured dye
or pigment and are placed in front of the liquid crystal layer. There are three primary colours in an LCD colour filter: red, green,
and blue (RGB). These colours are combined in various intensities to produce all the colours that can be seen on the screen. The
combination of the liquid crystal layer and colour filter allows the LCD screen to display a full-colour image.
TFT array
TFT (Thin-Film Transistor) array refers to the array of thin-film transistors that are used in LCD (Liquid Crystal Display) screens.
TFTs are an essential component in LCDs as they control the amount of electric current that flows through the liquid crystal layer,
which in turn affects the amount of light that is transmitted or blocked by the crystal. In an LCD screen, each pixel is controlled by
a TFT, and the TFT array acts as a switch to turn each pixel on or off. The TFT array provides the precise control over the electric
current that is needed to produce a clear and stable image on the screen. The TFT array is typically made of a silicon substrate and
is manufactured using advanced semiconductor technology.
LCD Operation
The operation of an LCD (Liquid Crystal Display) screen is based on the behaviour of liquid crystal molecules. When an electric
field is applied to a liquid crystal, the molecules will align and block or transmit light, depending on the specific properties of the
liquid crystal material.
In an LCD screen, the liquid crystal layer is sandwiched between two polarizers and colour filters. A backlight is used to
provide the light source. When an electric field is applied to the liquid crystal layer, the liquid crystal molecules will align and
either block or transmit the light. The polarizers ensure that only light with a specific polarization is allowed to pass through. The
colour filters then produce the desired colour by selectively filtering light of different colours.
The TFT (Thin-Film Transistor) array provides the precise control over the electric current that flows through the liquid
crystal layer. By turning individual pixels on or off, the TFT array creates the desired image on the screen. The combination of the
liquid crystal layer, polarizers, colour filters, and TFT array allows an LCD screen to display clear, stable, and colour images.
Advantages and Disadvantages of LCDs
Advantages of LCDs (Liquid Crystal Displays):
 Thin and Lightweight: LCDs are thin and lightweight, making them ideal for portable devices such as laptops,
smartphones, and tablets.
 Low Power Consumption: LCDs consume less power than other display technologies, making them suitable for use in
battery-powered devices.
 Wide Viewing Angle: LCDs have a wider viewing angle than other display technologies, which allows for a clear image
to be seen from multiple angles.
 High Image Quality: LCDs produce high-quality images with clear colours and sharp details.
 Cost-Effective: LCDs are relatively low-cost compared to other display technologies, making them widely used in
consumer electronics.
Disadvantages of LCDs:
 Limited Brightness: LCDs have limited brightness compared to other display technologies, which can result in washed-
out images in bright light conditions.
 Slow Response Time: LCDs have a slower response time compared to other display technologies, which can result in
ghosting or blurring of fast-moving images.
 Limited Viewing Angle in Dark Rooms: LCDs can have limited viewing angles in dark rooms, which can result in a loss
of contrast and colour accuracy.
 Limited Life Span: LCDs have a limited lifespan compared to other display technologies, and over time, they may
develop a permanent "burn-in" if the same image is displayed for extended periods of time.
 Poor Performance in Extreme Temperatures: LCDs can be affected by extreme temperatures, which can result in a
reduction in image quality or even complete failure of the screen.
Applications of LCDs
LCDs (Liquid Crystal Displays) are widely used in a variety of applications due to their advantages such as low power
consumption, high image quality, and cost-effectiveness. Some of the common applications of LCDs include:
 Televisions: LCDs are commonly used in modern televisions, as they offer a high-quality image and are relatively low-
cost compared to other display technologies.
 Computers: LCDs are used in desktop and laptop computers as monitors, providing high-quality images for productivity
and entertainment.
 Smartphones and Tablets: LCDs are widely used in smartphones and tablets, as they are thin, lightweight, and consume
less power compared to other display technologies.
 Digital Cameras: LCDs are used in digital cameras to preview images and navigate menus.
 Automotive Displays: LCDs are used in automotive displays for navigation systems, rear-view cameras, and
entertainment systems.
 Medical Equipment: LCDs are used in medical equipment such as patient monitors and ultrasound machines, providing a
clear and accurate display of important information.
 Industrial and Commercial Displays: LCDs are used in industrial and commercial displays, such as information kiosks,
digital signs, and point-of-sale displays.
Future trends in LCD technology
The future trends in LCD technology include:
 Miniaturization - LCDs are becoming smaller and lighter, which makes them suitable for use in portable devices.
 Flexible displays - LCDs are becoming more flexible, which makes it possible to create curved and foldable screens.
 Higher resolutions - LCDs are offering higher resolutions, which makes it possible to display more detailed images and
videos.
 Improved colour accuracy - LCDs are becoming better at reproducing colours, making them suitable for colour-critical
applications.
  Lower power consumption - LCDs are becoming more energy-efficient, which reduces their impact on the environment
and extends battery life in portable devices.
 Organic Light-Emitting Diodes (OLEDs) - OLEDs are becoming more popular as they offer a higher contrast ratio and
wider viewing angles compared to traditional LCDs.
Importance and impact of LCD technology
The Liquid Crystal Display (LCD) technology has had a significant impact on many industries and aspects of daily life. Some of
the most important impacts of LCD technology include:
 Display quality - LCDs have greatly improved the quality of displays, making it possible to display sharper and more
detailed images and videos.
 Portability - LCDs have made it possible to create smaller and lighter devices, such as laptops, smartphones, and tablets.
 Energy efficiency - LCDs consume less power than traditional display technologies, which makes them more
environmentally friendly and helps extend battery life.
 Cost - The widespread use of LCDs has made displays more affordable and accessible to a wider range of consumers.
 Gaming - LCDs have revolutionized the gaming industry, providing gamers with more immersive and interactive
experiences.
 Broadcasting and media - LCDs have enabled the creation of high-quality displays for broadcasting, advertising, and
digital signage.
 Healthcare - LCDs are used in medical equipment, such as ultrasound machines, and monitors, improving the accuracy
and efficiency of medical procedures.
Overall, LCD technology has greatly improved the quality and accessibility of displays and has had a significant impact on many
industries and aspects of daily life.
Multiple Choice Questions
What is an LCD?
A. A type of computer display technology B. A type of lighting technology
C. A type of sound technology
Answer: A. A type of computer display technology
How does an LCD work?
A. By using a backlight to illuminate the pixels B. By using polarized light to create an image
C. By using electrons to create an image
Answer: B. By using polarized light to create an image
What are the benefits of using an LCD over other types of displays?
A. They are lighter and more energy-efficient B. They have a wider viewing angle and better color reproduction
C. Both A and B
Answer: C. Both A and B
What is the main disadvantage of an LCD?
A. Slow refresh rate B. Limited viewing angle C. Poor color reproduction
Answer: A. Slow refresh rate
Can an LCD display be used for outdoor applications?
A. Yes, with proper protection from the elements B. No, they are not suitable for outdoor use
Answer: A. Yes, with proper protection from the elements
What is the most common type of LCD used in televisions and computer monitors?
A. Twisted Nematic (TN) B. In-Plane Switching (IPS) C. Vertical Alignment (VA)
Answer: B. In-Plane Switching (IPS)
What type of LCD provides the best colour accuracy and viewing angle?
A. Twisted Nematic (TN)
B. In-Plane Switching (IPS)
C. Vertical Alignment (VA)
Answer: B. In-Plane Switching (IPS)
What type of LCD provides the fastest refresh rate?
A. Twisted Nematic (TN)
B. In-Plane Switching (IPS)
C. Vertical Alignment (VA)
Answer: A. Twisted Nematic (TN)
What type of LCD provides the best contrast ratio?
A. Twisted Nematic (TN)
B. In-Plane Switching (IPS)
C. Vertical Alignment (VA)
Answer: C. Vertical Alignment (VA)
What is the resolution of a typical LCD computer monitor?
A. 720p
B. 1080p
C. 4K
Answer: B. 1080p
What is the purpose of a backlight in an LCD?
A. To provide power to the display
B. To illuminate the pixels so they can be seen
C. To control the brightness of the display
Answer: B. To illuminate the pixels so they can be seen
Can an LCD display be repaired if it is damaged?
A. Yes, in some cases it can be repaired
B. No, it cannot be repaired and must be replaced
Answer: A. Yes, in some cases it can be repaired, depending on the extent of the damage.
Short Questions
1. What is an LCD?
An LCD is a Liquid Crystal Display, a type of display technology commonly used in televisions, computer monitors, and mobile
devices.
2. How does an LCD work?
An LCD works by using polarized light and a backlight to illuminate the pixels, which can be turned on and off to create an
image.
3. What are the benefits of using an LCD?
LCDs are lighter, more energy-efficient, have a wider viewing angle, and better colour reproduction compared to other types of
displays.
4. What is the main disadvantage of an LCD?
The main disadvantage of an LCD is its slow refresh rate, which can result in ghosting or blurring of fast-moving images.
5. Can an LCD display be used for outdoor applications?
Yes, LCD displays can be used for outdoor applications, but proper protection from the elements is necessary.
6. What is the most common type of LCD used in televisions and computer monitors?
The most common type of LCD used in televisions and computer monitors is In-Plane Switching (IPS).
7. What is an LCD?
A: LCD stands for Liquid Crystal Display, a type of flat panel display technology commonly used in digital devices such as
televisions, computer monitors, and smartphones.
8. How does an LCD work?
A: An LCD works by manipulating the polarization of light passing through liquid crystal molecules to display an image.
9. What are the benefits of using an LCD?
A: Benefits of using an LCD include low power consumption, thin and lightweight design, and wide viewing angles.
10. What is the difference between LCD and LED?
A: LCD (Liquid Crystal Display) is a type of display technology while LED (Light Emitting Diode) refers to the backlight
technology used to illuminate the display in some LCD monitors and TVs.
11. How is the resolution of an LCD determined?
A: The resolution of an LCD is determined by the number of pixels on the screen, commonly expressed in terms of width x height
(e.g., 1920 x 1080).
CLIPPER CIRCUIT
A circuit which is used to remove a portion of the applied voltage to from the output of wave form is called clipper circuit.
A clipper circuit modifies a portion of an AC signal without changing the remaining part of the waveform. It limits the voltage
from going above or below a certain value. In this way it also protects against overvoltage. The clipper circuit is also called
clipper, clipping circuit, voltage limiter or slicer.
A simple circuit contains a resistor and a diode connected as shown in Fig (18.25/Principles of Electronics/Rohit Mehta).
Note that a clipper circuit cannot change the amplitude of the wave form but limits its value.
There are different circuits, but diode clippers will be discussed here in detail.
Types
i) Positive Clipper
ii) Biased clipper
iii) Combination clipper
Positive Clipper
A type of clipper circuit which removes the positive half cycle of the input voltage is called positive clipper circuit.
Consider a diode is connected with an input AC source through a resistor R. A load resistance R is connected in parallel with the
diode to take the output.
a) In positive half cycle of input voltage, the diode is forward biased. A current pass through the diode and behave as short
circuit. The output across the diode is zero. (Fig 178.25/Rohit (c))
b) In negative half cycle of input voltage, the diode is reverse biased.no current pass through the diode and behave as open
circuit. A current pass through the load as output is obtained. The output voltage can be determined by using voltage
divider. From Fig (18.25/ Rohit (b)).
EQ
Where Vin, VR and V2 are input voltage. Voltage through resistor R and output voltage.
Using Ohm’s law in negative half cycle
EQ
So above equation becomes
EQ
Clipper Circuit Applications
Clipper circuits are used in radars and digital computer. Another application is in radio receivers for communication to clip down
(reduce amplitude) of noise pulses.
Types
There are two types of clippers:
1) Series 2) Parallel
1) Series Clippers
The type of clipper circuit having diode in series with load resistance is called series clipper.
In positive half cycle of input waveform, the diode becomes reverse biased. So, diode behaves as open circuit. Thus, all applied
voltage drops across the diode. In the result no output voltage appears. (Fig).
In negative half cycle of input waveform, the diode becomes forward biased. So, diode behaves as closed circuit. Thus, no
applied voltage drops across the diode. In the result an output voltage appears. (fig)
2) Series Clippers with Positive Biasing
The type of clipper circuit having diode with respect to a DC source in series with the load resistance is called series clipper with
forward biasing.
In positive half cycle of input waveform, the diode behaves as forward biased until the input voltage is less than the DC voltage.
But as the input voltage becomes greater than the DC voltage then the diode becomes reverse biased.
In negative cycle of input waveform, the diode behaves as forward biased both due to input voltage and DC voltage. So,
negative half of the input waveform is completely received.
3) Series Clippers with Negative Biasing
The type of clipper circuit having reverse biased diode with respect to a DC source in series with the load resistance is called
series clipper with negative biasing.
In positive half cycle of input waveform, the diode is reverse biased due to a DC voltage and input voltage. So, positive half of the
input waveform is completely cuts off.
In negative half cycle of input waveform, the diode is forward biased when input voltage is less than the DC voltage. But as
the input voltage becomes greater than the DC voltage then the diode becomes reverse biased.
2) Shunt Clipper
The type of clipper circuit having diode is parallel with the load resistance is called shunt clipper.
This circuit is also called parallel clipper circuit. There are two types of this circuit.:
a) Shunt positive clipper
b) Shunt negative clipper
a) Shunt Positive Clipper
The type of the shunt clipper circuit in which the output signal is observed only when the diode is reverse biased is called shunt
positive clipper.
In positive half cycle of input waveform, the diode becomes forward biased. So, diode behaves as closed circuit. Due to parallel
combination of diode and load, no current pass through the load resistance. Thus, no output voltage appears.
In negative half cycle, the diode becomes reverse biased. So, diode behaves as open circuit. So, no current pass through the
diode. But the load resistance is in parallel with the diode. So, the current pass through the load resistance and an output voltage
appears.
b) Shunt Negative Clipper
The type of shunt clipper circuit in which the output signal is observed only when the diode is forward biased is called Shunt
negative clipper.
In positive half cycle of input waveform, the diode becomes reverse biased. So, diode behaves as open circuit. So, no current pass
through the diode. So, the current pass through the load resistance and an output voltage appears.
 In negative half cycle of input waveform, the diode becomes forward biased. So, diode behaves as closed circuit. Due to the
load resistance. Thus, no output voltage appears.
c) Shunt Clipper with Biasing
The type of shunt clipper circuit in which a DC source is connected in series with diode but parallel with the load resistance is
called shunt clipper with biasing.
i) Shunt Positive Clipper with Biasing
The type of shunt clipper circuit in which output is received only when input voltage is greater than DC voltage is called shunt
positive clipper with biasing.
In positive half cycle of input, the diode becomes reverse biased. The DC source caused the diode to be at forward biasing. The
diode source causes the diode to be at forward biasing. The diode conducts when DC voltage is less than input voltage. So, no
output is received. But when the input voltage becomes higher than DC voltage then diode input stops to conduct. Thus, an output
is received.
In the negative half cycle of input the diode becomes forward biased because of input voltage and DC voltage. So, no output
is received.
ii) Shunt Negative Clipper with Biasing
The type of shunt clipper circuit in which output is received only when input voltage is less than DC biasing voltage is called
shunt negative clipper with biasing.
In negative half cycle the diode becomes forward biased due to input voltage but reverse biased due to DC biasing voltage. So,
output is received until the input voltage is less than the DC biasing voltage. Output is not received when input voltage is higher
than the DC biasing voltage.
Dual Clipper Circuit
The type pf circuit formed by combining positive and negative biased clipper circuits is called clipper circuit.
This circuit is used to remove a portion of both positive and negative input cycles. (Fig. 18.27/Mehta).
In positive half cycle of the input diodes D1 and D2 are reverse biased when input voltage is less than DC biased voltage
V1. So, output is received across the load resistance. But when input voltage becomes greater than DC biased voltage V 1 and D1
becomes forward biased and D2 becomes reverse biased. So, the voltage V1 is received across the load resistance.
In negative half cycle of the input diode D 1 and D2 are reverse biased when input voltage is less than DC biased voltage
V2. So, output is received across the load resistance. But when input voltage becomes greater than DC biased voltage V 2 then D2
becomes reverse biased. So, voltage V2 is received across the load resistance.
Multiple Choice Questions
1. What is the function of a clipper circuit?
a) To remove part of the input waveform b) To amplify the input waveform
c) To generate a waveform d) To delay the input waveform
Answer: A
2. What are the types of clipper circuits?
a) Positive clipper and negative clipper b) Series clipper and parallel clipper
c) Voltage clipper and current clipper d) AC clipper and DC clipper
Answer: A
3. What is the difference between positive and negative clipper circuits?
a) Positive clipper removes positive half cycles and negative clipper removes negative half cycles
b) Positive clipper removes negative half cycles and negative clipper removes positive half cycles
c) Positive clipper amplifies the positive half cycles and negative clipper amplifies the negative half cycles
d) Positive clipper delays the positive half cycles and negative clipper delays the negative half cycles
Answer: B
4. What is the purpose of using a diode in a clipper circuit?
a) To regulate the voltage b) To rectify the AC waveform
c) To block the reverse current d) To control the frequency
Answer: C
5. How does a clipper circuit affect the peak value of the output waveform?
a) Increases the peak value b) Decreases the peak value
c) Does not affect the peak value d) Reverses the peak value
Answer: B
6. What is the function of a positive clipper circuit?
a) To remove negative half cycles of the input waveform
b) To remove positive half cycles of the input waveform
c) To amplify the input waveform
d) To delay the input waveform
Answer: A
7. What is the effect of a positive clipper circuit on the output waveform?
a) The negative half cycles are removed, and the positive half cycles remain unchanged.
b) The positive half cycles are removed, and the negative half cycles remain unchanged.
c) Both positive and negative half cycles are removed.
d) Both positive and negative half cycles are amplified.
Answer: A
8. What is the main component of a positive clipper circuit?
a) Resistor b) Inductor c) Diode d) Transistor
Answer: C
9. How does a diode operate in a positive clipper circuit?
a) The diode conducts during the positive half cycle and does not conduct during the negative half cycle.
b) The diode does not conduct during the positive half cycle and conducts during the negative half cycle.
c) The diode conducts during both positive and negative half cycles.
d) The diode does not conduct during both positive and negative half cycles.
Answer: A
10. What is the effect of changing the clipping level in a positive clipper circuit on the output waveform?
a) Increasing the clipping level will increase the magnitude of the output waveform.
b) Increasing the clipping level will decrease the magnitude of the output waveform.
c) Decreasing the clipping level will increase the magnitude of the output waveform.
d) Decreasing the clipping level will decrease the magnitude of the output waveform.
Answer: B
11. What is the function of a negative clipper circuit?
a) To remove negative half cycles of the input waveform
b) To remove positive half cycles of the input waveform
c) To amplify the input waveform
d) To delay the input waveform
Answer: B
12. What is the effect of a negative clipper circuit on the output waveform?
a) The negative half cycles are removed, and the positive half cycles remain unchanged.
b) The positive half cycles are removed, and the negative half cycles remain unchanged.
c) Both positive and negative half cycles are removed.
d) Both positive and negative half cycles are amplified.
Answer: B
13. What is the main component of a negative clipper circuit?
a) Resistor b) Inductor c) Diode d) Transistor
Answer: C
14. How does a diode operate in a negative clipper circuit?
a) The diode conducts during the positive half cycle and does not conduct during the negative half cycle.
b) The diode does not conduct during the positive half cycle and conducts during the negative half cycle.
c) The diode conducts during both positive and negative half cycles.
d) The diode does not conduct during both positive and negative half cycles.
Answer: B
15. What is the effect of changing the clipping level in a negative clipper circuit on the output waveform?
a) Increasing the clipping level will increase the magnitude of the output waveform.
b) Increasing the clipping level will decrease the magnitude of the output waveform.
c) Decreasing the clipping level will increase the magnitude of the output waveform.
d) Decreasing the clipping level will decrease the magnitude of the output waveform.
Answer: D
Short Questions
1. What is a clipper circuit used for?
A. A clipper circuit is used to remove parts of the input waveform that exceed a certain threshold.
2. What are the types of clipper circuits?
A. The two types of clipper circuits are positive clipper and negative clipper circuits.
3. How does a diode operate in a clipper circuit?
A. In a clipper circuit, a diode conducts during half cycles of the input waveform that are within the clipping level and does not
conduct during half cycles that exceed the clipping level.
4. What is the difference between positive and negative clipper circuits?
A. In a positive clipper circuit, the diode conducts during positive half cycles of the input waveform and does not conduct during
negative half cycles. In a negative clipper circuit, the diode conducts during negative half cycles of the input waveform and does
not conduct during positive half cycles.
5. How does the clipping level affect the output waveform in a clipper circuit?
A. The clipping level determines the threshold for which the parts of the input waveform that exceed this level will be
removed. Increasing the clipping level will remove more of the input waveform, while decreasing the clipping level will
remove less.
CLAMPER CIRCUIT
A clamper circuit is an electronic circuit that is used to control the voltage level of an input signal.
The main purpose of a clamper circuit is to clamp or hold the voltage level of the input signal at a specific level or to change its
DC component. Clamper circuits can be divided into two main types: diode clamper circuit and capacitor clamper circuit.
The diode clamper circuit uses a diode to clamp the input signal to a specific level. The diode is connected to the input
signal in a forward-biased configuration, allowing the voltage level of the input signal to be shifted in either a positive or negative
direction.
The capacitor clamper circuit uses a capacitor to store charge and maintain a constant voltage level across it. The input
signal is fed through the capacitor, causing the voltage level of the input signal to be clamped to a specific level.
Clamper circuits are widely used in electronics applications such as waveform stabilization, amplitude modulation, peak
clipping, and others. They are essential components in many electronic circuits as they provide a stable voltage reference and help
to eliminate DC components in signals.
Purpose of Clamper Circuit
The purpose of a clamper circuit is to clamp or hold the voltage level of an input signal at a specific level or to change its DC
component. This can be done by shifting the input signal’s DC level, either positively or negatively, to a desired level. Some
common applications of clamper circuits include:
 Waveform Stabilization: A clamper circuit can be used to stabilize the waveform of a signal by ensuring that its DC level
remains constant, even when the signal level changes.
 Amplitude Modulation: Clamper circuits can be used in amplitude modulation applications to shift the DC level of an
input signal to a specific level, enabling better signal processing and signal transfer.
 Peak Clipping: Clamper circuits can also be used to clip the peaks of an input signal, allowing it to be processed or
transmitted without overloading the system.
 DC Restoration: Clamper circuits can be used to restore the DC component of a signal that has been lost during
processing or transmission.
In summary, the main purpose of a clamper circuit is to adjust the DC level of an input signal and to stabilize it, making
it easier to process or transmit.
Types of Clamper Circuit
There are two main types of clamper circuits: the diode clamper circuit and the capacitor clamper circuit.
 Diode Clamper Circuit: A diode clamper circuit uses a diode to clamp the input signal to a specific level. The diode is
connected to the input signal in a forward-biased configuration, allowing the voltage level of the input signal to be shifted
in either a positive or negative direction.
 Capacitor Clamper Circuit: A capacitor clamper circuit uses a capacitor to store charge and maintain a constant voltage
level across it. The input signal is fed through the capacitor, causing the voltage level of the input signal to be clamped to
a specific level.
Both types of clamper circuits have their own advantages and disadvantages, and the choice of which to use depends on the
specific application requirements. For example, the diode clamper circuit is faster and more flexible in terms of shifting the DC
level of the input signal, while the capacitor clamper circuit provides better stability and is more suitable for applications that
require a steady DC level.
Diode Clamper Circuit
A diode clamper circuit is an electronic circuit that uses a diode to clamp the voltage level of an input signal to a specific level.
The circuit works by connecting a diode in a forward-biased configuration to the input signal, allowing the voltage level of the
input signal to be shifted in either a positive or negative direction.
The basic components of a diode clamper circuit are an input signal source, a diode, a capacitor, and a resistor. The input
signal is fed into the circuit and the diode is connected in a forward-biased configuration, allowing it to conduct current when the
input voltage exceeds the diode’s forward voltage. The capacitor helps to maintain the DC component of the input signal, while
the resistor limits the current flow through the diode.
 The diode clamper circuit is a simple and effective solution for applications that require the DC level of an input signal to
be shifted in either a positive or negative direction. The circuit is also flexible and fast, making it suitable for applications that
require quick changes in the DC level of the input signal.
Some common applications of the diode clamper circuit include waveform stabilization, amplitude modulation, and peak
clipping. The circuit is widely used in electronics applications due to its simplicity, versatility, and effectiveness.
Working Principle of Diode Clamper Circuit
The working principle of a diode clamper circuit is based on the ability of a diode to control the voltage level of an input signal.
The circuit consists of an input signal source, a diode, a capacitor, and a resistor.
The input signal is fed into the circuit and the diode is connected in a forward-biased configuration. The diode is
designed to conduct current when the input voltage exceeds its forward voltage, allowing the voltage level of the input signal to be
shifted in either a positive or negative direction.
The capacitor is used to store charge and maintain a constant voltage level across it. The capacitor is connected in
parallel with the diode and acts as a filter, removing any AC components of the input signal and maintaining the DC component.
The resistor is used to limit the current flow through the diode and to discharge the capacitor, ensuring that the voltage
level of the input signal remains at the desired level.
When the input signal changes, the diode conducts current and shifts the voltage level of the input signal, while the
capacitor maintains a constant voltage level across it. The output signal is a clamped version of the input signal, with the DC level
shifted in either a positive or negative direction, depending on the forward bias of the diode.
In summary, the working principle of a diode clamper circuit is based on the combination of the forward-biased diode
and the capacitor, which work together to control the voltage level of the input signal and shift its DC component to a specific
level.
Capacitor Clamper Circuit
A capacitor clipper or clipper circuit is an electrical circuit that limits the peak voltage of an input waveform to a certain level.
This is achieved by charging a capacitor to the peak level of the input waveform and then discharging it through a diode to
ground, thereby limiting the voltage across the load. The circuit can be used to remove or clip off the peaks of a waveform,
producing a "clipped" or "clamped" output waveform.
Working Principle of Capacitor Clamper Circuit
The working principle of a capacitor clamper circuit is based on the charging and discharging behaviour of a capacitor. The circuit
consists of a capacitor, a diode, and a resistor. The input waveform is applied to the circuit, and the capacitor charges to the peak
voltage of the input waveform through the resistor. When the input voltage begins to decrease, the diode becomes forward biased,
and the charged capacitor discharges through the diode, clamping the voltage across the load to the peak value of the input
waveform.
In other words, the capacitor acts as a buffer to store the energy from the input waveform, and the diode acts as a switch
to control the flow of current to the load. The resistor helps to control the rate at which the capacitor charges and discharges,
shaping the output waveform to match the desired level. The result is an output waveform that has the same DC level as the peak
of the input waveform.
Comparison between Diode Clamper Circuit and Capacitor Clamper Circuit
A diode clamper and a capacitor clamper are similar in that they both serve to adjust the DC level of an input waveform by
clamping it to a fixed reference level. However, there are some key differences between the two circuits:
 Circuit components: A diode clamper circuit consists of a diode, a resistor, and a capacitor, while a capacitor clamper
circuit consists of a diode, a resistor, and a capacitor.
 Clamping mechanism: In a diode clamper circuit, the diode is used to clamp the voltage to a fixed reference level by
rectifying the input waveform. In a capacitor clamper circuit, the capacitor and the diode are used to store and release the
energy from the input waveform, respectively, to clamp the voltage to the peak level.
 Output waveform: The output waveform of a diode clamper circuit is a rectified waveform with a fixed DC level, while
the output waveform of a capacitor clamper circuit is a waveform with the same DC level as the peak of the input
waveform.
 Charging time constant: The time constant of a diode clamper circuit is determined by the value of the capacitor and the
resistor, while the charging time constant of a capacitor clamper circuit is determined by the value of the resistor.
 Circuit complexity: The diode clamper circuit is generally simpler than the capacitor clamper circuit. However, the
capacitor clamper circuit provides a more flexible output waveform, as the shape of the output waveform can be adjusted
by changing the value of the resistor.
In conclusion, the choice between a diode clamper circuit and a capacitor clamper circuit depends on the specific requirements of
the application and the desired output waveform.
Advantages and Disadvantages of Diode Clamper Circuit
Advantages of Diode Clamper Circuit:
  Simplicity: The diode clamper circuit is relatively simple to design and implement, making it a cost-effective solution for
many applications.
 Rectification: The diode clamper circuit can be used to rectify an AC input waveform, producing a DC output waveform
with a fixed reference level.
 High frequency response: The diode clamper circuit has a fast response time, making it well-suited for high frequency
applications.
Disadvantages of Diode Clamper Circuit:
 Limited output waveform: The output waveform of a diode clamper circuit is a rectified waveform with a fixed DC level,
which may not be suitable for all applications.
 Waveform distortion: The diode clamper circuit can cause significant waveform distortion, especially for input
waveforms with high amplitude and high frequency components.
 Circuit non-linearity: The diode in a diode clamper circuit is a non-linear component, which can cause harmonic
distortion and limit the accuracy of the output waveform.
In conclusion, the diode clamper circuit is a simple and effective solution for many applications that require a fixed DC reference
level. However, its limitations in terms of output waveform and circuit non-linearity should be considered when choosing a
clamper circuit for a specific application.
Advantages and Disadvantages of Capacitor Clamper Circuit
Advantages of Capacitor Clamper Circuit:
 Flexible output waveform: The output waveform of a capacitor clamper circuit is not limited to a rectified waveform, as
it follows the peak level of the input waveform. This provides more flexibility in terms of the output waveform, as the
shape of the output waveform can be adjusted by changing the value of the resistor.
 Reduced waveform distortion: The capacitor clamper circuit can reduce waveform distortion compared to a diode
clamper circuit, as the capacitor provides a more gradual transition between the input waveform and the output
waveform.
 Improved linearity: The capacitor clamper circuit has a more linear transfer characteristic compared to a diode clamper
circuit, which reduces harmonic distortion and improves the accuracy of the output waveform.
Disadvantages of Capacitor Clamper Circuit:
Circuit complexity: The capacitor clamper circuit is more complex than a diode clamper circuit, as it involves the charging and
discharging of a capacitor, which can increase the cost and design time.
Response time: The response time of a capacitor clamper circuit is slower compared to a diode clamper circuit, as it takes time for
the capacitor to charge and discharge.
Power consumption: The capacitor clamper circuit consumes more power compared to a diode clamper circuit, as it involves
charging and discharging a capacitor.
In conclusion, the capacitor clamper circuit is a more flexible and accurate solution for applications that require a more complex
output waveform. However, its circuit complexity and slower response time should be considered when choosing a clamper
circuit for a specific application.
Applications of Clamper Circuit
Clamper circuits have a wide range of applications, including:
 DC restoration: Clamper circuits can be used to restore the DC level of a waveform that has been distorted or offset.
 Signal processing: Clamper circuits can be used to adjust the DC level of an input waveform, which can improve the
accuracy of signal processing and analysis.
 Power electronics: Clamper circuits can be used in power electronic applications to reduce ripple and improve the
stability of DC power supplies.
 High frequency applications: Clamper circuits can be used in high frequency applications, such as radio frequency (RF)
and microwave systems, to eliminate unwanted DC components and improve the accuracy of the output waveform.
 Medical equipment: Clamper circuits can be used in medical equipment, such as electrocardiogram (ECG) machines, to
adjust the DC level of the input waveform and improve the accuracy of the output signal.
 Audio systems: Clamper circuits can be used in audio systems, such as amplifiers, to eliminate DC offsets and improve
the accuracy of the audio signal.
In conclusion, clamper circuits have a wide range of applications in various fields, including signal processing, power electronics,
high frequency systems, medical equipment, and audio systems.
Importance of Clamper Circuit in Electronics
Clamper circuits are important in electronics for several reasons:
 DC restoration: Clamper circuits can be used to restore the DC level of a waveform that has been distorted or offset,
which is important for maintaining the accuracy of the output signal.
  Signal processing: Clamper circuits can be used to adjust the DC level of an input waveform, which can improve the
accuracy of signal processing and analysis. This is important in many fields, such as medical equipment, audio systems,
and communication systems.
 Power electronics: Clamper circuits can be used in power electronic applications to reduce ripple and improve the
stability of DC power supplies. This is important in applications such as batteries, voltage regulators, and power
inverters.
 High frequency applications: Clamper circuits can be used in high frequency applications, such as radio frequency (RF)
and microwave systems, to eliminate unwanted DC components and improve the accuracy of the output waveform. This
is important in applications such as communication systems, microwave ovens, and radar systems.
 Reduction of distortion: Clamper circuits can reduce waveform distortion, which is important for maintaining the
accuracy of the output signal in many applications, such as medical equipment, audio systems, and communication
systems.
In conclusion, clamper circuits are important in electronics for restoring the DC level of a waveform, improving the accuracy of
signal processing, reducing ripple in power electronics, eliminating unwanted DC components in high frequency applications, and
reducing waveform distortion.
Future Trends in Clamper Circuit Technology
The future trends in clamper circuit technology are likely to be influenced by advances in microelectronics, power electronics, and
signal processing. Some of the trends in this field include:
 Miniaturization: With the trend towards miniaturization in electronics, there will be a demand for smaller and more
efficient clamper circuits that can be integrated into compact devices.
 Increased efficiency: The demand for energy-efficient systems will drive the development of more efficient clamper
circuits that consume less power and generate less heat.
 Improved performance: Advances in signal processing and power electronics will drive the development of clamper
circuits with improved performance, such as faster response times, higher accuracy, and better stability.
 Smart devices: The growth of smart devices and the Internet of Things (IoT) will create new opportunities for clamper
circuits to be integrated into a wide range of applications, including wearable devices, smart homes, and industrial
automation systems.
 Renewable energy: The trend towards renewable energy sources, such as solar and wind power, will drive the
development of clamper circuits that can be used in these applications to improve the stability and efficiency of energy
conversion systems.
In conclusion, the future trends in clamper circuit technology are likely to be driven by advances in microelectronics, power
electronics, and signal processing, with a focus on miniaturization, increased efficiency, improved performance, integration into
smart devices, and renewable energy applications.
Multiple Choice Questions
1. What is the main function of a clamper circuit in electronics?
a. To increase the amplitude of an AC signal b. To decrease the frequency of an AC signal
c. To add a DC offset voltage to an AC waveform d. To remove the DC component of an AC waveform
Answer: c. To add a DC offset voltage to an AC waveform
2. Which of the following types of clamper circuits adds a positive DC offset voltage to an AC waveform?
a. Positive clamper circuit b. Negative clamper circuit
Answer: a. Positive clamper circuit
3. Which of the following types of clamper circuits adds a negative DC offset voltage to an AC waveform?
a. Positive clamper circuit b. Negative clamper circuit
Answer: b. Negative clamper circuit
4. What is the purpose of a clamper circuit in electronic circuits?
a. To increase the frequency of an AC signal b. To remove the DC component of an AC waveform
c. To bring the average value of the waveform to a desired level d. To decrease the amplitude of an AC signal
Answer: c. To bring the average value of the waveform to a desired level
5. What is the main difference between a positive and a negative clamper circuit?
a. A positive clamper adds a negative DC offset voltage to an AC waveform, while a negative clamper adds a positive DC offset
voltage.
b. A positive clamper adds a positive DC offset voltage to an AC waveform, while a negative clamper adds a negative DC offset
voltage.
c. A positive clamper increases the frequency of an AC waveform, while a negative clamper decreases the frequency.
Answer: b. A positive clamper adds a positive DC offset voltage to an AC waveform, while a negative clamper adds a negative
DC offset voltage
6. What type of diode is commonly used in clamper circuits?
a. Zener diode b. Schottky diode c. Rectifier diode d. Tunnel diode
Answer: c. Rectifier diode
7. What type of capacitor is commonly used in clamper circuits?
a. Aluminium electrolytic capacitor b. Ceramic capacitor. Tantalum capacitor d. Film capacitor
Answer: a. Aluminium electrolytic capacitor
8. In a negative clamper circuit, which of the following components is connected in reverse bias?
a. Capacitor b. Diode c. Resistor d. Inductor
Answer: b. Diode
Short Questions
1. What is the main function of a clamper circuit?
The main function of a clamper circuit is to add a DC offset voltage to an AC waveform, to bring the average value of the
waveform to a desired level.
2. What are the two types of clamper circuits?
The two types of clamper circuits are positive and negative clamper circuits.
3. What is the difference between a positive and a negative clamper circuit?
A positive clamper adds a positive DC offset voltage to an AC waveform, while a negative clamper adds a negative DC offset
voltage.
4. What type of diode is commonly used in clamper circuits?
Rectifier diodes are commonly used in clamper circuits.
5. What type of capacitor is commonly used in clamper circuits?
Aluminum electrolytic capacitors are commonly used in clamper circuits.
6. What is the purpose of a diode in a clamper circuit?
The diode in a clamper circuit is used to allow current to flow in one direction only, and to clamp the waveform at the desired DC
level.
7. What is the role of a capacitor in a clamper circuit?
The capacitor in a clamper circuit is used to store and discharge energy, and to maintain the DC offset voltage.
8. What is the effect of changing the value of the capacitor in a clamper circuit?
Changing the value of the capacitor in a clamper circuit affects the charging and discharging time of the circuit, which in turn
affects the DC offset voltage.
9. What is the effect of changing the value of the resistor in a clamper circuit?
Changing the value of the resistor in a clamper circuit affects the amount of current flowing through the circuit, which in turn
affects the DC offset voltage.
10. Can a clamper circuit be used to remove the DC component of an AC waveform?
No, a clamper circuit cannot be used to remove the DC component of an AC waveform. It is used to add a DC offset voltage to an
AC waveform.
