Hawassa University 2nd Year ARCH students.

Department of Civil Engineering Maximum Mark: 7.5%

Assignment 2

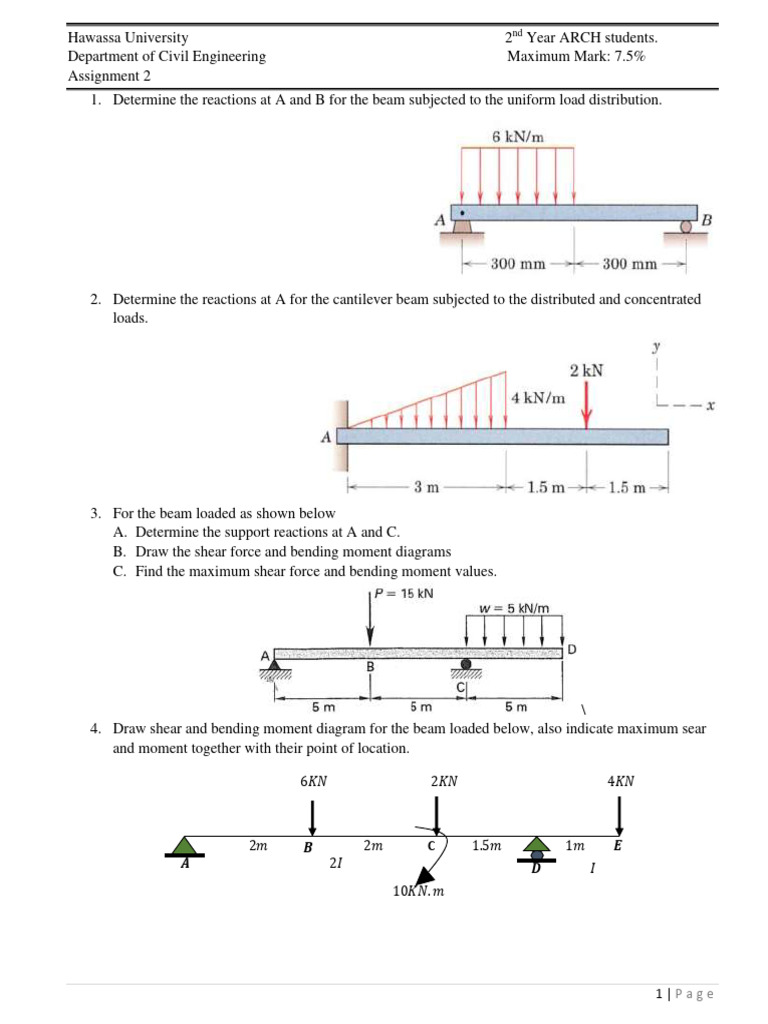

1. Determine the reactions at A and B for the beam subjected to the uniform load distribution.

2. Determine the reactions at A for the cantilever beam subjected to the distributed and concentrated
loads.

3. For the beam loaded as shown below

A. Determine the support reactions at A and C.
B. Draw the shear force and bending moment diagrams
C. Find the maximum shear force and bending moment values.

\
4. Draw shear and bending moment diagram for the beam loaded below, also indicate maximum sear
and moment together with their point of location.

6𝐾𝑁 2𝐾𝑁 4𝐾𝑁

2𝑚 𝑩 2𝑚 C 1.5𝑚 1𝑚 𝑬
𝑨 2𝐼 𝑫 𝐼
10𝐾𝑁. 𝑚
