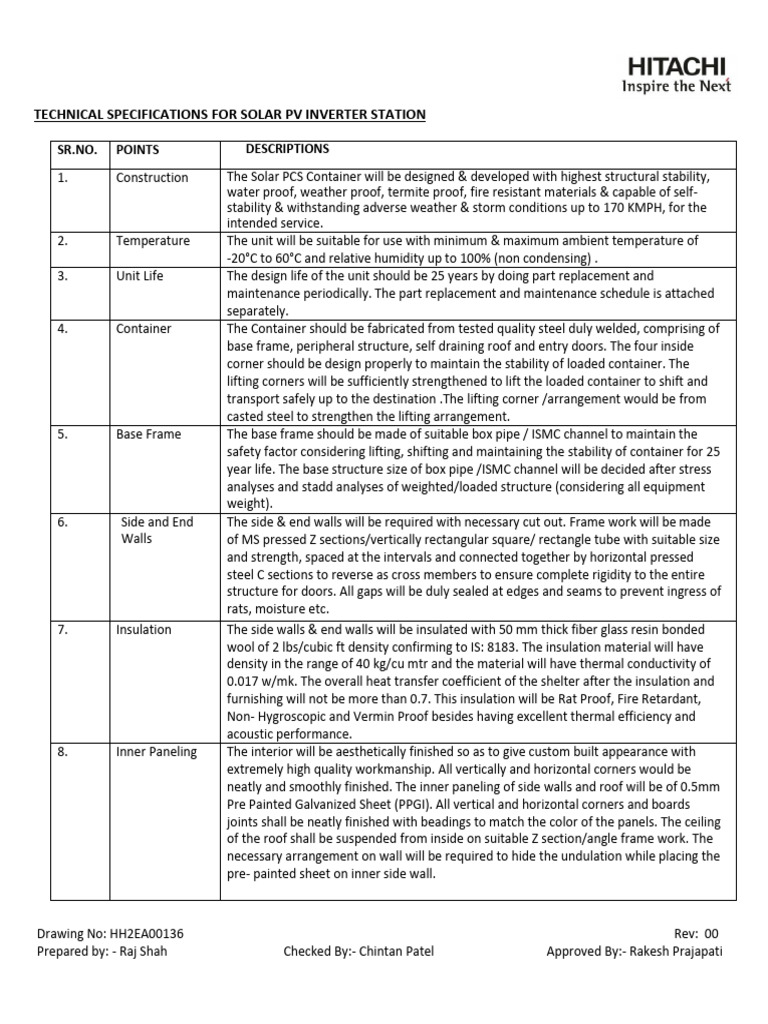

TECHNICAL SPECIFICATIONS FOR SOLAR PV INVERTER STATION

SR.NO. POINTS DESCRIPTIONS

1. Construction The Solar PCS Container will be designed & developed with highest structural stability,
water proof, weather proof, termite proof, fire resistant materials & capable of self-
stability & withstanding adverse weather & storm conditions up to 170 KMPH, for the
intended service.
2. Temperature The unit will be suitable for use with minimum & maximum ambient temperature of
-20°C to 60°C and relative humidity up to 100% (non condensing) .
3. Unit Life The design life of the unit should be 25 years by doing part replacement and
maintenance periodically. The part replacement and maintenance schedule is attached
separately.
4. Container The Container should be fabricated from tested quality steel duly welded, comprising of
base frame, peripheral structure, self draining roof and entry doors. The four inside
corner should be design properly to maintain the stability of loaded container. The
lifting corners will be sufficiently strengthened to lift the loaded container to shift and
transport safely up to the destination .The lifting corner /arrangement would be from
casted steel to strengthen the lifting arrangement.
5. Base Frame The base frame should be made of suitable box pipe / ISMC channel to maintain the
safety factor considering lifting, shifting and maintaining the stability of container for 25
year life. The base structure size of box pipe /ISMC channel will be decided after stress
analyses and stadd analyses of weighted/loaded structure (considering all equipment
weight).
6. Side and End The side & end walls will be required with necessary cut out. Frame work will be made
Walls of MS pressed Z sections/vertically rectangular square/ rectangle tube with suitable size
and strength, spaced at the intervals and connected together by horizontal pressed
steel C sections to reverse as cross members to ensure complete rigidity to the entire
structure for doors. All gaps will be duly sealed at edges and seams to prevent ingress of
rats, moisture etc.
7. Insulation The side walls & end walls will be insulated with 50 mm thick fiber glass resin bonded
wool of 2 lbs/cubic ft density confirming to IS: 8183. The insulation material will have
density in the range of 40 kg/cu mtr and the material will have thermal conductivity of
0.017 w/mk. The overall heat transfer coefficient of the shelter after the insulation and
furnishing will not be more than 0.7. This insulation will be Rat Proof, Fire Retardant,
Non- Hygroscopic and Vermin Proof besides having excellent thermal efficiency and
acoustic performance.
8. Inner Paneling The interior will be aesthetically finished so as to give custom built appearance with
extremely high quality workmanship. All vertically and horizontal corners would be
neatly and smoothly finished. The inner paneling of side walls and roof will be of 0.5mm
Pre Painted Galvanized Sheet (PPGI). All vertical and horizontal corners and boards
joints shall be neatly finished with beadings to match the color of the panels. The ceiling
of the roof shall be suspended from inside on suitable Z section/angle frame work. The
necessary arrangement on wall will be required to hide the undulation while placing the
pre- painted sheet on inner side wall.

Drawing No: HH2EA00136 Rev: 00

Prepared by: - Raj Shah Checked By:- Chintan Patel Approved By:- Rakesh Prajapati
 9. Flooring Systems On the bottom frame 1.6mm thick MS plain sheet will be fixed on that 18mm thick
composite cement sheet (100% asbestos free) will be fixed by means of self tapping
screw. 2 mm thick anti-static type PVC Vinyl flooring would be fixed on the cements
sheet. Rubber mate/sheet require in flooring. (Other than PCS area).Mounting
Arrangements for Panels & Equipments will be provided as required.
10. Roof The single /double slant roof with rainwater drain gutter and 02nos.water drain pipe 2
Inch (PVC pipe) up to the bottom will be required. The roof shall be made of 1.6 mm
thick corrugated MS sheet as per IS: 1079 is provided with adequately pressed
reinforced roof sections of suitable thickness from inside for additional strength. The
roof should be able to comfortably resist loads up to 20lbs/Sq.ft. The insulation in roof
will be done with 70 mm thick Fiber glass resin bonded wool.

11. Entry Door Man entry door: The size of the man door will be of 2000mm (H) x 680mm (W). The
door will be of external opening type made out of the same material as wall panels with
door stopper should be provided. The construction of the door would be double skin
steel construction with 50 mm thick fiber glass resin bonded wool insulation. The
peripheral edges of the door will be sealed with double gaskets to make it waterproof &
leak proof. The door color, frame and type of material should match with wall pattern
and material. The door will be provided with locking arrangement with separate handles
on both sides of the door as required. The door will open from outside and arrangement
with door closure. The door will be required with heavy gauge stainless steel plane
hinges on bush and bearing arrangement, superior quality Padlocks, tower bolts,
handle-grips.
Equipment doors: Equipment door /maintenance door size would be as per GA
drawing. The material and finishing would be similar to above specs. Door locking
arrangement should be as per cargo container locking system with heavy pipe locking
system to avoid any miss matching /alignment during opening and closing of the door.
12. Exhaust Air duct Equipment exhaust duct should be as per GA drawing and placed on the equipment with
suitable fitment /arrangement .Container exhaust outlet duct should be made with
1.2mm thick GI /MS material sheet with matching powder coating color /proper paint
and process.
GI /MS ducting will be fixed to container through 1.2 mm thick. Industrial grade canvas &
louvers to be provided at end of the GI /MS duct.
Bending radius of the inverter outer duct will be 60 deg so as to avoid rain water entry.
Duct end should be protected with aluminum gravitational louvers to avoid insect and
metal particles during reverse air flow.
13. Painting All components will be sandblasted and primed. The surface preparation for all steel
surfaces will be sand blasting and will be pre-treated with anticorrosive chemicals
including degreasing with appropriate solvent, de-rusting and phosphate. The Container
unit components will be additionally quoted with red- zinc chromate, primer.

External color: RAL 9002/9003

14. Louvers & Filters The louvers & filters would be as per design decided by HHPE.

Drawing No: HH2EA00136 Rev: 00

Prepared by: - Raj Shah Checked By:- Chintan Patel Approved By:- Rakesh Prajapati
 15. Cable Entry Cable Entry provision at the bottom will be provided as per GA Drawing provided by
HHPE.
16. Lifting Type Lift and carry type. Lifting arrangement should be from the top of the container.
17. Lighting 230 V AC Necessary lighting arrangement to maintain 300lux level along with
distribution DB, MCB’s, Plug Sockets, cables in Solar PCS container will be there.
18. Other Signing logo will be provided By HHPE.
- Insulation material (IPL) will be provided in-between PCS and container body
By HHPE.
- Ladder /climbing hooks will be provided at one side of container considering
safely climbing on the roof.
- Fire cylinder location will be nearby main entry door. (Safety Equipment)
- Casing Patti will be fixed properly with cover / joint cap. Colour of caping
shall be match with internal color of CIS.

Drawing No: HH2EA00136 Rev: 00

Prepared by: - Raj Shah Checked By:- Chintan Patel Approved By:- Rakesh Prajapati
BOM OF 2.5 MW SOLAR PCS CONTAINER

SR NO Particular Quality

1 1250 kW Grid Connected Inverters 02 No

2 Electrical Items & Inside Filters -

3 LEDs 03 No

4 Light 02 No

5 Power Distribution Board 01 No

6 Provision of Auxiliary Panel With in-built UPS 01 No

7 Provision of Scada Panel 01 No

8 Distribution MCB’s (For Fan, LED, Lights) 05 No

9 Provision of fire Extinguishers 01 No

10 SOLAR PCS Ducts 02 No

Exclusions from HHPE Scope of supply & services

1. Preparation of civil foundation

2. Making cable trenches

3. Supply and lying power cables

4. Fire protection items

5. Supply of Auxiliary panel, UPS etc.

6. All required logistics for unloading and erection of SOLAR PCS Container should be arranged by buyer.

Drawing No: HH2EA00136 Rev: 00

Prepared by: - Raj Shah Checked By:- Chintan Patel Approved By:- Rakesh Prajapati
