Level Transmitter Calibration Procedure

om
s .c
ol
To
i on
at
nt
me
ru
st
In

Calibration Procedure

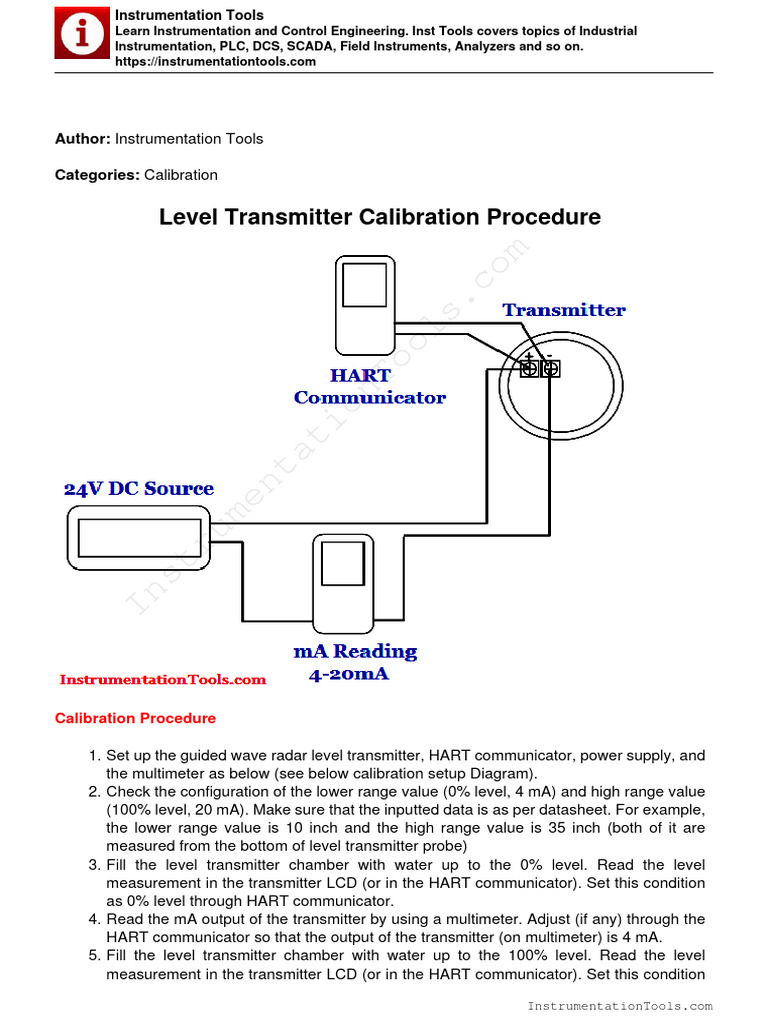

1. Set up the guided wave radar level transmitter, HART communicator, power supply, and
the multimeter as below (see below calibration setup Diagram).
2. Check the configuration of the lower range value (0% level, 4 mA) and high range value
(100% level, 20 mA). Make sure that the inputted data is as per datasheet. For example,
the lower range value is 10 inch and the high range value is 35 inch (both of it are
measured from the bottom of level transmitter probe)
3. Fill the level transmitter chamber with water up to the 0% level. Read the level
measurement in the transmitter LCD (or in the HART communicator). Set this condition
as 0% level through HART communicator.
4. Read the mA output of the transmitter by using a multimeter. Adjust (if any) through the
HART communicator so that the output of the transmitter (on multimeter) is 4 mA.
5. Fill the level transmitter chamber with water up to the 100% level. Read the level
measurement in the transmitter LCD (or in the HART communicator). Set this condition

InstrumentationTools.com
 Instrumentation Tools
Learn Instrumentation and Control Engineering. Inst Tools covers topics of Industrial
Instrumentation, PLC, DCS, SCADA, Field Instruments, Analyzers and so on.
https://instrumentationtools.com

as 100% level through HART communicator.

6. Read the mA output of the transmitter by using a multimeter. Adjust (if any) through the
HART communicator so that the output of the transmitter (on multimeter) is 20 mA.

Calibration Setup Diagram :

om
s .c
ol
To
i on
at
nt
me
ru
st
In

Typical tools required:

1. 24 VDC power supply

2. Multimeter digital
3. Water Supply Connection
4. HART communicator
5. Screwdriver set
6. Wrench set

Note:

point number 1, 2, and 4 of the typical tools above can be replaced by a single multifunction
calibrator available in the market. This typical maintenance procedure is just an illustration of

InstrumentationTools.com
 Instrumentation Tools
Learn Instrumentation and Control Engineering. Inst Tools covers topics of Industrial
Instrumentation, PLC, DCS, SCADA, Field Instruments, Analyzers and so on.
https://instrumentationtools.com

how to regularly service a guided wave radar level transmitter for academic purpose only. This
typical procedure shall not be used as day to day operation guidance. The vendor specific
maintenance manual shall be used in detail.
