Linear to Square Root Extraction

om
s .c
ol
To
i on
at
nt
me
ru

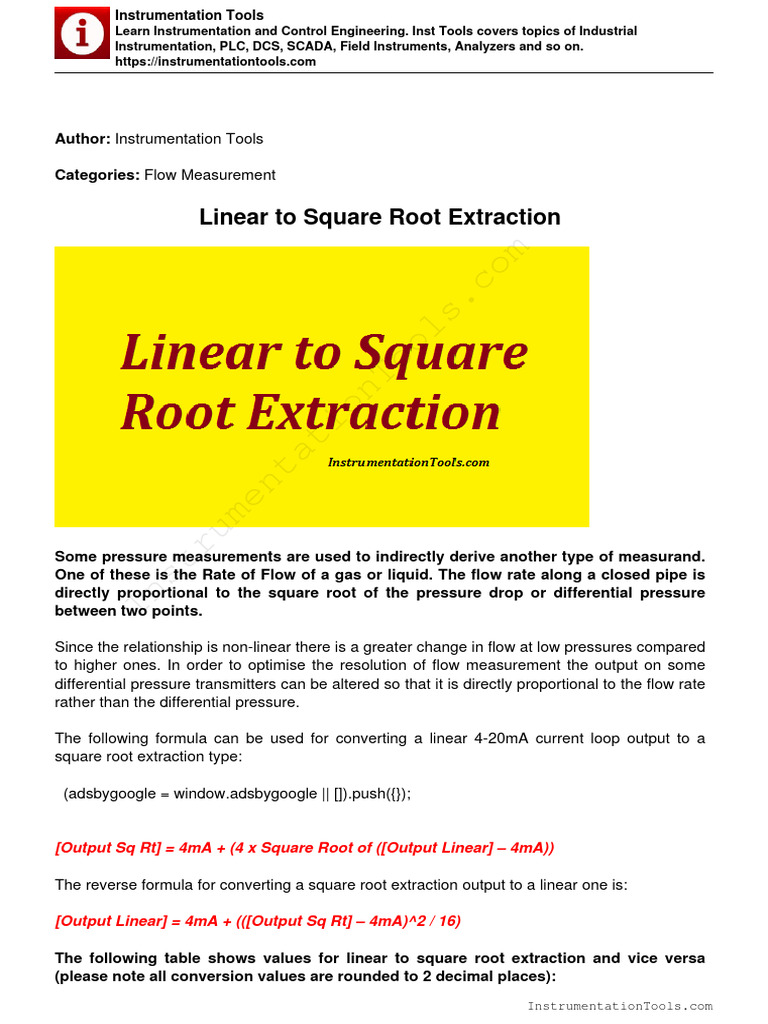

Some pressure measurements are used to indirectly derive another type of measurand.
st

One of these is the Rate of Flow of a gas or liquid. The flow rate along a closed pipe is
directly proportional to the square root of the pressure drop or differential pressure
In

between two points.

Since the relationship is non-linear there is a greater change in flow at low pressures compared
to higher ones. In order to optimise the resolution of flow measurement the output on some
differential pressure transmitters can be altered so that it is directly proportional to the flow rate
rather than the differential pressure.

The following formula can be used for converting a linear 4-20mA current loop output to a
square root extraction type:

(adsbygoogle = window.adsbygoogle || []).push({});

[Output Sq Rt] = 4mA + (4 x Square Root of ([Output Linear] – 4mA))

The reverse formula for converting a square root extraction output to a linear one is:

[Output Linear] = 4mA + (([Output Sq Rt] – 4mA)^2 / 16)

The following table shows values for linear to square root extraction and vice versa
(please note all conversion values are rounded to 2 decimal places):
