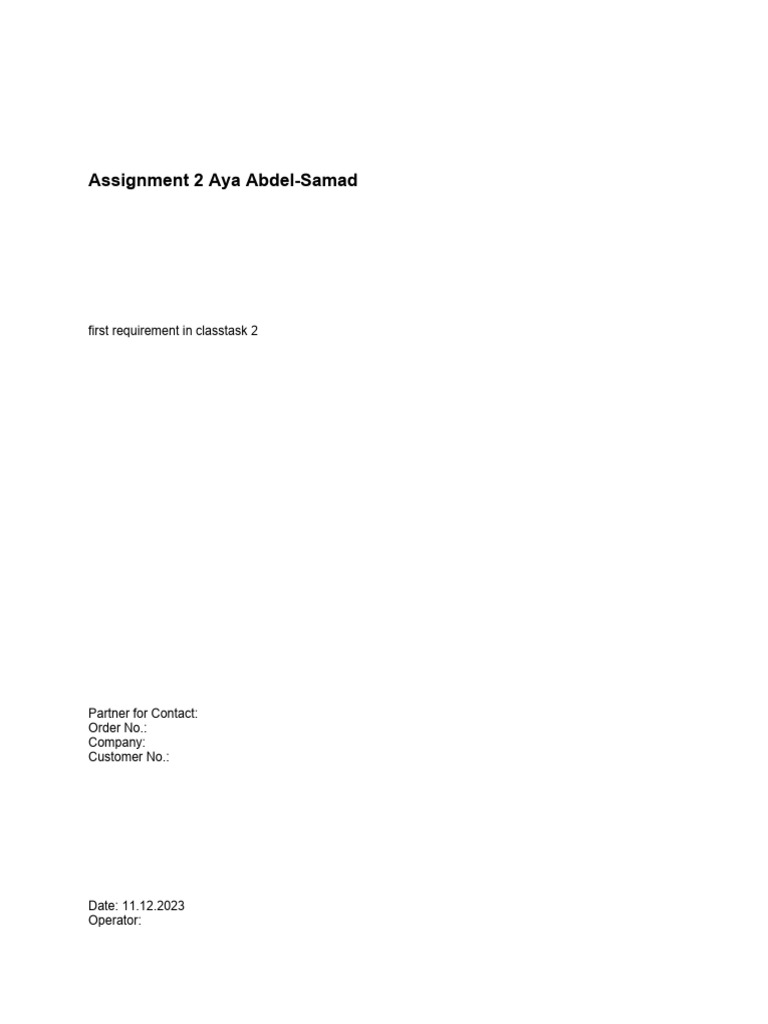

Assignment 2 Aya Abdel-Samad

first requirement in classtask 2

Partner for Contact:

Order No.:
Company:
Customer No.:

Date: 11.12.2023
Operator:
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Thorn 96 550 457 PLANOR C 2X28W T16 HFI L840 [STD] / Luminaire Data Sheet

Luminous emittance 1:

Luminaire classification according to CIE: 96 Luminous emittance 1:

CIE flux code: 59 90 97 96 63
Planor surface mounted luminaire for 2 x 28W T16 lamps. Electronic, DALI /
DSI digital dimmable control gear. Spills light onto the ceiling for a floating
effect. Frame in aluminium finished silver-grey, other colours to order. Reflector
in satinbrite Aluminium. Refractors and controllers in clear acrylic and top cover
in opal polycarbonate. For mounting fix brackets to ceiling and clip the
luminaire into the brackets. Electrical connection via 5 x 2,5mm². Complete with
840 lamp(s).

Dimensions: 1200 x 255 x 75 mm

Total power: 60.5 W
Weight: 5.8 kg

Page 2
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Room 1 / Summary

Height of Room: 4.500 m, Mounting Height: 4.500 m, Light loss factor: 0.65 Values in Lux, Scale 1:115

Surface r [%] Eav [lx] Emin [lx] Emax [lx] u0

Workplane / 214 136 276 0.636
Floor 20 197 133 245 0.672
Ceiling 80 66 50 386 0.764
Walls (4) 60 114 53 206 /

Workplane:
Height: 0.750 m
Grid: 32 x 64 Points
Boundary Zone: 0.000 m
Illuminance Quotient (according to LG7): Walls / Working Plane: 0.546, Ceiling / Working Plane: 0.307.

Luminaire Parts List

No. Pieces Designation (Correction Factor) F (Luminaire) [lm] F (Lamps) [lm] P [W]
Thorn 96 550 457 PLANOR C 2X28W T16 HFI
1 12 3276 5200 61.0
L840 [STD] (Type 1)* (1.000)
*Modified Technical Specifications Total: 39312 Total: 62400 732.0

Specific connected load: 7.63 W/m² = 3.56 W/m²/100 lx (Ground area: 96.00 m²)

Page 3
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Room 1 / Input Protocol

Height of working plane: 0.750 m

Boundary Zone: 0.000 m

Light loss factor: 0.65

Height of Room: 4.500 m

Ground area: 96.00 m²

Surface Rho [%] from ( [m] | [m] ) towards ( [m] | [m] ) Length [m]
Floor 20 / / /
Ceiling 80 / / /
Wall 1 60 ( 0.000 | 0.000 ) ( 16.000 | 0.000 ) 16.000
Wall 2 60 ( 16.000 | 0.000 ) ( 16.000 | 6.000 ) 6.000
Wall 3 60 ( 16.000 | 6.000 ) ( 0.000 | 6.000 ) 16.000
Wall 4 60 ( 0.000 | 6.000 ) ( 0.000 | 0.000 ) 6.000

Page 4
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Room 1 / Luminaires (coordinates list)

Thorn 96 550 457 PLANOR C 2X28W T16 HFI L840 [STD] (Type 1)
3276 lm, 61.0 W, 1 x 1 x User defined (Correction Factor 1.000).

No. Position [m] Rotation [°]

X Y Z X Y Z
1 1.330 1.500 4.500 0.0 0.0 90.0
2 1.330 4.500 4.500 0.0 0.0 90.0
3 4.000 1.500 4.500 0.0 0.0 90.0
4 4.000 4.500 4.500 0.0 0.0 90.0
5 6.670 1.500 4.500 0.0 0.0 90.0
6 6.670 4.500 4.500 0.0 0.0 90.0
7 9.340 1.500 4.500 0.0 0.0 90.0
8 9.340 4.500 4.500 0.0 0.0 90.0
9 12.010 1.500 4.500 0.0 0.0 90.0
10 12.010 4.500 4.500 0.0 0.0 90.0
11 14.680 1.500 4.500 0.0 0.0 90.0
12 14.680 4.500 4.500 0.0 0.0 90.0

Page 5
Assignment 2 Aya Abdel-Samad

Lightning design using Dialux 4.10 light

Partner for Contact:

Order No.:
Company:
Customer No.:

Date: 11.12.2023
Operator:
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Thorn 96 550 457 PLANOR C 2X28W T16 HFI L840 [STD] / Luminaire Data Sheet

Luminous emittance 1:

Luminaire classification according to CIE: 96 Luminous emittance 1:

CIE flux code: 59 90 97 96 63
Planor surface mounted luminaire for 2 x 28W T16 lamps. Electronic, DALI /
DSI digital dimmable control gear. Spills light onto the ceiling for a floating
effect. Frame in aluminium finished silver-grey, other colours to order. Reflector
in satinbrite Aluminium. Refractors and controllers in clear acrylic and top cover
in opal polycarbonate. For mounting fix brackets to ceiling and clip the
luminaire into the brackets. Electrical connection via 5 x 2,5mm². Complete with
840 lamp(s).

Dimensions: 1200 x 255 x 75 mm

Total power: 60.5 W
Weight: 5.8 kg

Page 2
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Room 1 / Summary

Height of Room: 4.500 m, Mounting Height: 4.500 m, Light loss factor: 0.65 Values in Lux, Scale 1:115

Surface r [%] Eav [lx] Emin [lx] Emax [lx] u0

Workplane / 844 536 1036 0.635
Floor 20 778 529 930 0.681
Ceiling 80 273 201 630 0.738
Walls (4) 60 466 281 1132 /

Workplane:
Height: 0.750 m
Grid: 32 x 64 Points
Boundary Zone: 0.000 m
Illuminance Quotient (according to LG7): Walls / Working Plane: 0.569, Ceiling / Working Plane: 0.323.

Luminaire Parts List

No. Pieces Designation (Correction Factor) F (Luminaire) [lm] F (Lamps) [lm] P [W]
Thorn 96 550 457 PLANOR C 2X28W T16 HFI
1 48 3276 5200 61.0
L840 [STD] (Type 1)* (1.000)
*Modified Technical Specifications Total: 157248 Total: 249600 2928.0

Specific connected load: 30.50 W/m² = 3.61 W/m²/100 lx (Ground area: 96.00 m²)

Page 3
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Room 1 / Input Protocol

Height of working plane: 0.750 m

Boundary Zone: 0.000 m

Light loss factor: 0.65

Height of Room: 4.500 m

Ground area: 96.00 m²

Surface Rho [%] from ( [m] | [m] ) towards ( [m] | [m] ) Length [m]
Floor 20 / / /
Ceiling 80 / / /
Wall 1 60 ( 0.000 | 0.000 ) ( 16.000 | 0.000 ) 16.000
Wall 2 60 ( 16.000 | 0.000 ) ( 16.000 | 6.000 ) 6.000
Wall 3 60 ( 16.000 | 6.000 ) ( 0.000 | 6.000 ) 16.000
Wall 4 60 ( 0.000 | 6.000 ) ( 0.000 | 0.000 ) 6.000

Page 4
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail
Room 1 / Luminaires (coordinates list)

Thorn 96 550 457 PLANOR C 2X28W T16 HFI L840 [STD] (Type 1)
3276 lm, 61.0 W, 1 x 1 x User defined (Correction Factor 1.000).

No. Position [m] Rotation [°]

X Y Z X Y Z
1 1.330 0.380 4.500 0.0 0.0 90.0
2 1.330 1.130 4.500 0.0 0.0 90.0
3 1.330 1.880 4.500 0.0 0.0 90.0
4 1.330 2.630 4.500 0.0 0.0 90.0
5 1.330 3.380 4.500 0.0 0.0 90.0
6 1.330 4.130 4.500 0.0 0.0 90.0
7 1.330 4.880 4.500 0.0 0.0 90.0
8 1.330 5.630 4.500 0.0 0.0 90.0
9 4.000 0.380 4.500 0.0 0.0 90.0
10 4.000 1.130 4.500 0.0 0.0 90.0
11 4.000 1.880 4.500 0.0 0.0 90.0
12 4.000 2.630 4.500 0.0 0.0 90.0
13 4.000 3.380 4.500 0.0 0.0 90.0
14 4.000 4.130 4.500 0.0 0.0 90.0
15 4.000 4.880 4.500 0.0 0.0 90.0
16 4.000 5.630 4.500 0.0 0.0 90.0
17 6.670 0.380 4.500 0.0 0.0 90.0
18 6.670 1.130 4.500 0.0 0.0 90.0
19 6.670 1.880 4.500 0.0 0.0 90.0
20 6.670 2.630 4.500 0.0 0.0 90.0
21 6.670 3.380 4.500 0.0 0.0 90.0
22 6.670 4.130 4.500 0.0 0.0 90.0
23 6.670 4.880 4.500 0.0 0.0 90.0
24 6.670 5.630 4.500 0.0 0.0 90.0
25 9.340 0.380 4.500 0.0 0.0 90.0
26 9.340 1.130 4.500 0.0 0.0 90.0
27 9.340 1.880 4.500 0.0 0.0 90.0
28 9.340 2.630 4.500 0.0 0.0 90.0
Assignment 2 Aya Abdel-Samad
11.12.2023

Operator
Telephone
Fax
e-Mail

Room 1 / Luminaires (coordinates list)

No. Position [m] Rotation [°]

X Y Z X Y Z
29 9.340 3.380 4.500 0.0 0.0 90.0
30 9.340 4.130 4.500 0.0 0.0 90.0
31 9.340 4.880 4.500 0.0 0.0 90.0
32 9.340 5.630 4.500 0.0 0.0 90.0
33 12.010 0.380 4.500 0.0 0.0 90.0
34 12.010 1.130 4.500 0.0 0.0 90.0
35 12.010 1.880 4.500 0.0 0.0 90.0
36 12.010 2.630 4.500 0.0 0.0 90.0
37 12.010 3.380 4.500 0.0 0.0 90.0
38 12.010 4.130 4.500 0.0 0.0 90.0
39 12.010 4.880 4.500 0.0 0.0 90.0
40 12.010 5.630 4.500 0.0 0.0 90.0
41 14.680 0.380 4.500 0.0 0.0 90.0
42 14.680 1.130 4.500 0.0 0.0 90.0
43 14.680 1.880 4.500 0.0 0.0 90.0
44 14.680 2.630 4.500 0.0 0.0 90.0
45 14.680 3.380 4.500 0.0 0.0 90.0
46 14.680 4.130 4.500 0.0 0.0 90.0
47 14.680 4.880 4.500 0.0 0.0 90.0
48 14.680 5.630 4.500 0.0 0.0 90.0

Page 6
