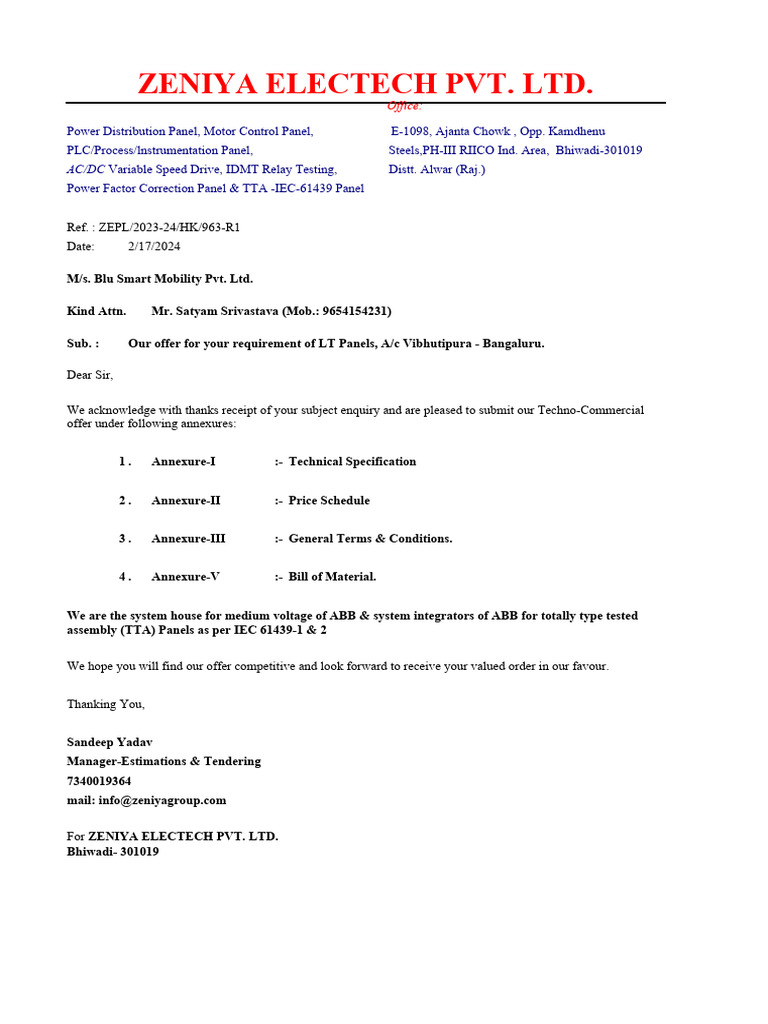

ZENIYA ELECTECH PVT. LTD.
Office:
Power Distribution Panel, Motor Control Panel, E-1098, Ajanta Chowk , Opp. Kamdhenu
PLC/Process/lnstrumentation Panel, Steels,PH-III RIICO Ind. Area, Bhiwadi-301019
AC/DC Variable Speed Drive, IDMT Relay Testing, Distt. Alwar (Raj.)
Power Factor Correction Panel & TTA -IEC-61439 Panel
Ref. : ZEPL/2023-24/HK/963-R1
Date: 2/17/2024
M/s. Blu Smart Mobility Pvt. Ltd.
Kind Attn. Mr. Satyam Srivastava (Mob.: 9654154231)
Sub. : Our offer for your requirement of LT Panels, A/c Vibhutipura - Bangaluru.
Dear Sir,
We acknowledge with thanks receipt of your subject enquiry and are pleased to submit our Techno-Commercial
offer under following annexures:
1. Annexure-I :- Technical Specification
2. Annexure-II :- Price Schedule
3. Annexure-III :- General Terms & Conditions.
4. Annexure-V :- Bill of Material.
We are the system house for medium voltage of ABB & system integrators of ABB for totally type tested
assembly (TTA) Panels as per IEC 61439-1 & 2
We hope you will find our offer competitive and look forward to receive your valued order in our favour.
Thanking You,
Sandeep Yadav
Manager-Estimations & Tendering
7340019364
mail: info@zeniyagroup.com
For ZENIYA ELECTECH PVT. LTD.
Bhiwadi- 301019
ANNEXURE - I
TECHNICAL SPECIFICATIONS OF LT PANEL
ZENIYA Make Electrical Panels housed in 2.0/1.6mm standard sheet steel enclosure, fixed type, Single front
compartmentalized, totally enclosed, free standing, Floor/Wall mounted type, dust and vermin Proof, duly wired up
and ready for installation at site. The Bus bars will be Electrolytic grade Aluminium duly sleeved with heat shrinkable
PVC sleeves. The technical particulars will be as under: -
1. Our prices are as per the BOQ enclosed. Any change in specifications, rating and feeder quantity will attract price
revision (if any) .
2. Enclosure sheet thickness will be 1.6mm for non-load bearing members and 2.0mm for all load bearing members,
unless specified otherwise.
3. Panels will be painted with Powder coating – Siemens Grey Shade RAL – 7035.
4. Cable lugs/glands will not be in our scope of supply.
5. Equipment will be offered for following routine test only.
* Check of Bill of Materials as per approved drawing.
* Visual and dimensional Check.
* Functional Check.
* HV/Megger test as per relevant IS.
6. Commissioning
Scope is for Design, Engineering, Manufacturing, Supply, Testing and supervision of Commissioning. Erection is not
included in this offer. However, a separate offer can be submitted .
7. Our panel / bus duct has been successfully tested at CPRI for short circuit strength of 70kA, 1sec. (We are CPRI
approved panel manufacturer) .
8. We have fully automatic Nine tank process for metal treatment which consists of Solvent/alkaline Degreasing,
Rinsing, De-rusting, Phosphating and Passivation. The treatment is followed by Powder-coated paint of approved shade .
For ZENIYA ELECTECH PVT. LTD.
Bhiwadi- 301019
ANNEXURE - II
PRICE SCHEDULE FOR SUPPLY OF FOLLOWING PANELS
M/s. Blu Smart Mobility Pvt. Ltd.
Unit Quoted Total Quoted Price
S. No Description Qty Unit Price (Ex-works)
Main Distribution Panel (Outdoor Type-
1 1 No. 1,016,600 1,016,600
IP-55)
Fast Charging +Slow Charger Panel-1
2 1 No. 304,600 304,600
(Outdoor Type-IP-55)
Fast Charging +Slow Charger Panel-2
3 2 Nos. 359,000 718,000
(Outdoor Type-IP-55)
Fast Charging +Slow Charger Panel-4
4 1 No. 176,500 176,500
(Outdoor Type-IP-55)
5 MCCB Box - 100A (Outdoor Type-IP-55) 0 No. 22,500 -
6 MCCB Box - 160A (Outdoor Type-IP-55) 11 Nos. 28,000 308,000
- -
TOTAL (Basic Price) 16 2,523,700
HSN CODE FOR ELECTRICAL LT PANELS : 85371000
HSN CODE FOR ELECTRICAL HT PANELS : 85372000
Deviation/Clarification
NOTE:-
1.0 Our offer shall be strictly based on attached BOM.
2.0 We have considered Brass Double Compression Cable Gland Without T
3.0 We have consider all MCB breacking capacity 10KA instead of 16ka
4.0 We have consider 8Nos 40A DP MCB in outoging feeder in Fast Char
For ZENIYA ELECTECH PVT. LTD.
Bhiwadi- 301019
731293024.xlsx Page 3 of 8
ANNEXURE - III
GENERAL TERMS & CONDITIONS
PRICES : EX-WORKS (Bhiwadi)
PACKING & FORWARDING : @ 3% (for wooden packing) – Extra or
NIL for Stretch Polethene & Paper Packing
GST : Extra as actual@18%
FREIGHT : Extra at Actuals
TRANSIT INSURANCE Extra at Actuals
PAYMENT : 40% advance with PO/LOI, 60% against Proforma Invoice.
DELIVERY : With in 6-8weeks after approval of drawings.
VALIDITY : 30 Days from the date of offer.
WARRANTY : Against manufacturing defects for a period of 12months from the
date of dispatch/commissioning.
For ZENIYA ELECTECH PVT. LTD.
Bhiwadi- 301019
ANNEXURE - IV
Projects:-
1 Main Distribution Panel (Outdoor Type-IP-55)
Item Item Description Rating Make Qty.
I/C:-1600A 4P EDO ACB FEEDER
FP EDO ACB 50KA Microprocessor based with O/L S/C L&T(U-Power)-
ACB 1600A 1 No.
& E/F Protection Release with +Trip Micro Switch 1.0G
TNC Breaker Control Switch 16A L&T-Salzer 1 No.
MFM Digital Multifunction Meter Cl-0.5 with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA 1600A AE/Kappa 3 Nos.
MCT Metering CT -/5A CL-0.5,15VA For APFCR 1600A AE/Kappa 3 Nos.
NCT Neutral CT -/5A CL-5P10,15VA 300A AE/Kappa 1 No.
PCT Protection CT -/5A CL-5P10,15VA For RPR 1600A AE/Kappa 1 No.
I/L Indicating light LED type (RYB) 220V AC L&T-Esbee 3 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
AC Auxiliary Contactor 2NO+2NC 220V AC L&T 1 No.
EPB Emergency Stop Push Button 220V AC L&T-Esbee 1 No.
A/M Auto/Manual Selector Switch 6A L&T-Salzer 1 No.
AC Auxiliary Contactor 2NO+2NC 220V AC L&T 1 No.
T On Delay Timer Gic 1 No.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 6 Nos.
MCB DP MCB 10KA C-Curve 6A L&T 1 No.
MCB DP MCB 10kA C-Curve 16A L&T 1 No.
P&S DP+E Industrial Type Plugs & Socket Panel Mouted 16A Neptune 1 No.
RLY Reverse Power Relay MRP11 L&T 1 No.
RLY Restricted Earth Fault Relay CTR-1A IRXm ABB 1 No.
MCT Protection CT -/1A CL-PS 1600A AE/Kappa 4 Nos.
Under/Over Voltage,Negative Phase Sequence & Minilec/
RLY 1 No.
Reverse Power Relay Procom
RLY Master Trip Relay Aux Supply PQ8NCH2J ABB 1 No.
FWF Exhaust Fan Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
SH Space Heater with Thermostat + Power Socket Reputed 1 No.
MCB DP MCB 10kA C-Curve 6A L&T 1 No.
SPD Voltage Surge Protection 1+2 Type 50KA L&T 1 No.
SF HRC Fuse Bases with Fuse Link 160A L&T 3 Nos.
Brass Double Compression Cable Gland For
GLAND 4Cx300Sqmm. Without Thimble Comet 5 Nos.
Micro PLC For ACB Trip and Reset
PLC Micro Programming Logic Controller With HMI Delta 1 No.
PS Power Supply 24V DC Reputed 1 No.
R Relay Board 8Channal 1C/O 24V DC 2 Nos.
PB Push Button Start/Stop 220V AC L&T-Esbee 2 Nos.
I/L Indicating light LED type 220V AC L&T-Esbee 2 Nos.
AC Auxiliary Contactor 2NO+2NC 24V DC L&T 6 Nos.
ANN Annunciator 6 Win. GIC 1 No.
HT Hooter Delcon 1 No.
MCB DP MCB 10kA C-Curve 6A L&T 4 Nos.
NL Neutral Link Reputed 2 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 6 Nos.
O/G:-100A FP MCCB Feeder
FP MCCB 25kA Thermal Magnetic based with O/L & S/C
MCCB Protection Release 100A L&T-DN0 1 No.
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB Alarm Contact +Shunt Release-FP 100A L&T-DN0 1 No.
EF Earth Fault Module For MCCB 100A L&T 1 No.
MFM Digital Multifunction Meter Cl-0.5 with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,10VA 100A AE/Kappa 3 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
O/G:-400A FP MCCB Feeder
FP MCCB 36kA Microprocessor Based with O/L ,
MCCB 400A L&T-DN3 1 No.
S/C & E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB Alarm Contact +Shunt Release-FP 400A L&T-DN3 1 No.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
O/G:-630A FP MCCB Feeder
FP MCCB 36kA Microprocessor Based with O/L ,
MCCB 630A L&T-DN3 1 No.
S/C & E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB Alarm Contact +Shunt Release-FP 630A L&T-DN3 1 No.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
O/G:-800A FP MCCB Feeder
FP MCCB 36kA Microprocessor Based with O/L ,
MCCB 800A L&T-DN4 2 Nos.
S/C & E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB Alarm Contact +Shunt Release-FP 800A L&T-DN4 2 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 6 Nos.
NL Neutral Link Reputed 2 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 2 Nos.
O/G:-800A TP MCCB Feeder For Capacitor Bank
TP MCCB 36kA Microprocessor Based with O/L ,
MCCB 800A L&T-DN4 1 No.
S/C & E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB Alarm Contact +Shunt Release-TP 800A L&T-DN4 1 No.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
731293024.xlsx Page 5 of 8
Brass Double Compression Cable Gland For 4Cx25Sqmm.
GLAND Without Thimble Comet 1 No.
Brass Double Compression Cable Gland For
GLAND 4Cx300Sqmm. Without Thimble Comet 8 Nos.
FWF Exhaust Fan Reputed 3 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
SH Space Heater with Thermostat + Power Socket Reputed 3 Nos.
MCB DP MCB 10kA C-Curve 6A L&T 3 Nos.
T Door limit switch with LED Light Reputed 3 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
Panel Dimension(2375HX2450WX1000D) With 300MM Stand
Electrolytic grade FP Aluminium Horizontal Bus Bar 1600A(2000Sq.mm) -Each Phase-
2x100x10mm,Neutral-2x100x10mm
2 Fast Charging +Slow Charger Panel-1 (Outdoor Type-IP-55)
Item Item Description Rating Make Qty.
I/C:-630A FP MCCB FEEDER
FP MCCB 50kA Microprocessor based with O/L, S/C &
MCCB 630A L&T -DN3 1 No.
E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB 630A L&T -DN3 1 No.
Alarm Contact +Shunt Release-FP
MFM Digital Multifunction Meter Cl-0.5 with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 630A AE/Kappa 3 Nos.
I/L Indicating light LED type (RYB) 220V AC L&T-Esbee 3 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
EPB Emergency Stop Push Button 220V AC L&T-Esbee 1 No.
AC Auxiliary Contactor 2NO+2NC 220V AC L&T 1 No.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 4 Nos.
MCB DP MCB 10KA C-Curve 6A L&T 1 No.
MCB DP MCB 10kA C-Curve 16A L&T 1 No.
P&S DP+E Industrial Type Plugs & Socket Panel Mouted 16A Neptune 1 No.
MFM Meter Feeder for Fast Charger
MFM Digital Multifunction Meter Cl-0.5s with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 630A AE/Kappa 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
MFM Meter Feeder for Slow Charger
MFM Digital Multifunction Meter Cl-0.5s with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 200A AE/Kappa 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
Brass Double Compression Cable Gland For
GLAND 4Cx300Sqmm. Without Thimble Comet 2 Nos.
O/G:FP MCB FEEDER
MCB FP MCB 10kA C-Curve 63A L&T 10 Nos.
Brass Double Compression Cable Gland For 4Cx16Sqmm.
GLAND Without Thimble Comet 10 Nos.
O/G: 160A FP MCCB FEEDER
FP MCCB 25kA Thermal Magnetic based with O/L & S/C
MCCB 160A L&T -DN1 4 Nos.
Protection Release
MCCB Spreader Link +Extended Rotary Handle-FP 160A L&T -DN1 4 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 12 Nos.
NL Neutral Link Reputed 4 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 4 Nos.
Brass Double Compression Cable Gland For 4Cx70Sqmm.
GLAND Without Thimble Comet 4 Nos.
FWF Exhaust Fan Reputed 2 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 2 Nos.
SH Space Heater with Thermostat + Power Socket Reputed 2 Nos.
MCB DP MCB 10kA C-Curve 6A L&T 2 Nos.
T Door limit switch with LED Light Reputed 2 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 2 Nos.
Panel Dimension(2075HX2000WX600D) With 500MM Stand
Electrolytic grade FP Aluminium Horizontal Bus Bar 630A(800Sq.mm) -Each Phase-
1x80x10mm,Neutral-1x80x10mm
Electrolytic grade FP Aluminium Vertical Bus Bar For Fast Charger 600A(800Sq.mm) -Each
Phase-1x80x10mm,Neutral-1x80x10mm
Electrolytic grade FP Aluminium Vertical Bus Bar For Slow Charger 200A(250Sq.mm) -Each
Phase-1x25x10mm,Neutral-1x25x10mm
3 Fast Charging +Slow Charger Panel-2 (Outdoor Type-IP-55)
Item Item Description Rating Make Qty.
I/C:-800A FP MCCB FEEDER
FP MCCB 50kA Microprocessor based with O/L, S/C &
MCCB 800A L&T -DN4 1 No.
E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB 800A L&T -DN4 1 No.
Alarm Contact +Shunt Release-FP
MFM Digital Multifunction Meter Cl-0.5 with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 800A AE/Kappa 3 Nos.
I/L Indicating light LED type (RYB) 220V AC L&T-Esbee 3 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
AC Auxiliary Contactor 2NO+2NC 220V AC L&T 1 No.
EPB Emergency Stop Push Button 220V AC L&T-Esbee 1 No.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 6 Nos.
MCB DP MCB 10KA C-Curve 6A L&T 1 No.
MCB DP MCB 10kA C-Curve 16A L&T 1 No.
P&S DP+E Industrial Type Plugs & Socket Panel Mouted 16A Neptune 1 No.
MFM Meter Feeder for Fast Charger
731293024.xlsx Page 6 of 8
MFM Digital Multifunction Meter Cl-0.5s with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 630A AE/Kappa 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
MFM Meter Feeder for Slow Charger
MFM Digital Multifunction Meter Cl-0.5s with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 300A AE/Kappa 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
Brass Double Compression Cable Gland For
GLAND 4Cx300Sqmm. Without Thimble Comet 2 Nos.
O/G:FP MCB FEEDER
MCB FP MCB 10kA C-Curve 63A L&T 14 Nos.
Brass Double Compression Cable Gland For 4Cx16Sqmm.
GLAND Without Thimble Comet 14 Nos.
O/G: 160A FP MCCB FEEDER
FP MCCB 25kA Thermal Magnetic based with O/L & S/C
MCCB 160A L&T -DN1 5 Nos.
Protection Release
MCCB Spreader Link +Extended Rotary Handle-FP 160A L&T -DN1 5 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 15 Nos.
NL Neutral Link Reputed 5 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 5 Nos.
Brass Double Compression Cable Gland For 4Cx70Sqmm.
GLAND Without Thimble Comet 5 Nos.
FWF Exhaust Fan Reputed 2 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 2 Nos.
SH Space Heater with Thermostat + Power Socket Reputed 2 Nos.
MCB DP MCB 10kA C-Curve 6A L&T 2 Nos.
T Door limit switch with LED Light Reputed 2 Nos.
CMCB Control SP MCB 10KA C-Curve 6A L&T 2 Nos.
Panel Dimension(2075HX2000WX600D) With 500MM Stand
Electrolytic grade FP Aluminium Horizontal Bus Bar 800A(1000Sq.mm) -Each Phase-
1x50x10mm,Neutral-1x50x10mm
Electrolytic grade FP Aluminium Vertical Bus Bar For Fast Charger 630A(800Sq.mm) -Each
Phase-1x80x10mm,Neutral-1x80x10mm
Electrolytic grade FP Aluminium Vertical Bus Bar For Slow Charger 300A(400Sq.mm) -Each
Phase-1x40x10mm,Neutral-1x40x10mm
4 Fast Charging +Slow Charger Panel-4 (Outdoor Type-IP-55)
Item Item Description Rating Make Qty.
I/C:-320A FP MCCB FEEDER
FP MCCB 50kA Microprocessor based with O/L, S/C &
MCCB 320A L&T -DN3 1 No.
E/F Protection Release
Spreader Link +Extended Rotary Handle +Aux. & Trip
MCCB 320A L&T -DN3 1 No.
Alarm Contact +Shunt Release-FP
MFM Digital Multifunction Meter Cl-0.5 with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 320A AE/Kappa 3 Nos.
I/L Indicating light LED type (RYB) 220V AC L&T-Esbee 3 Nos.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
AC Auxiliary Contactor 2NO+2NC 220V AC L&T 1 No.
EPB Emergency Stop Push Button 220V AC L&T-Esbee 1 No.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 6 Nos.
MCB DP MCB 10KA C-Curve 6A L&T 1 No.
MCB DP MCB 10kA C-Curve 16A L&T 1 No.
P&S DP+E Industrial Type Plugs & Socket Panel Mouted 16A Neptune 1 No.
MFM Meter Feeder for Fast Charger
MFM Digital Multifunction Meter Cl-0.5s with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 150A AE/Kappa 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
MFM Meter Feeder for Slow Charger
MFM Digital Multifunction Meter Cl-0.5s with RS 485 Port EM6400NG Conzerv 1 No.
MCT Metering CT -/5A CL-0.5,15VA For Metering 200A AE/Kappa 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
731293024.xlsx Page 7 of 8
Brass Double Compression Cable Gland For
GLAND 4Cx185Sqmm. Without Thimble Comet 1 No.
O/G:DP MCB FEEDER
MCB DP MCB 10kA C-Curve 40A L&T 8 Nos.
Brass Double Compression Cable Gland For 4Cx10Sqmm.
GLAND Without Thimble Comet 8 Nos.
O/G:FP MCB FEEDER
MCB FP MCB 10kA C-Curve 63A L&T 3 Nos.
Brass Double Compression Cable Gland For 4Cx16Sqmm.
GLAND Without Thimble Comet 3 Nos.
O/G: 100A FP MCCB FEEDER
FP MCCB 25kA Thermal Magnetic based with O/L & S/C
MCCB 100A L&T -DN0 1 No.
Protection Release
MCCB Spreader Link +Extended Rotary Handle-FP 100A L&T -DN0 1 No.
I/L Indicating light LED type (ON/OFF/TRIP) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
Brass Double Compression Cable Gland For 4Cx35Sqmm.
GLAND Without Thimble Comet 1 No.
FWF Exhaust Fan Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
SH Space Heater with Thermostat + Power Socket Reputed 1 No.
MCB DP MCB 10kA C-Curve 6A L&T 1 No.
T Door limit switch with LED Light Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 1 No.
Panel Dimension(2075HX1250WX600D) With 500MM Stand
Electrolytic grade FP Aluminium Horizontal Bus Bar 320A(400Sq.mm) -Each Phase-
1x40x10mm,Neutral-1x40x10mm
Electrolytic grade FP Aluminium Vertical Bus Bar For Fast Charger 150A(200Sq.mm) -Each
Phase-1x20x10mm,Neutral-1x20x10mm
Electrolytic grade FP Aluminium Vertical Bus Bar For Slow Charger 200A(250Sq.mm) -Each
Phase-1x25x10mm,Neutral-1x25x10mm
5 MCCB Box - 100A (Outdoor Type-IP-55)
Item Item Description Rating Make Qty.
I/C cum O/G:-100A FP MCCB FEEDER
FP MCCB 25kA Thermal Magnetic based with O/L & S/C
MCCB 100A L&T -DN0 1 No.
Protection Release
MCCB Spreader Link +Extended Rotary Handle-FP 100A L&T -DN0 1 No.
I/L Indicating light LED type (RYB) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
Brass Double Compression Cable Gland For 4Cx25Sqmm.
GLAND Without Thimble Comet 1 No.
Brass Double Compression Cable Gland For 4Cx35Sqmm.
GLAND Without Thimble Comet 1 No.
Panel Dimension(900HX850WX350D) With 300MM Stand
6 MCCB Box - 160A (Outdoor Type-IP-55)
Item Item Description Rating Make Qty.
I/C cum O/G:-160A FP MCCB FEEDER
FP MCCB 25kA Thermal Magnetic based with O/L & S/C
MCCB 160A L&T -DN1 1 No.
Protection Release
MCCB Spreader Link +Extended Rotary Handle-FP 160A L&T -DN1 1 No.
I/L Indicating light LED type (RYB) 220V AC L&T-Esbee 3 Nos.
NL Neutral Link Reputed 1 No.
CMCB Control SP MCB 10KA C-Curve 6A L&T 3 Nos.
Brass Double Compression Cable Gland For 4Cx35Sqmm.
GLAND Without Thimble Comet 1 No.
Brass Double Compression Cable Gland For 4Cx70Sqmm.
GLAND Without Thimble Comet 1 No.
Panel Dimension(900HX850WX350D) With 300MM Stand
731293024.xlsx Page 8 of 8
