Atlas Copco Drilling Solutions LLC

Garland, TX USA Document

Automatic level control
Prepared Document no Rev
Ted Aikman A
Document responsible/Approved Date Page
Ted Aikman 06 Nov. 2009 1 (5)

Project

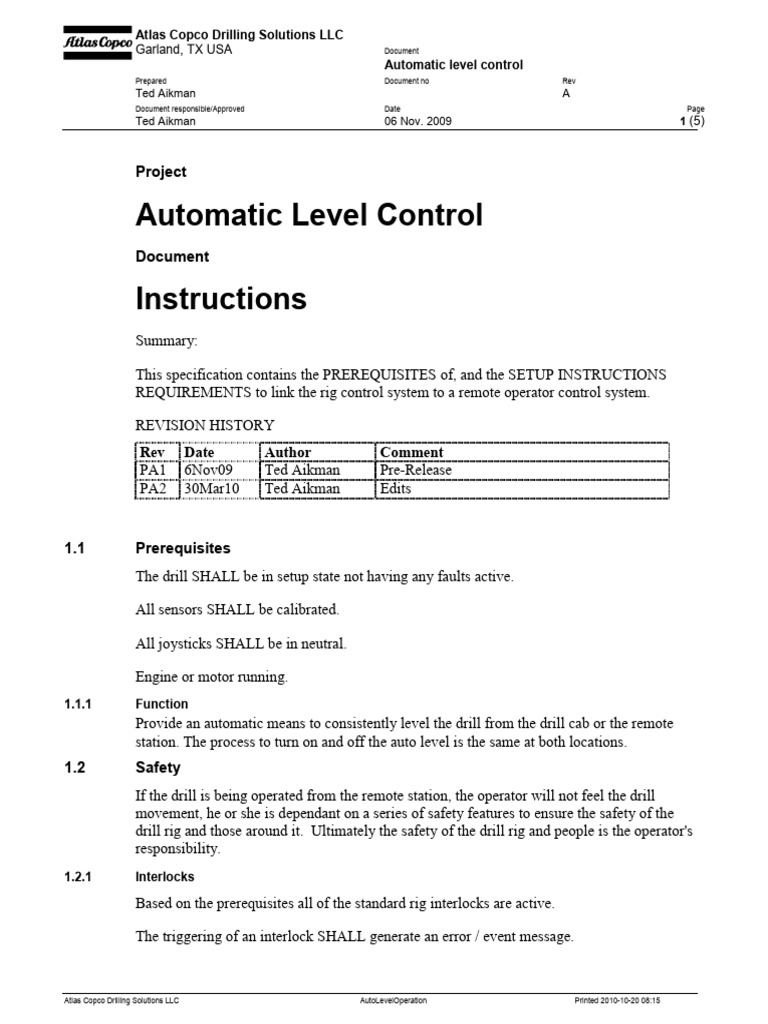

Automatic Level Control

Document

Instructions
Summary:

This specification contains the PREREQUISITES of, and the SETUP INSTRUCTIONS
REQUIREMENTS to link the rig control system to a remote operator control system.

REVISION HISTORY
Rev Date Author Comment
PA1 6Nov09 Ted Aikman Pre-Release
PA2 30Mar10 Ted Aikman Edits

1.1 Prerequisites
The drill SHALL be in setup state not having any faults active.

All sensors SHALL be calibrated.

All joysticks SHALL be in neutral.

Engine or motor running.

1.1.1 Function
Provide an automatic means to consistently level the drill from the drill cab or the remote
station. The process to turn on and off the auto level is the same at both locations.
1.2 Safety
If the drill is being operated from the remote station, the operator will not feel the drill
movement, he or she is dependant on a series of safety features to ensure the safety of the
drill rig and those around it. Ultimately the safety of the drill rig and people is the operator's
responsibility.
1.2.1 Interlocks

Based on the prerequisites all of the standard rig interlocks are active.

The triggering of an interlock SHALL generate an error / event message.

Atlas Copco Drilling Solutions LLC AutoLevelOperation Printed 2010-10-20 08:15

 Atlas Copco Drilling Solutions LLC
Garland, TX USA Document
Automatic level control
Prepared Document no Rev
Ted Aikman A
Document responsible/Approved Date Page
Ted Aikman 06 Nov. 2009 2 (5)

The drill has a tilt switch located on or near the tower support. The tilt switch output signal
under normal drill level conditions is on / active, Rig unstable = 1.

When the tilt switch pitch or roll angle is

greater than 6 degree for greater than 1-second, the output will turn off = 0. This output
signal controls a relay and is an input to the RCS control system, D511-X6b = 1. The relay
has contacts in series with all of the jack valve coil negative wires. When the output = 0, the
relay will de-energize and open the negative circuit for the valve coils, this will turn off or
stop current to all the jack coils, stopping all jack operation. Also, the computer will
activate a fault indicating the rig angle has exceeded set points. There is a bypass button
located on the tilt switch box, when pressed and held, will allow jack operation from
operator panel.

Tilt switch bypass button, push

and hold to allow level functions
when switch output = 0.

Atlas Copco Drilling Solutions LLC AutoLevelOperation Printed 2010-10-20 08:15

 Atlas Copco Drilling Solutions LLC
Garland, TX USA Document
Automatic level control
Prepared Document no Rev
Ted Aikman A
Document responsible/Approved Date Page
Ted Aikman 06 Nov. 2009 3 (5)

1.3 Auto level operation

• Operational state shall be "setup".

• The console representations are of a remote controlled rig, panel layout is the same
as standard cab controlled rig.

• To level the drill, raise rig / extend jack cylinders, press and hold the auto button on
the right operator panel, then while keeping the jack handle in center position, press
the rocker in up direction. Once auto level is active there will be an icon in the
bottom tray of the display. When this icon is seen, release both the rocker and auto
button, auto level is active. To stop operation, simply press rocker up or down, jacks
will stop and icon will disappear.

• To de-level the drill, lower rig / retract jack cylinders, press and hold the auto button
on the right operator panel, then while keeping the jack handle in center position,
press the rocker in down direction. Once auto level is active there will be an icon in
the bottom tray of the display. Release both the rocker and button, auto level is
active. To stop operation, simply press rocker up or down, jacks will stop and icon
will disappear.

Indication
auto level
is active.

Atlas Copco Drilling Solutions LLC AutoLevelOperation Printed 2010-10-20 08:15

 Atlas Copco Drilling Solutions LLC
Garland, TX USA Document
Automatic level control
Prepared Document no Rev
Ted Aikman A
Document responsible/Approved Date Page
Ted Aikman 06 Nov. 2009 4 (5)

2nd press top 1st press right op

Left op panel, rocker for raise panel, auto
jack control rig and bottom function activation
handle for lower button

Atlas Copco Drilling Solutions LLC AutoLevelOperation Printed 2010-10-20 08:15

 Atlas Copco Drilling Solutions LLC
Garland, TX USA Document
Automatic level control
Prepared Document no Rev
Ted Aikman A
Document responsible/Approved Date Page
Ted Aikman 06 Nov. 2009 5 (5)

1.4 Auto level parameters

• The auto level parameters are located in GUI M3.3.3, the snap shot below is for
reference only, and values are not valid.

• There are two columns of set point values. Start from the left column, upper left, and
move down. Numbers 1, 2, 3 are values for the % of maximum output once system
has detected the jack is on the ground, this will allow for smoother levelling and
better accuracy. Number 4 is the maximum time allowed for a complete levelling
cycle, raise rig. Number 5 is the maximum time allowed for all jack on ground
inputs to be active = 1, icons = red. Number 6 is the maximum time allowed for
pitch angle to be close to zero. Number 7 is the maximum time allowed for roll
angle to be close to zero. Number 8 is the target accuracy in pitch direction.
Number 9 is the target accuracy in roll direction. Number 10 is the pitch angle when
the control system will not activate an auto level cycle. Number 11 is the roll angle
when the control system will not activate an auto level cycle. Number 12 is the pitch
angle limit when the control system will not allow auto levelling. Number 13 is the
pitch angle when the control system will set output to value set in Align parameters
#16, 17, and 18. Number 14 is the roll angle when the control system will set output
to value set in Align parameters #16, 17, and 18. Number 15 is the maximum time
allowed for deleveling, lower rig, all jacks retracted inputs = 1, icons = green.
Numbers 16, 17, and 18 are values for the % of maximum output once system has
detected the jack is on the ground, these setting are used is the align parameters are
active.

1 10
2 11
3 12
4 13
5 14
6 15
7 16
8 17
9 18

Atlas Copco Drilling Solutions LLC AutoLevelOperation Printed 2010-10-20 08:15
