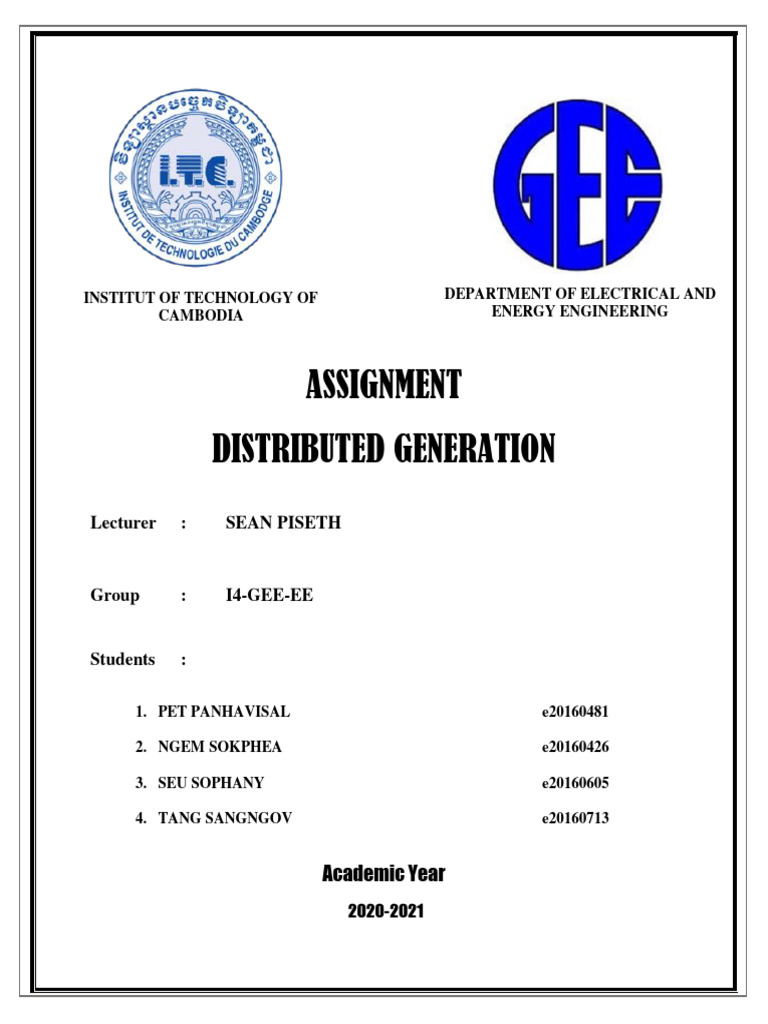

ASSIGNMENT
DISTRIBUTED GENERATION
Lecturer : SEAN PISETH
Group : I4-GEE-EE
Students :
Academic Year
2020-2021
Distribute Generation
I. Introduction ................................................................................................................................... 1
II. Overview .................................................................................................................................... 1
i. Wind Energy .............................................................................................................................. 1
1. History and Status .................................................................................................................. 1
2. Definition ................................................................................................................................ 2
3. Reason of using wind energy .................................................................................................. 3
4. Processing ............................................................................................................................... 3
5. Type of wind turbine .............................................................................................................. 6
6. Application ........................................................................................................................... 11
ii. Solar Power .............................................................................................................................. 12
1. History and Status ................................................................................................................ 12
2. Definition .............................................................................................................................. 12
3. Types of solar panels ............................................................................................................ 13
4. Why should we use solar power? ......................................................................................... 15
5. How does solar panel work? ................................................................................................ 16
6. Application ........................................................................................................................... 17
III. Conclusion ................................................................................................................................ 19
IV. Reference .................................................................................................................................. 19
Institute of Technology of Cambodia
I. Introduction
“Distributed Generation,” or DG, refers to the small scale generation of electric power by a
unit sited close to the load being served. DG technologies range in size from 5 kW to 30+ MW,
and include both fully commercial systems, such as reciprocating engines, and others that are
primarily in the laboratory, such as solar and wind power.
Distributed generation (DG) technologies can provide energy solutions to some customers that
are more cost-effective, more environmentally friendly, or provide higher power quality or
reliability than conventional solutions. Understanding the wide variety of DG options available in
These DG technologies include:
Wind turbine systems (Wind Power) - Wind turbines are currently available from many
manufacturers and range in size from less than 5 to over 1,000 kW. They provide a
relatively inexpensive (compared to other renewables) way to produce electricity, but as
they rely upon the variable and somewhat unpredictable wind, are unsuitable for
continuous power needs. Development efforts look to pair wind turbines with battery
storage systems that can provide power in those times when the turbine is not turning. Wind
turbines are being used primarily in remote locations not connected to the grid and by
energy companies to provide green power.
Photovoltaics (Solar Power) Commonly known as solar panels, photovoltaic (PV) panels
are widely available for both commercial and domestic use. Panels range from less than 5
kW and units can be combined to form a system of any size. They produce no emissions,
and require minimal maintenance. Photovoltaics are currently being used primarily in
remote locations without grid connections and also to generate green power.
II. Overview
i. Wind Energy
1. History and Status
Windmills have been used for many years to harness wind energy for mechanical work
such as pumping water. Before the Rural Electrification Act in the 1920’s provided funds to
extend electric power to outlying areas, farms were using windmills to produce electricity with
electric generators. In the US alone, eight million mechanical windmills have been installed. Wind
energy became a significant topic in the 1970s during the energy crisis in the U.S. and the resulting
1
Institute of Technology of Cambodia
search for potential renewable energy sources. Wind turbines, basically windmills dedicated to
producing electricity, were considered the most economically viable choice within the renewable
energy portfolio. During this time, subsidies in the form of tax credits and favorable Federal
regulations were available for wind turbine projects to encourage the penetration of wind turbines
and other renewable energy sources.
2. Definition
Wind is the use of wind turbines at homes, farms, businesses, public facilities and off-grid
locations Distributed wind energy systems offer reliable electricity generation in a wide variety of
global settings, including households, schools, farms and ranches, businesses, towns, communities
and remote locations, as depicted below? Projects range for example from a 1-kilowatt (kW) or
smaller off-grid wind turbine at a remote cabin or cell phone tower to a 10-kW wind turbine at a
home, small business, or small agricultural load to several multi-megawatt (MW) wind turbines at
a university campus, manufacturing facility or any large energy user.
2
Institute of Technology of Cambodia
3
Institute of Technology of Cambodia
4
Institute of Technology of Cambodia
Wind vans: Measures wind direction and communicate with the yaw drive to orient the
turbine properly to respect the wind.
Yaw driver: orients upwind turbine to keep them facing the wind when direction change.
Downwind turbine does not require a yaw drive because the wind manually blows the rotor
away from it.
Yaw motor: power the yaw driver.
Tower: made from tubular steel, concrete, or steel lattice. Supports the structure of the
turbine. Because wind speed increases in height, taller tower enable turbines to capture
more energy and generate more electricity.
Nacelle: sits top of tower and contain the gear box low and high speed shafts generator,
and brake. some nacelles are large enough for a helicopter to land on.
Note: For generator has two types important.
Synchronous generator (D)
Wound rotor synchronous generator (WRSG).
Permanent magnet synchronous.
generator (PMSG)Operate at constant rotational speed to create constant voltage
frequency.
Need magnetic fields,
Permanent magnet rotor for small machine.
Almost all wind turbine with synchronous generator creates magnetic field by DC current.
Require slip rings and brushes, adds to maintenance routine required by the machine.
Expensive
Asynchronous generator (A, B, C)
Squirrel cage induction
generator (SCIG)
Wound rotor induction
generator (WRIG)
Do not operate at fix speed
Magnetic field is induced
from AC voltage.
Betz’law
5
Institute of Technology of Cambodia
6
Institute of Technology of Cambodia
c. Downwind Turbine
Downwind machines have the rotor placed on the lee side of the tower. They have the
theoretical advantage that they may be built without a yaw mechanism, if the rotor and nacelle
have a suitable design that makes the nacelle follow the wind passively. For large wind turbines
this is a somewhat doubtful advantage, however, since you do need cables to lead the current away
from the generator. How do you untwist the cables, when the machine has been yawing passively
in the same direction for a long period of time, if you do not have a yaw mechanism? (Slip rings
or mechanical collectors are not a very good idea if you are working with 1000 ampere currents).
Rotor may be made more flexible.
Blades will bend at high wind speed
Built somewhat lighter than upwind.
Let the wind control left-right motion (the yaw).
Orient itself correctly to wind direction.
Wind shadowing effect by the tower, cause the blade to flex.
Increase noise and reduce power output.
7
Institute of Technology of Cambodia
Equipped with low-speed blades, lessening the risk to people and birds.
Function in extreme weather, with variable winds and even mountain conditions.
Disadvantage
Self-starting is impossible.
The pulsating torque generated by the rotor (mechanical problem).
dynamic stall of the blades as the angle of attack varies rapidly.
While this design is less likely to be damaged by gusty wind conditions, they are more
likely to stall out and stop spinning.
These types of turbines aren’t typically well suited for use in areas of high wind speeds.
Due to the vertically oriented blade design, the blades tend to flex and twist as the rotor
assembly spins faster and faster.
8
Institute of Technology of Cambodia
The centrifugal force generated by the spinning blades has been reported to cause stress
and fatigue on some blade designs that occasionally results in them breaking.
e. Wind Turbine Size Designations
The size of wind turbines in distributed applications can vary widely, including:
Smaller wind turbines commonly up to 50 kW fostering energy independence for
households, small farms and ranches, and other consumers and providing local grid
support, charging batteries and supplying power at cabins and other off-grid sites, and
Wind projects up to multiple MW reducing energy costs at or near agricultural,
commercial, industrial, and institutional sites and facilities.
Wind turbines up to 100 kW are eligible for the 30% federal Business Energy Investment
Tax Credit through 2016. For the purposes of certification, international wind turbine standards
apply to:
“Small” wind turbines having rotor swept areas up to 200 square meters (approximately 50
kW);
“Medium” wind turbines having rotor swept area between 201-1,000 square meters
(approximately 50 kW up to approximately 500 kW). And we can Find the average wind
speed and average power in the wind [W/m2]
The table below gives you a rough idea of the initial costs of small domestic wind turbine system
9
Institute of Technology of Cambodia
The best places for wind farms are in coastal areas, at the tops of rounded hills, open plains
and gaps in mountains - places where the wind is strong and reliable. Some are offshore. To be
worthwhile, you need an average wind speed of around 25 km/h. Wind turbines can be built on
land or offshore in large bodies of water like oceans and lakes too.
Advantages of Wind Energy
Clean & Environment friendly Fuel source: it doesn’t pollute air like power plant relying
on combustion of fossil fuel. It does not produce atmospheric emissions that cause acid
rain or greenhouse gases (carbon dioxide (CO2) or methane (CH4)).
Renewable & Sustainable: Winds are caused by heating of atmosphere by the sun, earth
surface irregularities and the rotation of the earth. For as long as the sun shines the wind
blows, the energy produced can be harnessed and It will never run out, unlike the Earth’s
fossil fuel reserves
Cost Effective: Wind energy is completely free. There’s no market for the demand and
supply of wind energy’s,
Industrial and Domestic Installation: Wind turbines can be built on existing farms or
ranches where most of the best wind sites are found
Disadvantages of Wind Energy
Fluctuation of Wind and Good wind sites: Wind energy has a drawback that it is not a
constant energy source. Although wind energy is sustainable and will never run out, the
wind isn’t always blowing
Noise and aesthetic pollution: Wind turbines generate noise and visual pollution. A single
wind turbine can be heard from hundreds of meters away
10
Institute of Technology of Cambodia
Not a profitable use of land: Alternative uses for the land might be more highly valued
than electricity generation.
Threat to wildlife: Birds have been killed by flying into spinning turbine blades. However,
it is believed that wind turbines pose less of a threat to wildlife than other manmade
structures such as cell phone masts and radio towers.
6. Application
Wind turbines are packaged systems that include the rotor, generator, turbine blades, and
drive or coupling device. As the wind blows through the blades, the air exerts aerodynamic forces
that cause the blades to turn the rotor. Most systems have a gearbox and generator in a single
unit behind the turbine blades. The output of the generator is processed by an inverter that
changes the electricity from DC to AC so that the electricity can be used. Most of the turbines in
service today have a horizontal axis configuration (as shown in the figure). Wind conditions limit
the amount of electricity that wind turbines are able to generate, and the minimum wind speed
required for electricity generation determines the turbine rating. Generally, the minimum wind
speed threshold is attained more frequently when the turbine is placed higher off of the ground.
Also important to consider when siting a wind turbine is the terrain. Coastlines and hills are
among the best places to locate a wind turbine, as these areas typically have more wind.
11
Institute of Technology of Cambodia
12
Institute of Technology of Cambodia
material today is silicon but other materials, such the ones listed below, are being tested and used
to increase the efficiency of converting sunlight to electricity.
Monocrystalline Silicon
Polycrystalline Silicon
Amorphous Silicon
Cadmium Telluride (CdTe)
Copper Indium Gallium Selenide (CIGS)
3. Types of solar panels
These solar panels vary in how they’re made, appearance, performance, costs, and the
installations each are best suited for.
Monocrystalline solar panels
These are made using cells sliced from a single cylindrical crystal of
silicon. This is the most efficient photovoltaic technology, typically
converting around 15% of the sun's energy into electricity. The
manufacturing process required to produce monocrystalline silicon is
complicated, resulting in slightly higher costs than other technologies.
Polycrystalline solar panels
Also sometimes known as multi-crystalline cells, polycrystalline silicon
cells are made from cells cut from an ingot of melted and recrystallized
silicon. The ingots are then saw-cut into very thin wafers and assembled
into complete cells. They are generally cheaper to produce than
monocrystalline cells, due to the simpler manufacturing process, but they
tend to be slightly less efficient, with average efficiencies of around 12%.
Thin-film solar panels
Unlike monocrystalline and polycrystalline solar panels, thin-film panels are made from a variety
of materials. The most prevalent type of thin-film solar panel is made from cadmium telluride
(CdTe). To make this type of thin-film panel, manufacturers place a layer of CdTe between
transparent conducting layers that help capture sunlight. This type of thin-film technology also has
a glass layer on the top for protection.
13
Institute of Technology of Cambodia
Thin-film solar panels can also be made from amorphous silicon (a-Si), Thin-film
14
Institute of Technology of Cambodia
15
Institute of Technology of Cambodia
applications. You might have heard of solar farms - panels used to harvest solar energy in large
numbers. This highlights perfectly how solar power makes use of underutilized land. For instance,
a 45 acre solar farm has been recently built in the UK, and it’s able to power 2,500 homes.
Solar Power Causes Less Electricity Loss
Electricity needs to be transported from big power plants to end-consumers via extensive
networks. Long distance transmissions equal power losses. Ever wondered what are solar panels
used for? They’re on your roof to get energy from the sun. Rooftop solar power is helpful in
increasing electricity efficiency, considering the short distance. Your energy becomes
domestic and as a result you’re in control of your own bills and energy usage. Furthermore, solar
power systems are durable, thus chances of service interruption are reduced.
Solar Power Improves Grid Security
When there are many of us switching to solar power, we are less likely to experience blackouts
or brownouts. Every household in the UK that have solar cells installed, functions as a small power
plant. This, in turn, provides us with a greater electricity grid security, especially in terms of natural
or human-caused disasters.
5. How does solar panel work?
The diagram shows how it’s all connected and helps you understand how solar panels work.
a. The sun gives off light, even on cloudy days.
b. PV cells on the panels turn the light into DC
electricity.
c. The current flows into an inverter, which
converts it to AC electricity ready to use.
d. The current is fed through a meter and then
into your home’s consumer unit.
e. Plug in and switch on. Your system will
automatically use the free electricity you’ve
generated, then switch back to the grid as
needed.
f. Any electricity you don’t use is exported to the grid for others to use.
16
Institute of Technology of Cambodia
6. Application
Photovoltaic (PV) solar panels are composed of discrete cells connected together that
convert light radiation into electricity. The PV cells produce direct-current (DC) electricity. Since
the electricity supplied by the electric utilities and used by most residential end-users is AC
electricity, the electricity generated by solar panels cannot be used until it is converted from DC
to AC using an inverter. In some instances, additional power conditioning equipment may be
required if the solar panel is connected to the electric grid.
Insolation is a term used to describe available solar energy that can be converted to electricity.
The factors that affect insolation are the intensity of the light and the operating temperature of the
PV cells. Light intensity is dependent on the local latitude and climate and generally increases as
the site gets closer to the equator. Another major factor is the position of the solar panel. In order
to maximize light intensity, the panel should be positioned to maximize the duration of
perpendicular incident light rays. Even with these adjustments, the maximum theoretical
efficiency that can be attained by a PV cell is 30 percent.
Since solar radiation is intermittent, solar power generation is combined either with storage
or other energy sources to provide continuous power, although for small distributed
producer/consumers, net metering makes this transparent to the consumer. On a larger scale, in
Germany, a combined power plant has been demonstrated, using a mix of wind, biomass, hydro-,
and solar power generation, resulting in 100% renewable energy.
In Buildings
17
Institute of Technology of Cambodia
18
Institute of Technology of Cambodia
Developing countries where many villages are often more than five kilometers away from
grid power have begun using photovoltaics. In remote locations in India a rural lighting program
has been providing solar powered LED lighting to replace lamps. The solar powered lamps were
sold at about the cost of a few months’ supply of kerosene Cuba is working to provide solar power
for areas that are off grid. These are areas where the social costs and benefits offer an excellent
case for going solar though the lack of profitability could relegate such endeavors to humanitarian
goals.
Agriculture and horticulture
Greenhouses like these in the Westland municipality of the Netherlands grow vegetables, fruits
and flowers. Agriculture and horticulture seek to optimize the capture of solar energy in order to
optimize the productivity of plants. Techniques such as timed planting cycles, tailored row
orientation, staggered heights between rows and the mixing of plant varieties can improve crop
yields. While sunlight is generally considered a plentiful resource, the exceptions highlight the
importance of solar energy to agriculture. During the short growing seasons of the Little Ice Age,
French and English farmers employed fruit walls to maximize the collection of solar energy. These
walls acted as thermal masses and accelerated ripening by keeping plants warm. Early fruit walls
were built perpendicular to the ground and facing south, but over time, sloping walls were
developed to make better use of sunlight
III. Conclusion
The distributed generation help us to reduce the cost of the transmission line and the
transmission losses .distributed generation playing important role in the field of the electricity
generation whereas Different issues related to power quality when DR is integrated with the
existing power system has been discussed in the report .It can be concluded from this discussion
that when interconnecting DR to the power system, these issues must be considered which could
affect power quality and safety. Penetration of DR can be successfully integrated with the power
system as long as the interconnection designs meet the basic requirements that consider not only
power.
IV. Reference
o Advanced Stationary, Reciprocating Natural Gas Engine Workshop, Department of Energy,
San Antonio, Texas. January 12-13, 1999.
o Renewable and Efficient Electric Power Systems. By Gilbert M. Masters in 2014
19
