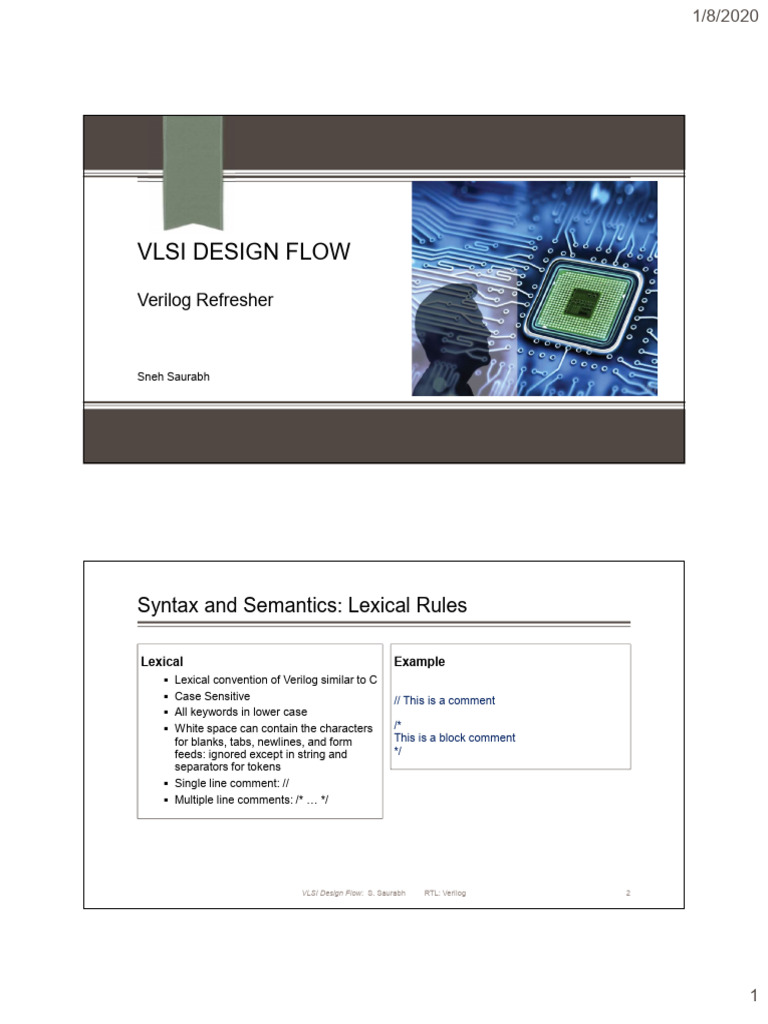

VLSI DESIGN FLOW

Verilog Refresher

Sneh Saurabh

Syntax and Semantics: Lexical Rules

Lexical Example
 Lexical convention of Verilog similar to C
 Case Sensitive // This is a comment
 All keywords in lower case
 White space can contain the characters /*
for blanks, tabs, newlines, and form This is a block comment
feeds: ignored except in string and */
separators for tokens
 Single line comment: //
 Multiple line comments: /* … */

VLSI Design Flow: S. Saurabh RTL: Verilog 2

1
 1/8/2020

Syntax and Semantics: Identifiers

Identifiers Example
 Names used to give an object, such as a register or a
function or a module
Module_top
 Rules Register_123
 Must begin with an alphabetic character or Function_foo
underscore (a-z A-Z _)
 Can contain alphanumeric character, _, $ (a-z A-Z \1st_module
0-9 _, $)
 Length < 1024
 Any character can be used in an identifier by
“escaping” the identifier
 “Escaping” : preceding the identifier with a
backslash “\”
 “Escaped” identifier ends with a white space

VLSI Design Flow: S. Saurabh RTL: Verilog 3

Syntax and Semantics: Numbers (1)

Numbers Verilog Internal Representation

 Can be specified in decimal, hexadecimal, 1 0000 0000 0000 0000 0000
octal or binary format 0000 0000 0001
 Integers: 1’b1 1
-<size>’<radix><value> 8’ha1 1010 0001
 - for negative sign 6’o71 111 001
 if size not specified, size=32 assumed
 <radix> can be ‘b’, ‘o’, ‘d’, ‘h’ for binary,
octal, decimal, hexadecimal
respectively
 radix and hex digits (a, b, c, d, e, f) are
case insensitive
 spaces are allowed between the
<size>, <radix> and <value>

VLSI Design Flow: S. Saurabh RTL: Verilog 4

2
 1/8/2020

Syntax and Semantics: Numbers (2)

Numbers
Verilog Internal
 Integers:
Representation
-<size>’<radix><value>
 When <size> is smaller than <value> 6’h88 00 1000
then leftmost bits are truncated
 When <size> is greater than <value>
then leftmost bits are filled with 8’b1 0000 0001
 ‘0’ if leftmost bit in <value> is 0/1
8’bz zzzz zzzz
 ‘Z’ if leftmost bit in <value> is ‘Z’
 ‘X’ if leftmost bit in <value> is ‘X’ 8’b100z00?1 100z 00z1
 ‘Z’ represents high impedance
8’b1010_1010 1010 1010
 ‘X’ represents “don’t care” or “unknown”
 ‘?’ is an alternative for ‘z’
 ‘_’ can be used in the middle of number
to enhance readability
VLSI Design Flow: S. Saurabh RTL: Verilog 5

Syntax and Semantics: Numbers (3)

Numbers
 Real Numbers:
 Can be represented in decimal or scientific notation:
 <>.<>
 <mantissa>E<exponent>
 Real numbers cannot contain ‘Z’ or ‘X’
 Real numbers are assigned to nearest integer, when assigning to an integer

VLSI Design Flow: S. Saurabh RTL: Verilog 6

3
 1/8/2020

Syntax and Semantics: Modules

Modules
 Modules are building blocks of a Verilog design
 Modules are instantiated inside another modules to create a design hierarchy
 Instantiation of a module means using that module in another higher-level module
 module starts a module description, endmodule ends a module description

VLSI Design Flow: S. Saurabh RTL: Verilog 7

Modules: Example

Problem 11:

Write Verilog code to represent the following hierarchy of a design. The names shown in the figure
are the names of the module. Take arbitrary names for name of Instances.

module Top; module Bottom_1;

Mid m1; endmodule
Bottom_2 b2;
endmodule
module Bottom_2;
module Mid; endmodule
Bottom_1 b1;
endmodule

VLSI Design Flow: S. Saurabh RTL: Verilog 8

4
 1/8/2020

Syntax and Semantics: Ports (1)

Ports module top(clock, reset, test_port, data,

counter_out);
 Allow communication between the module
and the environment input clock;
 Ports can be input, output or inout input reset;
 Syntax: inout test_port;
input [3:0]data;
 input [left_range:right_range] output [3:0]counter_out;
<list_of_identifiers>;
 output [left_range:right_range] endmodule
<list_of_identifiers>;
 inout [left_range:right_range]
<list_of_identifiers>;
 Port-names are specified in the module
declaration

VLSI Design Flow: S. Saurabh RTL: Verilog 9

Syntax and Semantics: Ports (2)

Ports in a module can be connected in the module mid(clock, d_in, d_out);
instantiation in two ways: input clock;
input d_in;
 By order (implicit connection) output d_out;
 Ports connected automatically in the endmodule
instantiation based on order specified in the
module declaration module top(c, p_in, p_out);
 Difficult to debug …
mid m1(c, p_in, p_out);
 By name (explicit connection) endmodule By order
 Ports connected by explicitly giving names
 Order not important module top(c, p_in, p_out);
…
mid m1(.clock(c), .d_in(p_in),
.d_out(p_out));
endmodule
By name

VLSI Design Flow: S. Saurabh RTL: Verilog 10

5
 1/8/2020

Syntax and Semantics: Block of statement

begin
 A group of statements within begin and end …
forms a block end

 A name can be given to a block

begin : my_block_name
 A block can be disabled using disable …
end

begin : my_while_block
…
while (enable) begin
….
disable my_while_block
end
end

VLSI Design Flow: S. Saurabh RTL: Verilog 11

Syntax and Semantics: Data types (1)

Two primary data types: module mid(c, d_in, d_out);
input c;
 Nets input d_in;
output d_out;
 Registers endmodule

module top(c, p_in, p_out);

…
Nets wire w1;
 Represent structural connections reg p_out;
 Cannot store value mid m1(.c(c), .d_in(p_in), .d_out(w1));
 wire, supply0, supply1, wand, wor mid m2(.c(c), .d_in(p_in), .d_out(w2));
 Signals that are not declared but are used in always @ (posedge c)
connections are of type wire begin
p_out <= w1; Implicit
end
endmodule wire

VLSI Design Flow: S. Saurabh RTL: Verilog 12

6
 1/8/2020

Syntax and Semantics: Data types (2)

Registers module top(c, p_in, p_out);

…
 Represent variables that store value
 reg reg p_out;
 Registers store last value assigned, until it is
changed by another assignment always @ (posedge c)
begin
 If a signal is assigned within a procedural p_out <= p_in;
block, then it must be of type register end
 Array of registers can be created to model
memory endmodule

VLSI Design Flow: S. Saurabh RTL: Verilog 13

Syntax and Semantics: primitive gates

 Verilog primitive gates available for Example:

modelling logic gates
 and, nand, or, nor, xor, xnor module mygates(a, b, en, y1, y2, y3);
 First terminal is output and rest are inputs input a;
input b;
input en;
 Transmission gates available for output y1;
modelling different types of output y2;
buffers/inverters/tri-states output y3;
 buf, not, bufif0, bufif1, notif0, notif1
and a1(y1, a, b);
 Models combinational logic and a2(y2, a, b, en);
bufif0 b1(y3, a, en);

endmodule

VLSI Design Flow: S. Saurabh RTL: Verilog 14

7
 1/8/2020

Syntax and Semantics: Strength and value

Rule 1: If two drivers of a net have the same
strength priority and value, then the net result will
have the same value and strength priority (no
conflict)

Rule 2: If two or more drivers drive a signal then

 Signals have two attributes: strength &
value:
 Examples: weak0, weak1, strong0,
strong1, pull0, supply1, etc..
Resolution: Signal strength priority used
to resolve which value should appear on
a net or gate output, in case of conflict
it will have the value of the driver with highest
strength priority
Rule 3: If two drivers of a net have the same
strength priority but different values then signal
value will be unknown and it will have the same
strength priority as both drivers

VLSI Design Flow: S. Saurabh RTL: Verilog 15

Strength priority and levels: Resolution

Signal Signal Strength Verilog
Strength Description Keyword
Priority
7 Supply Drive supply0,
Problem 12:
supply1
6 Strong Pull strong0, Find the value & strength at Z.
strong1
A B Z
5 Pull Drive pull0, pull1
pull0 pull0 pull0
4 Large capacitance large
supply0 pull0 supply0
3 Weak drive weak0, weak1
2 Medium medium supply0 weak1 supply0
capacitance
pull0 pull1 Value=x,
1 Small capacitance small strength same
0 High Impedance highz0, highz1 as pull0/pull1

VLSI Design Flow: S. Saurabh RTL: Verilog 16

8
 1/8/2020

Syntax and Semantics: Operators

Example
 Arithmetic (+, -, * / etc.), Logical (!, &&, ||)
and Relational (<, >, == etc.) operators input [3:0] A;
similar to “C” output Y;
reg Y;
 &, ~&, |, ~|, ^, ~^: Reduction operator reg [7:0]my_reg;
perform a bit-wise operation on a single reg [3:0]part_my_reg;
operand to produce a single bit result. reg [11:0]concat_reg;
reg [19:0]rep_reg;
 []: Bit-select or part-select
Y=&A;
 {}: Concatenation operator, combines
(concatenates) the bits of two or more data part_my_reg = my_reg[6:3];
objects
concat_reg = {part_my_reg, my_reg};
 {N{}}: Replication operator (Multiple
concatenations performed N times) rep_reg = {5{part_my_reg}};

VLSI Design Flow: S. Saurabh RTL: Verilog 17

Syntax and Semantics: Control Statements

Example 1:
 Statements such as if-else, for, case,
while, repeat similar to “C” if (sel == 1’b0) begin
y = a;
end
 casez: treats ‘z’ as don’t cares
else begin
y = b;
 casex: treats ‘x’ and ‘z’ as don’t cares end
 for loop:
Example 2:
 No ++, -- operator
 The number of loop must be inferable
at time of synthesis: amount of input [1:0]sel;
hardware is known case (sel)
0: y = a;
 if-else, case: all cases must be 1: y =b;
covered for inferring combinational 2: y = c;
logic default: y = d;
endcase
VLSI Design Flow: S. Saurabh RTL: Verilog 18

9
 1/8/2020

Syntax and Semantics: Delay Specification

 Delay specifies a time in which assigned values propagate through nets or from input pins to
output pins of a gate

 Delay is used in simulation and ignored in synthesis

 One delay value can be specified as:

 #d
 #(d)
 When only one delay value is specified then for all transitions the same delay ‘d’ is taken

 Two delay values can be specified as:

 #(d1, d2) : rise and fall delay

 Three delay values can be specified as:

 #(d1, d2, d3) : rise, fall and turn-off delay

VLSI Design Flow: S. Saurabh RTL: Verilog 19

Syntax and Semantics: Initial block

Example:
 Block starting with initial
initial begin
 Initial block is executed once at the x = 0;
beginning of the simulation y = 1;
reset = 0;
 If there are multiple Initial blocks, all of end
them are executed at the beginning of
the simulation time
 Initial blocks are useful in writing test-
benches

VLSI Design Flow: S. Saurabh RTL: Verilog 20

10
 1/8/2020

Syntax and Semantics: Always block

 Block starting with always Example:
 Always block executes throughout reg y; Register
simulation reg q;
Sensitivity
always @(a or b or sel)
 Always block has a sensitivity list that begin list
specifies when to execute that block y = 0;
1. Level sensitive : combinational if (sel == 0) begin
element or latch y = a;
end else begin
2. Edge sensitive : flip-flop
y = b;
end
 Whatever is specified after @ (at) denotes end
the triggering condition for the Always Sensitivity
block always @(posedge clk)
begin list
 In an Always block only reg or integer data q <= d;
type signals can be assigned end
VLSI Design Flow: S. Saurabh RTL: Verilog 21

Syntax and Semantics: posedge/negedge

Posedge Negedge
 Transition from 0, x, and z to 1  Transition from 1, x, and z to 0
 Transition from 0 to x or z.  Transition from 1 to x or z.

VLSI Design Flow: S. Saurabh RTL: Verilog 22

11
 1/8/2020

Syntax and Semantics: Multiple Always/Initial block

Example:  If there are multiple Always block and Initial block in
the same module, then all these blocks start executing
reg y; at the start of the simulation and all these blocks
reg q; execute concurrently

initial begin  All three blocks execute concurrently in the example

y = 0; shown
q = 0;
end

always @(posedge clk)

begin
y <= d;
end

always @(posedge clk)

begin
q <= d;
end
VLSI Design Flow: S. Saurabh RTL: Verilog 23

Syntax and Semantics: assign statement

Example:
 assign statement used to continuously
drive a net module myand2(a, b, y);
input a;
 No sensitivity list input b;
output y;
 Models combinational logic
assign y = a&b;

endmodule

VLSI Design Flow: S. Saurabh RTL: Verilog 24

12
 1/8/2020

Syntax and Semantics: blocking and non-blocking

assignment (1)

Blocking Non-blocking
Assignment Assignment
Symbol = <=

Execution Execution of next Execution of next

statement blocked statement not
until the current blocked until the
statement is current statement
executed is executed

Multiple Executes Executes

statement sequentially parallelly

VLSI Design Flow: S. Saurabh RTL: Verilog 25

Syntax and Semantics: functions and tasks (1)

functions tasks
 functions and tasks can be
used to model repeated code
Input / Can have one or Can have zero or
 function, endfunction, task, Output multiple inputs, but multiple inputs,
endtask only one output outputs, inouts
Timing Cannot have delays Can have delays
Delay modelled by posedge, modelled by posedge,
negedge, # negedge, #
Model Only combinational Both combinational
circuit and sequential circuits
Call Can call another Can call other task or
function but cannot function
call other task

VLSI Design Flow: S. Saurabh RTL: Verilog 26

13
 1/8/2020

Syntax and Semantics: functions and tasks (2)

Example function: Example task:
module mymodule (data_in, data_out);
module mymodule(d1, d2, d3, o1); input [7:0] data_in; output [3:0]data_out; reg
input d1, d2, d3; [3:0]data_out;
output o1; always @(data_in)
count_zeros(data_in, data_out);
function func;
input a, b, c; task count_zeros;
begin input [7:0] data; output [3:0]count; reg
func = a+b-c; [3:0]count;
end integer i;
endfunction begin
count = 0;
assign o1 = func(d1, d2, d3); for (i = 0; i <= 7; i = i + 1)
if (data[i] == 0) count = count + 1;
endmodule end
endtask
endmodule

VLSI Design Flow: S. Saurabh RTL: Verilog 27

blocking and non-blocking assignment: Exercise

Problem 13:
For the following Verilog code, find the time-instant Answer:
at which each of the assignments take place:
module mymodule();
module mymodule(); reg a, b, c, d, e, f;
reg a, b, c, d, e, f;
initial begin : blocking
initial begin : blocking a = #10 1'b1; // time = 10
a = #10 1'b1; b = #20 1'b0; // time = 30
b = #20 1'b0; c = #30 1'b1; // time = 60
c = #30 1'b1; end
end
initial begin : nonblocking
initial begin : nonblocking d <= #10 1'b1; // time = 10
d <= #10 1'b1; e <= #20 1'b0; // time = 20
e <= #20 1'b0; f <= #30 1'b1; // time = 30
f <= #30 1'b1; end
end
endmodule
endmodule
VLSI Design Flow: S. Saurabh RTL: Verilog 28

14
 1/8/2020

Syntax and Semantics: System Tasks and Functions

 Name of system tasks and functions start with $

 Used for generating input and output during simulation
 Example: $display, $probe, $monitor, $stop, $finish, $reset, $random, $time etc..
 These functions are ignored by synthesis tools

VLSI Design Flow: S. Saurabh RTL: Verilog 29

References

 http://www.asic-world.com/
 Verilog Language Reference Manual: IEEE Std 1364-2001
 Application-Specific Integrated Circuits, Michael Smith, Addison-Wesley Professional;
1 edition (June 20, 1997)
 Verilog HDL synthesis : a practical primer, J. Bhaskar

VLSI Design Flow: S. Saurabh RTL: Simulation and Synthesis 30

15
