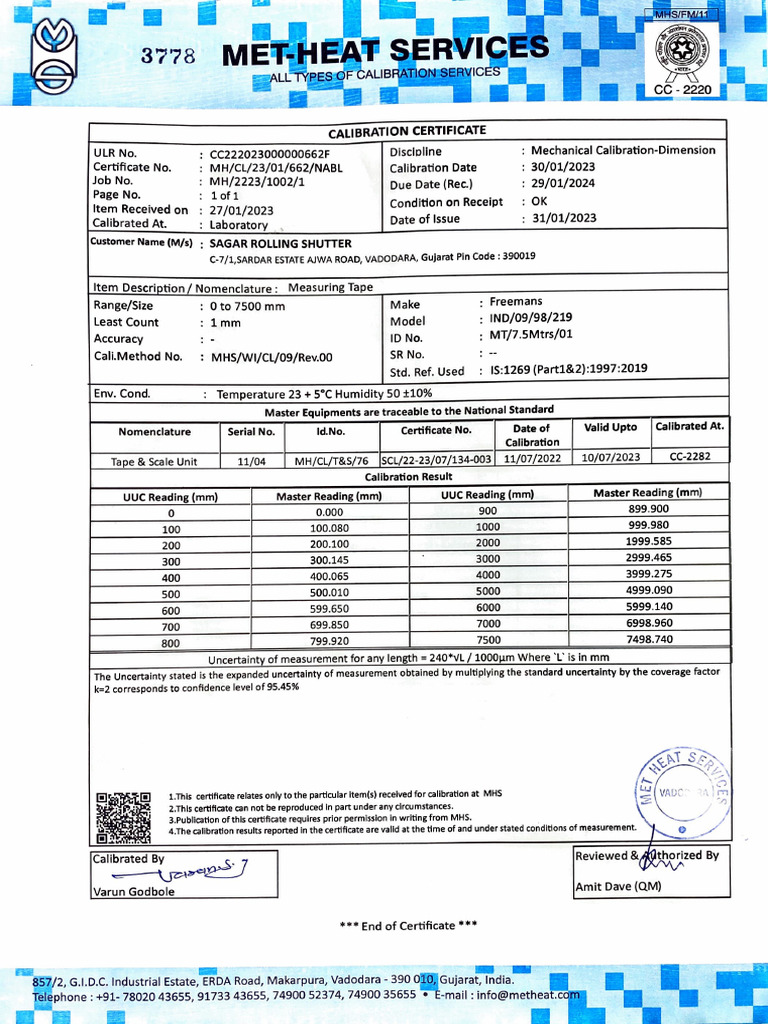

CALIBRATION CERTIFICATE
ULR No. : CC222023000000662F Dlsclollne : Mechanical Calibration-Dimension
Certificate No. : M H/CL/23/01/662/NABL Calibration Date : 30/01/2023
Job No. : M H/2223/1002/1 Due Date (Rec.) : 29/01/2024
Page No. : 1 of 1 : OK
Condition on Receipt
Item Received on : 27/01/2023
Date of Issue : 31/01/2023
Calibrated At. : Laboratory
Customer Name (M/s) : SAGAR ROLLING SHUTTER
'
C-7/1,SARDAR ESTATE AJWA ROAD, VADODARA, Gujarat Pin Code : 390019

Item Descriotion /Nomenclature : Measuring Tape

Range/Size : 0 to 7500 mm Make : Freemans
Least Count : 1mm Model : IND/09/98/219
Accuracy : - ID No. : MT/7.SMtrs/01
Cali.Method No. : M HS/WI/CL/09/Rev.OO SR No. : --
Std. Ref. Used : IS:1269 (Part1&2):1997:2019

Env. Cond. : Temperature 23 + s•c Humidity 50 ±10%

Master Equipments are traceable to the National Standard
Certificate No. Date of Valid Upto Calibrated At.
Nomenclature Serial No. Id.No.
Calibration
Tape & Scale Unit MH/CL/T&S/76 SCL/22-23/07/134-003 11/07/2022 10/07/2023 CC-2282
11/04
Calibration Result

UUC Reading (mm) Master Reading (mm) UUC Reading (mm) Master Reading (mm)

0 0.000 900 899.900

100 100.080 1000 999.980
200 200.100 2000 1999.585
300 300.145 3000 2999.465
400 400.065 4000 3999.275
500 500.010 5000 4999.090
600 599.650 6000 5999.140
700 699.850 7000 6998.960
800 799.920 7500 7498.740
Uncertainty of measurement for any length= 240*1/L / lOOOµm Where 'L' is in mm
The Uncertainty stated is the expanded uncertainty of measurement obtained by multiplying the standard uncertainty by the coverage factor
k=2 corresponds to confidence level of 95.45%

"'~ "),
.;

II y
j
\

1.Thls certificate relates only to the particular ltem(s) received for calibration at MHS Lu VAOC ',\ l 'in
' I)
2.Thls certificate can not be reproduced In part under any circumstances.
3.Publication of this certificate requires prior permission In writing from MHS.
,:i; . 4.The calibration results reported In the certificate are valid at the time of and under stated conditions of measurement. 1'-.....2,

Calibrated By Reviewed &~ ~zed By

~z,-Cl
Varun Godbole
Amit Dave (QM)

*** End of Certificate***

Im~57( 2, G.I.D.C. Industrial Estate,-ERDA Road, Makarpura, Vadodara - 390 Olo:!Gujarat,

- India.
--
Telephone : +91- 78020 43655, 91733 43655, 74900 52374, 74900 35655 "ft-mail : info@metheat.c5m1
.. -;.
 CALIBRATION CERTIFICATE
ULR No. : CC22 202300000078 1F Dlscloline : Mechanical Calibration-Dimension
Certificate No. : M H/CL/23/01/781/NABL Calibration Date : 31/01/2023
Job No. : MH/2223/1002/2 : 30/01/2024
Due Date (Rec.)
Page No. : 1 of 1
Item Received on : 27/01/2023 Condition on Receipt : OK
Calibrated At. : Laboratory Date of Issue : 01/02/2023
Customer Name (M/s) : SAGAR ROLLING SHUTTER
C-7/1,SARDAR ESTATE AJWA ROAD, VADODARA, Gujarat Pin Code : 390019

Item Description/ Nomenclature : Dial Caliper

Range/Size : 0-300 mm Make : Yuri
Least Count : 0.02 mm Model
Accuracy : . ID No.
Cali.Method No. : MHS/WI/CL/01/Rev.Ol SR No. : 5-2.18031073
Std. Ref. Used : IS 16491 (Part 1) : 2016

Env. Cond. : Temperature 20 ±2°C Humidity 50 ±10%

Master Equipments are traceable to the National Standard
Nomenclature Serial No. Id.No. Certificate No. Date of Valid Upto Calibrated At.
Calibration
Caliper Checker 350 MH/CL/CC/09 CC/22/5885 07/03/2022 07/03/2024 CC-2421
Slip Gauge Set 8822 MH/CL/SGB/67 MH/CL/377M/NABL 16/03/2022 15/03/2024 CC-2220
Digital Ex. Micrometer 65108889 MH/CL/MM/59 MH/CL/22/09/369/NA 15/09/2022 14/09/2024 CC-2220
BL
External & Internal Jaw Measurement
Master Reading (mm) UUC Reading (mm) - External UUC Reading (mm) - Internal
20 20.00 20.00
so 50.00 50.00
100 100.00 100.02
150 150.00 150.02
200 199.98 200.02
250 249.98 250.04
300 299.98 300.04
Parallelism Measurement

External Jaw Parallelism (mm) I Internal Jaw Parallelism (mm)

0.010 I 0.006
Expanded Uncertainty= 26 µm

r~
:e
The Uncertainity stated is the expanded uncertainty of measurement obtained by multiplying the standard uncertainty by the coverage factor
k=2 corresponds to confidence level of 95.45%

ll
1.Thls certificate relates only to the particular item(s) received for calibration at MHS VA£1 0DARA g)
2.This certificate can not be reproduced In part under any circumstances. n~
3.Publlcation of this certificate requires prior permission In writing from MHS.
4.The calibration results reported In the certificate are valid at the time of and under stated conditions of measurement. e
I!] _.

y
Calibrated By Reviewed & Au tiorized By

N.N.Praiaoati
Amit Dave (OM 0V'..A • Al

** • End of Certificate ** •

m;,;; al' m 12!1 C

8571/2, G.I.D.C. Industrial Estate, ERDA Road, Makarpura, Vadodara - 390 orn, Gujarat, lndia.
~ ne : +9~ 8020 43655, 91733 43655, 74900 52374, 74900 35655 • E-mail: info@metheat.cor
 •
3746
Iii
M~ ~ , ~ R¥ 1~
1---~ I·
F CALIB fuNSER IC •
.I.I
I I
fl - 2220 ••

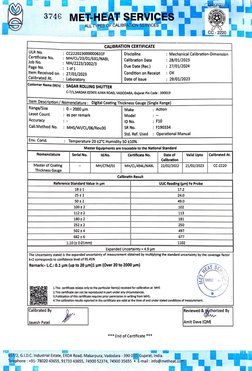

CALIBRATION CERTIFICATE
ULR No. : CC222023000000631F Dlsclollne : Mechanical Calibration-Dimension
Certificate No. : MH/CL/23/01/631/NABL Calibration Date : 28/01/2023
Job No. : MH/2223/1002/3
Page No. Due Date (Rec.) : 27/01/2024
: 1 of l
Item Received on : 27/01/2023 Condition on Receipt : OK
Calibrated At. : Laboratory Date of Issue : 29/01/2023
Customer Name (M/s) : SAGAR ROLLING SHUTTER
C-7/1,SARDAR ESTATE AJWA ROAD, VA0ODARA, Gujarat Pin Code : 390019

Item Descriotion / Nomenclature : Digital Coating Thickness Gauge (Single Range)

Range/Size : 0-2000 µm Make : Action
Least Count : as per remark Model
Accuracy : - ID No. : Fl0
Cali.Method No. : M HS/WI/CL/06/Rev.00 SR No. : F190334
Std. Ref. Used : Operational Manual
Env. Cond. : Temperature 20 ±2°C Humidity SO ±10%
Master Equipments are traceable to the National Standard
Nomenclature Serial No. Id.No. Certificate No. Date of Valid Upto Calibrated At.
Calibration
Master of Coating -- MH/CTM/01 MH/CL/494L/NABL 22/02/2022 21/02/2023 CC-2220
Thickness Gauge
Calibratin Result
Reference Standard Value in µm UUC Reading (µm) Fe Probe
18±1 17.2
25 ± 2 24.0
50± 2 49.0
100±2 102
112±2 113
180± 2 181
252± 2 250
502±4 497
682±6 677
1.10 (± 0.01mm) 1102
Expanded Uncertainty= 4.9 µm
The Uncertainty stated is the expanded uncertainty of measurement obtained by multiplying the standard uncertainty by the coverage factor
k=2 corresponds to confidence level of 95.45%

tj"
Remark:- L.C.: 0.1 µm (up to 20 µm)1 µm (Over 20 to 2000 µm)

J..... \-.. . . 'I

4J \Cl
'z VADC~ ,~ ' .,. I
1.Thls certificate relates only to the particular ltem(s) received for calibration at MHS '"j
2.Thls certificatecan not be reproduced In part under any circumstances.
3.Publication of this certificate requires prior permission In writing from MHS. o/ '
>
4.The calibration results reported In the certificate are valid at the time of and under stated conditions of measurement.

pr
. -·

Calibrated By Reviewed &~ ized By

Javesh Patel Amit Dave (QM)

.l
* ** End of Certificate** *

~57{2, G.I.D.C. Industrial Estate,-ERDA Road, Makarpura, Vadodara - 390 O~

1111,_____,
~
Gujarat,- India.- ~..
phone : +91- 78020 43655, 91733 43655, 74900 52374, 74900 35655 T E-mail : info@metheat.ca
I I
 II
3747

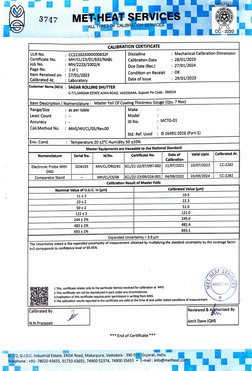

CALIBRATION CERTIFICATE
ULR No. : CC222023000000632F Dlsclollne : Mechanical Calibration-Dimension
Certificate No. : MH/CL/23/01/632/NABL Calibration Date : 28/01/2023
Job No. : M H/2223/1002/4 Due Date (Rec.) : 27/01/2024
Page No. : 1 of 1 : OK
Condition on Receipt
Item Received on : 27/01/2023
Date of Issue : 29/01/2023
Calibrated At. : Laboratory
Customer Name (M/s) : SAGAR ROLLING SHUTTER
C-7/1,SARDAR ESTATE AJWA ROAD, VADODARA, Gujarat Pin Code: 390019

Item Descriotion / Nomenclature : Master Foil Of Coating Thickness Gauge (Qty. 7 Nos)
Range/Size : as per table Make :
Least Count : -- Model :
Accuracy : - ID No. : MCTG-01
Cali.Method No. : MHS/WI/CL/05/Rev.OO :
Std. Ref. Used : IS 16491:2016 (Part-1)
Env. Cond. : Temperature 20 ±2°C Humidity 50 ±10%
Master Equipments are traceable to the National Standard
Id.No. Certificate No. Date of Valid Upto Calibrated At.
Nomenclature Serial No.
Calibration
Electronic Probe With D04193 MH/CL/DR0/81 SCL/21-22/07/097-002 11/07/2021 10/07/2023 CC-2282
DRO
Comparator Stand -- MH/CL/CS/06 SCL/22-23/09/026-001 04/09/2022 03/09/2024 CC-2282
Calibration Result of Master Foils
Nominal Value of U.U.C. in (µm) calibrated Value (µm)
11±2 10.5
23±2 22.3
50±2 51.0
122 ± 2 121.0
244±2% 245.0
483±2% 482.4
693 ±2% 693.1
Expanded Uncertainty= 3.9 µm
The Uncertainty stated is the expanded uncertainty of measurement obtained by multiplying the standard uncertainty by the coverage factor
k=2 corresponds to confidence level of 95.45%

/4~ ~
II
1.Thls certificate relates only to the particular ltem(s) received for calibration at MHS
2.Thls certificate can not be reproduced In part under any circumstances.
3.Publicatlon of this certificate requires prior permission In writing from MHS.
4.The calibration results reported In the certificate are valid at the time of and under stated conditions of measurement.
8J0 /
z;
•'

Calibrated By

N.N.Praiaoati
y Reviewed & ~

Amit Dave (QM)

ized By

** * End of Certificate ***

ma¥71/2, G.I.D.C. Industrial Estate, •ERDA Road, Makarpura, Vadodara - 390 O!@';JGujarat,• India.•
n ~ ne : +9~ 8020 43655, 91733 43655, 74900 52374, 74900 35655 T E-mail : info@met~ t.coh
