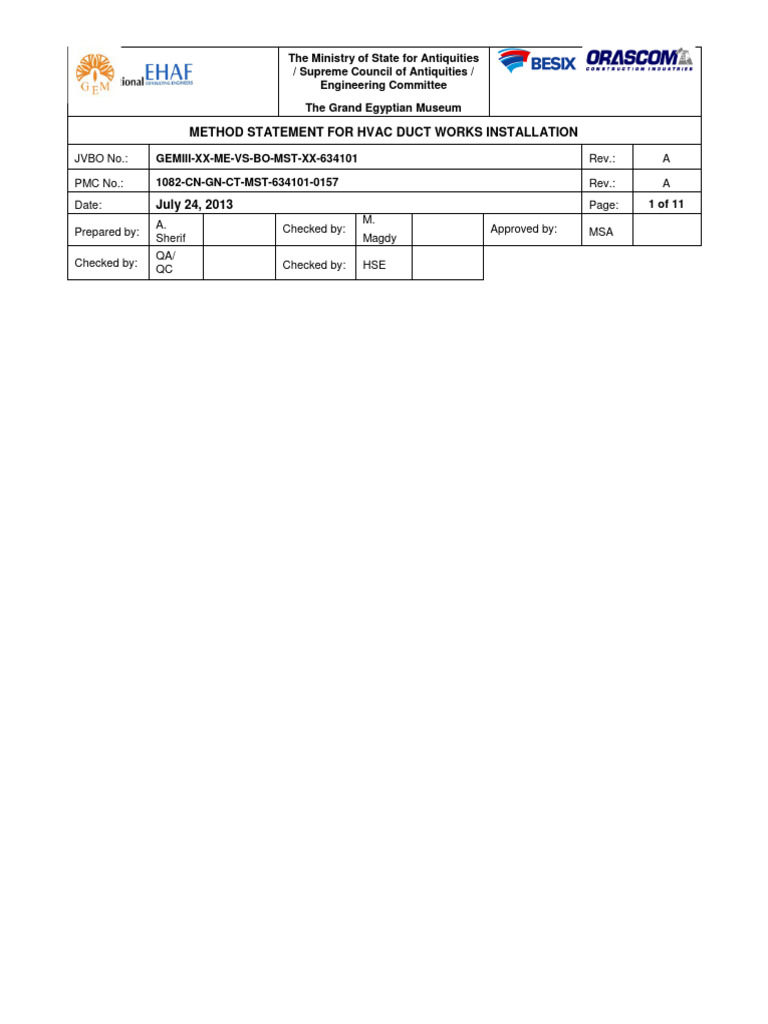

The Ministry of State for Antiquities

/ Supreme Council of Antiquities /

Engineering Committee
The Grand Egyptian Museum

METHOD STATEMENT FOR HVAC DUCT WORKS INSTALLATION

JVBO No.: GEMIII-XX-ME-VS-BO-MST-XX-634101 Rev.: A

PMC No.: 1082-CN-GN-CT-MST-634101-0157 Rev.: A

Date: July 24, 2013 Page: 1 of 11
A. M.
Prepared by: Checked by: Approved by: MSA
Sherif Magdy
QA/
Checked by: Checked by: HSE
QC
PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

TABLE OF CONTENTS

1. INTRODUCTION ......................................................................................................................................... ... 2

2. INTERFACES & CONSTRAINT .................................................................................................................. . 2

2.1. Interface ... ............................................................................................................................ . 2

2.2. Constraints ... ...................................................................................................................... .. 3

3. REFERENCE DOCUMENTS & DRAWINGS ... ........................................................................................ .. 3

3.1. Contract Drawings ... .......................................................................................................... .. 3

3.2. Submittals, Technical Reports & QA/QC Procedures ... ................................................ .. 3
3.3. JVBO Drawings ... ................................................................................................................ . 4

4. HEALTH, SAFETY AND EMERGENCY PROCEDURES ... ................................................................... ... 4

4.1. Health & Safety ... ................................................................................................................ .. 4

4.2. Access ... ............................................................................................................................... . 5
4.3. Emergency Procedures ... ................................................................................................ ... 5

5. QUALITY ... .................................................................................................................................................. ... 5

6. EQUIPMENT & TOOLS ... ........................................................................................................................... .. 6

7. MATERIALS ... ............................................................................................................................................... . 6

8. PERSONNEL ... ........................................................................................................................................... ... 7

9. SEQUENCE OF WORK ... ............................................................................................................................ . 7

10. DESCRIPTION OF WORKS/METHODOLOGY ... .................................................................................... . 7

10.1. Duct Manufacturing ... ....................................................................................................... .. 7

10.2. Duct pre-installation... ........................................................................................................ . 7
10.3. Installation of ductwork... ................................................................................................... . 8
10.4. Ductwork testing: ............................................................................................................. .. 9

11. ATTACHMENTS ... ....................................................................................................................................… 9

PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

1. INTRODUCTION

1.1. The objective of this method statement is to establish the necessary guidelines for the air
duct work systems in accordance with the contract requirements. This method Statement shall
ensure that the air duct work systems is section 15815 executed safely and in accordance with the
contract requirements. This Method Statements aims to ensure that work quality assurance
and quality control activities are conducted in a systematic manner, works are inspected and
conformance is verified and documented.

1.2. This method statement relates to the installation of HVAC duct work systems in all areas.

2. INTERFACES & CONSTRAINT

2.1. Interface
 Site Manager:
 Ensure proper coordination between interfacing works.
 Assigning tasks/responsibilities to senior site engineers to facilitate coordination aspects.

 Senior Site Engineer:

 Ensure proper coordination between interfacing works.
 Assigning tasks / responsibilities to site engineers to facilitate coordination aspects.

 Site Engineers:
 Coordinate with other site engineers to perform work properly and in accordance to time
schedule, scope and quality.

 QC Engineer:
 Understand the nature of interfacing works and cooperate with other QC engineers.

 Consultant:
 Understand the nature of interfacing works.
PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

2.2. Constraints
The site working hours will be 7 am to 5 pm. This is beside the following Safety constraints:
 Before to start any work, brief all operatives about the risks involved in the work and what
PPE must be used.
 When any circumstances differ from this method statement; please inform the Construction
and Technical Manager immediately.
 The emergency procedure has to be discussed and understood prior to the start of the work.
 Make a safe access and egress for the operatives before to start work.
 A reasonable safe distance (to be advised by construction manager depending on type of
works and situation) need to be kept for other works on the platform like lifting works.

3. REFERENCE DOCUMENTS & DRAWINGS

3.1. Contract Drawings

 All HVAC layout drawings.

3.2. Submittals, Technical Reports & QA/QC Procedures

GEMIII-XX-XX-XX-BO-HSP-XX- 1082-CN-GN-CT-HSP-987001 Health and Safety Plan

987001A

GEMIII-XX-XX-XX-BO-QAP-XX-98-6- 1082-CN-GN-CT-QAP-986001 Quality Assurance and

001A Quality Control Plan (PQP)

GEMIII-XX-ME-DR-BO-ITP-XX-636101 1082-CN-GN-CT-ITP-636101-0024 ITP Duct Work

GEMIII-XX-ME-AC-BO-MAR-XX-624007 1082-CN-GN-CT-MAR-624007-275 MAR- Duct Work

GEMIII-XX-ME-AC-BO-MAR-XX-624018 1082-CN-GN-CT-MAR-624018-0389 MAR- Duct Work

3.3. JVBO Drawings

GEMIII-MU-ME-VS-BO-DWG-BA- 1082-CN-MC-CT-DWG- Main building plan

630001 630001 ventilation layout tile 02
GEMIII-MU-ME-VS-BO-DWG-BA- 1082-CN-MC-CT-DWG- Main building plan
630002 630002 ventilation layout tile 07

GEMIII-MU-ME-VS-BO-DWG-BA- 1082-CN-MC-CT-DWG- Main building plan

630002 630003 ventilation layout tile 12
 PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

4. Health, safety and Emergency Procedures

4.1. Health & Safety

The Works Engineer is responsible to brief and organize the training for the workers with support
and in coordination with the Safety Team and the site Manager.
A toolbox needs to be held once per week with different subject and 5 minute pre task trainings
before every start of the works. All trainings need to be documented. Forms are available with the
safety team.

A 5 minute pre task briefing must be held by the Works Engineer with the workers every time
before to start the work and the following questions need to be asked and action to be taken:
 Tell men tasks in steps.
 Who does what?
 What are the hazards and risks?
 Which measures to take?
 Which PPE to wear and does everybody have the suitable PPE?
 Does everyone understand his job?
 What went wrong yesterday and what can be improved today?
 Plastic caps shall be installed on all protruding bars such as the pile starter bars.
 In addition to the mandatory site PPE, PPE shall be adapted considering the protection against
product used such as glue for all workers in contact with these products.

4.2. Access

 General access for vehicles to the working area is the existing site roads within the
construction area and temporary access ramps.
 Pedestrian access area is not an issue as there is sufficient space at the working area.
 The site needs to arrange sufficient space for maneuvering of excavators, trucks ...etc.
 PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

4.3. Emergency Procedures

In any emergency, the following will be applied:

 A supervisor will establish the nature of the emergency.
 A message will be conveyed to the site office outlining the details.
 Site safety team and the doctor will be notified.
 A specific procedure is established and issued for dealing with fire on site. This forms part of
the Safety Plan.
 If a medical emergency occurs, then the qualified First Aiders on site should attempt to deal
with the casualty.
 All emergency duty personnel will be adequately trained to fill the emergency response role.
Emergency procedures form part of the induction training so that all concerned are clear as to the
action required of them in an emergency.
 Emergency Assembly Points will be established and updated as per site requirements.

5. QUALITY

 In process works shall be monitored for quality of workmanship and installation against
approved construction drawings by the relevant Supervisor and Construction Manager.
 All works shall be inspected for quality of workmanship and conformance to specification prior to
offering for inspection.

All works are carried out in accordance with the general QA Plan and the Inspection Test Plan (Refer
to ITP DOC ref. no. 1082-CN-GN-CT-ITP-XX-636101 -0024)

6. EQUIPMENT & TOOLS

 Scissors with Different sizes.

 Screws Drivers.
 Adjustable wrenches.
 Hand tools (hammer, Crutches…etc.)
 Riveter
 Sealant gun
 Medium & Large Drill.
 PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

 Electrical wire with plug.

 Lifting wires.
 Grinder (9 inch & 5 inch).
 Caulking Gun.

7. MATERIALS

For Ductwork the following materials are required:

 Galvanized steel metal
 Black steel metal
 Fire Dampers
 Smoke Dampers
 Smoke / Fire Dampers
 Volume Dampers (Manual or Motorized)
 Access Doors
 Air Outlets (Diffusers, Registers, Grilles, Louvers)
 Duct Sealant.
 Gasket.
 Incoming materials shall be inspected for conformance by the Project QC.
The PMC shall be invited to inspect materials for conformance prior installation.
 (Packing list or delivery notes of manufacture) shall be presented at the time of inspection.
 All materials inspections shall be recorded on the MIR (Materials Inspection Request). All major
items shall be inspected for each delivery.

8. PERSONNEL

 Responsibility for the implementation of this method statement rests with the Project
Director. Site supervision shall be delegated to the Construction Managers and Project
Supervisors.

9. Sequence of work

 Delivery, handling and storage.

 Inspection of material.
 Installation of duct.
 PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

10. DESCRIPTION OF WORKS/METHODOLOGY

10.1 . Duct Manufacturing:

1- Rectangular duct are prefabricated from galvanized sheet metal ( according to approved gages
& thicknesses table for different duct sizes) using Autofold CNC machines for straight duct & plasma
CNC cutting machines for duct fittings.

2- Each rectangular duct will be assembled using Pittsburgh lock longitudinal seam.

3- Rectangular duct pieces will be assembled with each others using transverse joints according to
approved joints table for different duct sizes.

4- Elbow vanes will be fabricated from the same gauge of elbows and the number & radius of these
vanes will be determined according to (Elbow vanes SMACNA chart based on the full radius elbow law).

5- Transitions will be fabricated and installed taking transition angle as 22.5° max for diverging and 30°
max for converging.

10.2 . Duct pre-installation:

 A pre-start meeting prior to the commencement of the works will take place with the site
engineer, H&S responsible, QC engineer and foreman in charge to address the following:
 Ensure that notification to start.
 Ensure that the area has been surveyed as per approved drawings.
 Ensure that the installation area is clean.
 Ensure that materials are as per approved material submittal and inspected on site
by consultant.
 Ensure that adequate number of tradesmen and proper tools are present.
 PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

 Ensure that latest approved shop drawings for this installation is present, and all
personnel are working off the same drawing.
 Ensure that area is safe to carry out the work.
 Area for materials preparation / fabrication work shop for ducting installation has
been identified and procedure will be in place.
 Temporary DBs are provided and inspected regularly by electrician prior to execution
of works.

10.3. Installation of ductwork

1- Marking wires are pulled for lining the duct supports then threaded rods are rammed in the
concrete ceiling using expansion anchors from each side of the duct according to ducts different
sizes.

2- Spacing between trapeze hanger supports, support rod diameters & support angle sizes will be
determined according to (approved horizontal duct supports table for different duct sizes).

3- Galvanized or painted supports angles will be fixed to the rods with nuts & washers according to
the bottom of duct level shown in approved shop drawings coordinated with other trades.

4- Fabricated and assembled duct pieces will be manually raised from the floor level to the scaffold
level, and then installed on the trapeze hanger supports preinstalled before.

5- Transition, elbow locations in the duct line are taken into account while installing the duct line.

6- Branch opening locations will be taken into account in the main duct line already installed.

7- Branch takeoffs will be installed in the previous locations using clinch lock to fix the take off in
the main duct opening , the take off angle will be fabricated taking θ = 45° and takeoff length as
(4" inclined + 2" straight) ( according to SMACNA standards ).

8- Duct risers will be fixed to the riser walls at each floor slab using supports angles seamed with
each others forming frames fixed to walls with anchors according to (approved vertical duct supports
table for different duct sizes).

9- Volume dampers supplied from approved supplier will be installed in main ducts and branches
where shown on approved shop drawings.

10- Fire dampers will be supplied from approved supplier will be installed on ducts penetrating fire
rated walls or riser walls or concrete slabs as shown on approved shop drawings.

11- Air outlets locations will be marked on the false ceiling according to (the approved shop
drawings coordinated with reflected ceiling plans), then duct necks or flexible ducts will be
fabricated or supplied respectively, then installed according to air outlets neck sizes & types. In
 PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

case of flexible ducts, it will be connected to main duct round collar from one extremity and to
plenum box round collar from the other extremity using locally supplied straps.

12- Air outlets supplied from approved supplier will be installed and fixed to the duct necks or
plenums using screws or bridges depending on outlet types.

13- Ducts will be connected to all fans and air supply units after their installation using approved duct
flexible connector.

10.4 . Ductwork testing:

Duct sealing will be done after duct installation using the approved duct sealant (according to the
suitable sealing class based on SMACNA standards and duct pressure class) in order to prevent air
leakage.
As long as Duct Pressure Class is (3” w.g. or lower), so there is no need to verify leakage control by
field testing (according to SMACNA duct construction standards section 1.10) and only light visual
test will be performed on all duct lines to insure good sealing.
For Duct Pressure Class (4” w.g. or higher), smoke visual leakage test will be performed on all duct
lines to insure good sealing.

11. ATTACHMENTS

Attachment: Risk Assessment

PROJECT Grand Egyptian Museum Phase III PRESENTED BY

SUBJECT HVAC Duct Works Method Statement PREPARED BY Eng. Ahmed Sherif Aly
JVBO No.: GEMlll-XX-ME-VS-BO-MST-XX-634101 DATE 24/07/2013
PMC No.: 1082-CN-GN-MST-634101-0157 REVISION A

Attachment: Risk Assessment

 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
1 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

Risk Assessment: HVAC ducts& Piping & Insulation

Unmitigat Mitigated
Persons ed Risk Risk
Task Hazards Proposed Mitigation Measures
at Risk
L S R L S R

• Follow traffic routes and adhere to site speed limits.

• Vehicle collision can cause accident • Driver must be having in the possession of all transport
resulting in personal injury, property documents, insurance and must be third party certified.
Transportation of damage and spillage.
• Secure the material in a safe manner on carrier to avoid fall of
carrier from storage • Improper stacking can result in fall of material during transportation.
material. Reversing vehicle, plant & Operational
area to unloading at 4 4 16 • Off load materials in a designated area.
2 2 4
equipment. Team
work place or
installation area. • Loose and unfastened materials • Barricade/Isolate and mark the area.
during transporting. • Properly stack the material and protect the material from
• Slip, trip or fall hazard to personnel. damage; wedges and even surfaces.
• Correct PPE must be worn as required.

• All power tools must be insulated.

• Regular maintenance and check-up must be carried out.
• Electrocution
• Must be recorded, inspected and color coded
• Burns
• Hand tools must be maintained.
• Eye/Face risk
Use of Power and Operational • Defective tools must be tag out and remove from the site.
• Bruises and Cuts 4 3 12 2 3 6
Hand Tools Team • Proper supervision must be maintained.
• Risk of injury or fatality to operatives
• Power tools must be guarded.
or other human beings nearby.
• Correct PPE must be worn as required.
• Damage to property.
• Must check tools before each use.
 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
2 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

Risk Assessment: HVAC ducts& Piping &Insulation

Unmitigat Mitigated
Persons ed Risk Risk
Task Hazards Proposed Mitigation Measures
at Risk
L S R L S R

• Temporary Power supply should be • Termination should be done by suitable lugs only
taken through rated MCBs & RCBs. • Cordoned off the work area
Welding/Electricity • All electrical cable & wire ends shall • proper PPE for welding activities must be worn at all times
be terminated. Site
(Black Steel Duct 4 4 16 while welding 2 3 6
• Use only insulated tools Operatives
Work) • Only Industrial type & standard one socket and cable must be
• Unauthorized entry must be restricted used and of correct rating.
• Earthling must be provided for welding

• Emergency evacuation route must be

clear at all times. • Remove all obstruction from emergency access
Site
Smoke • Provide adequate number fire 4 4 16 • All combustible material to be removed. 2 2 4
extinguisher on the work spot. Operatives
• Extinguisher to be provided.

• Clean the floor if any slippery items.

• Maintain good housekeeping. • Remove all unwanted materials.
• Use safe manual handling methods. Operational • Information, Instruction & training should be given to all
Slip, Trip, & fall 4 3 12 2 2 4
• Fall protection shall be used whenever Team operatives.
required. • Full body harness and life line must be used while working at
heights.
 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
3 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

• Fire
• Only certified electrician to work with electrical tools.
• Electrocution
Cable handling, • Never handle any electrical cable until assured without power,
Task Lighting • Short Circuit always treat all cable as live.
Arrangements, • Burn Site • Always consider all cable & wires as live.
4 4 16 2 3 6
Power driven tools • Slips, Tripping and falling. Operatives
• Save and protect cable from crushing.
& Connection with
• Damage to property. • Check electrical tools before start work.
DB.
• Risk of injury or fatality to operatives • Proper PPE must be worn at all times.
or other human beings nearby.
 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
4 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

Risk Assessment: HVAC ducts& Piping &Insulation

Unmitigat Mitigated
Persons ed Risk Risk
Task Hazards Proposed Mitigation Measures
at Risk

L S R L S R

• Struck by falling rods, trays & trunking • To be review and discussed in the tool box meeting with the
• Slip and trip team prior to commencing activity as per method statement and
Fixing of threaded
Operational JSA on a daily basis.
rod, angles and • Fall of men and operatives 3 4 12 2 2 4
Team • Correct PPE must be worn as required.
supports. • Head bump
• Closed supervision must be taken until task completed.
• Damage to property.

• Trip or slips Hazard. • Adequate task lightings are to be arranged and must observed
proper cable management.
Working in dark • Damage to property.
Operational • Supervisors must check the area before sending his men.
areas and during • Poor illumination/lighting 4 3 12 2 2 4
Team
night time. arrangements can lead to accidents • Work should only be allowed in well lighted area.
causing serious personal injuries. • Correct PPE's must be worn at all times as required.
 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
5 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

• Mobile scaffold should be used for light work only and erected
on a firm level ground.
• Scaffolding inspection must be recorded.
• Falling Men & Objects
• Only trained workers should erect and dismantle mobile scaffold
• Slip & trip towers.
• Unsafe scaffolding. • The wheels of the towers should be fitted with brakes which
Working at Height should be kept on for as long as there are workers on the
• Structure Collapse.
(by mobile Site
• Electrocution 4 5 20 2 3 6
scaffolding platform Operatives
• Do not move scaffolding while men on top.
and/or step ladder.) • Damaged Ladder
• Only competent and trained personnel only are allowed to
• Risk of injury or fatality to operatives
perform the activity that is going to be rendered on a particular
or other human being nearby.
area.
• Damage to property.
• There must be a standby person nearby to look after and help
the person working on the scaffolding platform.
 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
6 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

Risk Assessment: HVAC ducts& Piping &Insulation

Unmitigat Mitigated
Persons ed Risk Risk
Task Hazards Proposed Mitigation Measures
at Risk
L S R L S R

• Access ladder should be inside and fixed to the narrowest side

of the tower.
• Stabilizers must be used to increase the height to base ratio.
• Do not overload working platform.
• Full body safety harness must be worn at all times and must be
hooked up at the anchorage point which is located overhead until
the completion of each job.
• Access such as trapdoors should be kept shut while workers are
on the platform.
• Before erecting mobile scaffolding makes sure the ground has
been leveled.
• Proper supervision must be taken.
• All ladders must be inspected, color coded and recorded
periodically.
• Ladder must be placed in firm level.
• Ladders must be secured with Jocks.
• Follow the step ladder safety procedures.
• Only use for short duration and light works.
• Correct PPE must be worn as required.
 GRAND EGYPTIAN MUSEUM

Risk Assessment : JVBO No: GEMIII-XX-ME-VS-BO-RAS-XX-637501 Rev.: A

HVAC DUCTS, Piping and Insulation works
Refer to Method of statements: PMC No: 1082-CN-GN-CT-RAS--XX-637501-0038 Rev.: A
GEMIII-XX-ME-VS-BO-MST- XX-634101
GEMIII-XX-ME-AC-BO-MST- XX-624106 Date: July 29, 2013
7 of 7
GEMIII-XX-ME-WH-BO-MST- XX-644106

• Neatly stack work materials and remove.

Creation/Generation Site • All waste generated specifically wires must be sent to allocated
• Slip trip and fall 4 3 12 3 1 3
of Waste Operatives waste segregation area.
Multiple injuries to body
• Maintain good housekeeping and stacking at all times.

Insulation Fiber migration Site 4 4 16 Operative to wear safety requirements. 2 3 6

Operatives
Insulation Dust Inhalation Site 4 3 12 Operative to wear safety requirements. 2 2 4
Operatives
Adhesives Fume Inhalation Site 4 3 12 3 1 3
Works to be done in well-ventilated area
Operatives

1-6 Low Risk – Keep control measures under review, fine tuning wherever possible.
8 -10 Medium Risk – Control measures to be improved and reassessment carried out
12 – 36 High Risk – Stop the activity until improved control measures are developed. Carry out reassessment
