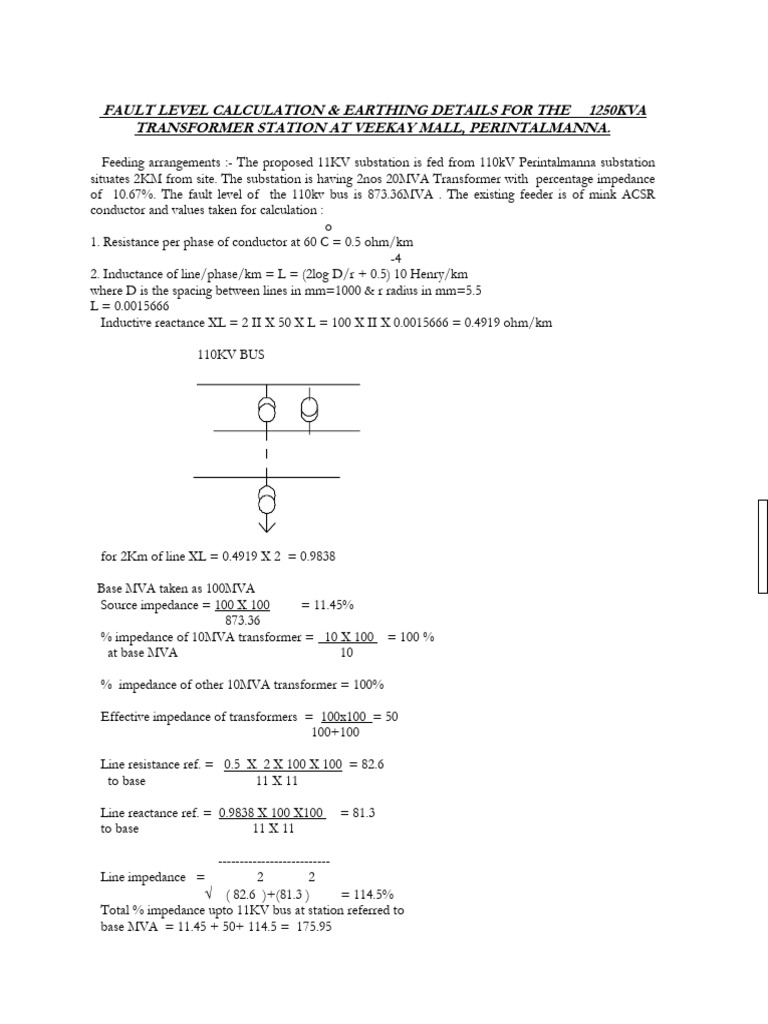

FAULT LEVEL CALCULATION & EARTHING DETAILS FOR THE 1250KVA

TRANSFORMER STATION AT VEEKAY MALL, PERINTALMANNA.

Feeding arrangements :- The proposed 11KV substation is fed from 110kV Perintalmanna substation
situates 2KM from site. The substation is having 2nos 20MVA Transformer with percentage impedance
of 10.67%. The fault level of the 110kv bus is 873.36MVA . The existing feeder is of mink ACSR
conductor and values taken for calculation :
o
1. Resistance per phase of conductor at 60 C = 0.5 ohm/km
-4
2. Inductance of line/phase/km = L = (2log D/r + 0.5) 10 Henry/km
where D is the spacing between lines in mm=1000 & r radius in mm=5.5
L = 0.0015666
Inductive reactance XL = 2 II X 50 X L = 100 X II X 0.0015666 = 0.4919 ohm/km

110KV BUS

110KV/11KV
20MVA
Trf.

11KV Line

11kV/433V, 1250kVA Tr.

for 2Km of line XL = 0.4919 X 2 = 0.9838

Base MVA taken as 100MVA


Source impedance = 100 X 100 = 11.45%
873.36
% impedance of 10MVA transformer = 10 X 100 = 100 %
at base MVA 10

% impedance of other 10MVA transformer = 100%

Effective impedance of transformers = 100x100 = 50


100+100

Line resistance ref. = 0.5 X 2 X 100 X 100 = 82.6


to base 11 X 11

Line reactance ref. = 0.9838 X 100 X100 = 81.3


to base 11 X 11

--------------------------
Line impedance = 2 2
 ( 82.6 )+(81.3 ) = 114.5%
Total % impedance upto 11KV bus at station referred to
base MVA = 11.45 + 50+ 114.5 = 175.95
Fault level at 11KV bus = 100 X 100 = 56.8MVA
of proposed station 175.95

A minimum fault level of 150 MVA at 11kV bus is taken for calculation.
Fault current on 11KV side = 150 MVA = 7.87KA
3 X 11
LT side
The % impedance of 1250KVA Transformer is 5%
Taking base MVA as 100MVA as before
Transformer % impedance ref. to base = 5 X 100 = 400%
1.25
% impedance corresponding to
150MVA fault level = 100 x 100 = 66.67%
150

Total% impedance upto 433 Volts bus = 66.67 + 400 = 466.67

Fault level on [Link] = 100 X 100 = 21.4MVA


466.67

Fault current on [Link] = 21.4 = 28.5KA


3 X 0.433
Earthing design
Soil resistivity at site as per reading taken was 193ohm meter
.
3
Allowable current density = 7.57 X 10 = 314.6A/sqm
for plate electrode ----------
 3 X 193
Taking the fault current on H T side 7.87KA for calculation of earth pits
No. of 1200 X 1200 X 12mm plates needed to dissipate the above
fault current = 7.87 X 1000 = 8.6 = 9nos
314.6 X 2.88

Cu strip size needed for earthing on HT side = 7870 = 66.7sqmm = 25 x 3 mm Cu.


118
Cu strip size needed for earthing on LT side = 28500 = 242 = 40 x6 mm Cu
118

Size of earth strip for transformer neutral earthing – 50X6 mm Cu


Interlinking of earth pits done by 40X6 mm Cu
