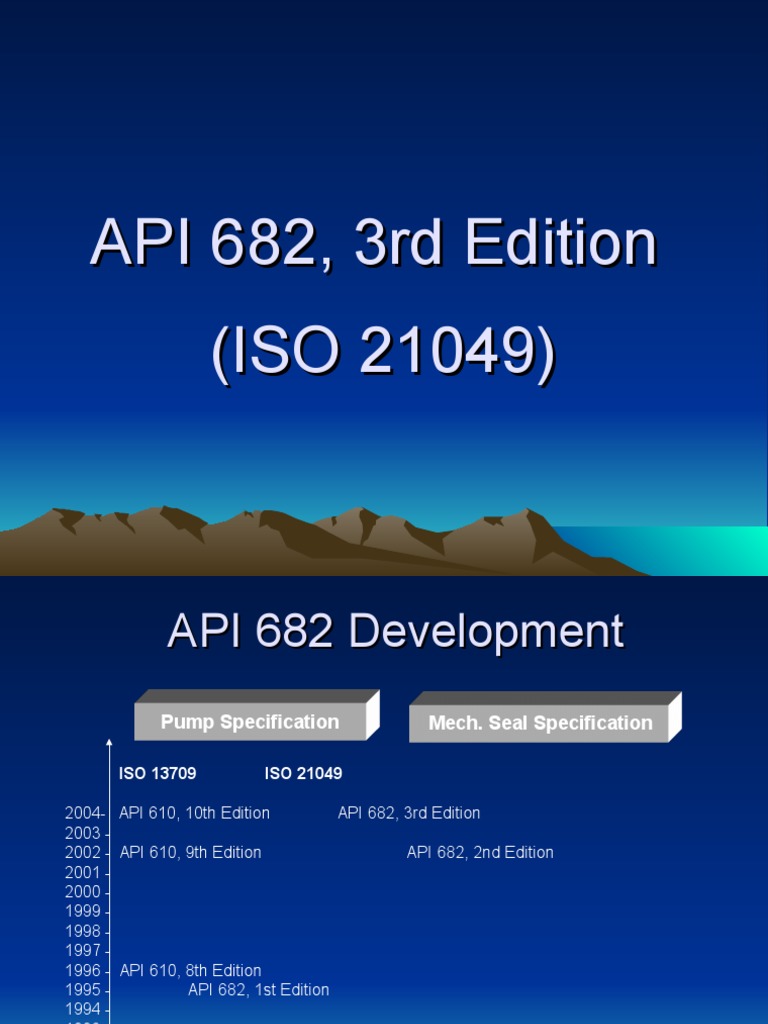

API 682, 3rd Edition
(ISO 21049)
API 682 Development
Pump Specification
ISO 13709
20042003 2002 2001 2000 1999 1998 1997 1996 1995 1994 1993 1992 1991 1990 -
ISO 21049
API 610, 10th Edition
API 610, 9th Edition
API 610, 8th Edition
API 682, 1st Edition
API 610, 7th Edition
Mech. Seal Specification
API 682, 3rd Edition
API 682, 2nd Edition
Scope API 682 - General
API 682
is a
guideline
for the minimum requirement for
Shaft Sealing Systems
for Centrifugal and Rotary Pumps
used in
petroleum, natural
gas & chemical industry
API 682 3rd Edition
Contents
Scope
Design Requirements
Flushing Plans
Scope
General
Seal Categories
Seal Types
Seal Arrangements
Design and Sealing Methods
Seal Orientations
Seal Configurations
Objectives
Scope - General
API682 covers seals for shaft diameters
from
to
20 mm (0,75 in)
110 mm (4,3 in)
Scope - Seal Categories
Category 1
For non- API610 Seal Chambers
Temperatures from -40 C (-40 F) to 260 C (500 F)
Absolute Pressures up to 22 bar (315 psi)
Scope - Seal Categories
Category 2
For API 610 Seal Chambers
Temperatures from -40 C (-40 F) to 400 C (750 F)
Absolute Pressures up to 42 bar (615 psi)
Scope - Seal Categories
Category 3
Must meet full specification (incl. documentation)
For API 610 Seal Chambers
Temperatures from -40 C (-40 F) to 400 C (750 F)
Absolute Pressures up to 42 bar (615 psi)
Scope - Seal Categories
Scope - Seal Types
Type A
Balanced
inside-mounted
cartridge
pusher
multiple springs
flexible element rotating
secondary sealing by elastomeric o-rings
Drawing
Scope - Seal Types
Type B
Balanced
inside-mounted
cartridge
non-pusher (metal bellows)
flexible element rotating
secondary sealing by elastomeric o-rings
Drawing
Scope - Seal Types
Type C
Balanced
inside-mounted
cartridge
non-pusher (metal bellows)
flexible element stationary
secondary sealing by flexible graphite
Drawing
Scope - Seal Arrangements
ISO 21049 covers 3 Arrangements:
Arrangement 1:
one seal per cartridge assembly
Drawing
Arrangement 2:
two seals per cartridge assembly
with a containment seal chamber at pressure less
than the seal chamber pressure
Drawing
Arrangement 3:
two seals per cartridge assembly
with externally supplied barrier fluid at a pressure
greater than the seal chamber pressure
Drawing
Scope Seal Methods
Contacting Wet Seals (CW)
Seal Faces not Designed to Create Aerodynamic and
Hydrodynamic forces to sustain Seperation Gap.
Non-contacting Seals (wet or dry, NC)
Seal Faces Designed to Create Aerodynamic and
Hydrodynamic forces to sustain Seperation Gap.
Containment Seals (Contacting or Non-contacting,
CS)
Scope - Seal Orientations
API 682 covers 3 orientations for
Arrangements 2 & 3:
Face-to-Back
Drawing
(arr.2 default selection & arr. 3 wet seals)
Back-to-Back
(arr. 3 default for gas seals; option for wet seals)
Face-to-Face
(arr.3 optional selection for wet or gas seals)
Drawing
Scope - Seal Configurations
Scope - Objectives
Inner seals should run for at least 25000 hours
Arrangement 1 seals should not allow more than 1000
ml/m (1000 ppm vol) of emission leakage
concentrations
containment seals should run
- for at least 25000 hours for absolute pressures less
than 1,7 bar (25 psi)
- for at least 8 hours at full seal chamber conditions
Design Requirements
General
Seal Chamber and Gland Plates
Cartridge Seal Sleeves
Mating Rings
Flexible Elements
Materials
Design Reqmts All Categories
General
Hook sleeves are excluded
Stationary seals for surface speeds exceeding 23 m/s
(4500 ft/min)
Seal flush rates calculated for max. 5 C (10 F)
temperature rise
O-ring sealing surfaces 1,6 m Ra (63 in Ra) for static
O-rings
O-ring sealing surfaces 0,8 m Ra (32 in Ra) for
dynamic O-rings
Design Reqmts All Categories
General (contd.)
Bores shall have a minimum 3 mm (0,12 in) radius or
- a minimum 1,5 mm (0,06 in) chamfered lead-in for
static O-rings
- a minimum 2,0 mm (0,08 in) chamfered lead-in for
dynamic O-rings
Chamfers shall have a maximum angle of 30
Positive retention of seal components in vacuum services
Design Requirements
Seal Chamber and Gland Plate
Minimum radial clearance between rotating
components and stationary surfaces shall be 3
mm (1/8 in), except circulation devices
Gland plates to be provided with holes (not slots)
A shoulder to be provided, minimum 3 mm (1/8
in) thick, against dislodging of stationary
elements
Design Requirements
Seal Chamber and Gland Plate (cont.)
Seal chamber face run out up to 0,5 m/mm (0,0005in/in)
Minimum ratio of seal chamber pressure to fluid vapour
pressure of 1,3 : 1 or a 20 C (36 F) product temperature
margin (not for containment seals)
Gland plate and seal chamber connections to be
permanently marked
Seal chambers designed for complete venting before startup
Design Requirements
Seal Chamber and Gland Plate (cont.)
Diametrical clearance for fixed bushings max. 0,635 mm
(0,025 in) for sleeve diameters up to 50 mm (2 in). For
larger diameters, 0,127 mm (0,005 in) to be added for
each additional 25 mm (1 in) of diameter or fraction
thereof
For floating bushings:
Design Requirements
Cartridge Seal Sleeves
Shaft-to-sleeve diametrical clearance to be E7/h6
Seal sleeve to extend beyond the outer face of the gland
plate
Concentricity of seal sleeve to be 25 m (0,001 in) bore /
OD
Shoulder to be provided for positively locating the
rotating element
2-piece seal sleeves allowed for Arrangements 2 and 3
Design Requirements
Cartridge Seal Sleeves (cont.)
Seal sleeve thickness to be 2,5 mm (0,100 in) minimum
In the area of component drive set screws:
Design Requirements
Mating Rings
Anti-rotation devices to be designed for minimum
distortion of the seal faces
No clamped faces
No common mating ring allowed for Arrangement 2 and
3 seals
Design Requirements
Flexible Elements
Multiple coil springs to be provided
No static lapped joints for sealing allowed
Design Requirements
Materials
Category 1 Category 2 Category 3
Mech. Seal Face
Mating Ring
Hard / Hard
Secondary elements
Springs
Bellows
Sleeves
Housing
Carbon
Carbon
SSSiC
RBSiC
(Buka 22)
(Buka 20)
SSSiC/
RBSiC/
SSSiC
RB SiC
Fluoroelastomer
Perfluoroelastomer
(altern.: TFE, Nitrile ..)
Flexible graphite
Alloy C-276 or Alloy C-4
(single: SS 316 or 1.4571)
Alloy C.276 (Type B)
Alloy 718 (Type C)
SS 316 or 1.4571
SS 316 or 1.4571
Carbon
RBSiC
(Buka 20)
RBSiC/
RBSiC
Flushing Plans
Flush plan: 11
Flushing Plans
Flush plan: 13
Flushing Plans
Flush plan: 23
Flushing Plans
Flush plan: 32
Flushing Plans
Flush plan: 53A
Drawing
Flushing Plans
Flush plan: 53B
Flushing Plans
Flush plan: 53C
Flushing Plans
Flush plan: 71
Flushing Plans
Flush plan: 72
Flushing Plans
Flush plan: 74
Flushing Plans
Flush plan: 75
Flushing Plans
Flush plan: 76
Mechanical Seal Type
Type A
Arrangement 1
API 682 Code: C2A1A1161
Mechanical Seal Type
Type A
Arrangement 2 or 3
API 682 Code: C2A2A1152 or
C2A3A1153
Mechanical Seal Type
Type B
Arrangement 1
API 682 Code: C2A1B1161
Mechanical Seal Type
Type B
Arrangement 2 and 3
API 682 Code:
C2A2B1152 or
C2A3B1153
Mechanical Seal Type
Type C
Arrangement 1
API 682 Code:
C2A1C0262
Mechanical Seal Type
Type ES
Arrangement 1
API 682 Code: ESA1A1161
Mechanical Seal Type
Type ES
Arrangement 1
API 682 Code: ESA1C0262
Guide Sleeve
Mechanical Seal Type
Type A
Guide Sleeve
Arrangement 2 & 3
Accessories
To flare
Flange ANSI
3/4 600 lbs RF
Plan 52
PI
PSH
LSH
From Seal
3/4 NPT
LSL
To Seal
3/4 NPT
MECHANICAL
SEAL
Cooling
1/2 NPT
Drain
3/4 NPT
Accessories
Plan 53a
Nitrogen Pressurisation
Flange ANSI
3/4 600 lbs RF
PI
PSL
From Seal
3/4 NPT
LSL
To Seal
3/4 NPT
MECHANICAL
SEAL
Cooling
1/2 NPT
Drain
3/4 NPT
Mechanical Seal Codes
First letter:
Second letter:
Third letter:
Fourth letter(s):
Seal Category (C1, C2 or C3)
Seal Arrangement (A1, A2 or A3)
Seal Type (A, B, C)
Flush Arrangement
Example C2A1A1161:
C1
= Category 2 (to ISO 13709)
A1
= Arrangement 1 (single seal)
A
= Type A (pusher seal)
1161
= Plans 11 and 61
Any
Questions ?
THANK YOU
