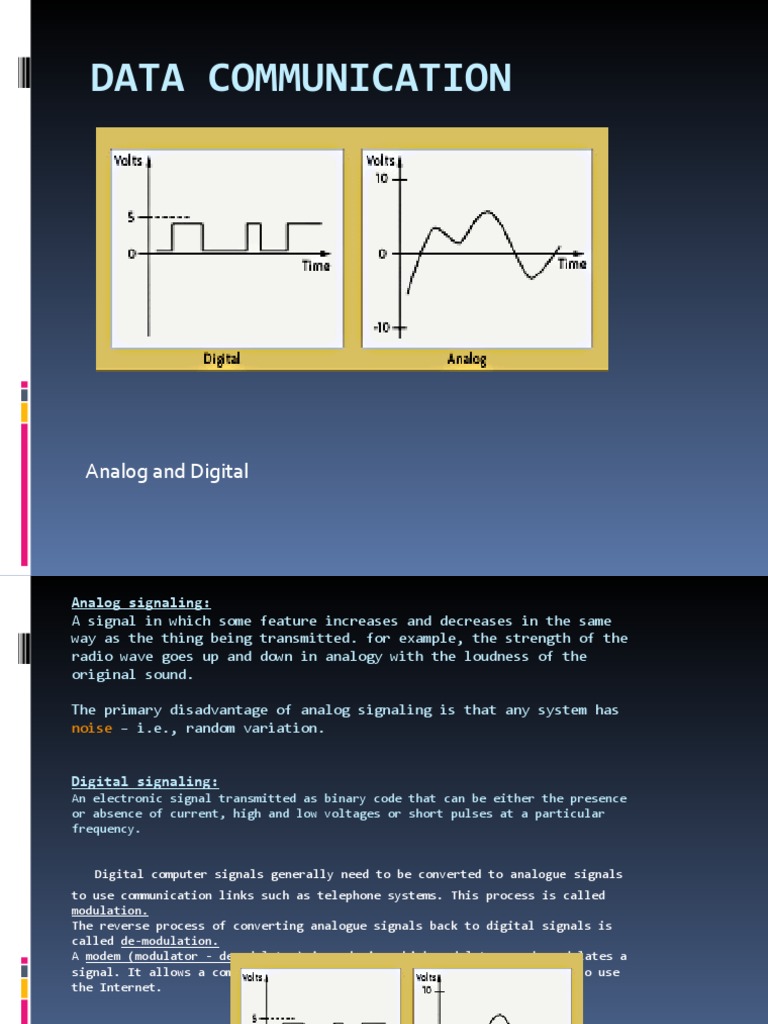

Digital signaling:
An electronic signal transmitted as binary code that can be either the presence
or absence of current, high and low voltages or short pulses at a particular
frequency.
I. Amplitude
The amplitude is the power of a signal. The greater the amplitude, the greater
the energy carried. On a wave graph, the amplitude is essentially the height
of the wave.
Example - The wave has an amplitude of 5 volts at .25 seconds and an amplitude
of 0 volts at .5 seconds.
II. Frequency
Frequency is the number of times that a signal’s amplitude cycles from its
starting point
to its highest or lowest amplitude, then to its lowest or highest amplitude
and back to its starting amplitude over a fixed period of time. Frequency is
expressed in cycles per second, or hertz (Hz).
The wave cycles to its highest then lowest amplitude and returns to its
starting point once in 1 second. Thus, the frequency of that wave would be 1
cycle per second, or 1 Hz.
III. Wavelength
The distance between corresponding points on a wave’s cycle is called its
wavelength, Wavelengths are expressed in meters or feet. A wave’s wavelength is
inversely proportional to its frequency. In other words, the higher the
frequency, the shorter the wavelength.
IV. Phase
The term Phase refers to the progress of a wave over time in relationship to a
fixed point.
Simplex –
A type of data transmission where data travels in only one direction. For
example, a print job is only sent from the computer to the printer.
Half-duplex –
Transmission can be in both directions but only one direction at a time.
E.g. Most speakerphones are half-duplex and only allow one way communication.
Full-duplex –
Simultaneous transmission of data in both directions is possible.
E.g. Telephones are full-duplex devices and allows both people to talk
at the same time.
Asynchronous –
Also known as a start/stop transmission, asynchronous is a type of data
transmission where the communication can start and stop at any time. Data sent
through an asynchronous transmission contains a start bit and stop bit, helping
the receiving end know when it has received all of its data.
Narrowband transmission -
Generally speaking, a narrowband transmission refers to a data transfer that
has a slow or small transfer rate. When referring to wireless transmission, a
Wideband transmission -
In general, a wideband transmission is more commonly known as a broadband transmission.
When referring to a wireless transmission, a wideband signal refers to a signal capable of
being distributed over a wide area.
Multiplexing Techniques
Multiplexing is the process where multiple channels are combined for transmission over a
common transmission path.
Types of Multiplexing:
Time Division Multiplexing(TDM):- TDM divides a channel into multiple intervals of time,
or time slots. It then assigns separate time slots to each node of network and carries
data from that node.
Statistical Multiplexing:- It is similar to TDM but rather than assigning time slot to
each node it assigns time slots according to the priority.
Transmission Flaws:-
1. Electromagnetic Interference(EMI)
2. Radiofrequency Interference(RFI)
