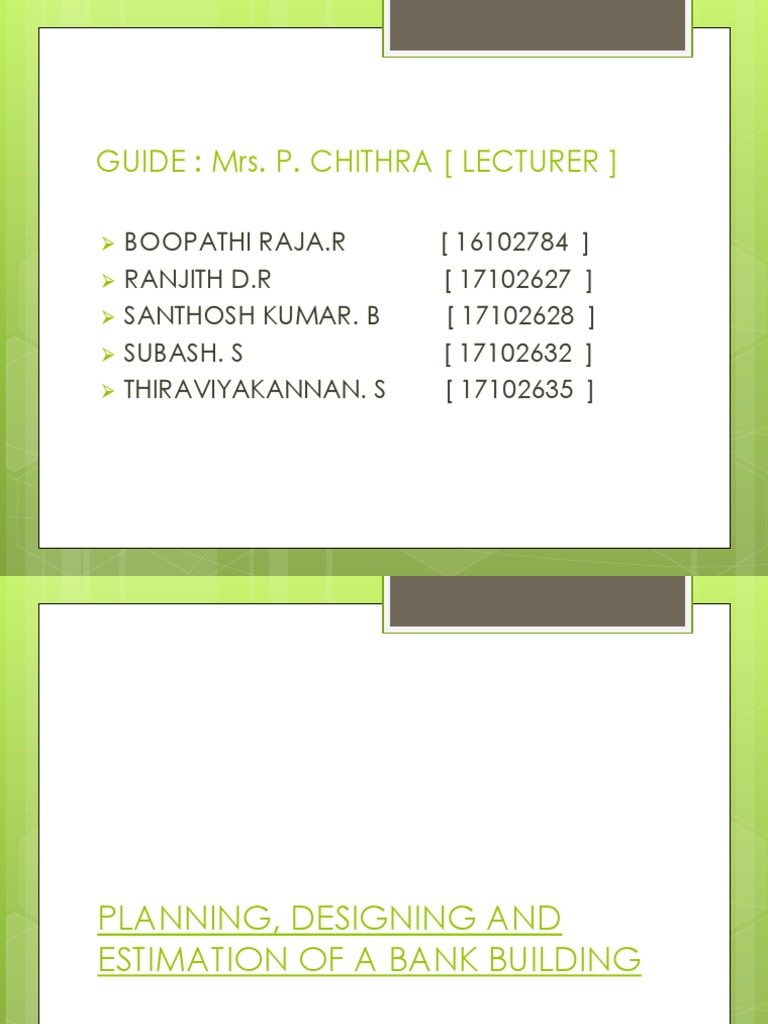

GUIDE : Mrs. P.

CHITHRA [ LECTURER ]

 BOOPATHI RAJA.R [ 16102784 ]

 RANJITH D.R [ 17102627 ]
 SANTHOSH KUMAR. B [ 17102628 ]
 SUBASH. S [ 17102632 ]
 THIRAVIYAKANNAN. S [ 17102635 ]
PLANNING, DESIGNING AND
ESTIMATION OF A BANK BUILDING
 SYNOPSIS
PLANNING, DESIGNING AND
ESTIMATION OF BANK BUILDING.
It is proposed to construct a BANK BUILDING
with all amenities at Vilankuruchi. This site is
situated at COIMBATORE .
It is consist of ground floor. It is designed in a
FRAMED STRUCTURE by LIMIT STATE METHOD
Of design according to the is code book of
Practise is followed for designing of slab and
beam.
M20 Grade of concrete and Fe 415 grade
of steel are used. The super structure shall
be in BRICK WORK in CM 1:6 . All the
external openings are provided with lintel
cum sunshade. A separate septic with
dispersion is provided. This project enables
in establishing with sufficient water supply,
fire safety, electric work and proper rain
water harvesting system.
The total area of the proposed building is 372 m2.
The rate of per m2 is 20,000/-
ESTIMATION COST;
The approximate estimation is Rs.74,40,000/-
SPECIFICATION:
SUB STRUCTURES:

 FOOTING:
The footing shall be Reinforced cement
concrete 1:1.5:3 using river sand, 40mm
aggregates.
 COLUMN:
The column shall be R.C.C using M20
grade of concrete, Fe 415 steel, river sand and
20mm aggregates.
 FLOORING:
Flooring shall be with 1:1.5:3 using
40mm aggregate 100mm thick and finished
with CM.

SUPER STRUCTURES:

 RCC WORKS:
All R.c.c works shall be M20 grade
of concrete and Fe 415 steelusing 20mm
size aggregate and river sand for all
slabs,lintels,sunshades,plinth beam and
columns and RCC wall
 BRICK WORK:
All 230mm thick walls were
constructed using first class bricks and in
cement morter 1:6 and all 150 mm walls
constructed using first class brick and in
cement morter 1:5 and 300mm thick walls
constructed using RCC.
 PLASTERING:
The plastering of internal and
external exposed walls and concrete
surface shall be with CM 1:5,12mm thick
 WEATHERING COURSE:
Weathering course over the roof
using lime morter f 80mm thick.
 PAINTING:
Two coats of white washing is done for
ceiling,sunshade,internal and external surface
of walls.
 BUILDING SERVICES:
Building shall be services providing for
water supply , electricity, Installation, solar panel
and sanitary arrangements and other unfair
seen items.
 DESIGN OF TWO WAY SLAB

SPECIFICATION:
 Room size = 6 m x 6 m
 Concrete grade= M20
 Steel grade = Fe.415
 Wall thickness = 300mm
 Total thickness of slab = 150mm
 Effective depth of slab = 130mm
 Provide 10mm dia of bar at spacing of 250mm c/c
at mid span and support in both directions.
 DESIGN OF ONE WAY SLAB
 SPECIFICATION:
 Room size = 6.7 m x 2.65 m
 Concrete grade= M20
 Steel grade = Fe.415
 Wall thickness = 230mm
 (i)Total thickness of slab = 150mm
 (ii)Effective depth of slab = 130mm
(iii)Provide 10mm dia of bar at spacing of 300mmc/c at
mid span
(iv)Provide 8mm dia of bar at spacing of 280mm c/c at
mid span
  DESIGN OF BEAM

 DATA:

 Clean Span = 6000 m

 Width of support = 300 mm

 fck = 20 N/mm2

 fy = 415N/mm2

 slab load = 7.75 kn/m

Size of beam = 300mm x 435 mm
Tension reinforcement = Provide 4nos of 25mm dia
of bar at bottom
 DESIGN OF T- BEAM (SIMPLY SUPPORTED)

 L=6700mm
 i)Effective depth of Beam(d) =450mm
 ii)Total depth of Beam(D) =483mm
 iii)Reinforcement details = 1683.75mm2
 DESIGN OF column
DATA:
L =3000
 Column size= 300mmx 300mm
 SIZE OF COLUMN=300mm X 300mm
 LONGITUDINAL REINFORCEMENT= provide
12mm diameter of rod 4 nos
 LATERAL REINFORCEMENT = provide 6mm dia at
spacing 190 mm
  DESIGN OF LINTEL
 GROUND AND FIRST FLOOR:

 DATA:
 Assume lintel size :
 Breadth of lintel = 300mm = 0.3m
 Depth of lintel = 150mm = 0.15m
 Window open = 1.5 m= 1500mm
 Grade of concrete (fck) = 20N/mm2
 Grade of steel (fy) = 415N/mm2
 Width of support = 230mm
 Size of beam = 300mm x 150 mm
 Tension reinforcement = Provide 2nos of 8mm
dia of bar at bottom
 Stirrups = Provide 8mm bar at spacing
of 90mm c/c.
 DESIGN OF STAIRCASE:
 Data:
 No. of steps in the flight = 10
 Tread (T) = 250 mm
 Rise (R) = 150 mm
 Concrete grade = M20
 Steel grade = Fe.415
 FOOTING:
Size of footing = 2500mm x
2500mm
Effective depth, d = 560mm
Total depth, D = 620mm
Reinforcement details = provide
10 bars of 16mm diameter

THANK YOU…
