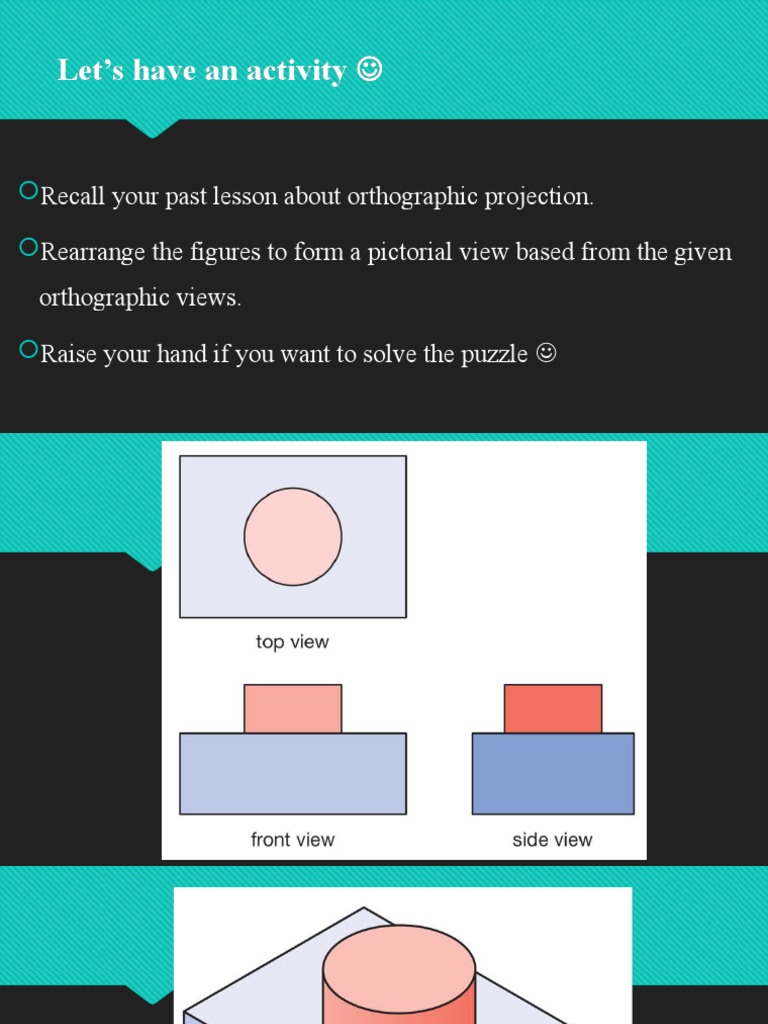

Let’s have an activity 

Recall your past lesson about orthographic projection.

Rearrange the figures to form a pictorial view based from the given
orthographic views.

Raise your hand if you want to solve the puzzle 

TOP VIEW

SIDE VIEW

FRONT VIEW
What is the significance or importance of understanding
pictorial drawing?
What is the significance or importance of understanding
pictorial drawing?

Pictorial Drawing is used to communicate ideas which cannot be

easily described in words. It is used by engineers, architects and all
types of designers and drafters to illustrate the size, shape and form
of an object. It allows the designer to draw an object in three
dimensions.
AXONOMETRIC DRAWING
Axonometric Drawing

Is a pictorial drawing which shows the front,

side, and top faces of an object in one view.
AXONOMETRIC DRAWING
Top View

Front View Side View

Three Divisions of Axonometric Drawing

1.Isometric

2.Dimetric

3.Trimetric
 Principles of Axonometric Drawing

 Isometric Drawing – all receding edges are 30 degrees.

 Dimetric Drawing – one receding edge is 15 degrees and the other

one is 45 degrees.

 Trimetric Drawing – all receding edges are 15 degrees.

Note: Receding – from the root word ‘recede’, it means to go or move back or further away from a
previous point or position.
 Isometric Drawing :

 Isometric means ‘having equal measure’.

 The lengths are projected at 30º to the horizontal.

 All the heights are projected vertically upwards.

 Using your 30/60 triangle or your protractor, project the

isometric axis at 30º.

 Find the start point of the drawing and project a vertical

line upwards, this is your vertical axis.
Example: Given this figure, construct an isometric drawing. Follow
the steps in creating isometric drawing.

24” 12”

12”

24”
 Dimetric Drawing :

 The lengths are projected at 15 degrees and the other one

is 45 degrees to the horizontal.

 All the heights are projected vertically upwards.

45 15
 Trimetric Drawing :

 The lengths are projected at 15 degrees to the horizontal.

 All the heights are projected vertically upwards.

15 15
 Activity By Group:

Draw the axonometric drawing of the given figure on your group.

Please follow group instruction. Scale or measure is given. You are
given only 10 minutes to perform this task. This activity is worth
50 points.
Group 1: Given the figure below, construct an isometric drawing.

12”
24”

12”
6”
Group 2: Given the figure below, construct a dimetric drawing.

12”
24”

12”
6”
Group 3: Given the figure below, construct a trimetric drawing.

10” 10”

2”

10”

2”
Group 4: Given the figure below, construct an isometric drawing.

10” 10”

2”

10”

2”
Group 5: Given the figure below, construct a dimetric drawing.

12” 12”

4”
12”

4”
4”

4”

4”
Group 6: Given the figure below, construct a trimetric drawing.

12” 12”

4”
12”

4”
4”

4”

4”
 Short Quiz :
Give what is asked in each item.

______________1. It is a pictorial drawing which shows the front, side and top faces of an
object in one view.

______________2. All receding edges in this drawing is 15 degrees.

______________3. In this drawing, one receding edge is 15 degrees and the other one is 45
degrees.

______________4. All receding edges in this drawing is 30 degrees.

______________5. It means having equal measure.

 Answers:

1. Axonometric Drawing

2. Trimetric

3. Dimetric

4. Isometric

5. Isometric
