Abrha T.
University of Gondar
Department of Electrical and Computer Engineering
abrhadbu@gmail.com
05/26/2021 ECEg4155 : ch-2-
abrhaeitm@gmail.com
|Year IV semester I |Control and Power stream | Abrha T.

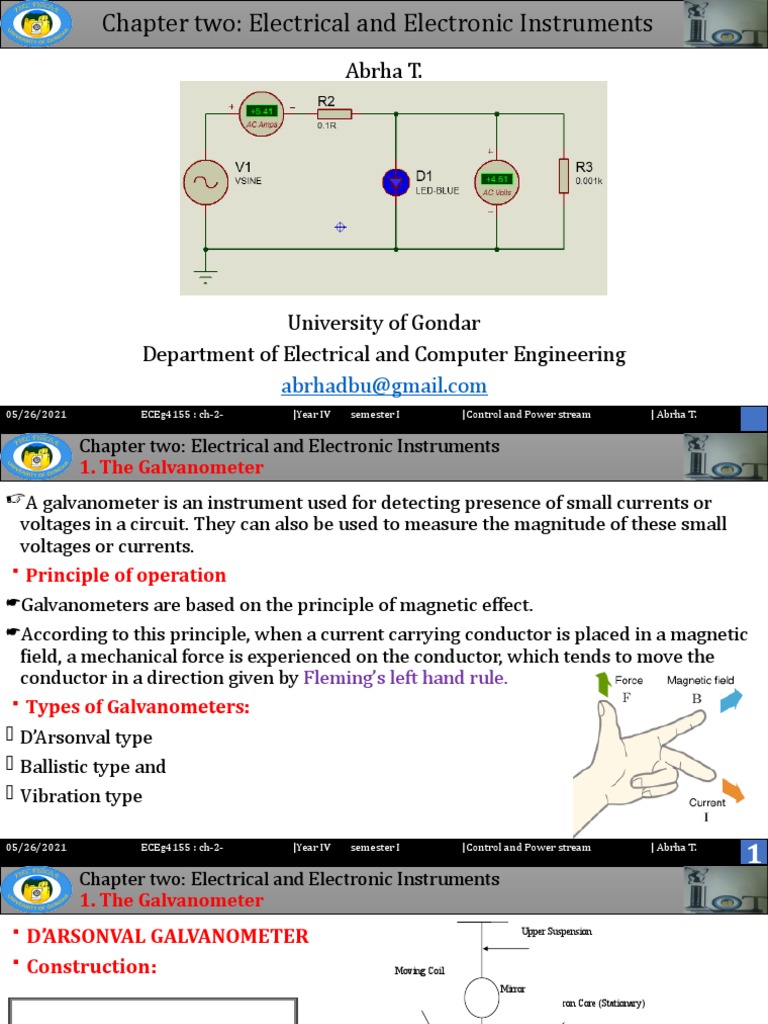

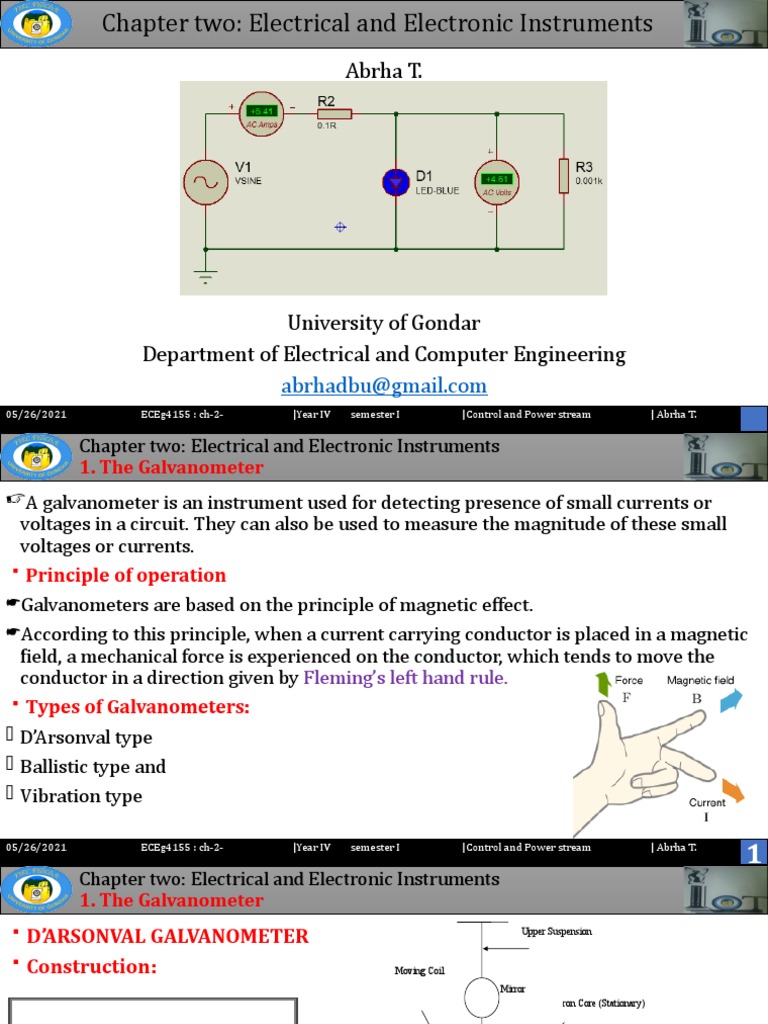

Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
A galvanometer is an instrument used for detecting presence of small currents or
voltages in a circuit. They can also be used to measure the magnitude of these small
voltages or currents.
xPrinciple of operation
Galvanometers are based on the principle of magnetic effect.
According to this principle, when a current carrying conductor is placed in a magnetic
field, a mechanical force is experienced on the conductor, which tends to move the
conductor in a direction given by Fleming’s left hand rule.
xTypes of Galvanometers:
D’Arsonval type
Ballistic type and
Vibration type
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
1
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
xD’ARSONVAL GALVANOMETER Upper Suspension
N l S
Permanent Magnet
d
Former
Fig.1
Lower Suspension
D’Arsonval
Galvanometer
construction
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream |Abrha T.
2
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
Moving Coil
It is the current carrying element.
It is either rectangular or circular in shape and consists of a number of turns of fine
wire.
The coil is suspended so that it is free to turn about its vertical axis of symmetry.
It is arranged in a uniform, radial, horizontal magnetic field in the air gap between pole
pieces of permanent magnet and iron core.
Iron core
The iron core is spherical in shape if the coil is circular and cylindrical if the coil is
rectangular.
The iron core is used to provide a flux path of low reluctance and hence provides a
strong magnetic field for the coil to move in.
This increases the deflecting torque and hence the sensitivity of galvanometer.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
3
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
Metal former
The moving coil is mounted on the metal former.
The metal former provides the required damping torque.
The damping torque is produced due to the eddy currents developed in the
metal former.
Damping can also be achieved by connecting a low resistance across the
galvanometer terminals.
Zero setting
A torsion head is provided for adjusting the position of the coil and also for
zero setting.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
4
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
Suspension
The coil is supported by a flat ribbon suspension, which carries the current to coil.
The other current connection is a coiled wire, also called the lower suspension.
The galvanometer must be leveled carefully so that the coil hangs straight and
centrally without rubbing the poles or the soft iron cylinder.
The upper suspension consists of gold or copper wire of nearly 0.0125 or 0.025
mm diameter, rolled into the form of ribbon.
The controlling torque is usually provided by these suspensions.
Indication
The upper suspension carries a small mirror upon which a beam of light is cast.
The beam of light is reflected on to a scale upon which the deflection is measured.
The scale is usually about 1m away from the instrument.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
5
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
xTorque equation
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
6
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
xTorque equation
If the deflection is measured on an mm scale kept 1 meter away, then the
deflection (d) is given by:
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
7
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
• Damping in D’Arsonval Galvanometer
Damping is the dissipation of energy of rotation. Damping is achieved in D’Arsonval
galvanometers by two methods:
Mechanical damping and
Electro-magnetic damping
Mechanical damping
Mechanical damping is due to the friction produced due to the movement of moving coil
in the air between the magnets. The damping torque due to mechanical effects is given by:,
where Dm is the damping constant.
Electromagnetic damping
The electromagnetic damping is due to:
Eddy currents produced in metal former and
Current circulated in the coil circuit by emf generated in the coil when it rotates
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
8
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
• Damping in D’Arsonval Galvanometer
Electromagnetic damping
Damping due to eddy currents produced in metal former is given by
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
9
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
• Damping in D’Arsonval Galvanometer
Total damping
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
10
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
• Damping
in D’Arsonval Galvanometer
The electromagnetic damping may be classified as open circuit damping and damping due to
coil circuit resistance.
The damping effects produced by friction, elastic hysteresis, and eddy currents in metal
former are always present whether the galvanometer circuit is closed or not and hence the
damping produced by these effects is called open circuit damping.
The damping effect produced by current flowing in the coil is present only when the circuit is
closed.
Let,
Where
R is the Resistance of galvanometer circuit when closed
Rgis the Resistance of galvanometer coil
R e is the External ECEg4155
resistance required|Year
forIVdamping
05/26/2021 : ch-2- semester I |Control and Power stream | Abrha T.
11
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
Critical Resistance
It is defined as the resistance of the galvanometer circuit to ensure that the system is
critically damped.
The mechanical damping effects are small compared to electromagnetic damping, and
hence can be neglected.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
12
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
Sensitivity of galvanometer:
The sensitivity of galvanometer is expressed in many ways, such as:
Current sensitivity
Voltage sensitivity and
Mega ohm sensitivity
Current Sensitivity
The current sensitivity of a galvanometer is defined as the deflection produced by unit
current.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
13
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
• Voltage Sensitivity:
The voltage sensitivity is the deflection per unit voltage
But
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
14
Chapter two: Electrical and Electronic Instruments
1. The Galvanometer
• Mega-ohm Sensitivity:
It is the resistance of the circuit (MΩ) so that the deflection will be 1 scale division with 1
volt supplied to the circuit.
Mega-ohm sensitivity,
The scale divisions are usually in mm, so
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
15
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
The PMMC instrument is the most accurate type for D.C
measurement.
xPrinciple:
When a current carrying conductor is placed in a magnetic field, a
mechanical force is experienced on the conductor, which tends to
move the conductor in a direction given by Fleming’s left hand rule.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
20
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Ammeter shunts for extension of range of ammeters:
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
21
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Ammeter shunts for extension of range of ammeters:
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
22
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Effect of temperature changes:
As the temperature changes, the resistance of the coil changes, leading to errors in the readings. To
overcome this problem, the following arrangement is used:
Here a ‘swamping resistance’ (Rsw) of Manganin
(negligible temperature coefficient) having a
resistance 20 to 30 times the coil resistance is
connected in series with the coil and a shunt of
Manganin is connected across this combination.
As copper (moving coil material) forms only
a small portion of the series combination,
the current division doesn’t get affected
by change in temperature.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
23
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range ammeters:
The current range can be extended by using many shunts in parallel to the movement.
Depending on range, the shunt required can be selected by a range switch.
Switch (S)
Let m1, m2, m3and m4 be the shunt multiplying power for currents I1, I2, I3 and I4
respectively. Then,
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
24
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range ammeters:
Switch (S)
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
25
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Another arrangement used for extension of range of ammeter is the Universal
Ayrton Shunt shown below:
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
26
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Ayrton Shunt …… cont’d
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
27
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Ayrton Shunt …… cont’d
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
28
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
PMMC voltmeter
Next Class
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
29
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
PMMC voltmeter
A D’Arsonval basic movement is converted into a voltmeter by connecting a series
resistance with it.
This series resistance is known as a multiplier.
The combination of meter movement and multiplier is put across the circuit whose
voltage is to be measured. I m
v
Im = Ifs= full scale deflection current of meter
Rm
Supply Voltage (V)
Rm = meter resistance Load
Rs = multiplier resistance
Rs(Multiplier)
V = full range voltage of instrument
v = voltage across meter for current Im
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
30
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
• PMMC voltmeter------cont’d
• Let
From the figure above
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
31
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range D.C voltmeters
The voltmeters can be used for multi-ranges by any one of the methods
described below:
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T..
32
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range D.C voltmeters--cont’d
•
Rs1 Rs2 Rs3 Rs4
Switch (S)
Rm
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
33
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range D.C voltmeters--cont’d
Potential divider arrangement
•
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
34
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range D.C voltmeters--cont’d •
Potential divider arrangement
Similarly,
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
35
Chapter two: Electrical and Electronic Instruments
2. Permanent Magnet Moving Coil instrument (PMMC)
Multi-range D.C voltmeters Example
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
35
Chapter two: Electrical and Electronic Instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
38
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
Arithmetic Mean: When a set of readings of an instrument is taken, the individual
readings will vary somewhat from each other, and the experimenter is usually concerned
with the mean of all the readings.
If each reading is denoted by xi and there are n readings, the arithmetic mean is given by
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
39
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
40
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
41
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
42
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
43
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
44
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream |Abrha T.
45
Chapter One: Basics of Measurement and Instrumentation
Statistical Analysis of Experimental Data
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
46
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
47
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
48
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
Environmental effects
In general, the output O depends not only on the signal input I but on
environmental inputs such as ambient temperature, atmospheric
pressure, relative humidity, supply voltage, etc.
Thus if adequately represents the behavior of
the element under ‘standard’ environnemental conditions, e.g.
20 °C ambient temperature
1000 millibars atmospheric pressure
50% RH and
10 V supply voltage
then the equation must be modified to take account of deviations in
environmental conditions from ‘standard’.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
49
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
• Environmental effects --- CONT’D
There are two main types of environmental input.
Modifying input :-causes the linear sensitivity of an element to change.
K is the sensitivity at standard conditions when = 0.
If the input is changed from the standard value, then IM is the deviation from standard
conditions, i.e. (new value –standard value).
The sensitivity changes from K to K + , whereis the change in sensitivity for unit change in .
Interfering input :- causes the straight line intercept or zero bias to change.
a is the zero bias at standard conditions when = 0.
If the input is changed from the standard value, then is the deviation from standard
conditions, i.e. (new value –standard value).
The zero bias changes from a to a + , where is the change in zero bias for unit change in.
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
50
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
Environmental effects --- CONT’D
The equation is then modified as
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
51
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
52
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
53
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
54
Chapter One: Basics of Measurement and Instrumentation
Static characteristics of instruments
05/26/2021 ECEg4155 : ch-2- |Year IV semester I |Control and Power stream | Abrha T.
55
