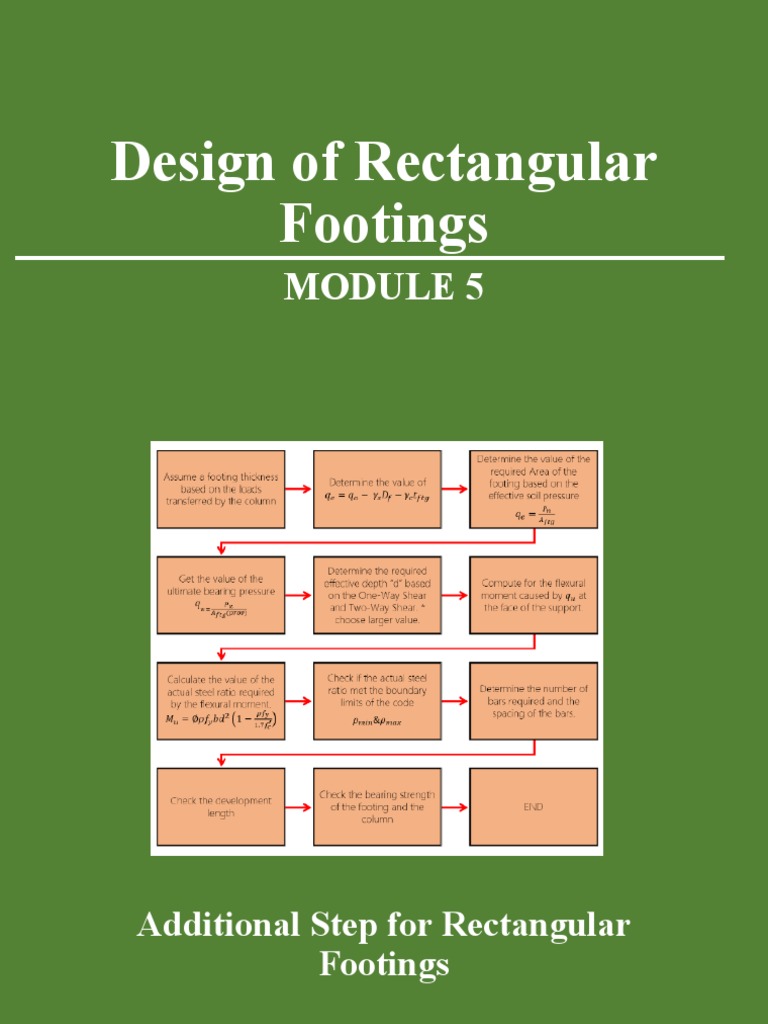

Footings MODULE 5 Additional Step for Rectangular Footings
Determine how many reinforcing bars along the short
direction (transverse reinforcement) should be in the center band / band width of the footing. You may have to add one bar in case the number of bars outside band width are not balanced. Additional Step for Rectangular Footings Additional Step for Rectangular Footings NSCP Provision:
415.5.4.2 For reinforcement in short direction, a portion of the total
reinforcement YsAs given by the equation below shall be distributed uniformly over a band width (centered on center line of column or pedestal) equal to the length of short side of the footing. Remainder of reinforcement required in short direction, (1-Ys)(As) shall be distributed uniformly outside center band width of footing.
Where β is ratio of long to short sides of footing.
Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar. Design a rectangular footing which is required to carry a 450-mm square column which carries a dead load (excluding weight of the footing) of 825 kN and a live load of 668 kN. The length of the long side is equal to twice the length of the short side. Assume thickness of footing = 650 mm, normal weight concrete, qa = 192 kPa, γs = 15.74 kN/m3, γc = 23.5 kN/m3, Df = 1.5 m, f’c = 28 MPa, fy = 415 MPa. Use 25-mm dia. main bar.
