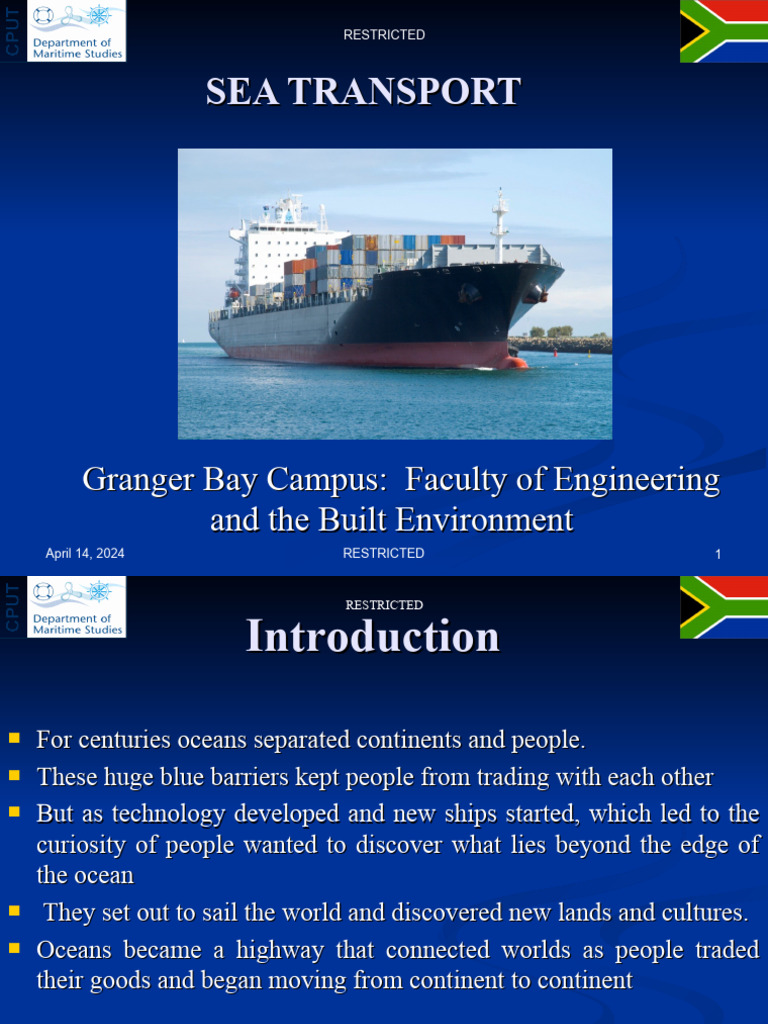

RESTRICTED

SEA TRANSPORT

Granger Bay Campus: Faculty of Engineering

and the Built Environment
April 14, 2024 RESTRICTED 1
 RESTRICTED

Introduction
 For centuries oceans separated continents and people.
 These huge blue barriers kept people from trading with each other
 But as technology developed and new ships started, which led to the
curiosity of people wanted to discover what lies beyond the edge of
the ocean
 They set out to sail the world and discovered new lands and cultures.
 Oceans became a highway that connected worlds as people traded
their goods and began moving from continent to continent

April 14, 2024 RESTRICTED 2

 RESTRICTED

Introduction (cont)
 Today sea transportation is very important as about 90% of all the
world’s international trade is carried out through sea.
 Compared to air and land, the transportation of heavy and bulky cargo
is more convenient by sea
 Currently there are more than 90 000 vessels in the world’s
commercial fleet.

April 14, 2024 RESTRICTED 3

 RESTRICTED

Introduction (cont)
 UNCTAD

April 14, 2024 RESTRICTED 4

 RESTRICTED

Introduction (cont)


April 14, 2024 RESTRICTED 5

 RESTRICTED

Introduction (cont)


April 14, 2024 RESTRICTED 6

 RESTRICTED

Introduction (cont)
ADVANTAGES OF SEA DISADVANTAGES OF SEA
 TRANSPORT TRANSPORT

Can be used to transport bulky goods Takes a lot of time to reach

more efficiently than any other forms destination
of transport
Transportation charges for the goods Risks of ocean disasters
may be lesser

Goods will suffer minimum amount Piracy are a major concern

of damage

Job creation Job creation long way from home

April 14, 2024 RESTRICTED 7

 RESTRICTED

Ship Terms & Positions

April 14, 2024 RESTRICTED 8

 RESTRICTED

Basic Terms

April 14, 2024 RESTRICTED 9

 RESTRICTED

Basic Terms

April 14, 2024 RESTRICTED 10

 RESTRICTED

Mooring Lines

April 14, 2024 RESTRICTED 11

 RESTRICTED

Ship Terms & Positions

Air
Draught

April 14, 2024 RESTRICTED 12

 RESTRICTED

Ship Terms & Positions

April 14, 2024 RESTRICTED 13

 RESTRICTED

Loadlines

April 14, 2024 RESTRICTED 14

 RESTRICTED

Loadlines

April 14, 2024 RESTRICTED 15

 RESTRICTED

Terminology
 Light Displacement: The weight of the ship’s hull, engines, spare
parts. Or is defined as the weight of the ship excluding cargo, fuel,
water, ballast, stores, passengers, crew, but with water in boilers to
steaming level.
 Load Displacement: is the weight of the ship’s hull including cargo,
passengers, fuel, water, stores, dunnage and such other items
necessary for use on a voyage.
 Deadweight (DWT): Difference between the light & loaded
displacements & represents the weight of cargo, stores, ballast, fw,
fuel, crew, passengers and dunnage.
 Cargo Deadweight: Cargo carrying capacity & this weight is obtained
by subtracting from the deadweight the weight of stores, ballast, FW,
etc.
April 14, 2024 RESTRICTED 16
 RESTRICTED

Terminology (cont)

April 14, 2024 RESTRICTED 17

 RESTRICTED

Terminology (cont)
 Baseline: The horizontal line drawn at the top of the keel plate.
 Length Overall (LOA): Length measured from the foremost point of the
stem to the aftermost point of the stern.
 Length Waterline: Length of the WL between the intersection of the
perpendicular to the moulded base line & the fore part of the stem, and
extreme aft plating.
 Forward perpendicular (F.P.): Is the line perpendicular to the moulded base
line and will pass through the intersection of the designed summer load WL
& the Fwd side of stem.
 Aft perpendicular (A.P.): Is the line perpendicular to the moulded base line
and will pass through the intersection of the designed summer load WL &
the after side of sternpost.

April 14, 2024 RESTRICTED 18

 RESTRICTED

Terminology (cont)
 Length Between Perpendiculars (L.B.P): Is the horizontal distance
measured on the summer load WL from the fore side of the stem to the after
side of the sternpost, or to the middle of the rudder stock, if the vessel has no
sternpost.

 Read through the other terminologies on your notes

April 14, 2024 RESTRICTED 19
 RESTRICTED

Terminology (cont)

April 14, 2024 RESTRICTED 20
