MEMB113/MEMB203 ENGINEERING GRAPHICS & CAE

LAB ASSIGNMENT

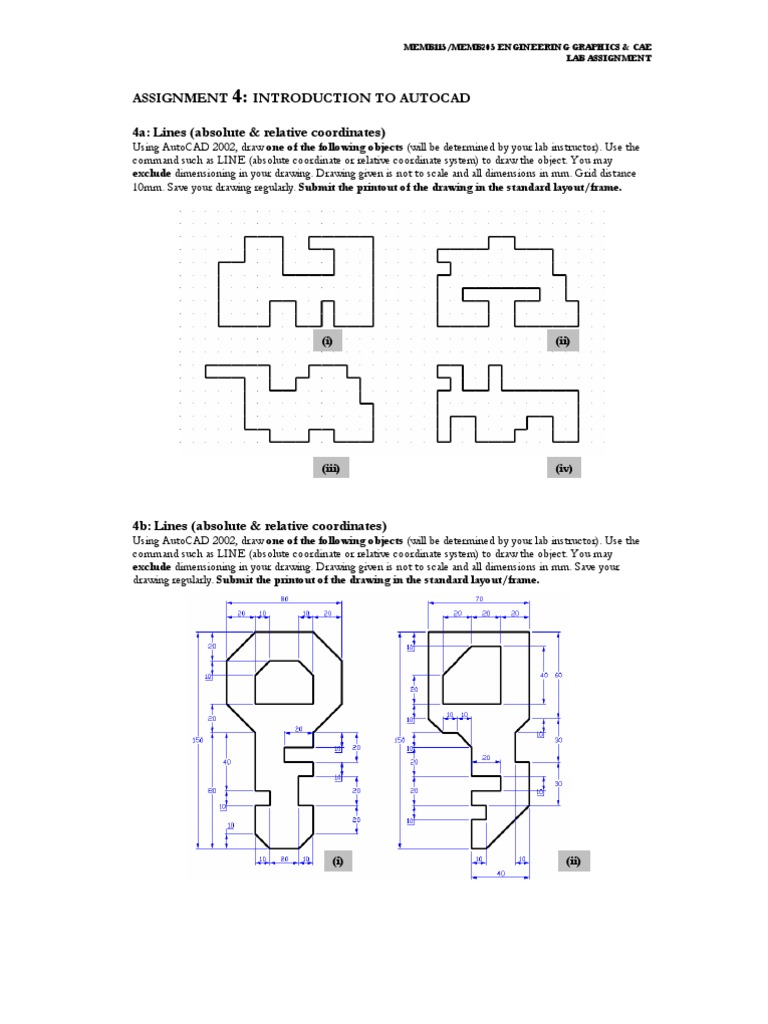

ASSIGNMENT 4: INTRODUCTION TO AUTOCAD

4a: Lines (absolute & relative coordinates)

Using AutoCAD 2002, draw one of the following objects (will be determined by your lab instructor). Use the
command such as LINE (absolute coordinate or relative coordinate system) to draw the object. You may
exclude dimensioning in your drawing. Drawing given is not to scale and all dimensions in mm. Grid distance
10mm. Save your drawing regularly. Submit the printout of the drawing in the standard layout/frame.

(i) (ii)

(iii) (iv)

4b: Lines (absolute & relative coordinates)

Using AutoCAD 2002, draw one of the following objects (will be determined by your lab instructor). Use the
command such as LINE (absolute coordinate or relative coordinate system) to draw the object. You may
exclude dimensioning in your drawing. Drawing given is not to scale and all dimensions in mm. Save your
drawing regularly. Submit the printout of the drawing in the standard layout/frame.

(i) (ii)
 MEMB113/MEMB203 ENGINEERING GRAPHICS & CAE
LAB ASSIGNMENT

4c: Lines (absolute & relative coordinates)

Using AutoCAD 2002, draw one of the following objects (will be determined by your lab instructor). Use the
command such as LINE (absolute coordinate or relative coordinate system) to draw the object. You may
exclude dimensioning in your drawing. Drawing given is not to scale and all dimensions in mm. Save your
drawing regularly. Submit the printout of the drawing in the standard layout/frame.

(i) (ii)

4d: Lines (polar coordinates)

Using AutoCAD 2002, draw one of the following object (will be determined by your lab instructor). Use the
command such as LINE (polar, absolute or relative coordinate system) to draw the object. You may exclude
dimensioning in your drawing. Drawing given is not to scale and all dimensions in mm. Submit the printout of
the drawing in the standard layout/frame.

(i) (ii)
