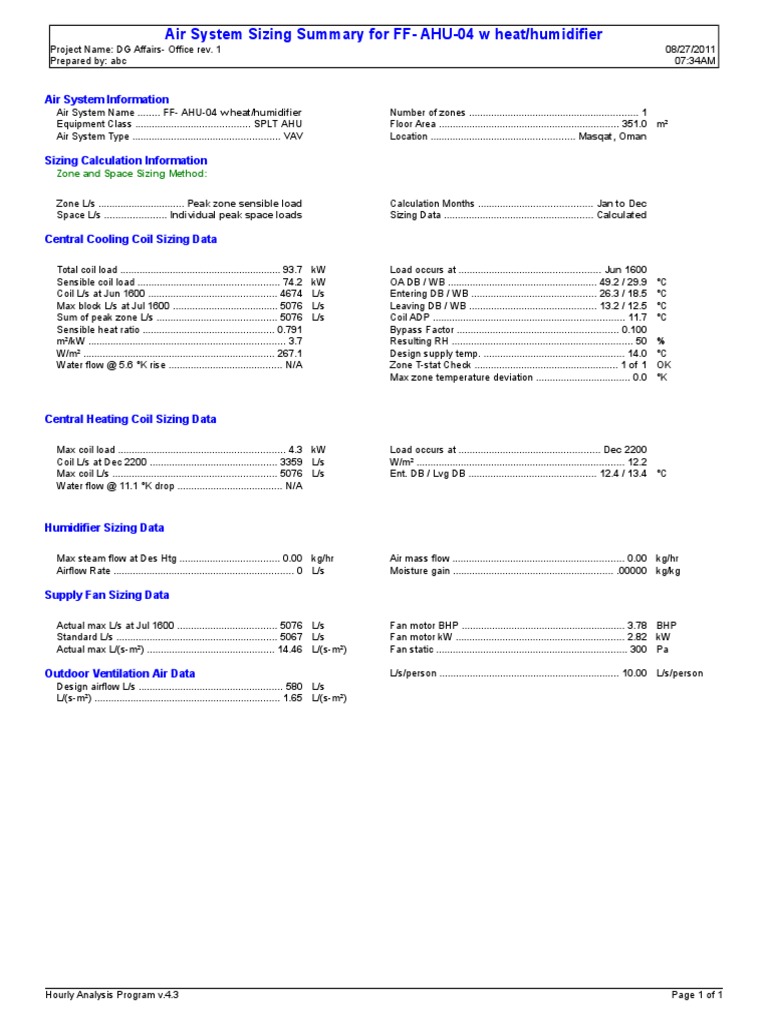

Air System Sizing Summary for FF- AHU-04 w heat/humidifier
Project Name: DG Affairs- Office rev. 1
Prepared by: abc
Air System Information
Air System Name ........ FF- AHU-04 w heat/humidifier
Equipment Class ......................................... SPLT AHU
Air System Type ..................................................... VAV
Sizing Calculation Information
Zone and Space Sizing Method:
Zone L/s ............................... Peak zone sensible load
Space L/s ...................... Individual peak space loads
Central Cooling Coil Sizing Data
Total coil load .......................................................... 93.7 kW
Sensible coil load ................................................... 74.2 kW
Coil L/s at Jun 1600 .............................................. 4674 L/s
Max block L/s at Jul 1600 ...................................... 5076 L/s
Sum of peak zone L/s ........................................... 5076 L/s
Sensible heat ratio ............................................... 0.791
m/kW ....................................................................... 3.7
W/m ..................................................................... 267.1
Water flow @ 5.6 K rise ......................................... N/A
Central Heating Coil Sizing Data
Max coil load ............................................................ 4.3 kW
Coil L/s at Dec 2200 .............................................. 3359 L/s
Max coil L/s ........................................................... 5076 L/s
Water flow @ 11.1 K drop ...................................... N/A
Humidifier Sizing Data
Max steam flow at Des Htg .................................... 0.00 kg/hr
Airflow Rate ................................................................. 0 L/s
Supply Fan Sizing Data
Actual max L/s at Jul 1600 .................................... 5076 L/s
Standard L/s .......................................................... 5067 L/s
Actual max L/(s-m) .............................................. 14.46 L/(s-m)
Outdoor Ventilation Air Data
Design airflow L/s .................................................... 580 L/s
L/(s-m) ................................................................... 1.65 L/(s-m)
Hourly Analysis Program v.4.3
08/27/2011
07:34AM
Number of zones ............................................................. 1
Floor Area ................................................................. 351.0 m
Location .................................................... Masqat, Oman
Calculation Months ......................................... Jan to Dec
Sizing Data ...................................................... Calculated
Load occurs at ................................................... Jun 1600
OA DB / WB ...................................................... 49.2 / 29.9 C
Entering DB / WB ............................................. 26.3 / 18.5 C
Leaving DB / WB .............................................. 13.2 / 12.5 C
Coil ADP ..................................................................... 11.7 C
Bypass Factor .......................................................... 0.100
Resulting RH ................................................................. 50 %
Design supply temp. ................................................... 14.0 C
Zone T-stat Check .................................................... 1 of 1 OK
Max zone temperature deviation .................................. 0.0 K
Load occurs at ................................................... Dec 2200
W/m ........................................................................... 12.2
Ent. DB / Lvg DB .............................................. 12.4 / 13.4 C
Air mass flow .............................................................. 0.00 kg/hr
Moisture gain .......................................................... .00000 kg/kg
Fan motor BHP ........................................................... 3.78 BHP
Fan motor kW ............................................................. 2.82 kW
Fan static ..................................................................... 300 Pa
L/s/person ................................................................. 10.00 L/s/person
Page 1 of 1
