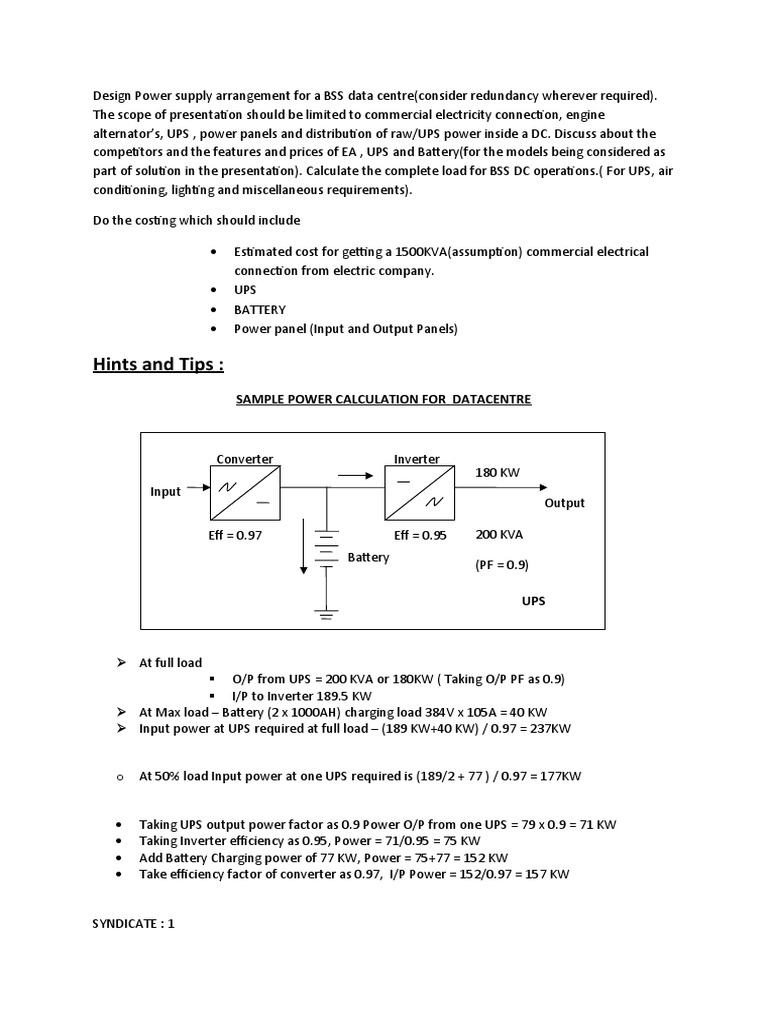

Design Power supply arrangement for a BSS data centre(consider redundancy wherever required).

The scope of presentation should be limited to commercial electricity connection, engine

alternator’s, UPS , power panels and distribution of raw/UPS power inside a DC. Discuss about the
competitors and the features and prices of EA , UPS and Battery(for the models being considered as
part of solution in the presentation). Calculate the complete load for BSS DC operations.( For UPS, air
conditioning, lighting and miscellaneous requirements).

Do the costing which should include

 Estimated cost for getting a 1500KVA(assumption) commercial electrical

connection from electric company.
 UPS
 BATTERY
 Power panel (Input and Output Panels)

Hints and Tips :

SAMPLE POWER CALCULATION FOR DATACENTRE

Converter Inverter
180 KW
Input
Output

Eff = 0.97 Eff = 0.95 200 KVA

Battery
(PF = 0.9)

UPS

 At full load
 O/P from UPS = 200 KVA or 180KW ( Taking O/P PF as 0.9)
 I/P to Inverter 189.5 KW
 At Max load – Battery (2 x 1000AH) charging load 384V x 105A = 40 KW
 Input power at UPS required at full load – (189 KW+40 KW) / 0.97 = 237KW

o At 50% load Input power at one UPS required is (189/2 + 77 ) / 0.97 = 177KW

 Taking UPS output power factor as 0.9 Power O/P from one UPS = 79 x 0.9 = 71 KW
 Taking Inverter efficiency as 0.95, Power = 71/0.95 = 75 KW
 Add Battery Charging power of 77 KW, Power = 75+77 = 152 KW
 Take efficiency factor of converter as 0.97, I/P Power = 152/0.97 = 157 KW

SYNDICATE : 1
Design the basic infrastructure for a BSS DC and do costing for the same . Include the following :

1. Space required.
2. False flooring (with some assumptions of weight in tonns)and false ceiling arrangements.
3. Layout for server, storage ,network , workstations/system administration and NOC rooms.
4. Power and Data cabling arrangements.
5. Work station furniture solutions (modular furniture from different manufacturers eg Godrej)

SYNDICATE : 2

Cooling arrangements for BSS data centre and the costing for the same.

1. Consider different option for air conditioning (eg centralised solution/decentralised solution
(PAC’s).
2. Heat dissipation of different BSS DC rooms in BTU/Hr (example for networking room the
heat dissipation would be around 200000 BTU/HR).
3. Calculate the cooling requirements in tonnes for every equipment and cooling requirement
in tonnes for the complete room.

Hint tips
Equipment TONNES
HP SD 18.88
RX Server 4.51
EMC Storage 29.24
Networking 14.76
Proliant 25.05
Tape Library 3.70
Large Screen Wall –
Display NOC 5.40
PCs 100 Nos 8.81
UPS 24
IVRS 7.42

SYNDICATE : 3

Physical Security and Surveillance system

SYNDICATE : 7
Design network to connect different DC components. Example – Backbone routers, Internet routers,
RAS, firewalls, servers, workstations, storage, ivrs equipments etc. Design a IP addressing scheme.
Design different VLAN for workstations, training and development servers, production servers.

SYNDICATE : 4

Design a CSR network for a telecom service provides having a DC at Hyderabad and covering MP.
The network should reach to important cities and upto all district places in the state. Design a
detailed network for Bhopal considering 10 customer services centres in the city.

SYNDICATE : 5

Options for different DC class servers , sizing of processing capability for billing application
considering 50 million customers and CRM application with 5000 clients. (Detailed comparison of
specifications , costs of at least three competitors . The comparison should include the processors,
memory, IO’s,Ethernet and FCIP connectivity support, OS supported, power supply requirements
etc.)

SYNDICATE : 6

Costing and comparison of Enterprise class storage and SAN

SYNDICATE : 8

Backup solution and backup policy (backup hardware and software requirements, comparison of
different available solutions, backup of OS, application, data etc. , backup and storage policy)

SYNDICATE : 1

DR solution for a BSS data center.

SYNDICATE : 1

NOC , EMS and NMS solutions

SYNDICATE : 1

Green Data center
