abb

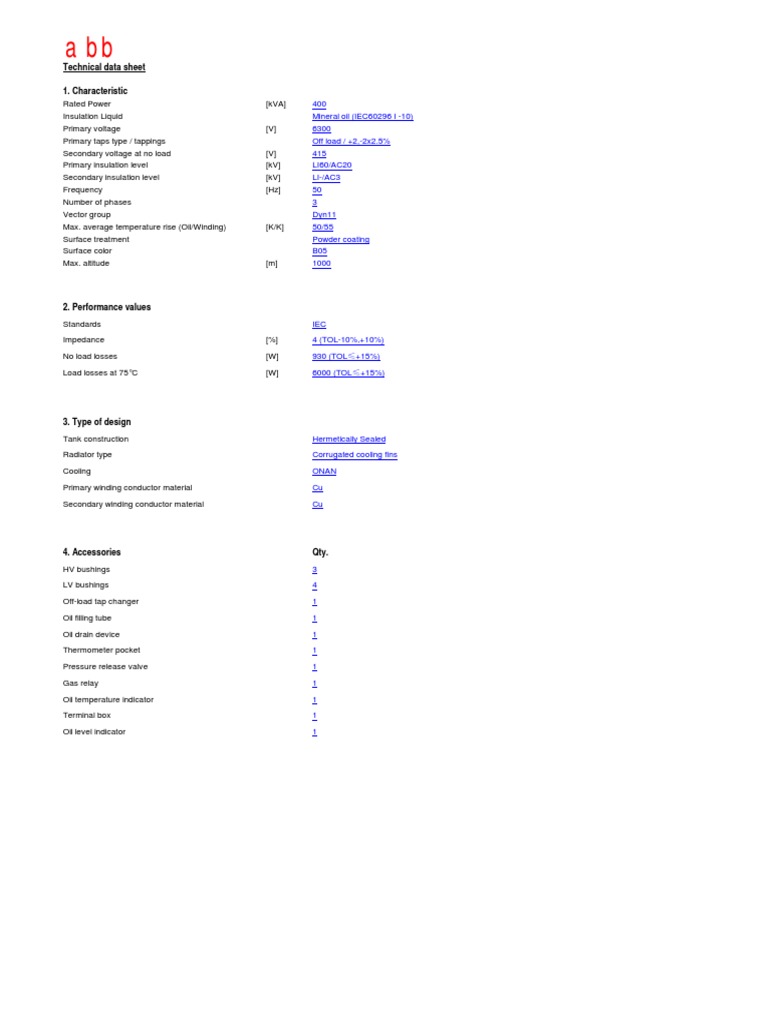

Technical data sheet

1. Characteristic
Rated Power [kVA] 400
Insulation Liquid Mineral oil (IEC60296 I -10)
Primary voltage [V] 6300
Primary taps type / tappings Off load / +2,-2x2.5%
Secondary voltage at no load [V] 415
Primary insulation level [kV] LI60/AC20
Secondary insulation level [kV] LI-/AC3
Frequency [Hz] 50
Number of phases 3
Vector group Dyn11
Max. average temperature rise (Oil/Winding) [K/K] 50/55
Surface treatment Powder coating
Surface color B05
Max. altitude [m] 1000

2. Performance values
Standards IEC
Impedance [%] 4 (TOL-10%,+10%) 5.5
No load losses [W] 930 (TOL≤+15%) 2340
Load losses at 75°C [W] 6000 (TOL≤+15%) 20200

3. Type of design
Tank construction Hermetically Sealed
Radiator type Corrugated cooling fins
Cooling ONAN
Primary winding conductor material Cu
Secondary winding conductor material Cu

4. Accessories Qty.
HV bushings 3
LV bushings 4
Off-load tap changer 1
Oil filling tube 1
Oil drain device 1
Thermometer pocket 1
Pressure release valve 1
Gas relay 1
Oil temperature indicator 1
Terminal box 1
Oil level indicator 1
abb
Technical data sheet

1. Characteristic
Rated Power [kVA] 1600
Insulation Liquid Mineral oil (IEC60296 I -10)
Primary voltage [V] 6300
Primary taps type / tappings Off load / +2,-2x2.5%
Secondary voltage at no load [V] 415
Primary insulation level [kV] LI60/AC20
Secondary insulation level [kV] LI-/AC3
Frequency [Hz] 50
Number of phases 3
Vector group Dyn11
Max. average temperature rise (Oil/Winding) [K/K] 50/55
Surface treatment Powder coating
Surface color B05
Max. altitude [m] 1000

2. Performance values
Standards IEC
Impedance [%] 6 (TOL-10%,+10%) 5.5
No load losses [W] 2600 (TOL≤+15%) 2340
Load losses at 75°C [W] 20000 (TOL≤+15%) 20200

3. Type of design
Tank construction Hermetically Sealed
Radiator type Corrugated cooling fins
Cooling ONAN
Primary winding conductor material Cu
Secondary winding conductor material Cu

4. Accessories Qty.
HV bushings 3
LV bushings 4
Off-load tap changer 1
Oil filling tube 1
Oil drain device 1
Thermometer pocket 1
Pressure release valve 1
Gas relay 1
Oil temperature indicator 1
Terminal box 1
Oil level indicator 1
abb
Technical data sheet

1. Characteristic
Rated Power [kVA] 2500
Insulation Liquid Mineral oil (IEC60296 I -10)
Primary voltage [V] 6300
Primary taps type / tappings Off load / +2,-2x2.5%
Secondary voltage at no load [V] 415
Primary insulation level [kV] LI60/AC20
Secondary insulation level [kV] LI-/AC3
Frequency [Hz] 50
Number of phases 3
Vector group Dyn11
Max. average temperature rise (Oil/Winding) [K/K] 50/55
Surface treatment Powder coating
Surface color B05
Max. altitude [m] 1000

2. Performance values
Standards IEC
Impedance [%] 8 (TOL-10%,+10%) 5.5
No load losses [W] 3500 (TOL≤+15%) 2340
Load losses at 75°C [W] 32000 (TOL≤+15%) 20200

3. Type of design
Tank construction Hermetically Sealed
Radiator type Corrugated cooling fins
Cooling ONAN
Primary winding conductor material Cu
Secondary winding conductor material Cu

4. Accessories Qty.
HV bushings 3
LV bushings 4
Off-load tap changer 1
Oil filling tube 1
Oil drain device 1
Thermometer pocket 1
Pressure release valve 1
Gas relay 1
Oil temperature indicator 1
Terminal box 1
Oil level indicator 1
