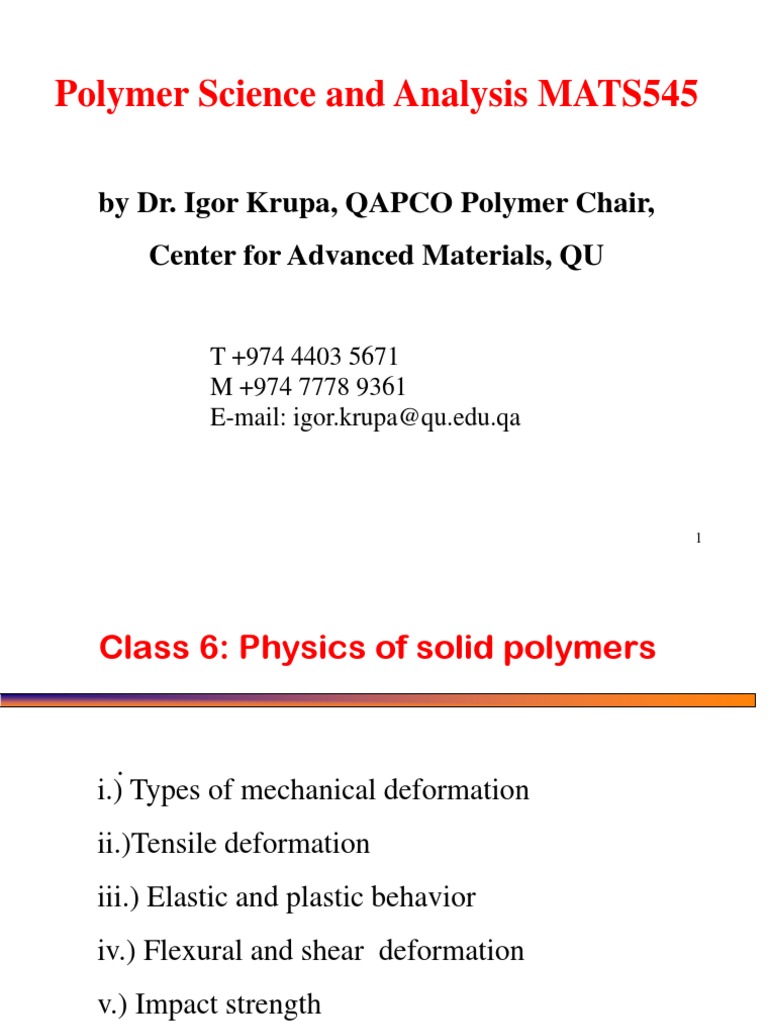

Polymer Science and Analysis MATS545

by Dr. Igor Krupa, QAPCO Polymer Chair,

Center for Advanced Materials, QU

T +974 4403 5671

M +974 7778 9361
E-mail: igor.krupa@qu.edu.qa

1
Class 6: Physics of solid polymers

.
i.) Types of mechanical deformation
ii.)Tensile deformation
iii.) Elastic and plastic behavior
iv.) Flexural and shear deformation
v.) Impact strength

2
 Importance of mechanical properties
of materials in engineering
• Need to acquire knowledge of the properties of materials  The
correct selection of a material for a given application.
• Mechanical properties data were used to predict the response of
materials under mechanical loads.
• Expressed in terms of forces which may deform materials or even
cause them to fail completely.
• To avoid failure and keep deformation under control so the
individual system components remain functional as parts of a whole
 need a various considerations:
– Is stiffness / rigidity important? (i.e. minimum deformation
under a given load)

– Is strength essential? (for maximum tolerance of loads before

3
failure)
Basic types of material deformations

Unloaded Stretched Squeezed

(Tension) (Compression
)

Cut (Simple shear) Twisted (Torsional

shear) 4
 MECHANICAL PROPERTIES

• Stress and strain: What are they and why are

they used instead of load and deformation?

• Elastic behavior: When loads are small, how much

deformation occurs? What materials deform least?

• Plastic behavior: At what point do dislocations

cause permanent deformation? What materials are
most resistant to permanent deformation?

• Toughness and ductility: What are they and how

do we measure them?

5
 ELASTIC DEFORMATION
1. Initial 2. Small load 3. Unload

bonds
stretch

return to
initial

F

Elastic means reversible!

6
 PLASTIC DEFORMATION
1. Initial 2. Small load 3. Unload

Plastic means permanent! linear linear

elastic elastic

plastic
7
Tensile deformation: elastic, linear behavior

• Extension by stretching in one direction the simplest type of

deformation that can be used to explain key concepts in mechanics

Modulus of Elasticity, E:
(Young's modulus)

s=Ee
` Hooke's Law
8
 ENGINEERING STRESS
• Tensile stress, s: • Shear stress, t:

Ft
s
Ao
original area
before loading Stress has units:
N/m2 or lb/in2

9
 ENGINEERING STRAIN
• Tensile strain: • Lateral strain:
/2

Lo
wo
W0 is an initial width of sample
/2
L/2 L/2
• Shear strain:
/2

 = tan  Strain is always

dimensionless.
/2 - 

/2 /2
10
 LINEAR ELASTIC PROPERTIES
• Modulus of Elasticity, E:
(also known as Young's modulus)

• Hooke's Law:
s=Ee
• Poisson's ratio, n:

metals: n ~ 0.33
ceramics: ~0.25
polymers: ~0.40
rubbers: ~ 0.50

Units:
E: [GPa] or [psi]
n: dimensionless 11
 OTHER ELASTIC PROPERTIES
t M
• Elastic Shear
modulus, G:
G simple
1  torsion
t=G test

M
• Elastic Bulk P
modulus, K:
P P
pressure
test: Init.
vol =Vo.
• Special relations for isotropic materials: Vol chg.
= DV
E E
G K
2(1  n) 3(1  2n)
12
Tensile stress-strain test

13
13
 Tensile properties
• Tensile properties are determined using dumbbell-shaped specimens.
• The type defined in the ASTM D-638 standard is as shown in the diagram below:

• In a tensile experiment the specimen is gripped firmly by mechanical jaws at the wide
portion on either side and extended by means of a tensile testing machine
• The pulling is normally carried out at a constant rate of 0.50, 5.0 and 50 cm/min,
depending on the type of plastic being tested.
– The low speeds  to test rigid materials;
– the higher speeds  to test flexible materials.
14
Nonlinear Tensile deformation of polymers

In an undeformed
thermoplastic polymer
tensile sample,
(a) the polymer chains are
randomly oriented.
(b) When a stress is
applied, a neck
develops as chains
become aligned locally.
The neck continues to
grow until the chains in
the entire gage length
have aligned.
(c) The strength of the
polymer is increased

15
Tensile deformation of thermoplastic polymers

Yield point
16
 TENSILE RESPONSE

• Compare to responses of other polymers:

--brittle response (aligned, cross linked & networked case)
--plastic response (semi-crystalline case)
18
Mechanical Properties of Polymers: Thermoplastics

T and Strain Rate: Thermoplastics

80 4°C

stress
Semi-crystalline Increasing strain rate
60 polymer: PMMA
20°C
s, MPa

(Plexiglas)
40 40°C
20
Increasing temperature
60°C
0
0 0.1 0.2 e 0.3 strain
• Decreasing T • Increasing strain rate
-- increases E -- same effects as
-- increases tensile strength decreasing T. 18
-- decreases elongation
 Effect of Temperature on the Stress-strain
Curve for Cellulose Acetate

The large drop in strength and the large increase in ductility with a relatively small
increase in temperature.
19
 Mechanical Behavior of Polymers

Behavior of polymers as a function of temperature and (a) degree of crystallinity and (b) cross-
linking. The combined elastic and viscous behavior of polymers is known as viscoelasticity. 20
 Modulus (Young modulus)
• The relationship between stress and strain is expressed in terms of a property called the
Modulus (or Young Modulus).
• The linear portion of the stress-strain curve can be used to determine the modulus 
correspond to the slope of the curve before the yield point, up to which all deformation is
elastic and recoverable.
• Hook’s law s=Ee
• The slope (modulus)  at any point in the linear portion of the line gives the same result.
• The modulus denotes stiffness or rigidity for any kind of applied load, i.e. tension,
compression or shear.
– Stiff materials have a high modulus  the deformation (strain) resulting
from the applied force (stress) is low.

– Flexible materials have a low modulus  undergo large deformations with

relatively low applied forces.
• Modulus of Elasticity  for materials deformed in tension or compression.
• Shear Modulus used to express the resistance to shear or torsion. 21
 YOUNG’S MODULI: COMPARISON
Graphite
Metals Composites
Ceramics Polymers
Alloys /fibers
Semicond
1200
1000 Diamond
800
600
Si carbide
400 Tungsten Al oxide Carbon fibers only
Molybdenum Si nitride
E(GPa) 200
Steel, Ni
Tantalum <111>
Si crystal
CFRE(|| fibers)*
Platinum
Cu alloys <100> Aramid fibers only
100 Zinc, Ti
80 Silver, Gold Glass-soda AFRE(|| fibers)*
Aluminum Glass fibers only
60
Magnesium, GFRE(|| fibers)*
40 Tin
Concrete

109 Pa 20 GFRE*
CFRE*
Graphite GFRE( fibers)*
10
8 CFRE( fibers)*
6 AFRE( fibers)*
Polyester
4 PET
PS
PC Epoxy only
2
PP
1 HDPE
0.8
0.6 Wood( grain)
PTFE
0.4

0.2 LDPE
23
 YIELD STRENGTH, sy
• Stress at which noticeable plastic deformation has
occurred.
when ep = 0.002
tensile stress, s
sy

engineering strain, e
ep = 0.002
(plastic strain, elongation at yield)
24
YIELD STRENGTH: COMPARISON

sy(ceramics)
>>sy(metals)
>> sy(polymers)

Room T values
Based on data in Table B4,
Callister 6e.
a = annealed
hr = hot rolled
ag = aged
cd = cold drawn
cw = cold worked
qt = quenched & tempered

25
 The Strength (stress at break)
• Maximum possible engineering stress in tension.

• Metals: occurs when noticeable necking starts.

• Ceramics: occurs when crack propagation starts.
• Polymers: occurs when polymer backbones are
aligned and about to break.
26
The Strength (stress at break)

• Strength defined  the highest stress that a material can withstand before
it completely fails to perform structurally.
• If the applied force is tensile (stretch)  the ultimate stress is known as
tensile strength (i.e., maximum tensile stress that the material can tolerate).
• Others types of strength are related to the mode of the applied force
compressive, shear, torsional and flexural.
• Use the following expressions:
– A strong material  can withstand a very high force
per unit area before it fails.

– A weak material  markedly deteriorates or fails at

relatively low levels of applied forces.

26
TENSILE STRENGTH: COMPARISON

TS(ceram)
~TS(met)
~ TS(comp)
>> TS(poly)
Room T values
Based on data in Table B4,
Callister 6e.
a = annealed
hr = hot rolled
ag = aged
cd = cold drawn
cw = cold worked
qt = quenched & tempered
AFRE, GFRE, & CFRE =
aramid, glass, & carbon
fiber-reinforced epoxy
composites, with 60 vol%
fibers.
28
 DUCTILITY, %EL
L f  Lo
• Plastic tensile strain at failure: %EL  x100
Lo

Ao  A f
• Another ductility measure: %AR  x100
Ao
• Note: %AR and %EL are often comparable.
--Reason: crystal slip does not change material volume.
--%AR > %EL possible if internal voids form in neck.
29
 TOUGHNESS
• Energy to break a unit volume of material
• Approximate by the area under the stress-strain
curve.
Engineering smaller toughness (ceramics)
tensile larger toughness
stress, s (metals, PMCs)

smaller toughness-
unreinforced
polymers

Engineering tensile strain, e

30
 Compressive stress
• If the same weights were placed on the
rectangular specimens to cause a contraction in
the longitudinal direction  the resulting stress
would be called compressive stress.

stress
Materials where compressive strength is important deformation
• concrete
• bones
• teeth implant 30
 Shear stress
• The other common type of stress is shear stress.

• This relates to the force which distorts rather than extends a body 
example where a solid section is sheared,

• Shear forces can also result in failure.

Cylindrical specimen subjected to 31

An example of shear failure
simple shear, e.g. during cutting .
 Flexural properties
• Flexural properties are important in assessing the resistance of materials to bending.
• A typical experimental set-up is as the one shown in the schematic below:

Flexural test
experimental
set-up

32
 Impact strength

Charpy test configuration

H0

H1

Apparatus to measure impact strength

33
Izod test configuration
Impact strength

34
 Impact Strength
Small changes in temperature
can have a significant effect on
impact strength

Effect of temperature on the impact

35
strength of various plastics.
 HARDNESS
• Resistance to permanently indenting the surface.
• Large hardness means:
--resistance to plastic deformation or cracking in
compression.
--better wear properties.

37
 Thermal Expansion
Materials change size when temperature
is changed
Tinitial
 initial
Tfinal > Tinitial
Tfinal
 final

 final   initial
 α (Tfinal  Tinitial )
 initial
linear coefficient of
thermal expansion (1/K or 1/°C)

37
Thermomechanical analysis (TMA)

Most solid materials expand upon heating and

contract when cooled. Coefficient of thermal
expansion () is a useful engineering quantity:
 = (dL/dT)/Lo
The linear coefficient
of thermal expansion The volumetric coefficient
of thermal expansion

Thermomechanical Analysis (TMA) is the study of

the relationships between a sample’s length (volume)
and its temperature.
38
 Thermal expansion coefficient
The expansion and contraction of materials must be considered when designing large
structures: buildings, bridges, pipelines, rail tracks…

Thermal expansion of long continuous sections of rail tracks

is the driving force for rail buckling. Expansion joint in a road
(100 km->100C
bridge used to avoid damage
->20 cm
-6
Steel: α =13x10 / C0 from thermal expansion.
39
Aluminum: α =24x10-6/0C
