STUDENT NAME = IZZAT KHAIR BIN MAHMUD

MATRIC NO. = DD180058

Section = 1
created by azwir ©
3 last Digit Matric Card No. = 058 Sem I 2020/2021 Version 1.0

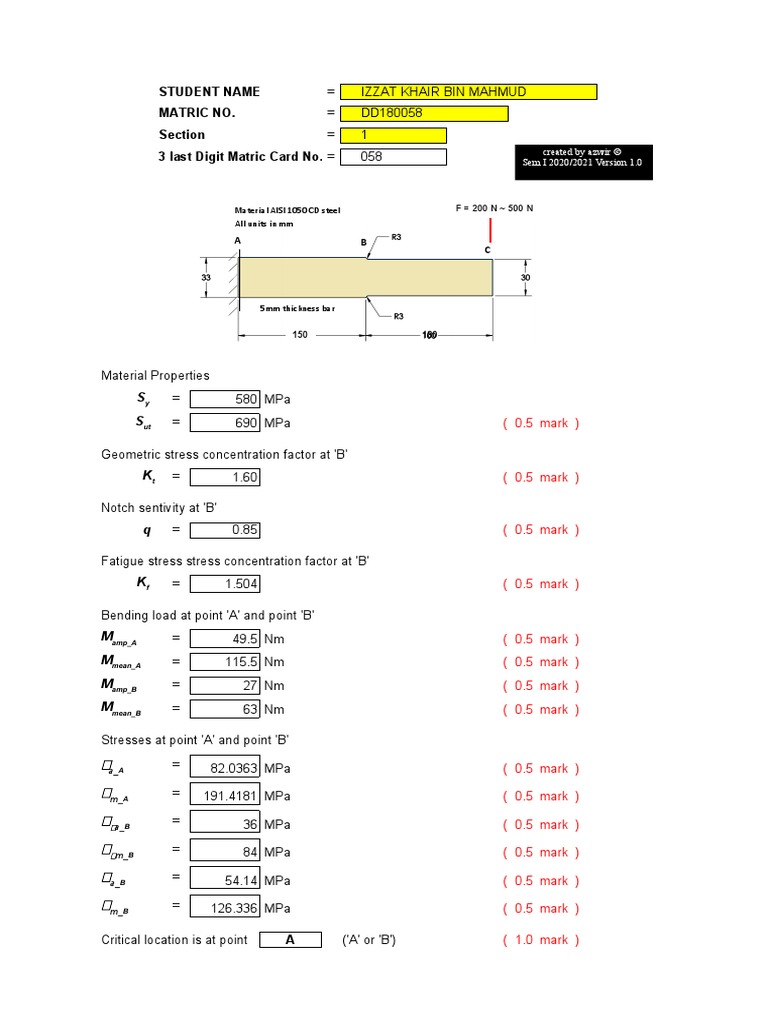

Material AISI 1050 CD steel F = 200 N ~ 500 N

All units in mm
A B
C

5mm thickness bar

150 180

Material Properties
Sy = 580 MPa
Sut = 690 MPa ( 0.5 mark )

Geometric stress concentration factor at 'B'

Kt = 1.60 ( 0.5 mark )

Notch sentivity at 'B'

q = 0.85 ( 0.5 mark )

Fatigue stress stress concentration factor at 'B'

Kf = 1.504 ( 0.5 mark )

Bending load at point 'A' and point 'B'

Mamp_A = 49.5 Nm ( 0.5 mark )
Mmean_A = 115.5 Nm ( 0.5 mark )
Mamp_B = 27 Nm ( 0.5 mark )
Mmean_B = 63 Nm ( 0.5 mark )

Stresses at point 'A' and point 'B'

sa_A = 82.0363 MPa ( 0.5 mark )

sm_A = 191.4181 MPa ( 0.5 mark )

soa_B = 36 MPa ( 0.5 mark )

som_B = 84 MPa ( 0.5 mark )

sa_B = 54.14 MPa ( 0.5 mark )

sm_B = 126.336 MPa ( 0.5 mark )

Critical location is at point A ('A' or 'B') ( 1.0 mark )

Marin Factors at critical location
ka = 0.798 ( 0.5 mark )
kb = 0.972 ( 0.5 mark )
kc = 1 ( 0.5 mark )
ke = 0.897 ( 0.5 mark )

Endurance Limits
Se' = 3.45E+02 MPa ( 0.5 mark )
Se = 240.04 MPa ( 0.5 mark )

Safety factor;
N = 1.6111 ( 1.0 mark )

\Therefore it will have infinite life. ( 1.0 mark )

( infinite / finite )

Correct Fatigue Diagram graph ( 2.0 mark )

Critical stress point
sa = 82.0363 MPa

sm = 191.4181 MPa

Fatigue Diagram Graph

700
Amplitude Stress (MPa)

Critical Stress point

600
Linear (Goodman Line)
500 Linear (Yield (Langer) Line)
Linear (Load line)
400

300

200

100

0
0 200 400 600 800
Mean Stress (MPa)
