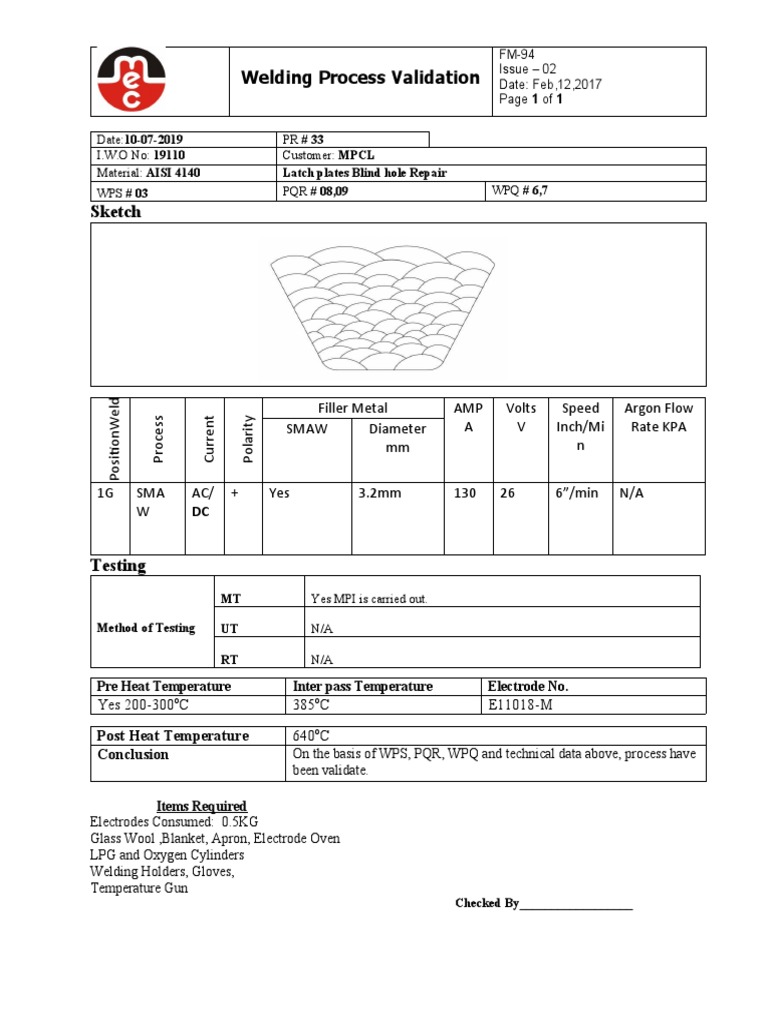

FM-94

Issue – 02
Welding Process Validation Date: Feb,12,2017
Page 1 of 1

Date:10-07-2019 PR # 33
I.W.O No: 19110 Customer: MPCL
Material: AISI 4140 Latch plates Blind hole Repair
WPS # 03 PQR # 08,09 WPQ # 6,7
Sketch
PositionWeld

Filler Metal AMP Volts Speed Argon Flow

Polarity
Current
Process

SMAW Diameter A V Inch/Mi Rate KPA

mm n

1G SMA AC/ + Yes 3.2mm 130 26 6”/min N/A

W DC

Testing
MT Yes MPI is carried out.

Method of Testing UT N/A

RT N/A

Pre Heat Temperature Inter pass Temperature Electrode No.

o o
Yes 200-300 C 385 C E11018-M

Post Heat Temperature 640oC

Conclusion On the basis of WPS, PQR, WPQ and technical data above, process have
been validate.

Items Required
Electrodes Consumed: 0.5KG
Glass Wool ,Blanket, Apron, Electrode Oven
LPG and Oxygen Cylinders
Welding Holders, Gloves,
Temperature Gun
Checked By__________________
