Title: Index Number:

CL-NG-6460-002-106

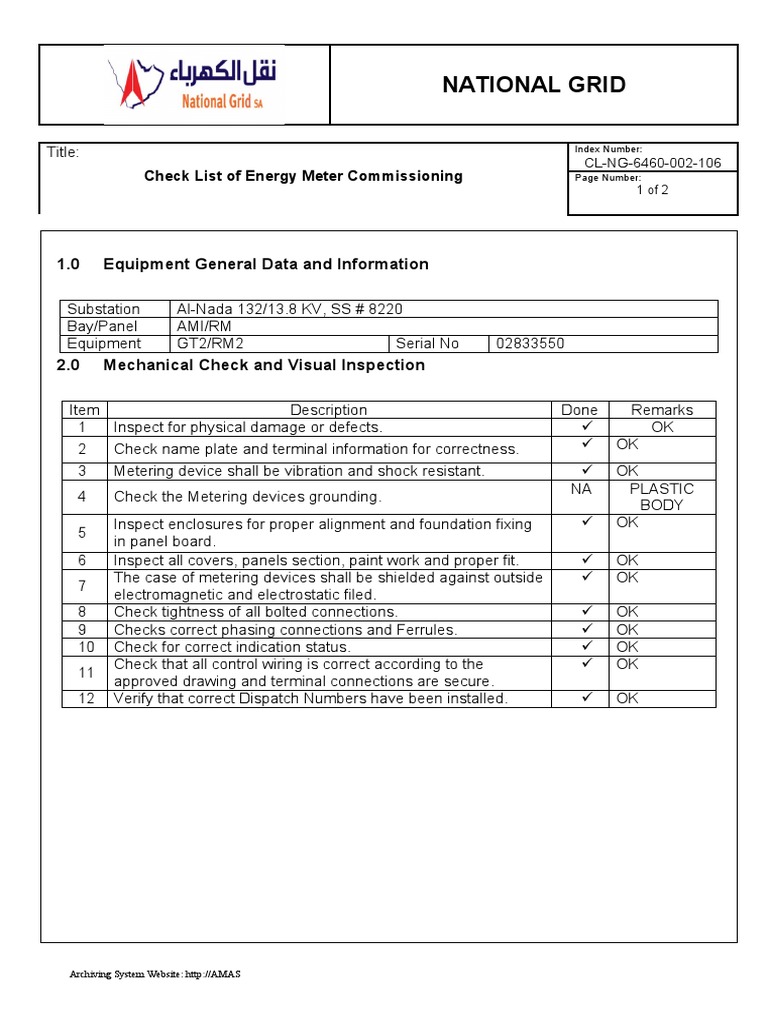

Check List of Energy Meter Commissioning Page Number:
1 of 2

1.0 Equipment General Data and Information

Substation Al-Nada 132/13.8 KV, SS # 8220

Bay/Panel AMI/RM
Equipment GT2/RM2 Serial No 02833550
2.0 Mechanical Check and Visual Inspection

Item Description Done Remarks

1 Inspect for physical damage or defects.  OK
2 Check name plate and terminal information for correctness.  OK
3 Metering device shall be vibration and shock resistant.  OK
NA PLASTIC
4 Check the Metering devices grounding.
BODY
Inspect enclosures for proper alignment and foundation fixing  OK
5
in panel board.
6 Inspect all covers, panels section, paint work and proper fit.  OK
The case of metering devices shall be shielded against outside  OK
7
electromagnetic and electrostatic filed.
8 Check tightness of all bolted connections.  OK
9 Checks correct phasing connections and Ferrules.  OK
10 Check for correct indication status.  OK
Check that all control wiring is correct according to the  OK
11
approved drawing and terminal connections are secure.
12 Verify that correct Dispatch Numbers have been installed.  OK

Archiving System Website: http://AMAS

 NATIONAL GRID

Title: Index Number:

CL-NG-6460-002-106
Check List of Energy Meter Commissioning Page Number:
2 of 2

3.0 ELECTRICAL TESTS

Item Description Done Remarks

2 Test switch / plug checked for correct function.  OK
3 Creep test -120% rated voltage at zero current  OK
4 Pulse Direction of Rotation  OK
Accuracy test by secondary injection of voltage different  OK
5 values of current with different power factor for each value of
injected current and calculate percentage error of each
energy reading as per specification
Pulse Count Check for 1 Minute by secondary injection and  OK
6
record percentage error as per specification
Pulse Time Check for 10 pulses by secondary injection and  OK
7
record percentage error as per specification
8 Max. Demand Reading Check  OK

CSD Contractor T&C Contractor

Name SALMAN FAREES
