Malfunctions Group 30: Electrical system

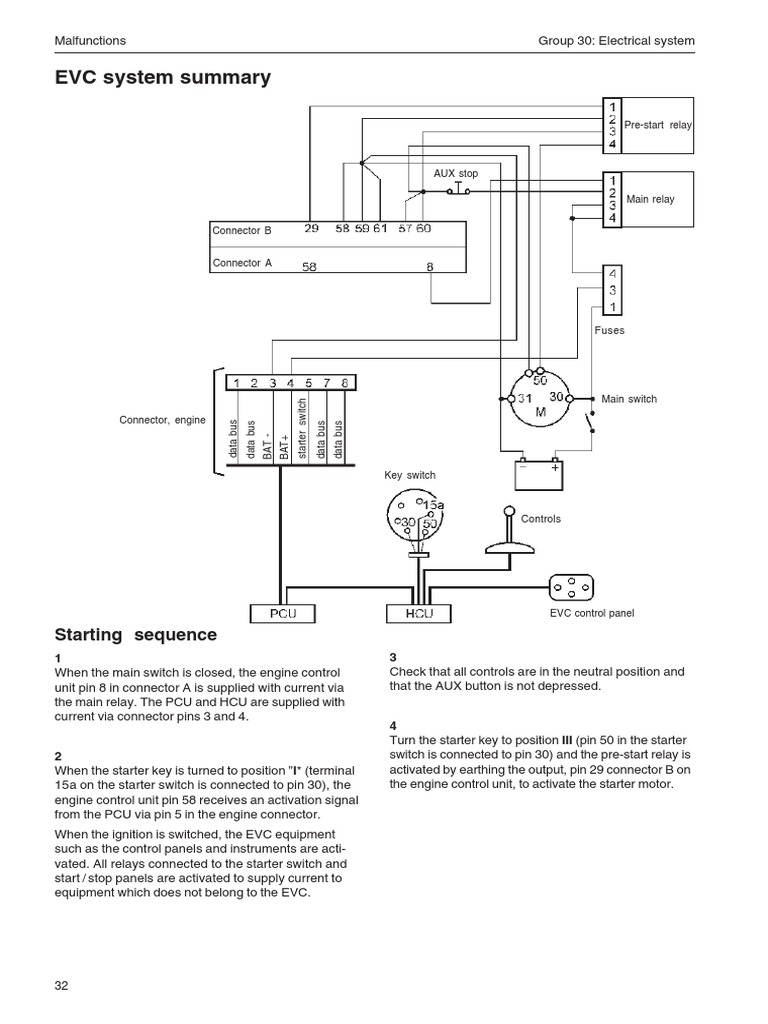

EVC system summary

Pre-start relay

AUX stop

Main relay

Connector B

Connector A

Fuses

Main switch
starter switch

Connector, engine
data bus
data bus

data bus
data bus
BAT -
BAT+

Key switch

Controls

EVC control panel

Starting sequence
1 3
When the main switch is closed, the engine control Check that all controls are in the neutral position and
unit pin 8 in connector A is supplied with current via that the AUX button is not depressed.
the main relay. The PCU and HCU are supplied with
current via connector pins 3 and 4.
4
Turn the starter key to position III (pin 50 in the starter
2 switch is connected to pin 30) and the pre-start relay is
When the starter key is turned to position ”I* (terminal activated by earthing the output, pin 29 connector B on
15a on the starter switch is connected to pin 30), the the engine control unit, to activate the starter motor.
engine control unit pin 58 receives an activation signal
from the PCU via pin 5 in the engine connector.
When the ignition is switched, the EVC equipment
such as the control panels and instruments are acti-
vated. All relays connected to the starter switch and
start / stop panels are activated to supply current to
equipment which does not belong to the EVC.
