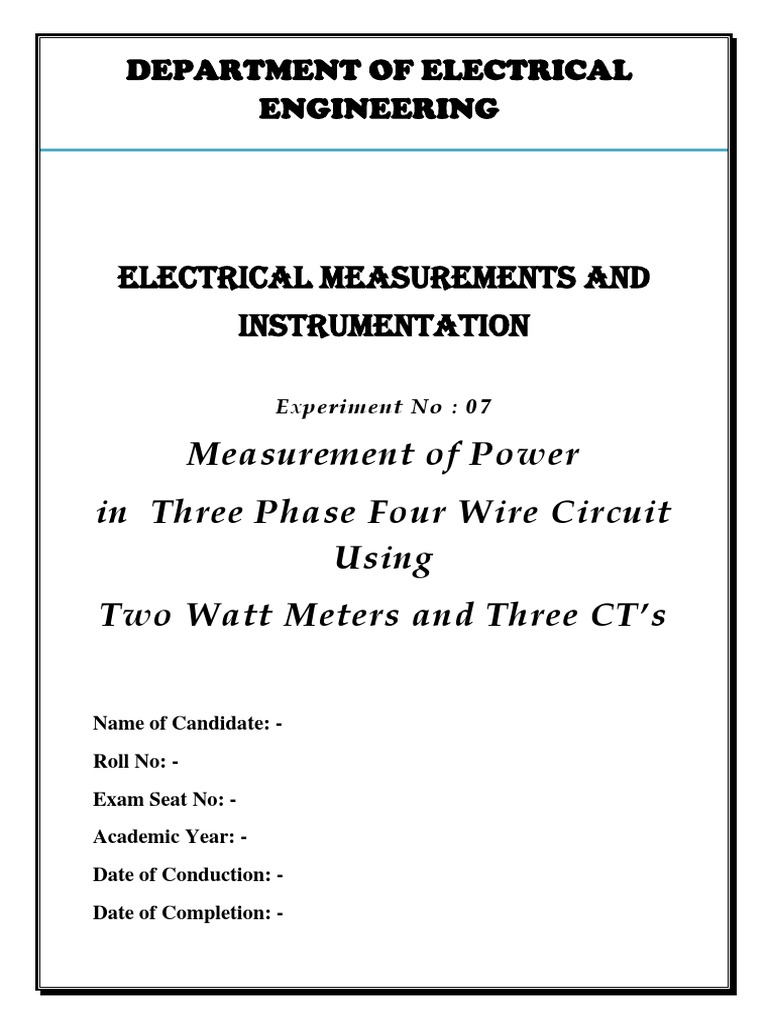

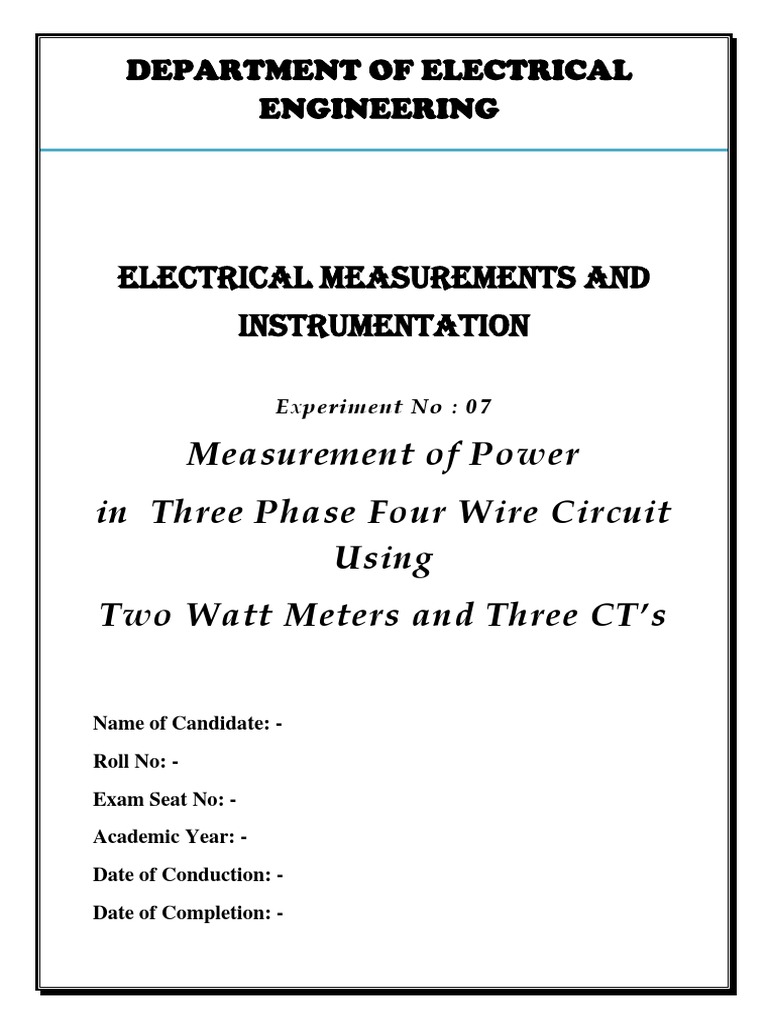

DEPARTMENT OF ELECTRICAL

ENGINEERING

Electrical Measurements and

Instrumentation

Experiment No : 07

Measurement of Power
in Three Phase Four Wire Circuit
Using
Two Watt Meters and Three CT’s

Name of Candidate: -
Roll No: -
Exam Seat No: -
Academic Year: -
Date of Conduction: -
Date of Completion: -
DVVPCOE A’nagar Two Watt Meter 3CT Method

Experiment No 07
T ITLE : Measuremen t of P ower in Three P ha se F our
W ire Cir cui t Usin g Tw o Wat t M e ters and Three
CT’ s

AIM

➢ To measure the active power in a three phase circuit with two Watt meters
for balanced & unbalanced load condition

APPARATUS

1. Ammeter [0-5 Amp, A.C.] - 04 No.s

2. Voltmeter [0- 250 Volt, A.C.] - 01 No.s
3. Voltmeter [0- 500 Volt, A.C.] - 01 No.s
4. Wattmeter [5Amp, 500 Volt ] – 02 No.s
5. 3 - Phase dimmerstat [0 - 440 Volt, 3 phase, 8.14 kVA, 10 Amp]
6. 3 - Phase Lamp bank – [230 Volt, 5Amp]

Circuit
Diagram

DEPARTMENT OF ELECTRICAL ENGINEERING Electrical Meas. and Instruments. Page |1

DVVPCOE A’nagar Two Watt Meter 3CT Method

Experiment No 07
THEORY

The total power consumed by a balanced load can be found by using two
watt-meters and three CT’s. The load is assumed to be resistive for star connected
load as shown in figure. The vector diagram for such a balanced star-connected load
is shown in figure.
Draw Vector Diagram

Let us consider the problem in terms of R.M.S. values.

Let, VR, VY, VB = R.M.S. values of the three phase voltages, and
IR, IY, IB = R.M.S. values of the currents.
Since these voltages and currents are assumed sinusoidal, they can be
represented by vectors, the currents are in phase with their respective phase
voltages.
From vector diagram
Current through wattmeter, W1 = IRB= IRB = IR - IB
Potential difference across pressure coil of wattmeter W1 =VRN
(Vectorially)
The value of IRB is found by compounding IR and IB reversed as shown in figure. It
may be observed that phase difference between VRN and IRB = (300 + ). (For
Inductive load)
 Reading of wattmeter W1 = VRNIRB cos (300). As =0
Similarly, current through wattmeter W2 = IYR= IYB = IY - IB
Potential difference across pressure coil of wattmeter W2=VYN
(Vectorially)
The value of IYB is found by compounding IY and IB reversed as shown
in figure. It may be observed that phase difference between VYN and IYB = (300 - ).
(For Inductive load)
Since the load is balanced, VRN = VYN (Phase Voltage)
And IRB = IYB = IL (Line Current)
 W1 = VRN IL
W2 = VYN IL

 Total Power, P = W1 + W2
= VRN IRB + VYN IYB
= VRN (𝐼𝑅 − 𝐼𝐵 ) + VYN (𝐼𝑌 − 𝐼𝐵 )
= VRN 𝐼𝑅 + VYN 𝐼𝑌 − (VRN + VYN )𝐼𝐵
𝑆𝑖𝑛𝑐𝑒 𝑖𝑛 𝑎 𝑠𝑦𝑚𝑚𝑒𝑡𝑟𝑖𝑐𝑎𝑙 𝑠𝑦𝑠𝑡𝑒𝑚 ; VRN + VYN + VBN = 0
𝑖. 𝑒. VBN = −(VRN + VYN )

DEPARTMENT OF ELECTRICAL ENGINEERING Electrical Meas. and Instruments. Page |2

DVVPCOE A’nagar Two Watt Meter 3CT Method

Experiment No 07
∴ 𝑃 = VRN 𝐼𝑅 + VYN 𝐼𝑌 + VBN 𝐼𝐵
Hence the sum of the readings of the two watt-meters gives the total power
consumption in the three phase load.

Procedure

1. Connect the circuit as per the circuit diagram

2. Make sure-load is off, dimmerstat is at zero position
3. Switch ON the supply, adjust the output voltage of dimmerstat to
230 volt
4. Switch ON the load corresponding to balanced load condition
5. Note down readings of ammeter, voltmeter, watt meter
6. Increase the load maintaining balanced load condition & Note down
readings of ammeter, voltmeter, watt meter
7. Now adjust load corresponding to unbalance load condition & Note
down readings of ammeter, voltmeter, and watt meter. Take two sets
of readings
8. Make the load OFF, bring the dimmerstat to zero position, switch
OFF the main supply

OBSERVATION TABLE

Load IR IY IB VRN VYN VBN W1 W2

Condition Amp Amp Amp Volt Volt Volt Watt Watt

Balanced

Unbalanced

DEPARTMENT OF ELECTRICAL ENGINEERING Electrical Meas. and Instruments. Page |3

DVVPCOE A’nagar Two Watt Meter 3CT Method

Experiment No 07
CALCULATION
SNCLUSION
Balanced Load Condition

𝑪𝒂𝒍𝒄𝒖𝒍𝒂𝒕𝒆𝒅 𝑷𝒐𝒘𝒆𝒓 = (𝑽𝑹 𝑰𝑹 ) + (𝑽𝒀 𝑰𝒀 ) + (𝑽𝑩 𝑰𝑩 )

since cos Ø = 1 as lamp bank is a resistive load

Power from Wattmeter readings = (W1*M.F. + W2 *M.F.) *CT Ratio

Unbalanced Load Condition – Calculations are same as above.

DEPARTMENT OF ELECTRICAL ENGINEERING Electrical Meas. and Instruments. Page |4

DVVPCOE A’nagar Two Watt Meter 3CT Method

Experiment No 07
RESULT TABLE

Calculated Power Power from Wattmeter

Load Condition
(Watt) readings (Watt)

Balanced

Unbalanced

CONCLUSION

Signature with Date of Checking:-

DEPARTMENT OF ELECTRICAL ENGINEERING Electrical Meas. and Instruments. Page |5
