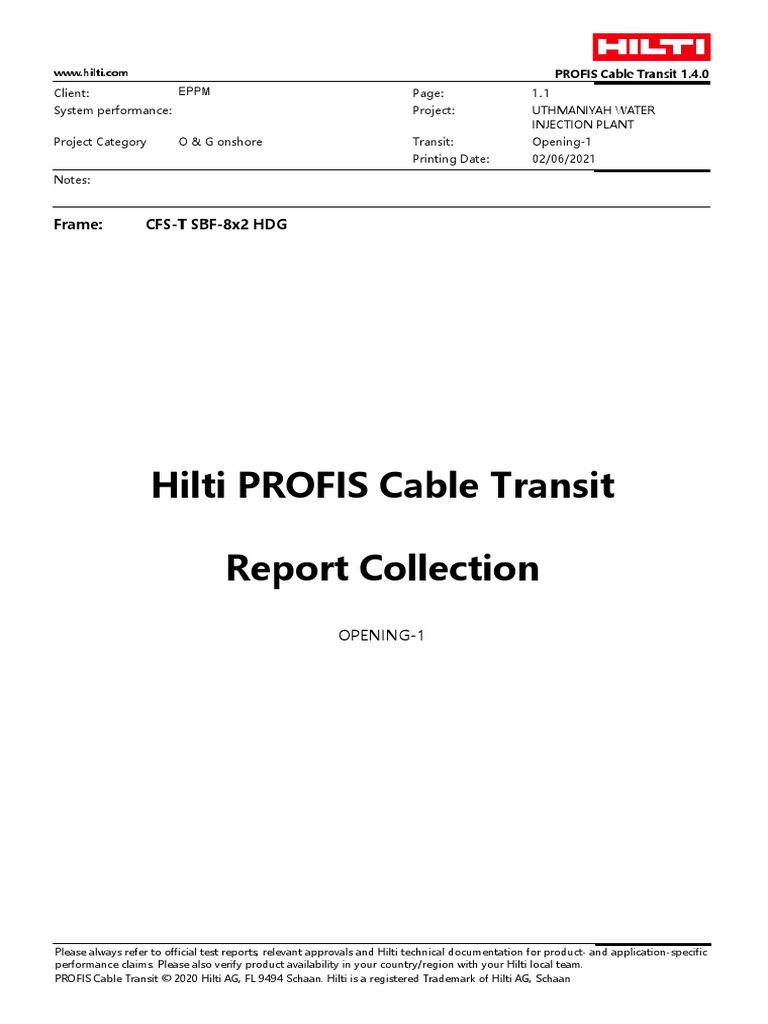

www.hilti.com PROFIS Cable Transit 1.4.

0
Client: EPPM Page: 1. 1
System performance: Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG

Hilti PROFIS Cable Transit

Report Collection
OPENING-1

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 2. 1
System performance: Water and Fire Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG

Height: 287 mm Width: 258 mm Weight: 15,90 kg

LIST OF MATERIAL
qty. ItemNo Type Hilti material Material weight Sum-weight

1 2280855 Frame CFS-T SBF-8x2 HDG galv. 5,39 5,39 [kg]

2 2047206 Wedge CFS-T WD 120 GS galv. 0,92 1,84 [kg]
24 2014595 Module CFS-T 15/0+3-9 0,04 0,96 [kg]
6 2014596 Module CFS-T 20/0+5-12 0,04 0,24 [kg]
48 2097591 Module CFS-T 20/0+5-16 0,04 1,92 [kg]
28 2014597 Module CFS-T 30/0+13-23 0,09 2,52 [kg]
3 2014598 Module CFS-T 40/0+23-33 0,15 0,45 [kg]
1 2014862 Module CFS-T FB 24x5/0 0,06 0,06 [kg]
19 2233911 Anchorplate CFS-T AP 120 GS galv. 0,12 2,28 [kg]
2 2233910 Anchorplate CFS-T FAP 120 GS galv. 0,12 0,24 [kg]
1 2316592 Accessory CFS-T LUB 500g lubricant
1 2014885 Accessory CFS-T SQU Squeezer

Total weight 15,90 [kg]

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 3. 1
System performance: Water and Fire Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG

Height: 287 mm Width: 258 mm Weight: 15,90 kg
Recom. Opening: Height: 287 mm, Width: 258 mm Spare capacity: 62 %
Max. Opening: Height: 301 mm, Width: 272 mm Transit complete
FRAME GRAPHIC

Bar width: 8 mm
All dimensions measured in [mm]

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 4. 1
System performance: Water and Fire Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG Frame Window: 1

Height: 287 mm Width: 258 mm Weight: 15,90 kg
Spare capacity: 78 %
Transit complete
FILLING PLAN

qty. nr. cable name cable type Hilti material

1 CFS-T SBF-8x2 HDG
1 CFS-T WD 120 GS
4 CFS-T 15/0+3-9
48 CFS-T 20/0+5-16
2 CFS-T 30/0+13-23
24 CFS-T FB 24x5/0
1 1 GC-0257 Grounding Cable CFS-T 15/0+3-9
1 2 GC-0256 Grounding Cable CFS-T 15/0+3-9
1 3 GC-0255 Grounding Cable CFS-T 15/0+3-9
1 4 GC-0135 Grounding Cable CFS-T 15/0+3-9
1 10 PC-0180 Power Cable CFS-T 30/0+13-23
1 5 PC-0257 Power Cable CFS-T 30/0+13-23
1 6 PC-0256 Power Cable CFS-T 30/0+13-23
1 7 PC-0255 Power Cable CFS-T 30/0+13-23
1 8 PC-0135 Power Cable CFS-T 30/0+13-23
1 9 PC-0179 Power Cable CFS-T 30/0+13-23
11 CFS-T AP 120 GS
1 CFS-T FAP 120 GS

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 4. 2
System performance: Water and Fire Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG Frame Window: 1

Height: 287 mm Width: 258 mm Weight: 15,90 kg
Spare capacity: 78 %
Transit complete
FILLING PLAN

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 5. 1
System performance: Water and Fire Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG Frame Window: 2

Height: 287 mm Width: 258 mm Weight: 15,90 kg
Spare capacity: 47 %
Transit complete
FILLING PLAN

qty. nr. cable name cable type Hilti material

1 CFS-T WD 120 GS
15 CFS-T 15/0+3-9
3 CFS-T 20/0+5-12
10 CFS-T 30/0+13-23
1 7 GC-0134 Grounding Cable CFS-T 15/0+3-9
1 4 GC-0086 Grounding Cable CFS-T 20/0+5-12
1 5 GC-0160 Grounding Cable CFS-T 20/0+5-12
1 6 GC-0071 Grounding Cable CFS-T 20/0+5-12
1 10 PC-0149 Power Cable CFS-T 30/0+13-23
1 11 PC-0147 Power Cable CFS-T 30/0+13-23
1 12 PC-0152 Power Cable CFS-T 30/0+13-23
1 13 PC-0148 Power Cable CFS-T 30/0+13-23
1 14 PC-0158 Power Cable CFS-T 30/0+13-23
1 15 PC-0154 Power Cable CFS-T 30/0+13-23
1 16 PC-0150 Power Cable CFS-T 30/0+13-23
1 17 PC-0144 Power Cable CFS-T 30/0+13-23
1 8 PC-0134 Power Cable CFS-T 30/0+13-23
1 9 PC-0153 Power Cable CFS-T 30/0+13-23
1 1 PC-0086 Power Cable CFS-T 40/0+23-33
1 2 PC-0160 Power Cable CFS-T 40/0+23-33
1 3 PC-0071 Power Cable CFS-T 40/0+23-33
8 CFS-T AP 120 GS
1 CFS-T FAP 120 GS

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 5. 2
System performance: Water and Fire Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Frame: CFS-T SBF-8x2 HDG Frame Window: 2

Height: 287 mm Width: 258 mm Weight: 15,90 kg
Spare capacity: 47 %
Transit complete
FILLING PLAN

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
www.hilti.com PROFIS Cable Transit 1.4.0
Client: EPPM Page: 6. 1
System performance: Project: UTHMANIYAH WATER
INJECTION PLANT
Project Category O & G onshore Transit: Opening-1
Printing Date: 02/06/2021
Notes:

Legal disclaimer:

Any and all information and data contained in the Software concern solely the use of Hilti products and are
based on the principles, formulas and security regulations in accordance with Hilti's technical directions and
operating, mounting and assembly instructions, etc., that must strictly complied with. The Hilti product
portfolio to be used in Connection with the Software may vary from country to country. All figures contained
in the Software are average figures, and therefore, use‐specific tests are to be conducted Prior to using the
relevant Hilti product. The results of the calculations carried out by means of the Software are based
essentially on the data Customer puts in. Therefore, Customer bears the sole responsibility for the absence
of errors, the completeness and the relevance of the data to be put in by Customer. Moreover, Customer
bears sole responsibility for having the results to be checked and cleared by an expert, particularly with
regard to compliance with applicable norms and permits, Prior to using them for Customer`s specific facility.

Please always refer to official test reports, relevant approvals and Hilti technical documentation for product- and application-specific
performance claims. Please also verify product availability in your country/region with your Hilti local team.
PROFIS Cable Transit © 2020 Hilti AG, FL 9494 Schaan. Hilti is a registered Trademark of Hilti AG, Schaan
