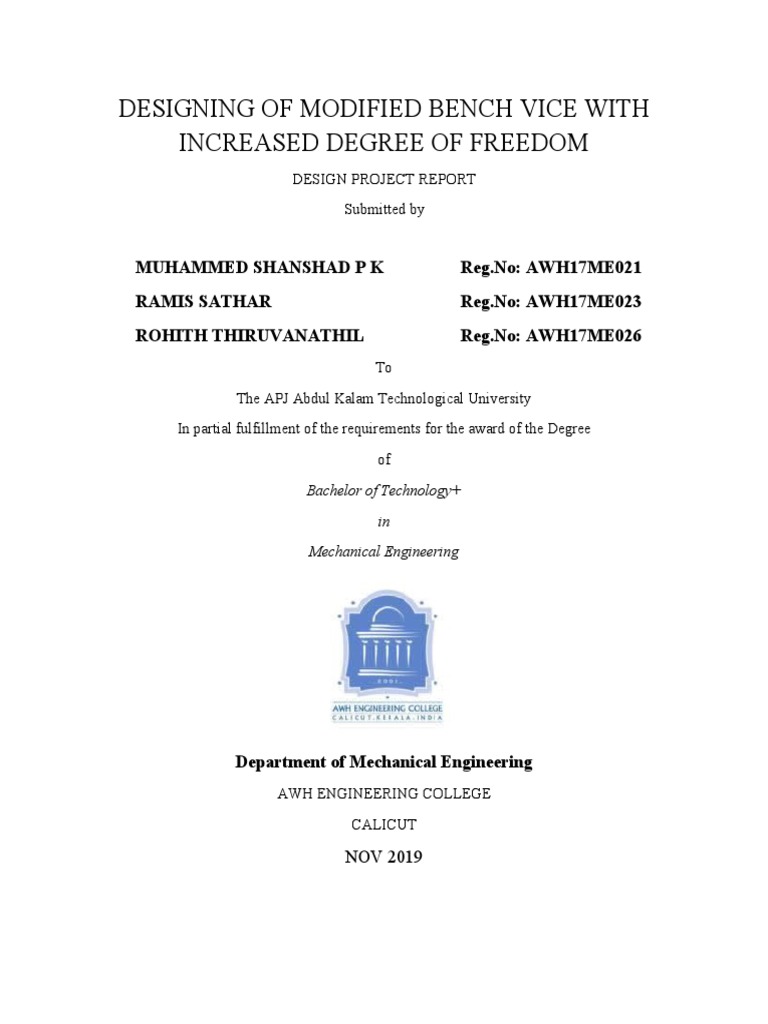

DESIGNING OF MODIFIED BENCH VICE WITH

INCREASED DEGREE OF FREEDOM

DESIGN PROJECT REPORT
Submitted by

MUHAMMED SHANSHAD P K Reg.No: AWH17ME021

RAMIS SATHAR Reg.No: AWH17ME023
ROHITH THIRUVANATHIL Reg.No: AWH17ME026
To
The APJ Abdul Kalam Technological University
In partial fulfillment of the requirements for the award of the Degree
of
Bachelor of Technology+
in
Mechanical Engineering

Department of Mechanical Engineering

AWH ENGINEERING COLLEGE
CALICUT

NOV 2019
 AWH ENGINEERING COLLEGE
DEPARTMENT OF MECHANICAL ENGINEERING

CERTIFICATE

This is to certify that the report on “DESIGNING OF MODIFIED BENCH VICE WITH

INCREASED DEGREE OF FREEDOM ‟ is a bonafide record of design project done by

MUHAMMED SHANSHAD P K (AWH17ME0021) , RAMIS SATHAR
(AWH17ME023) and ROHITH THIRUVANATHIL (AWH17ME025) in partial
fulfillment for the award of degree of Bachelor of Technology in Mechanical Engineering.

PROJECT GUIDE: HEAD OF THE DEPT

Mr. JIBI R Mr.SREERAM D

Assistant Professor Assistant Professor and Head

Dept. of Mechanical Engineering Dept. of Mechanical Engineering

Modified Bench Vice Design project Report2019

ACKNOWLEDGEMENT

I extremely sincere thanks to Dr.Sabeena, principal by equipping me with all facilities. I

take this great opportunity to express my gratitude towards the Mr.Sreeram.D, Head of the
Department, Mechanical Engineering, for granting me permission to do design project.

I am extremely indebted to Mr.Safeer.M, and Mr.Jibi.R, Asst. Professors of ME

Department for their valuable guidance, concrete suggestions rendered throughout my design
project which made me to feel easy in clarifying all my doubts regarding the subject.

Finally my sense of thankfulness and commitment to GOD and to my family members

for their support and never ending livelihood.

Department Of Mechanical Engineering

Page 3
Modified Bench Vice Design project Report2019

ABSTRACT

The basic principle of a bench vice is holding work piece in between it’s jaw’s against the
machining tools. When we hold the work piece in the vice, we can’t move or tilt it in any
direction. In this modified bench vice we added 4 degrees of freedom to the existing vice,
making it ergonomic.

The degrees of freedoms are given to anvil and sliding jaw. A pair of jaw faces are provided to
hold two work pieces at a time. Ans anvil can be used for small ahaping processess.

Department Of Mechanical Engineering

Page 4
Modified Bench Vice Design project Report2019

LIST OF CONTENT

Chapter Content Page No

1 Introduction 8

2 Objective 9

3 Scope Of The Project 10

4 Methodology 11

5 Literature Review 12

6 Work Done 28

7 Conclusion 36
8 Reference 37

Department Of Mechanical Engineering

Page 5
Modified Bench Vice Design project Report2019

LIST OF FIGURES

Fig No: Content Page No.

Fig 5.1 Basic Principle of Rapid Prototyping Processes 14
Fig:5.2 Basic Principle of Rapid Prototyping Processes 15
Fig:5.3 Design of Bench Vise 16
Fig 5.4 Actual pictures after modifications in CAD software 17
Fig 5.5 Comparison Of Existing Screw -Less Machine Vice 19
With Proposed Screw Less Machine Vice

Fig 5.6 Total Deformation on clamp for existing model 20

Fig 5.7 20
Total deformation for proposed model
Fig 5.8 23
Modified machine vice
Fig 5.9 25
Flow chart Of Working
Fig 5.10 27
Block Diagram of Bench Vice

Fig:6.1 Assembly View 1 28

Fig:6.2 Assembly View 2 28
Fig:6.3 Clamp Base 29
Fig:6.4 Rotatable Anvil 29
Fig:6.5 Static Jaw 29
Fig:6.6 Sliding Jaw 29
Fig:6.7 Lead Screw 30
Fig:6.8 Handle 30
Fig:6.9 Exploded View 30
Fig 6.10 Existing Bench Vice 33
Fig 6.11 Modified Bench vice 33

Department Of Mechanical Engineering

Page 6
Modified Bench Vice Design project Report2019

LIST OF TABLES

Table No: Content Page No.

Table:5.1 Bill OF Material 17
Table:5.2 Interference 21
Table:5.3 Result 28

Table:5.4 Comparison 34

Department Of Mechanical Engineering

Page 7
Modified Bench Vice Design project Report2019

CHAPTER: 1

INTRODUCTION

Trees are vital. As the biggest plants on the planet, they give us oxygen, store carbon, stabilize
the soil and give life to the world’s wildlife. They also provide us with the materials for tools and
shelter. Not only trees are essential for life, but as the longest living species on earth, they give
us a link between past, present and future. It is critical that wood lands, rain forests and trees in
urban setting such as parks, are preserved and sustainably managed across the world.
Tree transplantation is the latest technology to suite the need to conserve trees. The trees are an
important part of our ecosystem, and play a vital role in maintaining the biodiversity of the area.
In order to facilitate construction of large scale projects without cutting of trees, this technology
has been developed. Since trees have been established for many years, it is not possible to lift a
tree overnight.

Tree planting is the process of transplanting tree, if performedproperly can result in the
successful regeneration of a deforested area. In agriculture and gardening, transplanting or
replanting is thetechnique of moving a plant from one location to another.Reforestation is the
commercial logging industries answer to the largescale destruction of old growth forests.As the
trees remove carbon dioxide from the air as they grow, treeplanting can be used as a
geoengineering technique to remove CO2from the atmosphere.

Department Of Mechanical Engineering

Page 8
Modified Bench Vice Design project Report2019

CHAPTER: 2

OBJECTIVE

Analyzing of modified bench vise with existing one

Increasing the degree of freedom.

Making bench vise more cost effective and reliable.

Department Of Mechanical Engineering

Page 9
Modified Bench Vice Design project Report2019

CHAPTER: 3

SCOPE OF THE PROJECT

To increase the degree of freedom of existing bench vice.

Department Of Mechanical Engineering

Page 10
Modified Bench Vice Design project Report2019

CHAPTER: 4

METHODOLOGY

Methodology is one of the most important elements to be considered to make sure the fluent
of the project and get expected result. In other words the methodology can be described as
framework where it contains the elements of the work based on the objectives and a scope of
the project. A good framework can get the overall view of the project and get the data easily.

CHAPTER: 5

Department Of Mechanical Engineering

Page 11
Modified Bench Vice Design project Report2019

LITRATURE REVIEW

5. 1 INTRODUCTION

Vise is a mechanical screw apparatus used for holding or clamping a work piece to allow work to
be performed on it with tools such as saws, planes, mills, drills, screwdrivers sandpaper, etc.
Vises usually have one fixed jaw and another, parallel jaw which is moved towards or away from
the fixed jaw by the screw. Vises are used as holding devise on machines like lathes, milling
machine, drilling machine etc. and also by tool makers for holding jobs. Design wise three
types of vises are very common in use namely plain vise, swivel vise and tool maker’s vise
which is commonly known as bench vise. Vise is usually refers to a bench vise with flat, parallel
jaws, attached to a workbench. There are two main types: a woodworking vise and engineer’s
vise. The woodworker’s bench vise main characteristic is its integration into the bench. An
engineer’s bench vise is usually clamped or bolted onto the top of the bench. The handle is
usually adjustable so that it can be tightened in small places. There are four main types of bench
vises these are machinist vise, mechanics vise, post vise and woodworkers vise. The machinist’s
vise is considered as “cream of the crop”. They are stoutly made and are finely machined. The
jaws should match up perfectly, and they will be made of very high grade (60,000psi or greater)
cast iron. The mechanic’s vises are made of lower grade iron. They usually have an integrated
anvil area. The post vise is a blacksmith’s tool, these vises are made of forged wrought iron, not
cast iron, allowing them to have ductility. The woodworker’s vise is an undermount vise, usually
with a retractable dog for clamping work upon the workbench.
There are two main types of jaws used on vises: hard and soft. Hard jaws are available with
either a coarse gripping surface or are ground flat and smooth to increase accuracy. The latter
relies on pressure for gripping, instead of a rough surface. An unskilled operator has the
tendency to over tighten jaws, leading to part deformation and error in the finished workpiece.
Soft jaws are usually made from a soft metal (usually aluminum), plastic, or wood. They are
used to either hold delicate workpieces. These specifically cut jaws are often used in place of
fixtures and most commonly used in gang operations. They are also used for rapid change-over
type set-ups since they can be easily engraved with the part number, the job number, or other
information relevant to the job being run. Soft jaws are considered a consumable item, because
they are discarded or recycled after multiple uses.
Department Of Mechanical Engineering
Page 12
Modified Bench Vice Design project Report2019

5.2 Journals

a) Design & Manufacturing of Components of Modified Bench Vise on Rapid Prototype

Machine – Mr. Shrikant M. Chougule , Prof. D. B. Waghmare
b) Design and Modification of Bench Vice by Increasing the Degrees of Freedom – Mr. A.
S. Kadam, Mr. T. V. Daundkar, Mr. S. R. Tanpure, Prof. V. V. Saidpatil
c) Design and Analysis of Modular Fixture for Machine Vice – P.Sivasankaran

Design and Fabrication of Automatic Machine Vice using Microcontroller Anuchandranc.C ,

Praveenc.M , Karthikeyan .R

5.2.1 Design & Manufacturing of Components of Modified Bench Vise on

Rapid Prototype Machine
5.2.1.1 INTRODUCTION

Vise is a mechanical screw apparatus used for holding or clamping a work piece to allow work to
be performed on it with tools such as saws, planes, mills, drills, screwdrivers sandpaper, etc.
Vises usually have one fixed jaw and another, parallel jaw which is moved towards or away from
the fixed jaw by the screw. Vises are used as holding devise on machines like lathes, milling
machine, drilling machine etc. and also by tool makers for holding jobs. Design wise three
types of vises are very common in use namely plain vise, swivel vise and tool maker’s vise
which is commonly known as bench vise. Vise is usually refers to a bench vise with flat, parallel
jaws, attached to a workbench. There are two main types: a woodworking vise and engineer’s
vise. The woodworker’s bench vise main characteristic is its integration into the bench. An
engineer’s bench vise is usually clamped or bolted onto the top of the bench. The handle is
usually adjustable so that it can be tightened in small places.

5.2.1.2 Rapid Prototyping

Prototyping or model making is one of the important steps to finalize a product design. It helps in
conceptualization of a design. Before the start of full production a prototype is usually fabricated

Department Of Mechanical Engineering

Page 13
Modified Bench Vice Design project Report2019

and tested. Manual prototyping by a skilled craftsman has been an age old practice for many
centuries. Second phase of prototyping started around mid-1970s,when a soft prototype odeled
by 3D curves and surfaces could be stressed in virtual environment, simulated and tested with
exact material and other properties. Third and the latest trend of prototyping, i.e., Rapid
Prototyping (RP) by layer-by-layer material deposition, started during early 1980s with the
enormous growth in Computer Aided Design and Manufacturing (CAD/CAM) technologies
when almost unambiguous solid models with knitted information of edges and surfaces could
define a product and also manufacture it by CNC machining.

Basic Principle of Rapid Prototyping Processes

Fig 5.1 RPT

5.2.1.3 Basic Principle of Rapid Prototyping Processes

Department Of Mechanical Engineering

Page 14
Modified Bench Vice Design project Report2019

RP process belong to the generative (or additive) production processes unlike subtractive or
forming processes such as lathing, milling, grinding or coining etc. in which form is shaped by
material removal or plastic deformation. In all commercial RP processes, the part is fabricated by
deposition of layers contoured in a (x-y) plane two dimensionally. The third dimension (z)
results from single layers being stacked up on top of each other, but not as a continuous z
coordinate. Therefore, the prototypes are very exact on the x-y plane but have stair-stepping
effect in z-direction. If model is deposited with very fine layers, i.e., smaller z-stepping, model
looks like original. RP can be classified into two fundamental process steps namely generation of
mathematical layer information an generation of physical layer model. Typical process chain of
various RP systems is shown in figure

Fig 5.2 RPT

5.2.1.4 Case Study
The Manufacturing industry is operating on tighter margins and ever increasing competition.
With more competition and ever changing consumer demands, small scale industries are
frequently realizing the necessity to reengineer their facility to satisfy the needs of many product
groups and styles. In the Mechanical Engineering field bench vise plays a vital role during
manufacturing of various components. Therefore we have selected the bench vise for the case
study. In market different types of bench vises are available to meet the industry demand but till
the existing bench vise can be modified in different types to complete the operations safely,

Department Of Mechanical Engineering

Page 15
Modified Bench Vice Design project Report2019

efficiently and to increase the productivity of manufacturing industry. We have manufactured the
proposed modified bench vice by using Rapid Prototyping process.

5.2.1.5 Objectives
1. Study of Rapid Prototyping and bench Vise.
2. Designing a conventional bench vise using Pro-E.
3. Design modification by value addition in the bench vise.
4. One side locking arrangement (C Clamp with one screw) for bench vise to make it
portable& fix bench vice on different tables at any location.
5. Providing surface plate with right angle plate on stationary jaw for measurement of right
angles between two surfaces of job.
6. Manufacturing a prototype of modified bench vise on RPT machine.
7. Making bench vise more cost effective and reliable.

5.2.1.6 Design of Bench Vise

Fig 5.3

Actual pictures after modifications in CAD software

The main components of modified bench vise are fixed jaw, movable jaw, lead screw with
handle, c-clamp, clamping handle, nut and bolt. The fixed jaw is fixed to the c-clamp with base

Department Of Mechanical Engineering

Page 16
Modified Bench Vice Design project Report2019

with the help of nut and bolt. A lead screw is fit between movable jaw and fixed jaw to control
the movement of movable jaw. The whole assembly is then fitted to bench with help of c-clamp
as shown in fig. The work piece is held between movable jaw and fixed jaw with the help of lead
screw

Fig 5.4
Table. 5.1 Manufacturing details of various parts of bench vise
Name of Parts Model Support Estimated Weight
Material (in3) Material (in3) Time (Hrs) (gm)
Movable Jaw 3.62 2.05 5.36 57.3
Fixed Jaw 3.26 1.59 6.02 83.3
Vise screw with 0.52 0.46 1.32 8.2
handle
C-clamp fixing 0.07 0.04 0.14 1.6
screw
C-clamp 0.48 0.15 0.40 4.4
Collar 0.04 0.01 0.04 1.9
Screw 0.02 0.01 0.06 1.6
Assembly 1 7.52 4.16 12.94 150.3
Assembly 2 8.05 4.32 13.38 153.5
Assembly 3 7.48 4.13 12.78 149.1
Table 5.1 Bill OF Material
5.2.1.7 Results of Prototyping
Department Of Mechanical Engineering
Page 17
Modified Bench Vice Design project Report2019

 A visualized specification in the form of an interactive prototype of future

applications is obtained, enabling
 easier communication between the designer and the manufacturer.
 It will help ensure more specific feedback from the manufacturer in the early stages of
the project.
 The accuracy of every detail of the design/functionalities/product/services can be
checked before programming
 starts.
 The speed of incorporating the changes to the prototype is more, the entire process of
creating the application
 can be speeded and the number of requests for changes in advanced stages of
development can be reduced.
 It will help ensure better defined application requirements and validate their
implementation in the prototype.
 A better idea of the estimated cost of application development can be obtained.
 In prototype, a visual representation of the final application is gained and enables better
demonstration of the feasibility of our idea to other people (investors, colleagues, and
superiors).

5.2.1.8 Conclusions
Design process is achieved by relying on new design methods and with the help of computer
software’s like CATIA, UG, Solid works and Pro-E. The need of modifications in actual design
is to reduce overall cost of the product, increase the products life, minimizing material waste etc.
These are achieved in the modifications of bench vise. In the next phase of the project all
designed parts has to be converted into STL format. Using conventional methods, such as
casting, forging, machining etc. engineers are limited in the ability to design bench vise by the
drastic length of time required to prototype an idea.
Modified traditional fixed jaw to the shape of surface plate which helps to insure that either two
faces of work-piece are in 900 or not. When it is necessary to measure the 900 angle between
any two faces repetitively then this modification saves the time.

Department Of Mechanical Engineering

Page 18
Modified Bench Vice Design project Report2019

5.2.2 Design and Analysis of Modular Fixture for Machine Vice

5.2.2.1 Comparison Of Existing Screw –Less Machine Vice With Proposed

Screw Less Machine Vice

In the existing vice as shown in Figure 1. It has certain demerits such as clamping force required
to hold the component is not highly sufficient enough also the movement of movable jaw was
restricted due to the presence of triangular block. In order to overcome the drawbacks of existing
vice proposed model of vice was suggested. In the proposed model as described in figure 2. Is
said to be much simpler in design as compared to previous one. In this type attempt has been
made to design a modular fixture which is highly flexible in nature. In the proposed model
modular fixture was considered to be as movable jaw provided with Allen key slot this set up
was easier than previous model. The main advantages present in the proposed model was
minimizing the effects of clamping force since in this set up fixture was firmly placed on the
holes of base block very rigidly also the movement of Fixture was not restricted as like old
model as shown in fig 1.

Fig 5.5
Department Of Mechanical Engineering
Page 19
Modified Bench Vice Design project Report2019

5.2.2.2 SENSITIVITY ANALYSIS OF EXISTING SCREW LESS

MACHINE VICE WITH PROPOSED SCREW LESS MACHINE
VICE USING ANSYS:

Fig 5.6 Total Deformation on clamp for existing model

Fig 5.7 Total deformation for proposed model

Department Of Mechanical Engineering

Page 20
Modified Bench Vice Design project Report2019

In this analysis comparison was made between existing vice and proposed vice in terms of
deformation when a load is acting on the vice as shown in figures 3 and 4 respectively. 6
P.Sivasankaran In this analysis a load of 16000N was assumed to act on clamp part of existing
vice as described in fig 3. Due to the applied load on the clamp the deformation takes place on
the connecting plates which supports the cubic bar which is mounted on the triangular piece. In
this analysis the deformation rate was measured to be 0.003 m was shown in the fig 3.

Similarly the same type of deformation analysis is carried out for proposed model as indicated in
fig 4. In this type of analysis applied load is same like previous model. The direction of load
acting on the fixture is in forward direction as given in fig 4. The rate of deformation was
measured to be 0.00017m.

5.2.2.3 Inference from the results

SL.NO Existing Model Proposed Model

Deformation (m) Deformation (m)
1. 0.003 0.00017

Table 5.2 Interference

From the above results it was clearly indicated that the deformation rate for proposed model is
much less as compared to existing model. From this it is understood that the proposed model was
considered to be highly robust enough to withstand loads as compared to existing model of vice.

5.2.2.4 Conclusion

Thus the proposed model was evaluated in ANSYS software by calculating the deformation rate
for given load which is compared with the results of existing vice. From this analysis one can
choose second model or proposed vice for fabrication. In this analysis the material considered for
vice is cast iron based on that deformation results are obtained for both the models of vice.

Department Of Mechanical Engineering

Page 21
Modified Bench Vice Design project Report2019

5.2.3 Design and Fabrication of Automatic Machine Vice using

Microcontroller
5.2.3.1 INTRODUCTION
An incredible range of manufacturing systems use the force and power of fluids such as water,

oil and air. Powered clamps open and close with the force of pressurized air or oil, large presses

clear shape and form metal with hydraulic pressure and assembly torque tools fasten components

with pressurized air. In each example, Fluid power provides the energy necessary to exert

significant mechanical forces. The Most the small scale industry the requirement of the man

power is more. In required more time, Energy, man power as well as the maintenance. The

machine vice is the work holding device that will hold the job. The worker need to be hold or

grab he work piece for loading and unloading. Since, as a mechatronics engineering we came up

with a solution at low cost automation technique using electronics and the mechanical devices.

This system will comes with the automatic loading and the unloading techniques and release as

with the peripheral timed controls.

5.2.3.2 LITERATURE REVIEW

[1] Bench Vice is a holding machine that Machine vises are mounted on grinding machines,
drill presses and milling machines. Abrasive chop saws have a special type of machine vise built
in to the saw. Some people use a machine vise as a bench vise because of the low cost and small
size.
[2] Dr S K Patel has designed and developed a work holding Vice for the Drilling and milling
purpose. This project brought the idea about the machine vice for drilling purpose as well as the
other machining purpose. For large scale production of different materials a lot of time is wasted
in set up of the device and clamping the device. Trial and error method is usually practiced until
the axis of the hole is properly aligned with the axis of the drill. In such a situation a lot of time
is being wasted to maintain the accuracy. Eventually it increases the operator’s fatigue. Thus drill

Department Of Mechanical Engineering

Page 22
Modified Bench Vice Design project Report2019

jig increases productivity by eliminating individual positioning, marking and frequent checking.
The main advantage of the jigs is interchangeability.

5.2.3.3 MODIFIED MACHINE VICE

Fig 5.8 Modified machine vice

The modified machine has a feature of self-adapting of the different complicated work pieces.
What the additional features is there will be no more flywheel for rotating to hold or tight the
work piece. It automatically sense the object and hold the work piece to the excel environment.
It’s also release the work piece after completing the work or process. Thus the final product is a
complete solution for the manual and increasing the speed rate of production.

5.2.3.4 COMPONENTS

 Compressor
 Pneumatics

Department Of Mechanical Engineering

Page 23
Modified Bench Vice Design project Report2019

 DCV (Direction Control Valve)

 Microcontroller
 PCB and Transformer
 IR Sensor

5.2.3.5 WORKING

he automatic machine vice is operated with the pneumatics. The machine vice is made to the
controlled with the DCV at the fixed rate of the compressed air. The operation is made to follow
a sequence of timed control by the cocked timed programmed with the PC microcontroller.
There is an IR sensor which will continuously monitor the presence of object or work piece. We
also add a Buzzer alarm which will inform that the vice is going to close. The operation begins
with the presence of object detection by the IR sensor and signal is fed to the microcontroller as
shown in the figure 04. When the object is detected the buzzer alarm produces a sequential sound
for the 2-4 seconds. The microcontroller actuates the DCV for the pneumatics and the cylinder is
operated. Depend up the various operation like holding, screwing, drilling, boring, face and top
surface milling and many can be done dependency of the specific operation. The microcontroller
has an advantage of re-write the program as well as electrically erasable and store at the any
instant. After the operation the vice is retracted. We follow slow forward extinction and the fast
retraction while returning. Depend up on the operation the clocked time can be changed. Here we
use default timing for the demo version.

Department Of Mechanical Engineering

Page 24
Modified Bench Vice Design project Report2019

Fig 5.9 Flow chart Of Working

5.2.3.6 ADVANTAGE
 Reduced Fatigue
 No Man Power Required
 It can hold any type of Object
 Lead time Reduction
 Increased productivity
 Quick operation.
 Stable and rigid design.
 Extremely high clamping force.
 High accuracy and repeatability.
 Reduces production cost.
 Design is compact and very simple to operate requiring almost no maintenance.

Department Of Mechanical Engineering

Page 25
Modified Bench Vice Design project Report2019

 Can be mounted horizontally or vertically

5.2.4 Design and Modification of Bench Vice by Increasing the

Degrees of Freedom

5.2.4.1 Introduction

Increasing the accuracy and productivity are the two basic aims of mass production. As we
know the solution to this is by reducing the manual fatigue and also reducing the set up cost of
the machine. In this case the device that fulfils our needs is the use of jigs. Let us take one
example. Let us consider that one gets an order of say 1000 products. There need to be drilled
three holes on this product. In such a case the designer tries to draw out every single hole with
the help of square, straightners, scribers and center hole. In order to align the axis of the drill
with the axis of the hole we generally go for trial and error method. Accuracy is the main
problem in such cases. In doing so accuracy increases the work load on the operator. Hence
using of jig to position and guide the tool to its right path is preferred rather than using scribers,
square, straightners or center punch etc. Thus, the productivity is increased which is done by
eliminating individual marking, positioning and frequent checking. Interchangeability is the chief
advantage here. All the parts fit in properly except only the similar components are
interchangeable. One does not need to repeatedly unclamp and clamp the object for various
purposes like positioning as the locating, guiding and clamping of the tool is done by the jig
itself. Bushing is used which is a tool guiding tool. So, it reduces the presence of skilled laborer.
Drill jig helps to ream, drill and tap at a much faster speed and with great accuracy as compared
to holes done conventionally by hand. The responsibility to maintain the accuracy of the hole is
now shifted from the operator and given to the jig. May it be a drill fixture or a drill jig the
necessity of a clamping device is inevitable. In case of a drill jig bushings are used. These drill
bushings guide the drill bit during the drilling operation. Generally, work piece is held by a
fixture and the fixture is arranged in such a way that the loading and unloading of the job is fast.
As we all know a fixture is a production tool which is mainly used to hold, locate and support the
work piece firmly to the table. Feeler and Set blocks are sometimes used to provide reference of

Department Of Mechanical Engineering

Page 26
Modified Bench Vice Design project Report2019

the cutter to the work piece. The main concern is the fastening of the fixture. These fixtures also
help in simplifying the network operations which are performed on special equipment.

5.2.4.2 Design

Fig 5.10 Block Diagram of Bench Vice

5.2.4.3 Results
SR. No Quantity Name Description or Conversion
1 Nominal diameter of screw 10 mm
2 Mean diameter 21.5 mm
3 Core diameter 7.93 mm
Table 5.2.3 Results

5.2.4.4 Conclusions
For the project the required research work has been completed and the validation of project has
been proved. Hence it can be said that the aim of the project “Design and modification of bench
vice by increasing the degrees of freedom” can be achieved successfully.

Department Of Mechanical Engineering

Page 27
Modified Bench Vice Design project Report2019

CHAPTER: 6

Work Done

Fig 6.1 Assembly View 1

Fig 6.2 Assembly View 2

Department Of Mechanical Engineering

Page 28
Modified Bench Vice Design project Report2019

Part Drawing

Fig 6.3 Clamp base Fig 6.4 Rotatable Anvil

Fig 6.5 Static Jaw Fig 6.6 Sliding Jaw

Department Of Mechanical Engineering

Page 29
Modified Bench Vice Design project Report2019

Fig 6.7 Lead Screw Fig 6.8 Handle

Exploded View

Fig 6.9 Exploded View

Department Of Mechanical Engineering

Page 30
Modified Bench Vice Design project Report2019

Parts Of Vice

6.3 Clamp Base

 This is the part of a vise that holds it all together, literally.
 Machine vices are mostly manufactured with a flat bottom base design which fits firmly
against the machine’s table.
 This base is designed to be clamped in to place.
 A clamping screw and handle is provided to tighten or loosen the clamp against the table

6.4 Rotatable Anvil

 It is fixed upon the base

 It consists of sliding and static jaws.
 It can be rotated 360 degree perpendicular to its axis
 A hole is provide on the anvil to place lead screw of the sliding jaw.
 A rigid square part is provided on the top of the anvil, which can be used for doing light
shaping of materials.

6.5 Static Jaw

 It is fixed on anvil.
 It’s heads can be rotated 360 degree
 It is made up of cast iron

6.6 Sliding Jaw

 It is the movable part of the jaw

 It can be moved length ways using lead screw
 A handle is provided for converting rotary motion in to linear motion .
 It have two jaw heads


Department Of Mechanical Engineering
Page 31
Modified Bench Vice Design project Report2019

6.7 Lead Screw

• The screw is the part that is in control of opening and closing the jaws of the vice. A lead
screw, also known as a translation screw

• or power screw, is a screw used as a linkage in a machine, to convert the turning motion
into linear motion.

• Common applications are linear actuators, machine slides (such as in machine tools),
vises, presses, and jacks.

6.8 Handle

• Machine vice commonly has a small crank handle which allows the user to get maximum
clamping force when working without turning the handle excessively.

6.9 Locking Pins

• Once desired angle is achieved movable jaw is fixed with help of locking Pins.

Department Of Mechanical Engineering

Page 32
Modified Bench Vice Design project Report2019

6.10 Working
 A screw clamp is used on the base of bench vice.
 By turning the handle fitted with the clamp, we can place the bench vice in any table.
 The movable anvil can rotate about 360 degree increasing the degree of freedom.
 By the movability of anvil we can even place the work piece outside of the table making
the machining process more comfortable.
 Static jaw and sliding jaw are placed on the anvil.
 Static jaw is permanently fixed in to the anvil , while the sliding jaw can be removed
from the anvil.
 Unlike the existing vices these modified bench vice consists of two pairs of jaw heads to
hold work piece.
 Since it have two pairs of jaw heads, two work can be carried out at a time.
 Both the heads of sliding and static jaws can be rotated 360 degree about perpendicular
their axis.
 This helps in holding the work piece in any angle.

6.11 Comparison Between Existing And Modified Bench Vices.

6.11 Existing Bench vice 6.12 Modified Bench Vice

Department Of Mechanical Engineering

Page 33
Modified Bench Vice Design project Report2019

Sr. No. Part Name Existing Bench Vise Modified Bench

Vise
01 Fixed Jaw Traditional Fixed Fixed jaw takes the
Jaw used shape of surface
for clamping the plate. This
work-piece will help to insure
firmly while that either two faces
performing the are in
operation. 900or not. Also it
saves time while
measuring
this angle between
two faces of work-
piece.
02 C-Clamp C-clamp is not C-clamp is attached
provided in below the base of
traditional bench traditional fixed jaw
vise. and then we can
move &
fix the bench vise on
any table as per the
requirement.
03 C-Clamp C-clamp with Base C-clamp with base
With Base plate is plate performs the
Plate not provided in same
traditional function as
bench vise. mentioned above but
with this bench
vise can be clamped
rigidly to the table at

Department Of Mechanical Engineering

Page 34
Modified Bench Vice Design project Report2019

any
place as per
requirements.
04 Degree of freedom Existing bench vice The modified bench
have zero degree of vice have 4 degrees
freedom. Once the of freedom. It makes
work piece is fixed it the vice ergonomic.
can’t be moved in
any direction.
Table 6. 1 Comparison

Department Of Mechanical Engineering

Page 35
Modified Bench Vice Design project Report2019

CHAPTER: 7

Conclusion
 For the project the required research work has been completed and the validation of
project has been proved. Hence it can be said

 that the aim of the project “Design and modification of bench vice by increasing the
degrees of freedom” can be achieved successfully.

Department Of Mechanical Engineering

Page 36
Modified Bench Vice Design project Report2019

Reference
1. Mr. Shrikant M. Chougule (2015,JULY) “Design & Manufacturing of Components of
Modified Bench Vise on Rapid Prototype Machine”
2. Y.Ras mathew (Design and fabrication of work Holding Device for drilling and spot
facing of bucket wheel excavator teeth” Y.Ras mathew and J.Gowtham
3. Dr.S k Patel has designed and developed a work holding vice for drilling and millingb
purpose.Department of mechanical NIT Rourkela
4. Pulak M.Pandey , Rapid protype technologies,applications and part depostion
planning,Department of mechanical engineering,IIT Delhi
5. Jain Pranjal , KutheA. M.,feasability study of manufactering using rapid protyping:FDM
Approach.MESIC 2013
6. Mr.Chougule M.Shrikant (B.TECH in Mechanical engineering)Dr.Babasaheb Ambedkar
Technological University,Lonere
7. 7. M.Sabareeswaran, K.Padmanaban,K.Sundraraman, “FEM-based vibration controlling
and milling using fixture layout”. International layout journal of machining and
machinability of materials,VOL.15 (2014)
8. 8. A.S Kadam et al , “Design and modification of bench vice by increasing the degrees of
freedom” Global reasearch and development journal for engineering,VOL 1 (2016)

Department Of Mechanical Engineering

Page 37
