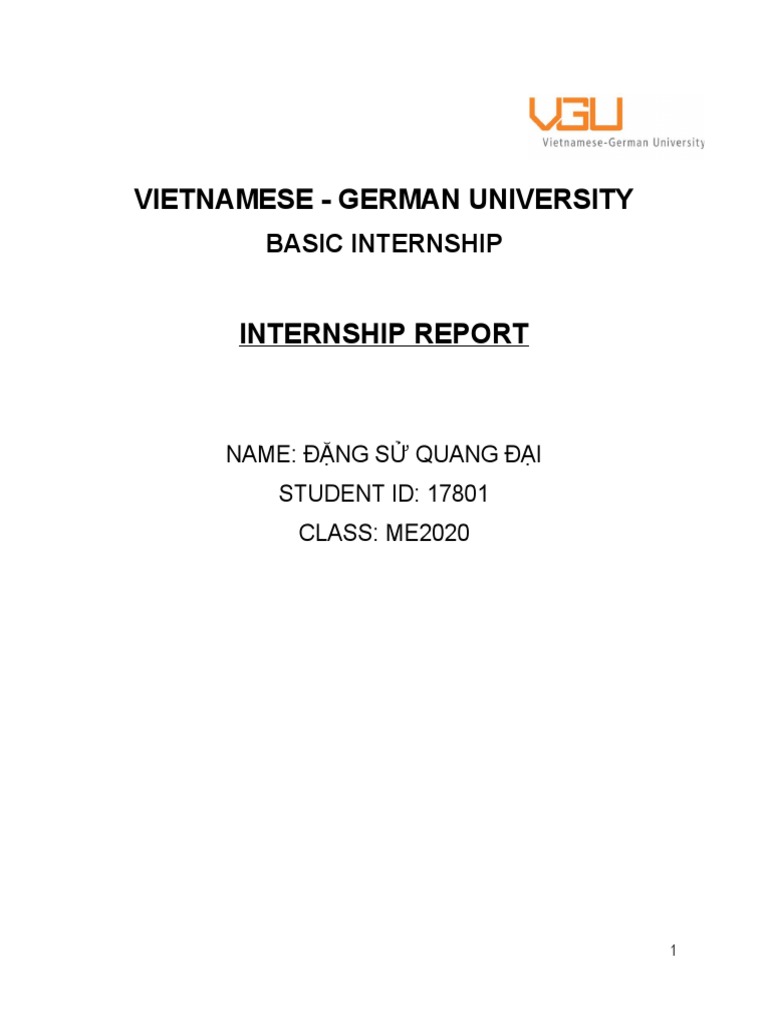

VIETNAMESE - GERMAN UNIVERSITY

BASIC INTERNSHIP

INTERNSHIP REPORT

NAME: ĐẶNG SỬ QUANG ĐẠI

STUDENT ID: 17801
CLASS: ME2020

1
Internship report

Basic Internship report

Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Internship place (with address)

Vietnamese - German University (Binh Duong Campus)
Le Lai Street, Hoa Phu Ward, Thu Dau Mot City, Binh Duong Province
Internship period
26.03.2022 – 30.07.2022
Internship overview
Department Type of activity From Till Weeks No. of work
reports
Theory session 26.03.2022 12.04.2022 1-3 1
VGU campus Turning 16.04.2022 10.05.2022 4-8 2-5
Milling 14.05.2022 04.06.2022 8-11 6-9
Filling 07.06.2022 28.06.2022 12-15 9-12
Welding 02.07.2022 26.07.2022 15-18 13-16

1
Internship report

Weekly report
Introduction
The internship begins with a theory class where we will learn about our internship
program and basic principle of safety, machines and our goal when we finish the
course.
For the first week from 26.03.2022 to 12.04.2022
Module: Theory.
Department or workshop: VGU campus, room B310-311
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Daily Hours of
Short description of executed activities
hours absence

Introducing safety principle

3 0
Introducing to equipment, machine

Total 12 0
Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name

Report on the executed work in the week from 26.03.2022 till 12.04.2022
No. of work report: 01

2
Internship report

Introducing internship courses and the facilities

On the first day, our instructor (Mr. Nguyen Phat Tai) introduced us some basic
safety principle as well as the four sections in our program, what we will learn and what
we can achieve after finishing the course.
Industrial safety
The importance of industrial safety is the ‘’first thing first’’. Before using
machinery or other equipment, every employee must get training in order to prevent
mishaps for both ourselves and our coworkers. Every employee must adopt a "safety
first" mentality when they join the job; this is a crucial need.
The objectives of industrial safety:
 Examine all the possible chances of accidents for preventing loss or disability of
man, damage to machine and material, and other infrastructure facilities available.
 Eliminate work efficiency decline.
 Reduce hazards to a minimum.
 Increase production and living standards.
Causes of accidents:
 Human Causes: Working on unsafe or dangerous, moving equipment,
machinery, or improper tools. Operating machines without knowledge, without authority,
without safety precautions. Working with unwell mental or physical health like would
likely to case troubles.
 Environmental Causes: Poor working area, improper temperature or illumination,
and bad plant layout may cause accidents.
 Mechanical Causes: Old, poorly maintained, or unsafe equipment or building
structure may lead to accidents. Lack of safety devices sand such as helmet and
goggles, also is the problem.
Safety regulations
 Dress in appropriate protection gear.
 When using the equipment, take caution and exercise responsibility.
 Carefully read the workshop rules and always abide by them to prevent mishaps
that might harm you or others around you.
 Never use the equipment without the instructors' knowledge and approval.
 Be familiar with first aid procedures for emergencies.
 Before doing maintenance or cleaning, turn off the machinery.
 Pay attention to where the emergence buttons, fire extinguisher, and escape are
located on the devices.
 Take off your bracelets, rings, and other jewelry. Make a tidy hair tie.
 Only one person using the machine at once.
 Never clean with pressurized air.
 Keep the shop neat and orderly.

3
Internship report

 If you're fatigued, stressed out, or experiencing any health issues, stop using the
machine, ask for help, and take a break.
Measurement tools and techniques
There are many kinds of tools that have been introduced to us, such as Vernier,
Micrometer, Ruler, and etc.
Using the Vernier caliper:
1. Turn the locking screw counterclockwise if it’s locked
2. Close and clamp the jaws around the outside of the object for external
measurement.
Or extend the jaws inside of the object to get an internal measurement.
Push the extension rod into the object for depth measurement.
3. Record the measurement going from the largest to the smallest number.
Lathe machine
A lathe machine is a machine tool that rotates a work piece about an axis to cut,
sand, knurl, and etc. to create an object with symmetry about that axis. It can operate in
low or high speed depending on your work.
Milling machine
A milling machine is a machine tool that removes metal as the work is fed against
a rotating cutter. The milling cutter rotates at high or low speed and it removes metal at
a very fast rate with the help of multiple cutting edges. A milling machine is used for
machining flat surfaces, contoured surfaces, surfaces of revolution, etc.
CNC machine (Computer Numerically Controlled machine)
CNC machine is an automated control of machining tools by a computer. We
program the computer with code so that it can operate directly without manual
controlling. Human instruction includes two parts, CAD- designing and CAM-
manufacturing. There is a part where manual work is necessary- when placing the
‘billet’ for reference location.

4
Internship report

Weekly report
Introduction
In the next two weeks, group 1 counting me worked with the Lathe section, this takes
place in the MEN laboratory, where I tried to master the lathe machine (week 1, 2) and
milling machine (week 3, 4).
For the week from 16.04.2022 till 10.05.2022
Module: Turning.
Department in charge: VGU MEN laboratory.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Introducing Engine Lathe machine 0.5

Safety rules 0.5
Tuesday 4 0
Get used to Engine Lathe machine 2.5
Cleaning of workplace 0.5

Introducing Lathe knife and assembly 0.5

Introducing Engine Lathe machine 0.75
Saturday Safety rules 0.75 6 0
Practicing on Engine Lathe machine 3.5
Cleaning of workspace 0.5

Total 10 0
Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name
Report on executed work in the week from 16.04.2022 till 10.05.2022

5
Internship report

No. of work report: 02

Introducing Engine Lathe machine

Wheels to move X-axis and Y-axis; levers for automation controls

Introducing Lathe knife and assembly

In the theory section last week, I have been introduced to the Lathe knife, now
that I have a chance to see it in reality and its component and how to assemble it.
Safety rules
During the lab time, there are some additional safety rules that we must obey:
 Remember the locations of emergency buttons and hitting them when
something’s gone wrong
 Tighten everything but not overtighten, remember to remove the Lathe key and
other keys before turning on the machine.
 Only one person operates a machine at a time, others must not interfere.
Getting used to the machine
First activity, we run the machine without a billet, and we practice what we’ve
learnt, getting used to the levers, the buttons. Also, we practice working with a team. It’s
a new experience for me.

Calculate the cutting speed based on the following equation:

6
Internship report

πDn
C=
1000
Where: D: Diameter of the work piece (mm)
n: Main Axis Spindle Speed
C: Cutting speed (depend on the lathe tool that we
use; in our case, C ≈ 35-45 m/min)
1000 ×C
=> n=
πD
Weekly report
Introduction
 In the second week of the Turning, after getting used to a little bit with the Lathe
machine, we keep in track with some more advanced exercises.
 For the week from 18.04.2022 till 23.04.2022
 Module: Turning.
 Department in charge: VGU MEN laboratory.

Đặng Sử Quang Đại 02.10.2002 17801

Last name Middle name First name Date of birth Student ID
Single Daily Hours of
Short description of executed activities
hours hours absence

Exercise 1 3.5
Tuesday 4 0
Cleaning of workplace 0.5

Exercise 1(Cont) 0.5

Saturday Exercise 2 3.5 6 0
Cleaning of workplace 0.5

Total 10 0
Intern Supervisor or Training center

7
Internship report

Date, signature, and full name Stamp Date, signature, and full
name

Report on executed work in the week from 18.04.2022 till 23.04.2022

No. of work report: 03

Exercise 1

 Step 1: Attach the piece to the chuck, make sure the billet is held right and the
spare is long enough to work with.
 Step 2: Set cutting speed at 400 RPM, feet rate 0.02-1 mm
 Step 3: Facing.
 Step 4: Determine the origin of Ox and Oy.
 Step 5: Start straight turning the first part till Ø20x80 mm.
The step can go from 0.2 to 2 mm depend on if this is rough turning or finish
turning. Mostly we will go with 0.5mm.
 Step 6: Chamfer the head.
 Step 7: Turn over the work piece.
 Step 8: Set the origin again and start straight turning, facing, shoulder turn, and
chamfer.
 Step 9: Check the dimensions and finish.

8
Internship report

=> In this excise, I have learned how to do basics like straight turning, facing, shoulder
turn and chamfer. Since it’s the first exercise so it takes quite some time to finish.
Exercise 2
In this exercise, we perform the same procedure as Exercise 1 but we add a few more
steps.
Exercise 2 draft and its process

Weekly report
Introduction
In the following week of the Internship, we continue doing the Exercise 2. Now that we
are familiar with the machine, we do a more advanced one, Exercise 3.
Module: Turning.For the week from 24.04.2022 to 30.04.2022
Department or workshop: VGU campus.

9
Internship report

Đặng Sử Quang Đại 02.10.2002 17801

Last name Middle name First name Date of birth Student ID

Short description of executed Single Daily Hours of

activities hours hours absence

Exercise 2(Cont) 2.5

Tuesday Cleaning of workplace 0.25 3 0
Exercise 3 introduction 0.25

Saturnday Holiday 0 0 0

Total 3 0
Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name

Report on executed work in the week from 24.04.2022 till 30.04.2022

No. of work report: 04

Exercise 3
In this exercise, we will perform knurling on a lathe machine, knurling is a
process of rolling a pattern of straight, angled or crossed lines into the material.
Exercise 3 product Knurling tool

10
Internship report

Weekly report
Introduction
 After having a holiday, we get back to finishing the Exercise 3. It’s the last
assignment of the module.
 For the week from 03.05.2022 till 07.05.2022
 Module: Turning.
 Department in charge: VGU MEN laboratory.

Đặng Sử Quang Đại 02.10.2002 17801

Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Tuesday Holiday 0 0 0

Exercise 3(Cont) 2.5

Saturnday 3 0
Cleaning of workplace 0.5

Total 3 0
Intern Supervisor or Training center

11
Internship report

Date, signature, and full name Stamp Date, signature, and full
name

Report on executed work in the week from 03.05.2022 till 07.05.2022

No. of work report: 05

We continue to do exercise 3.
Weekly report
Introduction
 After finishing with the Lathe machine, we get ready for Milling. The learning
curve is the same with Turning, theory then running the machine, basic to
advance Exercises.
 For the week from 10.05.2022 till 14.05.2022
 Module: Milling.
 Department in charge: VGU MEN laboratory.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Basics of Milling machine 1

Knife changing 0.25
Tuesday Getting used to the machine 0,5 3 0
1 face milling 1
Cleaning of workspace 0.25

1 face milling (Cont)

0.5
Exercise 1
Saturday 5 6 0
- 3 Face milling
0.5
Cleaning of workspace

12
Internship report

Total 9 0
Report on executed work in the week from 10.05.2022 till 14.05.2022

No. of work report: 06

Machine and equipment basics.
Milling Machine
components
- We get to know
these components
so that our workflow
can be smooth.
- It’s difficult to
remember at first
time but the more I
do it the more I’m
familiar with.
- Milling machine
operates in high
speed so we must
always pay
attention.

Knife changing, face milling

First, we secure the work piece tight since we don’t want it to fly around. Then we set
Ox and Oy axis:

Setting up origins for Ox & Oy axis

For x-axis:

1. Cut the billet shallowly on x-axis, about 2/3 the area of the knife

2. Set x on the screen to 0

3. Run the knife to smooth out the whole surface

For y-axis:

1. Cut small chip on y-axis, about 2/3 the area of the knife

13
Internship report

2. Run the knife to smooth the whole surface

3. Set y on the screen to 0

For z-axis

1. Lower the knife to any position of upper surface (preferably on the edge since it will
cut away)

2. Keep lowering slowly until see metal chips flying

3. Set x on screen to 0

Face Milling Cutter One/Three face milling in process

Face Milling

We use face milling knife for the ‘big’ side, for the smaller one, we change to an end
miller knife.

Weekly report
Introduction
 Second week with Milling machine, we do some more work to finish Exercise 1.
 For the week from 17.05.2022 till 21.05.2022
 Module: Milling.
 Department in charge: VGU MEN laboratory
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

14
Internship report

Single Daily Hours of

Short description of executed activities
hours hours absence

1
Exercise 1 (Cont)
0.25
- 4 Face milling
Tuesday 0,5 3 0
- Dimension constraint
1
Cleaning of workspace
0.25

0.5
Exercise 1 (Cont)
Saturday 5 6 0
Cleaning of workspace
0.5

Total 9 0
Report on executed work in the week from 17.05.2022 till 21.05.2022

No. of work report: 07

Four Faces Milling

After doing 3 faces milling, we continue with the next side. The process remains the
same.
Four faces milling in process

Weekly report
Introduction
 We continue to work on Exercises 1 and some part of Exercise 2.
 For the week from 24.05.2022 till 28.05.2022
 Module: Milling.
 Department in charge: VGU MEN laboratory.

Đặng Sử Quang Đại 02.10.2002 17801

15
Internship report

Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Exercise 1 (Cont) 1
- 2 side face Milling 0.25
Tuesday 3 0
- Knife changing 0,5
Cleaning of workspace 1

Exercise 1 (Cont) 0.5

Saturday Exercise 2 5 6 0
Cleaning of workspace 0.5

Total 9 0
Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name

 Report on executed work in the week from 24.05.2022 till 28.05.2022

No. of work report: 08

Side Milling
When doing side milling, we have to change our knife o end mill cutter in order to get
the job done.
For some cases, we have to re-clamp our billet for the cutter to be able to touch the
billet.
Exercise 2
Exercise 2 draft Exercise 2 in processing

16
Internship report

Weekly report
Introduction
 Now that we already know the basics, the workflow is much faster and accurate.
We start doing Exercise 2 and 3 in this week, both are advanced but we manage
to do it easily thanks to our instructor.
 For the week from 31.05.2022 till 04.06.2022
 Module: Milling.
 Department in charge: VGU MEN laboratory.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Exercise 2
3.5
Tuesday - Step Milling 3 0
0.5
Cleaning of workspace

Exercise 3 3.5
Saturday 6 0
Cleaning of workspace 0.5

Total 9 0

Intern Supervisor or Training center

17
Internship report

Date, signature, and full name Stamp Date, signature, and full
name

 Report on executed work in the week from 31.05.2022 till 04.06.2022

No. of work report: 09
Step milling is a process that we focus on milling accurately a sized pocket
Step Milling in Progress

In Exercise 3, we perform pocket milling on the same part that we did in Exercise 2.
Pocket milling is a process where the material inside an arbitrarily closed boundary on a
flat surface of a work piece is removed to a fixed depth.
There are a lot of calculations to be made, tough Exercise but we manage to finish it
Exercise 3 Draft

18
Internship report

Weekly report
Introduction
 This week we start the Filing module. A lot of elbow grease will be used- said our
instructor.
 For the week from 07.06.2022 till 11.06.2022
 Module: Filing.
 Department in charge: VGU MEN laboratory.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Tuesday Day off 0 3 0

Introduction to Filing
1
-Introduce new instruments
-How to file efficiently and correctly
Saturday 6 0
Exercise 1
4.5
-Filing 1 face of the billet
0.5
Cleaning of workspace

Total 9 0

Intern Supervisor or Training center

19
Internship report

Date, signature, and full name Stamp Date, signature, and full
name

Universal measure of angle Vernier

 Report on executed work in the week from 07.06.2022 till 11.06.2022

No. of work report: 10

New Instruments
We are introduced new measuring equipment such as:

File Vice

20
Internship report

Exercise 1
Here’s our main goal, to file our billet into a ‘hammer’ shape like this draft.

Weekly report
Introduction
 After finishing with first week with Filing module, we get ready for some more
basic and advanced works.
 For the week from 13.06.2022 till 18.06.2022
 Module: Filing.
 Department in charge: VGU MEN laboratory.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Exercise 1 (Cont) 2.5

-Filing 6 faces of the billet
Tuesday 3 0
-Using handsaw to shape the hammer
Cleaning of workspace 0.5

21
Internship report

Exercise 1 (Cont) 5.5

Saturday -Using handsaw to shape the hammer 6 0
Cleaning of workspace 0.5

Total 9 0

Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name
 Report on executed work in the week from 13.06.2022 till 18.06.2022

No. of work report: 11

In the next few weeks, we try our best to file in order to keep it on time. The process
remains the same, filing and measuring then repeat.
Weekly report
Introduction
 After finishing with first week with Filing module, we get ready for some more
basic and advanced works.
 For the week from 21.06.2022 till 25.06.2022
 Module: Filing.
 Department in charge: VGU MEN laboratory.

Đặng Sử Quang Đại 02.10.2002 17801

Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Exercise 1 (Cont) 2.5

Tuesday -Using handsaw to shape the hammer 3 0
Cleaning of workspace 0.5

22
Internship report

Exercise 1 (Cont) 5.5

Saturday -Using handsaw to shape the hammer 6 0
Cleaning of workspace 0.5

Total 9 0

Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name
 Report on executed work in the week from 21.06.2022 till 25.06.2022
No. of work report: 12
In this week, we try our best to file in order to keep it on time. The process
remains the same, filing and measuring then repeat. We also use handsaw to
shape the hammer.

Weekly report
Introduction
 Last day of the Filing Module, start of Welding module.
 For the week from 28.06.2022 till 02.07.2022

23
Internship report

 Module: Filing, Welding

 Department in charge: VGU MEN laboratory.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Exercise 1 (Cont) 2.5

Tuesday -Finishing and submit Final Product 3 0
Cleaning of workspace 0.5

Welding Theory session 2.5

Saturday Basic Arc Welding 3 6 0
Cleaning of workplace 0.5

Total 9 0

Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name

 Report on executed work in the week from 28.06.2022 till 02.07.2022

No. of work report: 13

In this week, we try our best to file and measure to submit our work. I manage to make it
on time.
First day of welding module, we study about how welding works and its application in
real life. We study how to operate the welding machine, safety during work and hazards.
Basic Arc Welding

24
Internship report

Here are some of the equipment in the Welding module.

1: Helmet
 To protect eyes and skin from
severe sparks and also
dangerous rays emitted by the
arc.
2: Welding Gloves
 To protect skin from severe
sparks and heat while welding.
3: Welding Jacket
 To protect skin from severe
sparks and heat while welding.
4: Hammer
 To knock off the slag from welding
joints and also to bend some
metal pieces for your intention.

25
Internship report

Welding Machine:

 ARC and TIG welding mode

 A knob to adjust the current

Weekly report
Introduction
 Practice Arc Welding and start TIG Welding
 For the week from 04.07.2022 till 09.07.2022
 Module: Filing, Welding
 Department in charge: VGU MEN laboratory.

Đặng Sử Quang Đại 02.10.2002 17801

Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Arc Welding
1.5
Welding in straight lines
1.5
Tuesday Welding butt joint 3 0
2.5
Cleaning of workplace
0.5

TIG Basic Welding 5.5

Saturday 6 6
Cleaning of workplace 0.5

Total 9 0

Intern Supervisor or Training center

26
Internship report

Date, signature, and full name Stamp Date, signature, and full
name
 Report on executed work in the week from 04.07.2022 till 09.07.2022

No. of work report: 14

TIG Welding Basic

Here is Arc Welding in straight lines, this work is good, lines are straight, one weld is on
top of another one.

27
Internship report

Here is some trial and error when TIG Welding for the first time. We try to figure out the
flow of the material and the movement of our hand. It’s required lots of practice and
patience.

Weekly report
Introduction
 Advanced TIG exercises, more practice
 Module: Filing.
 For the week from 11.07.2022 to 16.07.2022
 Department or workshop: VGU campus.
Đặng Sử Quang Đại 02.10.2002 17801
Last name Middle name First name Date of birth Student ID

28
Internship report

Short description of executed Single Daily Hours of

activities hours hours absence

2.5
Butt joint TIG welding
Tuesday 0.5 3 0
Cleaning of workplace

Butt joint TIG welding

2
Practice tee joint TIG welding 3.5
Saturday 6 0
Cleaning of workplace 0.5

Total 9 0

Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name

 Report on executed work in the week from 11.07.2022 till 16.07.2022

No. of work report: 15

We practice butt joint and get used to tee joint, it’s welding two pieces of metal together.

First I have to make two pieces fixed by welding two spots, then I turn to the other side
and start welding full length. It’s challenging when done for the first time.

29
Internship report

Weekly report
Introduction
 Practice and Final Test- last day of the Welding module
 For the week from 19.07.2022 till 23.07.2022
 Module: Filing, Welding
 Department in charge: VGU MEN laboratory.

Đặng Sử Quang Đại 02.10.2002 17801

Last name Middle name First name Date of birth Student ID

Single Daily Hours of

Short description of executed activities
hours hours absence

Tuesday 2.5 3 0
Practice Tee joint TIG welding 0.5
Cleaning of workplace

30
Internship report

Final Test 5.5

Saturday 6 0
Cleaning of workplace 0.5

Total 9 0

Intern Supervisor or Training center

Date, signature, and full name Stamp Date, signature, and full
name
 Report on executed work in the week from 19.07.2022 till 23.07.2022

No. of work report: 16

We keep practicing our tee joint, since it is our Final test. Everyone must try their best.
Here’s my final work, not the best one I did, there’s room for improvement.

31
Internship report

32
