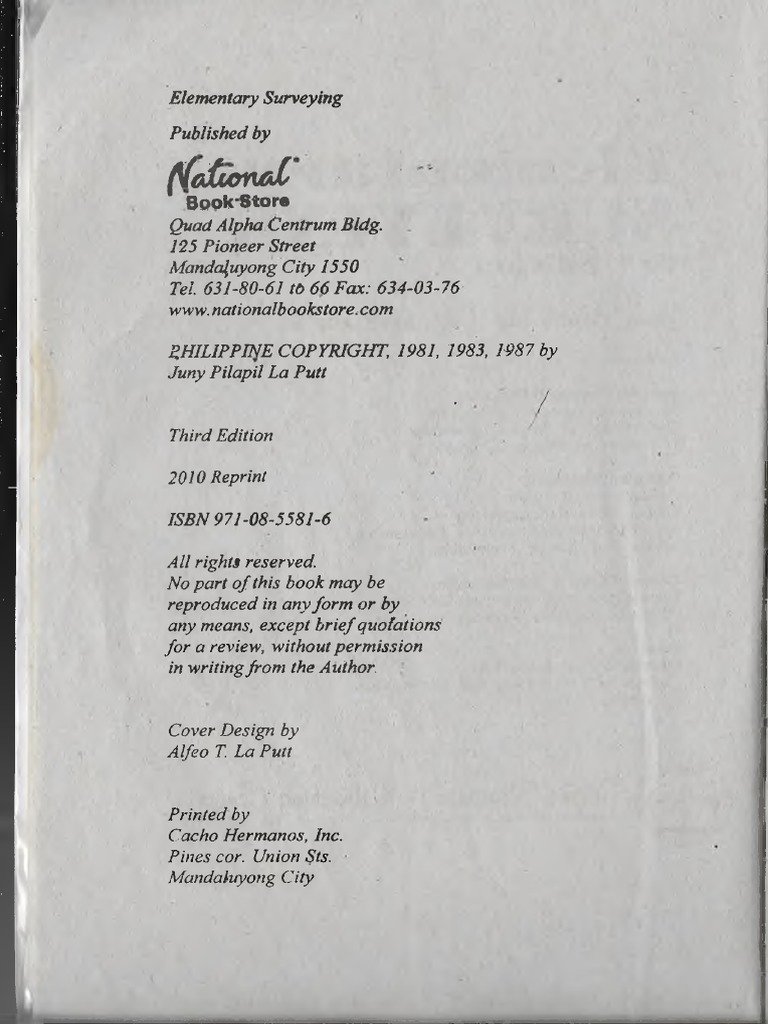

Published by
HdtumaL
1 Book Store
Quad Alpha Centrum Bldg.
125 Pioneer Street
Mandafuyong City 1550
Tel. 631-80-61 tt> 66 Fax: 634-03-76
www.nationalbookstore.com
Third Edition
2010 Reprint
ISBN 971-08-5581-6
Cover Design by
Alfeo T La Putt
Printed by
Cacho Hermanos, Inc.
Pines cor. Union Sts.
Mandaluyong City
This book is dedicated to the ten dearest women in
m y life - m y wife, m y three daughters, m y mother,
and m y five sisters.
ACKNOWLEDGMENTS
The author wishes to express his sincere appreciation to
the different offices, agencies, and many individuals who
have contributed to the research, preparation, and final
completion of this book. Most of all, I gratefully acknowl
edge the concern and trust of the government of the United
States of America for having awarded me two Pulbright-Hays
grants. The first grant in 1975 gave me a rare chance to
pursue my master's degree at the Ohio State University, and
the second grant in 1984.allowed me to join the University
of Maine at Orono as a Visiting Professor and Researcher
where most of the research material and references for 'this
book were gathered. I am deeply indebted to the Council £©r
International Exchange of Scholars (CIES) and the Pbilip-
pine-American Educational Foundation (PAEF). The CIES and
PAEF were the two agencies directly responsible for working,
out the details of my placement, travel,' stipend, and
residency in the State of Maine for 6 months. I acknowledge
the valuable assistance provided by the Department of. Civil
Engineering of the University of Maine at Orono, particu
larly Prof. John A. Alexander, the department chairman, for
providing most of my research needs; and his kind and
supportive staff: Pam Oakes, Carole Stoddard, Ann Lounsbu-
ry, and, Gail Keaton. My very special thanks go to Prof.
David A. Tyler, my research associate, for all his help,
suggestions, and advice during the preparation of the manu
script. Also, I wish to acknowledge the full support given
to me by the management and staff of the University of
Baguio, particularly Pres. Reinaldo C. Bautista for allow
ing me to pursue this research project.
SPa cP u tt, b s c e , a g p , m s
Formerly:
Visiting Fulbright Rrofessor
Surveying Engineering Program
Department of Civil Engineering
University of Maine at Orono
A ssistant Professor
Department of Surveying
School of Civil Engineering &
Environmental and Sanitary Engineering
Mapua Institute of Technology
Course D irector for Surveying
Department of Engineering Sciences
Philippine Military Academy ■
Head
Department of Surveying
College of Engineering and Architecture
University of Baguio
B a g u i o %26a/icli fi ^ubfiistog
P.O. Box 22B, Bpquio C ity, Philippines Tel; 4<«2-7T^
PREFACE
The course of instruction presented in this book is
designed primarily for students pursuing a general engi
neering curriculum where surveying is a required subject.
It is also suited for students of architecture, forestry,
agriculture, and others who have a need to learn or teach
mpre effectively the basic concepts, theory and practice of
surveying. The course approach used is the result of over
twenty years of extensive evaluation of the various courses
of instruction in surveying handled and directed personally
by the author while working with the academic faculties of
the Philippine Military Academy, Baguio Colleges Founda
tion,- Mapua Institute of Technology, University of Baguio,
and the University of Maine at Orono.
In this book the basic theory and concepts of survey
ing are introduced. The more important topics presented are
concentrated on the primary operations of surveying which
are the measurement of distances, directions, and differen
ces in elevations. The features and uses of conventional
surveying instruments are likewise discussed. The book is
expected to be an effective tool for home study or for any
situation where greater reliance is placed upon .the stu
dent's reading. This book should aid the student in deve
loping the ability to visualize, to think and plan logical
ly, work carefully and accurately, and to arrange the pro
duct of these efforts in a neat and orderly manner for re
cord or presentation.
The differin'- lesson modules presented have been prog
rammed for a one semester course meeting 3 hours weekly for
a period of 18 weeks. All lessons are interrelated and lo
gically arranged into a comprehensive course of study. The
48 lesson modules have been designed for easy comprehension
and should require only a minimum of instructor consulta
tion or assistance. In fact, the book is more of a guide
for self-study, almost simulating an actual classroom lec
ture. Explanations and discussions are complete, simplified
and easy to understand. Extensive use has been made of
illustrations and labeled sketches. Illustrative problems
with clearly laid out solutions usually accompany each les
son module to help the student grasp important principles
and concepts more easily.. Also, the book has been written
with reference only to SI units. Ten unit examinations are
given for the student to work out to determine his or her
level of comprehension. To provide the student enough prac
tice in solving typical surveying problems, ten problem
sets have also been incorporated.
The author only hopes that this book will help improve
the learning capability and performance of the student, and
also'facilitate the work of the surveying instructor.
JUNY PILAPIL LA PUTT
18 March 1987
Baguio City, Philippines
CONTENTS t* ,
P a r t -I:
XJSFTHODUGTIOJSr
t o s o r v j s t yrijuro
Part: II:
m e L/^ s s u r e m e i ^ t o f *
jFI O J R I & OJUTAJL. D I S T A R C E S
LESSON 6:
Measurement of Distance. Distance by
Pacing. Distance by Taping. Distance by
Tachymetry. Distance by Graphical And Ma
thematical Methods. Distance by Mechanical
Devices. Distance by Photogrammetry. Il
lustrative Problem?. . . . . . . . . . . 53
LESSON 7: Electronic Distance Measurement. Geodi
meter. Tellurometer. Measuring Tapes.
* Taping Accessories. .......... .. 65
LESSON §: Composition of Taping Party. The Procedure
of Taping. Breaking Tape. Slope Taping.
• Corrections in Taping. Correction Due to
Incorrect Tape Length. Ulustrative Prob
lems. . . . . . ! . . . , . . . . . 77
LESSON 9:s Correction Due to Slope. Correction Due to
'. Alignment. Correction Due to Temperature.
Correction Due t.o Tension. Illustrative
Problems. 89
LESSON 10: Correction Due to Sag. Correction Due to
Wind. Normal Tension. Illustrative Prob-
1ems. 99
LESSON 11: Combined Corrections. Surveys with Tape.
Illustrative Problems. ................ 10 9
P a r t III:
m e:a s urjs e :m e :j s t t o e
VTETJR T X G A I L D I S TAJVCJSS
P a r t IV:
x,JErvj5rx,xisr<3? m e i t m o o s
P a r t V:
M E : A S U F H E M E M 17 & E
A M G J L E S ,AJMD O I R E C T I GISTS
P a r t VI:
T M JS JS IS f G I JVJ57JEJF? * &
T R A N S X 17 AJSTD T H E I O O O J L , I 17E:
xjwcs? a j n t z z
Ti?A V^JR C C O M £ > U T Jtk T X OJV^T
P a r t VIII:
*o j m t x r r T J E D M j & A &urszjSMJSiisr'rs
♦
P a r t IX:
A R E A C Z O M & U T J k Y X &JHTS
P a r t X>
PROBLEM SETS
INDEX 639
Elementary
SIJIiVEYIJVG
8**d Ivdxtloix
INTRODUCTION
TO
SURVEYING
P a rt I: Lesson Nos. l Thru S
INTRODUCTION
TO SURVEYING
1 1. SURVEYING
12. DEFINITION OF SURVEYING
13. PLANE AND GEODETIC SURVEYING
1. Plane. SuAveying
2. Ge.ode.tic Surveying
1-4. TYPES OF SURVEYS
1. Cada&pial SuAvey* 6. Indu&tAial SuAveyA
2. City SuAvey* 7. Mine SuAvey4
3. Con&tAuction SuAveyA 8. PhotogAamnetAic SuAveyA
4. FoACAtAy SuAveya 9. Route SuAvey4
5. HydAogAapkic SuAvey& 1jO. TopogAaphic SuAvey4
DEVELOPMENT OF SURVEYING INSTRUMENTS
1. ki>tAolabe 8. Libella
2. Tetescope 9. VeAnieA
3. TAanbit 10. DiopteA
4. SejniciAcumheAentoA 11. CompaAA
5. Plane Table 12. GunteA'4 Chain
6. Dioptka. t ( 13. ChoAobate*
7. Roman Gioma 14. Metchet
ILesmn 1
• tNTfiOOUCrtO* _______ *3.
1 1 . mJHVKYINU.
5.
the earth is considered to be a flat surface, and where
distances and areas involved are of limited extent that the
exact shape of the earth is disregarded. With regard to ho
rizontal distances and directions, a level line is .consi
dered as mathematically straight, the direction of the
plumb line is assumed to be the same at all points within
the limits of the survey, and all angles are considered to
be plane angles.
- Plane surveying is of wide scope an^ application. The
different methods of plane surveying are employed in va
rious surveys undertaken-in engineering, scientific, com
mercial, architectural, geographic, navigational, and ex
ploratory work. Since it is the required degree of accuracy
which forms the controlling factor in most surveys, no
definite limit can be assigned for the area up to which a
survey may be considered as plane. Unless extreme accuracy
is required, plane surveying is applicable to areas of.some
thousands of square kilometers in extent..
2. Geodetic Surveying - are surveys of wide extent
which take into account the spheroidal shape of the earth.
These surveys employ principles of geodesy, are of high
precision, and the related calculations involve the 'solving
of equations derived from advanced mathematics particularly
spherical trigonometry, calculus, and some applications of
the theory of least squares.
Geodetic surveys, which are usually of a national cha
racter, are mostly undertaken by government agencies to
serve as a basis for the production of accurate base and
topographic maps. The most refined instruments and methods
of observation are employed since these surveys provide a
reference framework covering a large area of the earth's
surface. A number of points of known location and elevation
are established to serve as controls for subordinate sur
veys of lesser extent which are performed as plane surveys.
Elevations of selected vertical control points are express
ed in terms of vertical distances above or below a refe
rence curved surface usually mean sea level.
The field measurements for most geodetic surveys are
primarily observed by the use of theodolites, tapes, and
electronic distance measuring devices. Recently, newly de
vised equipment have been employed such as doppler and
inertial^surveying systems. These sophisticated systems are
capable of achieving high degrees of accuracy in shorter
time spans.
6 HtTHODitC'rtOM
nr n m v i
corners, and areas. These surveys are also made^to fix the
bounderies of municipalities, towns, and provincial juris
dictions.
2. City Surveys - are surveys of the areas in and near
a pity for the purpose of planning expansions or improve
ments, locating property lines, fixing reference monuments,
determining the physical features and configuration of the
land, and preparing maps. , ~
3. Construction Surveys - these are surveys which are
undertaken at a construction site to provide da^ta regarding
grades, reference lines, dimensions, ground configuration,
and the location and elevation of structures which are of
concern to engineers, architects, and builders.
4. Forestry Surveys - a type of survey -executed in
connection with forest management and mensuration, and the
production and conservation of forest lands.
5. Hydrographic Surveys - refer to surveying streams,
lakes, reservoirs, harbgrs, oceans, and other bodies of
water. These surveys are made to map shore lines, chart the
shape of areas underlying water surfaces, ' and measure the
flow of streams. They are of general importance in connec
tion with navigation, development of water supply and re
sources, flood control, irrigation, production of hydro
electric power, subaqueous constructions, and recreation.
6. Industrial Sutveys - sometimes known as optical
tTcnoling, It refers to the use of surveying techniques in
ship building, construction and assembly of aircraft, lay
out and installation of heavy and complex machinery, and in
other industries where very accurate dimensional layouts
are required.
7. Mine Surveys - are surveys which are performed to
determine the position of all underground excavations and
surface mine structures, to fix surface boundaries of
mining claims, determine geological formations, to calcu
late excavated volumes, and establish lines and grades for
other related mining work.
8. Photogrammetric Surveys - a type of Survey which
makes use of photographs taken with specially designed
<ameras either from airplanes or ground stations. Measure
ments are obtained from the photographs which are used in
«-onjunction with limited ground surveys. \
9. Route Surveys - involves the determination of
alignment, grades, earthwork quantities, location of natu-i
>al and artificial objects in connection with the planning,
design, and construction of highways, railroads, pipelines,
<.inals, transmission lines, and other linear projects.
10. Topographic Surveys - are those surveys made for
determining the shape of the ground, and the location and
- lev.it Lon of natural and artificial features1 upon it. The
i< 11lire:, shown include such natural objectTs as hills, moun
tains, rivers, lakes, relief of the ground surface, etc;
m x I works of man, such, as roads, buildings, ports, towns,
imin lc lpa 11t1 en, and bridges.
i (N t t io n 0 (.
7
tv si'* a r m*#
1-5. DEVELOPMENT OF SURVEYING INSTRUMENTS.
a i
tN
orn
Mo
Ui
Hn
Vthcj
YtQ¥
)NN
\l
(Direct) ' (Retrograde)
tN TR O O U C TtOft
10 ri» vitRViritfw
points. It consisted basically of cross arms fixed at right
angles and pivoted eccentrically upon a vertical staff.
Plumb lines were suspended from /the ends of the arms. By
employing the groma two lines at right angles to each other
could be established on the ground where it is set- up.
8. Libella. The Assyrians and Egyptians are believed to
be the first users of the libella (Fig. 1-7). The instru
ment had an A-frame with a* .plumb line suspended from its
apex and was. used to determine the horizontal. , Archeolo
gists are of the belief that the horizontal foundations of
the great pyramids of Egypt were probably defined by this
device. ' '
9. Vernier. The vernier (Fig. 1-8) is a short auxiliary
scale placed alongside the graduated scale of an instru
ment# by means of which fractional, parts of'the smallest or
least division of the main scale -can.be determined precise
ly without having to interpolate. It was invented in 1631
by a Frenchman name Pierre Vernier. Surveying instruments
employ either a direct or retrograde vernier.
101 Diopter. An instrument .developed by the Greeks
sometime in 130 B.C., and known to be their most famous
surveying instrument. The diopter (Fig. 1-9) was used for
leveling# laying off right angles, and for measuring hori
zontal and vertical angles. Since the telescope was not yet
invented during the time the diopter was used, peep sights
were employed for sighting and in aligning the device.
11. Compass. The magnetic compass (Fig. 1-10) came into
wide use during the 13th century for determining the direc
tion of lines and in calculating angles between lines. It
was first introduced for use in navigation. The compass,
consists of a magnetized steel needle mounted on a pivot at
the center of a graduated circle. The needle continues to
point toward magnetic north and gives a reading which is
dependent upon the position of the graduated circle.
12. Gunter's Chain. The Gunter's chain (Fig. 1-11),
which was invented by Sir Edmund Gunter in 1620, was the
forerunner of instruments used for taping distances. It is
66 ft long and contains 100 links, so that distances may be
recorded in chains and in decimal parts of the chain. Each
part, called a link, is 0.66 ft or 7.92 inches long.
13. Chorobates. This instrument was designed for le
veling work. It consisted of a horizontal straight-edge
about 6 meters long with supporting legs, and a groove 2.5
cm deep and 1.5m long*on top (Fig. 1-12). Water is poured
Into the groove and when the' bar is leveled so that water
stood evenly in the groove without spilling, a horizontal
line is established. *
14. Merchet. The merchet was a device for measuring
time* and meridian. It was first used by the Chaldeans in
about 4,000 B.C. It consisted of a slotted palm leaf
through which to sight and a bracket from which a plumb bob
was suspended. By sighting through the slot and past the
plumb bob string, .« straight line could be projected.
r/i*v
II
INTRODUCTION
TO SURVEYING
t-1. SURVEYING MEASUREMENTS
1. DiAect Mea6uA.eme.nt6 . *•
2. IndiAect Measurements
2 -2 . THE METER
f-3 . INTERNATIONAL SYSTEM OF UNITS {SI}
t-4. UNITS OF MEASUREMENT
1. LinzaA, AAea, and Volume MedsuAements
2. AngulaA MeasuAements
a. Sexagesimal Units
b. Centesimal Units
2 -5 . SIGNIFICANT FIGURES
1. One Significant FiguAe
2. Two Significant FiguAes
3. ThAee Significant FiguAes
4. FouA Significant FiguAes
5. Five Significant FiguAes ■
2-6: ROUNDING OFF NUMBERS
1. Digit is Less than 5
2. Digit is Equal to 5
* 3. Digit is GAeateA than 5
Lesson 2»
* INTNODUC n o *
tosufiyirmi mN&WJXsn
2-1. SURVEYING MEASUREMENTS.
15
to 1,650,763.73 wavelengths of the orange-red light pro
duced by burning the element krypton (With an atomic weight
of 86) at a specified energy level in the spectrum. This
new definition will enable nations now using the interna
tional system of units to make more accurate measurements
with the meters It will .keep them from having to check and
calibrate their meteor bars* against the international proto
type bar in Prance since ^his new defined length presumably
can be reproduced with great accuracy in a well-equipped
laboratory.
J6,
prefixes are added to basic nj^pes
TV
fKv
i rtA* 17
i7 miri 44.8 sec or 57.2958 deg, and 0.01745 rad = 1 deg.
The relationship may also be expressed as follows: 1 deg =
(3.1416/180) rad, 1 min = (3.141&/10800) rad, and 1 sec =
(3.141*6/648000) rad.
The steradian is the supplementary unit of a solid
• angle (one which has its vertex in the center of a sphere
which cuts off an area of the surface equal to that of a
square with sides of length equal to the radius of the
sphere). In the Philippines the sexagesimal units are used
with SI for angular.,measure* ants because of thei.r practical
importance and our familiarity with it.
100 9 0.001
400 8 00 0 0.000005
2. fWo Significant Figures
24 0.020 0.002.4 ■
0.24 0.000065 3.6
76 54 0.8742 0.00006712
32.25 15.00 364.0
5. Five Significant Figures.
12345 100.00 40.000
0.86740 46.609 155.28
Some general rules regarding significant- figures are:
'9
cant- figures should be recorded for every measured value.
If this is done, the precision with which the measurement
was made is clearly indicated. For example, if a leqgth is
determined, to the nearest hundredth of a meter as 65.00 m,
then it should be recorded as 65.00 m - not 65.0 m or 65 m.
By. recording it as 65.0 mi, the implication is that the dis
tance was measured only to the nearest tenth of a meter; if
only. 65 m is recorded, the implication is .that the dis
tance was measured only to the nearest meter.
The, number of significant figures in a directly obser
ved quantity is related to the precision or refinement
employed in the observation. To be consistent with the
theory of errors, it is essential that measured values be
recorded with the correct number of significant figures.
2-S. SOUNDING OFF NUMBERS. \
i.20 , i* r * o e v o T iw
w.
IN T R O D U C T IO N
TO SURVEYING
mm
Lessoit 3
n* turv/rw# 2 1 ,
3-1. STUDENT FIELD PRACTICE.
22
t rence, -and their value will depend largely upon the com
pleteness and clarity with which they have been recorded.
In many engineering applied surveys the field notes are
used or referred Jto by office personael who !.-,va not seen
the field site or who are not familiar with conditions on
the project site. They rely entirely only upon what has
been recorded. It is for this reason that notes should be
made completely, clearly, and systematically. To be com-,
'plete, the notes should show all data, together with., a
sufficient interpretation to answer all questions that may
raised with respect to any given survey. The surveyor
should keep clearly in mind not only the immediate uses of
the data but those which may reasonably be expected to
arise at some future time. A completed record written in a
disorderly and confused manner often causes more mistakes
and erroneous information.
The notes should be recorded in the conventional and
generally used format and not according to whims of the
field surveyor. The arrangement of notes usually depends
upon departmental or office standards, and preferences.
Therq are different forms of field notes in use, but in
practice these must be adapted or new forms devised to meet
unusual situations. Field notes are sometimes modified to
meet special conditions. Although several systems of note
keeping are in general use, certain principles apply to
all: The aim is to make the clearest possible nptes with
the least expenditure of. time and effort. A systematic
arrangement of all survey data is important if the reco'rd
is to be concise and includes all of the required informa
tion. Accuracy is always aide^J by methodical apportionment
and classification of data.
It is essential that notes be intelligible to others
without verbal explanations. Another person reading on the
notes should be able to quickly imagine what has been done
m the field. The notekeeper should always put- himself in
!he place of one who is not in the field at the time the
survey is made. The field notes must then contain all
necessary information ana the data recorded in sucn a man
ner that it will allow only the correct interpretation of
withered data. It is also desirable for students to have an
expertly designed set of noteforms covering their first
iield work, to set high standards and save time. The stu
dent should strive to improve each set of notes over the
preceding one. He should avail himself of this opportunity
lo develop notekeeping techniques, since it will greatly
tie 1p him not only in surveying but also in other engineer
ing work, such as recording laboratory experiments and
ie:it,<; as well as in drafting and preparation of memoranda
m.ecl in. executive or professional duties.
Field work observations should be recorded directly in
t h e notebook at: the time observations are made. Notes made
later, from memory or* copied from temporary notes may be
unr f u 1, t i nt t h e y a r e n o t f i e l d notes. Students are tempted
to scribble notes on scrap Sheets of paper for later trans
ference in neat form to the re/gular field book. This prac
tice defeats the purpose of a surveying field work course,
which is to provide experience in taking notes under actual
job conditions. ,
In court, field.notes may be used as evidence. Original
notes are tho^e taken*while measurements are being made.
All other sets are copied and must be so identified. Copied
notes, may not be^accepted in court. Because of.the possibi
lity that field notes may become .. court evidence, many
surveyors do not 'allow erasing in the field book. An
erasure could cause suspicion that the field record was
altered after the field work’ was finished. Instead,
mistakes are crossed out in such'a manner that they can
still be read, and the correct entry is made while OtilJL in
the field.
?A /Nrf
ro tiov
tmoi
ucnoM
1. Sketches. A . good sketch will help to convey
.correct impression. Sketches are rarely made to exact
scale, but in most cases they are made approximately to
scale. They ard drawn freehand and of liberal size. Many
features may be readily shown by conventional •symbols.
Special symbols may be adapted for the particular organi
zation or job. The student should note that a sketch
crowded with unnecessary data is often confusing.
2. Tabulations. A series of numerical values obser
ved in the field are best shown in a\tabulated format. Ta
bulated form of note keeping conveys ,the required informa
tion in a simple and definite manner. Tabular .forms should
be used wherever possible* This format prevents mistakes,
allows easy checking, saves time, makes the calculation le
gible to others, and simplifies the work of the person check
ing the field notes. However, in other types of surveys,
the data may be of such varying character that they cannot
be advantageously tabulated, but must be shown on a sketch
or sketches.
3. Explanatory Motes. Explanatory notes provide a
written description of what has been done in the field.'
These are employed to make' clear what the numerical data
and sketches fail'to do. Usually they are placed on the
right-hand page of the field notebook in the same line with
the numerical data that they explain^ If sketches are tised,
the explanatory notes are placed where they- will not inter
fere with other data and as close as -possible to that which
they explain. .. / .
4. Computations. Calculations of one kind or ano
ther form a large part of the work of surveying. Most sur
veying-type computations are made algebraically by the use
of simple arithmetical steps and trigonometric functions.
In some instances, graphical solutions using accurately
scaled drawings are used. Electronic hand-held calculators,
desk calculators, or digital computers are now used for
calculating values. The portrayal of calculations should be
clear and‘orderly in arrangement in order that these will
easily be, understood by persons other than the one who made
the computations.-
5. Combination!; Of The Above. The practice used in
most extensive surveys is a combination of the above types
of notes. The surveyor should be able to determine for him
self which type of combination would be most logical^to use
In portraying the type of data gathered .in the fcield.
r-5
JETER wiNim OF A
sj^
9-12 AM/25*C Athletic Oval
HE CTIL/IlEAF.f 1Y TAfE- ' ^ Lab Exorcise No.4 . Grp N0.3/CE 221
A. Tabu!itton olData (\ndudet Anglos). 5 c0 .n011 a1 cns i--
.''.✓■ . ■ .■ .. IV 6 ( ?( 0 c 3 )_ r- • ;r
C OM PUTED
m^'XiJtnmmIf’frtimw-Jrn/rm AN8LS -CORR angle A djusted i 5 3 . 1 f ""f_
*i 40.00m .50m O7‘09‘ 23 -O'45" 47*08l38'1
' <7 5 2
d V- Q .. z, 1++L t
*2 57.SO 50 70“II‘ 57’-O'45" 70-II'l2“ i 5 3 _ T
63.75 50 79’t2'4l'-o'^s" 79*ll'56“ < jj.7 V a. ’ .27'L^>--
*4 73.75 50 95’02,16 Cf43“ 95*0/'3/* r 53
8S 56.25 50 68'27'26 -0‘45“ 68’26,43‘ 6 75; 7. ..
9 7
TRIANGLE B1 IS
OT
S B NDDS ADAJNU
2I tS
iTEDAREA 01 TRIANGLl
LS >*r •. 1,S<~ -3. »:5' c >1:
ABF 450.55 405.20 47’OB'381 66,>15.14 sqm
BCF 405.20 382.15 70‘ll'l2’ 72,140.26 - f? -< cJ/C ) 7>1' 3<:,P|i■if
CDF 382.15 469.76 79*11‘56' 38, 66.87 f r. . -
< - 7 -34<h&6
r
OFF 469.76 395.38 95*01'31' 32,509.89 0 €'
| AEF 395.38 450.55 SB’26'43‘ 32,140.36 4 i. -r ;t2 < fl9 7 S 73 'J / 3 (,Vt.17
TO AL ARE* • 403,172.52sqm j v /■ H ^$>Xh9fi
>7
C. Sketcl 1 ‘ '
~*r (?) t \ 1
4 - - s5 i 3 50 5; 1 ?26V3p« ‘Ijsf»i).36
5
-zrxsXSW /
tions are recorded in tabular form. The location of a refe-
•rence point may be difficult to identify without a sketch;
but often a few lines of explanation are enough. Bench
marks and other reference points aijte usually described in
notes. Where many angles and distances are measured from
the same point, a sketch showing all observed values would
be hopelessly complicated. For this reason the angles and
distances are* recorded in tabular form. Using these me
thods, notes for any surveying operation are greatly sim
plified and the ,Jfield work undertaken becomes perfectly
apparent t^o one who has a knowledge of•surveying.
* IN I fiQOUCriQ#
rv 90* v t r M 27
. .V' ,1' I. •• .
the field work is completed could be easier determined.
Often the mistake can be traced to weather conditions or
equipment which are out of adjustment, and a correction can
easily be made without having to redo the whole field work
or some portion of it.
As an added requirement, it is important to have a ta
ble of contents at the beginning of the field notebook tp
allow easy referencing of desired data. This is advisable
when the notebook^contains observed and calculated data
covering different survey projects.
,28 INTR
bO
ODUt
NvCTU
IN
O*
N
chief.. He conducts ground reconnaissance and * investigates
sites of a proposed project to gather necessary data prior
to the start of a survey work. He is primarily responsible!
lot the employment of surveying, equipment, instruments and
accessories used in the survey operation. He prepares field
and office reports and survey plans for submission to the
chief of party.
3. Instrumentman - the tperson whose duty is to set
up, level, and operate surveying instruments such as the
transit, engineer's level, theodolite, sextant, p’ane table
and alidade, and etc. He sees to it that instruments to be
used in a survey operation are in good working condition
and in proper adjustment. He also assists the technician in
the operation of electronic surveying equipment. He works
in coordination and as a part of an instrument party and
exercises limited supervision over personnel doing manual
tasks.
4. Technician - the person who is responsible for use
and operation of all electronic irfetruments required in a
field, work operation. It .is his duty to see to it that
these equipments are functioning properly, are regularly
calibrated, and are in proper adjustment. He vis also res
ponsible for the establishment of a two-way communication
link by radio between members of the survey party and the,
home office arid, between members of the survey party where
distant stations or long survey lines' are involved.
5. Computer - the person whose duty is to perform all
computations of survey data and works out necessary compu
tational checks required in a field work operation. He is
:«spons.ible. .for the utilization of electronic calculators,
pocket or microcomputers, and assists in the operation of
computerized surveying systems or equipment.
6. Recorder - the person whose duty is to keep a re
cord of all Sketches, drawings, measurements and observa
tions taken or needed -for a field work operation. He keeps
table of schedules of all phases of work and the employ
ment of" the members of the survey party. He does clerical
<asks related to surveying in the office and undertakes
limited cartographic jobs.
7. Head Tapeman - the person responsible for the
accuracy and speed of all linear measurements with tape. He
determines and directs the marking of-stations to be occu-
oled by the surveying instruments and directs the clearing
o u t of obstructions along the line of sight. He inspects
uid compares tapes for standard length prior to their use
in taping operations and is responsible for eliminating or
ieducing, possible errors ajid mistakes in taping.
8. Rear. Tapeman - -the’ person ’ whose duty is to as-
r\l.-*t the head tapeman during taping operations and in other
ie Lated work. 1
9. Flagman ~ the person whose duty is to hold the
Ilugpole or range pole at selected- points as directed by
the inatrumentman. He helps the tapeman in making measure-
w *l0ur
(NT o v e r ION
tviYiNWi 29
i ] ,/ *
cwnts. and assists the axeman in cutting down‘branches and
in clearing other obstructions to line, of sight. Where
electronic distance measuring instruments are used,, he is
responsible for setting up reflectors or targets.
10. Rodman - the person whose primary duty is to hold
the stadia or leveling rod when sights are to be taken on
it.
11. Pacer - the person whose duty is to check all
linear measurements made by the tapeman. He assists the
tapeman in seeing to it that mistakes and blunders in li
near Measurements are either: reduced or eliminated. In
addition the pace: may also perform the job of a rodman.
12. Axeman/?lineman - the pers’on whose duty is to
rlear the line of sight of trees, brush, and' other obstruc-
• ;ons in wooded country. He is also responsible for the
security and safety of the members of the survey party at
tr.e survey site. The axeman is usually provided not only
with an ax but a rifle or a sidearm as well. If this member
is to carry any firearm, it should be seen to it that he is
lawfully authorized to do so. In some instances it would be
advisable to request military or police authorities for
needed security or hire authorized security guards.
13. Aidman - the person whose duty is to render first
•i;d treatment to members of the survey party who are
involved in snake and insects bites, accidents, and other
cases involving their health, safety, and. well being. In
addition, he may be designated as an assistant instrument-
man.
14. Utilitymen - the persons whose duties are to ren
der other forms of assistance needed by the survey party or
as directed by the chief of party. Where a survey vehicle
\s used, a utilityman is designated as driver. If the
survey party has to camp out for days in the field, utili
tymen are responsible for setting up the camp site and its
required facilities. They prepare and serve meals, and also
look after the security of the camp site. They are likewise
respons-ible for the handling and transporting of survey
ing equipment, accessories, and supplies. The laying of
concrete monuments, markers and signals at designated
points are also their responsibility.
Lessen
IMTROOUCTiON
rosutvtruil
4-1. ERRORS.
4-2. MISTAKES.
IN TRO D U C TIO N
34 t o S L 'w e r / N O
d) Sighting cr. a rod which is warped.
e) Improper adjustment of the plate bubbles of s
transit or level.
_
used in surveying, however,, their correct meanings are
often misunderstood. While accuracy may be synonymous with
precision, the two should not be used interchangeably. The
surveyor should always attempt to obtain measurements which
are not only accurate but also precise.
Accuracy indicates how close a given measurement is to
the absolute or true value of the quantity measured. It im
plies the closeness between related measurements and their
expectations. The difference between the measured value of
a quantity and its actual value represents the total error
in the measurement. As the measured value approaches the
actual value, the magnitude of the error becomes smaller
and smaller; and' as the magnitude of the total error is de
creased, the accuracy of the measurement increases. There
fore, a measurement is termed less accurate if it deviates
by a significant amount from its expected value, and it is
more accurate if the deviation is relatively small.
The following example illustrates the meaning of accu
racy. A. line known or accepted to be 100.000 m long is mea
sured twice with a steel tape. The first measured value is
100.003 m and the second is 99.995 m. The first measurement
is said to be more accurate than the second measurement
since the error in the measurement is only 0.003 m as com
pared to that of the second measurement which is 0.005 m.
Precision refers to the degree of refinement and con
sistency with which any physical measurement is made. It is
portrayed by the closeness to one another of a set of
repeated measurements of a quantity. Thus, if a set of ob
servations is closely clustered together, the observation
is said to have been obtained with high precision. Since
precision ‘ relates to the expertness of manipulation on the
part of the observer or .to the capabilities of the instru
ment used, it requires the use of precise instruments under
ideal conditions employing the best techniques.
A method frequently used to define and distinguish bet
ween accuracy and precision is illustrated in Fig. 4-1. The
figures given show possible groupings of rifle shots upon
different targets. In Fig. 4-la, the results shown were
very precise because the rifle shots were clustered close
to each other. However, they were not accurate since the
’"■hots were located some distance from the bull's eye. It is
then apparent that measurements m a / be precise but,not ne
cessarily accurate if they are closjly grouped together but
about a value that is different from the, expectation by a
significant amount.
In Fig. 4-lb, the rifleman fired accurately on the tar
get as the rifle shots were placed relatively close to the
bull's eye. The shots, however, were not precise as they
were slightly scattered with respect to the bull's eye.
This illustration is used to explain that measurements may
be accurate but not precise if they are well distributed
about the expected value but are significantly dispersed
from #each other. The results shown in Fig. 4-lc portray
INTRODUCTION
\o riNj
Fig. 4-1. Acauacy and pktiu^ion.
(e > (d)
0 0 0 0 PRECISION AND GOOD ACCURACY POOR PRECISION AND POOR ACCUR ACY
■ (A vtro g t hit conctnt.attd within tht bull'* aya)I (N o a vtragt hit in bull'*’ ty a )
rifle shots upon a target which are both precise and accu
rate as they were placed within the bull *s eye and very
closely clustered. Using this illustration We can show that
measurements could be both precise and accurate if they are
closely grouped .around the expected value. The results
shown in Fig. 4-ld portray rifle shots which are not accu
rate and not precise since they were widely scattered all
over the target frame. There is no evident sign of cluster1
I. ng and nearness of the rifle shots to the bull's eye.
It . is desirable for surveying measurements to be made
with high precision. Unfortunately, however, an increase in
precision usually 'warrants a directly proportionate in-
'lease in the time and effort of the surveyor. It should
than be the responsibility of the surveyor to o-btain a deg-
<i' of* precision which could be as high as can be justified*
u.-cording to the purpose of the survey.
4- 6 „ THHORY OF PROBABILITY.
WVM'XS M
tific and engineering measurements such as in surveying.
Accidental errors exisff^n all surveying measurements
and ; their ipagnitude and. frequency are governed by the same
general principle£xbf prgbability. In dealing with probabi
lity, it is assumed that we refer principally only to acci
dental' errors and that all systematic errors and mistakes
have been eliminated. In high precision surveys extra
effort is ftiade to. eliminate systematic errors. The preci
sion of a measured quantity isdependent upon the accident—
al error it contains.
^ The theory of probability is useful in indicating the
precision of results only in so far as they are affected by
^accidental errors. It does not, however, in’ any way deter
mine the magnitude of systematic errors which may also be
present. The theory assumes an infinite number of occurren
ces of all possible events; howgVer, it may be applied with
g^od results to a limited but. fairly large number of obser
vations. To form a judgment of a probable value or the
probable precision of a measured quantity, it is necessary
to rely upon .this theory.
The theory of probability is based upon the following
assumptions relative to the .occurrences of errors:
38 IN T M flO UC H O N
TV 9U N V I H N J
being correct than has any other.. -f
Since the true values of measured quantities must re
main forever unknown, it is possible to obtain by measure
ments only approximations of true values. • Therefore, if a
given quantity is measured more than one time, resulting in
more than one value, not all the d.erived values are cor
rect. There is only one correct value that should be consi
dered and it is determined by using the following equation
mpv - X = / n » (X, + X0 + X , + X) / n
4 0 . ILLUSTRATIVE PROBLEMS.
G
ive
n:
9 130* I S 120"
s 14 2*37'30"
■®2
S 8 7 *07* 40"
o
r» =• 3 -(number of observed angled
S o lu tio n :
a) Determining the Correction to be Applied. . .
S ursj 3 ©, + ©2 + ©3 3 130*15*20" + J 4 2 °3 7 * 3 0 " + 87°07*40"
= 360°00*30" (sum o( the angles observed about point Q)
Note: The sum o f the angles o bserved about point Q Is subfraoted from
3 6 0 * ( the expected c o rre c t sum ) to determ ine the d isc re p a n c y .
Corr = D ls o /n = - 30 "/3
3 - I6" (correction to be subtracted from each observed ongie)
3 8 7 ° 0 7 * 4 0 " - 10"
*3 - *C o rr 3
S 8 7 °0 7 30 (most probable value of ■©j)
c) S o lu tio n Check:
+ ■©*2 + - ^ 3 360*00'DO"
i 30° 15* IO" + l 4 2 o37*20" + 87°07'30" 3 360°00*00"
360°00* 00" = 3 6 0°00*00" (checks)
Note: S in c e the two q u a n titie s a re equal, the above solution is assum ed
tobe c o rre c t. , •
3.MOST PROBABLE VALUE. The observed interior angles of a tri
angle are A = 36° 14*37", B = 96*30*09",and C 3 4 8 ° I5'05". Determine
the discrepancy far the given observation and the most probable value of
each angle.
40 iMin
to
ooucrtoM
to m v tn m
Sum,* A + B + C = 35 ° 14 ' 37 " + 96 ° 30,091,+ 48 ° I 5' 05 "
= I 79° 59 l 5 l" («im of the observed Interior angles of triangle ABC)
Corr = D i s c / n = 4 09 1' / 3
" + 03 (correction to be added to ebch observed angle)
c) So lu tio n Chock:
A' + B1 4 C* = Suntg
• 35° 14140" + 96° 30* ! 2" 4 4 8 ° I 5 '0 8 " = ISOfOO'OO1'
ieo®oo'oo" = 1 80 ° oo' po" (checks)
Note- S in c e the two q u a n titie s a re e q u a l, the above so lu tio n Is a s-
umod to b e c o r r e c t.
iH
hitH
MOt'U
ok inr/iM
vt kSf 41 ,
Fig. 4-4. Related mea/*iMMe.nt6.
G iv en :
oC, = APB s ! 2° 3 I '5 0 "
cCz - B P C = 37° 2 9 120"
0C3 = CPD = 47? 3 6 '3 0 " /
oC4 = APD = 97° 37* 00"
n =4 (number of observed angles)
S o lu tio n :
a) D e te rm in ing the C o rre ctio n to be Applied.
Sum, = oC, + cC2 -hcC 3 = I2°3l'50" + 37°29'20" + 4 7 ° 3 6 , 30"'
= 9 7 ° 3 7 l40" (sum of the angles observed about point P )
Disc = i(cC 4 - Sum,) = t (97° 3 7 ‘00" - 9 7 °3 7 '4 0 " )
= ~ 40 (d is c re p a n c y In the two sets of o bservatio n made)
c) So lu tio n C heck:
oC\ +• + 0C3 = 0C4 >
I 2 ° 3 I , 4 0 " + 3 7 ° 2 9 1 10 " , + 4 7 ° 3 6 ' 2 0 " =* 9 7 # 3 7 , I O n
* . ’ 9 7 ° 37* I O" = 9 7 ° 3 7 ' 1 0 " (checks)
Lesson 5
wimm 43.1
5-1. RESIDUAL.
v = X X Eq.(l)
2.
PES = t 0 . 6 7 4 5 ^ - ^ — • Eq.(2>
• • • • Eq.(3)
n = number of observations
The determination and use of the probable error in s
veying is primarily to give an indication of the precis
of a particular measurement. It is often an approxim. ~
value and is not mathematically exact since only a few re
peated measurements are usually made and the conditions of
measurement are not rigidly controlled. For example, if
235.50 m represents the mean or most probable value of
several measurements and 0.10 m represents the probable
error of the mean value, the chances are even that the true?
value lies between 235.40 m and 235.60 m, as it is also
probable that the true value lies outside of these limiting
values. Note that the lower and upper limits are determined
by correspondingly subtracting and adding 0.10 m to 235.50'
meters. To express the probable limits, of precision for
this particular case, the quantity should be written as
235.50 1 0.10 m
•> 4„ We i g h t e d observations.
.46 IN TNOOUCTION
TO SUN V I r/NO
- n = number of values added
a (+ 0 . 13 ) 2 = 0 . 0 1 6 9
v,2 4 ' =(+0 .0 3 )2 3 0 .0 0 0 9
4 3 ( - 0 . 0 5 )2 3 0 . 0 0 2 5 V5 = -0 .0 5 )2 3 0 .0 0 2 5
(
■ ( - 0 . 0 7 )2 3 0 0 0 4 9 (+ 0 . 0 I ) 2 3 0 . 0 0 0 1
4
tn<N
tvHJtHTI** 47 ,
b.
2 2 2 2 2 2
2E V 3 V[ + V* .♦ V, + V4 + Vg ♦ Vg
= 0.0169 + 0.0025 + 0 .004 9 + 0.0009 + 0.0025 + 0 .0 0 0 1
S* 0.0278
T a b u la ted S o lu tio n :
M EASURED R ESID U A L 3 Q OF R E S ID U A L
LENGTH (v *X -X J (v Z)
(X )
. 1 0 0 0 .5 8 m + 0 .1 3 0 .0 1 6 9
1 0 0 0 .4 0 - 0 .0 5 0 .0 0 2 5
1 0 0 0 .3 8 - 0 .0 7 0. 0049
1 0 0 0 .4 8 + 0 .0 3 0. 0009
1 0 0 0 ,4 0 - 0 .0 5 0 .0 0 2 5
1 0 0 0 .4 6 + 0 .0 ! 0 .0 0 0 1
5V2 = 0. 0 2 7 8
hi
2 X =6 0 0 2 . 7 0
o
O
O
>
ii
0.0278
PE, . ± 0 . 6 7 4 * ^ * % = ±0. 67 45 ^ r t f
= ± 0 .0 5 m (probable error of a single measurement)
0278
PEm= ±0.6745TjK1| i b - fy -= +
7 ,0.6745 ^ ( 6 -TT
- ±0.02 rn (probable error of the jnean)
MEASURED A S S IG N E D
LENGTH W E IG H T P =* X ( W )
(X ) (W)
2 8 4 . 18 m 1 2 8 4 .1 8
2 8 4 .1 9 3 8 5 2 .5 7
2 8 4 .2 2 * 2 5 6 8 .4 4
2 8 4 .2 0 4 1 1 3 6 .8 0
Sums • 2 W = 10 S P s 2 8 4 1 .9 9
48 IN T R O D U C T IO N
TO S U H V t TINU
3.WEIGHTEDMEASUREMENTS. It is desired to determine tire most pro-
, bable value of an angle which has been measured at different times by dif-,
ferent observers with equal uare. The values Observed were as follows: 7 4 °
5 9 * 4 5 " (in two measurements), 7 4 ° 3 9 , 2 7 " (in four measurements )* and 7 4 * 3 9 *
35" (in six measurements).
M EASURED NO. OF P R O D U C T OF
VALUES O BSERVATION S T H E TW O Q U A N T I T I E S
7 4 *3 9 '4 3 " 2 1 4 9 * 1 9 '3 0 "
7 4 * 3 9 12 7 1' 4 2 9 8 * 3 7 '4 8 *' ,
7 4 *3 9 '3 5 " 6 447*37*30"
8 9 5 * 5 4 '4 8 "
Weighted Mean
12
7 4 ° 3 9 '3 4 M {most probable value of the angle m easured)
1 21 9 . 8 3 2 m 1 0 . 0 0 6 m 0.00 00 36 27778 1 6 .0 0 3 5 1 7 .3 1 2
2 219. 930 + 0 012 0 .0 0 0 1 4 4 6944 4 .0 0 • 879. 720
3 21 9 . 7 0 1 + 0 .0 1 8 0 .0 0 0 3 2 4 3086 1 .78 3 9 1 .0 6 8
4 2 2 0 . 02 1 + 0 .0 2 4 0 .0 0 0 5 7 6 17 36 1.00 22 0.02 1
Su ms 2 2 .7 8 5 0 0 8 .1 2 1
i4tNoouin
A/
ns
oe
w «>*-••(49
MEASURED PROBABLE 2 R E LA T IV E
MEASUREMENT VALUE ERROR (E ) WEIGHT psX(RW)
IX) (E) (E r (RW)
a 1201.50 m t O . 02 0.0004 2500 6.25 7509.38
b 1201.45 t 0 .0 4 0.0016 625 1,56 1874.26
c 120). 62 t 0.0 5 0.0025 400 1.00 1201.62
Sums 8.61 1058526
N ote: A re la tiv e weight eqifal to LOO is assigned to measurement c since
it has the sm a lle st weight (W ), and the re la tiv e weights o f a and b are corn
puted as fo llo w s:
Note: Th erefore, the p erim eter would be exp re ssed as 5 9 2 .5 0 10.07m . This
means that the true length of the perim eter probably fa lls between 592.43/r,
and 5 9 2 .5 7 m . 1
The two sides of a rectangular lot we re mea*
7 , F R O D U C T Ofc E R R O R S .
sureu with certafti estimated probable errors as follows: W = 253.36t0.06m
and L = 624.15 + 0.08 m. Determine the area of the lot and the probable
error in the resulting calculation.
Area = L x W = 624.15 (253.36)
= 158134.64 sqm (ar ea of the re c t a n c u l a r lot)
= ± \ ( 6 2 4 . 15 x 0 . 0 6 ) 2 + ( 2 5 3 . 3 6 X 0 . 0 8 ) 2
= + 4 2 . 5 8 sq m (probable error of the cal c ul at ed a r e a )
N oth; Th erefo re, the area of the tot would be exp re sse d as / 9 8 / 3 4 .6 4
± 4 2 .5 8 sq m. This means that the true area of the lot probably fa lls bet
ween 15 8 0 9 2 .0 6 -sq m end 15 8 17 7 . 2 2 sq m.
50,
MEASUREMENT OF
HORIZONTAL
Pavt
DISTANCES
Lesson Nos.
1 1 ; 6 *u
T f ii 1 1
___
MEASUREMENT
OF HORIZONTAL
DISTANCES
6 I. MEASUREMENT OF DISTANCE
6-1. DISTANCE BV PACING
6-5. DISTANCE BV TAPING
4-4. DISTANCE BV TACHVMETRV
1. Stadia Method
1. Subtense Boa Method
65. DISTANCE BV GRAPHICAL AND MATHEMATICAL METHODS
6-6. DISTANCE BV MECHANICAL DEVICES
1. OdoweteA
Z. MeasuAlng Wheel
. 3. Optical Range£lndeA
6-7. DISTANCE BV PHOTOGRAMKETRy
6-8. ILLUSTRATIVE PROBLEMS
1. Distance By Pacing
Z. Distance By Pacing
3. Distance By Stadia
4
. Distance By Subtense Boa
5. Distance By Subtense Boa
48 4
M E $V £ tte M T i>r
tY W Z S r tr .H . DiST # C £ $
53
6-1. MEASUREMENT OP DISTANCE.
U C ASU N f M f N T O f
HO HU O NTAi IH X lA M C t*
*■ '» •■
surveys.- It is also employed for checking me as ureme n^'s
obtained by more precise methods. .* i'
The equipment for stadia measurements, consists of a
telescope with two horizontal hairs called stadia hairs and
a graduated rod called a stadia rod. The telescopes of most
surveying instruments are equipped with stadia hair's which
are placed ata equal distance on either side of*the horizon
tal cross hair. The Spacing of the stadia hairs is so de
signed that at a distance of 100 meters their intercept on
a vertical rod will be about 1 meter. At 200 meters, then,
the intercept should be about 2 meters, and so on. It is
important that the line of sight is horizontal and it in
tersects the rod at right angles. *
The process of taking a stadia measurement consists in
observing through the. telescope the apparent locations of
the two stadia hairs on a vertically held rod. From the ob
served interval read on the rod, the distance.from the te
lescope to the rod ,is found by proportional relationships
in similar triajigles. The equation D = Ks + C is employed
vr v/hi 97,
tU*14*1it
in computing horizontal distances from stadia ♦Intervals
when sights are horizontal. The stadia constant C is the
distance from the center of the instrument to the principal
focus. Its value is. usually equal to zero for internal fo
cusing < telescopes- K is the stadia interval factor of the
instrument. . Most instruments are so designed' that this
value is made equal to 100. The stadia interval, s, *is de^-
tetmined in the field by observing the difference 'between
the upper stadia haii; reading and the lower stadia hair
reading. ; >i
2. Subtense Bar Method. The subtende bar is a conve
• nient and practical device used for*quick and accurate mea
surement of horizontal distances. The bar (Fig*. 6-2)., which
is precisely 2 meters long, consists of a rounded stfeel
tube through which runs a tpin invar rod. At each end of
the frame the target marks are housed. It is mounted hori
zontally’ on a tripod and placed perpendicular to the line
ofsight by means of a sighting device on top of the bar.
The procedure for determining the distance between two
points consists of s.etcing up the subtense bar at the dis
tant station, and measuring the horizontal angle subtended
by the distance between the two targets. A theodolite, set
.up at the other end of the line to be measured, is used in
measuring the sUbtqnding angle. „ *
vt#*f4
iWtI t141 H*
I*ivNrtt
WM im9
surface distances. The wheel is rolled over the, distance to
be measured and the number of revolutions of the wheel is
directly registered by the device. Since the circumference
of the wheel is knoWn, the relationship between revolution
and distance could then be established. It is similar in
function to the distance recorder of a vehicle speedometer.
An odometer only gives surface distances. There is a
need to reduce measured distances to equivalent horizontal
distances especially when steep slopes or rugged terrain
are involved, Distances measured by an odometer are suita
ble for route location surveys, preliminary surveys, small-
scale mapping*, for performing quick checks on other mea
surements, and when pacing would take a longer time to ac
complish. On fairly level terrain the odometer may be
expected to provide a precision of about 1/200. The preci
sion of odometer 'measurements depends largely on the to
pography of the terrain since the wheel follows surface
irregularities and undulations. It will be expected that a
recorded distance would be greater than the actual hori
zontal distance.
2. Measuring Wheel. A measuring Wheel is very similar
in operation to an odometer except that it is a more porta
ble and self-contained measuring device. It basically
consists of a small wheel which is attached to a rod and
handle, and can be pushed by an operator. As the wheel of
the device is rolled along a line to be measured, a built-
in calibrated recorder automatically gives a distance read
out in meters and decimals of a meter. The measuring wheel
is suitable for measuring distances along irregular or
curved lines and boundaries.
3. Optical Rangefinder. An optical rangefinder (Fig. 6-
4) operates on the same principle as a rangefinder on a
single-lens reflex camera. This device, which is usually
hand-held or mounted on a small tripod, can be used to
determine distances approximately simply by focusing. . In
4
F ig . 6-4. A -matt "Wild" Aangeiinde*.
M t AMOHt m i m or
60
is brought into coincidence (Fig. 6~5n|, the corresponding
distance is then read on a graduated scale on the range-
finder.
For distances less than 500 meters the optical range,-!
finder is capable of providing a precision of about l/50„
The obtainable precision correspondingly diminishes as tns
length increases beyond its effective range. Such devices
are suitable for dse in field sketching, reconnaissance'
surveys, plane table work, or in checking measurements ob
tained by more precise methods.
l» «. ILLUSTRATIVE PROBLEMS.
/. DISTANCE B Y PACING. A 45 - m course, AB, on level ground
was paced by a surveyor fpr the purpose of determining his pace factor.
I ho number of paces for each trial taken are shown in the accompany
ing tabulation.
Hi Q U IR E M E N T S . •
<0 Determine hiS pace factor.
b) If >he surveyor then took 77 1 , 7 7 0 , 7 6 8 , 7 7 0 , 7 7 2 , and 769 paces
In walking* an unknown distance CD, what is the: length of the line?
<) Assuming that the taped* length of line CD is 6 6 7 . 0*m , determine
the relative precision of the measurement performed.
jur A\UHi ur * r o r
OtftlON1At lUMAMl/'. 61
PACINO DATA
T R IA L L IN E . TA P ED D I3 T NO. O F P A C E S M EAN
1 AB 50
2 BA 53
3 AB I si
52
4 5 .0
4 BA *53
5 *AB 52
6 BA 53
S o lu tio n :,.
' f9
a) Determining Pace Factor.
L = 45 m (length of line AB)
• •
* n( “ 6 (number of trials taken on line AB)
PD = M2 (P F )
= 770 paces.CO.8’65 m / p a c e )
= 666. I m (paced length of line CD)
Pfi> - 666.1 m
•
(paced distance)
RP = (TD - PD)/TD = ( 6 6 7 . 0 - 6 6 6 . | . ) / 6 6 7 . 0
= 0.9/667.0 ‘
.i = 1/741 say 1 / 7 0 0 (relative precision of the measurement)
f . DISTANCE B Y PACINO, In five trials of walking along a 90-m
course on fairly level ground, a pacer for a survey party counted 51,52.5,
51.5, 52,5, and 51.5 strides respectively. He then started walking an un
known, distance XY in four trials which were recorded as follows; 88.5,
8 9 , 8 8 , and 87 strides. Determine the following;’
- *
a) Pace factor of the pacer.
b) Length of line XY.
c) Percentage of error in the measurement if the taped length of XY is
150.5 meters. '
S o lu tio n : ■
a) Determining Pace Factor.
•; t ■ * . r
L = 90 .0 m ( l en g t h of course)
5 (number of t r i o l s taken)
‘ Sum| = (51 + 5 2 . 5 + 51.5 -P 5 2 .5 + 5 1 .5 )
259 strides or 5 18 paces
M| = Sunrij/nj = 5 1 8 / 5
= 10 3.6 paces (mean number of paces to walk the. course)
PF = L / M , = 9 0 m / l 0 3 . 6 paces
= 0 . 8 6 9 m/pace (pace f a c t o r of p a c e r )
b) Determining Unknown Distance.
D = Ks + C
= 100 (1.300 - 0.900) + 0.0
= 40. 0m (length of line AB)
I
D3 * i / ton (0° 3 2 106"/2) * 2 1 4 . 19 m
D,4 - I /Tan (0® l 9 , 4 6 l,/2) = 347.83 m
• -
9
. DISTANCE BY SUBTENSE BAR. A subtense bar 2.000 meters lo n g
is set up near the middle of a traverse line PQ. Using a theodolite set
.up at P, the angle subtended reads 0 o20'l4\<When the theodolite was
transferred and set up at Q, the corresponding subtended angle was o b
served as 0®23'47 .' Determine the horizontal length of line PQ.1
F-igJ 6-6. Subtitiae. mexuiuemejtf o£ a tin e,.
D = D, + D2 = 339.81 + 289.09
= 628.90m * (horizontal Unflth of lino PQ)
64, U C A SV R euE U T OF
H O R I/O R T A L O IS T A R C C S *
MEASUREMENT
OF HORIZONTAL
DISTANCES
7 -1 . ELECTRONIC DISTANCE MEASUREMENT
1. B asic VKi.wii.plii.
1. C la s s i f i c a t i o n
а) E te c U o -O p tic a l In stK im en ts
б) MicKoimve InstK um ents
3. Advantages and D isadvantages
4. Uses
5. OpeKating Ranges
7 2. GEODIMETER
73. TELLUROMETER
74. MEASURING TAPES
T. S t e e l Tape. 6. Fib'englass Tape
1. M e ta llic Tape. 7. W ises
3. N o n -H e ta tlic Tape 8. B uildeK ’s Tape
4. Invan Tape 9. PhosphoK-BKonze Tape
5. Lovan Tape 10. N ylon-C oated S t e e l Tape
TAPING ACCESSORIES . .;
1. Range Pole 7. Wooden S ta k e ok Hub
1. Tape Clamping Handles 8. LeatheK Thongs
3. C haining P ins 9. Hand L e v e l 6 C linoneteK
4. T e n s io n Handle 10. Tape RepaiK K it
5. Tape TheKmometen 11, CKayons%
.
6. Plumb Bob
Lesson 7
~JUNno&/r. CO
7-1. ELECTRONIC DISTANCE MEASUREMENT.
r
\
time’required for a radio or light wave to travel from one
end of a line to the other is a function of the length mea
sured (Fig. 7-1). An EDM method requires a very careful
measurement in determining the interval of time between
emission and reception of the transmitted wave. The product
of ' the velocity of the transmitted wave,and the elapsed
time defines the length of the line measured.
Reflector
Trace of
Modulafed/I
Light Beam
66
ries:
Fig. 7-26. K 6 E UirA^angeA I I Fig. 7-2c. lilitd VI20 ViAtowat and T hiodotiti
V___________________ _____
or
68 u ia s u h c n c h t
H O RIZON TAL h tS T A N C f)
Fig. l-'ld . Topcon GTS-2 Fig. 7-Ze. VecVion V ig ita l
EizcJUonic. ViManc.<L MtX tx Su m tying InMnumint
A4
HOmnWtT
As
AiitHiCi
Ml
til
,v
ArNUol
r 69,
_
b)
Lightweight and portable
c)
Low power requirement
d)
Easy to operate
e)
Ease in measurement over inaccessible terrain
f)
Applicable to the measurement of short and long
lengths
g) Automatically measures displays and records:
. slope range, azimuth, vertical angle, horizontal
distance, departure, and latitude
h) Slope measurements are internally reduced to
horizontal and vertical components by built-in
computers thereby eliminating the need to calcu
late these values
i) Automatically accumulates and averages reading
for slope range, horizontal and vertical angles.
»
4. Uses. EDM instruments are now used for determining
linear measurements required in traversing, engineering
constructions, optical tooling, triangulation, trilatera-
tion, and various other tasks where precise measurements or
layouts are needed. They are extremely useful in measuring
distances over rough and rugged terrain which are difficult
to access, or where conventional taping methods would be
impractical.
5. Operating Ranges. The operating ranges of EDM ins
truments vary significantly. They may be classified accor
dingly as short, medium, or long range. When the measuring
capability does not exceed 25 km, the device may be classi
fied into the short range; group. In this classification
most of the instruments are of the electro-optical type
although some use infrared light. Short range instruments
are usually mounted on theodolites. They are small, light
weight, portable, and easy to operate. Such instruments are
highly suitable' for conventional surveying measurements and
are now widely used by surveyors, engineers, architects,
and, builders.
In the medium range group, EDM instruments,are' capable
of measuring lengths up to about 75 km. The instruments are
either the microwave or electro-optical (some using laser
light) type. These instruments are now frequently used in
precise geodetic measurements such as those required in the
establishment of control networks. They are also suitable
for land surveys and in engineering construction surveys.
Long range EDM instruments are employed in the measure
ment of lines longer than 75 km. Instruments in this group
operate by transmitting radio waves. There are also some
which employ ‘.tierowaves.’ They are used primarily in hydro
graphic surveys, for measurements required in oceanographic
work, as well as in navigation.
7-2. GEQDIMETEft.
__
It is an electro-optical device which was developed in .19 48
by Erik Bergstrand, a Swedish physicist. , The devipit-
resulted from attempts to improve methods for measuring the
velocity of light. The geodimeter, which is set up at one
station, projects a pulsating visible light beam to a
reflector (at another station) which returns the light to
the instrument. .Its -use..is based upon the known velocity of
licjht. The technology developed for this system makes
possible a comparison between the transmitted and reflected
light such that the time required for the light beam to
make* its return to the instrument is determined. In some
models, the maximum range varies from 5 to 10 km during
daytime and up to about 25 to 30 km at nightime.
The measurable range usually depends on atmospheric
conditions. The precision of measurement attainable is
about 1/200,000 of the distance. It is important’that the
stations are intervisible and that a clear line of sight
exists.
7-3. TELLUROMETER.
Tope
Wooden Handle
lZE j
Invar* tapes are . used only for prefcise measurements in
geodetic work and for checking the length of other kinds of
tape. They are about ten times as expensive as ordinary
steel tapes. The use of invar tapes will require very care
ful handling since the alloy is soft and somewhat unstable.
It- is a kind of tape which gets easily bent and damaged.
5. Lovar Tape. A newer type of measuring tape Which has
properties and costs somewhere between those of conventio
nal steel tapes and the invar tape.
S. Fiberglass Tape. This tape is made by weaving fiber
glass- in a longitudinal and. transverse pattern. They are
strong and flexible and will not shrink or stretch appre
ciably with .changes in temperature and humidity. A fiber
glass tape is best suited for use in the vicinity of elec
trical equipment.
7.- Mires. Before thin flat steel.tapes were produced,
wires were utilized in measuring lengths. They are still
practical to use in. special cases as in hydrographic
surveys. ^ ,
3. Builder's Tape. Are tapes having smaller cross sec-
ions and are lighter i.n weight »than the engineer's tape.
Such tapes are graduated to suit commonly used dimensions
in building construction.
9. Phosphor-Bronze Tape. A rust-proof tape designed for
use in the vicinity of salt water.
10. Nylon-coated Steel.Tape. Is a flexible crack-resis-
1ant steel core tape with a coating of permanently bonded
non-conducting nylon. It is designed to be resistant to
.orrosion and is immune to rust.
L e v e l V ia l V o r t ic a l S e a l*
and V e rn ie r
Ey e p ie ce
.Clamp
,76 U £ A S U M H e N T ON
N O H IXO N TA I O t S r * N r f 9
MEASUREMENT
OF HORIZONTAL
DISTANCES
8-1. COMPOSITION OF TAPING PARTY
. 1. Head Tapeman
2. . Rzc.ox.dZA
3. Flagman
4. Rear Tapeman
8-2. THE PROCEDURE OF TAPING
1. Aligning the. Tape.
2 . StAe.tcM.lng the. Tape.
3. Plumbing
4. Marking Full Tape. Lengths
5. Tallying Taped Measurements
6. Measuring Fractional Length*
8-3. BREAKING TAPE
8-4. SLOPE TAPING
8-5. CORRECTIONS IN TAPING
8-6. CORRECTION VUE TO INCORRECT TAPE LENGTH'
8-7. ILLUSTRATIVE PROBLEMS
1. Slope Taping
2. Slope Taping v
3. Slope Taping
4. Measurement* with Tape
5. Measurements with'Tape
6. Laying Out Dimensions with Tape
Lesson S
8-1. COMPOSITION OF TAPING PARTY.
UMMUiUM 79,
posite the pin earlier set on the ground. The head tapemah,
after being lined-in properly, exerts the required pull oh
the tape, notes the zero end and sets’a pin beside it. The
chaining pin may be set vertically in the ground or given a
slant at right angles to the line measured. If the head
tapeman is satisfied that the measurement was done 'accor
dingly, he signals that the point marked is acceptable. The
rear tapeman then picks up the rear pin set on the ground
and both tapeman move forward. The tape is dragged by the
head tapeman who comes to a stop after pacing an equivalent
tape length. This procedure is repeated until a partial
tape length is to be measured at the end of the line.
In some instances, taping would be done on a hard sur
face such as a concrete or asphalt road, or on steel rails
along a railroad. Since pins could not be used, the end of
the tape is marked by using colored crayons (keels), chalk,
or paint. The number of tape lengths is recorded beside the
mark .to keep count of the number of full tape lengths mea
sured.
5. Tallying Taped Measurements. At the initial point
the rear tapeman holds one pin.and the head tapeman begins
with ten pins carried on his steel ring. This is the reason
why a set of eleven pins is normally used during taping
operations; The first pin which the rear taperoan holds
indicates *that one tape length has already been measured,
and the total number of pins in his possession (not coun
ting the pin still set in the ground) indicates the total
number of full tape lengths that have so far been measured.
When the head tapeman sets his last (11th) pin, a tally
is made. The rear tapeman, who by then accumulates ten
pins, brings these forward and hands it over to the head
tapeman. The same taping process is then continued. Thus,
the number of tallies indicates the number of tape lengths
which have been measured. If a 30-ra tape is used, each
tally of 10 pins means that 300 meters has so far been mea
sured .«
6. Measuring Fractional Lengths. When the last segment
of the line is to be measured, this will often be a mea
surement which will consist of a fractional ’tape length.
Upon reaching the end of the line, the head tapeman comes
*fcd ' a halt and the rear tapeman positions 'himself at the
last pin set. The rear tapeman holds the tape in such e
manner that a whole meter mark is aligned with and opposite
the pin. The terminal point should fall within the end
meter mark of the tape which is subdivided into smaller
graduations, usually in centimeters. After the correct pull
is applied, the head tapeman observes the numbei: of centi
meters which extends beyond the terminal point *of the line
measured, while the rear tapeman observes the nuiriber of the
meter mark he is holding at his end of the tape. The number
of centimeters which the head tapeman observes is subtract
ed from the meter reading which the rear tapeman observes
to obtain the measured fractional length. Since it is at
OA HEASVKEHEN T OF
IW V — — MU H O R IZ O N T A L D IS T A N C E S
this part of the measurement that mistakes in taping f re
quently ogcur, tap'-men should exercise extreme care during
this particular measurement. >■ *
8-4..SLOPE TAPING. ■
* h (difference
in elevation)
(h o riz o n ta l d istan ce )
d = is2 - t f . . . . . 1 . . . . . . . Eq.(2)
p .A . •
t zzi . . sarssBHHsaHB
M E A S U R E M E N T OF
h o r iz o n t a l o t s t a n c e s
•8-6. CORRECTION DUE TO INCORRECT TAPE'
• LENGTH.
■*• *• .‘
Manufacturers of assorted measuring tapes do not usually
guarantee their products to be exactly their correct
length. . They do hot provide a standardization certificate
unless requested, and this usually has to be paid an extra
amount. These tapes rarely corresponds exactly with its
specified nominal length since they may actually be
slightly shorter or, longer. This is often due to.imperfec
tions in their manufacture, stretching, or wear. Also, due
•to constant use tapes become worn, kinked, and may be im
properly repaired when breaks occur. The net result is that
tapes may vary by a few millimeters of centimeters from
their'correct lengths.
The absolute value for the correction per tape length
(Corr) is determined from the difference between the true
or actual length of tape (TL) and the nominal length of
tape (NL) or 1
C o rr = T L - NL . . . . . . . . . . *Eq.(3)
■ 7 5 6 .5 2 m
d 3 sC o s oC • 7 5 6 . 5 2 Cos ( 1 5 * 2 5 ')
3 7 2 9 .3 0 m (equivalent horizontal length of the lino measured along
the slept)
d ** s C o s aC and
s 3 d / C o s oC 3 3 2 5 . 7 5 / C o s ( 1 3 * 0 6 ' )
3 3 3 4 .4 5 m (distanco to bo laid out along tho slope to obtain the re -
quirod horizontal distanco)
3
. SLOPE TAPING. ,A lin e X Y Z is m e a su re d on the slo p e in two s e g
m en ts. T h e f ir s t segm ent X Y m e a s u re s 8 2 4 .4 5 m and the second se g m e n t
Y Z m e a s u r e s 1 2 4 4 .3 8 m . I f the d if f e r e n c e in e le v a tio n betw een p d in ts.
X and Y is 4 . 2 5 m and th a t betw een Y and Z is 6 . 4 7 m , d e te r m in e the
h o rizo n tal length of the m e a su re d lin e .
F ig . t- 4 . Utcuuium txt o i *£ope t& .
Solution:
dj 3 ^ ( s ,’? - ( h ,) 2‘ 3 ^ 8 2 4 .4 5 ) ? - (4 .2 5 )^ '
" 8 2 4 .4 4 m (horizontal.length of segment XY)
d2 * ^(sg)2- (h2)2 ‘ - N d 2 4 4 .3 8 f - ( 6 .4 7 ^ ‘
i oii
c
■— — i<nMir*r«r
mmuomm. onor
romMo
3 I2 4 * t .3 6 .. (horizontal length of segment YZJ
D - d, + d2 ■ 8 2 4 . 4 4 + 1 2 4 4 .3 6
* 2 0 6 8 .8 0 m (horizontal longth of lino XYZ)
Solution: -
£l . C c rr(^ ) 3 0 .0 1 6 ( )
ML NL •
* 0 .1 4 9 m (total correction to be applied to measured length of
line AB)
CL 3 ML i C , 3 4 6 5 . 2 8 5 + 0 . 1 4 9
* 4 6 5 . 4 3 4 m (correct length of line AB)
Note: I
nmeasuring,whenthet
apeusedI sto ol on g ,t hec or recti o ni s
addedtoth
xmeasuredl e
ngt
htodeterminethec or r e ctl engt ho ft h et in e.
3. MEASUREMENTS WITH TAPE, A r e c t a n g u la r lot w a s m e a s u re d
u sin g a 5 0 - m s te e l ta p e w.hich w a s fo u n d to be 0 . 0 2 5 m too s h o r t . If
the r e c o r d e d length an d w id th of the lo t a r e 1 8 0 . 4 5 5 m an d 127^ .062m ,
r e s p e c t iv e ly , d e te rm in e th e fo llo w in g :
a) A c t u a l d im e n s io n s of th e lo t .
b) E r r o r in a r e a in tro d u c e d due to the e r ro n e o u s le n g th o f ta p e .
Given:
NL 3 50 m (nominal length of tape used)
Corr * 0 .0 2 5 m (correction per tape length, with tape being too snort)
W 3 1 2 7 .0 6 2 m (measured width of lo t)
. L 3 1 8 0 .4 5 5 m (measured length of lo t)
Solution:
u) D e te rm in in g A c tlia l D im en sio n s of L o t.
. C w « Corr ( ^ - ) 3 0 , 0 2 5 ( — )
C L 3 Corrtjfa-) = O. 0 2 5 >
W' - W t Cw - 1 2 7 .0 6 2 - 0 .0 6 4
am A l i m e n t * o t or
87,
= 126.998 m (correct width of the lot)
L ' = L .± C L » 180.455 - 0 .0 9 0
' = 180.365 m (c or r e c t l e ngt h of the lot)
6
. LAYINGOUT DIMENSIONS WITH TAPE, A building 38m x 45m
is to be laid out with a 50 - m long' metallic tape. If during standardiza
tion the tape is found to be only 4 9 . 9 5 0; m , determine the following:
a) Dimensions to be laid out, using this tape,in order that the building
shall have the desired dimensions.
b) Using the same tape what should the diagonals r e a d ?
G iven : ; ,
NL =50 m (nomi nal length of t a p e u s e d )
W =38 m ( w i d t h of building to be laid out )
L s 45 m ( l e n g t h of building to be laid out)
S o lu tio n :
c L
= Corr ( - i - l
• 0 0 5 ' - I f 11
3 0.045 m ( t o t a l c o r r e c t i o n to be applied to the length)
w' = W 1 Cw = 38 + 0.038
3. 3 8 .038 m ( c o r r e c t width to be laid out)
L‘ = L ± CL .= 4 5 + 0 . 0 4 5
= 45 .0 4 5 m ( c o r r e c t length to be laid out)
•4
b) Determining Length of Diagonal.
PJC l • ____ m c a s u h c h e n t or
m rn m m m m a h o w z o n t a i o u r A N C it
MEASUREMENT
OF HORIZONTAL
DISTANCES
9-1. CORRECTION VUE TO SLOPE
1. Gentle Slope*
2. Steep Slope*
3. Very Steep Slope*
9-2. CORRECTION VUE TO ALIGNMENT
9-3. CORRECTION VUE TO TEMPERATURE
9-4. CORRECTION VUE TO TENSION
9-5. ILLUSTRATIVE PROBLEMS
1. Correction Vue To Slope
, 2. Correction Vue To Slope
3. Correction Vue To TempeAatuAe
4. Correction Vue To Temperature
5. Correction Vue To Ten*ion
6. Correction Vue To Tension
Lesson 9
MtA'JUKIVfNT Or
M O A U O N TA i O t$}AN O A * 89,
_
9-1, CORRECTION DUE TO SLOPE.
» ('
When distances are measured along the slope, the equivalent
horizontal distance may correspondingly be determined by
applying an approximate slope correction.
Fig. 9-1. Slope. CoKKeoXion.
Where:
s = measured slope distance between
points A and B
h = difference in elevation between A
and B
d = equivalent horizontal distance AC
Ch = slope correction or tfre difference
between the slope length and the
horizontal distance, Ch = s - d
♦
s
h2 = s2 - d2 - (s - d) (s + d)
Since Ch= (s-d) , therefore
h2 = Ch.(s+ d) or Ch " (s + d)
C = -2s
£ Eq. (I)
M EAS UR E M EN T O f
u9Q H O R IZ O N TA L 01 S TA N C E S
slope is classified as gentle when it is not greater than
20%. This means a rise or fall of 20 units in a horizontal
distance of 100 units. The slope is calculated by dividing
the difference in elevation by the horizontal distance arid
multiplying by 100% to obtain the slope in percent or
Therefore:
Ch = s - sCos 0 or
2s 8s3
3. Very Steep Slopes (Greater.tha’n 30%)"
C s ( I Cor> O )
91
For any classification of slopes, the equivalent horizontal
distance.(d) is determined by subtracting tha slope correc
tion Ch frofn the measured slope distance (s') or
d = s - Ch • Eq.(5)
l. 9 2 ,
Tapes used lh surveying-measurements are standardized
at a specific temperature. Since measurements are taken at?
temperatures which may vary significantly from the tempera
ture at which the tape was standardized, tapes may be
either too long or too short. Temperature variation is a
source of variable systematic error and is in direct pro
portion to the number of tape lengths measured. Errors
caused by variations in temperature follow definite physi^'
cal laws and can be computed and their effects reduced or
eliminated by applying corrections. It is important to de
termine such correction since a variation of a few degree^
would result in an appreciable error in the measurement or
laying out of distances. However,in some instances it is
difficult to determine accurately the required amount o£
correction since the temperature of the tape may vary along
its length depending on dampness of the ground, the tape’s
exposure to sun and shade, and humidity of the air. If the'
temperature varies during the measurement of a 'line, the
error is cumulative so long as observed temperatures are
consistently below or above the value of the temperature
during standardization. However, if during the measurement
some of the observed temperatures are above or below T the
errors tend to compensate.
The correction applied to the length of the tape due to
change in temperature Cf is given by the formula
__
ference between the applied pull and the standard pull, he
measured length, the cross-sectional area 6f the tape, and
the modulus of elasticity of the tape material. -
The tape stretches in an elastic manner and, since the
modulus of elasticity of a material can be expressed as the
ratio of unit stress to unit elongation, the change in
length can be determined as follows;
~ Ps>l
Eq. (7)
AE
and
•C . s L ± Cp . . . ................................Eq. (8)
Where:
Cp = total elongation in tape length, due to pull or the correction due
to incorrect pull applied on the tape (m)
Pm = puli applied to the tape during measurement (kg)
Ps = standard pull for the tape or pull for which the tape.i-s calibra
ted (kg)
L = measured length of line (m)
A = cross-sectional area of the'tape (sq cm)
E =» modulus of elasticity of the tape material (kg/cm2)
L‘ = corrected length of the measured line (m)
By measuring the thickness and width of a steel tape by
means of a caliper, its cross-sectional area can be deter
mined. The cross-sectional area may also be calculated by
dividing the total weight (W) of 'the tape by the'product of
its* length (L) and the unit weight of steel which is appro
ximately 7.866 x 10~3 kg/cm3 . This is given by the follo
wing equation
W
A •• • • Eq. (9 )
L ( Unit Weight)
do ~ So - -r^ - * 6 6 0 .9 7 - (10.85)
>2 2 s2 2 (660.97)
6 6 0 . 9 7 - 0.09
660.88 m (horizontal length of line BC)
d - d, + d2 = 3 3 0 . 2 6 + 6 6 0 . 8 8
9 9 1 .1 4 m ( h or i z on t al length of l i ne ABC)
•96 UfASOHCUCNT or
HOftUOHTAi. PISTAUCl S
I.
di - S i
ll h 0. ___ {15 5 )2 (155)
*' ~ 2s, ■* 8sf " 2 4 0 0 8 5 2 ( 2 4 0 0 .0 50 ) 8(2400.850)3
= 24 0 0 . 8 5 0 - 5.003 - 0.005
= 2 3 95 .8 42 m (length of lin e AD)
.h2 ( I 55 )2 (155)
do = Sq — = I320.420-
2s 8s| 2 ( 1 3 20 .4 2 0 ) 8(1320.420)3
=• 13 2 0 . 4 2 0 - 9 . 0 9 7 - 0.031
= 1 3 11 .2 92 m (length of line DB)
d = d + d2 = 2 3 9 5 . 8 4 2 + 1311.292
= 3707. 134 m (len gth of lin e AB)
532.28
<ct C,< = (532.28) = 0.0087 (532.28)
50 f 50 50
= + 0.0926 m (Checks)
c) L1 = L ! Ct' = 5 3 2. 2 8 + 0.0926
= 532.37m (Correct length of measured line. The correctio n is added
since tho tape Is too long)
97
and ,SUBTRACTED when tape is TOO SHORT.)
A steel tape, known to be
4 . C O R R E C T IO N D U E TO T E M P E R A T U R E .
of standard length at 20°C, is used in laying out a runway 2 , 5 0 0 . 0 0 m
long. If its coeff icient of linear expansion is 0,0000116/ l°C, determine the
temperature correction and the correct length to be laid out when the tem
perature is 4 2 0C. ,
S o lu tio n :
Cf = C L ( T - T S) = 0.0000116(2500.0 0 ) ( 4 2 ° - 20°)
= + 0.638 m ( C o r r e c t i o n fo r the length to be laid out due to t e m p e r a t u r e .
The p o s i t i v e sig n i n d i c a t e s that ta p e is too long)
L1 = L ! C, = 2 5 0 0 .0 0 - 0,638 . .
= 2499.36 m ( C o r r e c t lengtt i to be Icyd o u t . T h e c o r r e c t i o n is s u b t r a c t e d
s in c e the ta pe is too lo ng )
(Note: When LAYING OUT, the correction is SUBTRACTED when tape is TOO
LONG and ADDED when tape is TOO SHORT.)
5. C O R R EC T IO N D U E TO T E N S IO N . A heavy 50-m tapfe haying a cross-
sectional area of 0.05 cm? has been standardized at a tension of 5.5 kg. If
E = 2.1C x I06 kg/cm, determine the elongation of the tape if a pull of
12 kg is applied.
Pm - PS)L (12-5.5)50
CP = AE = 0.05(2.10 x 10 ®) " 0,003
6 . C O R R E C T IO N D U E TO T E N S IO N , A 30-m steel tape weighing 1.45 kg
is of standard length under a pull of 5kg, supported for full length. The
tape was used in measuring a line 938.55 m long on smooth level ground
under a steady pull of 10 kg. Assuming E = 2.0 x I06 kg/cm2 and the unit
weight of steel to be 7.9 x I0"3kg/cm3, determine the following:
a) cross-sectional area of the tape ’ •
b ) correction for increase in tension
c) correct length of the line m-easured
S o lu tio n :
l.451<g
a) A = L(UnitWWeight) “ lOOcm. ,7.9 x I0"3 kg. =1 0.06 cm2
30m( { ' cm3
(Pm- Ps)L (10-5)30
b) CP=
•AE 0.06(2.0 x I06)
= +0.00 I25 m (C orre ction per tape length. Th e positive sign i n d ic a t e s th a t
tape is too long)
c) L* = l + Cp = 938.55 + 0.04 #
= 938.59m ( C o r r e c t length of l i n e . Th e c o r r e c t i o n is added sin ce tape
is too long)
,98,
MEASUREMENT
OF HORIZONTAL
DISTANCES
10-1. CORRECTION VUE TO SAG
10-2. CORRECTION VUE TO MNV
10-3. NORMAL TENSION
10-4. ILLUSTRATIVE PROBLEMS,
1. Collection Vue. to Sag
2. Collection Vue to Sag
3. Collection Vue to Sag
4. NoimaZ Tension
5. Noimat Tension
Lesson 10
M r /> n u n tu t * ' of 99,
10-1. CORRECTION DUE TO SAG.
la)
Tape Supported At
End Points
lb)
Tape Supported At
End* and Uid-Point
lc|
• Tape Supported
a t End* and Two
Intermediate Point*
I rt 'upport 3rd Support
C**VC‘2 %
2nd Support
Support
Id)
Tape Supported
At End* and Every
Quarter Point
n„
r-O-m f
StMl TOP* 30- m
( morl< | n'ar^~"'|
le)
Tape Supported
v Throughout
In Fig. 10-1 are shown-theeffects of
tedat different points along its Sa<3ona tape suppor-
F J-ength.
Sag shortens the horizontal distance between end gra
duations since the tape length remains the same. Thus, when
a stretched tape sags, the actual distance between the
points is something less than the reading on the tape. The
magnitude of the error due to sag depends on the weight of
the tape, the unsupported length, and the tension applied.
What is given importance is the reduced chord distance
between the end graduations and not the actual sag of a
tap®. 'j
.The correction due to sag is the difference in length
between the arc formed by the tape and the subtending
chord. In determining this correction, the arc is assumed
to be a parabola, and is computed with sufficient precision
by the formula
• • • ■ Eq.( I )
s =f 24P2 ..............."
Since W = nrL ’ gr W 2 = tjlt2 L.2 , and substituting this to
Equation 1, we obtain
W2L Eq.(2)
24 P2
Where: .
C8 = correction due to sag or the differ'enoe between the tape read
ing and the horizontal distance between supports (m)
ur = weight of tape per unit length (kg/m)
W = totaj weight of tape between supports (kg)
L = interval between supports or the unsupported length of tape (m)
P = tension or pull applied on the tape (kg)
Either of these two equations may be used in determining
corrections due to sag. Equation 1 is employed when the
weight.of tape per unit length (w) is .given, and the values
of L and P are known. If instead the total weight of tape
between supports (W) is given, Equation 2 is used.
Whenever the tape is held above the ground it will
always sag and the effect is that of shortening the tape. A
systematic error is introduced unless the same conditions
during standardization are employed when obtaining measure
ments. The effect of sag can be reduced by increased
tension but is not entirely eliminated unless the. tape is
supported throughout its entire length.
By applying corrections we can only reduce the error,
however, these errors are not determined exactly. When
conditions allow, it is preferable to measure on the ground
where the tape is supported throughout its entire length
(Fig. 10-le), to avoid the effects of sag.
p2 _ w 2 lae W2 AE
24(Pm - Pa)L 24 (Pm- P8)
w I aT 0.204
i W1ae
P = l24(Pm ->.) 4 . 8 9 8 9 7 9 4 *^Pm - Ps‘
Let PN - P = Pm
P 3 0.204 WijAE1
# • • • Eq.(3)
10k. M EA S U R E M E N T O F .
H O RIZO N TAL D IS T A N C E S
Where: . .
p = normal tension or the puli'which will eliminate the
N -effect of sag (kg)
W 3 total weight of tqpe between supports (kg)
A 3 cross-sectional area of tape (cm2)
E 3 modulus of elasticity of tape material (kg/cm2)
Ps = standard pull for the tape (kg) 1
Support Support
at end at end
G iv en :
L = 30 m- (nominal length of tape)
P 3 6 kg (pull applied on ende of tape)
W 3 0.91 kg (total weight of tape)
So lu tio n :
Steel Tape
...... -S . L2 L3
Given:
L = 30 m (total length of tape)
Li = 8 m (length of 1st span)
L-2 = ' 17 m / (length of 2nd span)
L3 25 m (length of 3rd span)
P = 6 kg (pull applied on ends of tape)
TIT = 0 04 kg/m (unit weight of tape)
S
olu
tio
n:
a) Determining Correction Due to Sag for each Span.
-ur2 L? (0.04)2(8)3
CS, ■ 24 (6)2
24 P2
= 0.0009 m (correction due to sag between the Om and 8m marks)
—
-w 2 l |
(0.04)2(I7)3
____
O
n
W
24 P2 24 (6)2
CM
u r 2L| (0.04)2(25)3
Cq =
S3 24P2 24 (6)2
y= 0.0289 m (correction due to sag between the 25m and 50m marks)
L 1 * L - C s * 50 - 0 . 0 3 8 9
* 4 9 .9 6 1 1m
9. CORRECTION DUE TO SAC. A 5 0 - m steel tape weighing 0.035
kg/m is constantly supported at mid - length and at its end points, and
is used to measure a line AB with a steady pull of 6.5 Kg. If the measured
length of AB is 1268.256 m, determine the following.
a) Correction due to sag between supports and for the whole tape length.
b) Total sag correction for the whole length measured.
c} Correct length of line AB.
F<9* 10-4. Tape. Aupp&ited at end& and at midpoint.
L 50 m (nominal l e n g t h of t ap e )
L« 25 m ( l e n g t h of l e t s p a n )
L2 25 m ( l e n g t h of 2 n d span)
P 6 . 5 kg (pull a ppl i e d on e n d s of t a p e )
TXT 0.035 kg/m ( u n i t weight of t a p e )
Length AB 1268.256m ( m e a s u r e d l e n g t h of line)
Solution:
a) Determining Sag Correction Between Supports.
W = ur L = 0 .0 3 5 (50) . *
= I . 7 5 kg ( t o t a l weight of t a p e )
W, = w L , = 0.035 (25)
0 . 8 7 5 kg (weight of tape between’ the Om and 25 m marks)
\al = ■urL2 = 0 . 0 3 5 ( 2 5 )
= 0.875kg (wei ght of tap® be t we e n t h e ' 25m and 50 m morks)
Solution Check:
w = W, + w2
75 = 0.875 +• 0 . 8 7 5
75 1.75 (checks)
w,2L| _ (0 .8 7 5 ) (25)
24P2 2 4 (6.5)2
St 0 .0189 m (correction dus to
2
W L
~L2±2L (0.675) (25)
C *Z * 24 P2 24 (6.5)2
105
~ * . 0 .0 1 8 9 m (eorrscriorrdu*to #og bstwssn tha 2 5 m and 50 m marks)
CS = Cs,' + Cs2 » 0 .0 1 8 9 + 0 .0 1 8 9
* 0 .0 3 7 8 m (correction dus to sag for ons taps Isngth)
f• i
b) Determining Sag Correction for Measured Line.
B y r a t io and p ro p o rtio n :
Total C;> ' Cg .
Length AB L
. 106 .
Try PN = 16.50 kg: Try PN « 16.75 kg;
16.50 = 56188 lb.-»e
tr. CO _
- -— 56.188
.==zr
^16.50-5.5' -'116.75-5.5
16.50 / 16.94 16.75 =16. 75 (Checke)
, Therefore, P- = 16.75 kg. This is the tension required to make the tape ex
actly equal to 30.00m when stretched and supported only at its end points.
5. N O RM AL T E N S / ON. A steel tape having a cross-sectional area of
0.06 cm2 and a modulus of elasticity of 2 . 0 x I06kg/crp2 , weighs 0.03kg/h:
Its length is 30.00m when standardized at a pull of 5kg and supported
throughout its length. Determine the tension at which the effect of sag will!
be eliminated by the elongation of the tape due to increased tension.
G iven:
A = •0.06 cm2 L = 30.00 m
E = 2.0 x I06kg/cm2 P. = 5 kg
ult = 0.03 kg/m
Fig. 10-6. VzteAaiining notriuZ tm u ion .
S o lu tio n :
W = nrL = 0.03(30) = 0.90 kg (Total weight of the tape)
0.204 W^IaE _ 0.204 (0.90) "Jo 06 (2.0 x lO6)’ 63.6*
pN -
firs’ - t v 5’-
Cross multiplying and squaring both sides of the equation, then simplifying
*2 _ „ .2
(PN = (63.6)'
P| ,P N ' 5 = 4044.96
N " 5PN = 4044.96
PN3 - 5P2 - 4 0 4 4 . 9 6 = 0
Let f(PN) PN
3 - 5P* - 4 0 44 . 9 6
1 0 7 .
Try PN = 17.00 kg:
f (17.00) = (17.00)3 - 5 (17.00)2 - 4 0 4 4 . 9 6 - 576.96
Try PN = 17.50kg:
f (17.50) = (I7.50)3 - 5(17.50)2 - , 4 0 4 4 . 9 6 - 2 16,83
Try PN = 17.78 kg:
f (17.78) = (17.78 )3 - 5U7.78)2 - 4 0 4 4 . 9 6 - 4.84
Try PN =/ 17.79kg: '.v
f (17.79) = ( I7.79)3 - 5(17.79)2 - 40 4 4 . 9 6 + 2-87
Try PN = 17.80kg:'
f (17.80) = (17.80 )3 - 5 (I7.80)?' - 4 0 4 4 . 9 6 + 10.59
From the above five trials, it can be seen that the value of Pn which •
gives o solution nearest to zero is 17.79 kg, therefore, PN= .1^.79 kg. The
exact value is actually somewhere between 17.78 and 17.79 kg. Since
only two digits after thedecimal point would be sufficient, the value 17.79
was selected.
,108.
MEASUREMENT
OF HORIZONTAL
DISTANCES 9 ________ _______
JLessem 11
M A Y U H lM t N T Or
M O N U O N 1A I O I S T A M U I
109,
11-1. COMBINED CORRECTIONS.
Where:
L = any convenient length
d = chord distance
•0 = angle to be measured
lng out angles. 'There may be some occasions,, however, when
a' theodolite or transit is not readily available that the
tape is instead used. The measurement of very small angles
wi-th tape usually gives satisfactory results. All angular
measurements by tape are accomplished by the application of
very basic geometric and trigonometric principles.
In Fig. 11-3, let it be required to measure the angle
BOC (or-Ov). One way to do it is to lay out any convenient
length (L) along lines OB and QC to establish points a afid
b. If the chord distance ab (or d) is measured and bisect
ed, the angle BOC can be computed as follows^
S in t f- J * — 2. . . . . . . . . . . Eq. ( , )
Eq.(2)
2(AC)(AB)
Where AB, AC, and BC are the sides of tiriangle ABC and S =
(1/2 )(AB4-AC+BC) .
The accuracy of measuring angles with tape depends on
the care taken in laying out lengths and in establishing
the needed points on the ground. It would be difficult to
measure angles when the terrain is very irregular or where
vegetation obstructs the desired measurement.
The use of the tape in measuring angles is rather slow
and should only be employed on surveys covering relatively
small areas. A transit or theodolite should be used to mea
sure or lay out angles on surveys of wider scope and where
higher degrees of precision would be required. .
3. Laying Off Angles With Tape. There are different me
thods which may be used to lay off an angle using a tape.
In Fig. 11-5 is illustrated a method which employs a simple
principle of trigonometry. Along line AB a convenient
length, AP, is first laid out. Then P P ’ is erected perpen
dicular to the line at P by using a length which is deter
mined by multiplying the length of AP (or L) by the natural
tangent of the angle to be laid off or PP ’ = L (Tan-0-).
Angle PAP1 (or-0-) should give the desired angle at A.
Another method requires the determination of a chord
.112 M t A S U tU M IN T O F
'H o m r Q H x a i o f t t a n a t
Fig. 11-5. Laying oil-an angle. Fig. 11-6. Laying otf|janangle
i tuing a petpendiculaA. tint. (Ming a chotd length.
• AU A t U t U N l
nONIIONIAl
,Vf‘
Of II K
(>l\\*H(./ \ null I I ..•m ' ' ^
Fig. 11-t.
With line BC established perpendicular to line AC, the,
length of AB can be indirectly determined also by the;
Pythagorean theorem since AC and BC are known.
c) In Fig. 11-9, the length of AB can be determined
due to the similarity of triangles ABD and BCD. A line feD
of predetermined length is first established perpendicular
•to line ABC. The length of line BG is then measured and AB
»is computed as follows: *
. ■ ; ' 'i
— n
O bstru ction
Fig. 11-14.
Obstruction
Fig. 11-16.
Fig. 11-15.
U C A S O F E U F N T OF
H O R U O H T A L D IS T A N C E S
certain distance away from the obstructed line. The lengths
of AC and BC are then measured and their respective middle
points (D & E) established. The length of AB is twice that
of, DE. : '\
i) One convenient method of getting around obstruct
ions such as a large building, involves using an equilate
ral triangle as illustrated in Fig. 11-15. From the proIon-,
gation of the preceding line, a 60-deg,angle is' laid off at
A and a sufficient length is laid out to ,clear the obs
truction^ Another 60-deg angle is laid,off at C and the
distance Cfi is taped equal to AC* Point B should fall on
the prolongation of the original line and the measurement
may be continued further. The length of AB, should be equal
to either AC or CB.
j ) Shown in Fig. 11-16 is a typical problem encoun
tered when determining the width of a stream or a wide ri
ver. Here, BD is set out perpendicular to the required
length and point C is located at its mid-length. DE is next
set out perpendicular to BD and point E is located so that
it is in line with points A and C«t If the,length of DE is
accurately measured, it should be ec^ual to the len'gth of
the required line AB. *
<11-3. ILLUSTRATIVE PROBLEMS.
/. COMBINED CORRECTIONS. A line was determined to be 2395.25 m
when measured with a 30-m steel tape supported throughout its length
under a pull of 4kg and ot a mean temperature of 35°C. Determine the cor
rect length of the line if the tape used is of standard length at 20 °C
under a pull of 5 kg. The cross - sectionql area of the tape is 0.03 sq
cm, its coeff icient of linear expansion is 6.000011 6 /J #C, and the modu
lus of elasticity of steel is 2.0 x I06 kq/cm2 .
Gi von:
L = 2395.25m T 35 “C A- = 0.03 cm2
NL = 30 m T8 20 °C C •= 0.0000116 / l°C
Fm = 4 kg ' P3 5 kg E = *2.0 x I06 kg/cm2
Solution:
a) C = CL (T - T#) = 0.0000116 (2 3 9 5 .2 5 M 3 5 - 20)
-' + 0 . 4 2 m ( C o r r e c t i o n fo r th e m e a s u r e d len gth due to t e m p e r a t u r e .
T h e p o s itiv e sign I n d i c a t e s th a t ta pe Is too-long)
(4 - 5) 2 3 9 5 .2 5
b) C, - tPm-- Ps)^
AE * 0.03 (2.0 x I06) 1
= - 0.04 m ( C o r re c t io n f o r the m e a s u r e d l in e due to t e n s i o n .T h e n e g a
t iv e sig n I n d i c a t e s t h a t ta p e Is too sh o rt )-
i
c) L’ = L ± Ct t Cp = 2 3 9 5 .2 5 + 0.42 - 0.04
= 2395.63m (L en gth of measured line c o r r e c t e d for e f f e c t s of te m p e
ratu re and p u ll ) , , >•
NL s 50 m A = 0 .0 4 cm2, „
P* « 5 .5 kg E = 2 .1 0 x icfkg/cm
-ur = 6 .0 5 kg/m L = 4 5 8 .6 5 0 m •
P
r m = 8 kg
S o lu tio n :
C p * <Pm-Ps)L (8 - 5 .5 ) 4 5 8 .6 5 0
a)
AE 0 .0 4 (2 .1 0 x 106)
= + 0 .014 m (Correction for the measured line due tp tension. The po-
. ' sltive sign Indicates that tape Is too tong)
b) c - ~uj~2L-3 . ..-.(O-OS^ISO)3 ,
sl 24 fo2 " 2 4 (8)2
= - 0 .2 0 3 m (Correction due to sag per 50-m span. The effect of sag
always make the tape too short)
r - W 2 L3 _ (0 .0 5 )2 (8 .6 5 )3 * .
s2 “ 24^ 2 " “ 24(8)2
- - 0 .0 0 1 m (Correction due to sag for the 8.65 m span)
c) L* = L + Cp +GS = 4 5 8 .6 5 0 + 0 .0 1 4 - 1 .8 2 8
3 4 5 6 .8 3 6 m (Length of measured line corrected for effects of tension
and sag)
So/u tion :
a) Ct e C L (T - Ts ) - 0 .0 0 0 0 1 1 6 ( 4 5 8 . 6 5 0 ) ( I 8 - 2 0 )
-O.OIIm (Correction for the measured lint due to temperature. The
negative sign indicates that tape is too ehorf)
,!!8, V tA S U tU H C N T O f
N O IH IO N J M t U X l A M l i *
b) L' B L ± Cp i C j t C t = 4 5 8 . 6 5 0 + 0 . 0 1 4 - 1 . 8 2 8 - 0,011
a 4 5 6 .8 2 5 m (Length of rhe measured line corrected for , the combined
effects of te n sio n ,,sag , and temperature)
Sib l — ~) = ~3q ^q 0 ;2 0 3 3 3 3
cC = 23° 2 7 '5 0 " (The
Intersection angle}
G iven:
AB = 7 6 0 .5 m
BC = 3 9 0 ,8 m *
CD ■ 3 7 1 .6 m
DA = 5 9 5 .8 m
AC = 7 6 5 .4 m
R e q u ir e d :
< A, < B , < C , and <D
S o lu tio n :
Determining Values of Individual Angles. b
UtktANUX N9,
= 0 .6 4 8 5 8 7749
<XACD = 4 9 ° 3 3 ' 5 3 .3 “ say 4 9 ° 3 3* 5 3 h
<1 B s <A 3C
=' 75°5! 22 (Interior angle at corner B )
<D = <Xa DC
= I02 °0 5 38 ( i n te ri o r angle at corner D)
6
. OBSTRUCTED DISTANCES. In Fig. 11-19, I ines NQ and PR are es
tablished perpendicular to line MNP, and points Q and R are lined up with
the distant point M. If NQ = 318.55m, PR = 475.62, and NP = 210.38m,
determine the length of MN which represents the width, of the river.
Fig. 11-19.
G iven:
NQ = 3 18.55 m
PR = 475.62 m
NP = 210.38 m
By similar triangles , MN _ NP
NQ J P R -NQ)
And m n = - m m o L . - 210,38(318.55)
(PR) - (NQ) 475.62 - 318.55
= 426.67m (width of the river)
.120,, A SU H L M f N T 0r
H O m lO N T A l D !5 iTA N C £ s
MEASUREMENT OF
VERTICAL
DISTANCES
P art III: Lesson Nos. 12 Thru 16
OF VERTICAL
DISTANCES
12-7. LEVELING
12-2. DEFINITION OF TERMS
1. Level. Surface 6. Mean *Sea Level
2. Level. Line 7~. Datum
3. Horizontal. Surlace 8. Elevation
4. Horizontal. Line 9 . Di^erence in Elevation ‘
5. Vertical Line
12-3. LEVELING METHODS ■ ,.
1. Direct or Spirit Leveling
2. Reciprocal Leveling . *.
3. Profile Leveling
4. Trigonometric Leveling .
5. Stadia Leveling •
6. Barometric Leveling • *•• •’!
7. CrotA-Section Leveling
8. Borrow Pit Leveling
12-4. TYPES OF LEVELS
1. Dumpy Level . 6. Geodetic Level
2. Wye Level 7. Transit at a Level
3. Builder1t Level 8. Later Level
4. Automatic Level 9. Hand Level
5. Tilting Level \ 'C
\ .
Lesson 1Z
IE3,
12-1. LEVELING.
j 24j k / f A S U * € MC N T o r
y e n r /c a l o im a n c a m
12-1. tyUationihip he.tue.en level 4uniac.ee,
/■Earth's Surface
Difference In Elevotion _ E l e v o r ion
/'Between A a B__ ______ / o f B (*)
^Ele vation
f * o f A {♦)
■difference \
In Elevation]
D iffere n ce Between
Nn Elevatio n . A a C Elevation
Betw een B B C of C l " )
To E a r t h 1*
Center
26.
mosphere, p ro v id e d ttia t a tm o s p h e ric c o n d itio n s do hot
change d u r i n g the process of l e v e l i n g .
3. Profile Leveling. This method of leveling is used td;
determine differences in elevation between points at desig
nated short measured intervals along an established line to
provide data from which a vertical section of the ground
surface can be plotted. In the design of roads; railroads,
'canals, drainage systems, and transmission 1ines, it is ne
cessary to first obtain a profile of the existing ground
surface. It is, this method of leveling which will best suit
such requirements.
4. T r i g o n o m e t r i c L e v e l i n g . This method of leveling is
employed in determining by trigonometric computations the
difference in elevation between two points from measure-
merits of its horizontal or slope distance and the vertical
angle between the points. The required distances are usual
ly obtained’by stadia, triangulation, or by direct taping.
By most leveling standards, trigonometric leveling only
provides a very rough determination of differences in ele
vation. Its degree of precision may be improved by using
precise measuring instruments such as optical. theodolites
and total geodetic stations which measure angles to se
conds. However, there are certain occasions such as in map
ping or surveying over very rugged terrain when it would be
fully justified to undertake trigonometric leveling. It is
also, a convenient method to adapt when it is required only
to determine the elevation of principal stations or con
trol points. .
5. S t a d i a L e v e l i n g . Stadia leveling combines features
of direct leveling with those of trigonometric leveling.
This method is in fact a form of trigonometric leveling. It
♦can provide reasonable accuracy for preliminary siirveys,
mapping, and rough leveling where quick measurements are
needed. In stadia leveling, differences in elevation bet
ween points are computed from observed vertical^angles and
the three intercepts on a rod held at each point backsight-
ed or foresighted. Any surveying instrument may be employed
in stadia leveling as long as it has a telescope to read
vertical angles and is equipped with stadia bai,rs in addi
tion to the standard cross hairs.
6. B a ro m e tr ic L e v e l i n g . Barometric leveling involves
the determination of differences in elevation between
points by measuring the variation in atmospheric pressure
at each' point by means of a barometer. This leveling method
depends on the basic principle that differences in eleva
tion are proportional to the differences in atmospheric
pressure. The readings of a barometer at different points
on the earth's surface provides a measure of the relative
elevations of these points. It* is an accepted fact that the
pressure caused by the weight of a column of air above the
observer decreases as the observer goes higher in altitude.
The method is particularly useful for low precision! level
ing over rough terrain where extensive areas need1 to be
127.
covered and differences in elevation are large*. It is
principally employed on reconnaissance surveys or other
work requiring only approximate values. However, it is not
desirable t,o employ when the atmospheric pressure in the
area changes rapidly.
7. Cross-Section Leveling. In highway or railroad cons-'
tructions it is often necessary to obtain a representation
of the ground surface on either side of the centerline.
Short profiles at right angles to the line of work' are.
usually plotted at regular intervals for this purpose. This
type of data is obtained in the field by a process referred
to as cross-section leveling.
8. Borrow-Pit Leveling. Borrow-pit leveling is a method
of determining the relative elevations of points in borrow-
pit excavations for the purpose of calculating volumes of
earthwork. This type* of work is usually encountered in the
construction of roads and railroads.
!30
F*g. 12-5. hUomaXic level.
HtAlUMHtNl Of
i t uncAi o n i ANt t 131.
5. Tilting levels. This type of leveling instrument
(Fig. 12-6) can be tilted or rotated about its horizontal
axis. A bull’s-eye level is employed for its quick and
approximate leveling. The tilting knob is used to rotate
the telescope into a correct horizontal position. Tilting
levels are commonly employed for very ^precise leveling
operations and in other general leveling work. It is also
equipped with a horizontal circle which makes it suitable
for layout and construction surveys.
6. Geodetic Level. The geodetic level is basically ano
ther type of tilting level. Mpst of its metal parts, are
made of invar to reduce the effects of temperature. Geode
tic leyels (Fig. 12-7) are employed in first-order leveling
work where extreme precision is' an important requirement.
The instrument is equipped with stadia hairs in addition to
the standard vertical and horizontal cross hairs to make it
suitable for three-wire leveling; When using the instrument
the observer has to stand erect since i.t is designed with a
high tripod to bring the line of sight way above any inter
vening ground surface. This was purposely done to lessen*
the effects of differential refraction of extra long lines
of sight.
7. Transit as a Level. The engineer’s' transit has al
ways been referred to as the ’’universal ’surveying instru
ment" because of its variety of uses. There is no doubt
that it can also be used for leveling work. It can provide
results which are fairly precise although not as good as
those obtained with conventional levels. This is because*
the transit has a relatively shorter telescope and level
vial.
Fig. 12-8. Itiild AM? converted to a laAZ\ Fig. 12-9. LcueA AyAtem mounted on a
level tUting a G L02 tn&vi eyepiece. leveling itutAument.
J3£,
(Fig. 12-8) with an attached laser eyepiece is an example
of a laser converted level. The eyepiece includes a special
reticle which has a small free spot in its center to allow
the laser light beam to pass freely. Surveying instruments
with laser attachments are ideally suited for applications
in*leveling work, building construction and layout, and in
many other engineering activities, where reference lines
have to be established accurately.
Laser light is a low-powered beam of red light which is
suitable for projecting a line of sight since it is cohe
rent and highly collimated. A sharply defined light spot is
focused at the target when the telescope image is focused.
The laser.beam can be projected along an optically straight
path and it spreads only very slightly as the distance fro'i
the source to target increases. Projected is a visible
"string line" beam which can be seen on targets under dif
ferent lighting conditions. The maximum range of the laser
depends on atmospheric conditions and rhe nature of the
target surface. During daylight the range is about 300 m
and at nightime it is about 600 m.
fia* 12-10. LaAeA -iy-Uem mounted on a builde*1* ttveA.
,136, UCASUNfNFNT Or
vcttriCAL p is iA N c rs
Fig. 13-1. Philadelphia nod.6
AtirtOt#
V i S T I C Mi
r.nt Of
iyrA cut 137,
ween two and four meters, the long (or high) rod is used by
fully extending the rear section.
The zero mark is at the bottom of the rod and the gra
duations extend upward to usually four meters. Red colored
numbers are used to portray the full meter marks on the
face of the rod. Black numbers are used for tenths, and the
hundredths are shown by alternate black and white horizon-*
tal bars. The graduations on the rod are continuous when
the rod is fully extended. The Philadelphia, rod can be read
accurately with a leveling instrument at distances up to 90
meters. For much longer distances a target should be used.
The Chicago rod comes, in three sliding sections and
usually extends to either three or four meters. It is
graduated similar to the Philadelphia rod except that the
figures on the face of the rod are wider and thus more sui
table for longer distances. The rod is designed to be col
lapsible for ease in transporting. This type of rod is
widely used in construction surveys.
2. Rod Ribbons. This is an improvised type of rod used
in leveling work. The graduations on this rod are marked
either on canvass or metal strips which are attached to a
long piece of selected lumber by staples. Rod ribbons are
quite handy as these can be easily removed from the wood to
which it is attached, rolled, and put into one's pocket
after it is used. Since rod ribbons can be easily compared
With a standardized tape before it is used, they are suffi
ciently precise for ordinary leveling operations.
3. Precise Rod. The precise rod is a form of rod rib
bon which uses a graduated invar strip permanently fastened
to a four-meter long wooden or metal frame. It is equipped
with a rod level to allow the rodman to hold the rod verti
cally when used. For precise leveling work a thermometer is
attached to it for purposes of reading the air temperature.
4. Geodetic Rod. This rod is similar to a precise rod
except that a nilvar metal strip is used instead of invar.
Nilvar is an alloy of metal with a very low coefficient of
linear expansion. The graduations on a geodetic rod are
painted upside down for use with inverting telescopes, and
are shown in meters, decimeters, and centimeters.
5. Tape Rod. This seldomly used rod is also known as
the automatic rod. It is used advantageously when numerous
elevations are to be determined from a single set-up of the
leveling instrument. When employed in leveling work, the
tape tod eliminates the need to add backsight readings to
determine the height of instrument or to subtract foresight
readings to determine the elevation of sighted points.
The tape rod is useful in profile leveling, in taking
cross sections, and for the different phases involved in
building construction and layout. A three-meter long gra
duated metal tape is looped around the frame of the rod by
means of rollers located at both ends of the frame. The
tape can be rotated or fixed temporarily in any position
for a sequence of desired rod readings. Harks inscribed on
|T ft M C A S U R rH tN T o r
V C R T tC A L V t a iA N C e s
the rod are similar to those used in Philadelphia rods
except that graduations increase downward.
, To illustrate the use of this rod, assume that a tape
rod is held vertically on a point whose elevation is 123.45
meters. The rodman then rotates the tape around the frame
until, the line of sight of the leveling instrument falls on
3.45 m. The tape is then clamped into this position. The
rod is next moved to a point whose elevation is to be
determined. A rod reading on the point of, say 2.86 m means
an elevation of 122.86 m; for 3.07 m the recorded elevation
is 123,07 m; for 1.98 m the recorded elevation is 121.98 m;
etc. The foresight readings on the rod gives elevations di
rectly and eliminates the need to perform subtraction,
until the instrument is moved to another set-up. Should
there be a need to transfer the instrument to another loca
tion, the clamps of the rod are released and the tape loop
is reset. This is done by again sighting on a point of
known elevation. The process of determining elevations of
foresighted points is continued in a similar manner as ear
lier explained.
13-4. TARGETS.
A target is a small device attached to
the rod when extremely long sights make
direct reading of the rod difficult or Fig. 13-2. Rod UveJL.
impossible. Targets are made of metal and
may be circular., elliptical, or rectangular in shape. Hor i-
zontal and vertical lines are formed by the junction of
alternating red and white quadrants painted on its face. It
usually has a rectangular opening in the front to expose a
portion of the rod in order that readings can be made. A
small vernier may be attached to the target to allow more
accurate readings on the rod.
Targets are used not only on extremely long sights, but
also when the rod is field in poorly lighted places, where
at mosphepic conditions may cause adverse effects on rea-
133,
Fig. 13-3. t L U p tic a l mttaZ t m g e t .
tangular Opening
Leveling
Rod
13-5. TELESCOPES.
J40, A ff A S U R F k it ' N T O F
V tN T lC A L O f S TA N C C S
rection of the line of sight and in magnifying the apparent
size of objects in its field of view. A Dutchman, Jan
Lippershey, invented the first telescope in 1608. The great
mathematician Johannes Kepler was the one who suggested how
the telescope could be employed for use in surveying ins
truments. This led to the development of the Keplerian.br
astronomical telescope which consists of a tube with varia
ble length which has an objective lens, cross wires, and an
eyepiece. . •
Fig. 13-5. KiVionamicat teJt2Miop<u>.
M2 rn*rai Mr*su*cucnr nr
.1 v c v n c H oisr*Nr:r\
Fig. 13-7. OtheA pcUteAru iu>zd caoaa haiAi and sta d ia hairu.
13-6. MAGNIFICATION.
143,
or tilting of the vial, -and should be* relatively stable in
length under normal variations in temperature. Alcohol mix
ed w,ith ether, .and pentane hydrocarbons were popularly used
earlier. Newly designed level vials now. use purified syn
thetic alcohol. '
Fig. 13-8. Level viat.
. S e a l e d G la s s
A i r Bubble Tu be (g ra d u a te d )
A d ju s t in g
Screw
P r o t e c t i v e Metal
lio u sin g
\ ) .-4
— -J\
(a ) (b)
A p p e a r a n c e of B u b b l e s B e f o r e C e n t e r i n g and
D i r e c t i o n Taken in T u r n i n g the L e v e lin g S c r e w s .
,144.
I
is correspondingly centered.
With -the use of a coincidence bubble, the set up and
leveling of an instrument can be made more accurately than
by means of the conventional level vial. The use of a coin
cidence bubble, however, has a disadvantage since it is not
always clear which way the level needs to be tilted to
bring the images together.
Le ve lin g ,H e a d
—Wooden or
A lu m in u m L e g s -
S I iding-
s e ctio n
Spur-
-Shoe
UJ ib)
Lix ed-Leg T\lpod 'Cxteji6ion Ttlpod
13-9. TRIPODS.
Ut A tUHf Mr A / or IA
M A! i', >MV. I
** >
fixed-leg tripod is more rigid and makes it possible to
keep the line of sight higher above the ground. This re
duces considerably the effect of atmospheric refraction. On
the other hand, an extension tripod is suitable for use in
rough terrain set ups where the legs need to be adjusted tp
fit the configuration of the ground.
At each end of a tripod is attached a pointed piece of
metal called a shoe. The shoes of the tripod are forced
into the ground by stepping on it with ope's foot. Usually
each shoe has a spur which facilitates pushing the point
in. It is necessary to press them deeply enough so chat the
tripod will not settle especially when settjng over soft
or unstable ground.
Lesson *14
tV
Vinaf.4AltUn
pf
/M
st
TN
AT o,
VCi^,
14-i- SETTING UP THE LEVEL.
I'■ tr4Mt"*tUk'"OfvCft
I
ring in the first attempt, since the bubble will be thrown
off during cross leveling. The telescope is next turned 90
degrees (either clockwise or counterclockwise) and poai^
tioned. over the two other opposite leveling screws.' The
bubble is again centered approximately. This procedure is
repeated about three or more times with increasing cafe
until the bubble finally remains centered in any direction
the telescope is pointed. The instrument is leveled if the
bubble thus remain centered. This condition will occur only
with a properly adjusted level vial since its vertical axis
assumes a truly vertical position when the bubble is -cen-*
tered. .
The thumb and the index finger of each hand are used to
,turn the screws. Screws are turned always in opposite di
rections; that is, the thumbs should move either away from
each other or-toward each other. It is only during final
centering when just one screw needs to be turned to move
the bubble thru a small graduation on the level vial. It
will be important to remember that when the leveling screws
are turned, the bubble moves, in the direction of motion of
the left thumb. Since all screws have exactly the same
thread length, one should be extended and the other shor
tened by turning in opposite directions. Turning opposite
screws should b e a t the same time and also at about the
same rate. This procedure will allow the screws to cons
tantly • bear evenly on the foot plate while the instrument
is being leveled. The instrumentman must see to it that the
screws should be snug and not se*t too tight to avoid damage
to threads and the base plate. It should yield easily to a
turn when held between the thumb and index finger.
2. Instruments With Three Leveling Screws. For instru
ments* with only three leveling screws, the telescope is
turned until the bubble tube is positioned parallel to the
line through any two of the screws. The bubble is then cen
tered on the level vial by turning these two screws in op
posite directions. As usual, ^the thumb and the index finger
of each hand are used to turn the screws. Also, the bubble
will still move in the direction of motion of the left
thumb.
The telescope is next rotated about the vertical axis
of the instrument so that the bubble tube is brought per
pendicular to a line through the two screws turned earlier.
Again, ' the bubble is brought carefully to center by means
of the' third screw alone. This process of leveling is il
lustrated in Fig. 14-2.
Direction of Bubble Movement.
~^Yrt
m r
T •* i-*b i n
■
m 2
00 ' o •* 2 «2 0 0
■
■ 0 = 2 . 1 bo m
c = 2. 130 m
■
b = 2.050m
s
LyY-1
o = 2.000 m
,152 H i A MU f f f H I N T o r
VI N t fCA t P l t f A M C S i
4
F ig . 14-6. The le v e lin g Jiod <u> teen through th e te le sco p e .
53,
•renee.
'4. The difference in elevation' between points A and B
is determined by noting the difference in their respective
rod readings or, 3.50 - 2.00 = 1 . 5 0 m. This value corres
ponds to the vertical distance between the two imaginary
level surfaces (assumed to be horizontal lines) passing
through points A arid B.
J54, Mt A tu n th ti n r
VCtriCAl Pt$rAfiCiM
or
have to be c o n s id e r e d .
• Irregular refraction during summer months ' usually,
causes "boiling” of the air. In such a condition, the
%refraction is quite large and precise results could not be
expected when very long* sights are taken. They should be
made considerably shorter especially .if the line of sight
clears the ground surface by only as much as one-half me
ter. Extra long sights, however, may be taken where the
(terrain is fairly level, only an ordinary degree of accu
racy is required, and completion time is of primary impor
tance . Very short sights cannot be avoided when the ground
’surface rises or falls rapidly such as in mountainous areas
and where the terrain is significantly rough.
I___
3. All Right* The levelman extends both arms h o r i z o n
t a l l y and moves them up or down. When both arms are b ro u g h t
s till ahd h o r i z o n t a l *it is meant t o t r a n s m i t a command to
"h o ld s t e a d y . " .. v
• 4. T h i s i s a P o i n t . The rodman r a i s e s the rbd and h o ld s
ijt in a h o r i z o n t a l p o s i t i o n over h i s head. I t c o u ld a l s o be
taken to mean, "G iv e me a L i n e . "
5. Move Back. The instrumentman uses this signal'to di
rect the rodman to move back farther. He transmits ' the
command by raising his right hand with the palm facing
toward the rodman and then moving it into a horizontal
position with his palm faced down.
6 . P ic k Upt In s t r u m e n t s . When a new set up of the level
is desired, the chief of party signals the instrumentman by
first extending both arms downward then raising them up
quickly as though an object is being lifted.
7 . R aise ( o r Lower) T a r g e t . - The instrumentman motions
to the rodman by either raising his arm above his shoulder
to raise the rod, or by dropping his arm below his waist to
lower the target. When the raised or lowered target’ ap
proaches the desired setting, .the arm is brought back to a
horizontal position.
8. Come I n . The chief of party or the instrumentman
uses this signal to direct any member of the survey party
to come in or assemble. It is executed by moving the arm
into a circular motion starting from below the waist to the
front of his face.
9 . Plumb The Rod. The hand is extended vertically above
the head and moved slowly in the direction it is desired to
plumb the rod.
10. E s t a b l i s h A T u r n i n g P o i n t . To establish a turning
point, the arm is swung slowly in a circle above the head.
11. T h i s i s A Tu rn in g P o in t . To identify a turning
point, the leveling rod (or range pole) is raised overhead
in a horizontal position. It is then lowered into a verti
cal position and held on the point. ..
12. Wave The Rod. The instrumentman holds his arm above
his head and continuously waves it back and forth.
13. Face The Rod. This is a signal given out by the ins
trumentman to direct the rodman to face the rod towards the
line of sight. It is executed by raising both arms above
the head and twisting both hands back and forth.
14. Reverse The Rod. The command to reverse the rod is
transmitted to the rodman by extending the arms above the
head and slowly rotating both arms -.in a circular motion to
wards one side of the body.
15. Move F o rw a rd . From a position where both arms are
extended horizontally, the arms are slowly bent on the
elbows and the hands raised into a vertical position. This
signal is used to direct the rodman to move forward.
16. Use The Long Rod. To give the signal to use the long
rod, the instrumentman extends both arms downward then
slowly raises it over his head.
M C A*Jilt M IN T o r
v t t t n c A i t)t\rAN i f \ 157,
F ig . 14-9. Atm and Hand 4igmaJU used in t t v t lin g to&ik.
>158, M C A SU R EN C N T
vennCAi omrANccv OF
OF VERTICAL
DISTANCES
IS-1. SOURCES OF ERROR IN LEVELING
K Instrumental Errors
a) Instrument Out oh c) Vehective Tripod
Adjustment
, 6) Rod Not Standard Length
2: Personal Errors
a) Bubble Not Centered e) Incorrect Setting oh
b) Paradox. Target
c ) Faulty Rod Readings h) Unequal Backsight and
d) Rod Not Held Plumb Foresight Distances
3. Natural Errors
a) Curvature oh The c) Temperature Variations
Earth d) Wind
. 6) Atmospheric Rehrac- e) Settlement oh The Instrument
tion h\ Faulty Turning Points
COMMON MISTAKESIN LEVELING
1. Misreading The Rod 4. Rod Not Fully Extended
2. Incorrect Recording 5. Moving Turning Points
3. Erroneous Computations
15-3. ADJUSTMENT OF THE DUMPY LEVEL
1. Adjustment oh the. Cross Hairs
2. Adjustment of, the. Level Vial
3. Adjustment oh the. Line, oh Sight
1S-4f ILLUSTRATIVE PROBLEM
1. Two-Peg Test
Lesson 15
HrAioNrurNr
v r t f u At O / t r A N C i X
159,
15-1. SOURCES OF ERROR IN LEVELING.
16 0 .
cht5uld be determined and necessary corrections applied to
all measurements mad with the rod. Also, the rod must al
ways be handled carefully. A Philadelphia rod is -easily
damaged when the upper part of'the rod is allowed to slide
down so rapidly that the blocks on the two sections are
crushed. Its bottom shguld be kept clean when used in muddy
areas or where the ground is relatively soft. If the rodman
is not careful, he may easily have some amount of, soil,
clay, . dirt or mud sticking to the bottom of the rod. Tijis
can cause severe errors in leveling,
c) Defective Tiripod. The movement o.f the level due
to settling of the tripod legs can cause possible errors in'
leveling work. The tripod usually settles in soft ground or
'due to vibrations caused by passing vehicular traffic. .It'
is important to always set up the tripod rigidly as this
can lead to erroneous measurements and waste of time. Bolts
and nuts at hinged joints of the tripod should be checked
regularly and tightened. To avoid sliding of. tripod,, legs
due to vibrations, the instrument should be set up only at
firm and stable ground. Smooth surfaces such as concrete
pavements and steel plates should be avoided.
i/rAft
tr/.A<iu f fon’
a t V t NT
AN'fv
exactly the same plane, parallax would be totally elimina
ted. A similar condition occurs when sighting through the
telescope to read a leveling rod. the effect of parallax is
to cause relative displacement between the image of the
cross hairs and the image formed by the focusing lens. Pa
rallax can be eliminated by careful focusing of the teles
cope. until no apparent movement of the horizontal hair re
lative to the rod can be detected when the eye is moved up
and down while sighting.
c) Faulty Rod Readings. The instrum'entman at times
may misread the number of meters and decimals when taking a
rod reading. An incorrect rod reading is usually the r*esult
of the length of sight, poor weather conditions, and the
skill of the instrumentman and the rodman. In ordinary le
veling work it is advisable that the length of sight should
not exceed 90 meters. The number pf reading, errors is
significantly reduced when short sights are taken. When
long . sights could not be avoided, a series of readings
should be taken on the distant rod and only the mean rea
ding should be used. Extra long sights are common such as
when leveling facross a wide river or a deep ravine.
In precise leveling work, instruments'Used are equipped
with three horizontal* hairs. Three readings are usually
recorded at each sighting. Since the two extra hairs (or
stadia hairs) are equally spaced from the center middle
hair, the difference between the readings of the middle and
lower hair should be equal to the difference between the
readings of the middle and upper hair. ' The instrumentman
should take time to compare these two quantities before
transferring to another set up since it is an effective
precaution against faulty rod readings.
d) Rod Not Held Plumb. Aside from holding the rod on,
a firm and definite point, it should also be hevld as nearly
vertical as possible. If it is held.off the vertical, it
will be intersected by the.line of sight farther from the
base and the reading will be much greater than what it
should really be.- The reading on the rod will be lowest
when, it .is held plumb, •
Appreciable inclinations of the rod should be' avoided
particularly.when a high rod is used • In differential.Leve
ling, errors due to npn-yerticality of the rod tend, to com
pensate at turning points,: . howeve\ , if the foresight read
ings are consistently greater tl m the ,backsights, the
error becomes cumulative. It is easy to determine if the
rod is held plumb or not since it.can be checked if it is
held parallel to the vertical cross hair. However, the ins
trumentman cannot check if the rod is leaning toward or
a way from the instrument'. This type of g^ror can be. avoided
either by waving' the. rod or attaching a rod. level to it to
facilitate holding it plumb. The use of a rod- level- allows
the rodman to plumb the rod by simply centering .the bubble,
Its us£ is preferable to swinging or waving the rod-.
e) Incorrect Setting Of Target. It is important to
162 U C A $ l '* e A t e R r
VERTICAL DiSTANCeS nr
always handle the leveling rod carefully.. The rodman at
times fails to set properly the target when a high rod rea
ding is made with it. During use, the target may slip down
ward because it is not damped firmly at the exact position
signaled by the instrumentman. To avoid this type of error,
the instrumentman should always take a second sight on the
target after it is clamped by the rodman in order to. be
sure that it has not slipped. .
£) Unequal Backsight and Foresight Distances. In
leveling work it is usually good practice to make, backsight
and corresponding foresight distances nearly equal. -In such,
a practice, errors due to imperfect adjustment of the ins-•
trument and also those due to curvature and refraction are.
reduced or totally eliminated since the error in the back
sight is equal to that in the foresight.
It is suffix lent to approximate only by eye foresight,
and backsight distances in ordinary leveling work. For more-
precise work, pacing, direct taping, or stadia measurements
are employed in determining sight distances. Balancing
foresight and backsight distances, however, may not always
be practical or possible. This situation may occur when the
terrain is extremely rugged or when leveling across wide
rivers. For example, in leveling up a steep slope the dis
tance to the foresight will be about one-half the' distance
to the backsight. The two distances could still be kept
nearly equal by properly positioning the level a certain
distance from the straight line between, the turning points.
The whole length of the level route is traversed by a zig
zagging manner in order to eliminate this source of error.
164.
error. This condTFion -is similar to that'resui't'ing f*6n*
settlement of the instrument.* It is a cumulative type gf
error. Since two rod readings are always taken at a turning
point from different set ups of the level, it is important
to select firm and solid turning points. , They must also b.ie1
easily identified. Care should be taken not to strike the
rod against the turning point or to exert any pressure on
it. In soft and unstable ground, it is advisable to use a
peg or a steel plate as a support to prevent settlement o,f
a turning point. The instrumentman should guard against
movement of the turning point and the rod should be held at
exactly the same point when another reading is to be taken
fon it.
Where;
? Z rpn h inn °n A with instrument set up near A
b - rod reading on B with instrument set up near A .
c - rod reading on B with instrument set up near B
d - rod reading on A with instrument set up near B
a) Procedure of Testing. Two pegs, 60 to 90 meters
apart are established on the ground (Fig. 1 5 -1 ). It is pre
ferable that the two pegs have.a considerable difference in
elevation in order to arrive at more accurate test results.
The instrument is set up and leveled in a location such
thatthe eyepiece is 20 cm or less infront of the rod held
on one of the pegs as at A. A rod reading, a, is ■taKen on
the rod held at point A by sighting through the objective
end of the telescope. In this procedure the cross hairs
will not be visible, but the field of view will be so small
that its center may be determined easily by holding a poin
ted pencil on the rod. The telescope is then turned toward
the rod now held over the other peg at B and a rod reading,
b, is taken on it.
The instrument is next moved, set up, and leveled near
B where a second set of rod readings, c and d, are taken on
the rod held at B and A, respectively. The computed diffe
rence in elevation for the two set ups are:
t
TDEn = a - ( b - e ) and T D E b «= ( d - e ) - c
168,
TDEa + TDE^ a - (b - e) + ( d - e) - c
2 * ^ 2 ~ ~~
c o^b+e+d-e-c
2
= (q - b ) + ‘ (d .- c)
2
d’ = c •+ TDE = . 4 4 9 + ( - 0 .5 3 0 )
= 0.919 m ( c o r r e c t rod reading on A f o r a horizontal line of
sight w it h instrum ent set up near B)
c) e = d - d = 0.93 8 - 0 . 9 19
= 0 . 0 19 m (e rro r in the li n e of s ig h t )
d) Since d > d‘, the line of sight is inclined upward. To ad just the line
of sight, loosen the upper capstan - headed screw and tighten the
lower screw until the horizontal cross hair reads 0 . 9 1 9 m (or d‘) on
the rod held at A while the instrument is still set up near B.
,170 H f A S U N t H F N T OF
V tH U C A i tnSTANCeS
M EASU REM EN T
OF V E R T IC A L
D IS T A N C E S
16-1. ALTERNATE PROCEDURE TOR TWO-PEG TEST
1. •PAoceduiue oi Testing
2. Making the Adjustment
16-2. CURVATURE AND REFRACTION
16-3. ILLUSTRATIVE PROBLEMS
1. Two-Peg Test
2. CuAvatuAe and R e d a c tio n
3. CuAvatuAe and R e fra c tio n
. 4. CuAvatuAe and R e fra c tio n
5. CuAvatuAe and R e fra c tio n
6. CuAvatuAe and R e fra c tio n
Lesson 16
,T
A ll A U N F M f N T Of
V I NT U A t v i $ T ANt n 171
^ ^ Iti/a-hcw
16-1. ALTERNATE PROCEDURE FOR TWO-PEG TEST.
Since the two pegs are equally distant from the instrument,
this difference will be correct even though the leve1 is
not: in adjustment. , ., *#>-'A
The instrument is then moved and set up at point p
within 2 to 3 meters from A. It is preferable but not
necessary to set up on line with the two pegs. The distan
ces from P to A (or Da } and from P to B (or Db ) are mea
sured either by taping or by the stadia method. Rod read
ings c and d are then taken on A and B, respectively, and
the difference in elevation calculated as follows
DEp « (c - d)
From Figure 16-1, the error in the reading on the far rod
at B can be determined by proportion as follows
or ef (I)
(D, Da> <Db - Da>
The correct rod reading d' at the far rod (held at B) for a
horizontal line of sight is determined by subtracting al
gebraically from the rod reading d the amount of ef . Thus
d' = d - ef 11
or Da
en = r. (I)
I Pb- Do> <Db “ V
7
The correct rod reading c' at the near rod (held at A) for
a horizontal line of sight is determined by also
subtracting algebraically from the rod reading c the amount
of en or
c. = c - ,en
174 M C A tu F ru rK T
vtuncAtmsTAHcrs or
the effect of curvature of the earth. In Figure 16-2, it
can be seen that due to refraction,' a ray of light which
apparently is the straight line AB actually follows the
curved path AC. The point observed through the level (at A)
appears to be point B but is actually point C. The angular-
displacement resulting from refraction is variable. It
depends upon the angle the line of sight makes with the'
vertical and the surrounding atmospheric conditions.
The combination of the earth's curvature and atmosphe
ric refraction causes the telescope's line of sight to vary
from a level line by approximately 0.0705. minus 0.0110 or
0.0675 m in one kilometer, varying as the square of the
sight distance in kilometers. This may be represented by a
mathematical equation as follows
.|F7, ■1 —
h' = 0 . 0 6 7 5 K .
where h' is the departure of a telescope line of sight- from
a level line (in meters) and K is the length of the line'of
sight (in kilometers). The value 0.0675 is called the
coefficient of refraction. Its value actually varies to a
certain degree for different elevations, but is taken with
an average value of Q.,067 5. ,
For surveys of ordinary precision, corrections for the
combined effects of curvature and refraction may be pmit-
ted. The correction is only necessary in precise leveling
work and where the difference in length of backsight and
foresight distances is great. If the backsight distance
were exactly equal to the foresight distance for each set
up of the instrument, the errors caused by atmospheric re
fraction and the earth's curvature would cancel each other.
Since refraction changes rapidly with changes in tempera
ture, it is advisable to undertake precise leveling during
cloudy days or at mid-afternoon on sunny days when the
ground and air are uniformly warm.
16-3. ILLUSTRATIVE PROBLEMS.
/. T W O - P E G T E S T . In the two-peg test of a dumpy level, the follo
wing observations are taken:
175,
the error in the reading on the far rod.
d) With the level still set u£> at P, determine the rod reading on B to
- which the line of sight should be adjusted. Explain how the line of sight
should be adjusted.
e) Perform the customary check.
Fig. J<-3. Two-peg t u t .
79.27
<L b " La>
(I) =
<79.27 - 2.50) ( - 0 . 0 3 7 )
- 0 .0 3 8 m (Error In the reading on the far rod)
d) d - <* - ef = 2 . 1 4 0 - (-0.03 8)
- 2.178m (Correct rod reading on the far rod held at B
for a horizontal line of sight)
e) 2.50 (-0.037)
en = (I) =
(79.27 - 2.50)
<L b - L a'
= - 0 .0 0 1 2 m (Error In the rod reading on the near rod at A)
176.
■ • •5 6 4 m (Correct rod reading on the oear rod held at A fot
a horizontal Une of eight)
(a -ib> = Cc* - d')
(0.296 - 0.91 0) * ( 1 .5 6 4 - 2.178)
-0.6-14 = -0 .6 1 4
. ' .{ -. .
the tvyo quantities are equal, it is then safe to assume
S in c e that
the above solution is correct.
2 . C U R V A T U R E AN D R E F R A C T IO N . Determine the combined effects
of the earth's* curvature and atmospheric refraction on sight distances
of 60, 90^ 120, 150, and 500 meters.
h'60 0.06 75 K2 = 0 . 0 6 7 5 ( 60 )2 = 0 . 0 0 0 2 4 3 m
000
90
0.06 75 K2 * 0.Q6 75 ( j | ^ - ) 2 = 0 . 0 0 0 5 4 7 ni
h1 r - 0 . 0 6 7 5 K2 ■« 0 . 0 6 7 5 ( ( q| ^ -)2 = 0 . 0 0 0 9 7 2 m
nl20 "
150
0 . 0 6 7 5 K2 * 0 . 0 6 7 5 (-i ^ l ^ -)2 * 0 . 0 0 1 5 19 m
500 0 .0 6 75 K2 = 0 . 0 6 7 5 ( - j ^ ~ ) 2 = 0 . 0 1 6 8 7 5 m
- , 5 2 5 .8 50 - 240.500 t2
hL * 0.0675 K 0 .0 6 7 5 (-----------fooo-----------)
0.005496 say 0.005 m (Effect of curvature and refrac
tion on the sight at B)
a = a - hg = 3.455 - 0 . 0 0 4
* 3.45 1m (Corrected rod reading on A)
4 . C U R V A T U R E AND R E F R A C T IO N .
A man on shore standing close
to the sea's water edge looks out toward the direction of the sen. If his
eyes measure 1.72m above sea level, determine how far out to sea is
,177,
ms visib le h o riz o n , neglecting the e f f e c t of w a v e s .
h‘ » 0 . 0 6 7 5 K2 or 1.72 s 0.0675* K
; .-V .
K = J 1 72 1 . 5 . 0 4 7 9 km or 5 , 0 4 7 . 9 m
\ 0.0675
5. CURVATURE AND REFRACTION. A woman standing on a beach
can just see the top of a lighthouse 2 4 . 140 km away. If her eye height
above sea level is 1. 7 3 8 m , determine the height of the. lighthouse above
sea 1%vel.
Since Kw + KL = >24.140km
Kl 3 24.140 - Kw = 2 4. 1 4 0 - 5.07 4
= 19.066 km (Distance of Irghthouse f.om
point of tangency)
hL = 0.0675 K2 - 0.0675119.066)2
'= 24.537m • (Height of lighthouse above sea
level)
6
.CURVATURE AND REFRACTION. Neglecting the effect of' tide and
waves, determine how far out to sea a boat will be when a light on its
mast 60 meters above the water disappears from the sight of a man
on shu.e whose eye level is 1.583 m above the water.
F ig . 16-5. Combined e{&exia, oi tuA.va.hne and \e& \actlon.
Mon on Light on
S h or t Point of Mott
fTangtncy
■Hari»tnql~UiM-
0. 06 75 K2 or 60 = 0 .0 6 7 5 K2
"60 (Distance of boat from point of
tangency)
lesson 17
17-1. DIFFERENTIAL LEVELING.
1 7 -2 . D E F IN ITIO N OF TERMS.
(TBM) are those set up by the surveyor for his own use in a
particular surveying project and may have assumed eleva
tions. They should be stable and semi-permanent marks such
as a wooden peg set in concrete,* a nail or spike driven
into a tree, an X-mark on a bridge abutment, « a notch cut
out in. the root of a tree, or the top of a f ire' hydrant.
It is important that bench marks are easily recognized
and located where they will have the smallest likelihood of
being disturbed. Accurate records' should f>e kept for each
bench mark since they may be frequently referred to later,
by other surveyors. They should be thoroughly described in
the field notes. In some areas, bench marks may have to be
re-established where their position and elevation have been
disturbed by earth movements such as those caused by
slides, .earthquakes, floods, engineering constructions, and
mining operalTldnsl._ ' *.
2. Backsight (BS). A backsight is a reading taken on a
rod held on a point of known or assumed elevation. It* is a
measure of the vertical distance from the established#line
of sight to the point sighted, and is always the first rod
reading taken after the instrument has been set up and le
veled. Backsights are frequently referred to as plus (|S)
sights since they are added to the elevation of points
being sighted to determine the height of instrument. -The
backsight does not necessarily mean that it is always a
Sight taken backward.
3. Foresight (FS). A reading taken on a rod held on a
point whose elevation is to be determined is called'a fore
sight. It is represented as a vertical distance from the
line of sight of the instrument to the point observed.
Since the reading for a foresight is subtracted from the
it
*/VtiHt
OOi 103^
' I
184. [ «
bench mark gives the height of instrument above datum or
HI * Elev BM + BS
»• *c-' a
The rodman moves forward along the general direction of Brib
and holds the rod at a convenient turniftg point (TR, ). The
instrumentman takes a foresight on the rod. This foresight
reading subtracted from the height of instrument gives the
elevation above datum of the.turning point or
r 4f
Fig. 17-3. Typical d iU tA c n lia l leve lin g note*.
'2
. 1VFFE \L LE /ELIN ?
3
'Lab Exercise No.5 Grp No.3/CE 221
A. Tabu/itIon o)LevelAores.
STA BS HI FS ■ ELE 'ATION \f.1/ rf
BNt, 1.246 5/3.727 512.481m s K ft 0r-r ff07 f i h5//1>f/c/7 £?
TP, 0.952 512.674 2.005 5/1.722 7|a a7C?/'d £p?/
1.342 5/2.120 1.896 510.778 p r Lri
2.556 514.289 0.387 511.733 i
rp4 0.595 513.312 1.572 512.7/7 p<7r otc c P 9 77 JIf |
BNU 0.664 511.861 2.1/5 511.197 9if? f/7J9 />r 7/ rGGXL £7£d 145ft/7 /p/
rZr~ 1.228 5/0.205 2.884 508.977 *
TP* 1.355 509.993 1.567 308.938 ‘cpc•ri1C •u/>
2.053 5/0988 1.063 508.930
8Mw 0.749 5/1.074 0.663 510.325 9if r IB•c am?£#
1.396 511.969 0.505 310.569 7117- ■o73(C «waA
1.915 5/2.445 1.335 510.S30 3fi r'Cm ?< c if»> // p 97
8M* 1.902 510.543 9 Crnaft 7if• s1; ■cJ, «a>a7.T /fc* rr/
15.956 17.894
(SBS) ISFS) : ?/ uiJ Lsa1
L f V I LIN O
m. meTWOOS
ween these two quantities signifies that the process of
adding .and subtracting has been done correctly. It does
not, however, provide a check against mistakes in observing
and recording data or whether the field work was performed
satisfactorily. The rod can be misread or an observed read
ing recorded incorrectly without affecting the arithmetic
check.
It is customary among surveyors to always make an,
arithmetic check on all data which are calculated and re
corded in the field notebook. Level notes are considered
incomplete unless the check is properly indicated. The
arithmetic check should be done before the survey party
leaves the site. It is only by using correct field proce
dures and giving careful attention to the work being under
taken that mistakes and errors can be prevented.
17-6. ILLUSTRATIVE PROBLEMS. .
I. DIFFERENTIAL LEVELING* Complete the d if f e r e n t ia l level notes,,
shown below and perform the cu sto m ary a r it h m e t ic check.
STA BS H, FS ELEV
BM , 1 .2 5 6 i . ; >•" V<(» •’V"'V 127 .13 3 m
TP, ,6 <7.886
} z 'a , - S o y
tp2 . 1.2 28 1 .5 2 7
0 f af; :
bm 2 Jr. 189 : <Cs. .K M 2* 2 4 6
bm3 , f .0 7 0 ~2'.~0 17 \i~ rT K :
»7 i . «Sf:
tp3 1.831 f X i[ , -:Wl JSr:h56 •»• a
bm 4 1 <•' f * ^ A
-'V
J J - 1 ■?•'(/ > 7 6 5 ....
Lev%l Llnf
E le v T P 2
* 126.092m aI
"t” "t*
c) Level Route from BM3 BM4
-Leveling Rod
Elev BM3 h i5
= 124.246m = 125.316 m j C.I WV
I= 122 BM4
Datum (Mean Sea Level) = 121.726m
--------- ■f — 4 —
S o lu tio n :
a) Computation of Hi s and Elevation of Stations:
127.1 3 3 (Elev BM|) 125.074 (Elev BM2)
+ 1 .256 ( BS on BM|)' + 1,189 ( BS on BM2)
128.389 (HI,) 126.263 (Hl4 )
- 1.886 (FS on TP,) - 2.017 (FS on bM3)
126.503 ( Elev TP, ) 124.246 (Elev BM3)
+ 1 . 1 16 ( BS on TP, ) + 1.070 ( BS on BM )
127.61 9 (Hl2) 125.31 6 ( HI 5) '
- 1.527 (FS on TP2) - 2.656 (FS on TP3)
126.092 (Elev TP2) 122.660 ( Elev TP3) •
+ 1.228 ( BS on TP2) .+ 1 . 8 3 1 (BS on TP3)
.127.320 ( H 13 ) 1 2 4. 491 chi 6 )
- 2.246 (■FS on BM2) - 2.765 {FS on BM4)
*12 5 . 0 7 4 ( Elev BM2) 121.726 ( Elev B M 4 )‘
Determining Backsight and Foresight Sums:
183
• S B S = 1 .2 5 6 + 1.116 + 1 .2 2 8 + 1.1 89 + 1 . 0 7 0 + 1 .8 3 1 = + 7 .6 9 0 g m
S F S * - (1 .8 8 6 + 1 .5 2 7 + 2 . 2 4 6 + 2 . 0 1 7 + 2. 6 5 6 + 2 . 7 6 5 ) * - 1 3 . 0 9 7 $
c) Tabulated Solution:
STA BS HI FS ELEV
BM| 1 .2 5 6 1 2 8 .3 8 9 127.1 3 3 m
TP| , 1 . 116 1 ,2 7 . 6 1 9 1 . 886 1 2 6 .5 0 3
t f 2 1 .2 2 6 1 2 7 .3 2 0 1 . 527 . 1 2 6 .0 9 2
bm 2 1. 189 1 2 6 :2 6 3 2 .2 4 6 , 1 2 5 .0 7 4
BM 3 1 .0 7 0 1 2 5 .3 1 6 2 .0 1 7 1 2 4 .2 4 6
TP3 1 .8 3 1 1 2 4 .4 9 1 2 .6 5 6 1 2 2 .6 6 0 -
bm4 2 . 765 1 2 1 .7 2 6
+ 7 .6 9 0 -1 3 .0 9 7
(SEBS) (3EFS)
d) A rith m e tic C h e c k :
1 2 7 .1 3 3 m (E le v a tio n of BN y
+ 7 .'6 9 0 m (S B S )
1 3 4 .8 2 3 m (S^:m)
- 1 3 .0 9 7 m ( 2 FS)
12 1 . 7 2 6 m i (Checks with E le v a tio n of BM4) .
It Vf /ING
MlTNOOt 18 9 ,
S o lu tio n :
Computation of Hi's and Elevation of Stations • ■. . )•■■■.
•;
345.79 m ' (Elev BM,)> 343.76 (HI,)
+ 1 .25 (BS on BM,) -2 .7 7 (FS on TP )
347.04 (HI,) 340.99 (Elev TP3)
- 2.48 (FS on TP,) + 1 .96 (BS on TP,)
344.56 (Elev TP, ) 34 2 .95 (Hl4)
+ 1.24 • (BS on TP, ) - 2.59 (FS on TP4)
345.80 (Hl2 ) 340.36 (Elev TP4) ,
- 3. >8 (FS on TP2) + 0.55 (BS on TP4)
342.62 (Elev TP2) 340.91 (Hi5)
+. 1. 14 (BS on TP2) - 1 .62 (FS on BMg)
343.76 (Hl3 ) 339.29 m (Elev BM2)
b) Tabulated Solution:
STA 68 HI F$ ELEV
BM, 1.25, 347.04 345.79m
TPI 1.24 345.80 2.48 344.56
TP2 1.14 343.76 3. 18 342.62
TP3 1.96 342.95 2.77 340.99
TP4 0.55 340.91 2.59 340.36
bm2 1.62 339.29
+ 6. 14 -12.64
(2 BS) (2 FS)
c) A r it h m e t ic Check:
34 5 . 7 9 m , (Elevation of BM,)
* 6. 14 (2BS)
35 I .93
-12.64 (SFS)
339.29 m (Checks with Elevation of BM2)
3. D I F F E R E N T I A L L E V E L IN G . Prepare and complete the differential
level notes for the information shown in the accompanying illustration
(Fig. 17-5). Include the customary arithmetic check.
<an /
.f ^ S L /NO
M t: t h o d s
Solution:
a) Computation of Hi's and El evat i on of S ta t i o n s :
STA BS HI FS ELEV
BMa 0 .6 8 126. 13 12 5 . 4 5 m
0 .9 8 1 2 3 .3 6 3.75 1 2 2 .3 8
TPI
TP 2 3 .7 3 1 2 3 .5 7 3.52 1 1 9 .8 4
TP3 3 .9 0 1 2 5 .8 3 1 .6 4 1 2 1 .9 3
BM. 0.35 1 2 5 .4 8
P
+9 .2 9 -9 .2 6
(2 B S) (S F S )
c) Arithmetic Check:
125.45m (Elevation of BM0)
+ 3.29 (2 BS)
134.74
-9,26 (2FS)
125.48m (Checks with Elevation of BMb)
* e
H!
/
2.04_ i_^
— T ip s )
/
/
,y8M,
(Elev 3 5 6 .6 5 m )
L F V fU N O
M i JN O O S I9(,
Solution:
a) Computation of Hi's and Elevation of Stations:
3 5 6 .6 5 m ( E i e v BM,) 3 5 8 .1 3 <h i 3 )
+ 2 .3 5 (B S on BM,) 6 - 3 .6 ! ( F S on TP3>
3 5 9 .0 0 (H I,) 3 5 4 .5 2 ( E l e v TP3)
-P3;.S® ( F S on T P ,) + f . 54 ( B S on TP 3)
3 5 5 .7 2 ( E l e v T P ,) 3 5 6 .0 6 (H l4 )
+ 1 .3 7 ( B S on T P ,) - 3 .6 9 ( F S on TP4)
3 5 7 .0 9 (H y 3 5 2 .3 7 ( E l e v TP4)
- 2 .0 4 ( F S on TP2) + 0 .8 5 ( BS on TP4)
3 5 5 .0 5 ( E l e v T P 2) 3 5 3 .2 2 (Hlg)
+ 3 .0 8 ( B S on TP 2) - 3 .0 7 ( F S on BMg)
3 5 8 .1 3 (H l3) 3 5 0 .1 5 m ( E l e v BMjJ
Tabulated* Solution:
STA BS HI FS ELEV
BM, 2.35 359.00 3 5 6 .6 5 m
1.37 357.09 3.28 3 5 5.72
TPI
tp2 3.0 8 358.13 2.04 3 5 5 .0 5
1.54 356.06 3.61 3 5 4 .5 2
TP3
0.85 353.22 3.69 3 5 2 .3 7
TP4
bm2 3.07 350.15
+ 9.19 -1*5.69
<ZBS) (ZFS)
c) Arithmetic Check:
,19?.,
LEVELING
METHODS
18-1. VOUBLE-ROWEV LEVELING
18-2. THREE-fDUE LEVELING
18-3. ILLUSTRATIVE PROBLEMS
1. VoubZe-Rodded Leveling
2. Vouble-Rodded Le.veXi.ng
3. Tkiee-WiAe Leveling
Lesson IS
18-1. DOUBLE-RODDED LEVELING.
194,
elevation differences of at least one-half meter or more.
This technique eliminates the possibility:of. making the
same mistake in reading the meter -marks'on both rods. It is
also advisable to swap rods on alternate, setups of the ins
trument to minimize systematic errors.
Upon d’ompletion of the. leveling- operation, it will be
observed that the two computed elevations of the terminal
bench mark will vary slightly from each ■other .-. The discre
pancy is due usually to errors pf observation,.and the cor
rect elevation is determined by taking the .average value..
However^ when the discrepancy between two final elevations
is sufficiently large, it is advisable to repeat the level
ing process. It should also be expected>.that the . discre
pancy will increase as the length of the line increases*.
Just as in conventional differential leveling, there is
a need •to perT-orm the customary arithmetic check before
leaving the survey site... This arithmetic .check- is made b>
adding separately all the backsight Readings- and all the
foresight readings. It should be noted that backsight read
ings are considered as positive values.and .foresight-read
ings as negative values. Since there are two sets of level
lines, the algebraic sum of the backsight, and foresight
readings is divided by two. The quotient thus obtained is
then added algebraically to the elevation of the - initial
bench mark. If the resulting sum iS -equal to •the elevatior
of the terminal bench mark, it can be safely assumed that
the process of adding and subtracting has been -done *cor
rectly. Again, it is stressed that the arithmetic check
does not provide any measure of verifying--mistakes in ob
serving and .recording of data. It does not also tell us if-
the field observations and techniques employed were under
taken satisfactorily. , '.
195
always be maintained at equal lengths.
Figure 18-2 illustrates a typical setup for three-wire
leveling. The level is set up at station L and the rod is
held vertically at! station P. The horizontal distance bet
ween the instrument and the rod is shown as HD, and the
vertical distance between the line of sight and station P
is taken as the mean of the three hair readings.
Fig. 1$-t» Typical 4ttup ion iJmce-wine. leveling.
Where:
a = Upper stadia hair reading
b =. Lower stadia hair reading
c = Horizontal cr o ss - ha i r reading or rod reading on P
s = Stadia intercept or the difference between the upper sta
dia hair reading and the lower stadia hair reading
m.= Mean of t hr e e - h a i r readings
HD = Horizontal distance from the level to the rod held at P
K = Stadia interval factor
C = Instrument constant
HI = Height of the line of sight above datum or mean sea level
Elev of P = Unknown elevation of station P
The following equations are used in three-wire level
ing:
s = a - b ••;......................... Eq.'!)
m = (a + b + c ) / 3 ................... •................................Eq. (2)
HD = Ks + C .................................................................... Ed- (3)
Elev of P = HI - m ...........••••■•............................................... Eq. (4)
STA as - HI FS ELEV
1 .9 6 4 s'\V 2 0 5 .5 4 9 m
BiVi |
f. 964 -
2 .6 3 4 Z 01 • ir-r
bm 2
2. 634 q n'l ' $ W
S o lu tio n : v < r. - • \': a y *2* \ . • i ?1
— — I'*/,
d) Tabulated S o lu tio n :
STA BS HI FS ELEV
1 .9 6 4 207.51 3 2 0 5 .5 4 9 tn
BM,
1 . 964 207.513
TP, H. 2. 187 208.59 6 1.1 04 206. 409
TP,L 2 .6 2 9 2 0 8 .5 9 3 1. 5 4 9 205. 964
tp2h I . 393 2 0 8 .1 9 5 1.794 2 0 6 .8 0 2
tp| l 1. 780 20&. 17 1 2.2 02 206. 391
tp3h 0 .3 1 7 205.521 2.991 205. 204
TP3L 0 .7 4 1 2 0 5 .4 97 3.4 1 5 2 0 4 .7 5 6
* 2 .6 3 4 202. 887
8M2 2 .6 3 4 202. 863
+ 1 2 :9 7 5 -18.3 2 3
(2 BS) C2FS)
e) Arithmetic Check:
I) 1st Method. , ' ' .
Mean Elev BM2 = (2 02 .8 87 + 2 0 2 . 8 6 3 ) / 2
3 202.875 m
DE, = (SFS + 5BS)/2 * [l8.323 + (-12.975)] / 2
3 2.674 m
•
DEo = .Elev BM. - Mean Elev BM, = 2 0 5. 549 - 202.875
■ 2.674 m
S'nce DE, is equal to DE2,it can be assumed that the< arith
metical computations (additions and subtractions) performed
are correct.
*
2) 2nd Method.
Mean Elev BM. = (202.887 + 2 0 2 . 8 6 3 J / 2
3 202.875 m
+ 12.975m 2BS
- 18 . 3 2 3 m 2FS
- 5.348m SUM = SBS + S FS
- 2.674m AVE = SUM/2
+ 205.549m Elev BM,
202.875m (Elev BM, + AVE): Since
the Mean Elevation of
ed that the arithmetica
ed are correct.
2. D O U B L E “ RO D D ED L E V E L I N G .
Figure 18-3 shows a schematic
arrangement of a differential level route employing
two rods. The values
indicated represent backsight and foresight readings taken on two sets
of turning points. Prepare and co’mplefe differential level notes tor the
information shown and perform the customary ar'thmetic checki
198 i rv n
TMOQS in o
F-cg. 1S-3. Schematic aAAangement o{ ZisuzA the doubbt-eodded Zive£ \ o n .'f ,
y£Z?
tesT
3 .7 3 2 ..
HI.
y TP] L (BS) F\ *>l
/ >\o
to Icy)
S-/N
/•A
/-Xcf
■
$ii
x.l ■
x>—
3iv!a
TP2L i .a
\*r / '
x
r p2 H
TP H
os) >rni4
"*/
S o lu tio n :
a) Computing Hi's and Elevation of Stations.
S B S = * 2 .7 6 8 +2.768 + 3 . 0 7 9 + 3 .7 3 2 + 3 . 0 2 4 + 3 . 3 6 6 + 0 . 2 6 7 + 0 . 8 3 4
= + 1 9 .8 3 8 m (Summation of backsights or plus sig hts)
2 F S = - ( 0 .4 8 8 + 1.137 + 0 . 3 2 9 + 0 .6 7 4 + 2 . 6 2 9 + 3 .0 0 0 + 3 . 4 3 4 + 3 . 4 3 6 )
“ 15.126m (S ummation of foresig h ts or minus s ig h ts )
<*»•#/w#
»t IH l»ll* 159.
c) Tabulated Solution.
STA BS FS ELEV
(+.S) FHI (-S)
2.768 149.65 8
BMa 146 .890 m
2.768 149.65 8
TP, H 3.079 152 .249 0 .4 8 8 149.170
TP, L 3.732 152 .253 1 .1 37 148.521
TP 8 3.024 15 4 .9 4 4 0 .3 2 9 151.920
TF2L 3.366 15 4 .9 4 5 0 .6 7 4 l£l .5 7 9
tp 3h 0.267 15 2 .5 8 3 2 .6 2 8 152. 3 16
0.834 15 2 .7 7 9 3 .000 15 1 . 945
TP3L
3 .4 3 4 149. 149
BM.D
3 .4 3 6 1 4 9 .3 4 3
t l 9 . 838 -15 . 126
(2EBS) (5EFS)-
d) Arithmetic Check.
Mean Elev BM = (149.149 + l 4 9 . 3 4 3 ) / 2
* 14 9 . 2 4 6 m
+ 19.838m SBS
- 15.1 26 m SFS
•f 4.7 14 m SUM - -5BS + 2FS
+ 2.356 m •AVE = SUM / 2
4 146. 890m Elev BMa
149.2 46m Elev BMa + AVE: Since this value is equal to
the Mean Elevation of BMb , it can be assumed that the arith
metical computations performed are correct.
3. T H R E E - W IR E L E V E L IN G .
Complete the differential level notes
fchown below and perform the customary arithmetic check.
BACKSIGHT FORESIGHT
9TA HAIR MEAN 8 HI HAIR MEAN s ELEV
RDGS ROG RDGS RDG
1.102
8M| 0.930 444.242m
0.718 C
2.784 1. li 7
TP| 2.420 0.899 •"«• ■r?..A. ’- f
2.057 0.682
1.713 11900
tp2 1.440 1.537
1.166 1.172 .
2.391 ' 1.450
TP3 2.094 ‘: A'J ' 1.177 ■"- .<,r: 7f <<
1.039 0.904
0.913 2.210
tP4 0.730 /■vVv 1.714 t ~ f/S
0.547 1.218 l* \
1.593
8M2 1.410 r c\\
_ 1.227
Datum (M»9P 3*8 l m i l
e) Set-up Between TF^ and BM2 .
s6 = ( 1 . 1 1 7 - 0.682) (5.435
, 20; If ViT<IHQ
atftiovi
Sj - (I . 9 0 0 - I . 172) = 0.728
s8 -(1.450 - 0.904) - 0.546
s =( 2 . 2 1 0 - 1.218) = 0.992
sjo - ( I . 5<03 - 1.227) * 0.366
c) Calculating Hi's and Elevations.
444.242 ( Elev BM,) 446.602 (Hl3)
+ 0.935 ( m,) - 1 .177 (m 8)
4 4 5 . 17? (HI,) 445.425 ( Elev TFV
- 0.899 ( m6) + 2.095 <m4 >
444.278 ( Elev TP, ) 447.520 (HU)
+ 2.420 ( m2) - 1 .714 (m9)
446.698 (Hl2) 445.806 (Elev TP4)
- 1.5 36 ( m7) + 0.730 (m5 )
4 4 5 . 162 (Elev TP2) 446.536 (Hl5)
+ 1.440 (m3) ' - 1.410 (m,0)
4 46.602 (Hl3) 4 4 5 . 1 26 ( Elev BM2}
d) Tabulated Solution:
BACKSIGHT FORESIGHT
STA HAIR MEAN HI HAIR MEAN ELEV
S ROGS ROG S
RDGS RDG
1 . 152
BM, 0 .9 3 5 0.935 0 .4 3 4 44 5. 177 4 4 4 .2 4 2 m
0 .7 1 8
2 .7 8 4 1.177
2 .4 2 0 2.420 0 .7 2 7 446 698 0 .89 9 0 .899 0 .4 3 5 4 4 4 . 2 7 8
TP, 2 ,05 7 0.6 82
/
1.713 1.900
tp2 1 .440 1.440 0 .5 4 7 44 6 .6 0 2 1.537 1.536 0 .7 2 8 4 4 5 . 162
1.166 l. 172
2.591 1.450
2 .0 9 4 2.095 0 .9 9 2 447.52 0 1. 177 1. 177 0.5 46 4 4 5 . 425
TP3 1 .599 0. 904
0 .913 2.21 0
0 .7 3 0 0.730 0 .3 6 6 44 6.53 6 1.714 1.71 4 0.9 92 4 4 5 .8 0 6
TP4 > 0 .5 4 7 1.218
1.593
bm 2 1.410 1.41 0 0.3 66 4 45.1 26
• 1.227
e) Arithmetic Check:
1st Method.
SBSm = + 7 . 6 2 0 m
2FSm = - 6 . 7 3 6 m ,
DE, = 5BSm + 5FSm = 7 . 6 2 0 + ( - 6 . 7 3 6 ) = 0.884 m
de 2 - Elev BM2 - Elev BM, = 4 45 .1 26 - 4 4 4 . 2 4 2
a 0.884 m
mitfvnhw*
ihoo 203
Since DE{ is equal to DE Z , it can be assumed that the arithme
tic computations involving additions and subtractions are correct.
2) 2nd Method.
444.242 m (Elevation of BM,)
+ 7:620m CSBS)
45 1.862 rri (Sum) '
- 6.736 m (2FS)
445.1 26 m (Checks with Elevation of BM2) ,
204, m m
LEVELING
METHODS
»•
Lessen 19
19-1. PROFILE LEVELING.
,20
4. Pull Stations. Are points which are established
along the profile level route at uniformly measured distan
ces . These points are usually made in multiples of 100, 50,
30, 20, or 10 meters. <
5. Plus Stations. Any other intermediate point estab
lished along a profile level route which is not designated
as a full station is called^a plus station. These points
are takeif*at breaks in the ground surface slope and at cri
tical points such as the intended location of culverts,
bridges, and other structures.
6. Vertical Exaggeration. Is a process’ of drawing the
vertical scale for a profile much larger than the horizon
tal scale in order to accentuate the differences in eleva
tion.
7. Profile Paper; A special heavy grade graphing paper
used for plotting profiles. The paper has horizontal and
vertical lines drawn in green, blue, or orange which are
spaced accordingly to represent certain distances to the
horizontal and vertical scales.
19-4, STATIONING.
Before levels are taken, the line along which the profile
is required must be properly marked by stakes on the
ground. The choice of intervals between stakes will depend
largely on the desired accuracy and type of terrain to be
traversed. Usually, stakes which mark full stations are
spaced at 100-m intervals. Spacing between plus stations
could not be regularly fixed as they depend on breaks in
' the slope of the ground surface and on the location of cri
tical points where structures are to be positioned along, or*
transverse to the level route. ’
Stationings are used to indicate the distance of any
ground stake from the beginning point of the level route.
It is carried continuously along the route. In the case of
a highway or a railroad, the stationing is also carried
around the curves. A station and a plus is adapted to mark
each stake. For example, full stations which are 100, 25o,
400, and 1300 meters from the beginning point (Sta 0+ 00) of
the profile route are designated as stations 1+00, 2+00,
4+00, and 13+00, respectively. Other- intermediate points
are designated , as plus stations. Thus, a stake that is
1,650 meters from the point of beginning is marked as
16+50, and one set 228.35 m from the same starting point is
marked as 2+28.35.
If the distance from the point of beginning of any full
or plus station is known, its stationing can be readily
calculated. For example, a point that is 172.45 m beyond
station 5+50 is 550+172*45 = 722.45 m from station 0+00,
and the point is marked as 7+22.45 m. The horizontal dis
tance between any two stations may also be determined.
Thus, if the given stationing of two points are 18+15.65
and 24+04.73, the distance between the two stations is
2404.73-1815.65 = 589.08 m.
POft __ LEV EU N O
^J &3z**s>Basgmd M E T H O D S
a single column could be used to record foresight and
intermediate foresigKt readings, many surveyors prefer to
record intermediate foresights separately. This is done to
allow' easier reading and interpreting of the notes. A
typical set of#profile level notes is shown in Figure 1S-1.
Fig. 19-1. VJioiUU tiv z l not&4.
.210.
plcai profile of the center line of a road.
There are many purposes for which profiles are plotted.
They may be used to determine depths of cut and fill such
as on proposed roads and railroads. Profiles are also used
when designing the most economical gxade location and plan
ning ‘out grade crossings. They are also referred to when
locating and positioning tunnels, pipelines, irrigation
canals, and sewer lines.
Profiles are plotted on a special graph paper called a
profile sheet. It has horizontal and vertical lines printed
in blue, green, or orange to represent distances both hori
zontally anff vertically. The profile is plotted by using
the lines of the profile sheet as scale. It is first drawn
in pencil and inked later to a finished copy. ,Heavy grade
paper is used if only a single copy of the profile is need
ed. However, if additional copies of the profile are re
quired either tracing paper or tracing cloth is used to
allow reproduction by blue or white prints.
The elevations of ground points on the profile are
usually plotted and connected freehand with a smooth heavy
line. The resulting profile is expected to be a better and
more accurate representation of actual ground irregulari
ties than by using straight lines to connect ground points.
It should include all other pertinent information which are
likely to be required during the actual phase of construc
tion. The following information should be indicated:
dsta = 8 + 24.50 or
824.50m (D ista n ce of the reference s t a t io n from sta'tion OtOO)
^sta “ 8 + 24.50 or
824.50m ( D i s t a n c e of the r e f e r e n c e s t a t io n fro m s t a t io n 0 +0 0 )
D = ^ s f a “ ^ tp 824 .50 - 83.45 ,
= 7 4 ! .05m (D istan ce of the tu rn in g point fro m s t a t i o n 0 + 0 0 )
cL
2
= 26 + 62.75 or
212 L £ v e t is o
A/ernoos
2, 662 .75 m (Distance of the other station from beginning
point of the survey)
d = d, - d2 - 334 5.0 2 - 2662.75
= 682.27m (Distance between the two stations)
» * \
STA, BS HI FS 1F S ELEV
nma 0 .9 5 12 5 . 5 0 m
0 + 00 t- i ■*v. 3 .0
+ 10 > 2 .3
3 .1 3 {tk -M 0 .6 4
TP.
0+22 2 .7
+ 3 0 .5 2 .8
+ 3 4 .2 3. 1
+ 3 9 .3 0 .5
+ 4 2 .5 0. 8
tp2 2 .1 6 \\&it 1.28
+ 45 ’ 0 .9
+ 4 8 .6 1 .2
+ 50 1. 7
+ 5 3 .7 # 2 .8
t p3 0 . 82 2 .3 7
tp4 . i .3 5 3 .5 0
+ 75 3 .0
BMb ' 1 .9 9
BMa 0 .9 5 12 6 .4 5 1 2 5 .5 0 m
0 + 00 3 .0 12 3 . 5
+ 10 2 .3 1 2 4 .2
TP, 3 .1 3 1 2 8 .9 4 0 .6 4 12 5.8 1
0+22 2 .7 12 6 .2
+ 3 0 .5 2 .8 126.1
+ 3 4 .2 3. 1 1 2 5 .8
+ 3 9 .3 \ 0 .5 12 8.4
+ 4 2 .5 0 .8 128. 1 *
tp2 2 .1 6 12 9.82 1 .28 1 2 7 .6 6
+ 45 0 .9 12 8 .9
+ 4 8 .6 1 .2 12 8 . 6
+ 50 1.7 128- 1
+5 3 .7 2 .8 12 7 .0
0 .8 2 12 8 .2 7 2 .3 7 * 12 7 .4 5
TP3
tp4 1 .3 5 1 2 6 . 12 3 .5 0 12 4 . 7 7
+ 75 3 .0 1 2 3 .1
1.99 1 2 4 .1 3
BMb
+8 . 4 1m -9.78m
(SBS) (SFS) ‘
d) Arithmetic Check.
125.50 m (Elevation of BMa)
+ 8.41 m (SBS)
133.91 m (Sum)
- 9.78m (2 FS)
! 24. 13m (Checks with Elevation of BMb)
3. P R O F IL E L E V E L IN G . Figure 19-3 shows a schematic arrapge-
ment of a profile level route from BM33 to BM34 . The values indica
ted represent backsight, foresight, and intermediate foresight read
ings taken on stations along.the route. Prepare and complete pro
file level notes for the portrayed information. Show the customary
arithmetic check and plot the profile.
S o lu tio n .
a) Computing Hi's and Elevation of Stations.
3 2 8 . 7 0 + 2.32 = 3 3 1 . 0 2 m (HI,)
33 1.02 - 1.7 = 3 29. 3 (Elev Sta 0+00)
214
33 i . 0 2 - 2 .2 * 3 2 8 . 8 (E le v Sta I + Op)
33 I . O i - 1.2 * 3 2 9 . 8 (E le v Sta 2 + 00)
3 3 1 . 0 2 - 0 .9 » 3:30. I (E le v Sta 3 + 00)
3 3 1 .0 2 -3 . 4 3 - 3 2 7 . 5 9 m ( E le v TPl]
3 2 7 .5 9 +2 .7 7 = 3 3 0 . 3 6 m (H!2)
330M36 - 2 .2 = 3 2 8 . 2 ( E le v Sta 4 + 4 0 )
3 3 0 .3 6 - 3 .7 = 3 2 6 .7 ( Elev Sta 5 + 00)
3 3 0 . 3 6 - 1.6 = 3 2 8 . 8 (E le v Sta 6 + 00)
3 3 0 .3 6 -3 . 0 6 =3 2 7 . 3 0 m (E le v TP2)
3 2 7 .3 0 +2 .2 2 = 3 2 9 . 5 2 m (H l3)
3 2 9 . 5 2 - 2 .8 = 3 2 6 , 7 (E le v Sta 8 + 00)
3 2 9 . 5 2 - 3.6 - 3 2 5 . 9 (E le v S ta 9 + 00)
3 2 9 . 5 2 - 2 .0 = 3 2 7 . 5 (E le v S ta 10 + 00)
3 2 9 .5 2 - .1 = 3 2 8 . 4 (E le v Sta I I + 00)
3 2 9 .5 2 - 2 .4 5 = 3 2 7 .0 7 m ( E le v BM^
i*oo
\
8+00
fir's)
S
9+00
II
10 + 0 0
5BS = 2 ,3 2 + 2 .7 7 + 2 . 2 2 = + 7 . 3 1 m
5 FS = -(3 .4 3 + 3 . 0 6 2 .4 5 ) = - 8 . 9 4 m
.216,
/
LEVELING
METHODS
20-1: RISE AM? FAU METHOD OF LEVELING
1. Principle, oh the Method
2. Foxmat oh Level Note* U*ed
3. Atlthmetical Check*
20-2. ILLUSTRATIVE PROBLEMS
7. R-cie and Fa£E Method
2. Rite arid Fall Method
Lesson ZO
it V! I 1*0
tutrnoos
20-1. RISE AND FALL METHOD OF LEVELING.
,218 u y/ri
Mi m o o t
elevation is obtained by subtracting the rod reading on
A from the rod reading on BM1. To determine the RL of point
A, the difference in elevation between the two points must
therefore be added to the RL of BM1.
It is important to remember that if the result of the
calculation for difference in elevation is positive then
the difference is a rise; if it is negative then the diffe
rence is a fall. Since the difference in elevation is
always added algebraically to the preceding RL to determine
the next*RL, the mathematical sign will always give the
correct result provided the arithmetic is done correctly.
In this problem, the correct sequence .of calculation
should then be
210,
point D in the illustrated problem is one such example.
f i g . 20-2. Levelin g note* ioA JtiM . and ia t i method.
, 220 . M l f 1/00.1
to describe the stations.
Rod readings are recorded on successive lines of the
field notebook as they are taken. It should be remembered
that all entries which refer to the same point on the
ground such as a turning point (or change point) should be
recorded on the same line of the notes. For an extra long
level route where observations may take up several pages of
the field notebook, the last reading indicated should al
ways be a foresight. This will allow a check to be made
before proceeding to the next page where the first data
entered should be a backsight.
3. A r i t h m e t i c a l Checks. As done in other methods of le
veling, the customary arithmetic check should always be
made either at the end of the leveling work or at the end
of each page when entries are carried forward over succeed
ing pages. One method of checking is to determine if the
algebraic sum of the summation of backsights and the sum
mation of foresights is equal to the difference between the
sum of the rises and the sum of the falls. Both differences
should also be equal to the difference in elevation between
the first reduced level and the last reduced level. This
provides some kind of a triple check on the notes. For the
example problem, the arithmetic check is calculated as fol
lows
*
DEI = Sum of BS + Sum of FS = 3.755+(-2.057) = 1.698
DE2 = Sum of Rises+Sum of Falls= 2.f44+(-1.046) = 1.698
DE3 = RL of BM2 - RL of BM1 = 348.448-346.750= 1.698
Since DEI is equal to DE2 and also equal to DE3,it can be
assumed that the arithmetical computations performed were
done correctly.
Another method of checking is to add the sum of the
rises to the elevation of the first reduced level. From the
Resulting sum, the sum of, the falls is then subtracted. The
difference should check with the ‘elevation of the last
reduced level if the arithmetic was done correctly.. This
method of checking is shown at the foot of the level notes
in Figure 20-2. It is important to thoroughly examine the
field notes and be sure that the number of backsight en
tries are equal to the number of foresight entries before
the arithmetic check is carried out.
The student should always remember that the arithmetic
check only signifies that the process of adding and sub
tracting has been done correctly. It does not provide a
check against mistakes in observing and recording data, nor
does it tell us that the leveling work was performed
satisfactorily. Any arithmetical mistake should.first be
located when the checks made are not satisfied. Nothing
else should be worked out any further until the mistake is
found and accordingly rectified. The only suitable way to
check the observational accuracy is to finish the leveling
operation by leveling back to the starting point, or by
tying to a nearoy bench mark which has been previously
( r v / t in a
hnrh o p *
e s ta b lis h e d . if le v e lin g is to be r e tu r n e d oacK to the
p o i n t of b e g in n in g , i t is p r e f e r a b l e t o do i t from t o t a l l y
d iffe re n t in s tru m e n t s t a t i o n s and p r e f e r a b l y unde rtake n by
a n o th e r instrum entm an.
20-2. ILLUSTRATIVE PROBLEMS.
!. Rt$E A N D FALL M E T H O D . Given the profile, level notes in Figure
19 - I (page 209). Convert the given data to suit the standard format of
level note^s used in the rise and f ai r method. Determine the RL of each
station and show the customary arithmetic check.
a) Equivalent Tabulation by Rise and Fall Method.
>223*
524.02 (RL of Sta 0 + 50) 525.12 ('RL of Sta 2 $ 50)
- 0.23 ( d e4 ) - 0 .30 <DE.V
523.79 (RL of Sta 0 +• 90) 524.82 (RL of .Sta 2 + 70)
0. 27 (DEg) - 0.31 <DEt3)
523.52 (RL of Sta I +00) . 524.5 1 (RL of Sta 3 + 00)
+• 0.28 <d e 6 ) - 1.16 (DE.4) .V-- ■
523.80 (RL of Sta 1 + 10) 523.35 (RL of Sta 3 + 30)
+ 0.79 (DE ) - 0.22 (DE,.)
52 4 .5 9 (RL of Sta 1 + 60) 523.I3 (RLISof Sta 3 + 65)
+ 0.88 (DE8) •V + 0.3 I (DE|6)
52 5 .4 7 (RL of Sta 1 + 95) 523.44 (RL of BM 101)
d) Tabulated Solution:
e) Arithmetic Check.
1st Method:
2BS = + (1.24 + 2.06) = +3.30
SFS =. - (2.78 + 2.36) = - 5. 14
SRise = + (0.59 + 0.28 + 0.79 + 0.88 + 0.19 + 1.38 + 0.31)
= +4.42
SFall = - ( ! . I I + 0.74 + 0.23 + 0.27 + I .92 + 0.30 + 0.31
+ 1.16 + 0.22)
= -6.26
DE, = SB3 + SFS = 3.30 + ( - 5 . 14) = - 1.8 4
DE2 = SRise + SFal! * 4.42 + (-6.26) = -1.84
DE3 = RL of BM 101 - RL of BM 100
= 523.44 - 5 2 5 . 2 8 = - 1.84.-
. Since DEj = DE2 = DE3 , it can be assumed that thf arithmeti-
L tv e U N O
UCTH O O S
cal computations performed are correct.
2nd Method:
525.28trt (RL of BM 100)
+ 4.42m ( 2Rise)
529.70m (Sum) %
- 6,26m (sFall )
523.44m J (Checks with RL of BM 101)
2 . R I S E AND F A L L M E T H O D . Figure 2 0 - 3 shows a schematic arrange^-
ment of lines in a level route. The reduced level of the beginning bench
mark (BM# 215) is 2 0 3 . 113 m and all values indicated represents either a
backsight, intermediate foresight, or a foresight reading taken on stations
along the route. Prepare and complete an appropriate format of level
notes for the portrayed information using the rise and fall method of le
veling.Also show the ''ustomary arithmetic check.
Fig. 20-3. Schematic aAAangement oi Line* tfat the. le v e l \o a te .
c) Arithmetic Check.
203. I I 3m (RL of BM •# 2 i 5)
+ 2.594 m (SRise)
205.707 m (Sum)
— 2.852 m ( IS Fall )
202.855 m (Checks with RL of BM 216)
226, m HfTHOw<s>
i r^ n
Df
L E V E L IN G
M ETH O D S
::: ■ n s B o m n a e i
21
21-1. RECIPROCAL LEVELING.
V. • ^ •
Reciprocal leveling is.employed to determine the difference
in elevation between-two points, when it is difficult or
impossible* to keep backsights and foresights short and
equal. Such a condition usually exists when running a line
of levels across wide rivers, lakes, or in rugged terrain
where deep canyons and ravines are encountered. In this
method of leveling, two sets of rod readings are observed.
One sa»U is taken with the instrument set up close to one
point and another with the instrument set up close to the
other point.
The procedure followed is known a3 the method of
reversion, just as employed in the two-peg test. By employ
ing reciprocal leveling, errors due to refraction by the
atmosphere, curvature of the earth, and faulty adjustment
of the instrument are significantly reduced if not totally
eliminated. When carefully executed, reciprocal leveling^
could be as precise as differential leveling.
DE 2 = (a 1 - b')
ir»nyu
Mt 11
w\ 22$
Illustrated In Figure 21-2 is an example of field ncftes
prepared for determining the difference in elevation
between two points by reciprocal leveling.
Fig. 21-1. Field notea Atcipiocal leveling.
230. € vet in a •
*€
l
TH O O S
Fig. 21-3. Typical Mlup $6* tuigonamttAic leveling.
V .
jElev of A
_ Datu.n^_
Mean Sea Level
.231,
suring vertical angles. Also, the correctipn for the com
bined effects of curvature and refraction is added wha|n the
vertical angle is an upward, sight; it is subtracted when a
downward sight is observed. For the illustrated setup in
Figure 21-^3, and assuming that long sights are involved, the
difference in elevation between points A and B would then
be written as ."■»
, DEab = d Tan oC + h. I - RR + 0 . 0 6 7 5 < j o ^ o )2 V '' EqT6)
(1.283 + I .285)
2
2 84 m (Mean rod reading on point X)
DE, = ( a m - bm ) * ; ( ! . 2 8 4 - 2 . 6 2 0 )
= -1.336m (Difference In elevation between X and Y with ins
trument set up near X)
At 2nd Setup:
, (2.143 + 2.140 + 2.146 + 2.144)
am = 4 7“
= 2.143 m (Mean rod reading on point X)
., (3,478 + 3.476)
DE, = (aL
m - bL
m (2.143 - *3.477) '
= -1.334 m (Differe nce In elevation between X and Y with ins
trument set up near Y)
b) Calculating True Difference in Elevation and Elevation of Y.
’(DEX
TDE l = [-1.336 + (-!.334)]/2
- - l.335*m (True d i f f e r e n c e In elevation between points X a Y)
Elevof Y = Elev of X i T DE
= 2 9 0 . 0 8 2 + (-1.335)
« 2 8 8.747m
Note: A' negative value for TDE tells us that point Y is lower than point
X hence the TDE is subtracted from the elevation of point X to deter
mine the elevation of point Y.
,233
; Inetrument Set-Up Near A Instrument Set - u p Near B
9TA ' BS FS STA BS FS
.1o 1 .2 8 3 1 .4 7 8
.1 .2 8 4 1.4 80
d V
! .286 1.4 76
I . 283 1.4 78
0 .6 7 5 2.143-
•» 0 .6 7 4 2 .1 4 0
0 .6 7 7 2.1 45
b
. 0 .674 ' 2.1 42
0 .6 7 7 2.14 3
0 .6 7 8 2.1 46
SUM • SUM '
M EA N ; •. M EA N
----------- r
Tig. 21-5. Rec-tptoca/ le.vtling be&ueen A and 8.
fillof
\
d e, = = (1 .284 - 0.676) , 7
<< v-
= + 0.608 m (D iffe re n ce In elevation between A and. B with In stru -
ment set up n ear A)
Tabulated Solution.
Tan <}> s
d •
V = d Tan <j) = 585 Tan ( I2°25‘)
s 128.80 m (V e rt ic a l d istan ce fro m the h o r iz o n t a l ifne ot sight
to top of w a f e r ta n k )
L - 0.0675(t1000
^ ) 2 = 0.0675(il^r)2
v ---- MOOO
= 0.02m (Combined e f f e c t s of c u r v a t u r e and refractio n)
DEpb= Ht + V - h. i. - h(
236** L
Vt
tv/f
HnnS
OPa
- 32.0 + 128.80 - 1.45 - 0.02
- 159.33m . (Dlffsrancs In cltvatlon batwaah points P and B md-
king du« allowance for curvature and refraction)
, 238,
f( liNO
M t : HO os
LEVELING
METHODS
22-1. BAROMETRIC LEVELING
22-2. BAROMETERS
1. MeAcuKiat BaAometeA
2. An.eXo.id BaA.6me.teA
22-3. SURVEYING ALTIMETERS
22-4. ALTIMETER SURVEYS
1. Single-B aA e Method
2. Tufo-Biue Method
2 2 -5 . INVERSE LEVELING
22-6. ILLUSTRATIVE PROBLEMS
1. Attlm etex SvxveyA
2. AttixneteK SuAveyA
3. InveAAe LeveZtng
Lesson ZZ
i f.>'/1t**a
'MOOS ,239.
22-1. BAROMETRIC LEVELING.
, 240, t. C V C L I M l
: j £ i'rtO O S
decide in which position it should bs read throughout: the
execution of a particular field survey since the reading is
uonally not the same in the two positions* Also, when a
reading is taken, the instrument should have about the same
temperature of the surrounding air.
Barometric readings are likewise affected by pressure
changes that are associated with local atmospheric distur
bances. They are adversely affected during storms, ty
phoons, and when there are strong gusty winds. It should be
understood that the atmosphere is constantly changing and
the use of barometers will not provide’ reliable results
when atmospheric conditions are particularly unstable.
22-2. BAROMETERS.
The barometer is an instrument for measuring variations in
atmospheric pressure. It can also be used to determine the
relative elevations of points on the earth's surface since
atmospheric pressure varies with the altitude above or
below sea. level. The first barometer was devised by the
Italian mathematician Evangelista Torricelli in 1643. It
used mercury and a glass tube to measure atmospheric pres
sure. Barometers are of two types, mercurial and aneroid.
Vacuum
height of
ra rc u ry
l.OOm
£ 4 2 , L E V C L INO
H E TH O D S
diameter. There are simple
units designed for amateurs
and highly precise models
for more professional work.
Most aneroid barometers
have two scales. Ohe scale
is used to determine diffe
rences in elevation and
another for reading atmos
pheric pressure. Graduations
on the dials may be in me
ters, (or feet} of elevation
and in millimeters (or in
ches) of mercdry. Smaller
barometers can be read by
estimation to about 5 meters
while larger models can be
read to about 1 meter. Ane
roid barometers may be used
to determine readings above
or below sea level and some can measure up to about 6000
meters above sea level.
It is important to handle carefully an aneroid baro
meter to avoid disturbing its delicate mechanism. The
instrument should be protected from moisture, heat, direct
rays of the sun, and from shocks and jars. Before a reading
is made, it should be allowed to stand for a few minutes in
open air to allow it to adjust itself to the surrounding
pressure. To insure an accurate reading it is customary to
tap the barometer lightly with a pencil or pen before
reading to be sure that no mechanism is stuck.
♦
22-3. SURVEYING ALTIMETERS.
.2 4 3 ,
The newer models do not require tapping with a pencil
to insure an accurate reading nor is there any need to wait
for the instrument to adjust itself to the surrounding air
pressure. Altimeters are usually "compensated/V which means
that any change in temperature within the instrument does
not affect its performance.
Two-txuz method
Upper B a s e
(2nd A lt im e t e r Rdg)
_ heyeJ.J-jn?__
T h r u Upper Ba s e
_ _ L e v e J _ U n e _____
T h r u Low er B a s e
Lower Base^
(1st Altim eter Rdg)
i
JUn
#-n %
thod 249,
360 = 52, which is represented by another sloping distance
SL. Since similar triangles are formed, the difference in
elevation between the low base and the field station (line
S'L') can be determined by proportion as follows
SV HL1
and S' L 1 (SL)
SL HL
;a. RQG_=_4J50^
Low Base(LJE
RDG =.2708*
247,
By S im ila r it y o f T r ia n g le ? :
DEXL DE
JxL
D E h, :•
d e ;
DIFFfl DIFFhi ^ r ,D,FF-'»
396 (1442)
DE ft 3246
176 m {Difference In elevation between the field station
and the low base)
c) Solution Check:
DEhf DEhi DEhi
DIFFhf DIFFhl DEhf DIFF,hi (D IFFhf)
396
DEhf 3246 (1804)
220 m (Difference in elevation between the high base and
the field station)
248.
For Readings by A ltim ete r A : No adjustm ents
For Readings by A ltim ete r B :
e) Solution Check.
(CL.EVhb ELEV,b)
fa.EV9,0 = ELEVhb (RDGhb - RDGsfa)
RDGhb RDGlb
Lt
vCVi
tM
iOONiU •19
( 5 2 5 - 102)
ELEVj = 525 - (814 - 4 8 9 ) * 52*5 - 3 2 7
(8 1 4 - 393)
198m (Checks with previously computed elevation of field
station J) 1
Elevb = Hl2 - FS = 5 2 8 .9 8 - 2 .6 8 •
= 5 2 6 .3 0 m (E le v a t io n of B)
b) Arithmetic Check.
SBS = 2 . 0 5 + (-3.92) = - 1.87
2FS = -2.60 + 2.68 = +0. 08
528.25 m (Elevation of A)
- I .87 m (5BS)
526.38 m (Sum)
-0.08 m (2FS)
526.30 m (Checks with computed elevation of B)
,2 5 0 ,
LEVELING
METHODS
t3-U CROSS-SECTION LEVELING
1. Roadway Cxo**-Seetlon*
2 . BOAXOW-Plt Oi0&6-S<LC.ti0YU
23-2„. ADJUSTMENT OF LEVEL CIRCUITS
?. Level* <?ve* One Route
2. Level* Ovex Videxent Ronton
2 3 - 3 . ILLUSTRATIVE PROBLEMS
1. Levels Ovix One. Route
2. Levels Ovex Videxent Route*
3. Level* Ovex Vd&exent Route*
4. Level* Ovex Vldexent Route*
lesson 23
2 3 -1 . CROSS-SECTION LEVELING.
,252, i r v n /*#
Hf THOOi
F<g- 23-}. Leveling mo&4 {oa a Aoaducuf CAOAi-*e.ction.
mm — ^55,
\
256.
of levels over different routes from a common point pt
origin, it will always be certain that different results
will be obtained. In this manner, of leveling there will fc>e
as many observed elevations as there are lines terminating
at the bench mark to be established.
In ordinary leveling work, weights are assigned to the
different routes and the adjustment is made by proportion
ing the discrepancy according to the lengths of the routes.
Thus, the weight given to .each route equals the reciprocal
of its length, and when the different lines of the levels
to the same poirfl? are compared, the shorter the route, the
greater the weight of its results. The most probable value
of the bench mark's elevation will then be the weighted
mean of.the observed values. Should there be other points
established along a particular level route,, the elevations
of these points :n turn would require adjustment after the
most, probable value of the elevation of the terminal bench
mark has been determined.
23-3. ILLUSTRATIVE PROBLEMS.
/. LEVELS OVER ONE ROUTE. The known elevation of BM is 728.730
meters. A 3 0 .5 0 0 km long level c irc u it is ru n , closing back on BM, with
an elevatio n, as determ ined from the notes, of 7 2 8 .4 8 6 m . The observed
elevations of other bench m arks which were estab lish ed d u rin g the run^
and their d ista n ce s from the in itial bench m ark are given as fo llo w s:
' F- _ n 9AA
C o rr » - (*"*0 —) * - ( g 5- | g § ) d * + 0 .0 0 8 d
OBSERVED
ROUTE LENGTH
E LE V A TIO N
1 2 . 7 5 km 8 8 .7 4 2 m
2 3. 50 8 8 .8 2 5
3 6.42 8 8 .8 6 3
4 10.38 8 8 .7 0 8
258.
Fig. 13-5. The. (out ttvtZ toatt* tmktn.
/''Elev, 88.742 m
Elev2 88.825 m
Elev3 88. 863 m
^Elev~ 88.708 m
W = W, ♦ W . t W , + W4 = l/ L
+ + i/ l 3 t l/ L y
+ -rr-i
— -■ + I . I
2.75 3.50 ' 6.42 ' 10.38
* 0.3636 + 0 .2 8 57 + 0.1558 + 0 .0 96 3
= 0. 90! 4
SWtd Elev = Elev,(W,) + Elev2(W2) + Elev3(W3) +Elev4 (W4 )
= 88.742(0.3636) + 88.825(0.2857) + 88.863(0.1558) +
88.708(0.0963)
= 32.2666 + 25.3773 + 13.8449 + 8.5426 = 80.0314
SWtd Elev 80.0314
Elev BM2 = 88.786m
2 W 0.9014
3
. LEVELS OVER DIFFERENT ROUTES. By route X (3.0 kms long)
point B is 111.200 m higher than point A. By route Y (4.0 Kms long) Bis
M0.970 m above A, and by route. Z (6.0_kms long) B, is 111.260 m above
A. Determine the following :
a) The weighted mean difference
b) The most probable value of the difference in elevation between A and B.
c) The elevation of point B if the elevation of A is 2,3^ 5.680 m above
mean sea.level.
Fig. 23-6. Level* o v tt t i i t t t d i((tx e jtt tou ted .
I 1 1 .2 0 0 m
Q
LxJ
11
X
dey = 11 0 . 9 7 0 rn
,DEZ = H 1 . 2 6 0 m
.259
« 1/3.0 + 1/4.0 ♦ 1/6.0 * 0 .7 5
W ,E , % 4 W3 ES W E
W4 c 4
= I or 2 0 5
144 144
b) Determining Weighted Observations.
Wtd Obs a Qbs E /e v x Weight
Wtd Obs j ~ 2 19 . 8 3 2 X 1 3
2 l 9.832 m
Wtd Obs 2 » 219.930 X 1/4 = 5*.983
Wtd ° b s 3 = 219.701 X 1/9 , S 24.411
Wtd Obs 4 = 220.021 X 1/ 16 = 13.751
Wtd Obs a 312.977 m
SW td Obs 3 1 2.977 m
Weighted Mean
SW 20 5 /1 4 4
2 (9 . 8 4 T m (T h e most probable value of the elevation of
point X Is the weighted mean)
260.
_
MEASUREMENT
OF ANGLES AND
DIRECTIONS
P a rt V: L esson Nos. 24 Thru 28
MEASUREMENT
OF ANGLES AND
DIRECTIONS
r r ^ w m i iiniTniiiifrmiOTMnnf^ i nin iuii i i m iHflmimiiiimi
24-1. MERIDIANS
1. TAue Menidian 3. G*id Menidian
2. Magnetic Menidian 4. Attuned Menidian
24-2. EXPEDIENT METHODS OF ESTABLISHING MERIDIANS
1. Ettablithing Magnetic Menidian By Compaq
2. De.teAmin.ing TAue Nonth By Aid oi Sun anc a Plumb Line.
3. DeteAmining TAue NoAth By the Rising and Setting o{ the
Sun
4. DeteAmining TAue NoAth By Polanit
5 . DeteAmining TAue South By the Southern Cnctt
!
6. DeteAmining DiAection TAue NoAth [ oa South) By a
lilnitt likUch
24-3. UNITS OF ANGULAR MEASUREMENT
1. The Degnee 3. The Mil
2. The Gnad 4. The Radian
24-4. DESIGNATION OF NORTH POINTS
1. TAue Nonth 3. Gnid Nonth
2. Magnetic Nonth 4. Attuned Month
24-5. ILLUSTRATIVE- PROBLEMS
1. Convention o& An Angle to Decimal Degneet
2. Convention o& An Angle to Degneet, Hinutet, and Secondt
3. Convention Fnom Degneet to Gnadt, Milt, and Radiant
4. Convention Fnom Gnadt to Degneet, Milt, and Radiant
5. Convention Fnom Milt to Gnadt, Degneet, and Radiant
6. Convention Fnom Radiant to Degneet, Gnadt, and Milt .
Lesson 24
Of AN
f i l l ANO m N U T tO N t J26.3..
24-1- MERIDIANS.
D i r e c t i o n of
T r u e North
North Pol*
/'h|»\'N
Setting Rising
Sun ' Sun
3. Determining T t u e North By the Rising and Setting o t
the Sun. From a c o n v e n ie n t p o s i t i o n or s t a t i o n , observe the
r i s i n g and s e t t i n g o f th e sun on the same day or a t s e t t i n g
on one day and r i s i n g the next ( F i g . 24-2). A lo n g each
d i r e c t i o n e s t a b l i s h a peg or m arker. Measure the h o r i z o n
ta l a n g le between the two markers th e n , e s t a b l i s h another,
marker to d e f in e h a l f of the measured a n g l e . The lint?
jo in in g the o b s e r v a t io n s t a t i o n and the l a s t marker e s ta b
l i s h e d s ho uld p o i n t towards the d i r e c t i o n of t r u e n o r t h .
Fig. 24-3. VtteAmining ninth by VolaJliA.
V
North Pole
OfiC
VVmmmmmmm4
if
ICASUtltMCofm
ai ts
fTrcr
orAH*-
ioh
4. Determining True North By Polaris. The big dipper is
a useful reference constellation of the northern hemis-
phere. As a star group, it is the most familiar and easiest
to recognize. It has been so named because.of the distinct
ive dipper-like pattern formed by seven bright stars (Fig.
24-3). The two stars, Merak and Dubhe, forming the side of
the dipper Which is farthest from the handle are known as
the pointer stars. They point towards Polaris which is also
known as the north star, pole star, or cynosure. Polaris
lies almost directly above the earth^s north pole. When a
person faces Polaris, he is actually facing towards the
direction of true north. Polaris is visible the whole year
but only in the northern hemisphere. /
tAside as a reference for determining directions, this
star can tell a person in the northern hemisphere what'
latitude he 'is in. The observed vertical angle from the
horizon to Polaris is approximately the same degree of
latitude that the observer is from the equator. At the
equator the vertical angle to Polaris is zero since the
star is on the horizon. At the north pole, the angle is
about 90 degrees since Polaris is found directly overhead.,
70*
66*30‘N
O C A M C A S U R C M S N r o r A ft -
uCW M M H M B f fU T S AMO O f f * C T tO ftS
afternoon. Also, the method explained are applicable basi
cally in the temperate zones. These ztmes extend from
latitude 23.5 degrees to 66..5' degrees in both hemispheres
(Figure 24-7).
F ig . 2 4 - 8 . U n its o f a n g u ta A wejjMUiesnejit.
‘ £70. tU 4
nr a ■itrte Mr n t or
i iunt r rtn*\
an
,
symbolized by a star, an asterisk, or the letters TN (Qlg*
24-9a) .
2. Magnetic North - a north point that is established
by means of a magnetized compass needle, when there are no
local attractions affecting it. At any point on the earth’s
surface its direction is indicated by the direction of the
magnetic lines of force passing through the point at a
particular time. Magnetic north may be located either east
or west of true north. The point is usually symbolized by a
half arrowhead or the letters MN (Fig. 24-9b).
3. Grid North - a north point which is established by
lines on a map which are parallel to a selected central
meridian.. ’It may coincide with lines directed toward true
north. Grid north may be symbolized by a full arrowhead or
the letters GN or Y (Fig. 24-9c).
4* Assumed North - is used to portray the location of
any arbitrarily chosen north point. It may be symbolized by
a small blackened circle or the letters AN (Fig. 24~9d).
Fig. 24-9. SyvtboLt tued ioA noKth pointi.
TN MN AN
* $
(c) „)
Grid North Assumed North
Angie = 2 3 8 ° 2 5 ' 5 0 ’' (Where: Deg = 2 3 8 ° , Min = 2 5 ' , and Sec =50")
Iff/ UA
K t H t N T or AN
NDDiNMCriONt 27)
M 45 (Integra! portion of t h i angle In m inutes)
a) = 350s
400’
= 315 (equivalent value of Angle A In degrees)
, TT w 360° , , 400°,
b) "O -2 - (-^—J (~2Tr'"' 3 6 ~0 °r = 50 (equivalent value of angle-0- In grads)
27; M f A S V R e U f N T O f AN-
ein an d omrertom
M EASU REM EN T
OF A N C L E S A N D
D IR E C T IO N S
Lesson
25-1. DIRECTION OF LIMB8.
The direction of a line ;s defined as the horizontal angle
the lipe makes with an established line of reference. There
are ' various Jcinds of angles which can be used to describe
the direction of lines. In surveying practice, directions
may be defined by means of: interior angles, deflection
angles, angles to the right, bearings, and azimuths.
Angles are measured or laid off directly in the field
by using devices such as a compass, transit, theodolite,
sextant> 6% by plane table and alidade. The steel tape may
also be used to lay off or measure angles. These angular
quantities are said to be observed when obtained directly
in the field with a measuring instrument and calculated
when obtained indirectly by computations. Angles are
computed by means of their relationship to known quantities
in a triangle or othe(r geometric figures. The conversion
from one method of expressing angles and directions tc
another is a simple matter. There are no hard and „fast
rules for making such conversions. The best approach is
always to draw a good sketch showing the related quantities
and then visualizing the required computations.
0 7 / M E A S U R E M E N T O f AN-
hi I * 1 W — III O L E S AND D IR E C T IO N S
Exterior angles are located Outside a closed polygon
and are referred to as explements u t interior angles. ^ A n
explement is the difference between 360 degrees and any one
angle. These angles are often measured in surveying- work
and used as a check, since the sum of the interior and
exterior angles at any station or point must equal to 360
degrees. In Figure 25-2, the exterior angles are oCQ ,cCt,cCc,
cC^t and oC9.
F ig . 25t3. Ve&lec.tion angles.
H
0*
----R«f«r«nc« Meridian
CN-S L in e )
N O R T H -W E S T N O RTH - E A S T
(NW) (N E )
QUADRANT QUADRANT
W 9 0 * ----------------— - — 90* E
C Rtferenca Parallel
iE~ W Line)
SOUTH-WEST SOUTH - EAST
CSW) .■ (SE)
QUADRANT QUADRANT
0*
s
Either the letters N or S precedes the bearing angle
=md the letters E. or V follows the indicated value of the
angle. It is never done the other way around. Therefore^ to
locate a line it is always necessary to know the directio
nal quadrant in which it lies as well as the angle it makes
with the reference meridian. The line could lie in any of
the four quadrants if only the bearing angle of the line is
known.
Bearings may also be designated in a different manner
*hen the direction of a line lies in the same direction as
:he reference meridian*or reference parallel. If the line
lies parallel to the meridian and south, it is written aa
due south; if perpendicular to the meridian and east, it is
iCT*— ....rararaBaag-
written as due east. In Pigure 25-6, the bearings of si
lines oriqinatinq from point p are given.
f N
BEARING OF LINES I
Lin* pa « N 4 4 # 3 0 ‘E
L in t pb « S 90* I 3 ' E
L in t pc * Out South
L int pd « S 60* i e 'W
L in t pt e Out W t tt
Lint pf > N 20* 4 0 'W
2 S - * . FQB1KIRD ABDJMICX B K M IK G 8.
/
fig. tS-7. fokyocud and back beating*.
N
B
L IN E FORW ARD B E A R IN G B A C K B E A R IN G
AB N44’ 3 8 , E S 4 4 °3 8 ' W
BC S 4 2 °3 0 'E N42°30'W
CD N5 6 ° 5 0 1 E S56°50' W
DE S 18 ° 12 ' E N 18 ° I 2 'W
25-7. AZIMUTHS.
0 7 0 M EA SU REM EN T O f AN-
4 U M M M I ( J L t S AND D IR E C T IO N S
In practice, azimuths are generally measured yfrom the
north branch of the reference meridian for ordinary . plane
surveys. For large scale geodetic surveys and in astronomi
cal observations azimuths are measured frr i the south
branch of the meridian. Figure 25-"8 shows different lines
whose azimuths are measured from the north branch of the
reference meridian. Azimuths measured from the south branch
of the meridian are ahown in Figure 25-9. *
Fig. 25-t. Azimth* no*th. Fig. 25-9. Azimuth* <*cm 4 o u ik .
! . N
L Ine pa = 56° I 81
Line pa 3 45° I O’ Line pd a i 55°44'
Line pb * I45°05' Line pc = 225°29'
Line pc = 230° 5 2 1 Line pd = 2 70°00‘
Line ~pd * 3 4 2 ° 48' Line pe * 3 2 5 ° OS'
Azimuths may be called true, magnetic, assumed, or
grid, depending on the reference meridian from which they
have been measured. They are referred to as true azimuths
When measured from the true or astronomic meridian, magne
tic azimuths when measured from the magnetic meridian, grid
azimuths when referred to the central meridian in a grid
system, and assumed azimuths when referred to an arbitrari
ly selected line. To avoid confusion in the interpretation
and use of observed directions, it is important to always
clearly specify in the field notes the type of reference
meridian used. ' .
25-8. FORWARD AND BACK AZIMUTHS.
Solution.
a) Determining Angle AOB.
Let •0-j = Bearing angle of OA or 39°25‘
0 2 = Bearing angle of OB or 75°50‘
cC ~ Angle AOB
cC = 0 2 - 0 | = 7 5 ° 5 0 '- 39°25‘
.= 36°25‘
b) Determining Angle COD.
Let -9-| = Bearing angle ofOCor 34°I4'
■02 = Bearing angle.of OD or 53°22t
oC = Angle COD
cC - 0 , + 0 2 = 34‘ 4* + 53° 221
= 87°36' Fig. 25-13.
<
c) Determining Angle EOF.
w
0
Let 0j = Bearing angle of OE or I5°04!
0 2 = Bearing angle of OF or 36°OO1 \ r
oC = Angie EOF e\
/. cC = 0, + -0 2 = I5 ° 0 4 '+ 3 6 ° 0 0 ' F cC~
• = 5 l° 0 4 '
d) Determining Angle GOH.
Let 0, = Bearing angle of OG or 70° I 51
O?. = Bearing angle of OH or 52°05r
oC = Angle GOH
oC = 180° - (0, + 0 2)
180° - ( 70° 15' + 52°05')
57°40'
N
HI £01,
2
] DETERMINING ANGLESFROM Compute the an g le s APB,
C P D j and E P F from the following set of lines,W ho se a zim u th s are given :
a) AZIM fl of L in e PA = f 3 9 * 4 8 ' j A Z IM n of L in e PB = I I 5 ° 2 9 ‘
b) AZIMS of L in e PC * 3 2 0 ° 2 2 ' 5 AZIMt o f^ L in e PD/ *■ 6 2 ° 1 6 1
C) AZIMn of L in e PE * 2 1 9 * 0 2 * i AZIM, of L in e PF =* ‘154° 16!
Solution. *
irtrism<X'X
b) Determining Equivalent Azimuths of Line BC.
Let cC = Bearing angle of BC or 90*00*
A| = Azimuth from south .of BC .
A z = Azimuth from north of BC
= I 80°00-'*+ 'cC = I80°00' + 90#Q&
= 270° 00* •
A z = dC - 90 00*
c) Determining Equivalent Azimuths of Line CD.
Let cC = Bearing, angle of CD or 50° IO1
A, = Azimuth from southr of CD
A z = Azimuth from north of CD.
A | = 360°00' - & = 360p0 0 ‘ - 50°l 0*
= 309°50'
A z = 180° - .• fV0* 50° IO4
= I 29° 5C
d) Determining Equivalent Azimuths of Line
Let cC = Bearing cftvjeji.' of DE or 4 5 ° 5 0 l
Aj = Azimuth from south of DE
A2 = Azimuth from north of DE
A, = oC = 45° 5 0 1
A2 = I 80°00' + oC = 180°00' + 45°50*
= 225°50'
e) Determining Equivalent -Azimuths of Line EF.
Let oC = Bearing angle of EF or 66° 3 0 1
Aj = Azimuth from south of EF
A2 = Azimuth from north of EF
A, * I 80°004 - cC= I 80°00f - 66°30*
. = 1 1 3°30'
A2 = 360°001 - c C = 360°00‘ - 66° 30*
= 293°30* V
4 . C O N V E R T IN G A Z IM U T H S TO. B E A R IN G S . Convert the follow.lftO azi
muths to equivalent bearings:
a) AZ IM, of Line AB = 2 3 0 ° 3 0 ' d)AZIMn of Line DE = 2 2 8 ° I 5*
• . . . __ . . _a ._ I . . . __ . — r-O *
b) AZI Mn Of y n e BC = I I 2"46 e) AZ I Me of Line EF = I 35 00
C) AZIMS of Line CD = 2 7 0°00
Solution.
a) Let A = Azimuth from south of AB or 230°30'
cC «* Bearing of AB
t m n s a s s .— -■m
cC - A - ,180°
= 2 3 0°30‘ - 180°
* 50°30' (or bearing of AB is
N 5 0 ° 3 0 'E )
Fig. 2$-24.
cC = 180° - A = 180° - I 2 2 * 4 6 ‘
= 57°I4 (or Rearing of BC is
S 5 7° 14 1E )
Fig. 25-25.
Fig. 25-27.
aC =» Bearing of EF
cC » i 80°00‘ - A 3 I 80o00* - I35°00‘
= 45°00' (or bearing of EF is
N 4 5°00 W)
O fl/ L u tA iU H tM rr * T o r a n
n i r » a n o i n n n t n*N \
OF ANGLES AND
DIRECTIONS
26-1. THE COMPASS
7. Compaq Box
2. Linz oh Sight
* 3. Magnetic Needle
26-2. TYPES OP COMPASSES
1. Biunton Compa&i
2 . Len&atic Compaq
3. SuAveyoA* A Compaq
4. Plain Pocket Compaq
5. PxiAmatic. Compass
6. FoACAteA’4 CompaM
7. Txaruit Compou4
26-3. MAGNETIC DECLINATION
26-4. ILLUSTskATIVE PROBLEMS
7. Magnetic Declination
2. Magnetic Declinhtion
3. Magnetic Declinhtion
Lesson %
,VfA3UNCMINT Or AN-
0 L ta AND n t N f C T tO N X ,285)
_________
26-1. THE COMPASS.
Small S ig h t-
Level Vial
Circular Level-
Needle Large Scale
Mirror
N ZASU RC H C H T OF AN -
9 t £ S AHO O IF C C .T IO W SSL
Ug. a-t. A circular level which is set inside the, compass
Jacob1* vteti*
box may be used to check if the instrument is
held horizontally during sighting. To read ver
tical angles and grade percentages, .th.e Brunton
compass is held vertically. It has a clinometer
arc inside the compass ring which is graduated
to degrees. The vernier which is attached to the v
clinometer arm allows one to read to the nearest
. 5 minutes.. A second arc may be used to read
grade percentages for both elevation and dep
ress ion. - *
2. Jjensatic Compass. The lensatic compass
(Fig. 26-3) consists of an aluminum case con
taining a magnetic dial balanced on a pivot, a
hinged cover with a sighting wire, a hinged
eyepiece containing a magnifying lens for read
ing the dial graduations, and a sighting slot
for. viewing the distant object. Its name is
derived from the magnifying lens which is mount-
' ed in the eyepiece.
The lensatic compass was Resigned for mili
tary.use such as in reconnoitering, determining
directions, orienting maps, artillery fire di
rection control, and other uses where magnetic
azimuths are required. The case is about 5 cm long and less
than 2*.5 cm thick when closed. It has a straightedge about
12 cm long which, is permanently attached and parallel to
the line of sight. The straightedge is graduated in 100-
meter units at a scale of 1:25,000. t
,288, m ea su rem en t
G LES
o r AN
AND D IR E C T IO N S
are shown on the dial in 5-degree and 20-mil graduations.
During daylight hours, magnetic azimuths can be read accu
rately to within 2 degrees. The graduations are read di
rectly by glancing down at the dial while sighting on a
distant object. When the compass is closed,'the magnet and
dial assembly is automatically lifted off the pivot, thus
protecting the moving parts of the compass from wear when
not in use.
3. Surveyor’s Compass. Shown in Figure 26-4 is a surve
yor's compass which was popularly used earlier for running
limited plane surveys of reasonable accuracy. It is now
commonly used for forest surveys, in retracing old land
surveys, and in geological explorations. Its main parts
include a compass box containing a graduated circle, two
sight vanes, a magnetic needle, and two clamping screws. A
glass cover prr.ects the needle and the graduated circle.
At the duter rim of the compass box is a circular scale
which is graduated in degrees and half-degrees. Usually,
graduations are numbered in multiples of 10 degrees, clock
wise and counterclockwise from 0 deg. at the north and
south marks on the dial, to 90 deg. at the east and west
marks. Angles can be read on the circular scale by estima
tion to the nearest 10 or 15 minutes. It will be noted that
the letters E and W on the compass box are reversed from
their normal positions to give direct readings of magnetic
bearings. As the sight vanes and compass box are turned and
oriented, the needle establishes the bearing of the obser
ved line.
Metallic sight vanes with vertical slits are fastened
on opposite sides of the compass box to allow accurate
pointings. The instrument is So designed that the line of
sight passes through the two sight vanes positioned along
the north and south marks of the compass circle. The com
pass box is rigidly connected to a vertical spindle which
revolves freely in a conical socket. Directly below the
spindle is a leveling head consisting of a ball-and-socket
joint which is used to level the compass.
The instrument is provided with two screws. One screw
is used for lifting and clamping the needle, and another is
for clamping the vertical spindle. When used in the field
for determining directions, the leveling head may be mount
ed on a light tripod or on a Jacob staff.
4. Plain Pocket Compass. This type of compass is si
milar to the surveyor's compass, except that it has no
sight vanes. It is a small hand instrument used for obtain
ing roughly the bearing of a line. The line of sight is
established by a combination of a peepsight and a slotted
vane. Pocket compasses are so constructed such that when
the cover is folded or closed, the needle is lifted off its
pivot and held against the glass cover. Various pocket com
passes are used in reconnaissance and exploratory surveys
such as those shown in Figures 26-5 and 26-6.
5. Prismatic Compass. In a prismatic compass the gra-
Mt A x u m m r N i or
ah pc. »
01»t t>si#u««
Fig. 26-5. P lain pocket compact
lift AM OIkisnout
L
duations are found on a rotating card instead of being on
the compass box. The card moves with the needle since both
are fastened together. Two short sighting devices are pro
vided and magnetic bearings are read by means of a prism at
the same instant that the compass is sighted along the
line. Some prismatic compasses are filled with liquid and
hence are referred to as liquid compasses. The contained
liquid is designed to minimize frictional effects by taking
most of the weight off the pivot. It also damps movement
and allows the rotating scale to come to rest very quickly
after it is set on a mark. Liquid prismatic compasses have
been widely used by sailors for navigation at sea.
6. Forester's Compass. The forester's compass, as shown
in Figure 26-7, is another type of a pocket compass which
is usually made of aluminum or some type of metal which
does not affect the free movement and positioning of the
magnetic needle. It may be,hand-held or supported on a
staff or tripod when used in the field. This type of com
pass is ecuipped with a front and rear sight and a declina
tion adjustment. Some models have a beveled ring which is
used to turn right angles, or to measure vertical angles by
positioning the edge of the base on a level surface. Such a
type of compass is best suited for forestry surveys as well
as for geological and other similar exploratory surveys.
7. Transit Compass. The engineer's transit has a com
pass box which is similar in construction to the surveyor's
compass. This box is mounted on the upper plate of the
transit and often used to check horizontal angles and di
rections measured or laid off during transit surveys.' It is
also used for orienting the transit with the magnetic meri
dian. Its line of sight is defined by the telescope of the
transit. V7hen the telescope is in the direct position, the
letter N on the compass circle is found directly below the
objective end of the telescope arid the letter S is under
the eyepiece.
The magnetic poles are not points but oval areas located
about 2,000 km away from the actual location of the geogra
phic poles of the earth. These areas are not fixed and may
move to a different location everyday, perhaps as far as 50
km. For example, in 1960 the plotted position of magnetic
north was located at 75 deg. north latitude and 101 deg.
west longitude; in 1980, it was located at 76.8 deg. north
latitude and 101.5 deg. west longitude. Since the compass
needle normally points toward the direction of the magnetic
poles, it will be expected that the magnetic meridian and
the true meridian will not be parallel to each other. There
are only a few locations on the surface of the earth where
the two meridians coincide.
The horizontal angle and direction by which the needle
of a compass deflects from the true meridian at any parti-
H t A v u rtr o r ah
# / / « an d o w t t 'T im *
291,
F ig . 16-9 . HoAth end o( Fig- tb-10. HoAth end oi
needle <4 exut o{' h u e noAth. needle <4 ux.&t orf h u e noAlh.
TN MN MN TN
Given':
d = 2 ° 3 0 ‘E (magnetic declination)
<C - 2 5 ° 4 0 ’ (bearing angle of line AB)
f = d +oC r 2 ° 3 0 ‘ + 25° 4 0 1
= 28° IO’ (Therefore , true bearing of line AB i» N 28 10 E)
= 1 8 0 ° + IT * ! 8 0 ° + 2 8 ° i O 1
= 208°10' (tru e azimuth from so u th of line AB)
Given:
d * 2#30'E (magnetic declination)
oC » 5 0 ° I2 ‘ (bearing angle of line AC)
t it* »no t it t e r am *
Given:
d « 2*30' £ (magnetic declination)
oC = 62* I 8* (bearing angle of line AO)
¥ = 1 8 0 ° + /; “ i8 0 ° + 6 4 ° 4 8 '
= 244°48 (true azimuth from north
of line AD)
Solution.
Determining the Interior Angles.
Sum = ( n - 2)1 8 0 ° = ( 5 - 2 ) 180*'
= 540° (sum of interior angles
1 within the field)
Sum /n = 5 4 0 / 5
108° (since the field is
a regular polygon, the value of
the interior angles &Q , «
, and ■
©■ are all equal)
Given:
aC - 3 0 ° 3 0 1 (bearing angle of*slde AB)
A = 1 8 0 ° + oC = 1 8 0 ° + 3 0 ° 3 0 1
= 2 I0 ° 30* (true azimuth from
south of side AB)
06 ^. m ea s u r e m e n t or ah -
M L E S ANO 4U t t e c n o H S
c) Determining True B e a rin g and T ru e A zim u th of Sid®
fig. u-u.
TN
Given:
cC ~ 3 0 ° 3 0 ' (b earing angle of slde BA )
■9-. = 1 0 8 ° (in te rio r an g le at c o rn e r B )
D
A = 360°- p = 3 6 0 ° - 7 7 ° 3 0 '
3 2 8 2 °3 0 ' ( t r u e a z im u t h f ro m s o u th of sid e BC)
t
iltr ,295,
fig. T61t.
Given:
d| s 8 ° J5* e a s t , the m agnetic declination 5 0 years ago
d2 = I 2 ° i 0 , wesf, the m agnetic declination In 1986
<C - S S O L I S 'E , the observed magnetic bearing of line XY f i f t y years ago.
S o lu tio n .
a) Determining True Bearing.
A = aC - d,( = 50° 18 1 - 8° 15*
= 4 2 C0 3 ' (Therefore , the tru e bearing of tine XY is S 4 2 ° 0 3 ‘ E. This
• quantity will remain fixed and will not change with r e s
pec t to time)
b} Determining True Azimuth.
e = 3 6 0 O° - |A = 360° - 4 2 ° 0 3 '
= 3 1 7 57 (True azimuth from south of line XY. This is also o fixed
q u o n tity )
€L£S AM O B / K K C T tO flG
M EASU REM EN T
OF A N G L E S AND
DIRECTIONS
n ~ 1. VARIATIONS IN MAGNETIC DECLINATION
1.. Daily Variation
* 2. Annual VaAiation
3. SeculaJt Variation
4. lAAQ.gulaA Variation
27-2. ISdGCNIC CHART
27-3. USE Of THE COMPASS
27-4. LOCAL ATTRACTION
27-5. MAGNETIC DIP
27-6. COMPASS SURVEYS
1. TtaveA.se
2. TAaveAsing
3. Ttauetse Station
4. TtaveA.se Lines
27-7. TYPES OF COMPASS SURVEYS
1. Open Compass Ttavesse
2. Closed Compaq Ttavesse
27-8. ADJUSTMENT OF AN OPEN COMPASS TRAVERSE
27-9. ILLUSTRATIVE PROBLEM
1. Adjustment o£ An Open Compass Ttavetse
Lesson
01rs AttnaiArcrton*
_
21-1. VARIATIONS IN MAGNETIC DECLINATION.
VrASUHfMCNT or am -
vV^Ttiwi — iii-mmm otts a n d o m c c n o M t
compass traverse the following example is given.
For a particular open compass traverse the following
are the observations made on each line: AB, Fwd Brg = S40e
E, Back Brg = N41°W; BC, Fwd Brg = N68° E, Back Brg = S68° V;'
CD, Fwd Brg = N35°E, Back Brg = S37°W; and DE, Fwd Brg ■
S43°E, Back Brg = N42° W.
F i g . 27-3. Adjusting an open compaaA VuvjeJi-hl.
OBSERVED BEARINGS
LINE LENGTH
FORWARD BACK
AB 400.63 m N 25*45' E S 25*40' W
BC 450. 22 S 20*30' E N 20*25' W
CD 500. 89 S 35*30’ W N 35*30' E
DE 640.46 S 75*30' E N 75*25' W
EF 545 41 N 58*50' E S 58* 15' W
FG 700. 05 N 22*05' E S 21*55' W
xtsrwswxrxu — ,.,,,.-305,
Sol
uti
on. (Thesol
uti
ontorth
isproble
misbe
std
ete
rmi
nedb
yis
ola
tin
g
andan
aly
zingeachsta
tio
no fth
et ra
ver
se)
.
I. A d ju stm e n t of lin e D E I
<J\ ^dc 8
f t . *
N 3 5 * 3 0 'E
S 7 5 ° 30' E
(o bserved bearing of DC)
% = 69°00' o/ f d
w <— —j ----- E
°^de 3 180° - O d) < .
- 180° - ( 3 5 ° 3 0 + 6 9 0 0 )
s 7 5 ° 3 0 or
3 S 75 30 E (adjusted bearing
of DE) <5
Also} < d 3 N 7 5 ° 3 0 'W ( a d ju s te d bearing 27-5.
of ED which Is opposite the adjus-
ted bearing of D E )
2. A d ju stm e n t of line E F :
^ed + ^ef
75°25' + 58*50
I 3 4 ° 15* (correct value of the Inoluded
angle at s tatio n E, regardless
of local a t t r a c t io n )
305-, M
HfAstAmt
'W* o l a s
mcMrNfnrrtnah
ns
-
G iv e n :
* 134°I5* D
oC9 f * -9;, - cC'0(i • 13 4 ° 15 ' - 7 5 ° 3 0 *
3 58°45' or
* N 58°45' E (adjusted boaring of EF)
3. A d ju s tm e n t of lin e FG!
a) Is o la t in g .s t a t io n F an < | s o lv in g fo r !
Given:
? ffg /
/f —E ° C f9
6 -f 3 I4 3 ° 5 0 '
o C \Q ». /oCfe + -0-f - 1 8 0 °
3 5 8 °4 5 ' + I4 3 ° 5 0 '- 180°
= 2 2 °3 5 l or
° N 2 2 °3 5 'E (ad ju sted bearing of FG)
Also; cClf* S22°35'W (a d ju s te d bearing of
G F which Is opposite th e ad ju ste d
bearing of F G ) Fig. 27-9.
Given:
0Cc(j = S 3 5 * 3 0 'W (observe'*, b earin g of CD)
80 (oCcb + oC^
l i t ). 27-10.
\
3Q7,
- 180*-(20*25* + 35*30')
* 124*05* (correct value of. th e Included
angle o f station C ,regardless
o f local a ttr a c tio n )
b) Solving for the adjusted bearing of lines CB and BC
Given:
cC' = S 3 5 *3 0 * W (correct W r in g of CD,
the best line)
e c = 124*05*
<c'cb = ?80*-(^c + c O
= 180*- (124*05* + 35*30*)
= 20*25* or
* N 2 0 *2 5 * W (adjusted bearing of CB)
Also cCL = S20*25*E (adjusted bearing
of BC which Is opposite the od-
lusted bearing ot.CB)
% \
5. Adjustment of line ABI
a) Isolating station B and solving for O. :
N
Given:
oC^ S 25*40*W (observed bearing of BA)
oCb = S20*30* E (ob served bearing of 8 * 0
►b = cCba + oCbe = 2 5 4 0 + 2 0 3 0
3 4 6 * 10* (correct value o f the Included
angle at sta tio n B , reg a rd le ss
of lo ca l a ttra ctio n )
ADJUSTED BEARINGS
LINE LENGTH
FORWARD BACK
AB 4 0 0 . 6 3 an N 25*45*E S 25*45* W
BC 4 5 0 .2 2 S 2 0*25‘E N 20*25* W
CD 5 0 0 .8 9 S 35*30* W N 35* 30* E
DE 640. 46 S 7 5*30*E N 7^*30* W
EF 5 4 5 .4 1 N58* 45*E S 5 8 *45* W
FG 7 0 0 .0 5 N 22*35* E S 22*35* W
503..
MEASUREMENT
OF ANGLES AND
DIRECTIONS
28-1. ADJUSTMENT Of A CLOSED COMPASS TRAVERSE
28-2. PRECISION OF COMPASS READINGS
28-3. SOURCES OF ERROR IN COMPASS WORK
1. Bent Needle
2. Bent Pivot
3. Sluggish Needle.
4. Plane o£ Sight Not Vertical.
5. Electrically Changed Coapa&& Box
6. Local Attraction
7. Magnetic Variation*
8. Eum in ReadingTke Needle
28-4. MISTAKES IN COMPASS WORK
28-5. ILLUSTRATIVE PROSIEM
1. Adjustment 0£ A Closed C o m p a q Traverse '
Lesson 28
«rarsLT,ac-
2 8 -1 . ADJUSTMENT QP A CLOSED COMPASS TRA V ERSE.
,3 1 0 .
both, ends of the best line are assumed to. Be free frpra
local attraction, any other observation made from these
ends are also assumed to be correct. Also, the adjustment
of bearings of successive lines is made around the traverse
starting from either end of the best line. Adjusted forward
and back bearings are computed with reference to adjusted
interior angles. •
To check the adjustments made, the forward bearing ot
the best line is also computed from the corrected bearings
and adjusted interior angles. It will be safe to assume
that a traverse has been adjusted accordingly if the same
forward bearing, is determined.
Fig. 26-1. Sample. {ieXA note* ioK a closed compact, tuaveme..
A N * u m t t tH*N% .311,
is not; >sr\ /Instrument of precision.. Whence ing a magnetic
co'topass,’ ptretii^e work should not be attemptsd nor expected.
Uhe compass' is not recpnunended fpr laying out directions
..(With the type of precision required in most" modern engi-
^heering constructions. A magnetic compass is designed to be
used bnl> for ordinary surveys requiting tow accuracy and
precision.. In an earlier lesson, it was explained that the
compass is well suited for preliminary and reconnaissance
surveys suc,h as those required for highways, transmission
lines, railways; canals, and other similar purposes. It is
• led; ideal for exploratory surveys required i"n geologic and
forestry work. ‘ ♦ .
The circle on larger compasses are usually graduated to
hhlf-degre.es, Estimating the position of the needle to
about one-third of the one-half degree graduation (or 10
, min.) is usually possible. On some compasses, bearings could
be fead to within 15 minutes of correct values, however, a
much lower accuracy is obtainable on«small pocket compasses
'which could be read only to about one or two degrees.
An accurate quantitative statement regarding the accu
racy of compass surveys could not be made because of the
varying conditions affecting this type of Work. It would be
s„afe> however, to state that the error of Closure attain
able in most compass surveys will fall within 1/500 to
1/1000.' Such accuracy is suitable for the various types of
surveys mentioned earlier.
VAAlUtCMCftr Of AN II X
At i t AN It P f N t c r n i N t — I mwmmm J » wn
of lines in the traverse.
c) Hot releasing the needle completely and not allowing
it to swing freely about the pivot. *
d) Misreading the quadrant letters when taking a bear
ing near the cardinal points of the compass. For example, a
bearing of M15°25,W, is misread as N15° 2 5 'E , or a bearing
of S76°15'E is misread as N76°15'E.
e) Bearing letters are not changed when using the re
versed bearing of a line.
£) Setting off the magnetic declination on the wrong
side of north.
g) Failing to adjust the observed traverse angles prior
to calculating bearings or azimuths of traverse lines.
h) Mixing or interchanging the/recording of azimuths
from north and south, magnetic and true bearings, clockwise
and counterclockwise angles, of forward and back bearings.
i) Selecting a line for referencing arbitrary direct
ions which may be difficult to locate later.
28-5. ILLUSTRATIVE PROBLEM.
/. AD JU STM ENT OF A CLOSED COMPASS TRAVERSE, The fo llow
ing are observed bearings of a closed compass tra ve rse . Compute the inter
ior angles and co rrect them for observational erro rs, Assuming the observed
bedring of line AB {"best line"} to be correct, adjust the bearings of the rem ain
ing sid e s. 1
OBSERVED BEARINGS
LINE LENGTH
FORWARD BACK
AB 4 6 .5 0 m S 30°40'W N 30*40' E
BC 75.15 S 83*50' E N 84 °3 0 ' W
CD .1 17.35 N 02*00' W S 02* I 5' E
DE 7 4 .9 2 S 89*301W DUE EAST
EA 60.25 S 2 8°50‘ E N 28*00' W
26*60'
3Cf4<
S
olu
tio
n:
I; Solving for the Interior ang les:
a) At station A
Fig. 28-3.
Fig. 28-4.
b) At station B !
c) At station C'.
Fig. 28-5.
N
* cCcb- 0Ccd
= 84° 30' - 0 2 °0 0 ‘
a 82 30 (In te rio r angle at C)
Fig. 28-6.
d) At station D!
oCdc=
°^ 4C S S 0 2 °° 1S
I5 , E (observed bearing of DC)
°^d#e
'de S 8 9 °3 0 'W (observed bearing of OE)
e d s ^dc + <^de
s O a ^ lS '+ 8 9 °3 0 ‘
* 91 45* (Interior angle at D)
xrtnssvuTrX.
e) At station EI
Fig. ti-7.
= 180 ° - l c C nd flCea)
3 180° - (90°0bI + 28° 50')
“ 61° 10* (Interior angle at E)
= X 82*30' 4 05* 3
«c f corr 82*35'
3 ^d 4 corr 3 9 1*4:5' 4 05r 3 91*50*
3-
^ e + corr 3 61*10' + 05' = 61*15'
« Sum = 540*00'
3. Solving for the a d j u s t e d b e a r in g s:
a) Adjustment of lines BC and CB (Note: The adjustcnenf is sta rte d
from eith er end o f the b e st line).
oC‘
bc- i80*-(cCU+^b)
flC ie * 180 # - ( < a + <*>;>
* 180° - (3 0 ° 4 0 ' + 6 5 ° 3 5 r)
* 8 3 ° 4 5 ' or
* S 83 4 5 E (adjusted bearing of BC) W
b) A d ju stm e n t o f lin e s CD a n d D C !
Fig. U - 9 . :
N • . !
oC\m
cd aC\
cb ■*-O*
c
» 8 3 *45* - 8 2 *3 5 '
* 0 1 ° I O' o r
=» N O I * I O 'W (adjusted bearing of#CD)
9i r\
untuiNr or
o m tc n o N %
* "X| 7.
-1i 11-- ’1 u
4. Solution Check: The forward bearing of the best iine.AB is computed from
the adjusted bearing of AE and the adjusted interior angle at station A.
If the same forward and back bearings are determined, the adjustment of
the traverse was done correctly.
fig . 28-12.
e cab
k * (1 8 0 ° + < , )
= 238°45' - (180° + 28°05')
* 30°40' or
* S 3 0 ° 40* W (adjusted bearing of AB)
X I Q M C A S O f ic M E N T O F AM -
ni?1 ^11— enw—Wi§nn aw PfrccrtoNs
THE ENGINEER’S
T R A N S IT
AND THEODOLITE
P a r t VI: L esson Nos. 29 T h ru 33
i
THE E N G IN E E R ’S
T R A N S IT A N D
TH E O D O LITE
Lesson 29
rm mametm's r*m~ Ml— I—
n r amd rmoDourt
2 9 -1 . THE E N G IN E E R 'S T R A N S IT .
Eye p ie ce
Standards Telescope
Tangent Srcew
Compass Box
Plate Level Tube
B. Vernier
A V ern ier
Optical Plummet
Upper Clamp
Lower Tangent Screw
U PPER P L A T E
.Telescope
Plate A Vernier
nner Spindle
Horizontal Scale
LOW ER P L A T E
LE V E LIN G
HEAD A SSEM B LY
Leveling Screws
Foot Plate
,3 2 6 .
a ) Lower Clamp. A lth o u g h the lower motion clamp is
a ttach ed to the horizontal circle, it does not rotate with
it. This clamp: is used to control the rotation of thp
horizontal circle. It tightens a collars around the outer
spindle and stops any motion between the levying head and
the lower plate.
b ) Lower Tangent Screw. This screw is used to make
precise settings after the lower clamp is tightened. It
moves the lower plate to a desired exact position using a
small range of movement.
4 4
r/4f tnllNlt * t
/r /vi’ r Htotuut m . 1 2 / ,
le v e lin g head assembly and hangs between the tripod legs.
It is used for attaching a string and a plumb bob so that
the instrument may be set exactly over a selected point on
the ground. The plumb bob string always hangs vertical due
to gravity and its centerline passes through the center of
the transit when the instrument is level.
328,
is then brought close to the center of the point by moving
or pressing one or two tripod legs more firmly into the
ground. - . .
4. Final Centering.' The wing nuts of the tripod must
first be tightened before the instrument is finally center
ed over the ground point. The exact centering of the pluinb
bob over the point is made by shifting the leveling head of
the transit along the foot plate. Lateral movement of the
head can only be achieved if the leveling screws are first
loosened. When an optical plummet is used, the accuracy of
centering is ensured by rotating the plummet about . its
axis. While looking through the optical plummet, shift the
instrument until the reticle is precisely centered on the
ground point. It will be noted that during the process of
centering, the reticle of the plummet appears to move to
the fight, when the transit is shifted to the right. Also,
the reticle appears to move up when the instrument is
shift’
ed toward the observer'. Focusing of the ground point
is possible through a range of about 60 cm to infinity,
thus allowing a variety of setup heights for the transit.
Lesson O
3 0 -1 . CIRCLE GRADUATIONS OF TR A N SITS.
332.
2. Vertical Circle. The vertical circle is fastened
securely to the horizontal axis of the telescope. It moves
as the telescope is
Fig. 30-2. Atternate numbwing oi elevated or depressed
graduation* on a horizontal circle..
and may be set in a
fixed position by the
telescope clamp. After
it is clamped, it still
could be turned through
a small range of move
ment by means of the
telescope slow-motion
or tangent screw. A
sight taken -on an ele
vated (or depressed)
point would turn the
telescope about its
horizontal axis/ and
the vertical circle
through the angle of
elevation (or depres
sion) of the point
sighted. The correspon
ding angle is read on
the vertical circle.
The graduations of
vertical circles in
most transits are*
Identical in each of
the four quadrants as
shown in Figure 30-3.
They are usually num
bered from zero at the
top and at the bottom,
to 90 degrees in both
clockwise and counter
clockwise directions.
This design allows the
reading of both eleva
tion and depression
angles whether the
telescope is in a di
rect or inverted*posi-
tion. The index marks
are diametrically op
posite on the limb,
and are so positioned
that the. reading on
the vertical circle is
zero when the teles F ig . 3 0 - 3 . F u ll c i r c l e , g r a d u a tio n *
cope is horizontal. An on a v e r t i c a l rcaJbz.
initial reading other than zero may be obtained i the
trans i* not carefully leveled or if some part o the
to ssrwf&wyv ,333
in s tru m e n t is out of a d ju s tm e n t. Sin ce v e r t i c a l Angles
seldom need to be measured as a c c u r a t e l y as h o r i z o n t a l
a n g le s , v e rtic a l c irc le s are u s u a l l y d i v i d e d o n ly in t o
degrees and h a l f - d e g r e e s .
Fig.,, $0-4. V V iict vtKtutK Fig. 30-5. Rtixogiiade. vunteA
—
-10
9
8
7 S m a lle s t d iv is io n
V«rni«r Scale 6 on m ain scale
5
4 "7
3 Main S c a le
2
1 —\
0 -Index 0 -Index Mark
Mark -I
- 2
3
-4
Main Scale 5 - V e rn ie r S c a le
-6
•7
8 JL
S m a lle s t d ivisio n
9
•10 T on v e rn ie r sc a le
3 0 -2 . VERNIERS.
¥!f A*o>M6ffoooHfri
the same direction. Direct verniers are widely used in sur
veying’instruments such as the transit.
2. Retrograde Vernier. Retrograde verniers (Pig. 30-5)
are not used in surveying instruments. In this type of
vernier the length of n+1 divisions on the main scale is
divided into n divisions on the vernier scale. Consequent
ly, »the smallest division on the vernier is slightly longer
than the smallest division on the main scale. In the retro
grade vernier, the main scale and t,he vernier scale are
read in opposite directions.
___
3. Folded Vernier. The folded vernier (Fig. 30-
avoids the use<of a long vernier plate. It has a length
similar to a single vernier, however, half of the gradua
tions are placed on each side of the' index mark. . This type
of vernier is used when there is not enough spade available
for a double vernier. In the illustrated example, it will
be noted that the numbers on the vernier increase toward
the left from the index at the center up to 15; and from
the other side of the vernier (extreme right), 15 is re
peated and the numbers continue to increase toward the
Fig. 30-9. Fotdzd veAnie*.
lH i IN t H N i l H 'S THAN
fit ANO T H iO O O U T g
should always be read in the same direction as the scale.
In most transits> the relationship is pointed out by the
slope of the numbers on the scale and the vernier. It will
be seen that the numbers on the scale and the vernier which
slope toward a similar direction are read together. To eli
minate the effect of parallax when reading the circle and
vernier graduations, the instrumentman should always look
radially along the graduations. In some instances, when the
graduations are not viewed properly, there may be two or
more sets of lines which may seem to coincide. •'
When it is desired to check readings made on a transit
vernier, the clockwise and counterclockwise readings should
be noted. Their sum should equal to 360 degrees. Another
check may be made by noting if the difference in reading
between the A and B verniers is 180 degrees. This wi-ll be
true for both clockwise and counterclockwise readings. It
is always advisable to use a magnifying glass when reading
transit circles and verniers. This device enables the ’ob
server to make more precise .readings, aside from minimizing
eye. strain. This particular item usually comes with the
instrument during purchase.
F ig . 30-10. R eading d ciKciUaA. veAnieA and 4Cal&.
t ,n $H 0 W ttN * S THAN
%,r a w * T O0Oi,trm
r
s a -r- * 10 min B600 sec (smallest division on ths main seals)
6 •
n « 60 (no. of divisions on the vernier)
,L C^ _ s _- —
600gQ—
sec
- —- - 10 s e c (least count)
s = 1°
3 • = 20 min = 1200 sec (smallest division on the main scale)
340.
L
LC * a —^ "■ * I min { least count)
fig - 30-13.
Solution Check:
Inner Circle Reading + Outer. Circle Reading - 360°00‘
1 4 0 * 0 2 ' + 2 19*58' = 3 6 0 *0 0 '
360° 00' = 360*00' (checks)
trig. 30-14. •
Solution Check:
Inner Circle Reading + Outer Circle Reading = 3 6 0 ° 0 0 '0 0 "
2 0 9 ° 5 0 '3 0 " + I5 0 °0 9 J 30" = 3 6 0 °0 0 '0 0 "
3 '6 0 °0 0 '0 0 " = 3 6 0 ° 0 0 '0 0 " (checks)
Lesson
*» . ■) ■
31-1. MEASURING HORIZONTAL ANGLES,
amd rut0001irt
knob until the distant image sighted is sharply focused. A
precise pointing on point B is made by means of the lower
tangent screw. The tangent screws should not be used to
move the plates over large angles. It should be used for
slight motions only. At this part of the measurement it is
important to check if the reading at the vernier is still
zero. ' . ,■>
To: complete the measurement, loosen the upper clamp,
turn the telescope towards point C, and focus th<* objec
tive. When the line of sight is set nearly on the ,poiht,
clamp, the upper plate and set the vertical cross hair ex
actly on ttye point by means of the upper tangent screw.
After which the angle is read at the A vernier by means of
a reading glass.
7 ' )l
________ nJ "Na -5
346,
Fig. SI-4. Laying o{{ a koiizoatal angU.
— ■■ ■ __
fig . 3 1 -5 . V ertica l angleA.
Where:
oC' = correct value of the measured vertical.angle
= vertical angle measured with telescope in
direct or normal position
= same vertical angle measured with telescope
in reversed or plunged position
548, TM €
f i t AMO
T*A M -
TMMOPOL /
the axis of the telescope level tube, there is an inclina
tion of the Vertical axis, and the vertical circle does not
read zero when the telescope bubble is centered. Due to any
of the above reasons an error will be introduced when
observing a vertical angle. This error is referred to as
the index error. Theoretically, there would be no index
error if the instrument were in perfect adjustment and is
leveled precisely when making observations. In practice,
however, such an ideal condition seldom exists.
One way of determining index error is to measure a
vertical angle once with the telescope in direct position
and also once in reversed position. The difference between
the two measured quantities divided by 2 gives the value of
the index error due to a vertical circle which is out of
adjustment.
As an example, assume that a vertical angle measured
with the telescope in direct position is + 6 ° 30' and the
same angle measured with the telescope in reversed position
is + 6 ° 32'. Since both readings should contain the error
equal in magnitude but opposite in sign, the index error
(IE) in the position of the vertical circle may be deter
mined as follows:
IE = (cCN - cCR ) / Z
= [( + 6 ° 3 0 ' - ( + 6 ° 3 2 1)] / 2
= -01 (index e r ro r)
IC => - IE
= -(~ O I ) = + 01 (Index c o rre c tio n )
oC' = cCH +( IC
= 6° 30 + 01 = 6 ° 31 (c o r re c t e d v e r t i c a l angle) 7
S o lu t io n
a) Determining the Misclosure
n =3 (no, of angles measured)
Sum = -e-, + -e-j + 'e ’3 = 4 4 014 1 + 5 8 *5 9 '
+ 25 6°50 '
= 36 0°03 (sum of measured angles)
Error = 360° - Sum =, 3 6 0 * - 3 6 0 * 0 3 '
= -03 (horizon misclosure)
Corr = Error/n = -03'/3
= -01 (correction per angle)
■4 * ^2 * Corr = 5 8 °5 9 .( - ‘ 3
01 58°5 8 '
IE
u
350.
THE ENGINEER'S
TRANSIT AND
THEODOLITE
32-1. MEASURING ANGLES BY REPETITION
J. NumbzJt oh Repetitions
2. Telescope, Position*
3. PA.oc.zdu/Lt oh Measurement
4. Additional Techniques Employed
32-2. PROLONGING A STRAIGHT LINE
1. Vouble Centering \
2. Balancing In
32-3. ESTABLISHING A POINT OF INTERSECTION •
1. Employing Only One Transit
2. Employing Two Transits
32-4. MEASURING AN ANGLE WHEW TRANSIT CANNOT BE SET AT
3 2 -5 . ESTABLISHING PARALLEL LINES
32-6. ILLUSTRATIVE PROBLEMS
1. Angles by Repetition
2. Angles by Repetition
3. Angles by Repetition
L e sso n 32
r t*4 IN iliN ttN 'x tftAN
lit 4AW’ * fi$•*<•*•<i l$
32-1. MEASURING ANGLES BY REPETITION.
,352, TH t
fir
£ N O lN £ £ R ‘S T R A N
AND T M O Q Q L I f f
-
fig . 3 2 - 1 . f a u t i o i u o{ d i e tA cuuit tt h M o p t .
Eyepiece Eyepiece
V e rtic a l
C ircle
Vernier Vernier \
ia) 16}
ViKect ok NokjklI ReveA-Aed ok Plunged
PoM tion P o sitio n
AM) r tU O O O U T S .35$,
number of repetitions to obtain the average and more pre
cise value of the measured angle. In sbme measurements, the
total angle may be larger than 360 degrees, . making it
necessary to add a multiple of 360 degrees to the reading
before dividing. It is always desirable, 'therefore, to
determine the single angle during the ‘first measurement.
Figure 32-2 illustrates one way of keeping the field notes
when measuring an angle by repetition.
Fig. 32-2. Sample, (ield nate*.
r~ January to,1987 Sunny and Bright
ANGLl’BY f\EPET TiON 8-II AM/32*C UB Basktlboll Court
.Lob Exorcist No.14 Grp. No. 3/CE 22!
A. Tabulalion of Observid Data S' s ?c
$TA ~~STA teles ~wrsr~ RDGOR RD VG
ERO
NR
__(2£C__ QBB °OS/TlON.REP VERNIER B- IER
A B D ' o’
oo'oo 180*00*00*
C 0 I 75*25*30 255*25*30*
C D 4 301*42*00 /21*42*00* }
C f>\ 4 243*16*00 63*16*00* /
/
B. Compu ations
/
n •8 /r
RDGn-o'oo'oo" RDG,* 75*2530** RD *243*16*
ntR->G,)‘ f 75'25‘31"! ‘ 6C3*24*00 or /
/1360m) 1 243*2■ *oo“ N7 '2 K
TOTAL WG * /?0G„ *At>.of pQ3sts(36C*)- RDG„ ! E
A
* 243*I6*0>>"*H360*J-o’c0*00** H
- 613*16*01 }i
<■^c. 03*8 16*0>"
(ovrog*onglor
\ T
1
) -v
V~
— W -
4. Additional Techniques Employed. Repetitions
usually made clockwise and it is customary to observe both
the A and B verniers. In this method the systematic error
between the two verniers is averaged and the accuracies
possible by repetition are more nearly achieved. It is
desirable that as little time as possible should elapse
between pointings since the inscrument cannot be relied
upon to remain perfectly still especially with the presence
of a strong wind. Walking around the instrument set up on
soft ground should likewise be avoided. Also, errors are
introduced when there is a change in temperature since the
metal parts of the instrument may either expand or con
tract. The more rapidly the measurements can be made, the
better the result will be.
When sights are relatively short, say 100 m or less,
there is actually little advantage in repetition because
the- errors made in pointing the telescope and in setting- up
£54.
over the points take away almost all of the increased
' precision obtained by repetition.
,356.
F *g. 3 2 -5 . Establishing a poin t o{ in te rse c tio n .
d (chord
length)
-°D
32-5. ESTABLISHING PARALLEL LINES.
n (R D G ,) 8 (7 5 °2 5 '3 0 " )
6 0 3 o2 4 * 0 0 " or 1 ( 3 6 0 ° ) + 2 4 3 ° 2 4 ' 0 0 " (this quantity
represents eight times the approximate angle measured. Also,
this shows that the 3 6 0 ° mark was passed only once during
the eight repetitions)
RDG T O T RDG8 + No. o f Passes (3 6 0 °) - RDG0
2 4 3 °I6 '0 0 " + 1 (3 6 0 °) - 0 ° 0 0 '0 0 "
6 0 3 16 0 0 (total angle accumulated on the horizontal
scale after the eighth repetition)
RDG
1ST = 603°I6'00'
AV E 8
= 75°£4'30" (average value of the angle measured in
eight repetitions)*
RDG t ot
a RDG6 + No. oT P a s s e s ( 3 6 0 ° ) + AoC
a 205*54 ' + 2 (3 6 0 °) + 2 8 *3 0 ' v .
* 954*24 (total angle accumul at ed on the circle a f t e r
the si xt h r epe t i t i on)
RDGTOt 954*24'
- a •■ ......—
^AVE n 6
• a 159*04' ' (average value of the m e a s u r e d angle)
360. r*t
9if rNA*rr0
>p/u
Mr
*&
-
«It*
r i iM
rL';M
r uL£w
/1T&
€mJmTrPD'c
MMm%s
TRANSIT AND
Th e o d o l it e
33-1. ADJUSTMENT OF THE TRANSIT
33-2. COMMON FIELD ADJUSTMENTS
1. Adjustment o{ theJPldte Bubbles
2. Adjustment oA the Caoss HaiAS
3. Adjustment oA the Line oA Sight
4. Adjustment oA the StandaAds
5. Adjustment oA the Telescope Bubble Tube
6. Adjustment oA the VeAtical CiAcle
33-3. THE THEODOLITE
33-4. TVPES OF THEODOLITES
1. Repeating Theodolite
2. DiAectional Theodolite
3. Digital Theodolite
33-5. SETTING UP THE THEODOLITE
33-6. ILLUSTRATIVE PROBLEMS ^
1. Angles FAom Measured DiAections
2. Angles fAom Measured DiAections
J t
Lesson
33-1. ADJUSTMENT OF THE TRANSIT.
jrTf ^ E o ^ rn to o o trrr - n ——
facturer or distributor of the instrument.
Theodolites have horizontal and•vert lead circles for
angle measurements just as in transits. The graduated hori
zontal and vertical circles are made of glass instead of
metal and are relatively small. They are viewed simul
taneously from the eyepiece of the telescope by means of a
system of microscopes and prisms. During daytime observa
tions, an adjustable mirror mounted on the instrument is
used to reflect sunlight to illuminate the two circles. For
work at night or in dark places, an artificial light po
wered by battery is provided. The values observed through a
reading micrometer microscope are greatly magnified and
enables the instrumentman to make readings without eye-
strain. These optically read theodolites also enables the
instrumentman to, make single observations of angles more
precisely than those which can be made by several repeti
tions with an engineer's transit. The procedure of reading
horizontal angles and directions varies with the make of
the theodolite.
There is nothing much of a difference in the design of
the vertical circles of different types and brands of
theodolites. All vertical circle readings are referred to-
t h e t r u e zg.nith. Vertical circles are commonly graduated
clockwise with its index mark pointing vertically upward
when thq vertical circle bubble is centered. With the
telescope in the direct position, the vertical circle will
read 90 degrees on a level line of sight, and 270 degrees
when in reversed position. Consequently, a vertical angle
referred to the horizontal is determined by subtracting the
vertical circle reading from 90 degrees. When the telescope
is reversed, 270 degrees is subtracted from the observed
reading.
■
— - o dV- H g W r t ” "r '1 Voo x j \$ <■;, V'v . ■ ,, r , w
33-4. TYPES OF THEODOLITES.
T H E E H O IH E E H 'S t h a n -
S I T AHD T H E o DO L i f t
Fig. 33-1. Viztzgzn 6020-AGE Fig. 33-2.'Pzntax TH-20UA
Jtzpzating thiodolite.- repeating thzodctitz.
X
S IT AND 1 H I( I D O L I
observations. The telescope is sighted on each of the
points and directions rather than angles to these points
are read on the circle. A required horizontal angle is
determined by calculating the difference between two ob
served directions.
A reading,on a directional theodolite represents the
mean of two: diametrically opposed sides of the circle. It
is equivalent to averaging readings of the A and B verniers
of a transit. This is possible because the instrumentman is
able to view both sides of the circle through an arrange
ment of mirrors and prisms. This procedure not only gives
more accurate readings and saves time, but also automati
cally compensates for errors due to eccentricity.
The vertical circle .of a directional theodolite is
similar to that of a repeating theodolite. Both types
measure zenith angles, which are angles observed in a
vertical plane downward from an upward directed vertical
line through the instrument. Zenith angles lie between 0
and 180 degrees when the telescope is in direct position.
Most vertical circles used in theodolites are equipped with
either an automatic pendulum compensator or a coincidence
type control bubble which eliminates any index error from
the vertical circle reading.
A directional theodolite ..is considered to be more pre
cise than a repeating theodolite. The Wild T2 Universal
Theqdolite (Fig.. 33— 3) and the Carl Zeiss-Je'na 010B Theodo
lite (Fig 33-4) are examples of this type of instrument..
3. Digital Theodolite. Due to recent technological
advances the production of electronic digital theodolites
have been stimulated. The design and use of this type of
instrument resembles very closely a standard theodolite
since horizontal and vertical angles in a survey are mea
sured in a similar manner.
A digital theodolite can be combined with an EDM ins
trument and a microcomputer to assemble into what is called
a total station instrument (Fig. 33-5) or an ’electronic
tacheometer. Total stations are extremely versatile and
useful for almost all types of,survey. Such a unit can be
employed for measuring distances and can also automatically
read arid record horizontal and vertical angles as well as
display them externally in digital form. In a' total station
the horizontal and vertical relations of the telescope are
converted from mechanical angular displacements to direct
digital readouts. It eliminates the need to read circles
through a microscope. Either light-emitting diodes ILEDs)
or liquid-crystal diodes (LCDs) are used for read-out» dis
plays.
In some models, a microprocessor computes the horizon
tal distance and the vertical distance to a point based on
slope distance which is inputted from the EDM unit and the
vertical circle reading. The readings which are displayed
visually in the instrument can also be recorded automatical
ly in a sol id-state memory device. A magnetic tape storage
TH E E N G IN E E R 'S TR A N '
S IT AND T H E O D O L IT E
J
device is sometimes used and the collected data can be fed
to a microcomputer system for further processing^
Total station theodolites are a relatively recent deve
lopment and to attempt to describe in detail the different
models now available would be outside the scopie of this
lesson. To gain a deeper insight into the operation of
these new instruments, a descriptive brochure should be
obtained from the instrument manufacturers.
S o lu tio n : . V '
•# ♦
a) Determining the Mean Direction to Each Point.
Mean RdgB = [Direct RdgB + (Reversed RdgB ± l8 0 ° )]/ 2
,= [I2 8 ° 5 0 'l6 " + (3 0 8 °5 0 '2 2 " - l8 0 ° )]/ 2
= l 2 8 o5 0 l | 9 " (mean direction to B) •
,370, TH £
5/T
I N Q i H t E R 'S THAN*
A H > T M tO O O L tT *
Mean Rdgo « [D ir e c t RdgD + (R e ve rse d Rddo - l 8 0 ° ) ] / 2
s [ 1 9 7 °0 6 * 0 4 ” + U 3 * 0 6 ' I©" + 0 []/2
s I 9 3 ° 0 6 ' 07*' (mean direction to 0)
d) Tabulated Solution.
iff ,37'
Compute the three angles from each positioh and the mean of each of the
three angles from the three p ositions.
S
olu
tio
n:
o) Determ ining the Three Angles from Each Position.
1st P o s itio n : , - '.
<BAC, 3 >RDGC - RDGb 3 3 0 ° 5 0 '2 7 .0 " - I 8 ° 0 6 'i2 .6 " \
3 I 2 ° 4 4 , I 4 .4 " (valu t of angle BAC calcu lated from the 1st positioh)
2nd Position : ^
< B A C 2 = RDGC - RDG b 3 7 5 ° 5 0 ' 1 5 .3 " - 6 3 ° 0 6 ' 0 6 . 1"
3 l 2 o4 4 ' 0 9 . 2 " (valua of angla BAC calcu la ted from the 2nd positiorl)
3rd Position:
<XBAC3 3 RDGC - RDGB 3 I 2 0 ° 5 0 ’ 1 3 .0 " - l0 8 o0 6 '0 2 .9 "
3 I2 ° 4 4 <l 0 .l " (value of angle BAC calcu lated, from the 3rd position)
rue e N s t i h e i n 't m a n -
s it AN D T H i 00 0 4 . IT S
T R A V E R S IN G
AN D TRAVERSE
C O M P U T A T IO N S
Part V II: Lesson Nos. 34 Thru 39
TRAVERSING
AND TRAVERSE
COMPUTATIONS
34-1. INTERIOR ANGLE TRAVERSE
34-2. DEFLECTION ANGLE TRAVERSE
34-3, ILLUSTRATIVE PROBLEUS
1. I n t Z K l o K A n g le . T K a v e A & e
Lesson
TNA V t t t S lN P AND TN4~
V t H M C O U N U T A T IO M I
34-1. INTERIOR ANGLE TRAVERSE.
t
to test the internal angular closure, the observed interior
angles are added and their sum is compared with (n-2)180
degrees. An angular error exists if the two quantities are
not equal. Should there be art angular ejtrror, the observed
angles are adjusted by assuming that the error is of the
same amount at each station. The adjusted angles should
always be added to check whether their sum is already the
expected value. In so doing, mistakes in adding the in
terior angles or in applying the corrections becomes appa
rent. For more precise surveys, an added check is also
provided if the exterior angle at each station is measured
to close the horizon.
Should there be a need to determine the bearing or
azimuth.of succeeding lines in the traverse, a- sketch using
the known data at the succeeding stations should each be
made. From these sketches the required calculations will be
obvious. The distance between stations are measured by tape
or by using EDM instruments and the precision of these
linear measurements should be consistent with that used in
t.he measurement of angles. The surveyor has the option to
measure‘distances either at the same time as the angles are
measured or as a separate step either before or aftef the
angles are measured. *#
r n A v * * * m * a m p t m a - __________
V A A A i I O A t r v lA i 1 0*9 mmmmm— m J 1 Vi
checked by observing the magnetic bearing on the /-compass*
box.'To determine the forward azimuth of a succeeding line,
a right deflection angle is Simply added to the' forward
azimuth of the preceding line; if a left deflection angle
is observed, it is subtracted. . * -
The principal advantages of running a traverse by" de
flection angles are: azimuths are easily computed from de
flection angles, the deflection angles are easy to plot,
ahd these angles are commonly used ih the computation of
circular curves for road and railroad surveys. A distinct
disadvantage, however, is the extreme care required when
working with small angles. Also, there is always the poss'i-'
bility of the notekeeper committing a .unistake in recording
the direction of the deflection angle.
Deflection angles are subject to grave errors if the
instrument used is not in prdper adjustment. These errors.
may"be larger or smaller than their correct values depend
ing on whether the angle observed is to the right or left*
of the prolongation of the preceding line. It is for this
reason that deflection angles should .always be doubled or
preferably quadrupled when measured. In so doing, most of
the/ instrumental errors are eliminated, and the second
value of the angle provides a check on the first observed
value.
34-3. ILLUSTRATIVE PROBLEMS.
1. INTERIO R ANGLE TRAVERSE. The interior angles-of a five-sided
closed traverse (Fig. 3 4 - 6 ) were measured as fellows:
* • . *
A = I i 8°30* C = Not Measured E = I40°5(i
B = 95° 33* D = I 34° Io'.
if- all observed angles are assumed to be correctt determine the interior
antfle, at C. Also determine the bearing of each line if the bedrfng of line
AB is N I5°30'E. Tabulate values accordingly.
* •• * .t V'
T I P O _________ T R A V C R 'S t** ANO TKA -
\xS^mmmmmm
l
vtmsM coururArtoH*
Solution.
a) Determining the Angle at C.
n = 5 (number of s id e s In the traverse)
Sum - (n-2) 180° = ( 5 - 2 ) 1 8 0 ° *
3 540° (sum of in te r io r an g les fo r a f lv e - iid e d clo se d tra v e rs e )
cC d 9 3 I 3 4 ° i O' - 4 9 °0 0 '
3 85 10 (Therefore the bearing
of line DE is N 8 5 * I0 'W )
.381,
Solution Check:
Note: Sin ce the calculated bearing o f lin e AB is exa ctly equ al to its
known bearing, it can be assum ed that the above calculations are correct.
c) Tabulated Solution.
IN T E R I O R IN TERIO R
ST A LINE BEARING STA ANG LE LIN E BEA RING
ANGLE
A 1I8 °3 0 ' AB N I5 *3 0 'E D 1 3 4 ° 10' DE N 8 5 * I 0 'W
B 95*33' BC S 8 0 *0 3 'E E 14 0 * 5 0 ' EA N 4 6 *0 0 'W
C 50*57' CD S 4 9 ° OO'W
2D EFL R - D .4 F
= 5 8 ° 3 0 ,0 0 " | + 16° 5 0 ' 0 0 "
= 7 5 ° 2 0 '0 0 " (sum of rig ht d e flectio n angles)
D IF F , = S D E F U - SD EF L r
= 4 3 5 ° I 6 3 0 " - 7 5 o2 0 ' 0 0 u
= 3 5 9 ° 5 6 l 3 0 " (d iffe re n c e between the two sum s)
ERRO R =• 3 6 0 ° - D IF F , = 3 6 0 ° - 3 5 9 *5 6 30
= 3 '3 0 » (ang ular erro r of c lo s u re )
1K»Vlhl
ll
uN
u*
rUA
rm
A>
rt1
tHf
At
' i ■ ■■WVi
b) Adjusting the Deflection Angies.
•
* 1j i, -
= 4 3 5 ° I 9 ' 0 0 " - 7 5 ° 19 10 0 "
= 360°00*00" (checks)
.
d eflectio n angles and the sum o f the rig h t d e fle c tio n angles should v'.oVi 'l/r'Vjv
equ al to 3 6 0 degrees.
c) Tabulated S o lu tio n . / it r
O B S ER V ED D E F L A N G LE A D JU ST ED D E F L ANGLE
STA CORR
LEFT R IG H T LEFT R IG H T
A 2 8 ° 2 5 '0 0 " +3 0 " 28 * 2 5 '3 0 "
B 6 8 *0 3 '3 0 *' + 3 0 " 6 8 ° 0 4 '0 0 "
C 12 0 * 3 4 '0 0 " + 3 0 " I 2 0 ° 3 4 '3 0 "
D 5 8 °3 C f 0 0 " -3 0 " 5 8 * 2 9 '3 0 "
•' | i: $€? In-
A- - i ' * c
E I 0 8 ° I 3 '3 0 " + 3 0 " 1 0 8 * I 4 '0 0 "
F I 6 * 5 0 '0 0 " -3 0 " 16*4 9 '3 0 "
G 1 10 0 0 '3 0 " + 30" I I 0 * 0 I ‘ 0 0 " ((
I fO
SUMS 4 3 5 * II
tn
o
Lesson 35
VtMSt COMMUTATIONS
*o e irU tA H O M ii
35-1. ANGLE TO THE RIGHT TRAVERSE.
Determine the efrot of closure and adjust the observed values on the
assumption that the error is the same for each angle. Tabulate values
accordingly
B A 350*30' ’ E D 177*58'
C 155.34 123*05' A 3 3 0 .0 0 270*28'
C B 303*05' - - -
D 206.85 56*13' — —
......;_
Fig. 35-6.
co*rvTAnom
Fig. 35-7 B N
aC.ab
ccab «• I80 #b 0 ' - 170 * 30 '
= 9 °3 0 ' (therefore,bearing of line AB is
N 9 * 3 0 ‘W)
■0K
ab
= 180°00' + i 70°30'
= 3 5 0 o3 0 ' (azim uth from north of line AB)
oCbc= I 8 0 #0 0 ‘ - J 2 3 * 0 5 '
= 5 6 °5 5 (therefore, bearing of
line BC is N 56*55' W)
■0^ = I8 0 ° 0 0 ' + I2 3 ° 0 5 '
= 303 05 (azimuth from north
of line BC)
am
Am* t a a
comnnatitm* ,393
= 270°28' - I77°58'
= 92°30' (anglo to tho right
at station E)
Lesson 36
f'.«A
• v»
»»tnttiwuMr
muAm iiaoam
.3 9 5 ,
3 6 -1 ; TRAVERSE COM PUTATIONS.
For any closed traverse the first step taken by the survey
or should always be to check if the observed angles fulfill
the geometric conditions of the figure. ..Should there be an
angular errors of closure it must be corrected to give . a
series of preliminary adjusted directions. All linear
distances should then be corrected since errors in measured
lengths will alter the shape of the traverse.
There are various other computations and adjustments
required for a closed traverse. Some of these include:
determining the latitudes and departures and their respectr-
ive algebraic sums, calculating the total efror of closure,
balancing the survey, determining the adjusted position of
each traverse station, computing the area, and in some
instances dividing a surveyed tract intO_smaller parts.
F ig . 36-1. Relationship between a tine, and i t s la titu d e and depoKtuxe.
referred to as northings or southings. Latitudes of line's
with northerly bearings are designated as being north: (N)
or positive (+); those in a southerly direction are desig
nated as south (S) or negative (-). On the other hand, the
departure of a line is its projection onto the . reference
parallel or an east-west line. Departures are east (E) or
positive (+ ) for lines having easterly bearings and west
(WJ or negative (-) for lines having westerly bearings.
The algebraic signs of latitudes and departures are
thus assigned on the basis of the direction of the bearing
angles. For example, the latitude and the departure would
be positive* for a line with a northeast bearing, and if the
bearing were southwest both latitude and departure would be
negative. It will be noted that the latitude and departure
are simply the X and Y components of a line in a rectangu
lar grid system, as commonly used in mathematics.
The relationship between a line and its latitude and
departure is shown in Figure 36-1. From the geometry of the
figures given, it is easily seen that the magnitude of the
latitude is the product of its length by the cosine of its
bearing angle, and the corresponding departure is numeric
ally equal to the length of the line multiplied by the sine
of its bearing angle. Thus, if the horizontal length of a
line is designated by d and its bearing angle by cC , the
following equations, may be obtained for lines AB, CD, GH,
and EF:
LaU = ^ab C°s °^ab DepGb 8 dab SincCab
La'cd = dcd Cos cCcd Depcd - dcd Sin oC*gd
L o , gh 3 dflhC°soCgh Depflh * dgh Sin cCgh '
•
La»„ s def Cos cC9f Dep*f 3 d*f Sin oC#f
T O A V t m » )N 0 ANO T ffA
u t k t r u t a t !O f * t ,397,
•
present even in closed traverses observed usindj instruments
and methods of high precision. In all probability a survey
ed closed traverse would not satisfy the geometric require
ments of a closed polygon. Until adjustments are made to
these observed quantities it will always be expected that
the traverse will not mathematically close.
When a closed traverse is plotted on paper the survey
must close on the starting point. The closure must be
effected not only graphically but also mathematically. For
a closed traverse, this simply means that the algebraic sum
of the north and south latitudes should be zero, and the
algebraic sum of the east and west departures should also
be zero. However, this condition is true only in theory. It
is seldom true in practice because of the inherent errors
in the, measurements of the angles and distances. It will
always be expedted that the last course will not end exact
ly on the starting station. Although it closes physically
in the field, it will not close mathematically or when
plotted on paper.
The difference between the north and south latitudes,
designated here as CL, is called the closure in latitudes.
It indicates how much the traverse computations fail to
close in a north-south direction. Also, the .difference
between the east and west departures, designated here as
C D , is referred to as the closure in departure and it
indicates how far the closure misses in an east-west di
rection. The values of C L and CD assume the sign which is
obtained by adding algebraically all latitudes and all
departures respectively.
The linear error of closure (LEC) is usually a short
line of unknown length and direction connecting the initial
and final stations of the traverse. It is, approximately
determined by plotting the traverse to scale, or more
exactly by computing the hypothenuse of a right triangle
whose sides are the closure in latitudes and the closure ,in
departures, respectively. This quantity reflects the al
gebraic sum of all the accumulated errors of measurement
both in angles and distances when running the traverse. The
length of the linear error of closure and the angle that
this line makes with the meridian is determined by the
following equations
Where:
LEC =( linear error of closure
CL = closure in latitude or the algebraic
• sum of north and south latitudes
CD = closure in departure or the algebraic •
sum of the east and west departures
-O- = bearing angle "of the side of. error
iXQA
rf.irv
tm m m m m m
T H A V t R S lN O ANO T H A -
c o m r v t a t io n s
If the linear error of closure is excessive, it indi
cates that a mistake has been committed during the field
measurement or in plotting and computing the trayerse data.
The first step-then would be to check all the calculations
to make sure that the mistake is not in the calculations
themselves. The field work should either be ^checked
repeated if after a recomputation the error of closure
still does not come within the expected limits.
The linear error of closure does not indicate the
precision of the measurements until it is-compared with the
total length of the traverse. A convenient and more useful
measure of precision is defined by the ratio( of the linear
error of closure to the perimeter or total length of the
traverse. This is usually expressed as a fraction Whose
numerator is unity and the denominator rounded off to the
nearest multiple of 100, as 1/5000. Such a fraction states
that the error of the survey is one part in 5000 parts,
thus
LEC
RP = D
Where: /
RP = relative precision
LEC = linear error of closure
D = total length or perimeter of the traverse.
S o lu tio n .
a) Determining Latitudes: L a t = dCos cC
Latab = 550.30 Cos 28° I01 =+485.1 3 m '
Latbc =. 3 9 5 .4 8 Cos 69°35' = - 137.96
Latcd = 46 2 .7 0 Cos <27°50' = - 4 09 .1 7
Latde = 63 I .22 Cos 50°00' = +405.74
L a t = 340.05 Cos 25°05' = - 307.98
Latfg = 275.86 Cos 90°00' = 0.00
vgAU lourut
Depob = 55 0 . 3 0 Sin 28° I O' = + 2 5 9 .7 6 m
Depbc = 395.40 Sin 69°35' = +370.64
Depcd = 46 2 .7 0 Sin 27°50' = + 21 6 .0 4
Depd# = 631.22 Sin 50°00' = +483.54
Depef =' 340.05 Sin 25°05' = + 144.16
Depfg = 27 5. 86 Sin 90°00' = + 275.86
c) Tabulated Solution.
LATITUDE DEPARTURE
COURSE DISTANCE BEARING
+N -S +E -W
AB 550.30 m N28* lO'E 485.13 259.76
BC 395.48 S69*35'E 137.96 370.64
CD 462.70 S27°50'E 409. 17 216.04
DE 63 1.22 N50"00'E 405.74 483.54
EF 340.05 S25*05'E 307.98 144.16
FG 275.86 Due East — 275.86
N ote: In the above calcu lation s, north la titu d e s and east dep a rtu res art
co n sid ered p lu s; south la titu d es and w est d ep a rtu res minus.
2 . E R R O R O F C L O S U R E . Given in the accompanying tabulation are the
observed data for a closed traverse obtained from a tr an s it - ta pe survey.
Determine the following quantities; latitude and departure of each course
linear error of closure, bearing of the siae of error, and the precision of
the measurements. Tabulate observed and computed values according to
the* usual format.
AZIMUTH AZIMUTH
LINE LENGTH FROM NORTH LINE LENGTH FROM NORTH
’ (d) IcC) (d) (aC)
AB 233. 1Ofri 122*30* DE 234.46fr 333*35'
BC 242.05 85*15' EF 270.65 254*08'
CD 19 1.50 20*00' FA 252.38 2 13*00'
Solu tion.
a) Determining Course Latitudes. L a t - d Cos oC
L-01 ab_ = 233.10 Cos 122° 30' = - 125.24 m
L a t bc = 242.05 Cos 65° 15' S' + 2 0 .0 4
L a t cd = 191.50 Cos 20° oo1 = + 1 7 9 .9 5
= 234.46 Cos 333° 35'
+ 209.98
L a t de
L a t ef = 270.65 - 74.00Cos 254° 08* =
Latf a = 252.38 Cos213° oo' =
-21 1.66
Determining Course Departures. Dep = d S in (C
D ePob 233. iO Sin 122° 30' = ■+ 196.59 m
Depbc
= 242.05 Sin 85° 15' +241.22
Depcd
= 19 1.50 Sin 20° oo' = + 65.50
Depdb = 234.46 Sin 333° 35' = -104.31
Dep„ = 270.65 Sin 254° 08' = - 2 60 .3 4
V E R S E C O N F U T A T IO N S
Depfa = 252 38 Sin 21 3°00' = - 1 3 7 . 4 6
c) Determining the Precision of the Measurements.
D = dat> + d bc + Jcd + de + d'ef « , + d' fa
= 2 3 3 - 10 + 2 4 2 . 0 5 + 1 9 1 . 5 0 t 2 3 4 . 4 6 t 2 7 0 . 6 5 + 2 5 2 . 3 8
= 1,424.14171 ( p e r i me t e r or total length of the tr a v e r se )
CL = SN L + SSL = + 4 0 9 .9 7 + (-410.90)
= -0 .9 3 m (total c o rr e c t i o n in lat it ude)
CD = S E D + S W D = +503.31 + (-5 0 2 .1 1 ) c
~ + 1.20 m ( t otal correcti on in d e p a r t ur e )
IM.
RP LEV 1.52
D 1,424.14
AZIMUTH
LIN E len gth LA T ITU D E DEPARTURE
(d) aO +N -S +E -w
AB 2 33.1 0m 1 2 2 °3 0 ' 12 5 .2 4 19 6 . 5 9
BC 2 4 2 .0 5 85° 15' 2 0 .0 4 2 4 1.22
CD 19 1.50 20°00' 17 9 . 9 5 6 5 .5 0
DE 333*35' • 1 0 4 .S 1
2 3 4 .4 6 2 0 9 .9 8
EF
2 7 0 .6 5 254*05' 7 4 .0 0 2 6 0 .3 4
FA
_ J*5 2 .3 8 21 3*00' 2 1 1 .6 6 13 7 . 4 6
SUMS
^ * 4 2 4 . 14m +4 0 9 .9 7 - 4 10 . 9 0 + 5 C 3 .3 1 - 5 0 2 .1 1
- (S N L) (S S L) (S F D ) (SWD)
. 4 01,
sum of the west departures exceeds the sum* of the east departures by
3.66m, Determine the linear error of closure and the bearing of the
side of error.
CL = S N L + S S L = + 2.74 m
Co - *&ED + SW D - —3 .6 6 m
4
"
0 ? ____
.
— ——I
T R A V E R S IN G AND
VtR IT COMPUTATIONS
TRA-
TRAVERSING
AND TRAVERSE
COMPUTATIONS
3 7 -7 . TRAVERSE ADJUSTMENT
37-2. ARBITRARY METHOD
37-3, COMPASS RULE
37-4. ADJUSTED LENGTHS AND DIRECTIONS
37-5. ILLUSTRATIVE PROBLEMS
1. Compaq Rate.
2. Adjustment ofi Lengths and Beating*
Lesson 37
37-1. TRAVERSE ADJUSTMENT.
Where:
c( = correction to be applied to the latitude of
any course ,
cd = correction to be applied to the departure
of any course '
CL = total closure in latitude or the algebraic
sum of the north and south latitudes ( 5NL+
SSL)
Gp- = total closure in departure or the algebraic
sum of the east and west departures ( SED+
5WD)
d = length of any course *
D = total length or perimeter of the 'traverse
■* # ■ .,v
All computed corrections should be added to check
whether their respective sums equal ‘the closures in la
titude and departure. It will be observed that during the
process of adjustment an excess or deficiency of OvOl m may
result when rounding off computed values. This imbalance is
usually eliminated by applying an arbitrary correction ?uch
■in revising one of thfe computed corrections.
To determine the adjusted latitude of any course the(
latitude qorrection is either added to or subtracted from
Ihe computed latitude of the course. A simple rule to
rem em be r is: If the sum of'the north latitudes exceeds, the
• *
■n...... iftQ5
sum of the south latitudes, latitude corrections are
subtracted from north latitudes and added to corresponding
south latitudes. However, if the sum of the south latitudes
exceeds the sum of the north latitudes, the corrections ai;e
applied in the opposite manner. A similar procedure is used
when adjusting the departures. After all corrections have
been applied properly to the latitudes and ' departures of
ttite traverse, it will be expected that a perfect closure
will be obtained.
wnere:
L’ , = adjusted length of a course
Lat1 = adjusted latitude of a course
Dep1 = adjusted departure of a course
cC - adjusted horizontal angle between the ref
erence meridian and a course
Solution:
a) Computing Latitudes: Lat a Length x Cos cC
406.
Lat = 4 95.85 Cos 05°30' - + 4 9 3 . 5 7 m
OD
Lat. - 850.62 Cos 4 6 ° 02* = + 590. 53
be (
Lat = 855 .4 5 Cos 67° 38 , = - 325 .53
cd
Lat . s 1,020.87 Cos I 2 ° 25* * - 996. 99
de ■
/
Lat , =1,1 1 7 . 2 6 Cos 83° 44' = - 121.96
ef 1
Lat, *» 6 6 0 . 0 8 Cos 55° 09' * + 377. 19
to
b) Computing Departures: Dep a Length x Sin
Dep = 4 9 5.85 Sin 05° 3 0 1 = + 47.53 m
ob ,
Dep = 8 5 0 . 6 2 Sin 46° 0 2 * + 612. 23
be o i . + 79{ . 09
Dep = 8 5 5 . 4 5 Sin 67 38 »
cd i
Dep = 1 , 0 2 0 . 8 7 Sin 12° 2 5 » + 219.5!
do ,
Dep = 1 , 1 1 7 . 2 6 Sin 83° 44 = -1,1 10. 58
Dep = 6 6 0 . 0 8 Sin 55° 09' = - 541.70
fa
c) Tabulated Solution;
COMPUTED LATITUDE COMPUTED DEPARTURE
COURSE DISTANCE bea r in g -W
+N -S +E
CD = Z E D + Z W D = + 1,670.36 + ( - 1 , 6 5 2 . 2 8 )
= +18.0 8 m (total closure in depart ure)
D « d, + d2 + d3 + d4 + d5 + d6
,407
= 49 5. 85 + 850.62 + 855.45 + 1,020.87 + 1,117.26 +660.08
= 5,OOO.I3m (length o fth e traverse)
KI 16.81 = 0.00336
3
in
o
o
O
c ab 495, 85 X 0.00336 = ! . 67 m
C bc - 850.62 X 0.00336 2.86
C cd
• S' 855 .45
X 0.00336 = 2 . 8 8
c de 1,020 87 X 0.00336 = 3.43
c ef =1t, 117.26 X 0.00336 •s 3.75
= 660.08 X 0.00336 s 2.22
C fa
S o lu tio n Check: S u n o f La titu d e C o rrectio n s = C L .
1.67 + 2. 86 + 2.88 + 3.43 + 3.75 + 2.22 = I 6.B I
16.81 * 16.81 ( c hec ks) ' 1
*- v Q
f) Determining Corrections fer Departure: k z * c^ * dK 2
K2 = 5,000.13' = 000362
TM A V C A SIN O AMD T H A -
C O N F U T A T IO N S
latitude corrections are subtracted from the corresponding north latitudes
and added to corresponding south latitudes to determ ine the a d ju ste d la
titu d e s. , •
So lu tio n C h e ck : A lg e b ra ic Sum o f A d ju ste d L a titu d e s * 0 .0 0
+49 1. 90 + 587.67 -328.41 - 1,000.42 - 125.71 + 374.97 * 0.00 ’
0 .0 0 * 0.00 (chicks)
h) Adjusting the Departures: A d j Dep * Computed Dep i cd
Adj Dep - +( 47.53 - 1 . 7 9 ) = + 45.74 m
ab *
Adj Depu = +(612.23 - 3 . 0 8 ) * + 609.15
bo
Adj Depcd = +(791.09
.
- 3. 09 ) * + 7 8 8 . 0 0
, Adj Depd# * + (219.51 - 3 . 6 9 ) •= + 2 1 5 . 8 2
Adj Depef = -(1,110.58 + 4, 04) = >1,114.62
Adj Dep * - (541.70 +2:39) « - 5 4 4 . 0 9
to
N ote: Since the sum o f east d ep a rtu res exceeds the sum of w est depar
tures ,th e departure corrections are su b tra cte d from the corresponding
oast departures and added to corresponding w est dep a rtu res to d e t e r
mine the a d ju ste d departures.
I) Tabulated Solution. *
CORRECTION ADJUSTED LATITUDE ADJUSTED DEPARTURE
COURSE
LAT DEP +N -S +E -W
AB 1.67 1.79 49 1 90 45.74
BC 2.86 3.08 587.67 609.15
CD 2.88 3.09 328.4 1 788.00
DE 3.43 3.69 1,000.42 2 15.82
EF 3.75 4.04 125.71 > 1, 114.62
FA 2.22 2.39 374.97 544.09
SUMS 16.81 18.08 +1,454.54 -1,454.54 + 1,658.71 -1,658.7 1
(2NL + SSL = 0.00) (SED.tZWD s 0.00)
RP * LE C /D
f 2 4 . 6 9 / 5 , 0 0 0 . 13
■=*. 1 / 2 0 2 . 5 2
*■ s a y 1 / 2 0 0 (Relative Precision)
4J0,
TRAVERSING
AND TRAVERSE
COMPUTATIONS
36-1. TRANSIT RULE
36-2. LEAST SQUARES METHOQ
36-3. CRANDALL METHOD
36-4. ILLUSTRATIVE PROBLEMS
1. Transit Rule.
2. Adjustment Lengths and Azimuths
Lesson 38
38-1. TRANSIT RULE.
I ' :r : ■' •
The method of adjusting a traverse by the transit rule is
similar .to the method using the compass rule. The,, main
difference is that with the transit rule the latitude and
departure corrections depend on the length of the latitude
and departure of the course respectively *instead of both
depending on the length of the course.
The transit rule has no sound theoretical foundation
since it is purely empirical. It is not commonly used as
the compass rule, however, it is best suited for surveys
where the sides of the traverse are measured by the stadia
or subtense bar method. The rule is based on the assumption
that the angular measurements are more priecise than the
linear measurements and that the errors in traversing are
accidental. Since it is merely a rule of thumb it may not
be applicable in some instances.. For example, if a line
runs along an east or west direction it will have no lati
tude correction and if it runs along a north or south
direction it will have ho departure correction. This is due
to the fact that the cosine of 90 degrees or 270 degrees
and the sine of 0 degrees or 180 degrees are all equal to
zero.
The transit rule may be stated as follows: The cor
rection to be applied to the latitude (or departure) of any
course i^ equal to the latitude (or departure) of the
course multiplied by the ratio of the total closure in
latitude (or departure) to the arithmetical sum of all the
latitudes (or departures) of the traverse*. These cor
rections are given by the following- equations
Where:
correction to be applied to the latitude of
any course
correction to be applied to the departure
of any course
total closure in latitude or the algebraic
sum of the north and south latitudes ( 2NL+
SSL)
total closure in departure or the algebraic .
sum of the east and west departures ( 2ED+
2WD)
2ENL = summation of north latitudes
SSL = summation of south latitudes
SED = summation of east departures
2WD = summation of west departures
,412,
■V’S
all latitudes is obtained if the summation of south lati
tudes is subtracted from the summation of north latitudes.)
Similarly, the arithmetical sum of all departures is.
tained if the summation of west departures is subtracted
from the summation of east departures since east arid west
departures are positive and negative quantities, respec
tively. Another way of determining these arithmetical sums
is simply to add the absolute values of the required quan
tities • V
Latitude and departure corrections are applied in a
manner similar to that described for the compass rule.
However, before any corrections are applied it is important?
to first check if the sum of £he computed corrections for
the ..latitudes (or departures) equal the closure in latitude!
(or departure). A perfect closure will always be assured if
this is done.
AZIMUTH AZIMUTH
COURSE LENGTH COURSE LENGTH
FROM NORTH FROM NORTH
AB 4 9 3 . 85m 5*30' DE 1 ,0 2 0 .87m 167 ° 3 5 '
BC 850.62 46*02' EF 1, 1 17.26 '2 6 3 * 4 4 '
CD 8 3 5.46 112*22' FA 660.08 304*51 1
S o lu tio n .
a) Computing Latitudes: L a t * Len gth x Cos oC
Lat.k
ap =* 4 9 5 . 8 5 Cos 0 5° 3 0' = + 493.57 m
Latbe = 8 5 0 . 6 2 Cos 46 02 = + 590.53
Lat cd 8 5 5 . 4 5 Cos 112°22* *= - 325.53
L a r * ( , 0 2 0 . 8 7 Cos 167 35' * - 9 9 6 . 9 9
Lat 9f , 1 1 7 . 2 6 Cos263°44' * - ! 2 1.96
Lat,fa = ' 6 6 0 . 0 8 Cos 304°5i' s + 3 7 7 . i9
b) Computing Departures: Dep * Len gth x S in oC
Dep . * 4 9 5 . 8 5 Sin 05° 30* = + 47.53 m
ab
Dep = 850. 62 Sin 46° 02' * + 6 1 2 . 2 3
bC
DepCO =» " 8 5 5 . 4 5 S in ll 2 ° 2 2 ' * + 7 9 1 . 0 9 '
Depa©=• %1,0 20.8 7 Sin I67°35' * + 2 19.51
Dep I, I l 7. 2 6 Sin 263°44 * -1,1 I 0.58
•f
Depfa .* . 6 6 0 . 0 8 Sin 304°5l‘ * - 541 .70
c) Tabulated Solution.
,4I4__
COURSE DISTANCE -COMPUTED LATITUDE COMPUTED DEPARTURE
from north +N -S +E -w
AB 495.85m 5*30* , . 1*93:57 47.53
BC 850.62 46* 02*., ; 5 9 0 .5 3 6 12.23
CD 855.45 1 12*22’ .’ 325.53 7 9 1 .0 9 ■# ’
OE 1,020.87 167*35* 996.99 21 9.5 1
,EF > 1,1 1 7.26 263*44* 121.96 1,1 10.58
FA 660.08 304*5 1* 3 7 7 .1 9 5 4 1 .7 0
SUMS 5 ,0 0 0 .13m + 1,46 1.29 - 1 ,4 4 4 .4 8 + 1,670.36 - 1 ,6 5 2 .2 8
(2N D (29L) (SEED) (SWD)
N ote: Since the sum of the east departures exceeds the sum of west cje-
partures,the departure corrections are subtracted from the corresponding
east departures and added to corresponding west departures 'to deter-
mine the adjusted departures.
Solution Checkv Algebraic Sum of Adjusted Departures = 0.00
+ 4 7 .2 7 + 608.90 + 786.78 + 2 1.8.32 - !,l 16.62 - 5 4 4 . 6 5 =-0.00
0.00 = 0.00 (checks)
■416, T R A S C R S lN G AN P T R A -
V t R S C C O M R U r A f IO N S
i) Tabulated Solution.
— -----
CORREC“ lON ADJU STED L A T IT U D E ADJUSTED D EPA RTU RE
CO URSE
LA T DEP \ ■*N -S +E • -,w. * ;
AB 2 .8 6 0 .2 6 4 9 0 .7 t 4 7 .2 7
BC 3 .4 2 3 .3 3 587. 11 6 0 8 .9 0
CD (.8 8 4 .3 1 3 2 7 .4« 7 8 6 .7 6
DE 5 .7 7 1. 19 1 ,0 0 2 .7 6 2 1 8 .3 2
EF 0 .7 0 6 .0 4 1 2 2 .6 6 • 1,11 6 .6 2
FA 2 .( 8 2 .9 5 3 7 5 .0 1 5 4 4 .6 5
f.Wft
l f l A V t ft ANl)
417,
'i*\t i oM.Utt-*ncN\
Tan cCfa -544.65 -1.452361 and cCfa s 55 °2 7 ‘
+ 375.01 (thtrsfors, azimuth from north of cours# FA is 360
5 5 * 2 7 ' or 304*33')
c) Tabulated Solution.
418.
TRAVERSING
AND TRAVERSE
COMPUTATIONS
_________________ f —
Lesson. 34
/*»
tv*VI </*•
35-1. GRAPHICAL METHOD.
t4 2 0 .
is now formed the correction triangle which is defined by
points A, A', and a.
d) At B, C, D, and E draw Bb, Cc, Dd, and Ee parallel
to A'a, and where these lines intersect line Aa, label the
points of intersection as b, c, d, and e, respectively.
ej Going back to Figure 39-1, draw linies through B, C,
D, and E parallel to A'A and along these set off distances
equal to Bb, CC, Dd, and E e . Each of these lines represents
the correction to be applied at each of the four interme
diate stations on the original traverse. Then AbedeA repre
sents the ad justed traverse .
*
39-2. RECTANGULAR COORDINATES
Y-axis
«
rn A v ru M N n a n p t a a ~
vt* it c o unt ia n o u s
In Figure 39-3, the X and Y coordinates of point 1 are,
respectively, X( and Y( ; those of point 2 are X2 and Y2 ;
and those of point 3 are X 3 and Y, . It will also be seen
that the X coordinate of point 2 is equal to the X coor
dinate of point 1 plus the departure of line. 1-2, and the X
coordinate of point 3 is equal to the X coordinate of point
2 plus the departure of line 2-3. Similarly, the Y coordi
nate of point 2 is equal to the Y coordinate of point 1
plus the latitude of line 1 -2 , and the Y coordinate of
point 3 is equal to the Y coordinate of point 2 plus the
latitude of line 2-3.
It is therefore obvious that, if latitudes and depar
tures have been computed and adjusted, and if the coordi
nates of one point are known, the coordinates of all other
points can be determined by adding successive departures to
the previous X coordinates and successive latitudes to the
previous Y coordinates.
In the case of a traverse which begins and ends on the
same point, the final X and Y coordinates of the point- of
beginning computed by using the latitudes'and departures of
the traverse sides should be the same as the initial X and
Y coordinates. This of course will only be possible if thte
latitudes and departures of the traverse have all been ad
justed accordingly.
Coordinates are commonly used in different kinds of
traverse-related computations such as determining areas of
tracts of land, determining lengths and directions of
lines, and for locating points on a horizontal plane. They
are also suitable for plotting horizontal control surveys
and for calculations related to route curves.
d Y( x2 - (V, Eq. ( I )
Cx *K - Eq.(2) ' *
Cy yk - Y, Eq. (3) •.
1 ( C X)2 t <CY)‘
RP Eq.(*4)
T R A V C R S In G a n d t h a -
&Z V t N S l C O M P U T A T IO N S
X * d (•&•). * ......................; . frq { 5 ,
y = y * : ■ • rv . . Eq. ( 6 )
Wh^re: -
d = distance between any two stations whose x
and uy coordinates are known ' 9
X2 = coordinate along the x-axis of a succeed
ing station
Yg 7 coordinate along the y-axis of a succeed
ing station - „ •
’
Xj" = coordinate along the x-axis of a preced
ing station
Yj = coordinate along the y-axis of a preced
ing station '
Cx = error of closure along •■the x-axis
XK = known^, coordinate along the x-aXis of the
distant terminal station
Xc. = computed coordinate along the x-axis of
the distant terminal station
Cy = error of closure along the y-axis
Yk ‘ = known coordinate along- the y-axis of the
distant terminal station
Yc = computed coordinate along the y-axis of
the distant terminal station
RP = relative precision of closure
D = total length or perimeter of the traverse
from the initial station to the distant
terminal station - '
x '= coordinate correction along the x-axis
y = cbordinate correction along the y-axis '
X' = adjusted X coordinate of a station
Y* = adjusted Y coordinate of a station
r **»/*•/*«# A f W t A *
t OVrUTATIOHi ■23,
3 9 -4 . IL L U S T R A T IV E PRO BLEM S.
Solution.
A O A r/M v c i r n . v ca n d r /M -
rtfcK Tfiwesoemm vf*sr. c o m m tat ion*
c) T a b u l a t e d Solution.
COORDINATES COORDINATES
STA STA
X Y X Y
A 3 ,0 0 0 .0 0 4 ,0 0 0 .0 0 E 3 ,7 9 7 .5 9 4 ,878.22
B 3 ,2 0 2 .2 5 4 ,4 0 5 .5 0 F 3 ,7 3 9 .0 8 4 ,4 8 8 . 5 2
C 3,026.61 4 ,6 2 3 .6 3 A 3 ,0 0 0 .0 0 4 .OOO.po
D 3 ,4 4 1.97 4 ,5 5 2 .5 5 (chocks) (checks)
COMPUTED COORDINATES
STA
X Y
Baguio 6 ,2 0 8 .6 7 8 ,6 0 1 .4 4
A 7 ,0 3 0 .4 5 8 ,2 9 9 .5 4
8 6 ,9 8 4 .6 3 7 ,6 9 8 .8 9
C 7 ,0 0 1.1 4 7 ,260.00
D * 7, 1 1 2 .9 9 6 ,774.08
E 6 ,5 e S .7 0 * 5 ,9 4 1.82
F 6, 1-47.28 6 ,038.24
G 5 ,4 67.06 6 ,0 6 6 . 6 4
Acupan 5 ,2 2 6 . 18 5 ,7 8 2 .9 8
Mf W**/#* AtH>
4 iffA
,425,
V fftir i ountt 4fnw%
Solution
' . ’• . ■*i
a) Determining Total Distances.
d0 * 1 ( 7 , 0 3 0 . 4 5 - 6 . 2 0 8 . 6 7 ) 2 + ( 8 , 2 9 9 . 5 4 - 8 , 6 0 1.44)?'
s 875 .4 8 m (distance of sta. A from sta. Baguio)
db » 1 ( 6 , 9 8 4 . 5 3 - 7 , 0 3 0 . 4 5 / + (7 ,6 9 8 .6 9 - 8 , 2 9 9 . 5 4 / + 875.48
3 602.60 + 8 7 5 .4 8
= * 1 ,4 7 8 .08 m (d i st a n c e of sta. B from sta. Baguio)
dc =• 1 ( 7 , 0 0 1 . 1 4 - 6 , 9 8 4 . 5 3 ) 2 + ( 7 , 2 6 0 . 0 0 - 7 , 6 9 8 . 6 9 ) 2 l + 1 , 4 7 8 . 0 8
= 4 3 9 .0 0 t 1,478.08
- | , 917.08m (distance of sta. C from sta. Baguio)
dd a 1 ( 7 , I 1 2 . 9 9 - 7 , 0 0 1 . I 4 ) 2 + ( 6 , 7 7 4 . 0 8 - 7 , 2 6 0 . 0 o / + 1,9 1 7 . 0 8
\ - 4 9 8 . 6 3 + 1 , 9 i 7. 08
.=: " 2 , 4 1 5 . 7 1 m (distance of sta. D from sta. Baguio)
dt - 1 ( 6 , 5 8 6 . 7 0 - 7 , ! I 2 . 9 9 )2 + ( 5 , 9 4 I . 8 2 - 6 , 7 7 4 . 0 8 } 2 + 2 , 4 1 5 . 7 1
3 9 8 4.70 + 2 ,4 1 5 .7 1
3 3,400.41m (di st ance of sta. E from st a. Baguio)
a 1 ( 6 , 1 47 28 - 6 , 5 8 6 . 7 0 } 2 + (6,058 ! 24 - 5 , 9 4 l.82)2'+13.400.41
a 454.58 + 3,400.41
3 3,854.99m- ( d i s t a n c # of s t a. F f r om sta. B a g u i o )
«
3 1 ( 5 , 4 6 7 . 0 6 - 6, I 4 7 . 28)2 + (6, 0 6 6 . 6 4 - 6, 058.24)^+ 3,854.99
3 680.27 + 3, 854.99
3 4,53 5.26 m ( d i s t a n c e of s t a. 6 f r om s t o. B a g u i o )
Acupan
=■ 1(5,226.18 - 5.467.06)2 + (5,782 98 - 6,066.64 2 ' +4,535.26
3 372.14 + 4 , 5 3 5 . 2 6
3 4,907.40m ( d i s t a n c e of s t a . A c u p a n f r o m s t a . B a g u i o)
Yk 3 5 , 7 8 2 .6 2 m (known Y - c o o r d i n a t e of st a. Ac upan)
Yc 3 5 , 7 82 .9 8 m ( c o mp u t e d Y-coordinate of st a. A c up a n)
3 XK - X^ 3 5 , 2 2 6 .1 0 - 5,226.18
3 - 0.08m ( e r r o r of c l o s u r e a l o n g the X -axis)
D along the X - a x i s )
= 3,400.411-^1^ ; = - 0 .0 6 y. = 3 , 4 0 0 . 4 1 ( ^ 1 ^ ) = - 0 .2 5
-0.08
Hf - 3,854.99 {4 ^qq7 4 q ) =.-0.06 yf = 3, 8 5 4 . 9 9 9 0 7 4 0 ^ " “ 0-28
At sta. A: •
X'a = *a + xa= 7,030.45 - 0.0 1 = 7,030.44 m
Ya = Ya ± y0 = 8,299.54 - 0.06 = 8,299.48 m
At sta. B:
X'b = xb ±x b = 6,984.53 - 0.02 = 6,984.51 m
Y|> = Yb i y b = 7,698.69 - 0 . i l = 7,698.58 m
At sta. C:
x'c - Xc ±*c = 7,00 1.14 - 0.03 = 7,001.1 1 m
Y'c ■ Y0 1 yc « 7,260.00 - 0 1 4 * 7,259.86 m
# rh4 t nsin*
>
>
1>
4«m
1
l ,. .
«>< .Ii
k.u
/r
tii*! .427,
At sta. D:
X, - xd i xd = 7,1 12.99 - 0.04 7, 112.95 m
x = X iVd = 6,774.08 - 0.1 8 6,773.90 m
At sta. E :
X. = X, -+ *8
y = 6,586.70 - 0.06 6,586 .64 no
X - Y.
t y
/e
= 5,941.82 - 0.25 5,941 .57 m
At sta. F :
-■ xf ± xf = 6,147.28 - 0.06 6,1 47.22 m
y; = V ±yf = 6,05 8.24 - 0.28 6,057.96 m
At sta. G:
xi s Xg -+ xg = 5 ,4 6 7 .0 6 - 0.07 = 5,466.99 m
X = Y +y
g ya
= 6 ,0 6 6 .6 4 - 0.33 = 6,066.3 1m
At 'Sta. Acupan:
, Coupon “ X Ac u p on i x fl oupon = 5,226.18 0.08 = 5,226.10m
Xcupor, = Coupon ! » « « , „ • ■ 5,782.98 - 0.36 - 5,782.62m
d) Tabulated Solution.
,428,
O M IT T E D
MEASUREMENTS
P art VIII: L esson Nos. 40 Thru 42
OMITTED
MEASUREMENTS
40-1. OMITTED MEASUREMENTS
40-1. MISSING DATA ARE IN ONE SIDE
40-3. ILLUSTRATIVE PROBLEMS 1
1. i Omitted MensuAement*
1. Omitted Meatutements
3. Omitted Measu/iement^
Lesson
uH trrco
M tA S U h C M C N T S
40-1. OMITTED MEASUREMENTS.
i43: O M trre v
U tA S V fU M C N T S
omitted in the field and are computed later in the office.
Conditions or problems encountered may also be due to the
presence of obstacles, rugged terrain, lack of time to
complete the survey, unfriendly or hostile landowners, and
etc. It is therefore evident that if the field measurements
for any lengths or directions of a closed traverse are to
be omitted, it is always essentially important to employ
approximate checks on the computed values. _
The following are some of the more, common types c
omitted measurements:
L ‘ 1 CD + CL
Tar\jC
___________ o m it t e d
IT — W M EA SU REM EN TS
LATITUDES DEPARTURES
LI NE LENGTH BEARING
+N - S +E - W
AB 733.75 m N76*1 8'E 1 7 3 .7 8 7 12.87
BC 598.23 N 23*2 0*W 5 4 9 . 3 0 236.95
CD 415.05 S6I*35'W 19 7 .5 1 3 6 5 .0 4
DE 5 1 1.38 N 57*00'W 2 7 8 . 5 2 4 2 8 .8 8
EF 395.06 S 32*45'W 3 3 2.26 ,. 2 13.72
FA Unknown Unknown — —
SUMS + 1001.60 - 5 2 9 . 7 7 + .712.87 - 1 2 4 4 .5 9
( 5NL) (SSL) (SED) (SWD)
1st So lu tio n .
CL = JN L t S S L = + 1001 . 6 0 + (- 5 2 9 . 7 7 ) = + 4 7 1.83 m
CD = J E D + JWD = +, 7 1 2 . 8 7 + ( - 1 2 4 4 . 5 9 ) = - 5 3 1. 72m
L
L fa
= V YL + U
C2>
0
= N( + 47 1,83)2 + ( - 5 3 I . 7 2 ) 2'
= 710.88m (Length of line FA)
2n d Solution.
2ELat ■ 0
A/ ! A W f i t H t N l f i „435,
L<Jtab + Latbc + Latcd + Lat^ + Lat#f + Latf0 = 0 ADJ. LATITUDES ADJ. DEPARTURES
LINE LENGTH BEARING
173.78 + 5 4 9 . 3 0 - 197.5 1 + 278.52 - 3 32 .2 6 + Lat?a = 0 +N -s +E r-W
47 1.83 + LatfQ = 0 AB 395.50m N 38#45'E 3 0 8 .4 4 247.55
BC 518.62 N 70°35'E 172.41 . 489.12
Latf0 = - 4 7 1 . 8 3 • • • • .................. Eq. (I)* CD 583.22 S 50*1 5'E 3 7 2 .9 3 448.40
SDep = 0 . DE 813.38 N 7 4°2 9‘E 2 17 .5 9 783.73
EF 1218.96 S 19*1 1'W 1151.30 4 0 0 .4 6
Depab + Depbc + Depcd + Depde + Depef + Depfa =# 0 F<? 8 1 1.35 N 52*05* W 4 9 8 .5 9 6 4 0 .0 8
GH 606,43 S 83*50'W 65. 14 6 0 2 .9 2
712. 87 - 236 .95 - 3 65 . 0 4 - 428.88 - 213*. 72 + Depfa = 0
HA 509.68 N3 9*40 'W 3 9 2 .3 4 ■J 3 2 5.3 4
-531.72 + Depfa = 0 '
SUMS +1589.37 -1589.37 +1968.80 -1968.80
Depfa = +53 1 .72 • • • • * ................Eq.(2)
(2N D (SSL) (2 ED ) (2W 0)
Therefore:
So lu tio n :
L fa - 'yJ(La tfa) 2 + (Depfa) 2 ' = N (- 4 7 1.83 )2 + (+531.72)2' a) Determining the Length and Bearing of line CH.
= 7 1 0 .8 8 m (Length of line FA)
LATITUD ES DEPARTURES
_ DePfa _ + 531.72 = - 1 . 1 2 6 9 3 . LINE LENGTH' BEARING
TancCro- -TSt^-----------
471.83 +N -S +E - W
25 ( T h e r e f o r e the b e a r i n g of l i ne FA is S 4 8 * 2 5 ' E ) AB 395.50m N38°45'E 3 0 8 .4 4 247.55
*f«f 48 BC 5 18.62 > N70°35'E 17 2 .4 1 4 8 9 . 12
2, O M IT T E D M E A S U R E M E N T S . The data for the tract of land shown CH Unknown Unknown -
HA 509.68 N39*40'W 3 9 2 .3 4 3 2 5 .3 4
In- Figure 4 0 - 4 is given in the accompanying .tabulation. The whole
tract is supposed to be divided into three smaller parts, however, the SUMS i + 873.19 - 0 .0 0 + 736.67 -325.34
length and bearing of the dividing lines CH and DG have not been ob-
served in the field. Assuming that an acceptable precision has been ob (2 N D (SSL) (2 ED) (2WD)
tained in the measurement of the sides of the main traverse, determine
the lengths and bearings of the unknown quantities. - ZNL + IS L = + 873.1 9 + ( -0.00) = + 8 7 3 . 19 m
Fig. 40-4. Z ED + IW D = + 73 6 . 6 7 +(-325.34) = + 4 1 1.33 m
v A
H?
V
"^(+873.19)2 + (+411.33)2'
n
L ch “
- 965.22 m (Length of line CH)
1 1
Tan cCch=
-{+41 1.33). -41 1,33 3
+ 0.4710658-
-(+873.19) -8 7 3 .1 9
^Ch=! 25° 13 (Therefore the bearing of line CH Is S25* 13*W)
LATITUDES DEPARTURES
LINE LENGTH BEARING
+N -S +E * TW
CD 583.22m S 50* 15 'E 372.93 4 4 8 .4 0 .
DG U nknown Unknown — —
GH 606.43 S83*50'W 65. 14 6 0 2 .9 2 '
HC 965.22 N 25* 13 *E 8 7 3 .2 4 4 1 1 .22 •
* SUMS +873.24 - 4 3 8 .0 7 +859.62 -6 0 2 .9 2
*
(2N D (S S L ) (ZED) *( SWD)
o u ir rc z
A S U A C M fN T S
>>un , f
A\umr a t m * .437,
CL - SN L t S S L ■'» + 8 7 3 . 2 4 +(-438.07) = +-435.17m
Qd - + JSW0 = + 8 5 9 , 6 2 +(-602.92) = + 2 5 6 . 7 0 m
A Z IM U T H L A T IT U D E S DEPARTURES
L IN E LENGTH
FROM NORTH +N -S +E '- W
AB 5 1 8 .3 2 54*50' 2 9 8 .5 3 4 2 3 .7 2 •
BC 5 9 4 .0 8 7 9 ° 18' 1 10 . 3 0 5 8 3 .7 5
CD 9 3 6 .7 6 130*05' 6 0 3 . 18 7 16 . 7 2
DE 4 2 5 .8 9 22*35' 3 9 3 .2 3 16 3 . 5 5
Dep ea _ -1887.74
. Tan cCea - ,= + 9.491854
Lai«o -19 8.88
oCt■
ea- 83 sj*
59 ( B e a r i n g of l i n e E A is S 8 3 ° 5 9 ' W )
OH IT T i P
H lA S U N t H I N T t
OMITTED
MEASUREMENTS
41-1. CASES Of OMITTED MEASUREMENTS INVOLVING ADJOINING SIDES
1. Length oh One Side and Beating oh Anothet Side Unknown
2. Lengths oh Two Sides Unknown
3. Beatings oh Two Sides Unknown
41-2. ILLUSTRATIVE TROBLEMS
1. Omitted Measurements
2. Omitted Measurements
3. Omitted Measurements
Lesson 41
41-1. CASES OF OMITTED MEASUREMENTS INVOLVING ADJOINING
SIDES.
44 Q. O t d tV H t n •
U i A 9 U * t U t NIK
I <g. 41-2. Sketch oi the. fxa.WA&e.
with omitted me/utuemejiti ( I-it
iv u e , adjoining tide * }.
Unknow n
Ltngfh
.U n k n o w n
B e a rin g
-s L
1
X
lI ’By Sine Law
\
OBI
S 1 w CE DE
C losing_____ ^
1°r Sin D Sin C and
Lin e \
\
\ / ' Sin D = CE DE
Sin C
x
\
• X
'K / '
By Sine Law
BC CD BD
Sin D S in B Sin C
BD Sin D
BC = Sin C
BD Sin B
CD = : Sin C r
oHirrco
M C ASU AS M CN TS
3. Bearings of two Sides Unknown. In t h i s particular
case i t i s assumed t h a t the b e a r i n g s of s i d e s DE and E A
(Fig. 4 1 - 6) are the unknown q u a n t i t i e s . Si nce the l e n g t h s
o
By Cosine Law x
c2 = ^a2 + b2 - 2 abCosC
Let:
a - - DE, b, = AD, c = E A , and C = A
( DE )2= ( AD) 24-(EA)2- 2 ( AD)(EA) Cos A .
C m A ( AD)2f ( EA) 2 - ( D E )2
2(AD)(EA)
r
A 9UAt Hi N * t ,443
The angle at A may also be computed by the following
equation
Sin
■ f(S - (ADHEA)
AO) (S - EA)
Where:
s = (I/2HDE + AD + EA)
After the angle at A is determined the sine law may be
applied to obtain the other missing angles in triangle ADE.
Thus .
EA AD DE
Sin D Sin E S in A
EA Sin A AD Sin A
Sin D = DE and Sin E = DE
With the above equations the remaining two angles (<TD and
E) of triangle ADE can be computed and the unknown
bearings of sides DE and EA correspondingly determined. As
a check, the sum of the three computed angles should equal
to 180 degrees.
41-2. ILLUSTRATIVE PROBLEMS
/. O M IT T E D M E A S U R E M E N T S . Given the following sketch and ta
bulated data for a closed traverse in which the length of DE and the
bearing of EA have not been observed in the field. Determine these
unknown quantities.
AAA __ O M IT T E O
Q - j - jte w iW F iT ir n i m ca su r e m c n ts
L A T IT U D E S D EPA RTU RES
LIN E LEN G TH B E A R IN G
+N -s +E -w
AB , 1,084.32m S75*48'E 265.99 1,05 1.19
BC 1,590.5 1 S I5*I8'W 1,534. 14 4 19.69
CD 1,294.74 S 68*06'W 482.92 1,201.31
DE Unknown N 28*39* W — —
EA 1,738.96 Unknown —• —
SUMS +0.00 -2,283.05+ 1,051. lb -1,621.00
LEND (S S L ) (5 E D ) (S W D )
S o lu tio n :
a) Determining Length and Bearing of the Closing Line.
CL = SN L + ZSL = + 0 . 00 +( -2 ,28 3’. 05) = - 2,283.05m
CD = Z ED + JW D = + 1,05 I .19 + (- 1,621 .00) = - 569.8 I m
- ~ CD _ - ( - 569.8 I )
Tan oCda =
+ 569,8 1 = +-0.249583
-c, -(-2,283.05) +2,283.05
^da= I4*0r ( T h e r e f o r e the b e a r i n g of the c l o s i n g lin e DA is
N 14° O l ' E )
--^ = ? _
14 or
1iu. 41 9
.445
Since the sum of interior angles of ADE should equal to I80e
<A = 180 - <<D + <E) = 180 - (4'2#40 + 66 30')'
= 70°50‘ ■'
About station E
■0- = 180° - (<E + 28°39*) = 180° - (66°30' +• 28°39')
- 84°5l' ( T h e r e f o r e the b e arin g pf line, E A i i N 8 4 * 5 l ' E )
By Sine Law
DE EA _ _ (EA)Sin A *
DE Sin D
Sin A Sin D
(1,738.96) Sin 70° 50
DE ■= — 1--------- :------ -----■ ------
Sin 42°40
2,423.62 m ( L e n g t h of l i n e D E )
2 . O M IT T E D M E A S U R E M E N T S . Given the following sketch and ta
bulated data for a closed traverse in which the lengths of BC and
CD have not been measured in the field. Determine these unknown quan
tities.
L A T IT U D E S DEPARTURES .
L IN E LENGTH B E A R IN G
+N -S +E -w
AB 6 3 9 .3 2 m N 0 9 *3 0 'W 6 3 0 .5 5 10 5 . 5 2
BC Unknown N 5 6 * 5 , 5 'W
CD Unknown S 5 6* rVw
DE 5 7 0 .5 3 S 0 2 * 0 2 'E 5 7 0 . 17 2 0 .2 4
EA 1 ,0 8 2 .7 1 S 8 9 * 3 1'E 9 . 13 1 ,0 8 2 .6 7
, .S U M S +6 3 0 . 5 5 -5 7 9 .3 0 ♦ 1,1 02.9 1 - 1 0 5 . 5 2
441 O M IT T E D
M EA SU REM EN TS
S o lu t io n :'
a) Determining Length and Bearing of Closing Line.
Cl - JN L *
JE D *
n
Lbd a v t / +
3 998.71
Tan cCbd =
- cD I . W I .J3 - + I Q / Cl o c q
-cL
-(+51.25) ' - 5 1 .2 5 ' + 19-461268
87° 0 4 1 (T h erefo r* th e b e a r i n g of th e closing lin e BD is S87*04'W)
56O 13
IO ✓ >..30
nnJ56*55‘
AA
vv5685^!
998.71 1A
87 0 4\k
By Sine Law
BC CD BD
Sin D Sin B Sin C
BC CD 998.7 1
Sin 30°51 Sin 36°0I Sin 11 3 08
BC = 998.71 Sin 3 0 ° 5 l‘
Sin 113°08
556.91 m ( L e n g t h of l i n e BC)
SUMS + 0 .0 0 - 2 , 3 3 8 . 7 1 + 1 ,0 3 8 .3 3 - 1 , 6 0 9 . 5 4
0 (S N L) (S S L ) (SED ) (2 W D )
S o lu tio n :
o) CL - SN L + SSL =+ 0.00 + (-2,338.71) = - 2,338.7! m
SED * SWD = +1,038.33 + (-1,609.54) *= - 57 1.21m
~ CD _ -(-571.21) _ •+571.2! = +Q . 4 4 3 4 1
Tan cCda = ~CL - ( - 2 3 3 8 . 7H +■2338.71
|3 ° 4 4 ' ( T h e r e f o r e the be a rin g of the c l o s i n g line DA Is
■ ^do" N I3 °4 4 'E )
VM!r1
U£A SU/UkiCNTS
b) Determ ining b e a r in g s of lin es DE and EA.
; \
Fig. 41-13.
J j 7 3 7 j)8
»3*44*
By Cosine Law
omit
.449,
2 5 0 6 . 9 4 ( Sin 6 6 ° i 5 l)
Sin A = = 0.953134
2,407.46
.< A = 72*23'
ofution C h e ck:
B * *
_ ' < A + <X D + <E > 180°00' *
72*23' + 4 I°2 2 ‘ + 6 6 °I5 ' = 180°00'
! 8 0 ° 00' = I8 0 °0 0 ' ( C h ec k s )
About station D
•©• - <D -
O I13°441 = 4I°22' - I 3 > 4 ‘
= 27 38 ( T h e r e f or e the bearing of li ne DE is N 2 7 ° 3 8 ' W )
About station £
= I80°00‘
& ■ < E - -0- = I 80*00* - 6 6 * 1 5 ' - 2 7 * 3 8 '
- 86 07 ( T h e r e f o r e the beari ng of line EA Is N 8 6 P0 7 ' E )
r r V y w w w B i * hit. A su /o c M t n t*
OMITTED
MEASUREMENTS
42-1. CASES Of OMITTED MEASUREMENTS INVOLVING NON-ADJOINING
SIDES
1. Length oi One. Side and Beaming oi Anothex Side Omitted
2. Length* oi Two Side* Omitted
3. Beating* oi Two Side* Omitted
42-2. ILLUSTRATIVE PROBLEM
1. Omitted Mea*unement* ( Non-Adjoining Side*)
lesson 42
U t.iu X tittH T t .451
42-1. CASES OP OMITTED MEASUREMENTS INVOLVING NON-ADJOIN
ING SIDES.
53>
previously plotted traverse. In this example the locations
of sides c and d have been interchanged. The transformed
figure now shows that the sides with unknown quantities are
made adjoining. The problem of determining the unknown
quantities is now seen to be identical with that of a case
whose sides are adjoining as explained in lesson number 4! .
2. Lengths of Two Sides Omitted. • Given in Figure 42-3
are the lengths and directions of sides AB, CD, DE, and
direction of the non-adjoining sides BC 'and EA are the
,45; O M ir f t r p - •
H KASufitufrirt
The transformed figure now shows that the sides with
anknown quantities are made adjoining. The problem of de
termining these unknown quantities is now seen to be * iden
tical with that of a case whose sides are adjoining as
explained in lesson number 41. 4
For this'particular case, it must be noted that as the
angle between the unknown sides approaches 90 degrees, the
solution becomes strong, and as the angle approaches 0
degrees or 180 degrees, the solution becomes weak. The
problem becomes indeterminate when the lines are parallel.
3. Bearings of Two Sides Omitted. Given in Figure 42-5
are the lengths and directions of sides BC, DE, and EA;- and
the length of sides AB and CD. The bearing of the non-
adjoining sides AB and CD are the unknown quantities.
Following the same procedure outlined in the first two
cases, the traverse is plotted to scale based on the given
data and with the sides drawn in the order a,b,c,d, and e.
The transformed figure is arrived at by .rearranging the
order of the sides into b,d,e,a, and c as shown in Figure
42-6. •
Again, the closing line divides the figure into two
parts. The first part is formed by the known sides (b,d,
and e) and the closing line; the second part by ^he unknown
sides (a’and c) and the closing line. Since the transformed
figure hu:. the unknown quantities now adjoinihg, the prob^
lem <>l determining the unknown quantities is again seen to
OMirrru
number 41.
It will be noted that when the unknown sides are paral
lel but are hot of the same length, their direction is that
o f the closing line. However, when the unknown sides are
parallel and are also of the same length, the solution for
the problem becomes indeterminate since the length of the
closing line becomes a point'. ’.
L A T IT U D E S DEPARTURES
COURSE BEA R IN G D IS TA N C E
+N -s +E -W
AB S 9 2 *3 0 'E 6 2 0 .0 6 2 7 .0 5 6 19 . 4 7
BC N 30*30* E Unknown — \ -
CD S 4 2 *4 5 'E 6 9 1 .5 6 5 0 7 .8 3 4 6 9 .4 3
DE S 60*40*W 0 6 8 .4 8 3 3 7 .2 8 60 0.21
EF N 7 4 * 05* W Unknown — ■— ,
FA N 0 7 *0 2 'E 4 1 2 .3 5 4 0 9 .2 5 5 0 .4 9
Sums + 4 0 9 . 2 5 - 8 7 2 . 1 6 + 1139.39 - 6 0 0 . 2 1
oM
m NCM•CttrS
/rrto
ASV
b) Drawing an equivalent transformed figure.
CD = J E D * J W D . = + 1139.39 + ( - 6 0 0 . 2 1 )
* + 5 3 9 .1 8 m ( d i f f e r e n c e between east and w e s t de par t ur e s )
Tan cCCL =
-C r -(+ 539. 18) - 5 3 9.18
~°L -(-462.91) +462.91 = “ I 164762
oCri = 4
-t 9 2
c.Ii ( T h e r e f o r e , b e a r i n g of th e c l o s i n g lin e Is N 4 9 * 2 l ‘ wi
45a
A R £A
C O M P U T A T IO N S
Part IX: Lesson Nos. 43 Thru 46
L
AREA
COMPUTATIONS
43-1. METHODS OF DETERMINING AREA
43-2. AREA BY TRIANGLES
1. Known Base and. Altitude
2. Two Sides and Included Angle. Measured
3. Three Side* Measured
43-3. AREA BY COORDINATES
43-4. ILLUSTRATIVE PROBLEMS
1. Area By Triangles
2. M en By Triangles
3. M en By Triangles
4. M en By Coordinates
5. Area By Coordinates
Lesson 43
r\n at tohf, ,4 61,
43-1. METHODS OF DETERMINING AREA
AHCA c o m -
F o rA n ohs
2. Two Sides and Included Angle Measured. When tlfti
lengths of two sides and the included angle of any triable
(Fig. 43-2) are known, its area is given by the following
formula /
Where: ,
A = area of the tract of
land (sq. m.)
s = one half of the peri
meter or ( l/ 2) (a + b+ c),
where a, b, and c are
the sides of the triangh
<’A/
AOf A (
r\n at tout ,463
used are the total latitudes and total departures for the
corners of the closed traverse. If the coordinates have
been determined accurately it will follow that the area
determined will also be accurate.
Fig . 43-4. Knia. by caMcUnaXti.
C O O R D IN A T E S
CORNER
(T O T A L D E P ) (T O T A L L A T ).
A X. V
B x2 y2
C X3 V
0 X4 Y4
Area of ABCD = —
*3
Area =
y,
A REA CO M -
ROTATIONS
tal departures; Y, , Y2 , Y3 , and etc. are the Y-eoordtr
nates or total latitude; and the subscript »n is the last
numbered corner of the closed traverse.
It is advantageous to have the traverse portrayed in
one quadrant so that the coordinates of all points are
positive in sign. When this is not done, the north ordif
/nates are taken as positive and t he’south ordinates as
(negative. Also, the east abscissas are taken as positive
|and the west abscissas as negative. *
The algebraic signs must be considered carefully during
computations. It will be noticed that some areas may be
positive values while others negative. The sign of the
lesulting quantity is immaterial and is disregarded.
A abc = ( l / 2 ) ( A C ) ( B C ) S i n C ,
= 0 / 2 K 2 1 1 .2 5 ) (2 5 8 .7 3 ) S in ( 2 9 ° 4 7 5 5 "
= 1 3 , 5 8 0 . 9 5 sq.m, or 1 . 3 5 8 Ha ( A r e a of t r i a n g l e AB C)
• *
Note: Since tfre .area of the triangle as computed by the two solutions
(iro equal,it can be safely assumed that both solutions are correct.
2. A REA BY T R IA N G L E S . A surveyor sets up a transit at P
Ateta iiw• ,4 6 ;
r or A n ON4
which is lo c a t e d in the middle portion of a four - s id e d tract of land and
r e a d s directions and m easu res d i s t a n c e s , a s given below, to the five cor
ners. Find the area of the t r a c t , in square m eters.
So lu tio n :
a) Calculating the Angles about Station P!
Fig. 43-6. T\ac.t divided into iotix txiaAgte^.
466.
c) D e te r m in in g t h e T o ta l Area:
Solution:
<i) Determining Length of Sides by Sine Law.
_r
BE AB
Sin 0 -| Sin •0 -3
(AB) Sin -e-i 2 6 8 . 7 0 Sin (96°30*)
BE Sin-Os ~ Sin (53°00')
= 3 3 4 . 2 9 m ( L e n g t h of ttne B E ?
CE BE
Sin -d-4 Sin -O5
(BE) Sin -0-4 3 3 4 . 2 9 Sin (57° 15')
CE SinO's Sin (78°23’)
287.03 m ( L e n g t h of line C E )
PE. = CE
Sin 0-7 Sin -Os J
(CEl^inO-r 2 8 7 . 0 3 Sin ( 6 4 ° 4 0 ‘)
DE = Sin.e8 = Sin ( 8 7 ° ! 0 ’)
- 259.74 m (Length *of line DE)
67,
Acde= (I/2)(CE)(DE) Slne9 » (1/2)(287.03)(259.74) Sin (28° ! 0 ‘)
« 17, 5 9 5 . 9 6 sq m (Ar*a of trlqnol* CDE)
c) Determining the Total Area. . N
1-2 490.71 4 7 .2 7
2 - 3 587.12 6 0 8 .8 9
3- 4 327.41 7 8 6 .7 8
4- 5 1002.76 2 1 8 .3 2
5- 6 122.67 III 6.6 2
6- 1 375.01 5 4 4 .6 4
So lu tio n :
a) Determining Coordinates of Each Station:
TOTAL L A T IT U D E S (V): TOTAL DEPARTURES (X ):
4C-0-
b) Calculating the Double Areas:
PLUS DO UBLE A R E A S MINUS DOUBLE AREAS *
c) Tabulated Solution:
SU MS + 6 8 0 ,7 7 9 .0 7 - 4 , 1 1 0 , 9 7 1 .61
AB 3 5 2 .0 0 3 9 5 .6 0
BC 2 3 .4 0 591 .6 0
CD • 5 5 8 .2 0 7 8 .3 0
DE 10 2 . 5 0 7 4 6 .3 0
EA 2 8 5 .3 0 ’ 3 I 9 .2 0
>;u m s + 6 6 0 .7 0 - 6 6 0 .7 0 + 1 0 6 5 .5 0 - I 06 5 .3 0
S
olu
tio
n:
a) D e te r m in in g C o o r d in a t e s of E a c h S t a t i o n :
TOTAL L A T I T U D E S ( Y ) : TOTAL DEPARTURES (X)l
250.00 (Sta A) 3 00 . 00 (Sta A)
+ 3 5 2. 0 0 (L.at of Line AB) + 3 95 .6 0 (Dep of Line AB)
602.00 (Sta B) 6 95 .6 0 (Sta B)
+ 23.40 (Lat of Line BC) + 5 91.60 (Dep of Line BC)
625.40 (Sta C) 1287.20 (Sta C)
- 558.20 (Lat of Line CD ) + 78.30 ( Dep of L ine CD)
67.20 (Sta D) 1365.50 (Sta D)
- 1 02 .5 0 (Lat of Line DE ) - 746.30 ( Dep of Line DE)
- 35.30 (Sta E) 61 9.20 (Sta E)
+ 285.30 (Lat of Line EA) - 3 19. 20 (Dep of Line EA)
250.00 (Sta A) 3 00 .0 0 (Sta A)
3 0 0 . Qp (6 0 2. 0 0) = 18 0 , 6 0 0 . 0 0 1365.50 ( - 3 5 . 3 0 ) = 48,202.15
6 9 5 . 6 0 ( 6 2 5 . 4 0 ) = 4 3 5, 0 28 .2 4 2 50. 00 ( 6 9 5 . 6 0 ) = I 73,900.00
1287.20( 67. 20) = 8 6, 4 99 . 84 6 02 .0 0 ( I 287..20) = 774,894.40
6 1 9 . 2 0 ( 2 5 0 . 0 0 ) = 154,800.00 6 2 5 : 4 0 ( I 3 65.50) '= 85 3,983.70
3 5 . 3 0 ( 3 0 0 . 0 0 ) *■ 10,590. 00 67.20 ( 6 1 9 . 2 0 ) = 41,610. 24
Total Plus Double Areas * t 867 ,5 I 8.08 Total Minus Double Areas = 1,^92,590.49
c) Tabulated Solution:
4 7 .0 .,
AREA
COMPUTATIONS .
Lesson 44
44-1. DOUBLE MERIDIAN DISTANCE.
A f it A c o y -
P U T A T tO Nt .4 7 3 ,
RULE 2: The DPD of any other course is equal to
the DPD of the preceding course, plus the latitude
of the preceding course, plus the latitude of the
course itself*
Where 5 NDA and 2SDA are the sums of the north double
areas and south double areas, respectively.
Strict attention to signs is absolutely necessary in
the computation of areas by this method If the total minus
double areas is lafger than the plus double areas,* it only
signifies that the double meridian distances were computed
by going around the traverse in a clockwise direction. The
negative sign in the result of computing an area may. be
avoided if a counterclockwise direction is taken instead.
In so doing, all the latitudes of the courses assume oppo
site signs, thus reversing the sign in the final result.
However, it doe's not really matter if the final value is
either positive or negative. If a negative sign is encOuh-
tered, it is simply ignored,
A quick check of areas computed by the DMD method ntay
be made by moving the reference meridian to another corner
and repeating the calculations. Another c^heck could also be
made by computing the area by the double parallel distance
(DPD) method as explained in Article 44-4.
It should always be remembered that before the DMD
method can be applied properly, the latitudes and depart
ures of the traverse should first be adjusted such that the
figure becomes a closed polygon. This means that the
algebraic sum of the north and south latitudes is exactly
zero, and the algebraic sum of the east and west departures
is also zero. When the.DMD method is employed, it is
important to tabulate the traverse data accordingly. A good
tabulation provides a systematic and a well-organized 'ap
proach to the required calculations. The sample format
illustrated in Figure 44-2, which applies to the plotted
traverse in Figure 44-1, is usually adapted.
Fig. 44-2. Tabulation o{ tAavm&e. data. .
EA •
SUMS SN L SSL SED ZWD 2ENDA S SDA
Where > KI>A »nd 5jWDA are the sums of the east double areas
AmiA1o¥
rutAnomt ,4 7 5
and west double areas, respectively.
As in the DMD method, algebraic sigps should be given
due regard. For any.particular traverse, the area deter
mined. by the DPD method should equal that computed by the
DMD method'. It is for this reason that the DPD method is
often used as a check on area computations when the adjust
ed latitudes and departures are known or can be determined.
= 2 , 205. 90 x (- 122.67)
«<
•D
- o
2 x AREA = - 3., 4 3 0 , 1 9 2 . 5 4
• f AREA = - 1, 7 1 5 , 0 9 6 . 2 7 sq m (The negative sign Is disregarded)
T a b u la te d S o lu tio n :
2. AREA HY D O U B L E P AR A L L E L DI ST AN CE M E T H O D . Using
, V , W , Z
A -----,477
the given data in problem no. I, determine the area of the closed-traverse
by DPD method.
i
a) Computation of DPD's : (R e fe r to R ules fo r Computing DPD)
4 9 0 .7 I 1•
4 9 0 . 7 1 +. 4 9 0 .7 1 + 5 8 7 . 12 = 1,568.54
DPDbc =
1, 5 6 8 . 5 4 + 5 8 7 . 12 - 327.4 1 = 1,828.25
0PD* >
327.41 - 1,002.76
DPDd.= 1 , 8 2 8 . 2 5 = 498 .0 8
Dp Dtf = 498. 08 -• 1 , 0 0 2 . 7 6 - 122.6,7 =- 627.35
Therefore:
2 x AREA = + 3,430,192.56
AREA = + 1,7 I 5 , 0 9 6 . 2 8 sq m
T a b u la te d So lu tio n :
DOUBLE AREAS
LINE DPD
+ EDA + WD A
• SUMS + 3 ,4 3 0 , 192.56
AMEA
COMPUTATIONS
45-1. AREA BV OFFSETS FROM A'STRAIGHT LINE
45-2. TRAPEZOIDAL RULE
45-3. SIMPSON'S ONE-THIRD RULE
45-4. ILLUSTRATIVE PROBLEMS
1. TAapzzoidal Ruiz
2. S'tmp^onU Onu-Thiid Ruiz.
3. lAA.zguIaA.lt/ Spaczd O^fazto
Lesson 45
A fik A C U M ’
PUTATIONA
45-1. AREA BY OFFSETS PROM A STRAIGHT LINE.
ARC) Rea
MVTM ROTATIONS
a com -
Introduced by this assumption. In each trapezoid (Fig. 45-
l) the adjacent offsets are taken as the .bases and the
rommon interval between offsets as the altitude.
The offsets are assumed to be spaced at regular inter
vals and the area of the whole tract.equals the areas of
the enclosed trapezoids. Thus, in Figure 45-1, the area
hounded by the irregular boundary (from C to D )/> the base
line (AB), and the end offsets (h, and hn ) is determined
.is follows
h; + h. h „ + h, h .♦ h
»«•••• + — -)d Eq.(U
a = )d + <— ■2) d
{- L-r 2" +
In Eq. (1), it will be noted that the first and the last
offsets octrur only once and the other intermediate offsets
odcur twice; ‘also, the interval between offsets (d) occurs
a factor in every term. By factoring out d, and simpli
fying the above equation, the area is obtained by the
tollowing equation
W here:
h2 , h 3 , e tc = in te rm e d ia te offse ts
h n. , = last in te rm e d ia te offset
.N “ *
The rule also -assumes that the series of parabolic-
curves will approximate the boundary line more closely
than a series of straight lines, and that it will also
yield an area which'will be more accurate. Simpson's one
third rule is derived by passing a parabola through the ex
tremities of any three- consecutive offsets. The area of th»*
parabolic segment formed by the chord and the curve in
tvTAnCoONMs
-
Fig, 45-5, Principle. o{ SiapAon'A Ont-Thikd ttU t,
,184, 4 R EA COH -
P U T A T / O .S S
hi + hl0
AREA = d( ■ + h2 * h3 + h4 ♦ h5 + hg ♦ h? ♦ hg + hg )
,48 8 + 3 9 7 0 + 4 3 6 3 -45.4
2410.9
AREA 2410.9/2 = 1205.5 s q . m.
46-1. THE PLANTMETER
1. (Me of the Ptanimten
2. M e a by Planimetek
46-2. AREA BV GRAPHICAL HETHOV
46-3. AREA BV COORDINATE SQUARES
46-4. ILLUSTRATIVE PROBLEMS ’
1. An.ea by PlanimeteA
2. Amjl by Planimete*
Lesson
46-1. THE PLANIMETER. .
<468, 4A £ A COM -
r u T A T IONS
results can be obtained to within 1 / 2 to 1 per cent if the
device is carefully manipulated. The obtainable precision
is sufficient for such purposes as determining drainage
areas, cross section and contour areas for earthwork-compu
tations, and reservoir areas and volumes. It is also
suitable for checking areas determined by more accurate
methods. Because of its precision and facility in opera
tion, the planimeter is useful for determining plotted
areas of any shape whatsoever.
' D
l V• *
Given ii> the accompanying scaled sketch (fig. 46-6) is a
hexagon (ABCDEFA) j</hose area is to be determined by first
converting it into a triangle^ of equal area. To produce a
triangle equivalent in area to the original figure, it is
necessary to eliminate three out of the six corners since a
triangle is formed by only three corners. ,In this example,
it will be shown how corners B, C, and E are eliminated.
Since AP is the longest line in the given figure, it is
designated as the. base line. It is preferable^ for conven
ie n ce , In i.elect the longest line in the original figure as
the line, although it is not necessary nor required.
Within the limits of the paper, line AF is extended to the
left of A and also to the right of F. To eliminate corner B
and still maintain an equivalent area, a line is drawn from
A to C and another line is also drawn parallel to it
through B. Where the line through B intersects the base
line, establish a point and call this B'. Connect points C
and B' with a straight line. Note that triangle A B 'C has
the same area as triangle ABC since' both triangles have the
same base and altitude. It will also be noted that the ori
ginal hexagon is now reduced to a pentagon (B'CDEFB') but
still maintaining an equivalent area. The original figure
is now reduced bygone corner, B. . . .
To eiinunare another corner, such as E, a line is drawn
from D to F and another line is also drawn parallel to it
through E. Where the line through E intersects the base
line, a point is established and called E'. Points D and E'
are connected with a straight line. This time, the pentagon
(B'CDEFB') is now reduced to a rectangle (B 'CDE'B ') but
still maintaining an equal area. The previous figure is
thus reduced by another corner, E.
To finally form a triangle of equivalent area to the
original hexagon, corner C has to be eliminated. A line is
drawn connecting points D and B' and another line is also
drawn parallel to it through C where the line through- C
intersects the base line, establish a point and call this
C'. Connect points D and C' with a straight line. It can
now be seen that the original hexagon has been reduced to a
triangle formed by C r, D, and E*. The area of this triangle
should still be equal to the area of the original hexagon. ’
Through point D, construct a perpendicular to the base
line and where it intersects the base line establish point
D'. Using a scale, measure accurately the length of DD ' and
designate this as the altitude of triangle C 'DE '. Also mea
sure the length of C'E' and designate this as the base of
triangle C 'DE', and since the base and altitude of the
triangle can be measured, the area is then easily computed
by the following formula
492 , A » 4 A COkt-
r u t a t to A fi
figures are involved, the polar planimeter may be better
employed in determining 1areas.
At -- 9 cm2 ( a r e a of the t e s t f i gu r e ) {
A, = D I F F . (~ ~ h = ~ ) = 1 4 9 6 (% £ P r )
8 ' DI FF 58
= 2 3 . 1 7 cm ( a r e a of t h e s c a l e d f i g u r e for s pe c i f i c case)
A = — 5 = 23.17 ( 25 0 0 m2)
a (SR)2 (lcm/50m)2
= 5 7 , 9 2 5 m2* or 5 . 7 9 2 5 h a (a c t ua l a r e a of sp e c i fi c ca se )
Solution:
a) Determining a verage reading on t est fi gure,
diff, = 3680 - 2 0 7 0 = 16 10
d iff2 = 5289 - 3 6 8 0 = |6 0 9
diff, 6901 - 5 2 8 9 = 16 12
Ave Difff = (diff^ + diff 2 + diff3)/3
= (1610 + 1 6 0 9 + I6 12) / 3
= 1610.33 ( a v e r a g e d i f f e r e n c e between readings during t e s t )
A» = o i f f * ( dTf f ; ) = 7 8 5 -5 ( i ^ # )
= 4 8 . 7 8 cm2 (ar ea of the sc a l e d fi gure for spe c i f i c c a s e )
A„ =
0 (SR)2. ' 7'( rf c'^m f/ tnO'nO~m
2' T2
)2 = 4 8 7 , 8 0 0 m 2
= 4 8 . 7 8 ha ( act ual a r e a of speci fic case)
494. A P S A CO At -
P U T A T tO H S
p a r t it io n
OF LAND ^
-- Lesson N
47 Thr
••
'>•:
.
PARTITION
OF JLANO
JL&ssoit 47
..hinnon ,497.
Of L**0
47-1. SUBDIVISION OF LAND.
ft
The subdivision of land is a usual task undertaken by sur
veyors and engineers in property surveys. When tracts of
land .are sold or innerited it is often necessary to divide
it into smaller parcels or into areas having certain pro
portions to each other.
There are numerous problems which may arise in the sub
division of land. The process of subdivision may require
the application of the principles of geometry and trigono
metry or the use of special techniques in computations.
Other cases are performed by trial-apd-error methods. This
usually involves an initial assumption such as the starting
point or the direction to be taken by a selected cut off
line which will separate a certain area from the main
parcel. Most of' the problems encountered are so common and
frequently involved in the working out of more complicated
cases.
In this lesson and the succeeding lesson, four of .the
most common cases encountered in the subdivision of land
will be explained. These cases are:
RAA RARItTlOR
o f LA ND *
the values computed from the sine or cosine of angles.
It is obvious that the solution of this .type of problem
Is greatly facilitated -by first plotting the traverse
before working out the rjecessary computations.
SUMS
o
S o lu tio n :
a.) Determining Area of Tract ABCDEF
(Area of whole traverse):
2 X AREA = - 3 , 4 3 0 , 1 9 2 . 5 4
AREA - - 1, 715 , 0 9 6 . 2 7 sqm or
- 1 7 1 . 5 0 9 6 Hectares (Area of Tract ABCDEF with netfo t|v<
llgn disregarded)
Lf
l Vr/ a
tfc
r+(Depfc f
501.
L fc * l [ ( 1 4 5 2 . 8 4 )2 + ( I H . S 2 J 2 '
* 1 4 5 7 .1 1 m v (Length of line FC):
. Dep,- 1 11.52
0 .0 7 6 7 6
1 4 5 2 .8 4
^fc, = 040231 ( B e a r i n g of l i n e F C is N 04*23‘ E )
2 x AREA = - 2 , 3 2 6 , 0 6 1 . 4 !
AREA = - i , 16 3 ,0 3 0 .7 1 sqm or -
-» I I 6 . 3030 Hectares* { A r e a of T r a c t C O E F w i t h n e g a t iv e
■, ; sig n d i s r e g a r d e d )
So lu tio n C h e c k :
a) Considering Tract FABC (A re a w est of the d i v i d i n g l i n e ) .
~T T
L c/ r ^l<Lqtc f ) 2 t CDepcf/ ' = i ( - ! 4 5 2 84)2 V (- IU .52)5
4 5 7 . i m ( L e n g t h of l i n e CF)
| Jg e iL =*0.07676
cf
e-cf *; 04° 2 3* (B e a r i n g of li n e C F is S 0 4 ° 2 3 l Wi)
: TABULATION FO R T R A C T FABC.
O
O
5 0 2 _ _ - P A R T IT IO N
——. r t M n m O/r . AMO
A R EA * - 5 5 .2 0 6 6 H ectares ( A r e a of T r a c t FABC with n e g a t iv e
sig n d i s r e g a r d e d )
AB 49 0.71 m 47 . 2 7 m
Pig. 47-4. PaAcel oh land to be
BC 5 8 7 .1 2 6 0 8 .8 9 divided by a line. Running in a given
CD - 3 2 7 .4 1 78 6 .7 8 dictation.
DE - 1 0 0 2 .7 6 2 1 8 .3 2
EF 12 2 .6 7 - 1 1 1 6 .6 2
FA 37 5.01 - 544. 64
SUMS 0 .0 0 0. 00
\
Solution:
a) Determining Area of Tract ABCDEF.
2 x AREA = - 3,430,192.54
AREA = - I ,7 I 5 .09 6. 27 sq m or
= - 17 1. 510 Hectares (A re a of T r a c t A B C D E F with negotjve
* sig n disregarded)
b) Considering Tract EFA
>>'IAkMiIn'
= 1680.32 m (Length of trial line AE)
I661.26
ron'^ - = * 6.5834192
- 2 5 2 .3 4
■0-ae = 81° 22' (B e a r i n g of tr ia l line A E Is S 8 I ° 2 2 ' E )
B y S in e L a w :
PE AE
Sin A Sin P
AP = (AE) Sin E = 1680.32 Sin ( ^ O S 1) _
1570.76 m (Length of dividing
Sin P " Sin (87°47') line AP)
PE = (AE) Sin A = i680.-32S.in (23°08l)
660.65 m (Distance of point P
Sin P “ Slrr(87°47') from station E )
d) Considering Tract PEFA.
504, PARTITION
O F L A NO
Depap - (AP)Sin (75o30')
. = 1570.76 Sin (7 5 °3 0 ‘) = 1520.73
Lat = (PE) Cos ( 12° I 7*) = 660.65 Cos{ 12° 171) = - 645.53
r fJV (PE)Sin (12° (7 ‘) = 660.65 Sin u 2° 17') = 140.55 .
Depno=
N ote: Since the latitude ana departure o f lines EF and FA are known and
adjusted, only the latitude and departure o f tines PE and AP are adjusted
Also, considering that the error In latitude and departure are negligible,
arbitrary adjustment Is performed to balance both latitudes and departures
prior to determining DMD and Double Areas.
e) Considering Tract ABCDP.
Latdp= (DP) Cos (12° 17') = 365.60 Cos ( 12° 17') = - 357.23 m
Dep = (DP) Sin (12° 17*) = 365.60 Si n (12° 17') = 77.78m
dp
L_atpa = - Latop = -(+ 3 9 3 .2 9 )= - 393.29 m
•Dep = - Depn = -( +1520.73) = -1520.73 m *
pa
COURSE LAT DEP LAT CORR DEP CORR ADJ LAT ADJ DEP
AB 490.7 1 47.27 0.00 0.00 490.7 ' 47.27
BC 587. 12 608.89 0.00 0.00 587.12 608.89
CD - 327.41 786.78 0.00 0. 00 - 327.41 7 86 78
DP - 357.23 7 7 . 78 0.05 0. 00 - 357.18 77. 78
PA - 393.29 - 1520.73 0.05 0.01 - 393.24 - 1520.72
SUMS 0.10 0.01 -0.10 - 0.01 0.00 CL00
2X AREA = - 1 , 9 0 7 , 6 4 0 . 6 6
ARI A * “ 9 5 3 ,8 2 0 .3 3 sqm or - 9 5 . 3 8 2 Hectares (Area of Tract
AB CDP with negative sign d i s r e g a r d e d )
FA N 1 I1 IO N
iV < A N l) ,505,
N ote: Since the latitu de and departure o f lines A B , B C , and CD are known
and a d ju sted , only the latitude and departure o f lines DP and PA are ad
ju ste d A lso , considering that The e rro r in la titu d e and departure are neg
lig ib le , arbitrary adjustm ent Is perform ed to oa/ancq both latitudes and
departures p rio r to determining DMD and Double Areas.
Solution C h eck:
AREA ABCDEF = AREA PE FA + AREA ABCDP
1 7 1 .5 1 0 Ha = 76.128 Ha + 95.38‘2 Ha
I 71 . 510 Ha = I 71.510 Ha (Ch«ck«) .
.50$, PARTITION
0 / LAPP
PARTITION
OF JLAND
Lesson 48
48-1. TO CUT OFF A REQUIRED AREA BY A LIME THROUGH A GIVEN
POINT.
In Figure 48-1, ABCDEF represents an irregular parcel of
land with courses of known lengths and directions,, with
computed and adjusted latitudes and departures, aiid. its to
tal area already determined. ''
A -dividing line is to pass through point F cutting a
required area from the tract. The traverse may be subdivi
ded into tracts of equal areas or into*any desired propor
tional parts.
Before the length and direction of tfie dividing line
can be determined, a trial line BF is drawn to that corner
of the traverse which, from inspection of the sketch, will
'come nearest to the required line of division. In the
traverse ABF the latitudes and departures of FA and AB are
known except those of BF. This is a simple case of omitted
measurements where the latitude, departure, length, and
bearing of BF are easily determined. By the DMD or ' DPD
method, the area of ABF is calculated and the difference
between this area and that required for tract FABQ is
found.
.508,
2(Area BFQ)
Area BFQ = {I/2)(BF)(BQ) Sin(<FBQ) and BQ CBF) Sin (<FBQ)
Where: - included angle
<FBQ
= triangle formed by the trial line, dividing line,
BFQ
j
and side BQ
:
v■ ’
BF = known side (trial line)
The triangle is then solved for the length of the dividing
line FQ by applying the cosine law. Also, by applying the
sine law, angle BFQ is determined and the bearing o f F Q is
Computed. The latitudes and departures of lines FQ, BQ, and
QC are also computed.
As a check, the areas of the two tracts are calculated
independently based on the given and calculated latitudes
and departures. The sum of the areas of the two tracts
should equal the area of the entire parcel.
In the field, the length FQ is laid off in the required
direction, and a check on fieldwork and computations is ob
tained if point Q thus established falls on line BC and if
the computed distances BQ and QC agrees with the measured
distances.
Sometimes, the tract will be of such shape that a line
drawn from the given point in the boundary to any corner
will cut off an area nowhere near that required. Under
these circumstances or when the, traverse has a large number
of sides, it is advisable to first plot the traverse to
scale and to establish a trial line of subdivision.
• As a rough check the planimeter may be used to advan
tage for determining the area cut off by a trial line. The
line may be shifted until the area cut off agrees closely
with that required. '
4 8 - 2 . TO CUT OFF A REQUIRED AREA BY A L IN E RUNNING IN A
GIVEN D IR ECTIO N.
P A H t I T ION
or LAND .509,
_________ _ _______
' *•
F ig . 4 t-2 . To cut o&$ a -AcguiAzd anca
by a tine, stunning in a given diAe^tion
line ( P a r a l l e l to MN)
lin e
* side QM
■®ne = ^de 8: bearing angle of side DE or
dividing line side NE
•e = 90° - ^qm '= 90° - -e-a5
V = 90° - ^ne = 90° - e de
t r i a l line d = PQ = ER
i -e- = MP i M P - d Tan &
d «
Hr * NR i NR * d Tan Iff
d
e- = QMd QM * d / C o s &
»
d
Cos TJT =
NE
r A n r 'T io m
before the, lengths 6£ AQ and QE ate determined /from
triangle AEQ. Since the laititudes' and cfWj^attures of the
traverse EFAQ>are either known o* Can be calculated, the
area ciit off by the trial line may then be determined by
the DMD or DPD method. The difference between this $rea and
that required to^bies cut off, is represented ir\ the figure by
the trapezoid MNEQ (see' Figures; 4$~2 and 48“-3) in; which •
side QE is known. . The angles ■©■ and .can be computed from
the known bearings of adjacent sides.
The area of the trapezoid MNEQ is:.calculated by the
following equation t ' 1
- ’\ ■ ' '' ■;'J
■ A re a MN£Q = Area GPRE - Area ENR + Area QMP m .;
= (QE) d -<I/£)<NR)(ER) + (l/2)(MP)(PQ)
i = (QE)d - M / 2 ) ( d Tan y ) d + (l/2)(d Tan>e)d
« (QE)d - (da/ 2)(Tan t - T a n -9-)
;\r-, - •!.. ; ■
.' i -.
The altitude of the trapezoid (d) represents the distance
of the dividing line from the trial line. Its value is
found by solving the above equation since it is the only
unknown in the equation. The length of the dividing line is
then’determined as follows:
% MINT = QE - NR + MP
, v . = QE - d Tan i j r + d Tan
= QE - d(Tanijr - Tan-9-)
In the field, the points M and N are established on
lines AB and DE, at the calculated distances from 'the
adjacent corners. The length MN is then measured. If this
measured value agrees with the computed value, a check is
provided. A further check- is made on the computations by
calculating the area of tract BCDNM and comparing it with
the# required area.
PARTITION
IN l ANI> 511
f i g . 46-4. Teact o < land, to be.,cut o ^
by a tine, through a given point.
S o lu tio n :
a) Determining Area of Tract* ABCDEF
2 x AREA = - 3 ,4 3 0 ,1 9 2 .5 4
AREA = - 1,71 5 ,0 9 6 .2 7 sq m or
= - 17 1.510 Hectares (Area of Tract' ABCDEF with negative
sign disregarded)
b) Determining the area of each tract.
Area BCDP + Area PEFAB = Area ABCDEF
Since: Area BCDP must be equal to Area PEFAB ,
Area PEFAB = Ariq-ABCDEF _ .1,7 .15,096.27
= 8 5 7 ,5 4 8 .1 4 sqm or 85.75 Ha
c) Determining length and direction of trial line.
2 L a t = SN L t S S L = Lat.be + Latca. + Lat..
db = 0.0
587.12 - 327.41 + Latdo. = 0.0
Latdb = -2 5 9 .7 1 m (Latitude of trial line DB)
SD ep - J E D +■IW D - Depbct Depcd+ Depdb = 0.0
608.89 + 7 8 6 .7 8 + Depdb = 0.0
Dep^b = -1,395.67 m (Departure of trial line D8)
•
____________ ____________________—— *
— -— ?n
L d b = V('L a tdb) 2 + (Depdb) 2 = 1 ( - 2 5 9 .7 1)2 + (-1395.67)
= 1419.63 m (Length of trial line DB)
512 lAN0V
?. x AREA = - 6 6 1, 2 9 0 . 9 5
AREA 3 - 3 3 0 , 6 4 5 . 4 7 s q m or
3 - 3 3 . 0 6 5 Ha (Area of Tract BCD with negative sign disregarded}
e) Determining area and parts of t ract BDP.
Area BDP 3 Area BCDP - Area BCD 3 8 5 7 , 5 4 8 . 1 4 - 3 3 0 ,6 4 5 .4 7
3 5 2 6 9 0 2 .6 7 sq m or 5 2 .6 9 0 Ha
\v •
/ DePd6
Tan(^dp) 3 T a n t e j = £ 5^
218.32
' -1002.76
= -0.217719
■0-. '3 12° 17' (Bearing of
dp line DP =SI2°I7'E)
fAurmoN
<v l a ho
513,
Fig. 48-6. TKact oA land to be cut
by a.'U ni tunning in a given direction,
Solution.
2 x AREA = - 3 , 4 3 0 , 1 9 2 . 5 4
AREA = - 1 , 7 1 5 , 0 9 6 . 2 7 sq m or
— 17 1.510 Hectares (Area o’f Tract ABCDEF with negative
sign disregarded)
D) Determining Area of Tracts MBCDN and NEFAM.
Since: Area MBCDN = Area NEFAM , 2 (Area MBCDN) = Area ABCDEF
Area MBCDN = Areq ABCDEF a ' 1 ,7 1 5 ,0 9 6 .2 7
2
= 8 5 7 ,5 4 8 .1 4 sq m or 85.75 Ha
c) Determining lengths of DP and PA.
ft
JL a t- JN L + I S L = Latab + Latbc + Latcd+ Latda = 0.0
490.71 + 587.12 - 327.41 + Latda = 0.0
L a t d(J = - 7 5 0 . 4 2 f;i (Latitude of closing line DA)
JD e p - J E D *■JW D - Depab+ Depbc + Depcd + Depda 3 0.0
4 7 . 2 7 + 608.89 + 786.78 + Gep„QQ = 0.0
atdar + (Depda)'
+ .(-1442.94)
(Length of closing
line DA)
P A R T IT IO N
O f LA N D
I < g , 48-8. Triangle. ADP.
Depde
Ton(V = T °nKW " Lotde
218.32
-1002.76
•e-dp 12 ° 17* (B e arin g
of DP Is S I 2 ° I 7 ' E )
SUM = I 80 00 (C hec k s)
By Sin e L a w : DP PA DA
Sin A Sin D Sin P
(DA) Sin A _• 1626.41 Sin 27 °29 768. I6 m
DP = Sin P Sin 7 7 ° 4 3 ‘ "co
a
COURSE LAT DEP LAT CORR DEP CORR ADJ LAT ADJ. DEP
AB ' 4 9 0 .7 1 4 7 .2 7 0 .0 0 0 ,0 0 490.71 4 7 .2 7
BC 5 87. 12 6 0 8 .8 9 0 .0 0 0 .0 0 587.12 6 0 8 .8 9
CD - 327.41 786. 76 0 .0 0 0 .0 0 - 327.41 7 8 6 .7 8
DP - 750.57 163. 42 0. 15 0.04 - 750.42 163 38
PA 0 , 00 - 1 6 0 6 .2 8 0 .0 0 0 .0 4 0.0 0 -1606.32
SUMS 0. 15 ,+• 0.0 8 0 . 15 0 .0 8 0 .0 0 0 .0 0
r**rmoN
o r LA M * ,5 1 pi.
e) Determining area and parts of Tract AMNP.
F-tg, 46-9. T*ape.zo<d AMNP.
*
— d ivid in g l l n e ( E - W line)
RM = d Tan -9 ' d v
R 1m r N,:q AM Cos ■&
5*3qjl her 4 i y d
ll NQ = d Tan
'• v MP
Cos ijr
I 1 6 0 6 .2 6 m A
fP
•
AT
t r i a l line ( E - W lin e)
.«
-b - ~Nb - 4ac
2a __________ *
1 6 0 6 .2 8 i 1 (-1 6 0 6 .2 8 )2 - 4 (0 .1 6 ) (41 2 ,1 01 . 4 3 )
2 (0 .16 )
The Roo.'s a re : d[ = 9775.78 m and ,d2 = 2 6 3 .4 7 m
(L o g ic a l answer)
MN = AP - RM - NQ,
= 16 0 6 . 2 8 - 2 6 3 . 4 7 Tan 5 ° 3 0 ' - 2 6 3 . 4 7 Tan I2 ° I7*
= I 5 2 3 .5 5 m ( L e n g t h of dividing line)
MB =. AB - AM = ^ ( L a t . J 2 + ~ (Dep )2> d
ab
ab. Cos -0-
= '.i(490.7 I')2 + ( 4 7 . 27)2 263.47
Cos 5° 30
= 228.29 m (D ista n ce of point M fro m sta tio n B)
7 6 8 ,1 6 -
263.47 <
Cos 12 ° 17r
4 9 8 . 5 2 * m' (D ista n ce of point N fro m sta tio n D)
PROBLEM
SETS
P. S. Numbers 1 Thru 10
PROBLEM
SETS
In the succeeding pages are different problem sets
which are intended to be worked out by students in this
course of study. Each problem set corresponds to a specific
group of lesson modules. They are arranged in a particular
order of presentation and are properly titled to facilitate
easy .cross-referencing. These problem sets are aimed at
helping students attain enough mastery of the theories and
principles discussed in this book.
,519,
PROBLEM SETS
PS NO, 1 :
PS NO.
@&a wmmm
(LESSON NOS. 12 THRU 16)
PS NO.
(LESSON NOS. 40 THRU 42)
PS NO.
(LESSON NOS. 43 THRU 46)
]f
PS NO. i o: m m m W m (tt? ^
(LESSON NOS. 47 THRU 48!)
f
E L E M E N T A R Y S U R V E Y IN G L E S S O N N U M BERS 1 TH R U 5
IN T R O D U C T IO N TO S U R V E Y IN G "A "
a) 108.75 m by 76.82 m
b) 940.08 m by 1296.73 m
c) 13.36 m by 50.08 m
d) 1258.30 m by 624.03 m
. e) 8476.55 m by 121.79 m
Problem S et No: 1
_
a highway project:
a) 113.26 m, 35.48 m, and 18.60 m
b) 50.08 m, 39.25 m, and 7.14 m
c) 243.55 m, 76.19 m, and 24.66 m ..
d) 42.05.5 m, 8.60,5 m, and 12.332 m >
e) 9.5 m, 6.3 m, and 4.9 m
£24, PROBLEM
S t TS
ELEMENTARY SURVEYING L E S S O N N U M B E R S 6 T H R U 11
P ro b lem S e t No. 2
29 ', and 373.48 m at' slope 4°25'. Determine the horizontal
length of the line.
7. SLOPE MEASUREMENT. A slope measurement of 545.38 m is
made between points A and B. The elevation of A is 424.25 m
and that of B is 459.06 m. Determine the horizontal di.s*?'
tance between the two points.
,526,
i t
___
elongation of the tape for an increase in tension from 5 . 5
kg to 20 kg.
16. CORRECTION DUE TO TENSION. A steel tape is 30.0-m long
under a pull of 6.0 kg when supported throughout. It has a
cross-sectional area of 0.035 cm2 .and is applied fully
supported with a 1 2 -kg pull to measure a line whose re
corded length is 308.32 m. Determine the correct length of
the line if E=2.1 X 106 kg/cm2 .
,528, P O O flL L *
se rs
ELEMENTARY SURVEYING LESSON NUMBERS 12 THRU 16
P ro b lem S e t No. 3
ANOAlfM
St IS ,529
5. DIFFERENCE IN ELEVATION. Readings on a rod held at two
points A and B, 75 in apart, are 2.965 m and 1.215 m,
respectively. Determine the rod reading at points on line
AB which are 25 m and 45 m from A. Assume that there is a
uniform gradient along line AB.
6. CURVATURE AND REFRACTION. Determine the combined «effect
' of curvature and refraction on level sights of 30, 50, 100r
250, 300, 500, 1000, and 2000 m.
10. CURVATURE AND REFRACTION. Determine how far (in km) out
1
from shore an inter-island vessel will be when a red light
on its deck, 9.45 m above the water, disappears ffom the
sight of a child standing on shore and whose eye level is
1.32 m above the water. *
12. CURVATURE AND REFRACTION. Two towers, A and >B, are lo
cated on level ground and their bases have equal elevations
above sea level. Determine the distance between the two
towers if a person standing on tc" of tower A can just see
the top of tower B. His eyes are 15.50 m above the ground.13
,530u_« 7e°rr M
E L E M E N T A R Y S U R VEYING L E S S O N N U M B E R S 17 T H R U 23
L E V E L I N G M E THODS S E T "A"
STA BS Hi Fs ELEVATION
. /• BM 10 2.0 85 13 7 . 4 5 0 m
TPI 2 .0 15 0 .9 8 2
* TP2 1.864 1.428
TP3 0 .57 9 1.527
BM II 0.423 2 .4 2 3 1
TP 4 1.446 1.807 .
TP5 1.778 1.725 :
TP 6 2.05 1 2 .3 39 •
TP 7 2.9 20 1.005
BM 12 •3. 186 2 .3 5 8
TP 8
1
2.805 0 .9 9 5
TP9 0.774 1.206 •
BM 13 0 .6 03 '
P roblem S e t No. 4
f*NOSliw
• / r»
2.79
(FS)
TP-5
4. DIFFERENTIAL l e v e l i n g Th« a
rangement of lines portray a ^ *ccomPany in9 schematic ar-
values Indicated represent L c k s i a h T ^ V " * 1 rot,te' The
taken at different points as t foresic?ht readings*
level notes for the inform’+-• beled* PrePare and complete
tomary arithmetic check. atl°n shown an<3 Perform the cus-
TP-4
,L-3
"/i V
\
/ Sj' \.
^.\o»
<mu&
\
// TP- {
A -1
8M-2
TP-2
Mi '>W V^\<S\•
*s
5s
/\ /
/
L-2
-Vs1
BM-L.-
o-*
5. DOUBLE-RODDED LEVELING. Set up and complete the level
notes for a double-rodded line from BM45 to BM46. In, the
following rod readings H refers to stations along the high
route and L to stations along the low route: BS on
BM45=2.238, FS on TP1(H )=0.703, FS on TP1(L )-1.252, BS on
TP1 (H )=2.855, BS on TP1(L)=3.402, FS on TP-2 (H )=1.173, FS on
TP2(L )=1.5 58, BS on TP2(H )=2.542, BS on TP2(L)=2.932, FS on
TP3(H)=1.339, FS on TP3 (L)=1.660, BS on TP3(H )=2.390, BS on
TP3(L )=2.711, and FS on BM46=1.Q15 meters. Assume that the
elevation of BM45 is 524.550 m. Perform the customary
arithmetic check.
8 . RISE AND FALL METHOD. Using the rise and fall method,
complete the level notes given below and show the customary
arithmetic check.
ROD READINGS DIFFERENCE IN ELEV REDUCED
STA
• BS IFS FS, RISE FALL LEVEL
1.73 766.45m BM-13
2.05 o+oo
1.88 +35
1.75 +60
2.39 +80
3.25 1+00
' 2.44 1 + 15
1.86 ' +40
1.09 „. +90
2. 15 2+00
1.84 2 .63 ) TP ~l
0.77 2 +45
1.19 +68
* 1.08 3+00 .
2.52 +50 '
* 2.14 BM <4
—...-•----------
,b Vi
_
I
9. RISE AND FALL METHOD. Given below is the schematic ar
rangement of lines for a revel route run from BM-l to BM-2
in which intermediate foresights,to a number of points have
been observed. It is desired to determine the elevation of
BM-2 and also.the elevations of the 'intervening points.
Prepare and complete an appropriate format of level notes
for the portrayed information using the rise and fall
method of leveling. Also show the customary arithmetic
check.
S TA BS HI FS ELEV
BM 66 2 .6 4 1 0 4 .3 0 m
TP-H 2 .4 3 1 .6 5
TP- 2 • 2 .7 6 2 .4 8
TP -3 2 .1 9 077 0
B M 67 3 .0 5 0. 95 '
TP- 4 1 .4 5 1.66
TP-5 0 .9 6 2. 08
BM 66 3 .0 6
.535
whos^ known elevation is 225.26 m. The rod is next held
upside down against the bottom of the beam and a foresight
reading of 2.23 m is observed. Determine the required
elevation.
17. INVERSE LEVELING. A backsight of 1.47 m is read on a
rod held upside down against BM-1 '(elev=315.15 m) on the
ceiling.of a mine. Then a foresight of 1.52 m is taken on
TP-1 on the floor with the rod in normal position. The
instrument is next transferred and setup at another station
and a backsight of 1.45 m is read on TP-1. Determine the
elevation of BM-2 set on the ceiling if a foresight of 2.12
m is read on it with the rod again held upside down.
0 B S .E L E V . OBS. E L E V .
ROUTE LENGTH ROUTE LENGTH
OF BM - X OF BM -X
a 4 . 1 5 km 2 4 6 .8 5 m d 5 . 8 2 km 2 4 6 .7 5 m
b 5 .2 0 2 4 6 .6 3 e 6 .0 3 2 4 6 .5 6
c 4 .7 6 2 4 6 .7 0 f 4 .9 8 2 4 6 .6 9
.536, fv
hi r4
ELEMENTARY SURVEYING LESSON NUMBERS 24 THRU 28
rM t u u t h
itrt
in the order given.
a ) N17° 43 1E d) N12°19 *W
b) Due West , e ) S57Q30 ’W
c) fl2r>° 31 'E f ) N77°13'W
rmuu t * ,53$
i4ti
15. CONVERTING AZIMUTHS TO BEARINGS. The following six
lines have their azimuths reckoned from north:
RAH r n tm u u
............ \r r 0
1950, the magnetic declination was -LOUIS' east. The magne
tic bearings of several lines observed then were recorded
as follows:
*
a) AB,. N25°15'W d) DE, S50°00,E
b) BC, S14#381E e) EF, N86°29’W
c) CD, NO5* 20'E f) FG, S15w30'W
If these lines are to be retraced using a compass when the
declination is 15°12* west, determine the ne" magnetic
bearings to be set off on the compass.
22. OPEN COMPASS TRAVERSE. The following are the observed
data for, an open compass traverse^ Adjust the observed
directions and tabulate -values accordingly.
OBSERVED BEARING
LIN E LENGTH
FORWARD- BACK •
AB 452.50m S 4 0 <>25IW N 40°30' E
BC 405.65 S55*40'W N 55*50' E
CO 495.08 N36° 15*W S 35*55 E
DE 284. 15 N73* lO'W S 7 3*30 E
EF 367.29 S44*45'W N 44*45 E
FG 217,73 S20°30'E N 2 1*00 W
541,
25. CLOSED COMPASS TRAVERSE. The following are the observed
lengths and magnetic bearings of a closed compass traverse:
OBSERVED BEARING
- LINE LENGTH
FORWARD BACK
AP 3 3 0 .7 5 m N 3 4 * 5 5 ‘E S 35*00'W
BC - 3 0 5 .4 3 N 5 6 * 3 0 ’W S 56*45'E
CD 3 2 5 .2 8 S75 * 4 5'W N 76*00*E
DE 2 0 1 .1 0 S 4 2 * 15'W N 42* 15'E
EF 2 2 5 .2 5 S 3 8 * 4 5 'E N 39*00'W
FA 3 7 5 .5 5 S 8 5 * I5'E N 85*30'W
i
ELEMENTARY SURVEYING L E S S O N N U M B E R S 29 T H R U 33
.1
THE ENGINEER'S TRANSIT AND THEODOLITE S E T "A"
Problem S et No. 6
Vernier
Main S c a l e — '
F/ga*e 1
Vernier
Main S c a l e -----'
Figuxe. 2
Vernier
Main Scale
F ig twe 3
Vernier
Fig u re. 4
F<gu*e 6
Vernier
Main Scale — s
F<gu*e 7
Vern ier
**0an
*1tM
.5 4 $
7. CLOSING - THE HORIZON. The horizontal angles about an
instrument station were measured and recorded as follows:
86°42', 39°06 ',15°25', 118°47,/ and 99*50’. Determine the
horizon misclosure and adjust the measured angles by as
suming that the error is the same for each angle.
MEASURED MEASURED
STA ANGLE STA ANGLE
VALUE VALUE
l 236°! 7' 5 284°34'
A C
2 123°451 6 75 °3 0 l
3 274°4 3 l~ 7 283°48'
B D
9
N
8
O
4 85* I 5 1
PnOULLM
vV ,547
eisghth repetition the final reading on the circle was 12 2
02*00". ! 1
STA STA MEAN VALUE OF ANGLE READ WITH TELESCOPE DIRECT a REVERSED
OCC OBS 1ST POSITION 2ND POSITION 3RD POSITION
K 150.39 68 200.3964 250.3978
L 192.2056 242.2057 292.2077
M 225,. 7590 275.7588 325.76 08
N 2 7 2 .8 6 6 5 322.8656 372.8 6 89
STA STA MEAN VALUE OF ANGLE REA0 WITH TELESCO PE DIRECT 8 REVERSED
OCC OBS 1ST POSITION • 2ND POSITION 3RD POSITION
A 1 8*06* 12 . 6 " 63*06 06.1" I 0 8 e0 6'02 .9"
B 30*50'27.0" 75*50' 15.3" 120*50* 13.0"
C 119*41 '07.5" 164* 40'55.0" 209* 40'48.0"
0 229*54'12.0" 274*53'58.0" 3 I9 * 5 3 ' 4 9 .0 "
Determine the three angles for each position and also com
pute the mean of each of the angles.
,54i Pe
sNt
Os
BLiM
ELEMENTARY SURVEYING L E S S O N N U M B E R S 34 T H R U 39
£50.
—
6 . LATITUDES AND DEPARTURES. Given in the accompanying;;
tabulations are the observed data pertaining to-four dif^eV
rent traverses; Compute and tabulate the latitudes and
departures of each course.
LENGTH AZIMUTH
LINE BEARING LINE DISTANCE
FROM SOUTH
AB 732.72m N00*42'E JK 4 3 0.05 m 242° 30'
BC 324.78 S 85*57' E KL 425.18 353°151
CD 477.2-4 S03*04'W LM 357.20 99*45'
DA 388.08 ' S 52*611W MJ 183.18 154*00'
AZIMUTH
COURSE LENGTH COURSE LENGTH BEARING
FROM NORTH
1-2 16 1.46 m 228°20' 1-2 427.00m N59*33' E
2-3 160.49 267*43' 2-3 301,95 S 39* 18 'E •
3-4 17 1.83 352*011 3-4 445.66 S06*35'W
4-5 229.70 82*12’ 4 -5 326.73 N 17"48‘W
5-1 130.55 131*48' * 5- 1 434.50 N70*59'W
LATITUDE DEPARTURE
LINE LENGTH BEARING
+N -s +E -W
1 -2 ’ . 4 4 5 .6 6 m S 0 6 * 3 5 'W 4 4 2 .7 2 5 1.09
2-3 3 2 6 .7 3 N 17*4 8 ' W 3 II .09 99.88
3-4 4 3 4 .5 0 N 70*5 9 'W 141 .S 8 t 41 0.79
4-5 427. 00 N 59 *3 3 'E 2 16.40 368. 10
5-1 3 p l .95 S 39° 18 'E 2 33 .66 1 91.25
Sums 1935. 84 m + 669.07 - 6 7 6 .3 8 +559*35 - 5 6 1.76
(D) * (SNL) (SSL) CSED) tSWD)
> *
• LATITUDE DEPARTURE
COURSE LENGTH AZIMUTH
FROM NORTH +N -S -- +E -w
AB 2 2 9 .7 0 m r 82*12' 31.17 227.57
BC 13 0 .5 5 1 31*48' 87 .02 97.32
CD 1 6 1 . 46 228*20' 107.34 120.61
DE 18 0 .4 9 2 6 7*43' 7.1 9 180.35
EA 17 1.83 352*01' 170.1 6 23.86
Sums 8 7 4 .0 3 m +201 .33 -20 1 .55 +324.89 - 3 2 4 .8 2 ,
(D) (SNL) (SSL), (SED) (SWD)
fttOMIIU
»4 r
V >51,
,8 . ERROR OP CLOSURE. Ip a given closed traverse the sum of
the' south -latitudes exceeds the sum of the north latitudes
by “3.55 m and the sum of the east departures exceeds the
sum of the west departures by 2.83 m. If the perimeter of
the traverse is 945.7$ m, determine the linear error of
closure, bearing of the side of,error, and the precision of
the survey performed. ' * *
LATITUDE DEPARTURE
LINE DISTANCE BEARING
+N -S +E -W
1-2 • 38 8 .0 8 m S 52*5 I'W 2 3 4 .3 6 309.32
2-3 7 3 2 ,7 2 . N 00 *4 2'E 732.67 8.95
3-4 3 2 4 .7 8 S 8 5 °5 7 'E . 2 2 .9 4 323.97
4 - 1" 4 7 7 :2 4 S 03*04'W 4 7 6 ,5 6 25.53
| Sums 1922.8 2m + 732 .6 7 -7 3 3 .8 6 + 332.92 - 3 3 4 .8 5
(D) (2ND (2SL) (2ED) (2WD)
5.52,
AZIMUTH LATITUDE DEPARTURE
COURSE LENGTH FROM NORTH +N - s - +E .. -W j
CD 380. 38 m 0°50' 380.34 5.53
DE 51 9 .30 296*06' 228.46 4 6 6.35
EF 6 9 3 .8 7 205*54' 624.18 303.08
FG 41 7 .98 1 35*2 O' 297.27 2 9 3.83
GH 4 0 3 .9 3 33*27' 337.03 2 2 2.65 ;- \ ,
HC 2 4 9 .0 0 95*39' 24.51 247.79
Sums 2664.4 6 m +945.83 - 9 4 5 .9 6 +769.80 - 7 6 9 .4 3
<D ) C SN L) (S S L ) GEED ) (3 E W D )
,556, M 9 0 S I l At
%trs
AZ1 MUTH
LINE LENGTH BEARING COURSE DISTANCE
(m) (m) FROM NORTH
1-2 Unknown S55°53'W AB Unknown 106°15*
2 -3 5 7 0 .5 3 ! S 0 2 ° 0 5 'E BC Unknown 195°15 1
3-4 1082.71 Due East CD 9 0 5 .6 0 247*07' ,
4 -5 6 3 9 .3 2 N I0°35'W DE 17 5 4 .8 6 3 3 2 8a*2‘
5- 1 Unknown N 57°00'W EA 1 2 1 6 .5 9 86*07'
AZIMUTH
COURSE DISTANCE LINE LEN G TH • BEARING
(m) FROM SOUTH (m)
AB 867.46 284*12' 1 -2 639.32 N 09° 30 *W
BC 1272.4 1 15*18' 2-3 507.30 N 56*55 ‘W,
CD Unknown 6 8*06' 3-4 678.69 S 56* 13 'W
DE Unknown 151*21' 4-5 Unknown S 02*02 'E
. EA 139 1.17 264*5 1' 5-1 Unknown S 89*3 1 'E
Problem S e t 9
PNOrn i a/
16 1
3. AREA BY COORDINATES. In the following tabulations are
the adjusted latitudes and adjusted departures of two
closed traverses. Determine the area of each traverse by
the coordinate method. For the first traverse assume that
the origin (0 .0 m, 0 . 0 m) of the coordinate system passes
through station A, and through station M for the second
traverse J . •■ ) i
JK 3 5 2 .0 5 395.66
KL 2 3 .4 4 591.08
LM 558.26 78.39
MN 102.58 ' 746.30
NJ 2 8 5 .3 5 318.83
COORDINATES COORDINATES
POINT STA
X(m) Y (m) X(m) Y(m)
1 0.00 0. 00 A 500.00 7 5 0 .0 0
2 1 10.53 270 .6 9 B 54 7 .2 7 1240.71
3 - 2 0 7 .3 0 666.08 C 1 156. 17 1827. 12
4 7 8 0.2 5 853.77 D 1 942.95 1500.41
5 9 5 4 .3 6 353.49 E 2 16 1.27 ‘ 4 9 7 .6 5
6 6 3 8 .6 1 - 427.55 F 1044.65 37 4 .9 9
PR O BLC M
,5 6 2 , sirs
-ADJUSTED LATITUDE ADJUSTEO DEPARTURE
LINE
+N | -S +E -w :
AB 7 1 5 .2Q 1200.53
ec 4.2 9 401 .78 •*
CD 1735.5 8 41 9/8 8»
DE 2G 0.70 1606.43
EF 6 17 .5 9 456.66
F6 8 4 9 .9 1 20 2 .8 3
GA 2 3 3 .5 3 6 7 7 .8 3
Sum*' +2383.40 -2383.40 +2482.97 -2482.97
rttovUki ____ 5 C3
the area (in so. m. and h a . ) of e a c h traverse.
O F F S E T P O I NT P< P2 P3 P4 P5 P6 P7 P8 P9
O FFSET P O IN T A B . C D E F G H 1 J K
M EA SU RE D O F F S E T 6 .6 0 2*45 8 .3 8 3.1 0
(m) •
0.0 6 .4 3 6 .7 8 7 .7 2 2 .3 0 2 .7 9 0 .7 0
J
11. AREA BY PLANIMETER. A draftsman drew a 10-cm square on
a piece of paper and traced it with a planimeter three
times and obtained the following readings: 1985, 3612, 5241,
and 6869. Then the planimeter was used to determine the
area of a ricefield marked off on a map. The boundary of
the ricefield was traced three times and readings were
recorded as follows: 0105, 2705, 5307, and 7911. If the
scale of the map is, 1 cm = 60 m, determine the area of the
ricefield in square meters.
12. IRREGULARLY SPACED OFFSETS. Vertical measurements were
taken at varying distances along a section of a stream as
illustrated in the accompanying figure. Determine the area
(in sq. m.) of the cross section.
traverse plots. Determine the area (in sq. cm. ) of each tra
verse by the graphical method. If the scale used in drawing
the given plots is 1 :1 0 0 , also determine the area of each
traverse In square meters.
sers
E L E M E N T A R Y S U R V E Y IN G LESSON N U M B ER S 47 TH R U 48
'
■ % .•?.* • • ' ■ ‘ V ....
P A R T IT IO N O F LA N D SET "A “
Problem S et No. 10
3. PARTITION 'OP LAND. Given the accompanying plot for a
surveyed tract of land. Determine the length and bearing of
line DA which will divide the tract into’two parts.
PH O B LC *
55a
8 . PARTITION OP LAND. For the traverse giveQ in Problem 7
it is desired to cut off 20 hectares above a dividing line
QR which runs in an east-west direction. If points Q and R
are located somewhere along lines DA and BC, respectively,
determine the length of the dividing line. Also determine
the distance from A to Q and from B to R.
AB 1 15.64 32.0 7
8C 19 .27 144.10
CD 8 5 .5 9 26.70
DE 3 7 .5 0 106.50
EA 26.72 96.37
Sums •<•142.36m - 142.36m +2 0 2 . 87m - 2 0 2 .8 7 m
rn o m / *
8 \r 1 1 56SI
11. PARTITION OF LAND. Using the data given in Problem 10,
determine the length of a line parallel to course 2-3 which
will cut off 50 hectares below the line. Also determine the
distance of each terminal point of the cutting line from an
established corner of the traverse nearest these points.
+1000.20m
570. mm r g «
ILLUSTRATIVE
E X A M I N A T IO N S
Unit Exam Numbers 1 Thru 10
ILLUSTRATIVE EXAMINATIONS
Illustrated in the following pages are ten different
sets of questions which are referred to as unit examina
tions or UEs. Each examination covers a specific group of
lesson modules. For example, the first unit examination
(U.E. No.l) should be tried out by the student upon comple
tion of lesson modules 1 thru 5. Similarly, the second,
third, fourth, and up to the tenth unit examination should
also be tried when the student has completed the correspon
ding lesson coverages.
The examinations are provided to allow students to de
termine their respective levels of comprehension in this
particular course of study. It is one way of determining if
they have fully absorbed and learned the different lesson
modules or not. The series of unit examinations may be used
to signal an advancement to another group of lesson modules
if the result is satisfactory. These examinations are also
designed to serve as practice questions and problems in
preparation for one planning to take a professional board
examination or any other equivalent examination. For the
instructor it is given as a sample from which he can
pattern his own examinations. The student will notice that
the illustrated examinations are "computer-formatted" - a
type of examination now widely used in professional and
non-professional government examinations. It can be correc
ted and graded with the use of a computer, and is taken by
using a specially designed answer sheet.
Each examination contains questions which ' have been
carefully selected, tried out, and are believed to be rep
resentative of the more important and relevant principles
and theories taken up in each lesson module. The questions
asked are reasonable ones, and are neither too difficult
nor too easy. A definite answer is always required for each
question. Also, the questions asked covers definitions,
enumerations, discussions, as well as numerical and graphi
cal solutions to problems ihvolving the theory and practice
of surveying. Questions regarding new terms,, inventions,
and discoveries which have not as yet been widely treated
in textbooks have been avoided. Unless explicitly specified
in the question, no specific approach to a solution is re
quired when solving problems. A calculator should be used
when taking any of the examinations, however, all portions
of the examination should be taken with books, notes, and
all other references closed.
An examination, which is designed to be taken in not
more than one hour, contains 20 questions which are equal
ly weighted with a maximum possible score of 1 0 0 %’ for a
correct set of solutions or answers.' The suggested passing
mark for any of the illustrative examinations is 70%, or
obtaining 14 correct answers out of the 20 questions asked.
fXAMlNAUONS vtwv.'.*on0/3
ti.lOM h ATWI
ILLUSTRATIVE
EXAMINATIONS
U E NO. i : S1® MM@W‘
> (LESSON NOS. I THRU 5)
U E NO. 3: BB@a§iBaEKf3@Sflf ®®
(LESSON ’ NOS. 12 . THRU 16)
U E NO. 4: aswsassj®K
(LESSON
2@TFffl@
NOS.
®§
17 THRU 2 3 )
U E NO. 5: ®®msm
(LESSON NOS. 24 THRU 2 8 )
U E NO. 7:
■ 'l ®
®SM
JWM
?H®
S38
(LESSON NOS. 34 THRU 39)
U E NO. 8:
(LESSON NOS. 40 THRU 42)
U E NO. 9: mmmmmmm®
(LESSON NOS. 43 THRU 4 6 )
5.7-
ELEMENTARY SURVEYING LESSON NUMBERS 1 THRU 5
>575,
c) a field or a ^abotatory environment
d ) ta'roap br a scaled drawing
e) airplanes or ground stations
a) merchet , a d) libella
b) charobates e) diOptra
c) astrolabe
a) ‘^6.25 dT 36.3
b) 36 i26 e) 36.24 '
c) 36 ..2
/LLusr/fArtvir
iX A M IN A riO N S
a) true value and the approximate value of a quantity
b) most probable value and the true value
c) true value and the measured value of a quantity
d) two measured values of the same quantity
e) estimated value and the most^ ‘probable value of a
quantity
a) 1/4030 d) 1:0.09 ,
b) 0.000248 ' e) 1/363
c) -1:362.70
///u s t N A T IV I
IAAUINA1HW 5t ;
a) 0*30" d) 2*50"
b) 2*30" e ) 1*30"
c) l*00 *
/
17. In Question 16, the sum of the most probable‘values of
angles A, B, and C is (
a) 350.26 m i d) 350.27 m
b) 350.29 m e) 350.28 m
c) 350.30 m
a ) ,±36.67 sq m d) ±0.17 sq m
b) ±0.34 sq m . e) ±7477.85 sq m
c ) ± 0.0288 s q m
579, IL L U S T R A T IV E
E X A M IN A T IO N S
E L E M E N T A R Y S U R V E Y IN G L E S S O N N U M B ER S 6 TH R U 1 1
M E A SU R E M E N T O F H O R IZ O N T A L D IS T A N C E S SET "A m
a) 670.67 m d) 51.59 m
b) 883.96 m e ) 715.67 m
c) 11476.08 m
10. Two points, A and B, are established along the same di
rection from-a theodolite station. If the subtended angle
read on a subtense bar held at A and B are 0°55'20" and 0°
23'44", respectively, the horizontal distance between the
two points is
a) 82.73 m d) 289.70 m
b) 165.45 m e) 124.25 m
c) 206.98 m
l l.L U S T N A T I V e
IMAGINATIONS
XX. A slope distance of 465.82 m is measured between two
points with a slope angle of 12° 35’. The corresponding
horizontal distance between the points is
a) 101.48 m d) 358.70 m
b) 454.63 m e) 207.14 m
c) 103.98 m
a) 325.16 m d) 325‘
.44 m
b) 325.70 m e) 326.24 m
c) 327.45 m
a) 645.23 m , dj .645.19 m
b) 645.22 m e) 645.21 m
c) 645.24 m :
5
1
a) 0.0730 m d ) 0.043 m
b) 0.730 m e ) 0.0025 m
c ) 0.50 m
a i u sth ah vi
0 X A U IN A U O N H 581,
its end points and at the 10-m and 2,5-m marks. If"a pull of
6.0 kg is applied at the ends of the tape, the correction
due to sag for a full tape length is
a) 0.038 m d) 0.45 m
b) 0.006 m e) 0.06 ra
c ) 0.050 m
a) 62.77 m d) 82.38 m
b) 117.13 m e) 81.93 m
c) 153.28 m
a) A < C >B d )C = A + B
b) A > C >B e )A > C < B
C) C = A -B
a) 689.60 m d) 453.40 m
b) 220.39- m e) 517.23 m
c) 389.85 m
illustrative
58id EXAMINATIONS
E L E M E N T A R Y S U R V E Y IN G L E S S O N N U M B ER S 1 2 TH R U 1 6
M EA SU R E M E N T O F V E R T IC A L SET "A"
D IS T A N C E S
*
Note: Read and understand each statement carefully. Five
words, phrases, or figures follow each statement and only
one of which may be the correct answer. If, however, an
answer is not listed among the five choices given, indicate
an X-mark in your answer sheet on all the given choices for
the particular number. Questions requiring numerical compu
tations and answers must be accompanied by fully illustra
ted solutions in order to be credited. Do not write any
thing or make any identifying marks on the questionaire,
and submit it back upon completion of the examination.
1. Leveling is the process of directly or indirectly
measuring vertical distances to determine the elevation of
points or their
a) differences in elevation
b) clearances above mean sea level
c) horizontal distances from each other
d) relationship to natural and man-made features
e) respective positions with respect to the true meri
dian
2. Mean sea level is an imaginary surface of the sea which
15 8‘ IL L U S T H A T IV C
f X A M IN A T IO N S
b) target e) laser system
c) rod level
a ) 1.38 m d) 4.11 m . .
b) 4.08 m e ) 1.35 m
c) 2.73 m
a) 389.43 m d) 390.81 m
b) 388.05 m e ) 388.08 m
c) 390.78 m
a) 1.256 m d) 1.614 m
b) 2.878 m e) 1.630 m
c ) 0.366 m1
4
a) 3.039 m d) 2.422 m
b) 2.424 m e ) 2.999 m
c) 2.359 m
a) 2.959 m d) 3.039 m
b) 2.422 m e) 2.999 m
c) 2.424 m
17. In Question 15, the line of sight is
a) horizontal d) inclined to the left
b) inclined upward e) inclined to the right
’c) inclined downward
a) 0.972 m d) 0.005 m •
b) 0.081 m e) 0.097 m
c) 0.054 m '
j
■ i...
___ . tlL U S T H A T t v i
ELEMENTARY SURVEYING LESSON NUMBERS 17. THRU 23
IL LU S TR A TIV E
.S?PwgWHMHOMI EXAM INATIONS
suited for ordinary leveling purposes where only approxi
mate elevations are required. They are, however, not desi
rable when
*' ■' '
• ;•-/
a) used near metallic objects .
b) temperatures are below freezing point
c) pressures in the area are changing rapidly
d) used 'in rough or mountainous terrain
e) pressures in the area change very slowly
STA BS HI FS ELEV A T IO N
BM -A 1. 7 3 3 4 6 .5 0 m
TP i 2 .5 0 1 .8 5
TP 2 2 .7 6 1.05
TP 3 3. 1 5 \‘ 1.20
BM -B 1 .9 3 0 .7 4
T P ,4 1 .67 0 .9 8
TP 5 2 . 12 1. 8 *
BM -C 1.77
The station or point along the level circuit which has the
highest elevation is
£ .4 5 2 2 3 .7 5 m BM -X
1. 7 3 9
1.05 b
2 .3 8 , c
3 .0 2 d
r .6 0 BM -Y
/
0
/IUMfffAfIVi ,50®
a ) 2.45 m and 2.60 m d ) 1.97 m and 1.82 m
b) 8.18 ra and 5.05 m e) 8.18 m and 3.79 m
c ) 1.82 m and 1.97 m
a) 0.57 m d) 0.42 m
b) 0.72 m e ) 1.29m
c ) 0.30 m
a) 2 + 39.23 d) 8 + 27.77
b) 12 + 39.23 e) 1 + 827.77
c) 1 -I- 239.23
15. In the accompanying sketch, a vertical angle of -14°30'
is read to a target 1.75 m above point M. The measured inc
lined distance (S) is 644.15 m and the elevation of point K
is 320.70 m above mean sea level.
a ) 48 2.43 m d) 158.91 rn
e;Qr\ U H J S 1N A 1i v r
f X A N IN A T !O N $
b) 162.47 m e) 158.97 m
cV 478.93 m
a ) 247.935 m d) 245.763 m
b) 245.764 m e ) 245.765 m
c) 247.938 m
b! ? ? 4 , 6 8 m d) 238.78 m
r ^°-42 m e) 242.40 m
C) 238 -68 m
IXAMINAIIOHN mrn- ™ 5 9 | ,
H I U N I H A t IV l
ing results were obtained
DISTANCE OBSERVED
POINT*
FROM BM-< elevation
BM-< 0 . 0 km <8 6 . 6 0 m
BM-2 , 3.2 < 9 6. 0 3
BM-3 4.8 < 99.< 0
BM-4 9.6 < 8 2. 5 7
BM-5 <2.8 < 7 7.43
BM-6 <6.0 < 88. 9 5
BM-< 22.4 < 86. 75
a) 6.38 m d) 21-.73 m
b) 6.33 in e) 9.26 m
c) 0.05 m
IL L U S T R A T IV E
E X A M IN A T IO N S
ELEMENTARY SURVEYING LESSON NUMBERS 24 THRU 29
. ',.y ,' - -v.
. . ■ ‘ f■
MEASUREMENT OF ANGLES AND DIRECTIONS SET "A"
> ' ’■
. ■
Note: Read and understand each statement carefully. Five
words, phrases, or figures follow each statement and only
one of which may be the correct answer. If, however, an
answer is not listed among the five choices .given, indicate
an X-mark in your answer sheet on all the give:: choices for
the particular number. Questions requiring numerical-compu
tations and answers must be accompanied by f:ul» illustra
ted solutions in order to be credited. Do not write any
thing or make any identifying marks on the guestionaire,
and submit it back upon completion of the examination.
1. The true meridian is the generally adapted reference
line in surveying practice. This line passes through the
geographic north and south poles of the earth and tha
observer's position. Since all true meridians converge at
the poles, they are
a) degree d) steradian
b) mil e ) radian
c ) grad
a) N6 7 °50'E d) N70°40'E
b) S70 °40'W e) S67°50'W
c) S7 3 #30 1W
•7./VA.VUV * ▼
a) N75* 25'E d) S75°25'W
b) S75*15'W e) N75*15'E
c) N75° 20'E
a) 0° 12 * d) 1*12'
b) 2° 30* e ) 0° 45'
c) 1°00‘
a) 136’00' d) 135® 48 *
b) 137*00' e ) 136*12 *
c) 136* 48' *
-•
In Question 18, the adjusted forward bearing of line CD
is
KQC
gj U M M
ILLUirKATlV*
f t / W M A I tO H g
ELEMENTARY SURVEYING LESSON NUMBERS 29 TmtU 33
THE ENGINEER'S TRANSIT AND THEODOLITE SET "A"
N o t e < Read and understand each statement carefully. Five
words, phrases, or figures follow each statement and only,
one of which may be the correct answer. If, however, an
answer is not listed among the five choices given, indicate
an X-mark in your answer sheet on ell the given choices for
the particular number. Questions requiring numerical compu
tations and answers must be accompanied by fully illustra
ted solutions in order to be credited. Do not write any
thing or make any identifying marks on the questionaire,
and submit it back upon completion of the examination.
.597.
scope is sighted on each of the points and
a) 10 minutes d ) 10 seconds
b) 0.1667 seconds e) 15 minutes
*\QO
h rV V H M H M M
IL L U S T R A T IV E
E X A M IN A T IO N S
c) 5 seconds
a) 01 min d) 30 sec
b) 10 sec ! e) 30 min
c) 1 0 min
,5 9 9 1
12. Given in the accompanying sketch Is a double vernier
set on the horizontal scale of an engineer's transit.
600,..-,
1 $. Jf*Vertical angle measured by a single observation with
v a transit is recorded as -13*56'. If t^e index error is +0*
04', the correct value of the angle is
a) -13*52' d) -13*56'
b) -13*58' e) -14w00'
c) -13®54'
a) +0*00*06" d) -0*00*06"
b) +0 ° 06'00" e) -0*06*04"
C) -0°00'04"
a) 127*31*35" d) 127*31*46"
b) 127*31'42" e) 127*31'48"
c) 127*31'41" .% •
a) 125*35*36," d) 125*35'30"
b) 125*35*42" e) 125*35*15"
c) 125*36 *00"
m u m HA1 t y t
,601,
19. A horizontal angle was measured by repetition six time*
with an engineer’s transit. Prior to measurement, the hori
zontal scale ,was set at 0* 0 0 ' and the reading on the scale;
was 84°38’ after the angle was measured once. If the final
reading was 14,7*42', the average value of the angle mea7
sured is v
20. Angle ..Omega was measured with a transit four times >ith
telescope direct and four times with telescope reversed*
starting with an initial backsight setting of 0*05'. If
after the first and eight measurements the readings on the
horizontal scale were 89*56' and 3 5 9 * 5 7 ^respectively, the
average measured value of Omega is
a) 89*59' d) 90*00'15"
■, b) 90*00 ' e) 89° 59'30"
c) 89*58'
E L E M E N T A R Y S U R V E Y IN G L E S S O N N U M B ER S 3 4 TH R U 3 9
a) theory of relativity
b) theory of probability
c) skill and accuracy of observation
d) principle of actuarial mathematics
e) variations and accuracies of adjusted observations
and positions
a) 50 min d) 40 min
b) 10 min e) 30 min9
c) 20 min
The departure of CO is
a) +284.21 m
b) +144.05 m
c) -139.23 m
11. In a given closed traverse the sum of the north
latitudes exceeds the sum c£ the south latitudes by 2.49 m
and the sum of the west departures exceeds the sum of the
east departures by 5.66 m. The linear error of closure is
a) 3.30 m d) 6.18 m
b) 2 . 8 5 m e) 5.57 m
c) 5 . 0 8 m
LATITUDE DEPARTURE
LINE
+N -S . +E -w
AB 18.01 3 1 8 . 76
BC 551.14 15.23
CD 80.81 409.36
DE 190.47 H I . 82
EA 302.58 222.t3
Sums + 5 6 9 . 1 5 m - 5 7 3 : 8 6 m + 5 4 0 . 89m - 5 3 6 . 4 1 m
a) 1:275 d) 1/290
b) 0.004 e) .1:500
c) 1/2900
LATITUDE DEPARTURE
COURSE LENGTH
(m) +N - S +E -w
AB 19 7.20 119.09 i 57.16
BC 372.3 1 372.28 4.54
CD i 65.03 1. 16 164.63
DA 242.50 242.16 1 2.99
Sums 977.04 +372.28 -362.41 + 1 6 9. 1 7 -170.15
E X A M IN A T IO N S
_ _
15. Using the given data in Question 14 and employing the
transit rule, the adjusted latitude and adjusted departure
of course AB, respectively, are
. U L U S W A T lV C I, ' C \7
C X A H iM A T IO N S 3 I 1
b) 522.31 m and 831.96 m e) 106.61 m and 271.81 m
c) 464.76 m and 1040.24 m
ADJ. LATITUDE ADJ. DEPARTURE
LINE
♦N - S +E . -w
AB 305.70 125.50
BC 101.44 169.39
CD 97.65 43.06
DA i 06.61 271.81
Sums + 3 0 5 . 7 0 m - 3 0 5 . 7 0 m + 3 1 4 . 8 9 m - 31 4 . 8 9 m
'
19. The X and Y coordinates of two corners of a traverse
are: A(-123.45 m, +105.70 m) and B{+163.08 m, +230.17 m).
The length of course AB should be equal to
a) 130.63 m d) 338.20 m
b) 256.75 m e) 306.14 m
c ) 312.40 m
a) N66®31 *E d) S23° 29 1W
b) N23*29 ®E e) S 6 6 ®31’W
c) N17°40'E
60Snmmoi
ELEMENTARY SURVEYING LESSON NUMBERS 40 THRU 42
,609,
t
b) and the length of each course is proportional to the
.total length of the traverse
c) provided the sides are arranged >in proper order or
sequence - ' '
d) regardless of the order in which the sides are
placed
e) and the area of the transformed figure is propor
tional to the originally computed area
/'
4. Given the following tabulated data for a closed* tra
verse in which the length and bearing of course GD are un
known. ;'
LATITUDE DEPARTURE
LENGTH
COURSE BEARING
(m) ♦N -s +E -W
a) 303.00 m d) 30^.70 ™ •
b) 322.13 m e) 1 6 <81 m
c ) 17.95 m
5. In Question 4, the bearing of course CD, rounded to the
nearest minute, is
]own i
own d
i6 |0 .
L ___
The length of DA is
%\
¥ Vt<°
/ o\N#
/
p \-*
m
. at
:<o \
trX
F
N
'3k
Zp &
'2/5 $0
0; tm
s M
LATITUDE .D E P A R T U R E
LENGTH
COURSE BEARING
(ml +N -S +E -w
A6 4 9 2 .9 8 N05*30'E 490.71 47*.25
BC 845.85 N46, 03'E 5 8 7 .0 5 6 0 8 .9 7
CO 8 5 2 .18 S 67*24*E 3 2 7 .4 9 7 8 6 .7 4
OE Unknown S ( 2* 17*E ■(Unkr own} (Unkr own) \
(Unkn own)
EF
FA
1210.50
, 6 6 1.26
Unknown
N5o'27'W
(Unkr own)
3 7 5 .0 2 j __ 1 5 4 4 .6 3
If line DF is chosen as the closing line, its length is
equal to
a) 445.98 m d) 2023.62 m
b) 1439.89 m e) 1592.05 m
c) 167*7.75 m
a) N51°241E d) N38°36'E
. b) S38° 36’W e) S51°24'W
c) S51°24'E
a) 1275.4 m d) 1895.7 m
b) 2350.2 m e) 1678.3 m
' c) 1374.6 m
, >i1
\(? O
C ,m * * * v - * * m
IL L U S T F A T IV t:
C X A M IN A T IO H S
/
«* a) 1058,58 m d) 903.48 m
b ) 902.13 f
ti e ) 1902.35 m
c ) 1057.00 m ■ • V"■
15. In Question 12, the length of side DE is
a) 902.13m d) 1058.58 m
b) 1057.00 m e) 903.48 m
c) 1902.35 m
LEN G TH L A T IT U D E D EPARTU RE
C O U RSE BEA RIN G
* (m) +N -s ♦E W
AB 668.15 N 58°32*W 348.78 569.89
BC 670.32 S 35* 16 'W 547.97 386.08
CD 610.68 Unknown (Unkr own) (Unkr own)'
DE 515.26 Unknown j (Unkr own) (Unki own) i
EA 448.50 N70a40‘E j 148.48 j 423.21 |
H i o * t ft A n n
MhAHlNAl ,6 1 3 ,
If CE is chosen as the closing line, its length i^
a) N 8 4° 34 ’E d) N74°45’E
b) SO5° 26’W e) S65°50'W
c) N05°26'E
a) N13°30'W d) N24°45'E
b) S46°131E e) S42°29'E'0
2
c) S42°29'W
,614.
ELEMENTARY SURVEYING v LESSON NUMBERS 43 THRU 46
a) 100 sq m d) 10000 sq m
b) 5000 sq m e) 1000 sq m \ .
q) 1000 ares „
*
3. The meridian distance of a line is defined as the
M M A M IN A ftO m .615,
A. The double meiridian distance of the last course of a
-closed traverse is numerically equal to the
,616,
a) -589.70 m d) +23.45.m
b) -1655.32 m e) +1578.88 m
c) -375.50 m
a) 102.5272 Ha d) 114.6255 Ha
b) 114.6255 Ha e) 51.2636 Ha
c) 512,366.30 sg m
a) -609.24 m d) -241.12 m
b) -426.71 m e) +609.24 m
c) +127.00 m
a) 450,398.9826 sg m d) 22.5199 Ha
b) 168,793.1604 sg m e) 16.8793 Ha
c) 61.9192, Ha1
2
a) 98.0087 Ha d) 290,000 sq m
b) 374, 075.04 sq m e) 127,626.39 sq m
c) 28.9261 Ha
a) 289,261.36 sq m d) 28.926 Ha
b) ,127,626.39 sq m e) 12,763 Ha
c) 12.674 Ha ■ . „1
4
Irregular 12.30m
Boundary' 9 . 5 0 a V f . • ■ . . • . I ■- ..JO.80m
i.
7.90 m
i••.
7.50mJ^r . ' . : } - . Ti
6.40 m„,__•r:T’T\'
5.60fi)___ rjr-;■■■•:;r.s \|v- V .'yVr'y: V.''■* **\
’•V^i'-\2.7Qin
f; 4~^TrqverMj Line
...............
60 *6.0 6.0 6.0 1 6.0 6.0 6.0 6.0
T T
48.0 m
, a) 779.018 sq m d) 354.282 sq m
b) 350.249 sq m e) 389.509 sq m ♦
c) 700.498 sq
i
17. in the following tabulation are given the adjusted la
titudes and adjusted departures of six courses which
forms a closed traverse
ADJUSTED LATITUDE ADJUSTED DEPARTURE
COURSE
+N -S-~ +E -W .
AB , 3 3 0 .5 4 7 0 6 .0 0
BC 9 9 5 .0 6 2 2 2 .3 0
CD 9 7 .3 5 9 8 0 .6 4
DE 3 8 2 .0 2 5 8 7 .9 8
• EF 5 0 .2 5 f
4 8 7 .7 6 “
FA 5 5 3 . 17 5 9 0 .0 7
Sums +1422.95m -1422.95m +1568.62m -1568.62m
(SNL) (S S L ) (SED) (SWD) .
HLUHttAr/kW ,619,
through station A, the X coordinate of station D is
a) -640.32 m d) -1422.95 m
b) -1040.93 m e) -52.34 ,m
c) +928.30 m
a) -590.07 m d) -640.32 m
b) -1040.93 m e) -553.17 m
c) +706.00 m
a) 128,7906 Ha d) 30.6840 Ha
b) 184.8129 Ha e) 156.8008 Ha
c) 28.0102 Ha
COORDINATES
STA
X(m) Y(m)
A -4 1 2 .2 0 - 1 5 5 .4 0
3 5 3 .4 0 1 0 2.0 0
C 5 7 5 .0 0 2 2 5 .0 0
D 6 5 3 .3 0 -2 3 3 .7 0
E 7 .3 0 -4 3 5 .7 0
a) 41.2709 Ha d) 17.4056 Ha
b) 1.8738 Ha e) 3.7475 Ha
"c) 48.3540 Ha
» L L U * T * A T IV *
i
^*~KJ*m§**c*m r xAMuurto**
E L E M E N T A R Y S U R V E Y IN G LESSON NUMBERS 47 THRU 49
a) of acceptable precision
b) compared with the actually measured values
c) checked by noting the magnetic declination
d) longer than any of the courses and of known magnetic
bearing
e) compatible with the other known or measured data
A
The interior angles at P and C, respectively, are
a) 664.66 m d) 1670.84 m
b) 1808.45 m e) 1580.32 m *
c) 4299.81 m
C O O
P £-£******./l UXVA MS TINHAAT IOr i VHt9
—L
8. Given in the accompanying tabulation are the adjusted
latitudes and adjusted departures of a parcel *of land
a) 418.25 m d ) 278.03 m
b) 354.77 m e) 467.48 m
c) 548.45 m
a) 24.2378 Ha d) 22.8336 Ha
b) 45.6672 Ha e) 48.4756 Ha
c) 47.0714 Ha1
a) 24.2378 Ha d) 48.4756 Ha
b) 22.8336 Ha e) 47.0714 Ha
c) 45.6672 Ha
a) 742.66 m d) 889.25 m
b) 865.19 m e) 980.50 m
c) 934.02 m
H i U S T N A T IV t
tX A h tIN A T U W f i623'.
13. In Question 12, the length of dividing line BP is
a) 1427.64 m d) 1868.75 m
b) 2563.27 m e) 1698.00 m
cl 1740.19 m •
14. In Question 12, the interior angle at P is
_____
two adjoining sides
d) computed by the least squares method
e) a common type omitted measurement involving two
non-adjoining sides
IllUttrttAT/W ,625,
t A A M lN A T lC H S
20. In Question 17, the area of the whole parcel of land or
any of its subdivided areas may then be determined by any
the conventional methods used in determining areas. A
check is made by noting that the
. ‘' ■
a) sum of the areas of the three lots, each calculated
independently, is equal to the calculated area of
the entire parcel of land
b) direction of line BC is parallel to line CP
c) sum of the lengths of the two dividing lines is
equal to one-half the total length of the traverse
d) difference between the areas of tracts 1 and 2 is
equal to the difference between the areas of tracts
*• 2 and 3
e) area of tract 3 is equal to one-half the sum of the
areas of tracts 1 and 2
C iO fi / L IU S THArtVC
•
V f - tH Am m AT/O H S
A N S W E R SHEETS
A N D SOLUTIONS
Unit Exam Numbers i Thru to
ANSWER
SHEET
(FOR U E -1 ) (FOR U E - 2 ) v
A 0 /3 A 014
• SET CONTROL NO SET CONTROL NO
E X A M IN A T IO N K E Y E X A M IN A T IO N K E Y
NAME NAME
tJF - / B -2 U E-2 B -2
EXAM NO SECTIO N EXAM NO S E C TIO N
INDICATE YOUR ANSWER TO EACH 'QUESTION INDICATE YOUR’ANSWER TO EACH QUESTION
BY MARKING AN X N THE APPROPRIATE BY MARKING AN X IN THE APPROPRIATE
SQUARE. EXAMPLE : Q [ | ] [ e] SQUARE. EXAM PLE : Q g j j j j jo ] [ | ]
30000H] .e.00000
,.00000 ,900000 < 0 l ® 0 ® - 9 . 0 0 0 0 1 1
5 0 0 0 0 0 9 0 0 0 0 0 0 = 0 ® 1 ® ® 2 C > 1 ® ® ® ®
1O 0000M 2 5 0 0 0 0 0 - 0 . 0 1 ® ® ® 2 5 .0 ® ® ® ®
1 3 . 0 0 0 0 ^ 2a0 0 0 0 0 1 3 . 1 ® ® ® ® 2 6 ® ® ® ® ®
2a00000 « 0 ® ® 1 ® 2 9 0 ® ® ® ®
3a00@0[i] , 5 ® 0 ® ® 1 3 9 0 ® ® ® . ®
USE ONLY TH E NUMBERED ITEMS CORRESPONDING USE ONLY T H E NUMBEREO ITEM S CORRESPONDING
TP TH E NUMBER OF QUESTIONS IN YOUR EXAMINATION TO THE NUMBER OF QUESTIONS IN YOUR EXAMINATION
_______ _______ , J P L JP L
6 RA0E GRADED BY GRADE GRADED BY.
A M S WEN S H E E T S / CZO(
• S O L U T IO N S I V — II
A N S W E R ANSWER
S H E E T SHEET
(FOR U E -3 ) (FOR U E -4 )
A 0 /5 A 016
SET CONTROL NO SET CONTROL NO
E X A M IN A T IO N KEY E X A M IN A T IO N K E Y
NAME NAME
B -2 B -2
1
U E-4
§
'B000M <6.80000
2 0 0 ) g ( 0 0 ' '7 0 0 ) 1 ( 0 0 Mam0 MB '7.0B0®M
3 . 0 0 B 0 M 1 8 .0 0 0 0 M *.0008® laBjgBBB
1 9 ^ 0 0 0 0 1M0 0 0 0 isMbukuh]
5 . 0 0 0 0 M ZO^QbJ U H U E 600080 20.08000
6.0 0 0 0 M 21.0 S 0 1 D1II] 60008® 2100000
7- 0 0 0 M - 0 22.0 0 0 0 H] 7.MEB0HI 2200000
8- 0 ^ [ 0 0 0 2 3 0 0 0 0 0 «0®H@0 23.000-00
90]S ( 0 0 I I 3 24.0 [¥][c] [d][e] 6.008®® 24.00000
1O0 ® ^ [ 0 0 2 5 . 0 [ b] 0 0 0 '<=00008 2300000
" M ® 0 0 III 260 ® 0 0 0 ”•0000® 2«0'0000
1 2 0 0 0 0 M 270 0 0 0 0 12.0 0 8 0 ® 2 7 0 0 0 0 0
i3 0 0 ] g 0 0 2a0 ®[c][0 [E] «0000M 2«00000
1 4 0 ] g (0 0 0 2 ^ 0 0 0 0 0 ~«0 g ( 0 0 B 2 2 0 0 0 0 0
1 ^ 0 0 0 0 3 a 0 0 0 0 0 '6.00008; 3 0 0 0 0 0 0
USE ONLY T H E NUMBERED ITEMS CORRESPONDING USE ONLY TH E NUMBERED ITEMS CORRESPONDING
TO THE NUMBER OF QUESTIONS IN YOUR EXAMINATION TO THE NUMBER OF QUESTIONS IN YOUR EXAMINATION1
*
Nor*: A w ig h t o f 5 */» Is gi von par item. Not*: A w ig h t o f 5*/• is giv*n p*r itom.
£30,
A N S W E R A N S W E R
S H E E T - SH E E T
(FORUE-5) (FOR U E -6 )
A 017 A ota
SET CONTROL NO SET CONTROL NO
E X A M IN A T IO N K E Y E X A M IN A T IO N K E Y
NAME NAME
U E-5 B -2 U E -6 8 -2
EXAM NO S E C TIO N EXAM NO S EC TIO N
INDICATE YOUR ANSWER TO EACH QUESTION INDICATE YOUR ANSWER TO EACH QUESTION
BY MARKING AN X N THE APPROPRIATE BY MARKING AN X W THE APPROPRIATE
SQUARE. E X A M P L E : [|| SQUARE, example: 0 0 ^ 0 ( 7 ]
A N S W E R S H E E T S / '1
S O L U T IO N S MNHMl£
?*2I
Q^L
A N S W E R ANSWER
S H E E T SHEET
(FOR UE-7) (FOR U E - 8 )
*
A 019 \ A « 020
SET CONTROL NO SET CONTROL NO
E X A M IN A T IO N K E Y E X A M IN A T IO N--------------------
KEY -
NAME NAME
E le m S u r v e y in g M ay 1 9 8 7 E le m S u r v e y in g Ju n 1987
S U B JE C T D ATE S U B JE C T D A TE
U E-7 B -Z U E-8 B -2
EXAM NO SEC TIO N EXAM NO S E C TIO N
INDICATE YOUR ANSWER TO EACH OUESf ION INDICATE YOUR. ANSWER TO EACH QUESTION
BY MARKING AN X IN THE APPROPRIATE BY MARKING AN X IN THE APPROPRIATE
s q u a r e , example (5) m SQUARE . S A M P L E : 0 [5] )g ( 0 [IJ
..0 0 0 H m *h M e 0 0 i.b Mb b b 1
6b Mb 0 in
2Gi)Kic] 0 id ^ 0 0 a la 2.0M B 0 0 i ? M ® 0 0 0
3 0 0 0 ^ ( 0 ie)E(0000
•>
0 )H0 0 0 •,9-0 0M® 0 4.)^000III 19.0000M
=000^0 »M®000 5-0 H l @ M ® 2 0 -0 0 0 0 M
6.0MS00 2100000 6 0 [H0@^( 21.130000
1.00@@^ 2200000 7 .0 ] g ( 0 0 0 22.00000'
» M 0 @lsli 2 3 . 0 0 0 0 0 . 0 M @ 0 ® 23.00000
9-M000® 24.00000 * 0 )1 ( 0 0 0 24.00000
,0.00^00 25.00000 1 0 .0 0 0 0 ) 1( 2 5 . 0 0 0 0 0
11.0 0 0 ^ ( 0 2 6 0 0 0 0 0 - 1 .0 0 M 0 1 « . 0 0 0 0 0
12.0g(000 27.00000 12. ^ 0 0 0 0 ' 2 7 . 0 0 0 0 0
1 3 0 0 0 M S 2 6 0 0 0 .0 0 13.00M0® 2 6 0 0 0 0 0
2 *00000 «.0)g000 2 * 0 0 0 0 0
15.00^(00 3 *00000 1*0 0 0 0 )g( 3 0 0 0 0 0 0
USE ONLY T H E NUMBERED ITEMS CORRESPONDING USE ONLY TH E NUMBERED ITEM S CORRESPONDING
TO THE NUMBER OF QUESTIONS IN YOUR EXAMINATION TO THE NUMBER OF QUESTIONS IN YOUR EXAMINATION
A 02 i A 022
SET CONTROL NO SET CONTROL NO
E X A M IN A T IO N K E Y E X A M IN A T IO N K E Y
NAME NAME
U E- 9 B -2 U E -iO 8 -2
EXAM NO S EC TIO N EXAM NO S EC TIO N
INDICATE YOUR ANSWER TO EACH OUESTION INDICATE YOUR ANSWER TO EACH QUESTION
BY MARKING AN X IN THE APPROPRIATE BY MARKING AN X IN THE APPROPRIATE
SQUARE . ex AMPLE : Q @ 0 [f] SQUARE . EXAMPLE : Q Qj] j g [d] \ e}
B IB L IO G R A P H Y
20. Keates, J.S., "Cartographic Design and Production"
Longman Group Ltd., London, 1973.
21. Kissam, Philip, "Surveying for Civil Engineers," Se
cond Edition, McGraw-Hill Book Company, New York,
1981.
22. Legault, A.R.; McMaster, H.M; and Marietta. R.R.,
"Surveying, An Introduction to Engineering Measurer-
ments," Prentice-Hall, Inc., Englewood Cliffs, New
Jersey, 1956.
23. McCormac, J.C., "Surveying Fundamentals," Prentice-
Hall, Inc., Englewood Cliffs, New Jersey, 1983.
24. Moffitt, F.H., and Bouchard, H., "Surveying," Seventh
Edition, Harper & Row, Publishers, New York, 1982.
25. Monkhouse, F.J., and Wilkinson, H.R., "Maps and Dia
grams," Methuen & Co., Ltd., London, 1974.
26., Mueller, 1.1., and Ramsayet, K.H., "Introduction to
Surveying," Frederick Ungar Publishing Co., New York,
1979 .
27. Pafford, William F;, "Handbook of Survey Notekeep
ing," Robert F. Krienger Publishing Company, Malabar,
Florida, 1983.
28. Rayner, W.H., and Schmidt, M.O., "Advanced Surveying,"
D.Van Nostrand Company, Inc., Princeton, New Jersey,
1957.
29. Rayner, W.H., and Schmidt, M.O., "Elementary Survey
ing," D. Van Nostrand Company, Inc., Princeton, New
Jersey, 1963.
30. Rubey, Harry; Lommel, G.E.; and Todd, M.W., "Engineer
ing Surveys: Elementary and Applied," The Macmillan
Company, New York, 1958.
31. Smirnoff, Michael V., "Measurements for Engineering,"
Prentice-Hall, Inc., Englewood Cliffs, New Jersey,
1961.
32. The Military Service Publishing Company, "Map and
Aerial Photograph Reading," Fifth Edition, The Tele
graph Press, Harrisburg, Pennsylvannia, 1957.
33. The Staff of the Engineering Fundamentals Group, "An
Elementary Surveying Text," United States Military
Academy, West Point, New York, 1972.
34. War Department, "Topographic Drafting, • TM 5-230,"
United States Government Printing Office, Washington,
D.C., 1947.
35. Westfall, Claude Z., "Basic Graphics and Cartography, 'J
University of Maine at Orono Press, Orono, Maine, 1984
36. Wilson, R.L. "Elementary Forest Surveying and Mapp
ing" O.S.U. Bookstores, Inc., Corvallis, Oregon, 1981.
BIMLlOAKAPMf
IN D E X
___ 1
Accidental error, 33 Compass, 11, 286, 289, 299
Accuracy, 35 Construction surveys, 7
Adjustment of Coordinates
cross hairs, 166, 363 area by, 463
dumpy level, 166 computation of, 422-425
level circuit, 255 Correction
line of sight, 167, 363 sag, ICO
; transit, 362 temperature, 92
traverse, 404 tension, 94
Agt-nic line, 299 slope, 90
Aneroid barometer, 242 Crandall method, 413
Angle Cross
deflection, 275,378, 383 hair, 142
exterior, 274, 275 sections, 252
horizontal, 344 field notes for, 253
interior, 274, 376,382 Daily variation, 298
measuring vertical, 347 Datum for leveling, 125
to the right, 275, 386, 389 Datum, 125
units of measurement, 269 Declination
zenith, 368 - . definition of 292
laying off, 346 magnetic, 291
Angular closure in tr-verse, 303 Deflection
Area angle traverse, field notes, 377
by Simpson's rule,482, 485 angle, 275, 377, 383
by coordinate method, 463, 468 Departure, 396, 399
by coordinate squares, 493 closure in, 397, 400
ty double meridian distances, 474, 476 computation of, 397-400
by double parallel distances, 475, 477 corrections to, 405, 412
by offsets, 480 Difference in elevation, 125/ 523
by planimeter, 490 Differential leveling, 182, l87
by trapezoidal rule, 480, 484 Digital theodolite, 368
by triangles, 462, 465 Diopter, 8, 11
Assumed north, 271 Dip of compass needle, 301
Astrolabe, 8 Direct leveling, 126
Azimutn Direction instrument, 366
angle, 278 Distance, horizontal, 92
back, 279 Double meridian distance (DHP)/ 472
definition of, 278 Double parallel distance (DPD)/ 473
magnetic, 279 Double vernier, 337
of line, 278 Double-centering with transit/ >355
traverse, 387, 391 Double-rodded line,: 194
true, 279 Dumpy level
Backsight, 163, 183 adjustment of, 166
Balancing traverse, 404 description of, 129
Balancing-in with transit, 355 Earth's curvature,, 163
Barometer, 241 Electronic distance measurements, 66
Barometric leveling, 127, 240 Elevation, 125, 525, 530
Bearing Engineer's level, 128
assumed, 277, 279 Engineer's transit, 322
back, ,277-2 78 Erecting eyepiece, 141
computation of, 276 Error
definition of 276, 410 accidental, 33
magnetic, 277, 279 cumulative, 33
true, 277, 279 definition of 32
forward, 277, 278 natural, 35, 163
Bench marks, 182 of closure, 397, 400
Bowditch rule, 405 personal, 35, 161 **>
Breaking tape,'81 probable, 44, 47, 522
Br *-on compass, 287 sources of, 312
Builder's level, 130 standard, 44
Cadastral surveys, 6 systematic, 33
Centesimal system, 18 instrumental, 34, 160
Chorobates, 11 Eyepiece H'
Circle erecting, 141
graduated, 332 inverting, 142
horizontal, 332 Field notes
vertical, 325, 333 for deflection angle traverse/ 377
City surveys, 7 for direct leveling, 186'
Clinometer, 75 for interior angle traverse, 377
Closing the horizon, 345, 350 for profile leveling, 209
jompass rule, 405 methods of keening, 24
JN D CA 6 4 1 ,
/ V
vernier, 338 trigonometric, 127, 230, 235
\ght Libella, 11
\ition of 163, 183 Local attraction, 300, 313
mediate, 206 Long rod, 139
,cy surveys, 7 Lovar tapes, 73
jdetic surveying, 6 Lumber crayons, 76
Geodimeter, 70 Magnetic
Grad, 269 azimuth, 279 *
Graduations bearing, 277
on leveling rod, 152 compass, 287
on transit, 332 declination, 29i
■ Grid azimuth, 279 dip of needle, 301
Groma, 8 meridian, 264
Gunters chain, 11 needle, 286 •
Hand level, 75, 133 north, 271
Hand signals, 156 Magnification of a telescope, 143
Head tapeman, 29, 78 Mean sea level, 125*
Hectare, 16 Measuring horizontal angles, 344
Height of instrument, 1&4 Meridian
Horizon magnetic, 264
closing the, 345, 350 true, 264
measuring angles, 344 Metallic tapes, 72
Hydrographic surveying, 7 Meter, 15
Index error, 348 Mil, 269
Industrial surveys, 7 Mine surveys, 7
Instrumental errors, 34, 160' Mistakes
Instruments definition of 32
direction, 366 in leveling, 165
repeating, 366 Most probable value, 38, 522
Interior angle traverse, 376, 380 Natural errors, 35, 163
International system of units (SI), 16 Normal tension, 102, 106, 527
Invar tape, 72 Odometer, 59
Iaogonic Omitted measurements, 432, 456
chart, 299 Optical micrometer, 365
line, 299 Pacing, 54, 525
ma p, 29 9 Parallel lines with transit, 359
Jacob's staff, 288 Personal errors, 35, 161
1. .1 I It.ude, 396, 399 Philadelphia rod,-136
1 y 1ri(| off an angle with tape, 346 Plane surveying, 5
i• count of a vernier, 339 Planimeter, 488, 493
i.< c.l squares method, 413 Plumb bob,, 75, 327,
•o.l squares, traverse adjustment by, 413 Plunging the telescope, 352
l.nvnl Precision, 15, 35, 311
■idjuntinent of, 166 Probable error, 44, 47, 523
In' ), automatic, 130 Profile
dumpy, 129 leveling, 127, 206,. 213
engineer's, 128 definition of, 206
geodetic,132 Prolonging line, with transit, 355
hand, 133 Radian, 269
line, 124 , Range pole, 73
rod, 139 Reciprocal leveling, 126, 228, 230
««1£ leveling, 130 Rectangular coordinates, 421, 424
setting up, 148 Reference meridian, 2,64
uuriace, 124 Refraction, 164, 174, 174, 530
tilting, 132 Repeating an angle, 352, 360, 379
wye, 1 2 4 Repeating instrument, 366
beveling rod i; Residuals, 44 \
Philadelphia, 136 Reticle, 142
reading, 151 Retrograde vernier, 335
W.l v i n g , 1 5 5 , 1 5 7 Rod
1 i n y , 124 Philadelphia, 136
till i o m t t r l c , 1 2 7 , 2 4 0 level, 139
c t OHS Js a c t i o n , 1 2 8 , 252 leveling, 136
til 1 t r e nt i a i , 1 8 2 , 1 8 7 self-reading, 136
(In Will l r o d d e d , 19 4 , 1 9 7 target, 136
L>» o £ i 1 e , 1 2 7 , 206 , 2 1 3 waving the, 157
i c v l p r o c a l , 1 2 6 , 2 2 8 , 232 Rounding off numbers, 20, 522
1 o d , 1 ’’ 6 Route surveys, 7 *
r» i q i i i 1u I n , 1 5 6 , 1 7 5 SI units, 16
i .. i g e t : , 1 3 6 Sag of tape, 1,00
1 li l i ' r w I r e , 1 9 5 , 200, Settingup a level, 148*
,64 t N U lX
Setting up a transit, 328, 368 adjustment of a, 305, 314, 404
Sexagesimal system, 18 azimuth, 387, 391
Significant figures, 18, 522 by angles to the right, 386, 389
Simpson's one-third le, 482, 485 by deflection angles, 377, 383
Slope by'interior angles, 376, 380
correction, 90, 96 , closed, 303
distance, 82 computations, 396
taping, 82, 86 open, 303 •
Split bubble, 144 Traversing, 302
Steel tape, 72 Tribrach, 340
Stride, 54 Trigonometric leveling, 127, 230, 235
Subtense bar, 58 Tr ipod
Surveying, 4 extension, 145
construction, 7 f ixed-leg, 145 *
geodetic, 6 True azimuth, 279
photogrammetric, 7 True bearing, 277 #
plane, 5 True meridian, 264
route, 7 Turning point, 164, 184
topographic, 7 Two-peg test, 169, 172, 175, 529
Surveys Vernier
cadastral, 6 . least reading of, 338
city, 7 definition of, 11, 334
forestry, 7 double, 337 t
hydrographic, 7 folding, 338
mine, 7 least count of, 339
topographic, 7 method of reading, 338
Systematic errors, 33 Vertical
Tape angle, 347
clamp, 73 circle, 325, 333, 365
engineer's, 72 line, 124
invar, 72 Waving the rod, 155, 157
laying off angles with, 111 Weighted measurements, 48, 523
lovar, 73 Wiggling (balancing) in, 355
measuring angles with, 119 Wild T-2 theodolite, 367
measuring distances with, 56 Wye level, 129
metallic, 72 Zenith angles, 368
steel, 72
Tapeman, 29
Taping
pins or arrows, 73
corrections, 83
downhill, 81
on level ground, 78
on uneven ground, 81 ,
slope, 82
Telescope
of level, 8, 324
of transit, 8
Tellurometer,71 t
Tension
handles, 75
on tape, 94.
Theodolite
definition of, 365
digital, 368, 367
directional, 366
repeating, _3(|.6
Three-wire leveling, 195
Tilting level, 132
Topographic surveys, 7
Total station instrument, 368
Transit
adjustment of, 8, 362
measuring vertical angles with, 387
prolonging straight line with, 355
reading vernier of, 338
rule, 412, 414
setting up, 328
verniers, 336
Trapezoidal rule,* 480, 484
Trave rse
