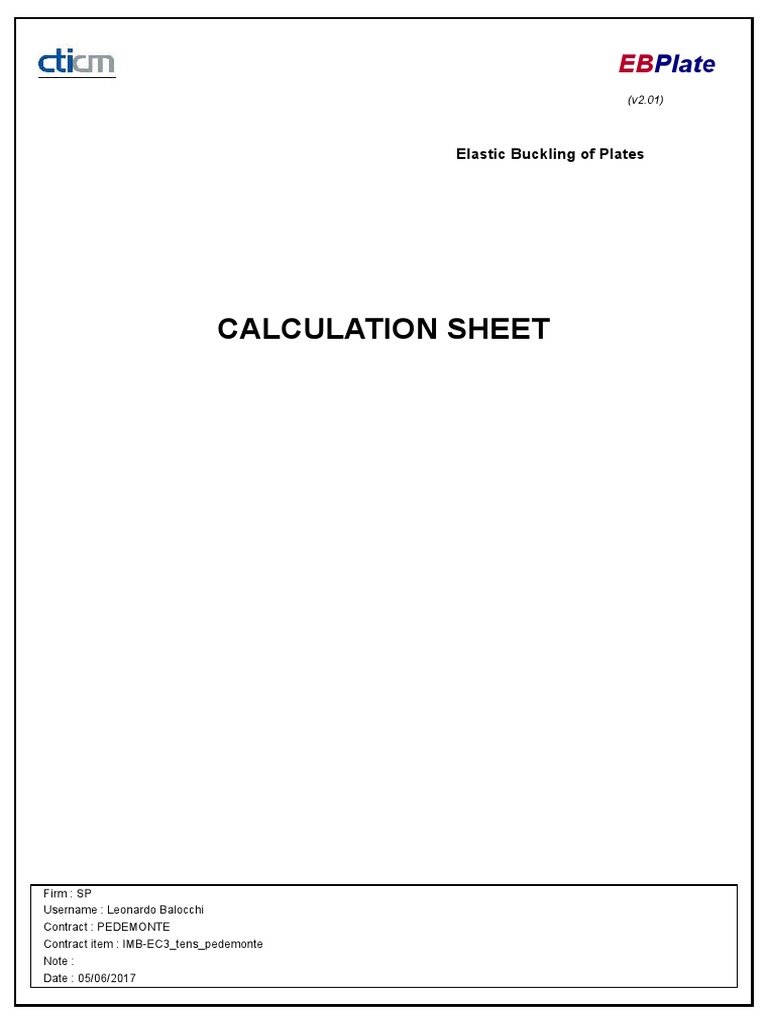

EBPlate

(v2.01)

Elastic Buckling of Plates

CALCULATION SHEET

Firm : SP
Username : Leonardo Balocchi
Contract : PEDEMONTE
Contract item : IMB-EC3_tens_pedemonte
Note :
Date : 05/06/2017
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

PLATE'S CHARACTERISTICS

Dimensions :

Width a = 3.90 m
Height b = 1.76 m
Thickness t = 9.5 mm

Material characteristics :

Young's Modulus = 210000. MPa

Poisson's Ratio = 0.30

t = 9.5 mm
b = 1760. mm

a = 3900. mm

Figure 1 : Plate's dimensions and boundaries conditions

Boundaries conditions :

Side Free Clamped Elastic restraints

Top X
Left X
Bottom X
Right X

Username : Leonardo Balocchi

Date : 05/06/2017 1/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

STIFFENING CONDITIONS

Isotropy / Orthotropy :

The plate is isotropic.

Reference flexural plate rigidity : D = 16487.98 N.m

Stiffeners :

The plate is stiffened by 2 stiffeners.

Parameters Dimensions
I O XY    Type d1 d2 d3 d4
(cm) (mm) (mm) (mm) (mm)
1 H x = 117.4 0.1672 147.3 0.3735 T1
2 H x = 58.8 0.1672 147.3 0.3735 T1

I: Indice O: Orientation XY : Location

H: Horizontal V: Vertical
T1: General Shape T2: Angle T3: Tee
T4: Trapezoidal section T5: Single sided flat bar T6: Double sided flat bar

Username : Leonardo Balocchi

Date : 05/06/2017 2/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

U n°1 1174.

1760.

U n°2 588.

3900.

Figure 2 : Stiffeners

Username : Leonardo Balocchi

Date : 05/06/2017 3/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

n°1
1174.

1760.

n°2
588.

Figure 3 : Plate section with longitudinal stiffeners

Username : Leonardo Balocchi

Date : 05/06/2017 4/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

STRESSES

Analytical stresses :

Analytical stresses will be calculated from this data.

Longitudinal stresses :

xt = -100.0 MPa

xb = 100.0 MPa

Transversal stresses :

yut = 0.0 MPa

yub = 0.0 MPa

Patch Loading stresses :

ypt = 0.0 MPa ct = 50.0 mm

ypb = 56.1 MPa cb = 3050.0 mm

Local longitudinal stresses due to patch loading are not taken into account.
Local shear stresses due to patch loading are taken into account.

Shear stress :

 = 48.5 MPa

ct

ypt

yut

xtl  xtr

xbl xbr

yub

ypb

cb

Figure 4 : Analytical stresses

Username : Leonardo Balocchi

Date : 05/06/2017 5/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

Longitudinal stresses in the plate, defined by user (meshed stresses) :

No stresses defined in the plate.

Transverse stresses in the plate, defined by user (meshed stresses) :

No stresses defined in the plate.

Shear stresses in the plate, defined by user (meshed stresses) :

No stresses defined in the plate.

Username : Leonardo Balocchi

Date : 05/06/2017 6/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
 SP
EBPlate Contract : PEDEMONTE
(V2.01) Contract item : IMB-EC3_tens_pedemonte
Mechanical software Note :

RESULTS

Calculation options :

Matrices dimensions :

Level of complexity : 1 (Low complexity case)

Matrices dimensions : 16 x 7

Number of modes :

Desired modes : First buckling mode

Plate behaviour :

Calculation of the natural buckling modes

Results :

Reference stress :

E = 5.53 MPa

Username : Leonardo Balocchi

Date : 05/06/2017 7/7
G:\JOB\IMBOZZAMENTO VARI\1_1.EBP
