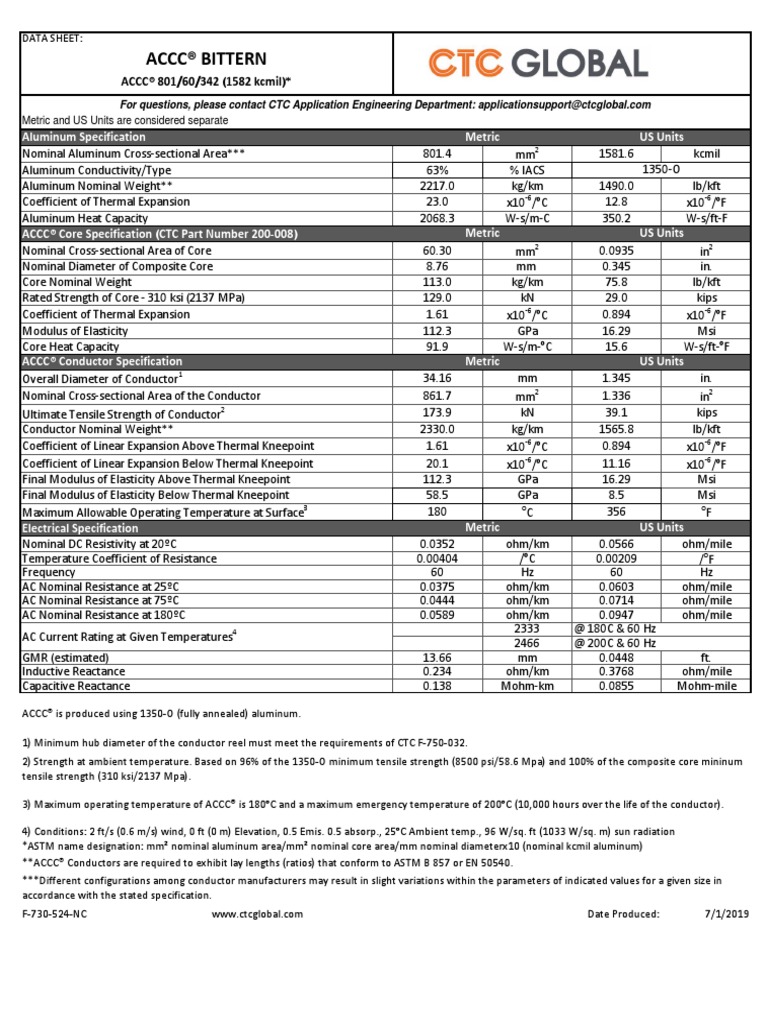

DATA SHEET:

ACCC® BITTERN
ACCC® 801/60/342 (1582 kcmil)*
For questions, please contact CTC Application Engineering Department: applicationsupport@ctcglobal.com
Metric and US Units are considered separate PRELIMINARY
Aluminum Specification Metric US Units
2
Nominal Aluminum Cross-sectional Area*** 801.4 mm 1581.6 kcmil
Aluminum Conductivity/Type 63% % IACS 1350-O
Aluminum Nominal Weight** 2217.0 kg/km 1490.0 lb/kft
Coefficient of Thermal Expansion 23.0 x10-6/°C 12.8 x10-6/°F
Aluminum Heat Capacity 2068.3 W-s/m-C 350.2 W-s/ft-F
ACCC® Core Specification (CTC Part Number 200-008) Metric US Units
2
Nominal Cross-sectional Area of Core 60.30 mm 0.0935 in2
Nominal Diameter of Composite Core 8.76 mm 0.345 in.
Core Nominal Weight 113.0 kg/km 75.8 lb/kft
Rated Strength of Core - 310 ksi (2137 MPa) 129.0 kN 29.0 kips
Coefficient of Thermal Expansion 1.61 x10-6/°C 0.894 x10-6/°F
Modulus of Elasticity 112.3 GPa 16.29 Msi
Core Heat Capacity 91.9 W-s/m-°C 15.6 W-s/ft-°F
ACCC® Conductor Specification Metric US Units
Overall Diameter of Conductor1 34.16 mm 1.345 in.
Nominal Cross-sectional Area of the Conductor 861.7 mm2 1.336 in2
Ultimate Tensile Strength of Conductor2 173.9 kN 39.1 kips
Conductor Nominal Weight** 2330.0 kg/km 1565.8 lb/kft
Coefficient of Linear Expansion Above Thermal Kneepoint 1.61 x10-6/°C 0.894 x10-6/°F
Coefficient of Linear Expansion Below Thermal Kneepoint 20.1 x10-6/°C 11.16 x10-6/°F
Final Modulus of Elasticity Above Thermal Kneepoint 112.3 GPa 16.29 Msi
Final Modulus of Elasticity Below Thermal Kneepoint 58.5 GPa 8.5 Msi
Maximum Allowable Operating Temperature at Surface3 180 o
C 356 o
F
Electrical Specification Metric US Units
Nominal DC Resistivity at 20ºC 0.0352 ohm/km 0.0566 ohm/mile
Temperature Coefficient of Resistance 0.00404 /°C 0.00209 /oF
Frequency 60 Hz 60 Hz
AC Nominal Resistance at 25ºC 0.0375 ohm/km 0.0603 ohm/mile
AC Nominal Resistance at 75ºC 0.0444 ohm/km 0.0714 ohm/mile
AC Nominal Resistance at 180ºC 0.0589 ohm/km 0.0947 ohm/mile
2333 @ 180C & 60 Hz
AC Current Rating at Given Temperatures4 @ 200C & 60 Hz
2466
GMR (estimated) 13.66 mm 0.0448 ft.
Inductive Reactance 0.234 ohm/km 0.3768 ohm/mile
Capacitive Reactance 0.138 Mohm-km 0.0855 Mohm-mile

ACCC® is produced using 1350-O (fully annealed) aluminum.

1) Minimum hub diameter of the conductor reel must meet the requirements of CTC F-750-032.
2) Strength at ambient temperature. Based on 96% of the 1350-O minimum tensile strength (8500 psi/58.6 Mpa) and 100% of the composite core mininum
tensile strength (310 ksi/2137 Mpa).

3) Maximum operating temperature of ACCC® is 180°C and a maximum emergency temperature of 200°C (10,000 hours over the life of the conductor).

4) Conditions: 2 ft/s (0.6 m/s) wind, 0 ft (0 m) Elevation, 0.5 Emis. 0.5 absorp., 25°C Ambient temp., 96 W/sq. ft (1033 W/sq. m) sun radiation
*ASTM name designation: mm² nominal aluminum area/mm² nominal core area/mm nominal diameterx10 (nominal kcmil aluminum)
**ACCC® Conductors are required to exhibit lay lengths (ratios) that conform to ASTM B 857 or EN 50540.
***Different configurations among conductor manufacturers may result in slight variations within the parameters of indicated values for a given size in
accordance with the stated specification.
F-730-524-NC www.ctcglobal.com Date Produced: 7/1/2019
