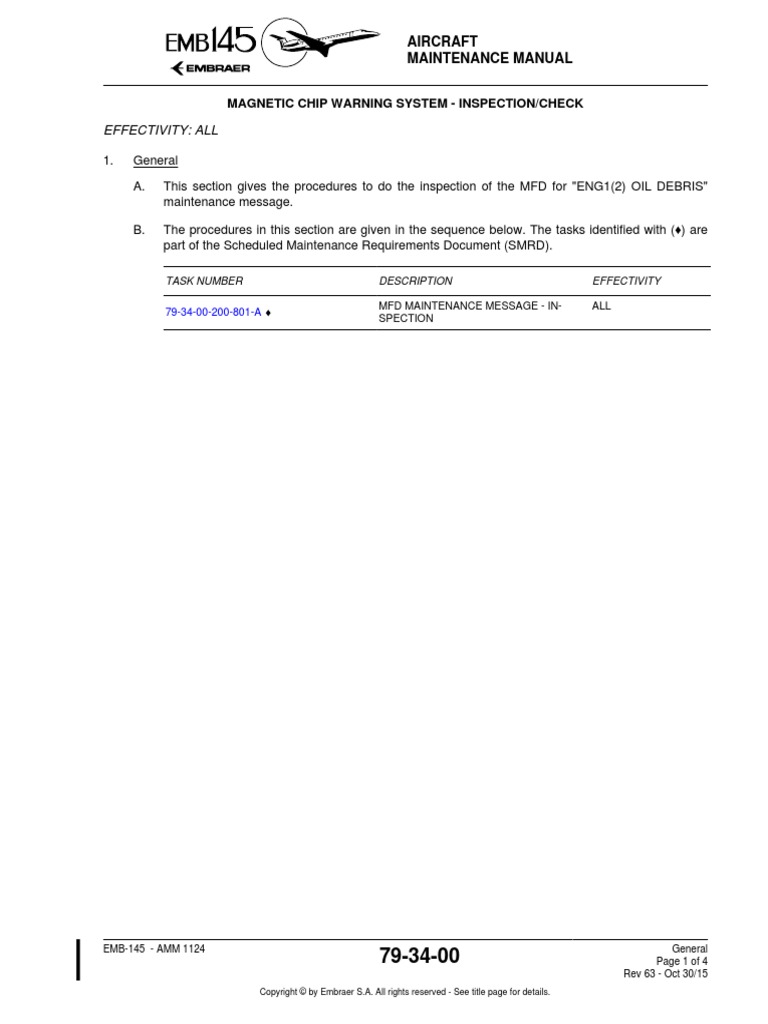

AIRCRAFT

MAINTENANCE MANUAL

MAGNETIC CHIP WARNING SYSTEM - INSPECTION/CHECK

EFFECTIVITY: ALL

1. General
A. This section gives the procedures to do the inspection of the MFD for "ENG1(2) OIL DEBRIS"
maintenance message.

B. The procedures in this section are given in the sequence below. The tasks identified with (♦) are
part of the Scheduled Maintenance Requirements Document (SMRD).

TASK NUMBER DESCRIPTION EFFECTIVITY

MFD MAINTENANCE MESSAGE - IN- ALL

79-34-00-200-801-A ♦
SPECTION

EMB-145 - AMM 1124 General

79-34-00 Page 1 of 4
Rev 63 - Oct 30/15
Copyright © by Embraer S.A. All rights reserved - See title page for details.
 AIRCRAFT
MAINTENANCE MANUAL

TASK 79-34-00-200-801-A
EFFECTIVITY: ALL

2. MFD MAINTENANCE MESSAGE - INSPECTION

A. General
(1) This task is done during the routine inspection of the aircraft.
B. References

REFERENCE DESIGNATION

AMM MPP 71-00-00/200 POWERPLANT - MAINTENANCE PRACTICES

ENERGIZATION OF THE AIRCRAFT WITH AN EX-
AMM TASK 20-40-01-860-801-A/200
TERNAL POWER SOURCE

C. Zones and Accesses

Not Applicable
D. Tools and Equipment
Not Applicable
E. Auxiliary Items
Not Applicable
F. Consumable Materials
Not Applicable
G. Expendable Parts
Not Applicable
H. Persons Recommended

QTY FUNCTION PLACE

1 Does the task Cockpit

I. Preparation
SUBTASK 841-002-A
WARNING: BEFORE YOU DO THE TASK, OBEY THE SAFETY PRECAUTIONS GIVEN IN
( AMM MPP 71-00-00/200) TO PREVENT INJURY TO THE PERSONS AND
DAMAGE TO THE MATERIAL.

(1) Make sure that the aircraft is safe for maintenance.

(2) Energize the aircraft with the DC Power Supply ( AMM TASK 20-40-01-860-801-A/
200).
J. Inspect Multi-Function Display for ENG1(2) OIL DEBRIS Maintenance Message (Figure 601)
SUBTASK 212-002-A
(1) On the MFD select the maintenance page.

EMB-145 - AMM 1124 200-801-A/600

79-34-00 Page 2 of 4
Rev 75 - Oct 28/19
Copyright © by Embraer S.A. All rights reserved - See title page for details.
 AIRCRAFT
MAINTENANCE MANUAL

(2) Examine the maintenance page for the absence of the message "ENG1(2) OIL
DEBRIS".

(3) Return the MFD to the normal condition.

K. Follow-on
SUBTASK 842-002-A
(1) Remove the DC Power Supply ( AMM TASK 20-40-01-860-801-A/200) from the
aircraft.

EMB-145 - AMM 1124 200-801-A/600

79-34-00 Page 3 of 4
Rev 75 - Oct 28/19
Copyright © by Embraer S.A. All rights reserved - See title page for details.
 AIRCRAFT
MAINTENANCE MANUAL

EFFECTIVITY: ALL
MFD Maintenance Page - Components Location
Figure 601

A
ZONES
223
224

DET. A

MFD

FMS CHK EICAS --- --- SAT

--- TAT
--- NM --- TAS
--- MIN N
33 HDG 3
FAIL
3O

5O 5O

MAINTENANCE MESSAGES O1/O1

ENG1 OIL DEBRIS

O8/14 12:33 OCCUR:O1
ENG2 OIL DEBRIS
O7/26 19:21 OCCUR:O1
ENG1 OIL FILTER IMP BYPASS
O7/26 19:21 OCCUR:O1 MAINTENANCE
LG AIR/GND - LGEU FAIL PAGE
O7/23 13:45 OCCUR:23
T/R LOW DEPLOY SW FAIL
O7/19 17:58 OCCUR:O1

NEXT PREV M/P

RTN PAGE PAGE RNG

DET. B 145AMM720001.MCE A

EMB-145 - AMM 1124 200-801-A/600

79-34-00 Page 4 of 4
Rev 75 - Oct 28/19
