電機系

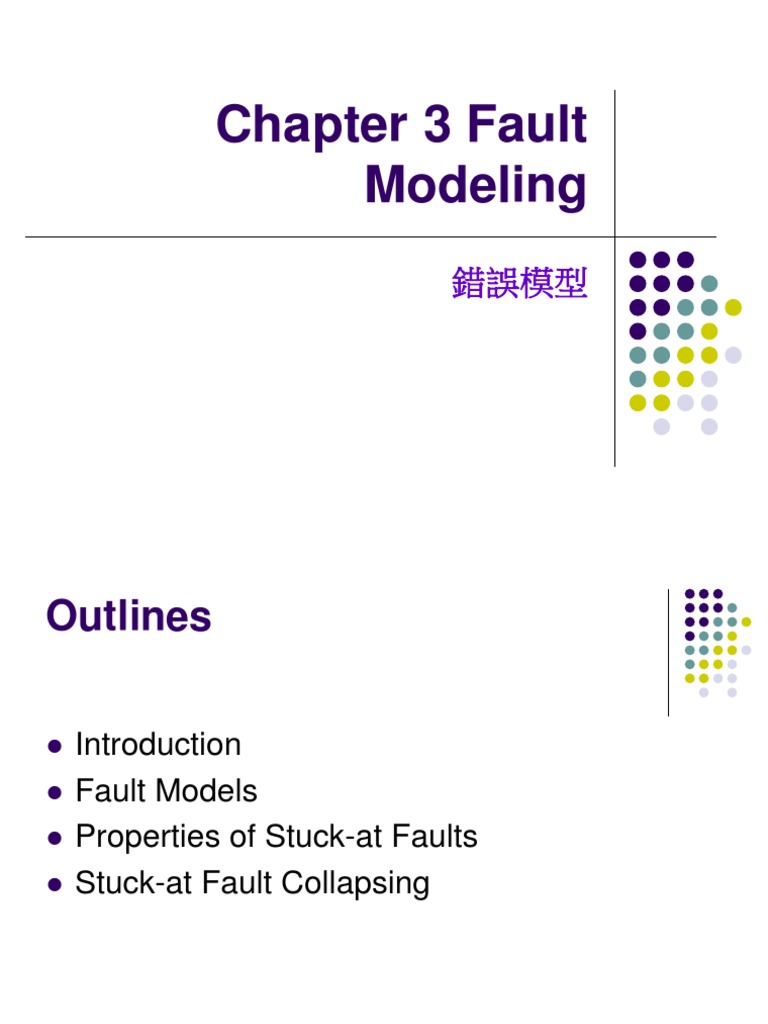

Chapter 3 Fault
Modeling
錯誤模型
Outlines

 Introduction
 Fault Models
 Properties of Stuck-at Faults
 Stuck-at Fault Collapsing

2
Fault Model and Structural
Tests
 Fault model is the foundation of structural
testing methods
 Structural tests
 Use the information of interconnected
components (e.g., gates) to derived test
regardless of the functions
 Define faults
  fault coverage (quality evaluation)
  ATPG to generate tests for faults

  DfT for enhancing fault detection.


Characteristics of Fault
Models
 Model the effects of physical defects on the
logic function and timing
 Identifies target faults
 Model faults (defects) most likely to occur
 Depends on the process, design platform, design
style, design level, etc.
 Limits the scope of test generation
 Create tests only for the modeled faults
Levels of Fault Models

 Physical Defects
 Silicon Defects
 Photolithographic Defects
 Mask Contamination
 Process Variation
 Defective Oxides
 Electrical Effects
 Shorts (Bridging Faults)
 Opens
 Transistor Stuck-On/Open
 Resistive Shorts/Opens
 Change in Threshold Voltages
 Logical Effects
 Logical Stuck-at 0/1
 Slower Transition (Delay Faults)
 AND-bridging, OR-bridging

5
Defect, Fault, and Error

 Defect
 Physical imperfection
 The unintended difference between the manufactured hardware
and its intended design
 Error
 A wrong output signal produced by a defective system
 Fault
 A representation of a defect at the abstracted function level

• One of the gate input terminal was


a mistakenly connected to ground
f
b
• Defect: short to ground
• Error: f = 0 when a = b = 1
• Fault: b stuck at 0
6
Common Fault Models

 Stuck-at faults
 Interconnect short and opens
 Transistor stuck-on/open faults
 Memory faults
 Delay faults

7
Single Stuck-At Fault Model

 Assumptions:
 Only One line is faulty
 Faulty line permanently set to 0 or 1
 Fault can be at an input or output of a gate

• One of the gate input


a
f terminal was mistakenly
b connected to ground
• Fault: b stuck at 0
• signal b will always be “0”
8
The Popularity of Single Stuck-
At Faults
 Complexity is greatly reduced
 Technology independent
 Can be applied to TTL, ECL, CMOS, BiCMOS etc.
 Design style independent
 Gate array, standard cell, custom VLSI
 Detection capability of un-modeled defects
 Empirically many defects accidentally detected by
test derived based on single stuck-at fault

9
Multiple Stuck-At Faults

 Several stuck-at faults occur at the same time


 For a circuit with k lines
 there are 2k single stuck-at faults
 there are 3k-1 multiple stuck-at faults
 A line could be stuck-at-0, stuck-at-1, or fault-free
 One out of 3k resulting circuits is fault-free

 Most Multiple faults are covered by single-fault tests


of combinational circuit:
 4-bit ALU (Hughes & McCluskey, ITC-84)
All double and most triple-faults covered.
 Large circuits (Jacob & Biswas, ITC-87)
Almost 100% multiple faults covered for circuits with 3 or
more outputs.
Bridging Faults For CMOS
Logic
 Two or more normally distinct points (lines) are shorted together
 Could be AND-bridging or OR-bridging
 depends on the inputs
VDD
(A=B=0) and (C=1, D=0) VDD
A (f and g) is OR-bridging fault

pull to VDD C

f
bridging g
B A
C D
pull to zero
GND
(A=B=0) and (C=1, D=1) GND
(f and g) is AND-bridging fault
11
Interconnet Opens
 Open defects are due to a defect which splits up a
node into two or more distinct nodes.
 Large open (break): No current can go between the two ends
of the open when a voltage is applied across it.
 Narrow open: The opening is usually < 100 nm. In this case a
small leakage current (by tunnel effect) go across the open.
VDD
VDD
C
A

Open defects
g
as a large resistor
f
D C
B A

GND
GND 12
CMOS Transistor Stuck-On
VDD IDDQ current

Example:
N transistor
is always ON Output level?

0 stuck-on

 Transistor Stuck-On GND

 May cause ambiguous logic level


 Depends on the relative impedances of the pull-up and
pull-down networks
 When Input Is Low in the example
 Both P and N transistors are conducting, causing
increased quiescent current, called IDDQ fault 13
CMOS Transistor Stuck-Open
 Transistor stuck-open
 May cause the output to be floating
 The faulty cell has sequential behavior
 Stuck-open might require two vector tests
VDD

stuck-open
Initialization
vector (0/0) ->(1/0)

Faulty value
1 -> 0

GND
14
Delay Fault Models

 Assumption
 A “logical” model for decoupling delays from ATPG
 Merge interconnect delays into pin-pin gate delays
 All delay faults require two-cycle to detect
 Usually apply with scan design and an internal clock
(and some other DfT modification for aligning the ATE
clock and the internal clock)
 Types
 Transition fault
 Path delay fault
 Small delay defect (transition fault through the longest path)
Transition Fault Model (1/3)

 Assumption
 Delay fault affects only one signal in the circuit
 The extra delay will prevent transitions to ANY
primary output or flip-flop
 Observation can be made at any PO or FF
 Two transition faults for each pin-to-pin signal
 slow-to-rise fault
 slow-to-fall fault
Transition Fault Model (2/3)

 Fault activation
 Create a rising (or falling) signal transition at the fault
site for a slow-to-rise fault (or slow-to-fall fault)
 Need to set the values for two cycles
 Fault propagation
 Propagate the faulty value at the second cycle
 Example
 slow-to-rise on signal A on the following AND gate
fault activation fault propagation
signal cycle 1 cycle 2 signal cycle 1 cycle 2
A
C A 0 1 A 0 1/0
B B X X B X 1
C 0 X C 0 1/0
17
Transition Fault Model (3/3)

 Advantage
 # of faults is linear w.r.t # of gates (signals)
 ATPG tools for stuck-at faults can be used (why??)
 Problems
 Fault size large enough to propagate through any
paths (usually short paths)
 Fault only affects one signal
 Despite the problems, transition fault model is
good starting “base” set of delay tests
Path Delay Fault

 Any path in a circuit can be a target for tests


 A physical path is composed of a sequence of gates
 A logical path is a physical path with a transition
 Advantage: model small variations on paths
 All possible faults are captured.
 Problems:
 number of paths grows exponentially with the circuit’s
size
 Only a small subset of paths have good test patterns
Classification of Path Delay
Faults
 Path sensitization
 Single-path sensitizable
 Robust
 Non-robust
 Functional sensitizable
 Functional unsensitizable
 Functional (performance) redundant paths
 Some path delay faults can never independently affect
the performance
 Some path delay faults can result in better test
quality but require higher complexity to generate
the tests (or even cannot be generated)

20
Small Delay Defect

 Idea: transition fault through the longest path


 Using STA result as a guidance
 Avoid of the drawback of transition faults
whose corresponding test usually sensitize a
short path
 The total number of faults are the same as
the transition faults
 Require a more complicated ATPG

21
Pseudo-Stuck-At Fault Model
for IDDQ testing
 It is similar to single stuck-at fault model,
except that every cell output is considered
observable by IDDQ testing.
 The fault site at a gate input requires sensitization
and propagation to an output of the same gate
(but not to an output of the circuit) in order to be
given credit for IDDQ fault detection.
a=1 1/0
b=1 f=0
c=0
Pseudo-Stuck-At Fault Model
for IDDQ testing
 The exhaustive pseudo-stuck-at patterns for
IDDQ testing cover all leakage faults in fully
complementary combinational CMOS circuits.
ab cd Detected Pseudo Detected leakage Faults
Stuck-At Faults (total 6C2 = 15 leakage faults)
01 01 a-sa1 <b, 0> <c, 1> <d, 0> <a, 1> <a, b>
d-sa0 <a, d> <b, c> <c, d> <0, 1>
10 11 b-sa1 <a, 0> <c, 0> <d, 0> <b, 1> <a, b>
d-sa0 <b, c> <b, d> <0, 1>
11 00 a-sa0 <a, 0> <c, 0> <c, 1> <d, 1> <a, c>
b-sa0 <a, d> <b, c> <b, d> <0, 1>
d-sa1

S.T., Zachariah, “A comparative study of pseudo stuck-at and


2-input NAND2
leakage fault model”, IEEE Int’l Conf. on VLSI Design 1999
Memory Faults

 Parametric Faults
 Speed
 Power Consumption
 Noise Margin
 Data Retention Time
 Functional Faults
 Stuck Faults in Address Register, Data Register, and
Address Decoder
 Cell Stuck Faults
 Adjacent Cell Coupling Faults
 the presence of a faulty signal depends on
0 0 0
the signal values of the neighboring cells 0 d b
 Pattern-Sensitive Faults 0 a 0
 Pattern sensitivity between cells
a=b=0 => d=0
a=b=1 => d=1
Fault Model Summary

 Current practice
 Single stuck-at faults
 Transition faults
 Small delay defect
 Other models to enhance defect coverage
 N-detect faults
 Interconnect bridging faults
 Transistor stuck-open (CMOS)
 Path delay faults (high performance circuits)
 Cell aware faults (defect-based faults)

25
Properties of Stuck-at
Faults
Definition Of Fault Detection

 A test (vector) t detects a fault f iff


 t detects f  z(t) ≠zf(t)
 Note that there can be multiple outputs for z(t)
 A fault f is said to be detectable
 If there exists a test t that detects f; otherwise, f is undetectable.
 Example

X1
Z1
x
s-a-1
X2 Z1=X1X2 Z2=X2X3

Z1f =X1 Z2f =X2X3


Z2
X3

The test (x1,x2,x3) = (100) detects f because z1(100)=0 while z1f (100)=1
Redundancy of Faults

 For combinational circuits, an


undetectable fault is corresponding
to a redundant wire.
 Undetectable faults do not change the function of
the circuit
 The wire can be connected to a constant value
without changing circuit’s function.

28
Examples of Simplifying
Circuits with Redundancy
 If l s.a.1 is undetectable, the gate can be
simplified as
s. a. 1 l
l x 1
Y Y m Y
m m
n n n

 If l s.a.0 is undetectable, the entire gate can


be removed & replaced by a constant 0 wire
s. a. 0 l 0
l x Y Y Y
m m 0
n n

29
Cause of Circuit Redundancy

 Design to satisfy certain physical


characteristics
 Speed: carry look-ahead adders
 Fault tolerant circuits: triple module redundant
(TMR)
 Un-intentional redundancy by design
partitioning.
 Under specified requirements.

30
Example: Redundancy
Removal
 Redundant faults: e s-a-1, d s-a-0 and d s-a-1
 The NAND gate with d is redundant
a
e
e sa1
d
c f

b
simplify the redundant
signals and gates
a

c
f
b
Fault Masking
 The existence of an undetectable fault may
invalidates the test for another fault.
 Test pattern masking by undetectable faults

a
e
a  e sa1
d
c f

Fault a is undetectable, i.e., f(t) = fα(t) for all t.

32
• Fault b can be detected by test vector 1101. (X10X)
1
a
0 0
1
d 1
c 1 0/1
0 f
1 0/1
1 g 1/0
b
b  g sa0 1/0

• In the presence of the undetectabe fault a, the test vector 1101


becomes invalidate for fault b.
1
a
1 1
a 1
d 0
c 1 0
0 f
1 0/1
1 g 1/0
b
b  g sa0 1/0
33
• But fault b can also be detected by test vector 010X with fault a.

0
a
1 0
a X
d 1
c 1 0/1
0 f
1 0/1
1 g 1/0
b
b  g sa0 1/0

34
Stuck-at Fault
Collapsing
Fault Equivalence
Fault Dominance
Checkpoint Theorem
Fault Equivalence
 Distinguishing test
A test t distinguishes faults a and b if
Za t   Zb t  1

 Equivalent Faults
 Two faults, a & b are said to be equivalent
in a circuit , iff the function under a is equal to
the function under b for any input combination
(sequence) of the circuit.
 No test can distinguish between a and b

 In other words, test-set(a) = test-set(b)


Equivalence Analysis of a
Single Gate
AB C A B C A B C
sa1 sa1 sa1 sa0 sa0 sa0
A
C 00 0 1
B
01 0 1 1
10 0 1 1
11 1 0 0 0

 Fault Equivalence Class


 (A s-a-0, B s-a-0, C s-a-0)
 Faults that can be ignored:
 A s-a-0, B s-a-0, or C s-a-0

37
Fault Equivalence of Faults on
a Gate
 AND gate:
 all s-a-0 faults are equivalent x
x s-a-0
 OR gate: s-a-0
 all s-a-1 faults are equivalent
 NAND gate: same effect
 all the input s-a-0 faults and the output
s-a-1 faults are equivalent
 NOR gate:
 all input s-a-1 faults and the output
s-a-0 faults are equivalent
 Inverter:
 input s-a-1 and output s-a-0 are equivalent
input s-a-0 and output s-a-1 are equivalent
Equivalence Fault Collapsing
of a Single Gate
 n+2 instead of 2(n+1) faults need to be
considered for n-input gates

s-a-1 s-a-0
s-a-1 s-a-1
s-a-0 s-a-0
s-a-1 s-a-0

s-a-1 s-a-0
s-a-1 s-a-1
s-a-0 s-a-0
s-a-1 s-a-0
Equivalent Fault Group
 In a combinational circuit, many faults may form
an equivalent group
 These equivalent faults can be found by sweeping the
circuit from the primary outputs to the primary inputs
 Transitive Rule: When a == b and b == g, then a == g

s-a-0 s-a-1
x
x

s-a-1
x

Three faults shown are equivalent !


Finding Equivalent Fault
Groups
 Construct a Graph
 A node is a fault
 When there is a link between two node, the
two faults are equivalent

a s-a-0
a s-a-0 c s-a-1
x
x
x
b s-a-0 b s-a-0 c s-a-1
Example of Finding Equivalent
Fault Groups
 Construct a bigger fault equivalent graph
by sweeping the netlist from PO’s to PI’s
a
b d

e
c

a s-a-0 c s-a-1

b s-a-0 d s-a-1 e s-a-1


Limitation of Structural Analysis
c

b s-a-0 f s-a-1

 There is no rule to guarantee equivalence


between faults of branches.
 It is a special case here b s.a.0 == f s.a.1
 In general, they cannot be identified by simple
structure analysis.
43
Fault Dominance
 Dominance Relation
 A fault b is said to dominate another fault
a in an irredundant circuit, iff every test (sequence) for
a is also a test (sequence) for b.
 I.e., test-set(b) > test-set(a)
 No need to consider fault b for fault detection once a is
detected

Test(b) a is dominated by b
Test(a)
Fault Dominance
 AND gate:
Easier-to-test
 Output s-a-1 dominates any input s-a-1
 NAND gate: x
x s-a-1
 Output s-a-0 dominates any input s-a-1
s-a-1
 OR gate:
harder-to-test
 Output s-a-0 dominates any input s-a-0
 NOR gate:
 Output s-a-1 dominates any input s-a-0
 Dominance fault collapsing:
 The reduction of the set of faults to be analyzed
based on dominance relation
Dominance Analysis of a
Single Gate
AB C A B C A B C
sa1 sa1 sa1 sa0 sa0 sa0
A
C 00 0 1
B
01 0 1 1
10 0 1 1
11 1 0 0 0

 Fault Dominance Relations


 (C s-a-1 > A s-a-1) and (C s-a-1 > B s-a-1)
 Faults that can be ignored for test generation:
 C s-a-1

46
Complete Fault Collapsing of a
Single Gate
 Equivalence + Dominance
 For each n-input gate, we only need to
consider n+1 faults during test generation
s-a-1 s-a-0
s-a-1
s-a-0
s-a-1 s-a-0

s-a-1 s-a-0
s-a-1
s-a-0
s-a-1 s-a-0
Dominance Analysis for a
Group of Faults
 Construct a dominance graph
 A node is a fault
 When fault a dominates fault b, then an arrow is
pointing from a to b

a s-a-1
a s-a-1 c s-a-0
x
x
x
b s-a-1 b s-a-1 c s-a-0

48
Example of Finding Dominant
Fault Groups
 Construct a bigger fault equivalent graph
by sweeping the netlist from PO’s to PI’s
a
b d

e
c

a s-a-1 c s-a-0

b s-a-1 d s-a-0 e s-a-0


Fault Collapsing Flow

Start Sweeping the netlist from PO to PI Equivalence


To find the equivalent fault groups analysis

Sweeping the netlist Dominance


To construct the dominance graph analysis

Discard the dominating faults

Select a representative fault from


each remaining equivalence group

Generate collapsed fault list Done

50
Checkpoint Theorem

 Checkpoints Theorem
 Checkpoints = primary inputs + fanout branches
 In a combinational circuit, any test which detects
all single stuck faults on all checkpoints detects all
single faults in the circuit.

The faults marked by X are checkpoint faults.


Why Inputs + Branches Are
Enough ?
 Sweeping the circuit from PO to PI to examine every
gate and replace output faults by input faults until a PI
or branch is met.
 Based on an reversed levelized order: EDABC
 If a branch is met, start the above process from the stem again.
 In this example, checkpoints are marked in solid blue.
A PO branch faults are ignored, since
they are represented by gate output
faults, e.g., D’s output
D
B

E
C
52
An Example of Fault Collapsing +
Checkpoint
 10 checkpoint faults
 a s-a-0 == d s-a-0, c s-a-0 == e s-a-0
b s-a-0 > d s-a-0, b s-a-1 > d s-a-1
 Note that the branch dominance is not obvious.
 6 out of 10 faults are enough.

a
d
f
h
b
g
e
c

You might also like
