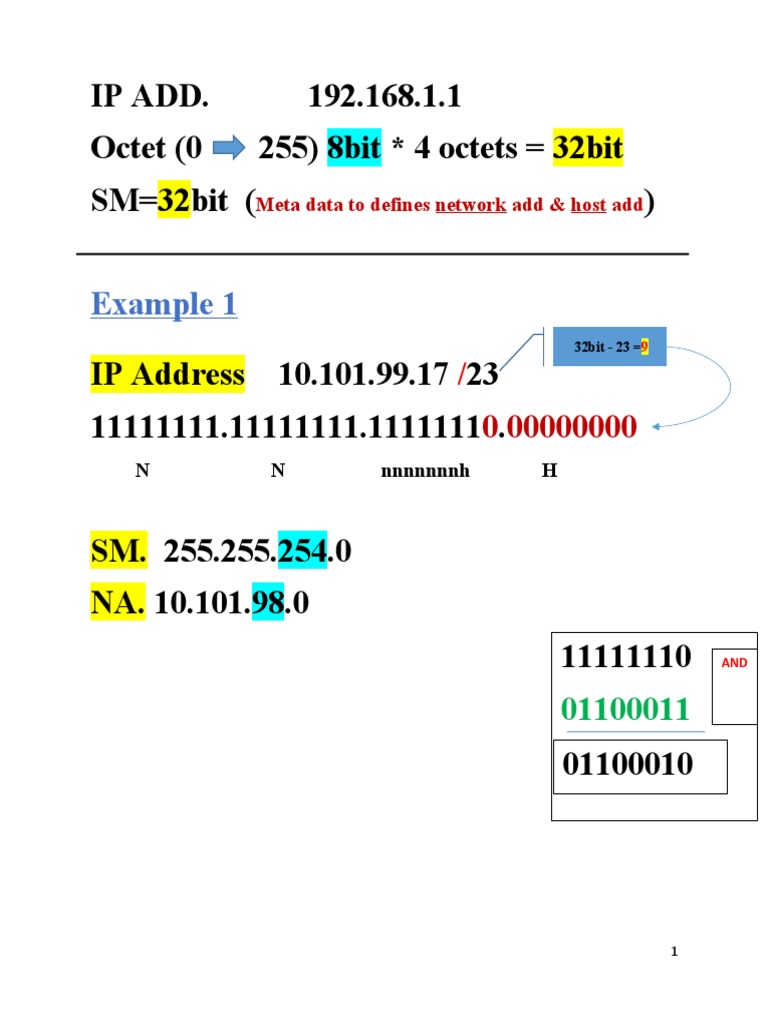

    IP ADD. 192.168.1.

    1
    Octet (0 255) 8bit * 4 octets = 32bit
    SM=32bit (Meta data to defines network add & host add)

    Example 1
    32bit - 23 =9

    IP Address 10.101.99.17 /23


    11111111.11111111.11111110.00000000
    N N nnnnnnnh H

    SM. 255.255.254.0
    NA. 10.101.98.0
    11111110 AND

    01100011
    01100010

    1
    Example 2
    32bit - 27 =

    IP Address 209.165.202.140 /27


    11111111.11111111.11111111.11100000
    SM. 255.255.255.224
    NA. 209.165.202.128
    11100000
    10001100
    10000000

    2
    Example 3

    IP Address 209.165.200.227 /27


    11111111.11111111.11111111.11100000
    SM. 255.255.255.224
    NA. 209.165.200.224
    11100000
    11100011
    11100000

    3
    *AND Table :

    0 0 0

    0 1 0

    1 0 0

    1 1 1

    +OR Table :

    0 0 0

    0 1 1

    1 0 1

    1 1 1

    4
    Example 4

    IP Address 10.101.99.17 /23


    11111111.11111111.11111110.00000000
    N N nnnnnnnh H

    SM. 255.255.254.0
    NA. 10.101.98.0
    11111110
    01100011
    HostMin
    FIRST H. +1 01100010
    10.101.98.1

    BROADCAST.
    10.101.99.255
    HostMax LAST H. -1
    10.101.99.254

    5
    Example 5
    IP Address 10.101.99.17 /23

    IP AD
    00001010.01100101.01100010.00010001

    SM 11111111.11111111.11111110.00000000
    255 . 255 . 254 . 0
    IP AND SM Switch zeros to one and vice versa

    WILD
    CARD 00000000.00000000.00000001.11111111
    0 . 0 . 1 . 255
    NA IP AND SM
    00001010.01100101.01100010.00000000
    10 . 101 . 98 . 0

    BRC IP OR WILD CARD

    00001010.01100101.01100011.11111111
    10 . 101 . 99 . 255
    6
    NA

    F.H
    10.101.99.1 BRC
    L.H 10.101.99.254

    HOSTS The actual number of hosts:

    0.000000
    00

    2^9-2=510

    Binary Base (2)^[32 - Given Subnet(23)] - 2(Reserved Two Address (NA , BC)

    WILD CARD :that is used in conjunction with the IP address to determine which of the bits
    will be omitted by comparing it with another address.
    To find out how wildcards work and how it is used First, its conditions
    1- 0-bit = its meaning is identical

    2- 1-bit = means ignore the value
