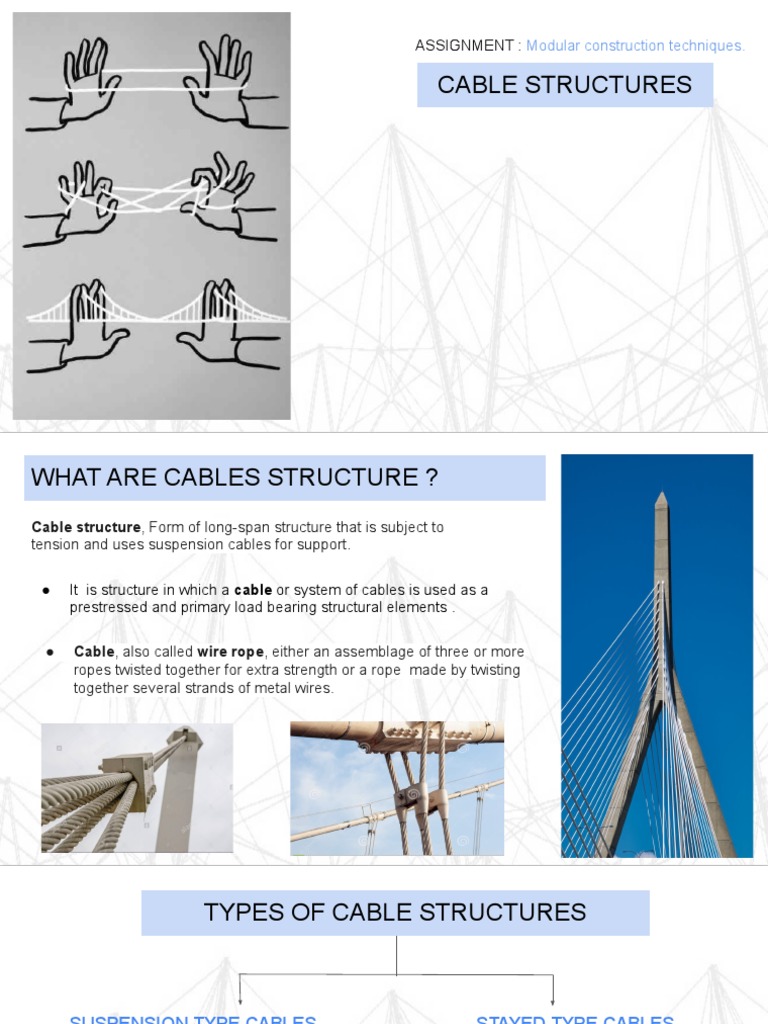

CABLE STRUCTURES
WHAT ARE CABLES STRUCTURE ?
Cable structure, Form of long-span structure that is subject to
tension and uses suspension cables for support.
The main cables continue beyond the pillars to deck-level In the cable-stayed bridge, the towers are the primary
supports, and further continue to connections with anchors in the load-bearing structures which transmit the bridge loads to the
ground. ground
KURILPA BRIDGE
KURILPA BRIDGE
In 2011 the bridge won the World Transport Building of the Year by
● Location: Brisbane, Australia.
the World Architecture Festival
● Opened : october 2009
● Water body below: Brisbane river.
● Project owner : Queensland government
● Total area: 12,500m² (134,548ft²)
● Architectural firm: Cox Rayne Architects.
● Engineering design by: Ove Arup &
partners.
● 500 cubic meters of concrete and 500
tonnes of steel.
● Nearly 7 km of high strength steel cables. used by about 36,500 pedestrians and cyclists weekly
Length: 470 m
Clearance below: 11 m pedestrian and cycle
Width: 6 m loop connection
A: Kurilpa bridge
B: brisbane river
C: tank street
D: riverside expressway
E: gallery of modern art
F: commonwealth law courts.
Concept / mechanism:
The Kurilpa Bridge is a multiple‐mast, cable‐stay structure based on principles of tensegrity producing a balanced
tension and compression forces to create a light structure that is incredibly strong.
Tubes act as
compression forces
Why tensegrity?
Tensegrity structure is widely used in long-span space structures due to its super lightweight features, gains strength from the chords
under tension which suspend the compressed components. Structures are Deployable, easily tunable and efficient.
sketch
The tensegrity bridge comprises of three spans:
● A central span of 128 m
● Side of 57 m
● Side of 45 m
Structurally this span composition is balanced and
eliminates the need for massive abutments, allowing
the tensegrity structure to be constructed via a
balanced cantilever technique.
TENSEGRITY CABLES
STEEL BRIDGE DECK AND ITS JOINERY ● The precast deck panels are joined in situ
concrete stitches that are supported by and
work compositely with rolled steel
● The overall structure is balanced, eliminating the I-sections.
need of for massive abutments and allowing
cantilever method construction.
● The superstructure erection from each of the river
piers,using accurate length components, erected
in sequence that ensured upon completion all the
parts of the bridge would be on accurate position
with all cables prestressed on the weight of
bridge.
● The accuracy of this structure was demonstrated by
two halves of the bridge meeting precisely at
mid-span, with the deck at the completion within
25mm of gap between.
Components of bridge Solar power and LED lighting –
● Due to the scale of the structure, load was applied in the form of small precast
concrete slabs to 8 nodes on the lower grid.
● The nodes were selected to ensure an even distribution of load, while allowing for
their safe application from outside the structure boundary.
● Two sizes of slab were used, of mass 14.4 and 24.4 kg, and they were attached to
the structure via specially fabricated steel hangers.
● There were 6 increments of live load applied, beginning with the steel hangers
alone and finishing with the hangers and 5 concrete slabs.
● The maximum total load applied to the grid was 8.54 kN, which equates to 0.53
kN/m2 .
● This value is comparable to the characteristic load value of 0.4 kN/m2.
