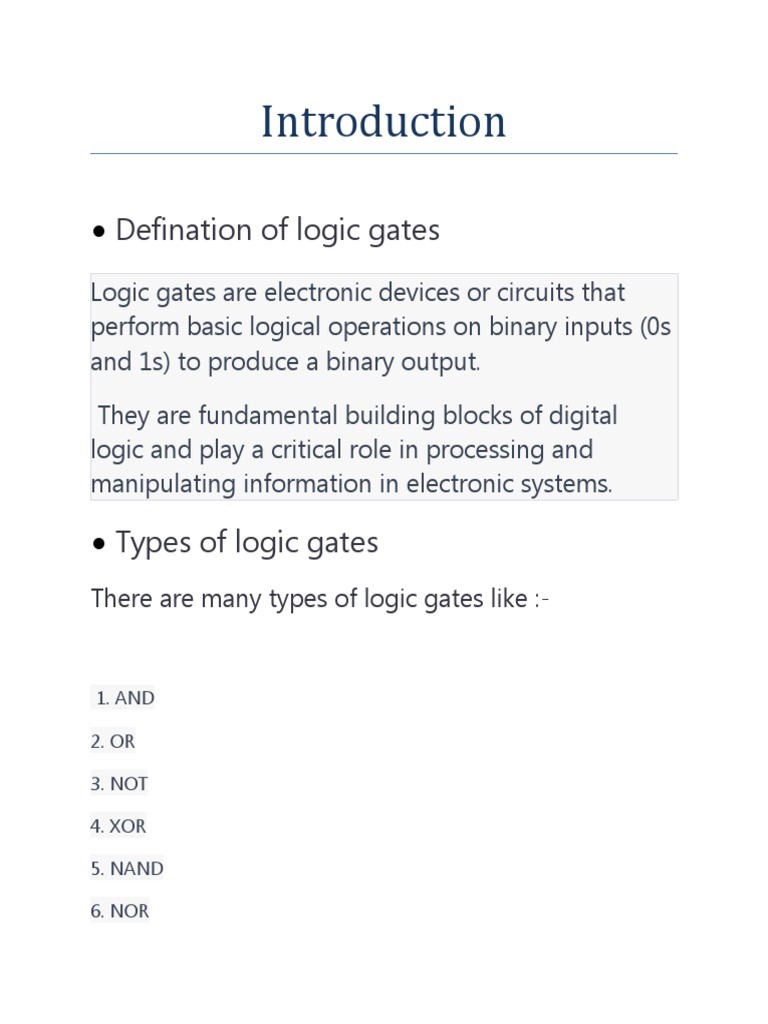

Introduction

 Defination of logic gates

Logic gates are electronic devices or circuits that
perform basic logical operations on binary inputs (0s
and 1s) to produce a binary output.

They are fundamental building blocks of digital

logic and play a critical role in processing and
manipulating information in electronic systems.

 Types of logic gates

There are many types of logic gates like :-

1. AND

2. OR

3. NOT

4. XOR

5. NAND

6. NOR
 Logic Gates in Digital Electronics
 Introduction to digital electronics :-
Digital electronics is a field of electronics that deals
with the manipulation and processing of digital
signals using discrete values of 0s and 1s.

It involves the design, analysis, and implementation

of electronic circuits and systems that operate on
binary data.

A digital circuit is typically constructed from small

electronic circuits called logic gates that can be used
to create combinational logic. Each logic gate is
designed to perform a function of boolean logic
when acting on logic signals.

A logic gate is generally created from one or more

electrically controlled switches, usually transistors
but thermionic valves have seen historic use. The
output of a logic gate can, in turn, control or feed
into more logic gates.
 Advantages of digital electronics :-

An advantage of digital circuits when compared to

analog circuits is that signals represented digitally
can be transmitted without degradation caused by
noise.

For example, a continuous audio signal transmitted

as a sequence of 1s and 0s, can be reconstructed
without error, provided the noise picked up in
transmission is not enough to prevent identification
of the 1s and 0s.

In a digital system, a more precise representation of

a signal can be obtained by using more binary digits
to represent it. While this requires more digital
circuits to process the signals, each digit is handled
by the same kind of hardware, resulting in an easily
scalable system.

In an analog system, additional resolution requires

fundamental improvements in the linearity and noise
characteristics of each step of the signal chain.
 Boolean algebra and its relevance to
digital electronics :-
Boolean algebra is a branch of algebra. It differs
from elementary algebra in two ways. First, the
values of the variables are the truth values true and
false, usually denoted 1 and 0, whereas in
elementary algebra the values of the variables are
numbers. Second, Boolean algebra uses logical
operators such as conjunction (and) denoted as ∧,
disjunction (or) denoted as ∨, and the negation (not)
denoted as.

Elementary algebra, on the other hand, uses

arithmetic operators such as addition, multiplication,
subtraction and division. Boolean algebra is
therefore a formal way of describing logical
operations, in the same way that elementary algebra
describes numerical operations.

Boolean algebra was introduced by George Boole in

his first book The Mathematical Analysis of Logic
(1847), and set forth more fully in his An
Investigation of the Laws of Thought (1854).
Types of logic gates and their funcctions
The following types of logic gates are
commonly used are :-
1. AND gate
An AND gate is a fundamental logic gate in digital
electronics that performs the logical AND operation
on two or more binary inputs to produce a single
binary output. The AND gate produces a binary 1
output only when all of its inputs are binary 1;
otherwise, it produces a binary 0 output.

There are three types of symbols for AND gate :-

MIL/ANSI symbol IEC symbol

DIN symbol
2. OR gate
An OR gate, also known as a logical disjunction, is a
fundamental electronic logic gate that performs a
logical operation on one or more binary inputs and
produces a single binary output.

In electronic circuits, an OR gate can be

implemented using various technologies such as
diodes, transistors, or integrated circuits (ICs).

There are three types of symbols for OR gate :-

MIL/ANSI Symbol IEC Symbol

DIN Symbol
3. NOT gate :-
A NOT gate, also known as an inverter, is a basic
logic gate that has a single input and produces an
inverted version of that input as the output.

It is a fundamental building block in digital logic

design and is used in combination with other gates
to create more complex logical functions and
circuits.

In electronic circuits, a NOT gate can be

implemented using various technologies such as
transistors or integrated circuits.

There are two types of symbols for NOT gate :-

NOT gate symbol; IEC symbol

. 4. XOR gate :-
The XOR gate stands for the Exclusive-OR gate. This
gate is a special type of gate used in different types
of computational circuits. Apart from the AND, OR,
NOT, NAND, and NOR gate, there are two special
gates, i.e., Ex-OR and Ex-NOR. These gates are not
basic gates in their own and are constructed by
combining with other logic gates. Their Boolean
output function is significant enough to be
considered as a complete logic gate. The XOR and
XNOR gates are the hybrids gates.

There are three types of symbols for XOR gate :-

XOR Symbol IEC XOR Symbol

DIN XOR Symbol

5. NAND gate :-
The NAND gate is a special type of logic gate in the
digital logic circuit. The NAND gate is the
combination of the NOT-AND gate.

The NAND gate is significant because any boolean

function can be implemented by using a
combination of NAND gates. This property is called
functional completeness. It shares this property with
the NOR gate.

There are three types of symbols for NAND gate :-

MIL/ANSI Symbol IEC Symbol

DIN Symbol
6. NOR gate :-
The NOR gate is also a universal gate. So, we can
also form all the basic gates using the NOR gate. The
NOR gate is the combination of the NOT-OR gate.

The output state of the NOR gate will be high only

when all of the inputs are low.

Simply, this gate returns the complement result of

the OR gate.

There are three types of symbols for NOR gate :-

MIL/ANSI Symbol IEC Symbol

DIN Symbol
 Combinational Logic Circuits
 Introduction to combinational logic circuits

.Combinational circuit is a circuit in which we

combine the different gates in the circuit, for
example encoder, decoder, multiplexer and
demultiplexer.

Some of the characteristics of combinational circuits

are following –

1. The output of combinational circuit at any instant

of time, depends only on the levels present at input
terminals.

2. The combinational circuit do not use any memory.

The previous state of input does not have any effect
on the present state of the circuit.

3. A combinational circuit can have an n number of

inputs and m number of outputs.
 Basic combinational circuits
Basic combinational circuits are digital circuits that
consist of interconnected logic gates and do not
have any feedback loops. Here are some examples of
basic combinational circuits:
1. Adder/Subtractor Circuit: An adder/subtractor circuit
combines two binary numbers and performs addition or
subtraction based on a control signal. It typically consists of
XOR, AND, and OR gates.

2. Multiplexer (MUX): A multiplexer is a digital circuit that

selects one of many input lines and directs it to a single
output line based on select lines. It can be represented using
logic gates and is often used in data routing and selection
applications.

3. Demultiplexer (DEMUX): A demultiplexer is the reverse of a

multiplexer. It takes a single input line and directs it to one of
many output lines based on select lines.

4. Encoder: An encoder is a circuit that converts a set of input

signals into a binary code based on the active input line. It is
commonly used in applications such as data compression and
communication systems.
5. Decoder: A decoder is the reverse of an encoder. It takes a
binary code and activates a specific output line based on the
code. Decoders are often used in applications such as memory
address decoding and display systems.

6. Comparator: A comparator circuit compares two binary

numbers and produces output signals indicating the
relationship between them, such as equality, greater than, or
less than. It is widely used in digital arithmetic and control
circuits.

These are just a few examples of basic combinational

circuits. Combinational circuits can be combined and
interconnected to create more complex circuits and
perform a wide range of digital operations.
 Sequential Logic Circuits

 Introduction to sequential logic circuits

A sequential circuit refers to a special type of circuit.
It consists of a series of various inputs and outputs.

Here, the outputs depend on a combination of both

the present inputs as well as the previous outputs.
This previous output gets treated in the form of the
present state.

Thus, the sequential circuit consists of the

combinational circuit along with its memory storage
elements. It doesn’t need to consist of a
combinational circuit all the time.

A sequential circuit can basically contain only the

memory element.
 Types of Sequential Circuits
There are basically two types of sequential circuits :-

1. Asynchronous sequential circuits

2. Synchronous sequential circuits

1. Asynchronous sequential circuits

The asynchronous sequential circuits don’t make use
of the clock signals. This type of circuit is operated
through various pulses. Thus, the changes in our
input can easily make a change in the state of our
circuit. Clock pulses are not used in the case of
asynchronous circuits.

Here, the internal state gets altered whenever there

is a change in the input variable. The time-delayed
or the unclocked flip-flops form the memory
elements of the asynchronous sequential circuits.
This type of circuit is very similar to that of the
combinational circuits along with the feedback.
2. Synchronous sequential circuits
Synchronous sequential circuits are digital circuits
that use clock signals to determine the timing of
their operations. They are commonly used in digital
systems to implement timers, counters, and memory
elements.
Synchronous sequential circuits can be implemented
using flip-flops, which are circuits that store binary
values and maintain their state even when the inputs
change.
The output of the flip-flops is determined by the
current inputs and the previous state stored in the
flip-flops, and the next state is determined by the
state transition function, which is a Boolean function
that describes the behavior of the circuit.
 Future of logic gates

The future of logic gates holds several exciting

possibilities as technology continues to advance.

Here are some potential directions and trends for

the future of logic gates:

1. Miniaturization and Nanotechnology:

Logic gates have been continually shrinking in size,

following Moore's Law. As technology advances,
logic gates are expected to become even smaller
and more compact. The development of
nanotechnology and the exploration of new
materials and fabrication techniques may enable the
creation of logic gates at the atomic or molecular
scale, potentially leading to highly efficient and
powerful computing systems.
2. Alternative Computing Paradigms:

While traditional logic gates based on Boolean

algebra have been the foundation of digital
computing, alternative computing paradigms are
gaining attention. Quantum computing, for example,
uses quantum logic gates that operate on quantum
bits (qubits) and can solve certain problems
exponentially faster than classical computers. Other
emerging paradigms like neuromorphic computing
and DNA computing may also require different
types of logic gates tailored to their specific
computational models.

3. Integrated Photonics:

Photonics, the study and application of light, has

shown promise for high-speed and energy-efficient
data transfer. In the future, logic gates based on
integrated photonics could be developed, allowing
for optical computing systems. Optical logic gates
could exploit properties such as light interference,
nonlinearity, and waveguides to perform logic
operations using photons instead of electrons.
 Advancements in logic gate technology

Advancements in logic gate technology have been

instrumental in driving the progress of digital
computing. Here are some key advancements that
have occurred:

1. Scaling Down: One significant advancement is the

continual scaling down of logic gates, following
Moore's Law. This has led to the miniaturization of
transistors and the ability to fit more logic gates on a
single chip, increasing computational power and
density.

2. Integration and System-on-Chip (SoC): Logic gates

have been integrated into larger systems, leading to
the development of System-on-Chip (SoC)
technology. SoCs combine various components,
including logic gates, memory, processors, and
peripherals, onto a single integrated circuit, enabling
highly compact and efficient devices.
3. Low Power Consumption: Advancements in logic
gate technology have focused on reducing power
consumption. Low-power logic gates have been
developed to enhance battery life in portable
devices and reduce energy requirements in data
centers. Techniques like voltage scaling, leakage
reduction, and power gating have been employed to
minimize power consumption.

4. High-Speed Operation: Logic gate technology has

advanced to enable higher operating speeds. This
includes the use of advanced semiconductor
materials, improved transistor designs, and
optimization of interconnect technologies to reduce
signal delays and increase clock frequencies.
 Conclusion
 Importance of logic gates in modern
electronics

Logic gates play a crucial role in modern electronics

and digital systems. Here are some key reasons why
logic gates are important in modern electronics:

1. Digital Information Processing: Logic gates are

the fundamental building blocks of digital
information processing. They enable the
manipulation and processing of binary data, allowing
computers and digital systems to perform complex
calculations, execute instructions, and make logical
decisions

2. Boolean Logic Operations: Logic gates implement

Boolean logic operations, such as AND, OR, NOT,
XOR, and more. These operations are the foundation
of digital circuit design, enabling the representation
and manipulation of logical states and enabling
complex computations.

3. Combinational and Sequential Logic: Logic gates

are used to design both combinational and
sequential logic circuits. Combinational logic circuits
perform operations solely based on the current
input values, while sequential logic circuits have
memory elements and can store information about
previous states. These types of circuits are essential
for tasks like arithmetic operations, control unit
design, and memory systems.

4. Circuit Design and Implementation: Logic gates

are used to design and implement various digital
circuits, such as adders, multipliers, multiplexers,
decoders, and more. These circuits form the building
blocks of larger digital systems, including CPUs,
memory units, and input/output devices.
 Future scope of research and development in
logic gate :-
The future scope of research and development in
logic gates is wide and promising, driven by the
constant demand for more efficient, faster, and
advanced digital systems. Here are some potential
areas of focus for future research and development
in logic gates:

1. Beyond Silicon Technology: As the limits of

traditional silicon-based logic gates are being
reached, researchers are exploring alternative
materials and technologies. This includes exploring
emerging technologies such as graphene, carbon
nanotubes, and 2D materials for developing new
types of logic gates with improved performance,
power efficiency, and scalability.

2. Quantum Logic Gates: Quantum computing is an

area of intense research and development, and logic
gates play a central role in quantum computation.
Researchers are working on developing more
efficient and error-tolerant quantum logic gates to
enhance the capabilities and scalability of quantum
computing systems. Advancements in quantum logic
gates are crucial for achieving practical quantum
computing with applications in cryptography,
optimization, and simulation.

3. Energy Efficiency: Power consumption is a

significant concern in modern electronic systems.
Future research may focus on developing logic gates
that are even more energy-efficient. This could
involve exploring new design methodologies,
materials, and architectures to minimize power
dissipation and improve overall energy efficiency.

4. Non-volatile Logic Gates: Non-volatile logic gates

that can retain their state without power supply are
gaining interest. This could enable the development
of ultra-low-power devices and energy-efficient
memory systems. Research in this area aims to
explore new materials, such as phase-change
materials or magnetic devices, that can enable non-
volatile operation of logic gates.
