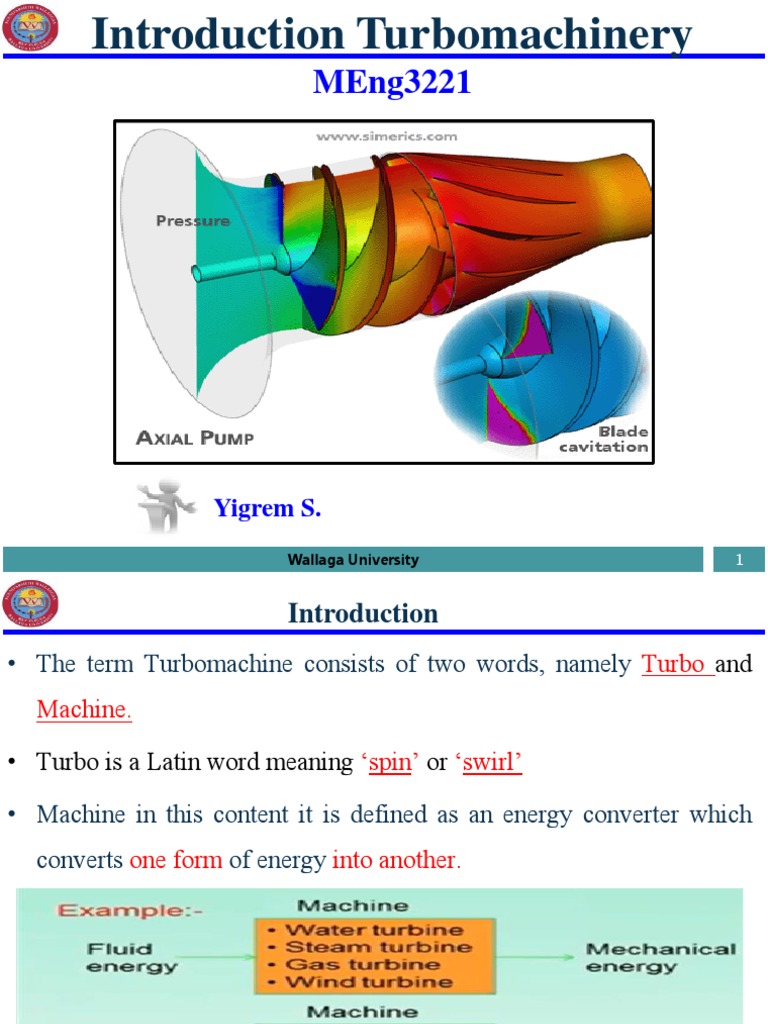

Introduction Turbomachinery

MEng3221

Yigrem S.
Wallaga University 1
 Introduction
• The term Turbomachine consists of two words, namely Turbo and
Machine.

• Turbo is a Latin word meaning ‘spin’ or ‘swirl’

• Machine in this content it is defined as an energy converter which

converts one form of energy into another.

Wallaga University 2
 Introduction
• Turbo machinery: is a device that exchanges energy with a fluid
using continuously flowing fluid and rotating blades due to dynamic
action and results in the change of pressure an momentum of the
fluid.

• In turbomachines, mechanical energy is transferred into or out of the

system in a steady flow processes.

• Examples are: Wind turbines, Water turbines, Aircraft engines.

Wallaga University 3
 Introduction- Applications
❖ Electricity generation (Hydro Turbines, Steam and Gas Turbines, Wind
Turbines)
❖ Jet engine (Multi-stage Turbines and Multi-stage Compressors coupled)
❖ Industrial and miscellaneous service (Air Compressors in Pneumatic
systems, pumps in hydraulic and cooling systems and also in steam
generating cycle)
❖ HVAC (Pumps(>3bar), blowers (>0.7and<3bar) bar, fans(<0.7 bar))
❖ Refrigerators (centrifugal compressor)
❖ Agriculture (pumps-fluid transfer)
❖ Automobiles (Radiator i.e. air fan, Turbocharger i.e. energy recovery unit)
❖ Propellers in ships

Wallaga University 4
Introduction- Applications

Wallaga University 5
Introduction- Applications

Wallaga University 6
 Components of a simple Turbomachine

❖ Rotor: It is the main component and consists of the circumferentially

arrayed blades or buckets around a circular disc, a hub or a shaft.
❖ Stator: It is also called guide vane which directs the flow into the stator
blades for maximum utilization of the fluid energy.
❖ Casing: It is the component of many turbo machines which distributes the
flow through each rotor blades. It allows flow to enter and leave the
turbomachine after extracting energy and also prevents losses as a result of
splash out flow and leakage.
❖ Shaft: It transmit energy between the turbomachine and another coupled
system like a motor or generator.

Wallaga University 8
Components of a simple Turbomachine

Wallaga University 9
 Classification of Fluid Machinery
Fluid Machinery

Positive Displacement Dynamic/Turbomachines

(Confined volume) (Dynamic effect between fluid stream and
solid component/rotor)

Classification by Direction of Energy

Input energy into fluid stream Extract energy from fluid stream
Pump, fan, compressor Hydraulic/Wind/Gas/Steam turbine

Classification by Direction/Path of Flow

(as it passes through the blade passage.)

Radial-Flow Mixed-Flow Axial-Flow

Wallaga University 10
Comparison between turbomachines and positive displacement machine

Wallaga University 11
 Classification of Turbomachines

Turbomachines can be classified in two main groups;

A. Power Machines (Turbines):- extract energy from flow
medium and transfer it to shaft of the machine.
• According to the available kind of energy power
machines can be further classified as:
1. Water turbines :- convert pressure energy
2. Wind turbines:- convert kinetic energy of the air
3. Heat Turbines:- Convert heat energy of the gas or
steam
a. steam turbines:
b. Gas turbines

Wallaga University 12
Wallaga University 13
Wallaga University 14
 Classification of Turbomachines

• Machines for Extracting Work (Power) from a Fluid

Wallaga University 15
 Classification of Turbomachines

B. Working Machines (Pumps): deliver energy from the shaft

of the machine to the flow medium.

• According to the kind of flow medium and pressure generated

working machines are further classified into:

1. Pumps (Liquid Medium)

2. Compressors (Gas Medium)
a. Fans --- Low pressure rise
b. Blowers --- medium Pressure rise
c. Turbo-Compressors ---high pressure rise

Wallaga University 16
 Classification of Turbomachines

Machines for Doing Work on a Fluid

Fig. Schematic diagrams of centrifugal-flow turbomachines

Wallaga University 17
Centrifugal Pump Video

Wallaga University 18
 Turbomachines and Their Energy Transfer Aspect
Energy extracted from a high-energy fluid stream to be converted
to useful shaft work
A fluid 1 W s PE of a fluid stream is extracted
stream
2 and converted to shaft work OUT

Hydraulic
turbine

Stream tube
2
High 1 Low
fluid fluid
stream
stream KE of a fluid stream is extracted
W s and converted to shaft work OUT

Wallaga University 19
 Turbomachines and Their Energy Transfer Aspect

Energy added to a low-energy fluid stream to raise the energy

level of the stream

Energy is added to a
fluid stream as shaft
work IN
W s
2
High fluid
Low stream
fluid
strea
m 1
Centrifugal fan (Radial-flow)
http://www.nyb.com/frames/products_fr.htm

20
Wallaga University 20
 Turbomachines and Their Energy Transfer Aspect
Classification of Turbomachines based on the way in which
the flow passes through the rotor:
I. Axial-flow Machines:- the direction of the flow in the ‘meridian
section’ is parallel to the axis of the rotor
❖ Flow path ~ parallel to axis of rotation

II. Radial-flow Machines: the direction of the flow in the meridian

section is perpendicular to the rotor:
❖ Flow path ~ perpendicular to axis of rotation

III. Mixed- flow Machines: The direction of the flow in the meridian
section has a component parallel as well as perpendicular to the
axis of the rotor.
Wallaga University 21
 Axial Flow

Wallaga University 22
 Radial Flow

Wallaga University 23
 Mixed Flow

Wallaga University 24
Axial-Flow Working Machines

Wallaga University 25
Axial-Flow Pump

Wallaga University 26
Axial-Flow compressor

Wallaga University 27
 Radial-Flow Working Machines

• Radial or Centrifugal fan

Wallaga University 28
Radial or Centrifugal Pump

Wallaga University 29
Radial or Centrifugal Compressor

Wallaga University 30
 Power Machines Water Medium (Water Turbines)

• KAPLAN- or Propeller Turbine

Wallaga University 31
Francis Turbine

Wallaga University 32
Pelton Turbine

Wallaga University 33
 Power Machines Air, Gas Steam Medium

• Wind Mill

Wallaga University 34
 Gas Turbine

Wallaga University 35
Steam Turbine

Wallaga University 36
• Turbomachines have always a vanned rotor and often stationary vanes
(guide vanes). The guide vanes are mostly located at the pressure
end of the machine.
• Pressure end/flange: is the part at which the energy possessed by the
fluid is a maximum:
– In working machines, the exit end is the pressure end
– In power machines the inlet end is the pressure end
• Suction end/flange:- is the part at which the energy possessed by the
fluid is a minimum.
– In working machines, the inlet end is the Suction end
– In power machines the exit end is the Suction end

Wallaga University 37
Wallaga University 38
Fundamental equation governing turbomachines

Wallaga University 39
Fundamental equation governing turbomachines

Wallaga University 40
Fundamental equation governing turbomachines

Wallaga University 41
Fundamental equation governing turbomachines

Wallaga University 42
Fundamental equation governing turbomachines

Wallaga University 43
Fundamental equation governing turbomachines

Wallaga University 44
Fundamental equation governing turbomachines

Wallaga University 45
 m2
The Specific Work Y [ ] s2

❑ The difference of the useful specific energy content of the flow

medium between the two ends of the machine is defined as ‘ specific
work done between inlet and outlet of the machine =Y’

• Regarding the energy transfer in a turbomachinery is to be noted

that:

a. an increase/decrease of the useful energy content of the flow

medium in the case of working/power machines, and

b. always increase of the non-utilizable energy content of the flow

medium.

Wallaga University 46
 m2
The Specific Work Y [ ] s2

Energy absorbed by the flow medium due to

flow losses. This energy is non-utilizable.

Total energy Total

transferred Useful Flow energy energy
from impeller energy rise of transferred available
to the flow the flow into torque (useful)
Y Y
medium medium

Pump Turbine

Wallaga University 47
From Bernoulli Equation:

Total Pressure Velocity geodetic

= + +
Energy Energy Energy Energy

Thus specific energy can be given by the formula:

D
C D2 − C s2  m2 
Y =  vdp + + g (Z D − Z S )  2 
S
2 s 
Y = Y pr + Yvel + Ygeo

D
Where: Y pr =  vdp specific pressure work
S

C D2 − C s2 kinetic energy
Yvel =
2
Ygeo = g (Z D − Z S ) Specific geodetic energy
Wallaga University 48
• Specific energy content of the flow medium between S and D ends of
the machine can be expressed in terms of ‘Head’ H.
 m2  m
Y  2  = g  2  H m
s  s 
• Note that the value of H will change if the machine works in another
field of gravity contrary to the value of Y which does not change with g.

• Y is always measured between the suction and pressure ends of the

machine. In the case of water turbines the tail race surface is
considered as the suction end.

Wallaga University 49
Often the equation for Y can be simplified:
• In the case of Wind turbines where only velocity energy is available,
it is: C2 −C2
Yvel = D s
2
• In the case of steam turbines, the velocity and geodetic energy can be
neglected as both are very small compared with the pressure energy,
D
Y = Y pr =  vdp
S

• In the case of pumps with equal diameters of suction and pressure

flanges, the velocity energy is zero.

Y = Ypr + Ygeo

Wallaga University 50
 Determination of the Pressure Energy Ypr

❑ The pressure energy represents the needed work to change the static
pressure of the flow medium from PS to PD by a process without
losses.
❑ In case of an incompressible medium the pressure energy is:
PD − PS
D D
dp
Y pr =  vdp =  =
S S
 

❑ In case of a compressible medium the density is changing from S to

D. Ypr has to be determined by integration:
D D
dp
Ypr =  vdp = 
S S


Wallaga University 51
Consider isentropic process AB’
The course AB’ is given by the equation:
CP
P.v = const. where k =
K

CV
The value of the ‘const’ can be determined
from the known inlet conditions:

K
compression : P s .vs
K
exp ansion: P D .vD

P.v = Ps .vs = PD .vD

K K K

Wallaga University 52
 Compression (Pumping Machine)

Integration:
1
D
 Ps vs K  K
D
Ypr = Yad =  vdp =    dp
S S
P 
 K −1
  K −1

   
Ps vs  D  − 1 = RTS  D  − 1
K K
k P k P
Ypr = Yad =
k −1  PS   k −1  PS  
   
 K −1

 
Ypr = Yad = C PTS  D  − 1 as gas cons tan t R = C P − CV nd
K
P k
R = CP
 PS   k −1
 

From ideal gas theory, for isentropic process : P Nm

For Air : R = = 286.9
K −1 T kg K
TD  PD  K
=  , this gives, Nm kcal
TS  PS  C P = 1005 = 0.240
kg K kg K
T 
Ypr = Yad = C PTS  D − 1 = C P (TD − TS ) CV = 715.9
Nm
= 0.171
kcal
 TS  kg K kg K

Wallaga University 53
 Expansion (turbine)

Integration:
1
D D
 PD vD K  K
Y pr = Yad =  vdp =    dp

S 
S
P
 K −1
  K −1

  Ps  K  P 
RTD 1 −  s 
k k K
Y pr = Yad = PD vD 1 −   = 
k −1   PD   k − 1   PD  
   
 K −1

  Ps  K 
Y pr = Yad = C PTD 1 −  
  PD  
 

 Ts 
Similarly Ypr = Yad = C PTD 1 − 
 TD 
Ypr = Yad = C P (TD − Ts ) For perfect gases
Ypr = Yad = iD − iS For steam

Wallaga University 54
 Ypr in T,s Diagram
 K −1

a. Compression P 
= c pTs  D − 1
K
Ypr = Yad 
 PS  
 

K −1 K −1
P  P 
'
For isentropic process: T K K
=  D 
D
hence, T D' = TS  D 
TS  PS   PS 
 K −1

 
( )
or t ad = T D' − TS = TS  D  − Ts 
K
P
  PS  
For adiabatic process:  
Ypr = c p t ad

dq = di − vdp = 0 or di = vdp

 di =  vdp = Y pr As di = cP dT
TD'
Ypr =  cP dT
TS

Wallaga University 55
 ❖ Thus, Ypr is obtained if the
integration is done from TS to
TD’ along a line of const. Cp
for instance along the pressure
PD:

❖Ypr =Yad=CPΔtad is represented by the area

AB’B”C”C”

Wallaga University 56
 B. Expansion

Ypr = Yad = c p t ad = c p TD − TS' ( )

 K −1

  PS  K

where t ad = Ts 1 −  
  PD  
 

Ypr=Yad is represented by
the area AB”C”C’B’

Wallaga University 57
 Ypr in i,s Diagram

iD '
a. Compression: Ypr =  vdp =  di = iD ' − iS = iad
iS

and Ypr is represented

by the distance AB.

Wallaga University 58
 Ypr in i,s Diagram

iD
b. expansion: Ypr =  vdp =  di = iD − iS ' = iad
iS '

and Ypr is represented by

the distance AB’.

Wallaga University 59
 The power
• The amount of the power change of the continuous flow which
passes the machine is:
 Nm 
N eff = MY = VY   or W 
 s 

• Coupling power = effective power for ideal machines that

operate without any losses
• An actually machine involves losses . Thus the coupling power
of the machine is:

 VY
 for pumps
N=Shaft power N =  = VY 

 VY for turbines

Wallaga University 60
END OF
CHAPTER-1

Wallaga University 61
