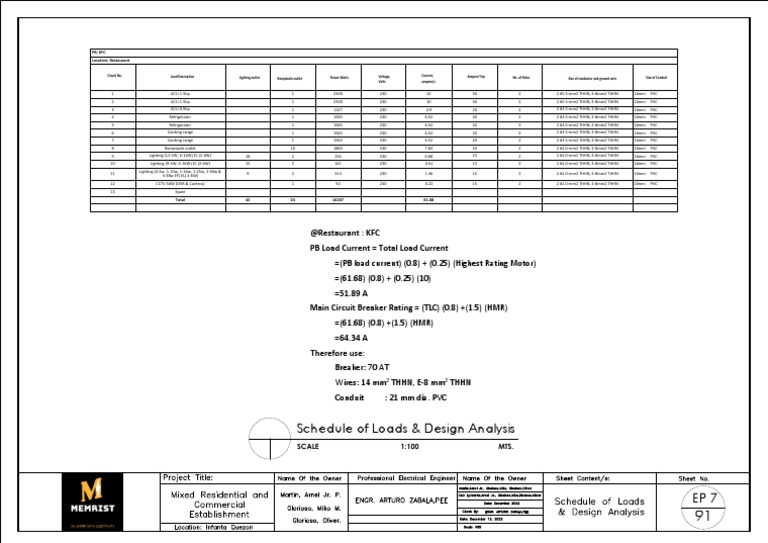

PB: KFC

Location: Restaurant

Circuit No. Load Description Voltage, Current, Ampere Trip

Lighting outlet Receptacle outlet Power Watts No. of Poles Size of conductor and ground wire Size of Conduit
Volts ampere/s

1 ACU 1.5hp 1 2300 230 10 30 2 2 #5.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
2 ACU 1.5hp 1 2300 230 10 30 2 2 #5.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
3 ACU 0.5hp 1 1127 230 4.9 20 2 2 #3.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
4 Refrigerator 1 1500 230 6.52 20 2 2 #3.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
5 Refrigerator 1 1500 230 6.52 20 2 2 #3.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
6 Cooking range 1 1500 230 6.52 20 2 2 #3.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
7 Cooking range 1 1500 230 6.52 20 2 2 #3.5-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
8 Receptacle outlet 10 1800 230 7.83 20 2 2 #2.0-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
9 Lighting (12-5W, 6-16W) EL (2-6W) 18 2 156 230 0.68 15 2 2 #2.0-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
10 Lighting (9-5W, 6-16W) EL (2-6W) 15 2 141 230 0.61 15 2 2 #2.0-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
Lighting (4-3w, 1-10w, 1-16w, 1-25w, 2-30w &
11 9 2 313 230 1.36 15 2 2 #2.0-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
5-38w EF) EL( 2-6W)
12 CCTV 50W (DVR & Camera) 1 50 230 0.22 15 2 2 #2.0-mm2 THHN, E-8mm2 THHN 16mm ⌀PVC
13 Spare
Total 42 24 14187 61.68

@Restaurant : KFC
PB Load Current = Total Load Current
=(PB load current) (0.8) + (0.25) (Highest Rating Motor)
=(61.68) (0.8) + (0.25) (10)
=51.89 A
Main Circuit Breaker Rating = (TLC) (0.8) +(1.5) (HMR)
=(61.68) (0.8) +(1.5) (HMR)
=64.34 A
Therefore use:
Breaker: 70 AT
Wires: 14 mm2 THHN, E-8 mm2 THHN
Conduit : 21 mm dia. PVC

Schedule of Loads & Design Analysis

SCALE 1:100 MTS.

EP 7
91
