DEPARTMENT OF Page : 1/ 10

MECHANICAL
ENGINEERING Title: SWITCH
SULTAN ABDUL HALIM MU’ADZAM SHAH
Program: DEM 3

Duration: 4 Hours
Code and course :
DJM 30062 INDUSTRIAL ELECTRONICS

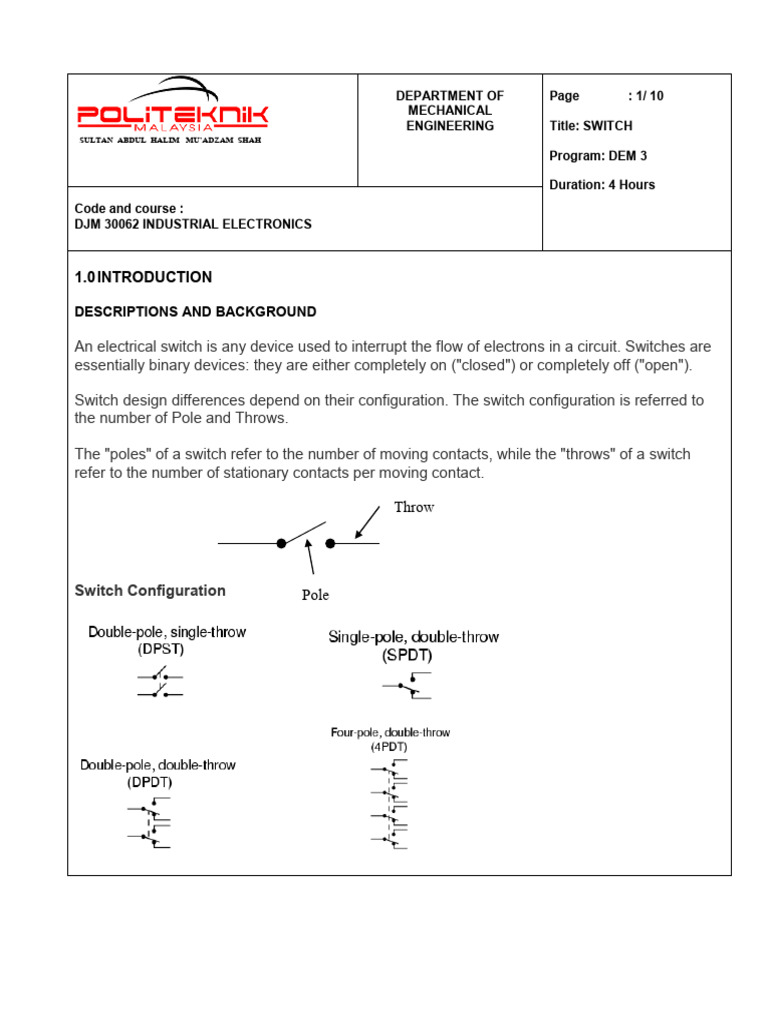

1.0 INTRODUCTION

DESCRIPTIONS AND BACKGROUND

An electrical switch is any device used to interrupt the flow of electrons in a circuit. Switches are
essentially binary devices: they are either completely on ("closed") or completely off ("open").

Switch design differences depend on their configuration. The switch configuration is referred to
the number of Pole and Throws.

The "poles" of a switch refer to the number of moving contacts, while the "throws" of a switch
refer to the number of stationary contacts per moving contact.

Throw

Switch Configuration Pole

 DEPARTMENT OF Page : 2/ 10
MECHANICAL
ENGINEERING
SULTAN ABDUL HALIM MU’ADZAM SHAH

2.0 OBJECTIVES

At the end of this lab activity, students will be able to:-

1. Differentiate Switch configuration

2. Applied switch for suitable application
3. Draw switch logic circuit and schematic diagram based on system requirements
4. Simulate switch logic circuit

LAB 1.0
EQUIPMENT
1. Computer
2. Simulator Software
PROCEDURES
1. Using simulator software, draw the schematic in figure 1.1.

Figure 1.1

Start drawing the switch schematic diagram, using the icon toolbars in the
simulator software
 DEPARTMENT OF Page : 3 /10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

2. Simulate the completed schematic.

2. Complete the given exercise;

Exercise 1

Based on the condition given by the table, draw and simulate the switch schematic circuit.

Circuit element;

i. 9-volt dc supply
ii. SPST switch
iii. Pilot Lamp
 DEPARTMENT OF Page: 4/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

Exercise 1a

Switch 1 Switch 2 Output (Pilot

Lamp)
OFF OFF OFF
OFF ON OFF
ON OFF OFF
ON ON ON

Exercise 1b

Switch 1 Switch 2 Output (Pilot

Lamp)
OFF OFF OFF
OFF ON ON
ON OFF ON
ON ON ON

Exercise 2

Based on the condition given by the table, draw and simulate the switch schematic circuit.

Circuit element;

i. 9-volt dc supply
ii. SPDT switch
iii. Pilot Lamp

Switch position
 DEPARTMENT OF Page: 5/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

Exercise 2a

Switch 1 Switch 2 Output (Pilot

Lamp)
1 1 OFF
1 2 ON
2 1 ON
2 2 OFF

Exercise 2b

Switch 1 Switch 2 Output (Pilot

Lamp)
1 1 ON
1 2 OFF
2 1 OFF
2 2 ON

Exercise 3

Draw and simulate the switch schematic circuit based on the given switch logic circuit.
 DEPARTMENT OF Page: 6/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

Exercise 4

Design a circuit using two LEDs and a motor. Find a voltage needed to control the motor RPM at 10115,
clockwise rotation. When the motor runs using a switch the GREEN LED will turn ON and when the motor
is OFF the RED LED will turn On. Find the related switch to solve this problem and simulate it in a given
software to prove your design.

GREEN RED
 DEPARTMENT OF Page: 7/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

RESULT

Exercise 1

The schematic diagram for exercise 1a

Schematic Diagram for exercise 1b

 DEPARTMENT OF Page: 8/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

Exercise 2

The schematic diagram for exercise 2a

The schematic diagram for exercise 2b

 DEPARTMENT OF Page: 9/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

The schematic diagram for exercise 3

The schematic diagram for exercise 4

 DEPARTMENT OF Page: 10/10
MECHANICAL ENGINEERING

SULTAN ABDUL HALIM MU’ADZAM SHAH

Discussion

I've learned how to utilise the lab simulator software, distinguish between switch configurations, and get
accustomed to the fundamental circuit components and how to link them to create actual electrical
circuits. Understand the relationship and variations between theory and practise in order to validate the
laws and principles of electrical circuits. to acquire practical knowledge of electrical circuits. The
experiment improved my comprehension and practical perspective of switching schematic circuits.

Conclusion

We learned about Differentiate Switch Configuration in this lab. The next step is to apply the switch for the
correct application. Using the system specifications as a guide, draw the switch logic circuit and schematic
diagram. It's important to observe that each component is added to the circuit correctly, and the values are
placed where they go. I initially struggled with simulation, but afterwards it went smoothly.
 LAB SHEET
DJM 30062
INDUSTRIAL ELECTRONIC
REG. NO. NAME
03DEM21F1054 1. HAIKAL HADI BIN HAMIZAN
03DEM21F1040 2. MUHD AQIL ZAKWAN BIN JUPRI
03DEM21F1028 3. MUHD FARHAN BIN FARMI
03DEM21F1065 4. MUHD ISKANDAR BIN AZMAN
5.
Group No.
PROGRAMME
LECTURER NAME

LAB NO. 1. SWITCH

VER 2022.1.233
