1.

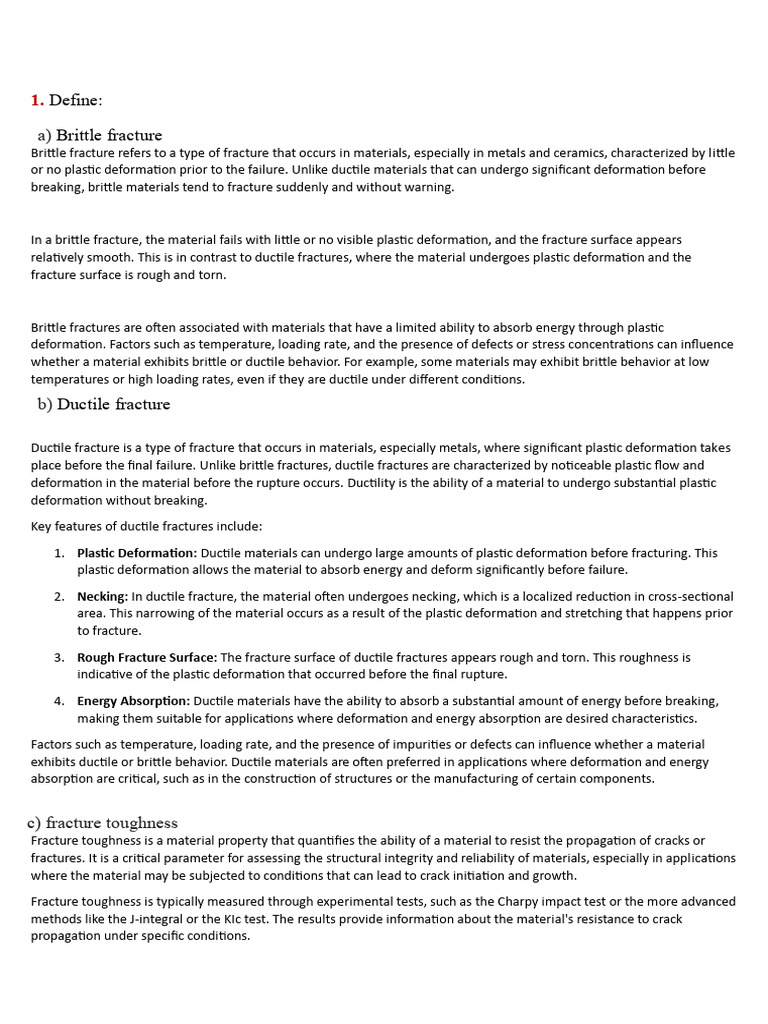

Define:

a) Brittle fracture
Brittle fracture refers to a type of fracture that occurs in materials, especially in metals and ceramics, characterized by little
or no plastic deformation prior to the failure. Unlike ductile materials that can undergo significant deformation before
breaking, brittle materials tend to fracture suddenly and without warning.

In a brittle fracture, the material fails with little or no visible plastic deformation, and the fracture surface appears
relatively smooth. This is in contrast to ductile fractures, where the material undergoes plastic deformation and the
fracture surface is rough and torn.

Brittle fractures are often associated with materials that have a limited ability to absorb energy through plastic
deformation. Factors such as temperature, loading rate, and the presence of defects or stress concentrations can influence
whether a material exhibits brittle or ductile behavior. For example, some materials may exhibit brittle behavior at low
temperatures or high loading rates, even if they are ductile under different conditions.

b) Ductile fracture

Ductile fracture is a type of fracture that occurs in materials, especially metals, where significant plastic deformation takes
place before the final failure. Unlike brittle fractures, ductile fractures are characterized by noticeable plastic flow and
deformation in the material before the rupture occurs. Ductility is the ability of a material to undergo substantial plastic
deformation without breaking.

Key features of ductile fractures include:

1. Plastic Deformation: Ductile materials can undergo large amounts of plastic deformation before fracturing. This
plastic deformation allows the material to absorb energy and deform significantly before failure.

2. Necking: In ductile fracture, the material often undergoes necking, which is a localized reduction in cross-sectional
area. This narrowing of the material occurs as a result of the plastic deformation and stretching that happens prior
to fracture.

3. Rough Fracture Surface: The fracture surface of ductile fractures appears rough and torn. This roughness is
indicative of the plastic deformation that occurred before the final rupture.

4. Energy Absorption: Ductile materials have the ability to absorb a substantial amount of energy before breaking,
making them suitable for applications where deformation and energy absorption are desired characteristics.

Factors such as temperature, loading rate, and the presence of impurities or defects can influence whether a material
exhibits ductile or brittle behavior. Ductile materials are often preferred in applications where deformation and energy
absorption are critical, such as in the construction of structures or the manufacturing of certain components.

c) fracture toughness
Fracture toughness is a material property that quantifies the ability of a material to resist the propagation of cracks or
fractures. It is a critical parameter for assessing the structural integrity and reliability of materials, especially in applications
where the material may be subjected to conditions that can lead to crack initiation and growth.

Fracture toughness is typically measured through experimental tests, such as the Charpy impact test or the more advanced
methods like the J-integral or the KIc test. The results provide information about the material's resistance to crack
propagation under specific conditions.
The concept of fracture toughness is particularly important in the context of brittle materials, where cracks can propagate
rapidly and lead to catastrophic failures without warning. In contrast, ductile materials may exhibit more plastic
deformation before failure, offering more warning signs of impending fracture.

The fracture toughness value is often denoted by symbols such as KIc (critical stress intensity factor) or KIC (critical stress
intensity factor for plane strain conditions). It represents the stress intensity at which a pre-existing crack or flaw in the
material will propagate and cause failure.

In practical terms, materials with higher fracture toughness are generally more resistant to crack propagation and are
considered more reliable in situations where crack growth is a concern. Engineers use fracture toughness data to design
materials and structures that can withstand the challenges of their intended applications, including those involving cyclic
loading, impact, and environmental factors.

d) fatigue
Fatigue, in the context of materials and structures, refers to the progressive and localized structural damage that occurs
when a material is subjected to repeated loading and unloading. This type of cyclic loading can lead to the initiation and
propagation of cracks, ultimately resulting in the failure of the material, even if the applied stresses are below the
material's static strength.

Fatigue is a common cause of failure in engineering materials and components, especially in situations where cyclic
loading is prevalent, such as in rotating machinery, bridges, aircraft, and other structures that experience repeated stress
cycles. The repeated loading causes microscopic cracks to form and grow over time, eventually reaching a critical size that
leads to catastrophic failure, often without warning.

Key points related to fatigue include:

1. Cyclic Loading: Fatigue occurs due to repeated cycles of loading and unloading, which can be caused by factors
such as changes in applied forces, temperature variations, or vibrations.

2. Fatigue Life: The fatigue life of a material refers to the number of loading cycles it can endure before failure.
Materials are often tested to determine their fatigue properties under specific conditions.

3. Stress Concentrations: Regions of stress concentration, such as notches or surface defects, can significantly
influence fatigue behavior by promoting the initiation of cracks.

4. Crack Propagation: Fatigue damage typically starts with the initiation of small cracks at stress concentrations.
These cracks then propagate and grow over time with each loading cycle until they reach a critical size, leading to
failure.

Engineers use various methods to assess and mitigate fatigue-related issues, including fatigue testing, stress analysis, and
design modifications. Understanding a material's fatigue properties is crucial in designing reliable and durable structures,
ensuring they can withstand the anticipated cyclic loading over their intended lifespan.

e) impact fracture

Impact fracture refers to the fracture of a material that occurs when it is subjected to a sudden and intense force or
impact. This type of fracture is characterized by the rapid and instantaneous failure of the material, often without
significant plastic deformation. Impact fractures are common in situations where materials experience sudden and high-
energy loads, such as during collisions, impacts, or dynamic loading events.

Key characteristics of impact fractures include:

1. Sudden Failure: Impact fractures occur rapidly, with little or no warning, as the material is unable to withstand the
high levels of stress generated by the sudden force.

2. Brittle Fracture: Impact fractures are often associated with brittle materials, which lack the ability to undergo
significant plastic deformation before breaking. Brittle materials tend to fail with little or no warning and can
exhibit a relatively smooth fracture surface.
 3. Fracture Surface Features: The fracture surface of an impacted material may show specific features, such as radial
patterns or concentric rings, depending on the nature of the impact and the material properties.
4. High-Energy Events: Impact fractures are more likely to occur in high-energy events, such as car crashes, falls, or
industrial accidents, where the material experiences a sudden and intense application of force.

Understanding the impact resistance of materials is crucial in designing structures, products, and safety systems to ensure
they can withstand unexpected forces without catastrophic failure. Engineers often perform impact testing to evaluate a
material's behavior under dynamic loading conditions and to design structures that can absorb and dissipate energy
effectively.

f) creep
Creep is a time-dependent deformation that occurs in materials when they are subjected to a constant load or stress at
elevated temperatures. Unlike instantaneous elastic deformation, which occurs immediately and is reversible when the
load is removed, creep involves a gradual and continuous deformation that progresses over an extended period.

Key features of creep include:

1. Temperature and Load Dependency: Creep is most significant at high temperatures, typically a significant fraction
of the material's melting or softening temperature. The extent of creep also depends on the applied stress or load.

2. Three Stages: Creep is often divided into three stages: primary creep, secondary creep, and tertiary creep. During
primary creep, the deformation rate is initially high but slows down over time. Secondary creep is characterized by
a relatively constant and moderate deformation rate. Tertiary creep is marked by an accelerating deformation rate,
leading to eventual failure.

3. Microstructural Changes: Creep is associated with microstructural changes in the material, such as grain boundary
sliding, dislocation movement, and diffusion processes. These mechanisms contribute to the material's gradual
deformation over time.

4. Common in High-Temperature Applications: Creep is a concern in applications where materials are exposed to
high temperatures and sustained loads, such as in steam pipes, gas turbines, and structural components in
aerospace and power generation.

Creep is a critical consideration in materials engineering and design, especially for components operating in high-
temperature environments. Engineers use creep testing to assess a material's creep behavior under specific conditions,
allowing them to predict long-term deformation and design structures that can withstand the effects of creep over their
intended lifespan.

g) Thermal fatigue
Thermal fatigue refers to the damage and failure of a material or component due to cyclic temperature variations. It occurs
when a material undergoes repeated heating and cooling cycles, leading to the development of thermal stresses that can
ultimately cause cracking, deformation, or other forms of structural damage. Thermal fatigue is particularly relevant in
applications where materials are exposed to rapid and repetitive temperature changes.

Key points about thermal fatigue include:

1. Cyclic Temperature Changes: Thermal fatigue results from the repeated exposure of a material to alternating high
and low temperatures. These temperature variations induce cyclic thermal stresses within the material.

2. Stress Accumulation: Each thermal cycle leads to the expansion and contraction of the material, causing stress to
accumulate over time. This cumulative stress can eventually exceed the material's fatigue strength, leading to
fatigue failure.

3. Common in High-Temperature Environments: Thermal fatigue is often encountered in components exposed to

high-temperature environments, such as exhaust systems, engine components, and industrial furnaces.
 4. Factors Affecting Thermal Fatigue: The severity of thermal fatigue depends on factors such as the rate of
temperature change, the temperature range, and the thermal conductivity of the material. Rapid temperature
changes and large temperature differentials are more likely to induce thermal fatigue.

Engineers employ various strategies to mitigate thermal fatigue, including selecting materials with high thermal
conductivity, designing components to minimize thermal gradients, and incorporating thermal barriers or insulation.
Additionally, thermal fatigue testing is conducted to assess a material's performance under cyclic thermal loading and to
guide the design of components that can withstand such conditions over their expected operational life.

h) corrosion fatigue
Corrosion fatigue is a type of material degradation that occurs as a result of the combined action of cyclic loading and
corrosive environments. It involves the initiation and growth of cracks in a material under the influence of alternating
stresses and exposure to a corrosive medium. Corrosion fatigue can lead to premature failure of materials, especially in
structures or components subjected to cyclic loading in corrosive atmospheres, such as those found in marine
environments.

Key features of corrosion fatigue include:

1. Cyclic Loading: Corrosion fatigue requires the presence of cyclic loading, which means that the material
experiences alternating stresses or strains. This cyclic loading can be induced by mechanical forces, thermal
cycling, or other dynamic loads.
2. Corrosive Environment: The material is exposed to a corrosive environment, such as saltwater, chemicals, or
atmospheric pollutants. The corrosive agents can weaken the material and promote crack initiation and
propagation.

3. Crack Initiation and Growth: The cyclic stresses, in combination with the corrosive environment, lead to the
formation and growth of cracks in the material. These cracks can continue to propagate with each cycle, eventually
resulting in failure.
4. Common in Certain Environments: Corrosion fatigue is often observed in structures and components located in
environments with aggressive corrosion factors, such as offshore structures, aircraft components, and industrial
equipment exposed to corrosive chemicals.

Preventing corrosion fatigue involves strategies such as selecting materials with high corrosion resistance, applying
protective coatings, implementing corrosion inhibitors, and designing components to minimize stress concentrations.
Regular inspections and maintenance are also essential for detecting and addressing potential issues before they lead to
catastrophic failures.

2. Make a distinction between ductile and brittle modes of fracture, with net sketch
Ductile Fracture:
 Characteristic Behavior: Ductile fracture involves significant plastic deformation before final failure.
The material can undergo noticeable stretching and necking.
 Energy Absorption: Ductile materials have the ability to absorb a substantial amount of energy before
breaking.
 Fracture Surface: The fracture surface is rough and torn, with evidence of plastic deformation.
  Warning Signs: Ductile fractures often exhibit warning signs, allowing for the detection of deformation
before catastrophic failure.

Brittle Fracture:
 Characteristic Behavior: Brittle fracture occurs with little or no plastic deformation before failure. The
material breaks suddenly and without warning.
 Energy Absorption: Brittle materials have limited ability to absorb energy through plastic deformation.
 Fracture Surface: The fracture surface is relatively smooth and may show minimal evidence of plastic
deformation.
 Warning Signs: Brittle fractures often occur without significant warning, making them more challenging
to predict compared to ductile fractures.
These sketches illustrate the key differences between ductile and brittle modes of fracture, emphasizing the
characteristic behaviors, energy absorption, fracture surface appearances, and warning signs associated with each
type.

3. Describe the mechanism of stress concentration failure

Stress concentration failure occurs when a local area of a material experiences a significantly higher level of
stress compared to the surrounding regions. This localized increase in stress is often caused by the presence of
geometric irregularities, such as notches, sharp corners, holes, or sudden changes in cross-sectional shape. The
mechanism of stress concentration failure can be understood through the following steps:
1. Application of Load:
 External loads or forces are applied to a structure or component. The applied load induces stress
throughout the material.
2. Geometric Irregularity:
 The presence of geometric irregularities or stress raisers in the material causes stress to
concentrate in specific regions. These irregularities may include sharp notches, grooves, or sudden
changes in the geometry of the material.
3. Local Increase in Stress:
 Stress concentration occurs in the vicinity of the geometric irregularity. The stress is significantly
higher in these localized areas compared to the average stress in the material.
4. Material Response:
  The material responds to the applied load by deforming and experiencing strain. In the regions
with stress concentration, the elevated stress levels can lead to accelerated deformation and strain.
5. Initiation of Cracks:
 The combination of high stress and localized deformation can lead to the initiation of cracks in the
material, particularly at the stress concentration points. These cracks may start as small
microcracks.
6. Crack Propagation:
 Once initiated, cracks can propagate under the continued application of stress. The local
concentration of stress facilitates the progression of cracks, leading to material failure.
7. Fracture:
 The propagation of cracks eventually reaches a critical size, causing the material to fail
catastrophically. This failure often occurs in the vicinity of the stress concentration, where the
material is most weakened.
To mitigate stress concentration failure, engineers use various design principles, such as avoiding sharp corners,
introducing fillets, and optimizing geometric shapes to distribute stress more uniformly. Additionally, materials
with higher fracture toughness may better resist crack initiation and propagation, reducing the susceptibility to
stress concentration failure.

4. Describe the process of fatigue failure

Fatigue failure is a process of structural damage and eventual fracture that occurs under repeated or cyclic loading
conditions. This type of failure is particularly relevant in materials and components subjected to fluctuating
stresses over time, as is common in applications such as machinery, bridges, aircraft, and other structures. The
process of fatigue failure can be outlined as follows:
1. Cyclic Loading:
 Fatigue failure begins with the application of cyclic or repeated loads to a material or structure.
These loads can be caused by factors such as mechanical vibrations, thermal cycling, or
fluctuations in applied forces.
2. Initiation of Microscopic Cracks:
 Each cycle of loading and unloading induces microscopic cracks, often at stress concentrations or
defects within the material. These cracks may be too small to be detected initially.
3. Crack Propagation:
 With each loading cycle, these microscopic cracks undergo further propagation. The cracks may
grow slowly but progressively, expanding with each stress cycle.
4. Accumulation of Damage:
 Over time, the repeated loading and crack propagation result in the accumulation of damage in the
material. This damage weakens the structure and reduces its ability to withstand stress.
5. Critical Crack Size:
 As the cracks propagate, they eventually reach a critical size. This critical size is determined by
the material's properties and the applied stress conditions.
6. Rapid Crack Propagation:
 Once the cracks reach the critical size, rapid crack propagation occurs. This is often an unstable
process leading to a sudden and catastrophic failure of the material.
7. Fracture:
 The material experiences a sudden and complete fracture as a result of the rapid crack propagation.
The failure is often brittle in nature and can occur without warning.
Key factors influencing fatigue failure include the magnitude and frequency of applied loads, the presence of
stress concentrations, material properties (such as fatigue strength and fracture toughness), and environmental
conditions. Engineers use fatigue testing and analysis to understand a material's fatigue behavior and design
structures to resist fatigue failure by incorporating fatigue-resistant materials, avoiding stress concentrations, and
implementing appropriate maintenance and inspection practices.

5. Describe the hardness as a mechanical property.

Hardness is a mechanical property that describes the resistance of a material to deformation, scratching, abrasion,
or penetration. It is an essential characteristic in various engineering applications, as it provides insights into a
material's ability to withstand wear, indentation, and other forms of mechanical damage. Hardness testing is
widely used to assess and compare the mechanical properties of different materials.
Here are some key aspects of hardness as a mechanical property:
1. Resistance to Deformation:
 Hardness measures a material's ability to resist deformation when subjected to an applied force. A
harder material is less likely to undergo plastic deformation and indentation.
2. Wear Resistance:
 Materials with higher hardness tend to exhibit better resistance to wear, abrasion, and erosion.
This makes hardness a critical property for components that experience sliding, rolling, or other
forms of contact.
3. Indentation Hardness:
 Indentation hardness is a common measure of hardness and is often determined through tests such
as the Brinell, Vickers, or Rockwell hardness tests. These tests involve applying a specific load to
an indenter and measuring the resulting indentation size.
4. Scratch Resistance:
 Hardness also influences a material's resistance to scratching. A harder material is less likely to be
scratched by a softer material.
5. Malleability and Ductility:
 There is an inverse relationship between hardness and malleability/ductility. Generally, harder
materials are less malleable and ductile, while softer materials tend to be more easily shaped.
6. Tool and Material Selection:
 Hardness information is crucial for selecting appropriate materials for specific applications. For
example, cutting tools, gears, and wear-resistant components often require materials with high
hardness.
7. Measurement Scales:
 Hardness can be measured using various scales, each suitable for specific materials and
applications. Common hardness scales include Rockwell (HRC, HRB), Brinell (HB), and Vickers
(HV).
8. Material Testing and Quality Control:
 Hardness testing is a valuable tool in quality control and material testing processes. It helps ensure
that materials meet specified hardness requirements and standards.
It's important to note that hardness is just one aspect of a material's overall mechanical behavior, and different
hardness tests may be more appropriate for specific materials or applications. The choice of hardness test depends
on factors such as the material type, the expected hardness range, and the desired level of precision.

6. Why the hardness tests are performed more frequently than any other test?

Hardness tests are performed more frequently than some other mechanical tests for several reasons:
1. Quick and Non-destructive:
 Hardness tests are often quick and non-destructive, allowing for the assessment of material
properties without causing significant damage to the tested specimen. This makes them practical
for quality control and routine inspections.
2. Ease of Use:
 Many hardness tests are relatively simple to conduct and do not require sophisticated equipment.
This simplicity makes hardness testing accessible for a wide range of applications and industries.
3. Wide Applicability:
 Hardness testing is applicable to a broad range of materials, including metals, polymers, ceramics,
and composites. This versatility makes hardness tests valuable in various industries, from
manufacturing to construction.
4. Correlation with Other Properties:
 Hardness is often correlated with other mechanical properties, such as tensile strength, wear
resistance, and fatigue strength. Therefore, hardness tests provide valuable information about a
material's overall mechanical performance.
 5. Quality Control:
 Hardness tests are commonly used in quality control processes to ensure that materials meet
specified hardness requirements and standards. This is crucial for maintaining the consistency and
reliability of manufactured products.
6. Material Selection:
 Hardness information is essential for selecting materials for specific applications. For example, in
industries like metalworking and tool manufacturing, hardness data guides the selection of
materials with appropriate wear resistance and durability.
7. Variety of Tests:
 There are several hardness testing methods, such as Rockwell, Brinell, and Vickers, each suitable
for different materials and applications. This variety allows for flexibility in choosing the most
appropriate test for specific scenarios.
8. Field Testing:
 Hardness tests can be conducted in the field, making them suitable for on-site inspections and
assessments. This is particularly useful in industries like construction, where materials need to be
tested in situ.
9. Cost-Effective:
 Hardness tests are often cost-effective compared to some other mechanical tests, especially when a
quick assessment of material properties is needed.
While hardness tests offer many advantages, it's important to note that they provide information about a specific
aspect of material behavior. Depending on the application, other mechanical tests such as tensile testing, impact
testing, or fatigue testing may be necessary to obtain a comprehensive understanding of a material's mechanical
properties.

7. List different types of hardness tests

There are several types of hardness tests, each designed to assess the hardness of materials in specific ways. The
choice of a particular hardness test depends on factors such as the material being tested, the expected hardness
range, and the desired level of precision. Here are some common types of hardness tests:
1. Rockwell Hardness Test (HRC, HRB, HRA):
 The Rockwell hardness test measures the depth of penetration of an indenter under a specific load.
It is one of the most widely used hardness tests and is suitable for a variety of materials, including
metals.
2. Brinell Hardness Test (HB):
 The Brinell hardness test involves indenting a spherical indenter into the material surface under a
known load. The hardness is determined by the ratio of the applied load to the area of the resulting
indentation. It is commonly used for softer materials.
3. Vickers Hardness Test (HV):
 The Vickers hardness test utilizes a diamond-shaped indenter to create an indentation. The
hardness is calculated based on the diagonal lengths of the indentation. This test is suitable for a
wide range of materials.
4. Knoop Hardness Test:
 Similar to the Vickers test, the Knoop hardness test uses a pyramidal-shaped diamond indenter. It
is often employed for microhardness testing of brittle materials or thin samples.
5. Shore Hardness Test (A, B, C):
 The Shore hardness test measures the resistance of polymers and elastomers to indentation. There
are different scales (A, B, C) depending on the hardness of the material being tested.
6. Leeb Hardness Test:
 Leeb hardness testing is commonly used for portable hardness measurements in the field. It
involves a dynamic impact with a tungsten carbide ball and is often employed in the testing of
metals.
7. Barcol Hardness Test:
 The Barcol hardness test is specifically designed for assessing the hardness of softer materials,
particularly plastics. It uses a sharp-pointed indenter to penetrate the material.
8. Superficial Hardness Tests (15N, 30N, 45N):
  Superficial hardness tests are modifications of Rockwell hardness tests with lighter loads. They are
used for thin or small specimens and provide higher sensitivity for measuring hardness variations
in surface layers.
Each hardness test method has its advantages and limitations, and the choice depends on the specific
requirements of the application, the type of material, and the desired accuracy of the hardness measurement.
